🛠️ Product Description

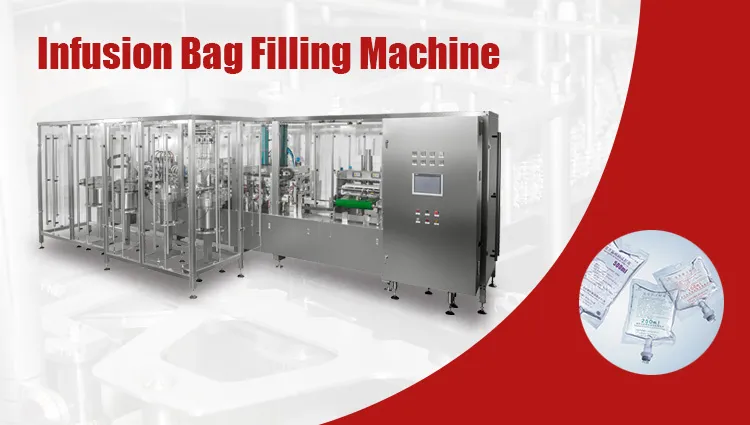

Non-PVC soft bag production line is the latest production line with most advanced technology. It can automatically finish film feeding, printing, bag making, filling and sealing in one machine. It can supply you different bag design with single boat type port, single/double hard ports, double soft tube ports etc.
💡 Application & Use Case

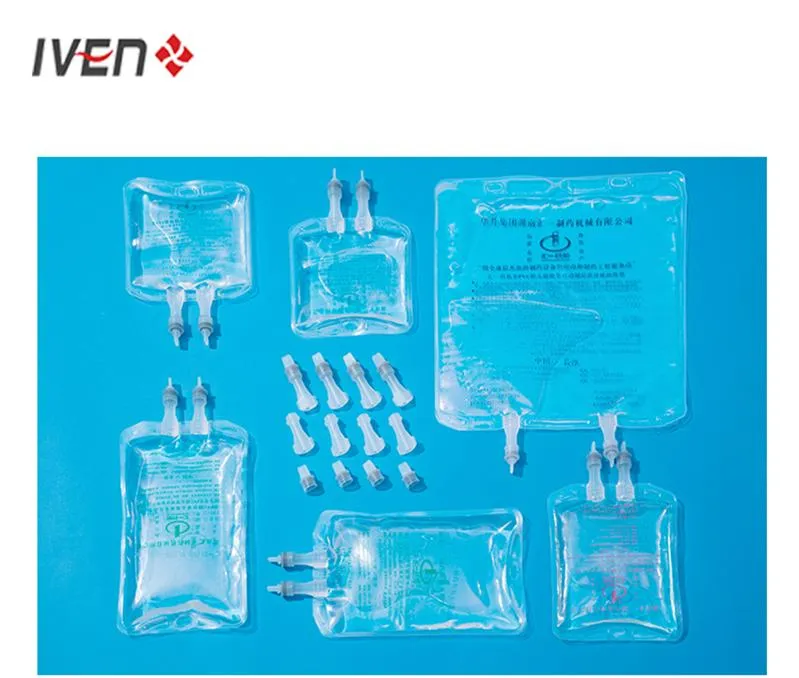

It can be applied to 50-5000ml Non-PVC soft bag for general solution, special solution, dialysis solution, parenteral nutrition, antibiotics, irrigation and disinfectant solution etc.

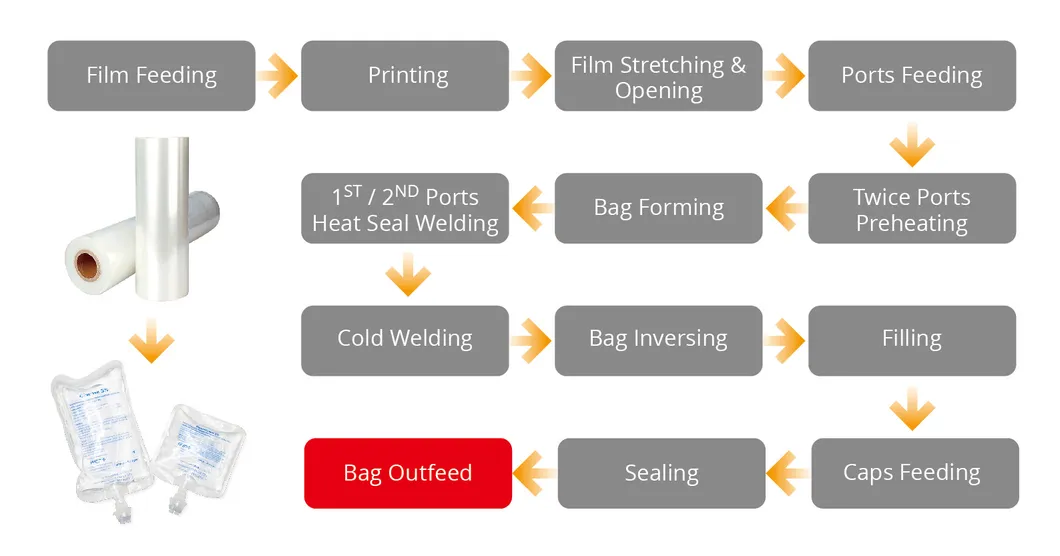

🔄 Production Procedures
📸 Detailed Process Photos

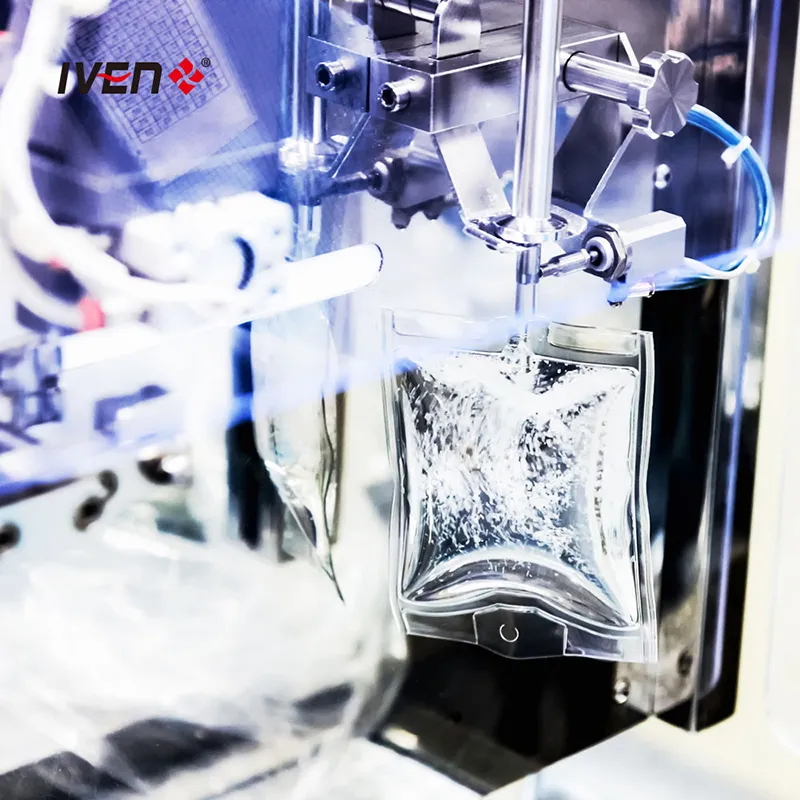

Film Feeding & Printing: Automatically feeds film to the printing and forming station; the film roll is fixed by easy-operated cylinder clamps requiring no tools.

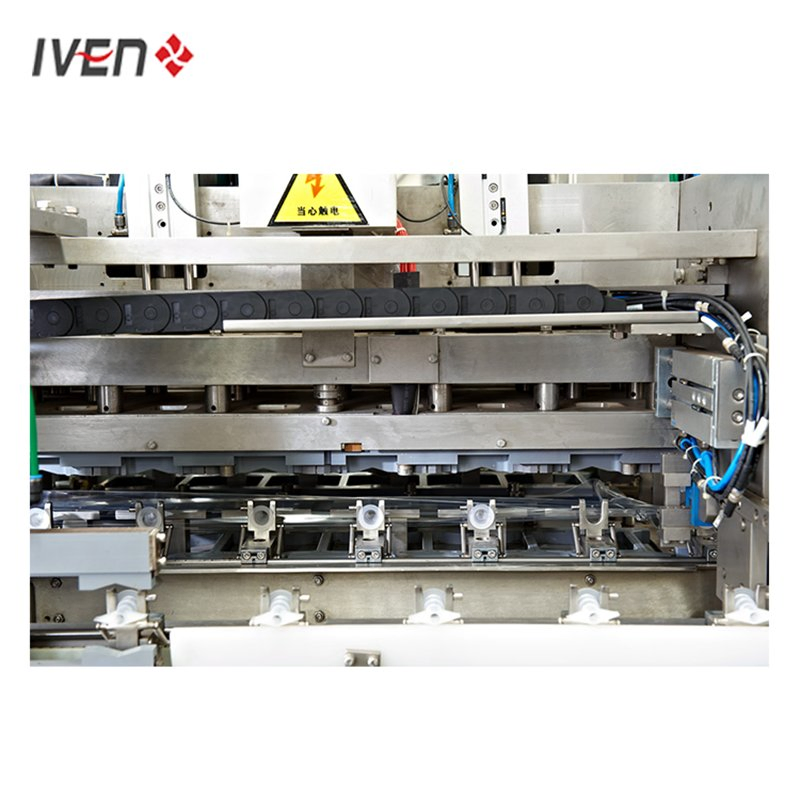

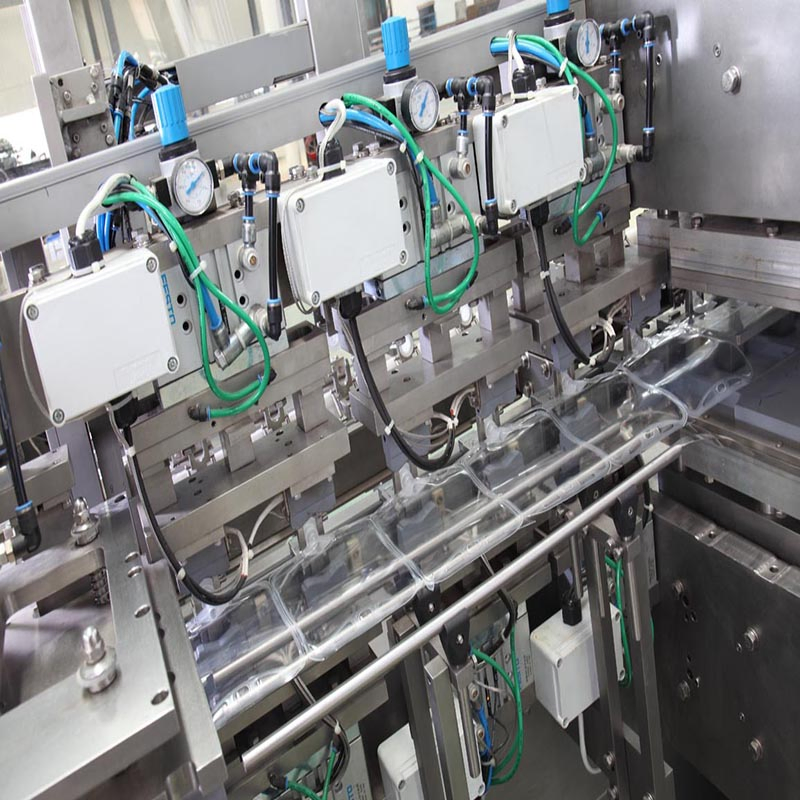

Film Stretching, Opening & Bag Forming: Adopts mechanical film-open plate for 100% guaranteed opening. Peripheral welding uses bilaterally open moulds with cooling plates to ensure welding quality and save film.

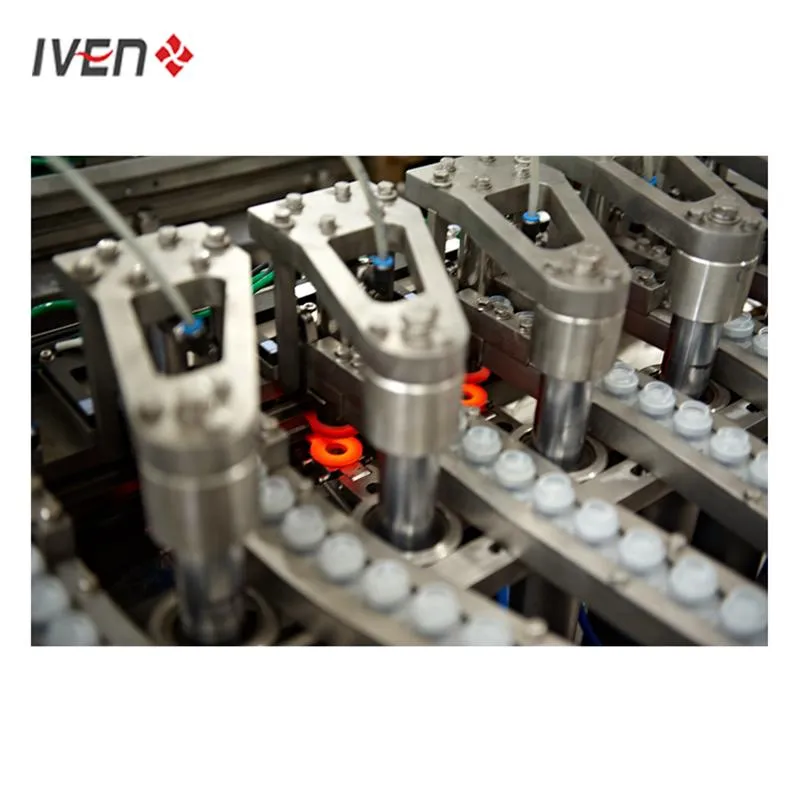

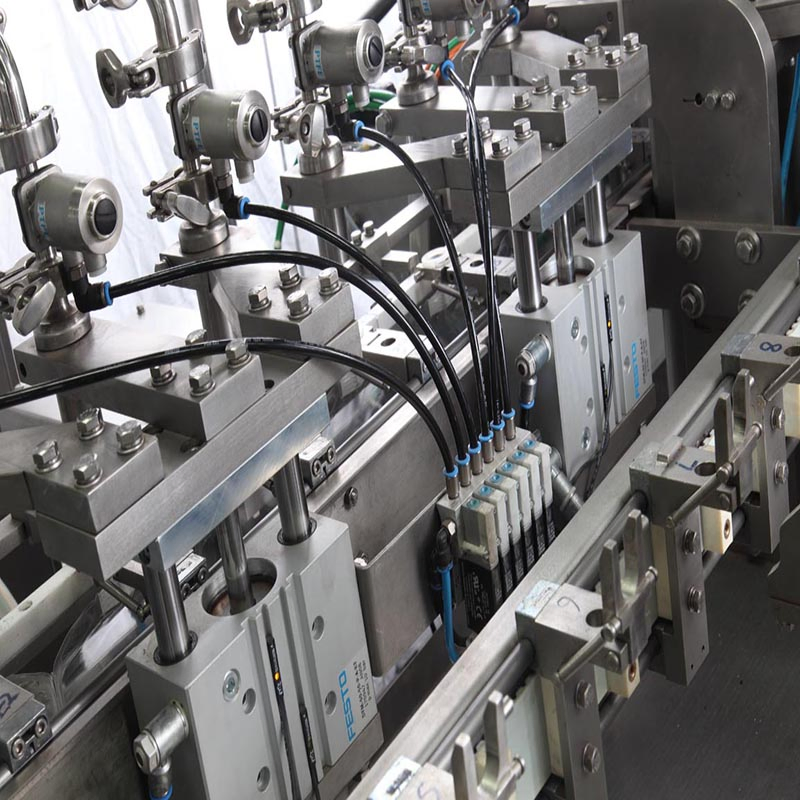

Port Heat Seal Welding: Utilizes pre-heating, heat seal welding, and cool welding to accommodate different materials, resulting in a low leakage rate within 0.3‰.

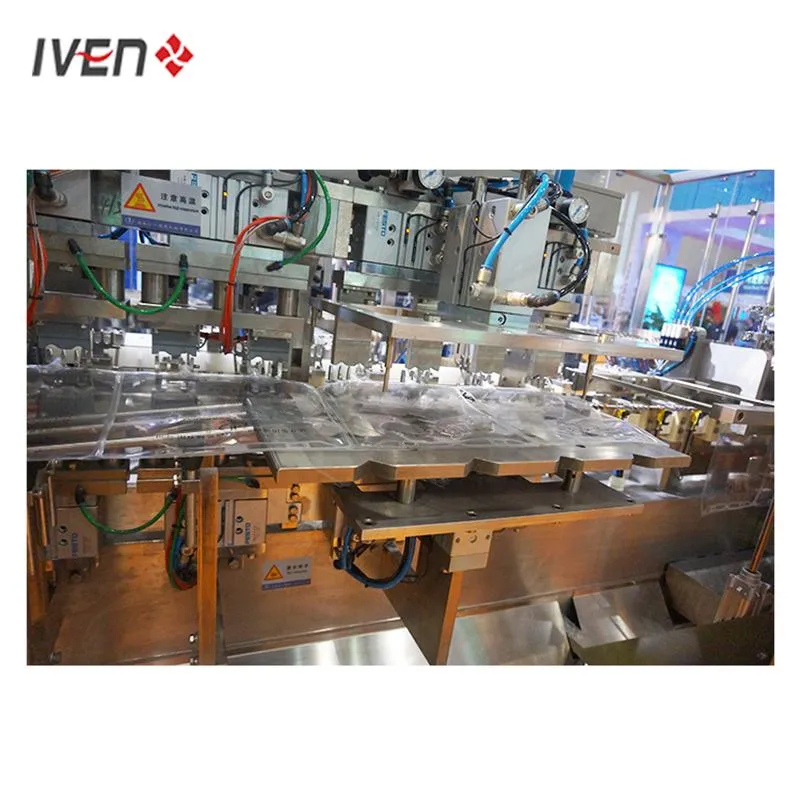

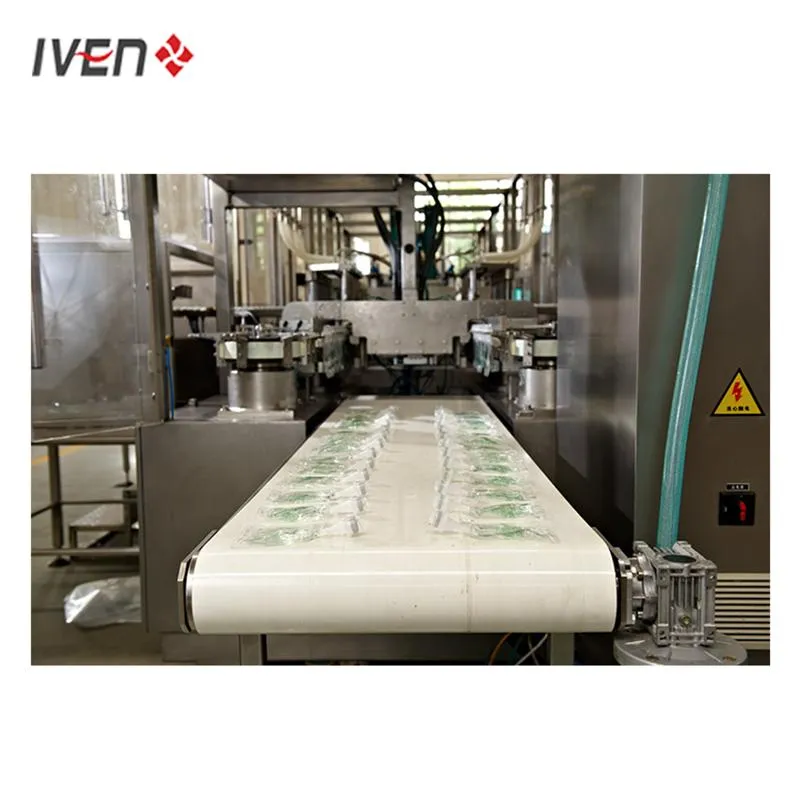

Filling & Sealing: Equipped with E+H mass flowmeter for high precision. The sealing unit is driven by separate cylinders hidden in the base to ensure product transparency without particles.
⭐ Our Advantages
- One production line can make 2 different types of bags with single or double hard ports.
- Compact structure, smaller occupying space with intelligent PLC control.
- Multilingual touch screen for adjusting welding, printing, and CIP/SIP data.
- Main drive uses imported servo motor with synchronous belt for accurate positioning.
- Non-contact hot sealing to avoid contamination and leakage.
- Advanced mass flow meter gives precise filling volume.
- Automatic alarms and fault search display on the touch screen.
- Strong memory for storing parameters of different films and liquids.
- Special CIP and SIP systems to ensure high sterilization standards.
- Quick specification switching (100-1000ml) by changing moulds and panels.
⚙️ Technical Parameters
| Model |
Srd1a |
Srd2a |
Srd3a |
Srd4a |
Srd6a |
Srd12a |
| Capacity (500ml) |
900 bph |
2000 bph |
2800 bph |
3600 bph |
5000 bph |
8000 bph |
| Power (kw) |
8 |
22 |
26 |
32 |
32 |
60 |
| Air Consumption (l/min) |
1000 |
2000 |
2500 |
3000 |
4000 |
7000 |
| Cooling Water (l/h) |
100 |
300 |
350 |
500 |
400 |
800 |
| Overall Size (m) |
3.26*2.0*2.1 |
4.72*2.6*2.1 |
5.52*2.7*2.1 |
6.92*2.7*2.1 |
8.97*2.7*2.25 |
8.97*4.65*2.25 |
| Weight (ton) |
3 |
4 |
5 |
6 |
8 |
12 |
🏢 Manufacturing & Quality
❓ Frequently Asked Questions
Q1: What bag sizes can this production line handle?
A: The line is versatile and can produce Non-PVC soft bags ranging from 50ml to 5000ml, with standard specifications including 100ml, 250ml, 500ml, and 1000ml.
Q2: What is the expected leakage rate for the finished bags?
A: Thanks to the advanced port heat seal welding technology (2 pre-heating and 2 heat seal welding stages), the leakage rate is maintained at a very low level, under 0.3‰.
Q3: How accurate is the liquid filling system?
A: The machine utilizes a high-precision E+H mass flowmeter and a high-pressure filling system to ensure exceptional accuracy for various solutions.
Q4: Can the machine produce different types of bag ports?
A: Yes, one production line can be configured to produce different types of bags with single boat-type ports, hard ports, or double soft tube ports.
Q5: Is the system easy to clean and sterilize?
A: Absolutely. The machine includes specialized CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems to save cleaning time and guarantee optimal sterilization.
Q6: Does the machine support international operation?
A: Yes, the control interface is a multilingual touch screen that supports English, Spanish, Russian, Chinese, and other languages for global usability.
