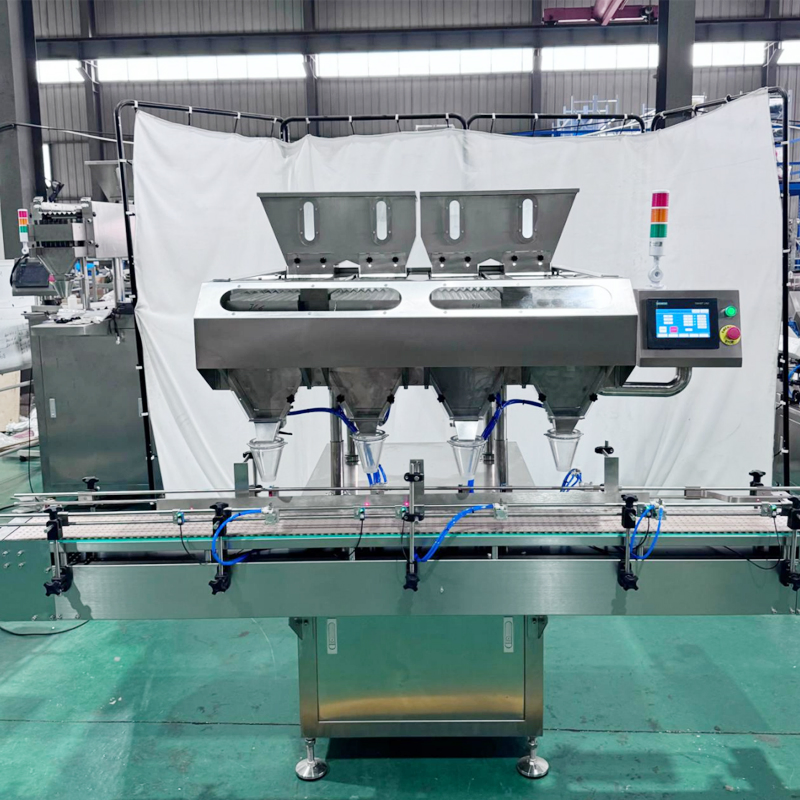

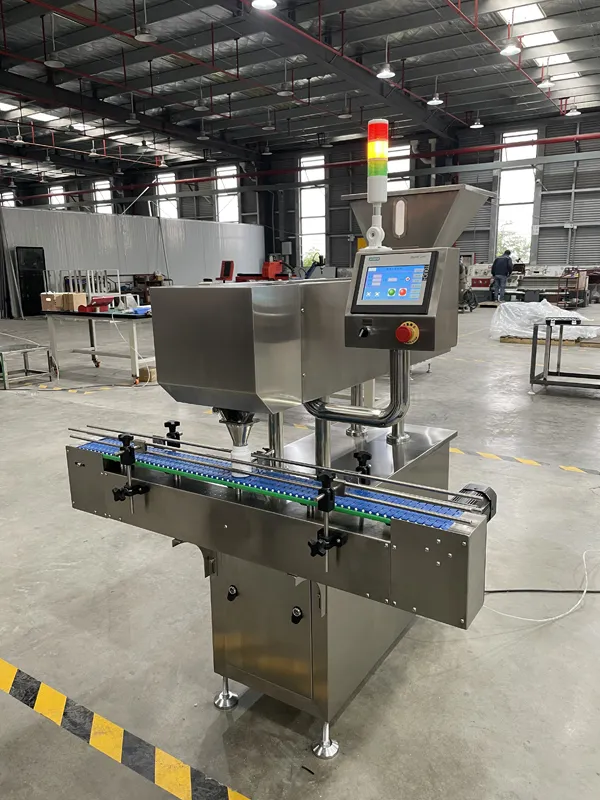

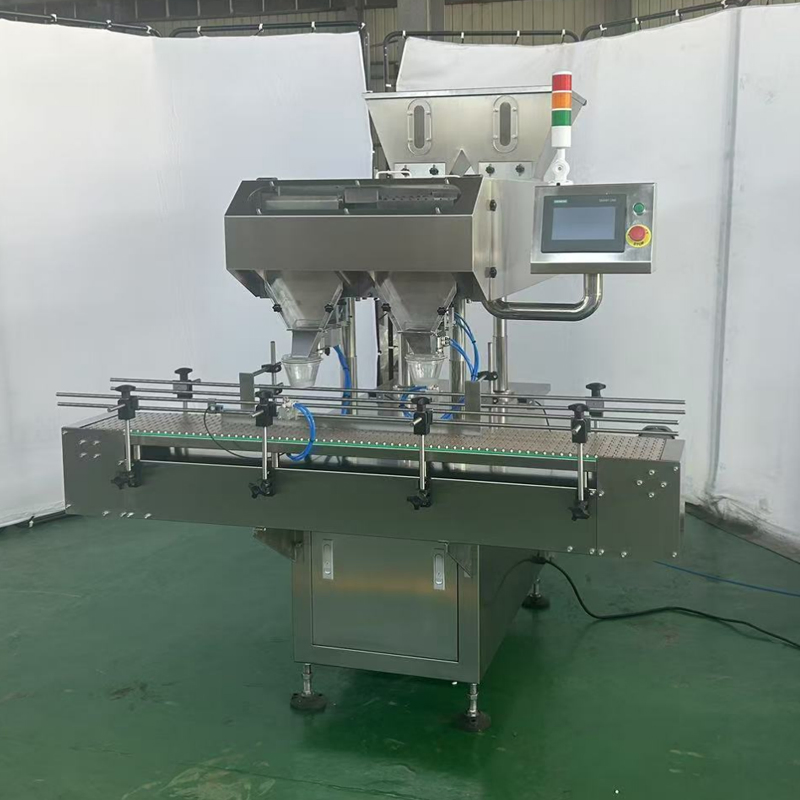

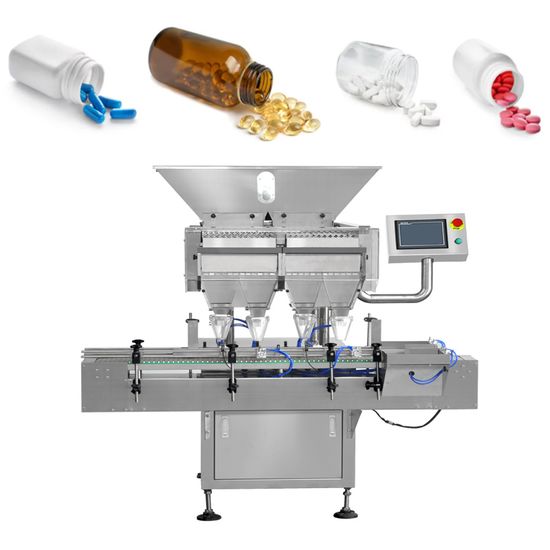

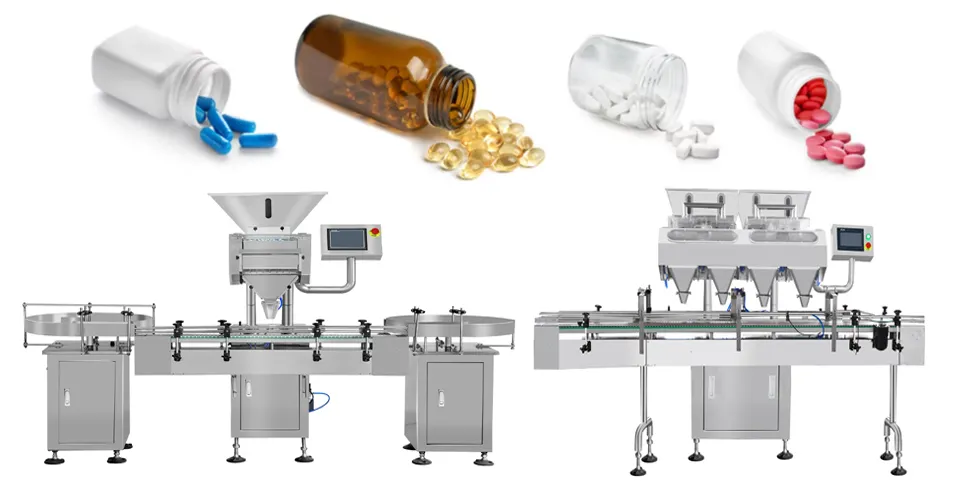

A tablet/capsule counting machine is a precision electromechanical device designed to accurately count solid oral dosage forms (tablets, capsules, caplets, softgels, lozenges) at high speed. It is the critical component in the primary packaging process, directly impacting efficiency, compliance, and profitability.
Its primary function is to replace manual counting, which is slow, prone to error, and unhygienic, with a fast, reliable, and automated solution.
| Model NO. | 8c |
| Features | Batch Coding, Vacuum Packaging, High Speed |
| Machine Material | Stainless Steel |
| Warranty | 2 Years |
| Applications | Capsules, Tablets, Pills |
| Capacity | 70-150 bottles/Min |
| Counting Accuracy | ≥99.5% |
| Core Components | PLC |

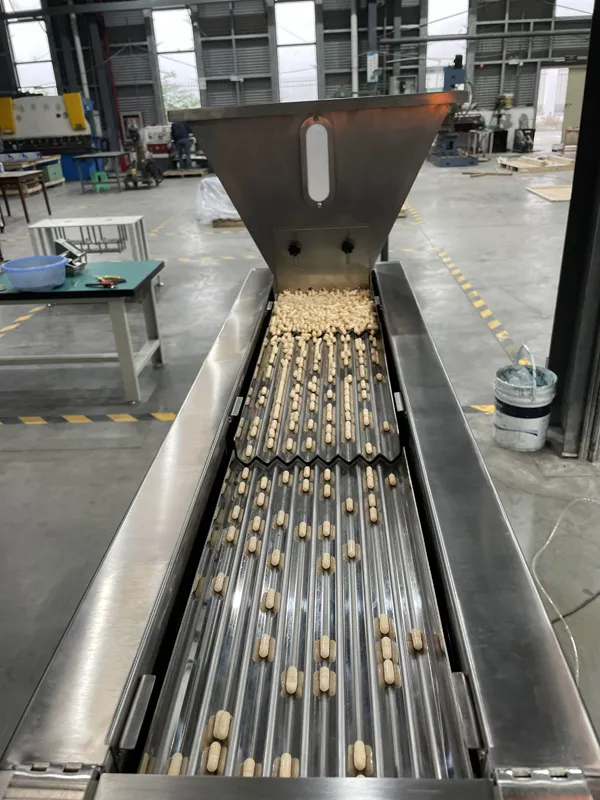

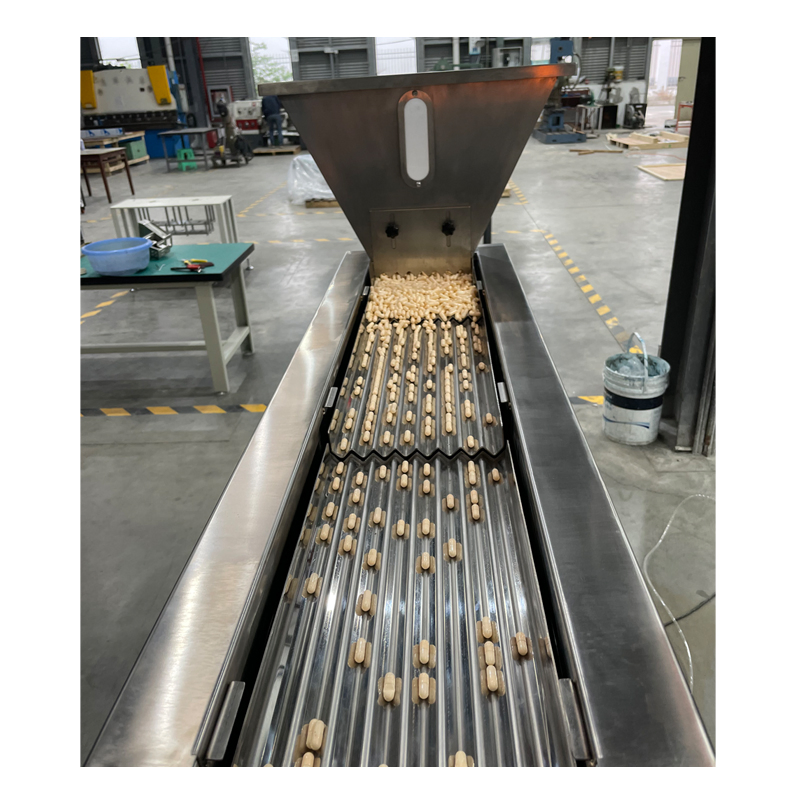

The tablet counting machine adopts technology of Vibratory Feed with Optical Sensor. Tablets singulate down a track, breaking a laser beam. A computer counts each break. It is highly accurate, versatile, and gentle on products.
Pharmaceutical Industry: Extreme accuracy for blister packs and vials.
Nutraceuticals: High speed for vitamins and softgels.
Food Industry: Quantitative packaging for nuts and candy.
Hardware: Counting screws, nuts, and capacitors.
| Model | 8C | 12C | 16C | 24C | 32C |
|---|---|---|---|---|---|
| Speed (bottles/min) | 10-60 | 30-70 | 40-90 | 60-120 | 70-150 |
| Channels | 8 | 12 | 16 | 24 | 32 |
| Power (KW) | 0.5 | 0.5 | 1.1 | 1.6 | 2.1 |
| Counting Range | 1-9999 capsules/bottle | ||||
| Weight (kg) | 450 | 500 | 600 | 800 | 900 |
Machines are wrapped with stretch film and fixed in reinforced wooden cases for maximum safety during sea, air, or rail transport.
