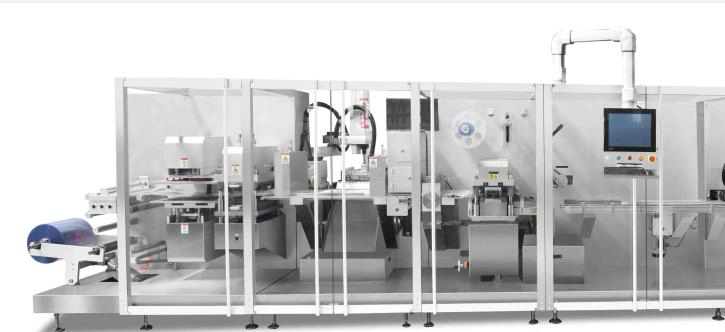

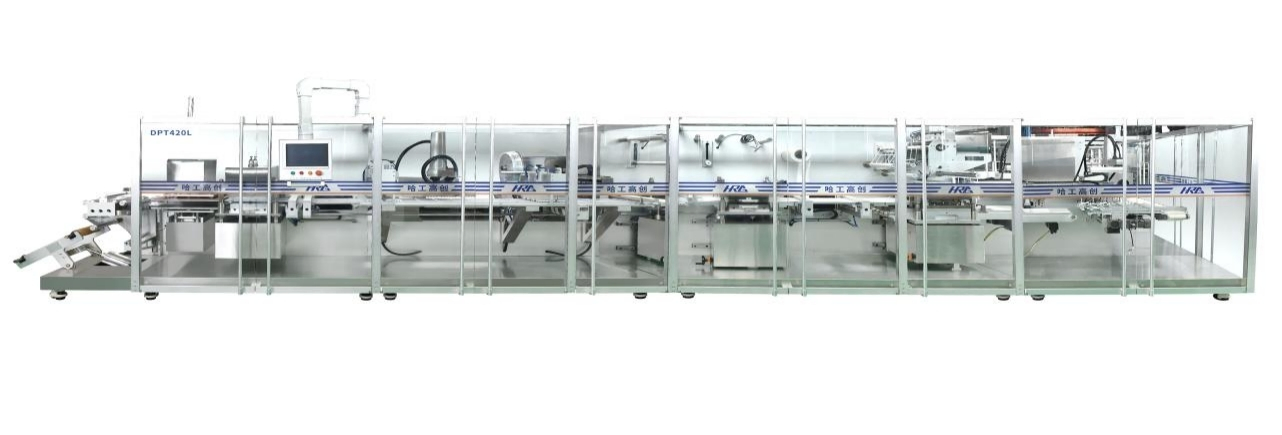

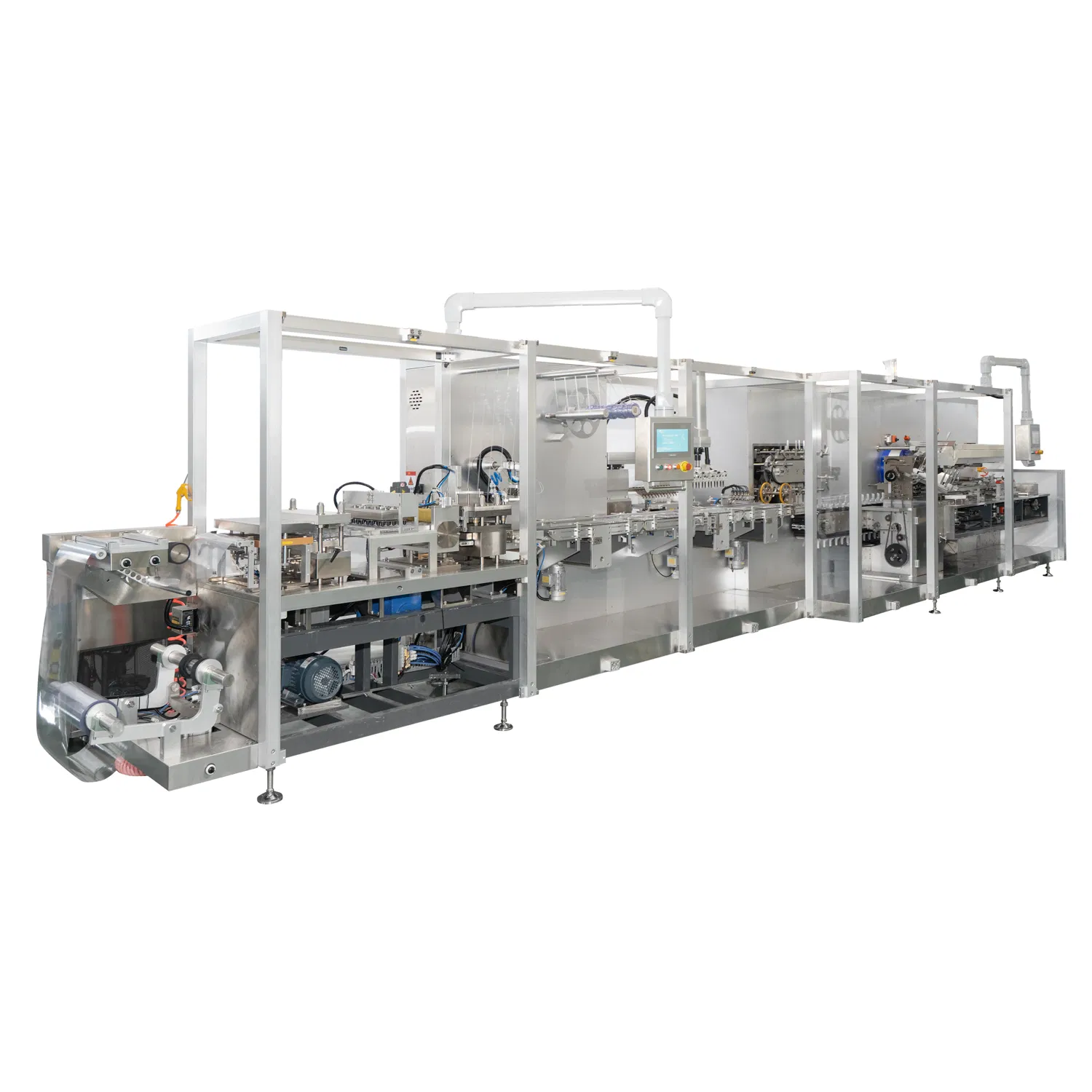

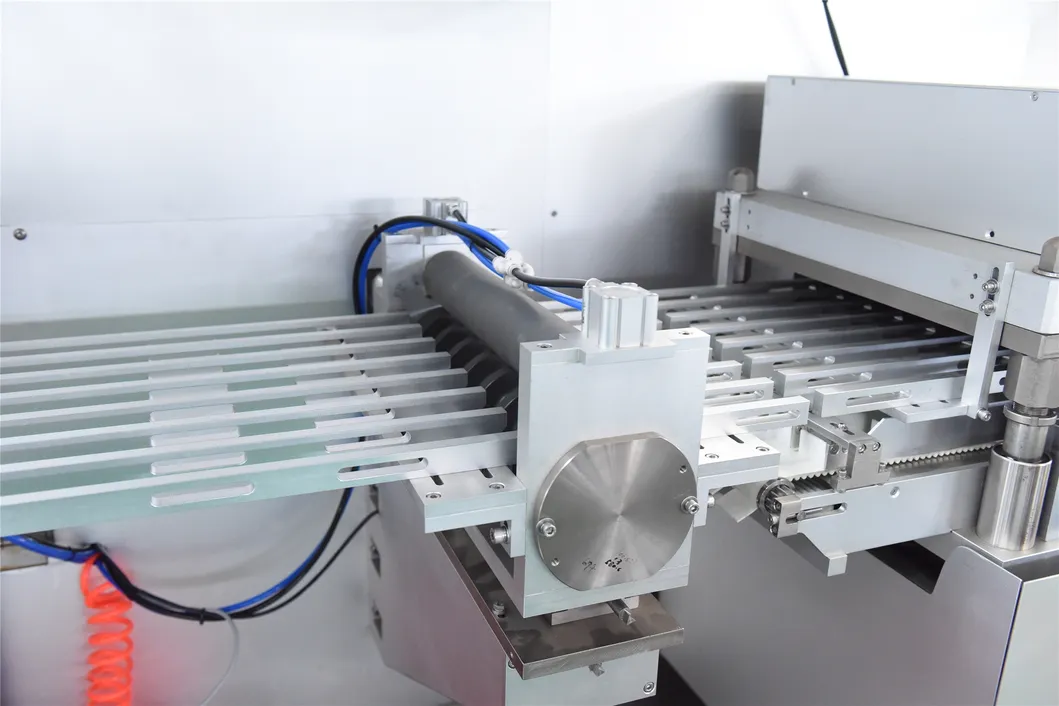

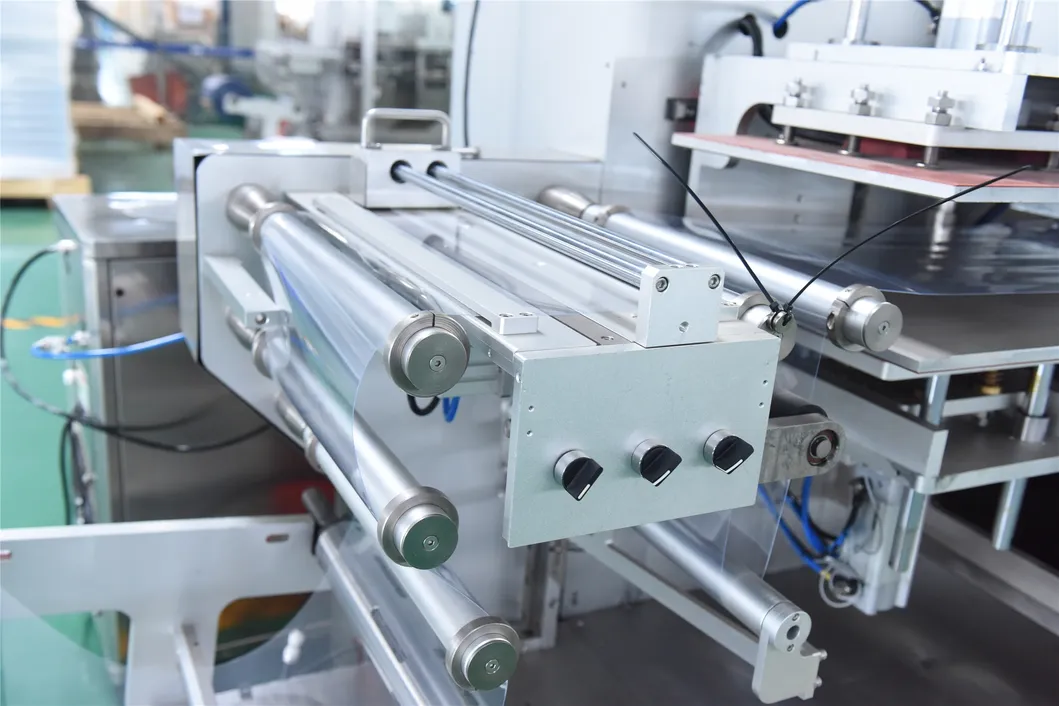

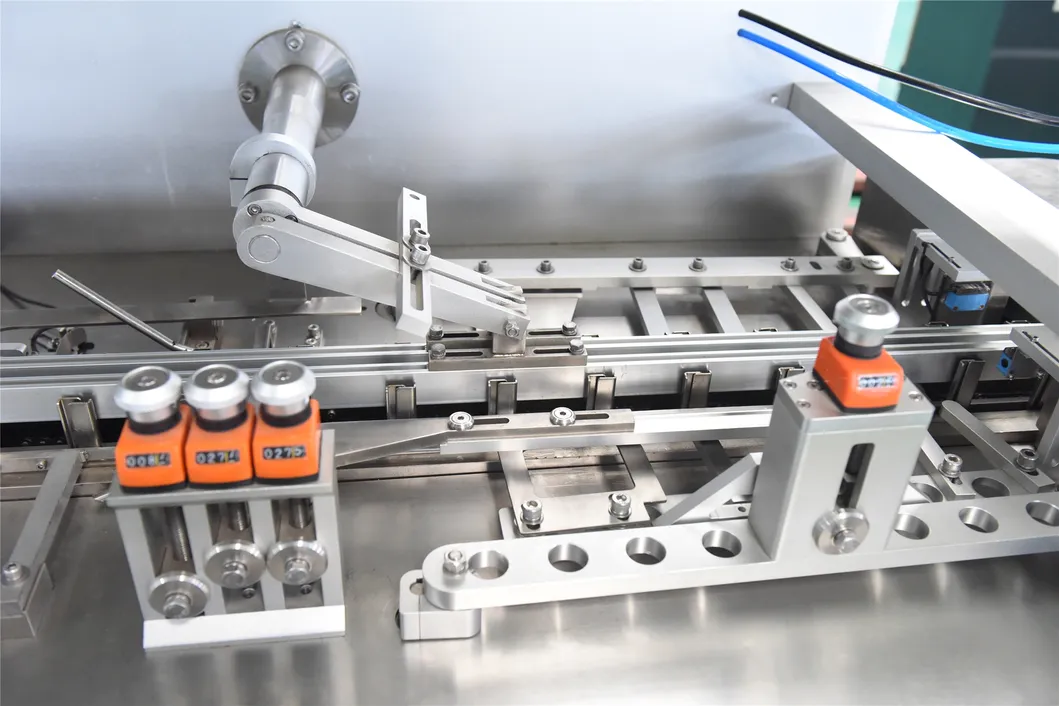

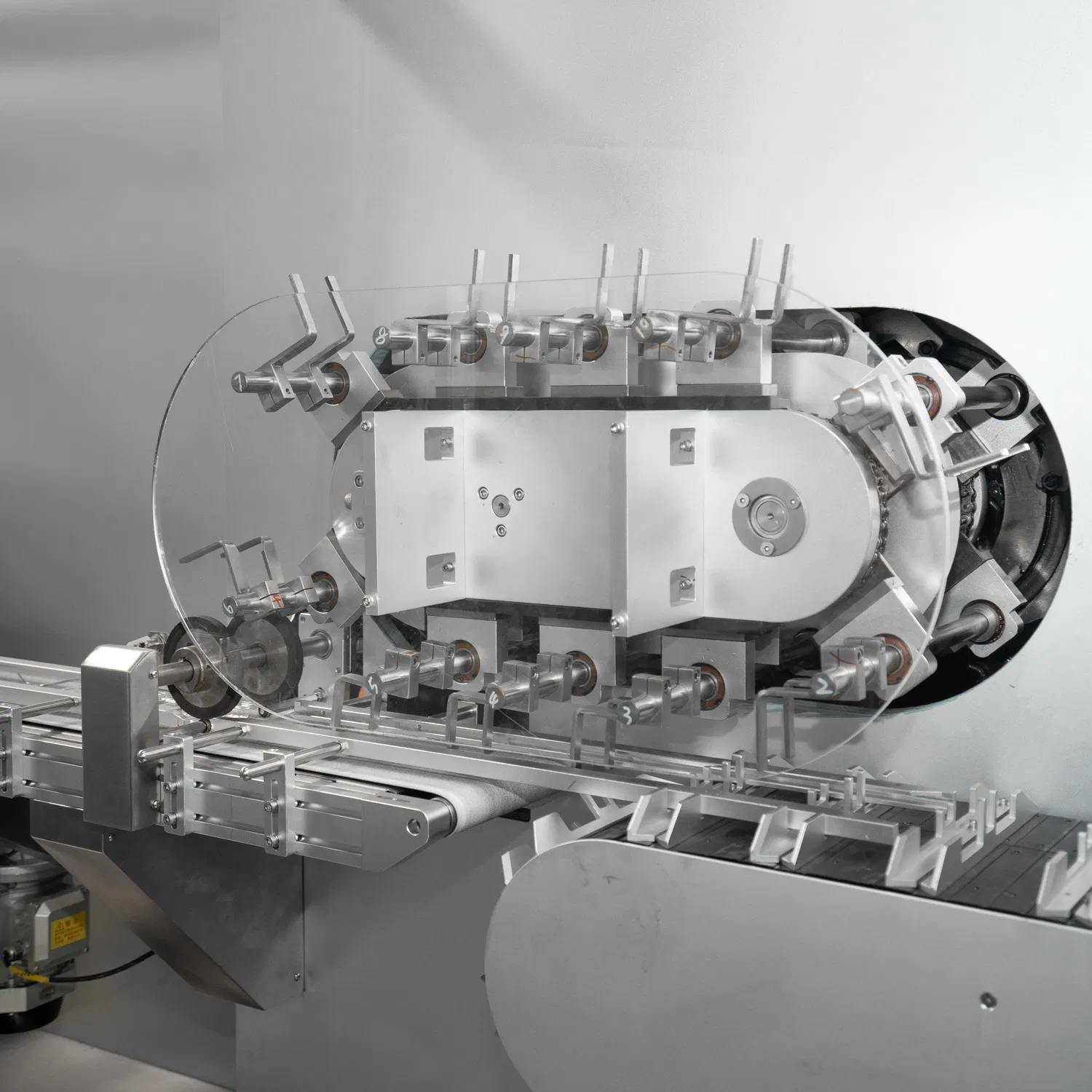

The plastic tray blister machine DPT420F is a high-tech model incorporating advanced domestic and foreign technologies. It is a sophisticated product integrating mechanics, electronics, pneumatics, and optics. The design features a visible balcony layout, drawer-type format modules for easy pull-out, and a full servo drive system. The machine body is constructed from all-aluminum, stainless steel, and tempered glass.

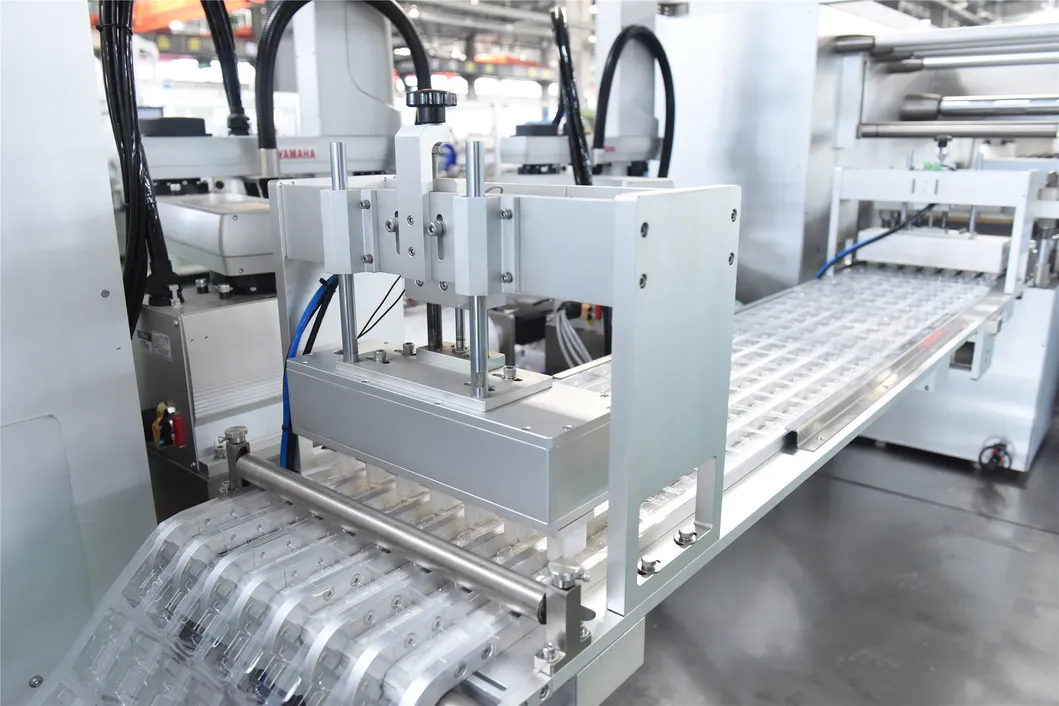

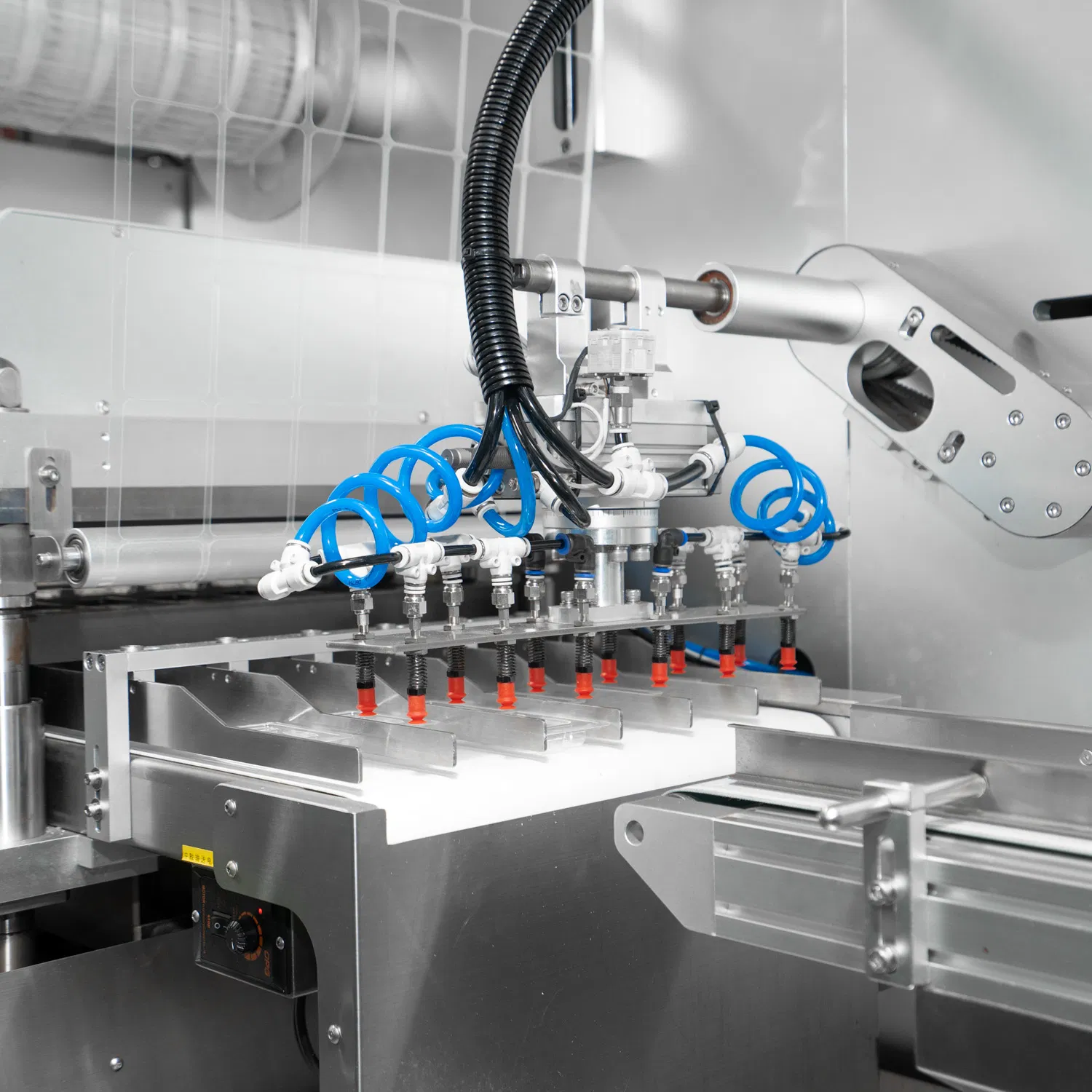

This equipment is highly integrated with robotic loading and is suitable for vials, ampoules, oral liquid, and other products in the pharmaceutical, cosmetic, and electronics industries. It runs stably at 20-40 strokes per minute, reaching a maximum of 60 strokes per minute. It can be integrated into automated production lines with cartoning machines, bundling machines, and case packers.
| Category | Parameter | Specification (DPT420l-ZHJ300) |
|---|---|---|
| Blister Module | Punching speed | 10--35 cuts/min |
| Max. forming area | 415×240mm | |
| Max. forming depth | 25mm (customizable ≤45mm) | |
| Heating power | PVC pre-heating plates 2x5KW | |
| Main motor power | 3.0KW | |
| Cartoner Module | Carton size (LxWxH) | Max: 210×108×65mm / Min: 70×33×17mm |
| Output | 150-300 cartons/min | |
| Motor power | 2.2KW | |
| Overall System | Dimensions | 13300 X 1170 X 2100 mm |
| Weight / Total Power | 6800kg / 19.6kw |

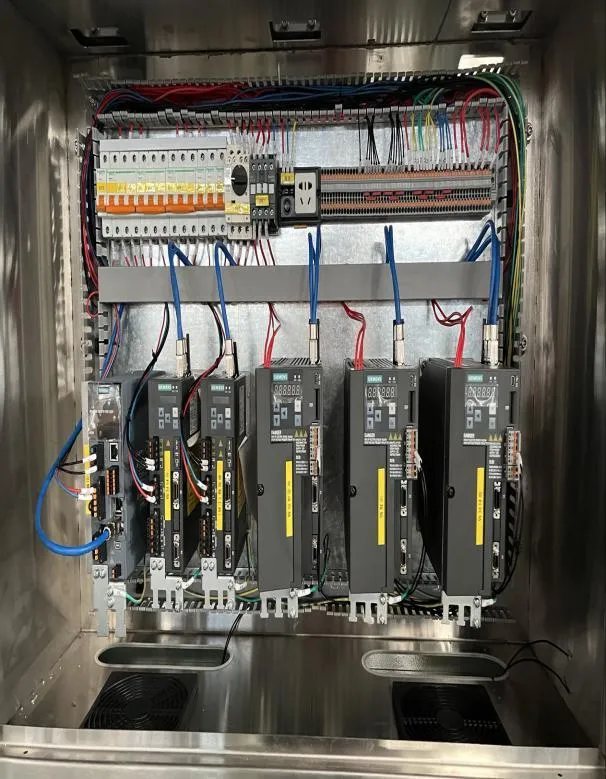

Realized via the Siemens PLC system (S7-1500 series), providing integrated control over parameters, operation, and management. Communication is handled via IP/TCP Ethernet for rapid response.
We provide comprehensive Preventative Maintenance and technical support. Our services include:
