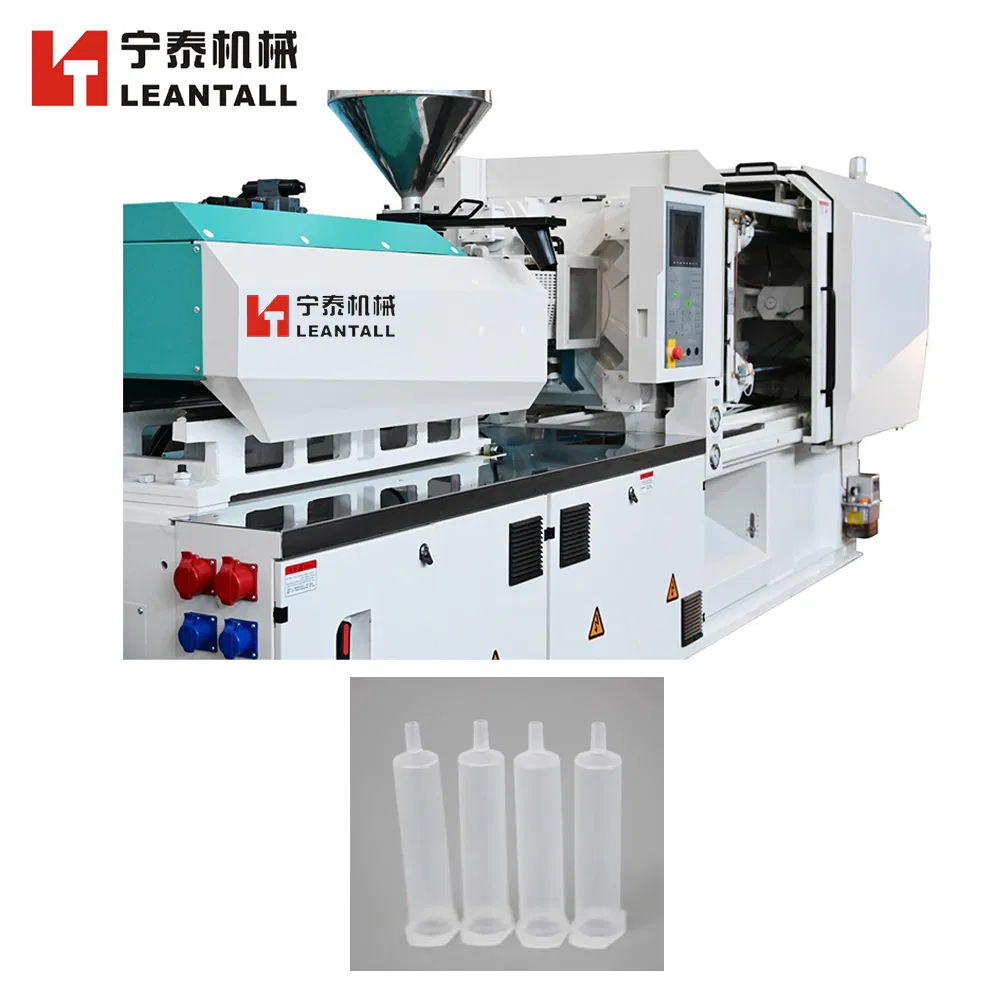

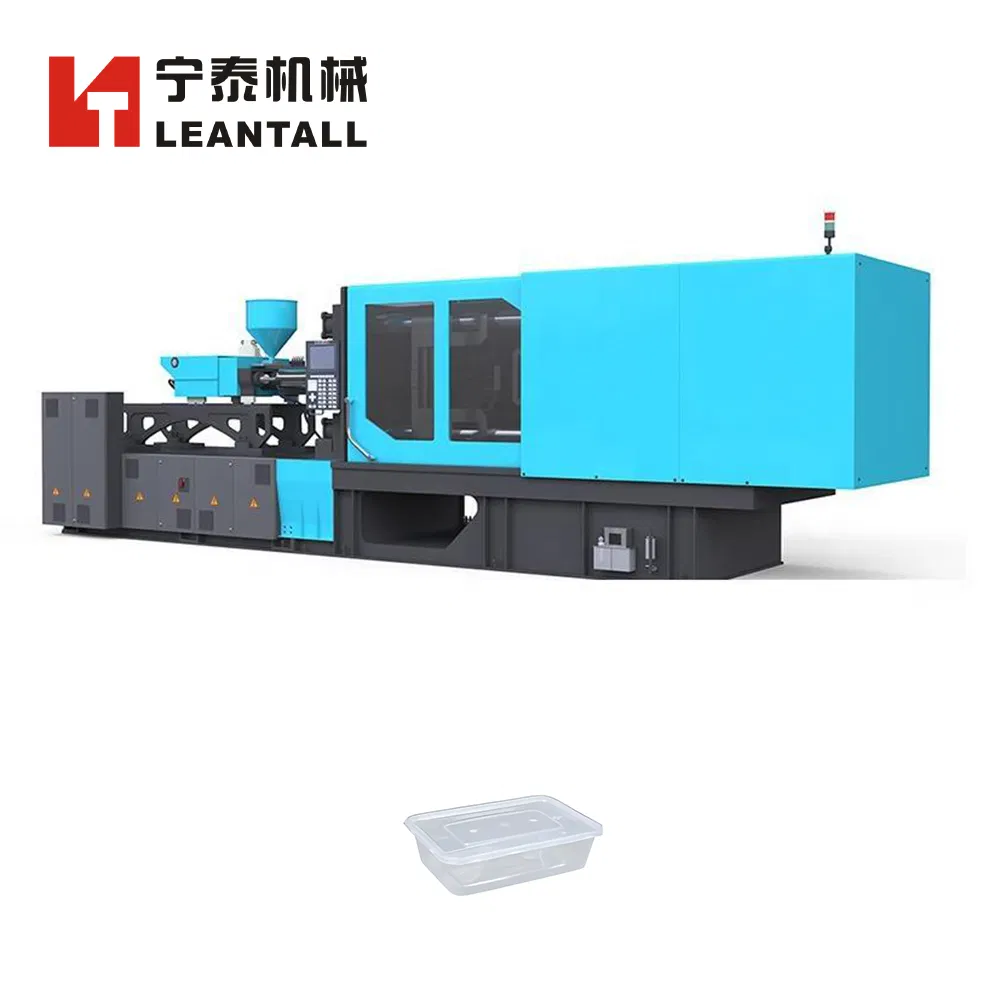

Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
1 / 5
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China
Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China

Nt580 Plastic Spike/Cap Injection Molding Machine Regular Infusion Set in China

Customization: Available
After-sales Service: Filed Installation
Warranty: 1 Year
Send Inquiry

Product Description

● Product Overview
Model NO.
NT580
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Material
Stainless Steel
Voltage
380V/50Hz 3p+N+E
Clamp Force
5800kN
Tie Bar Space
870*810
Dimension
8.6m*2.3m*2.6m
Gross Weight
20000.00kg
Capacity
20 sets/Month
● Product Visuals

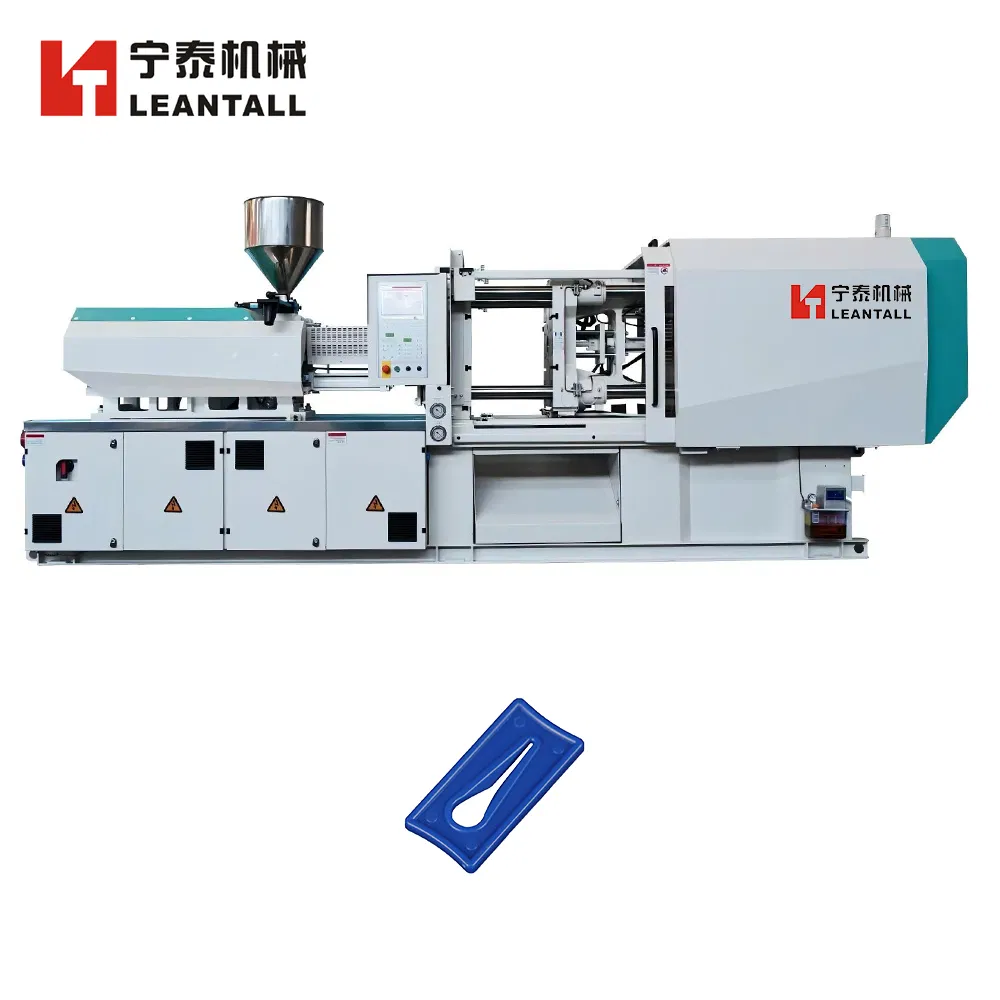

Injection Molding Machine

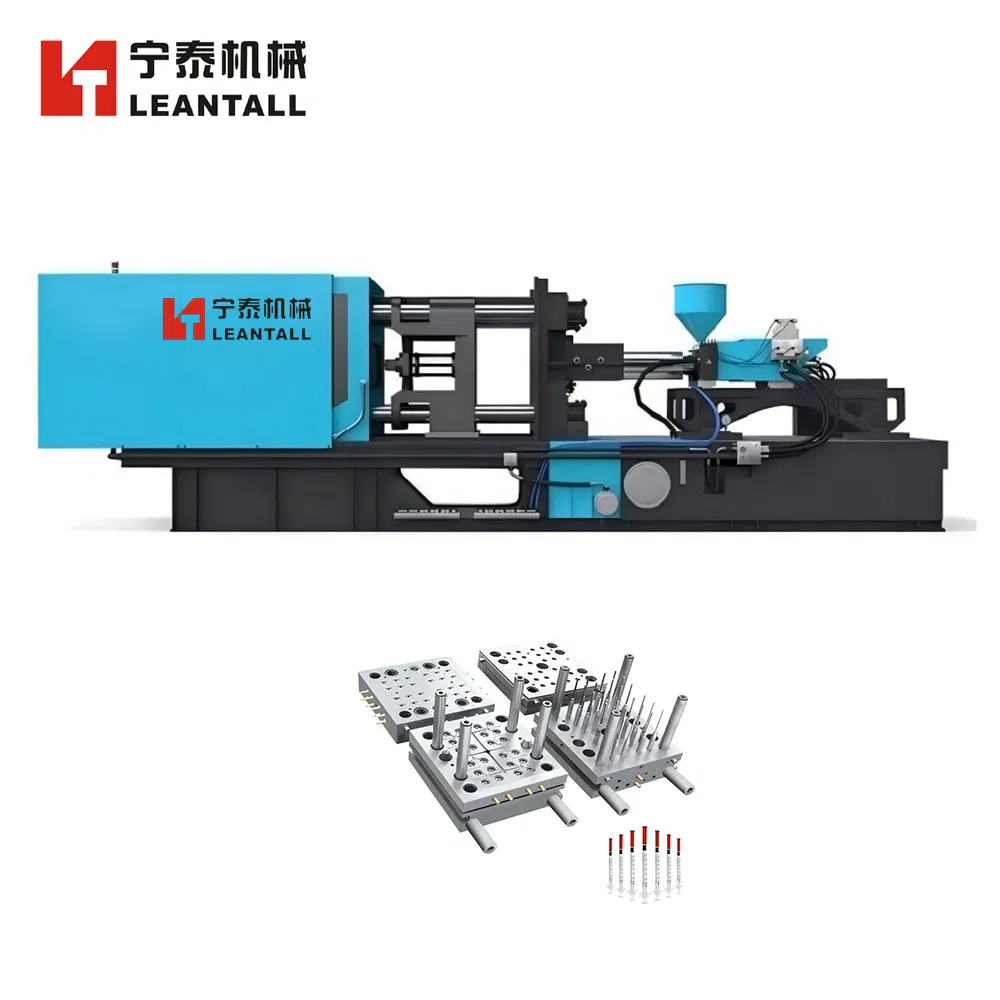

Injection Molding Machine Details

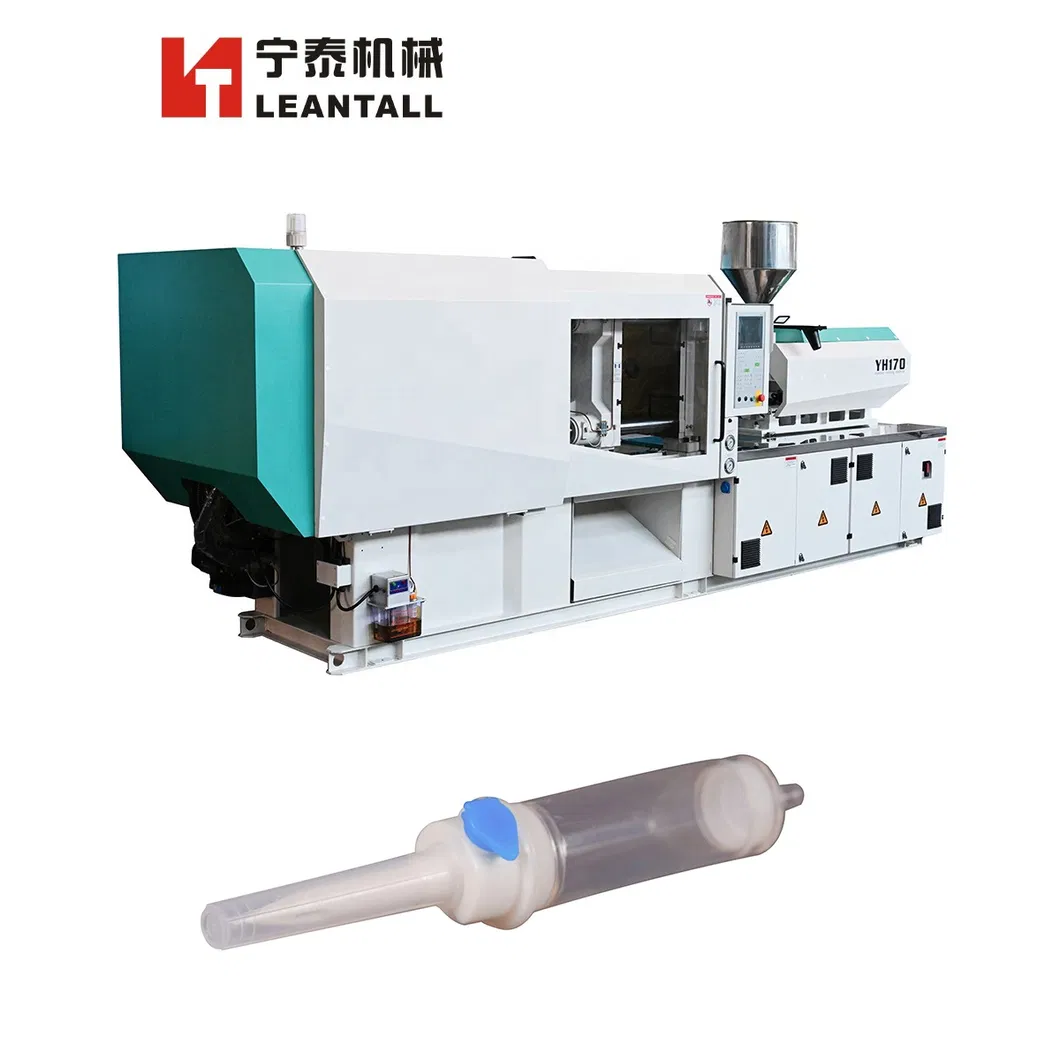

Injection Molding Process

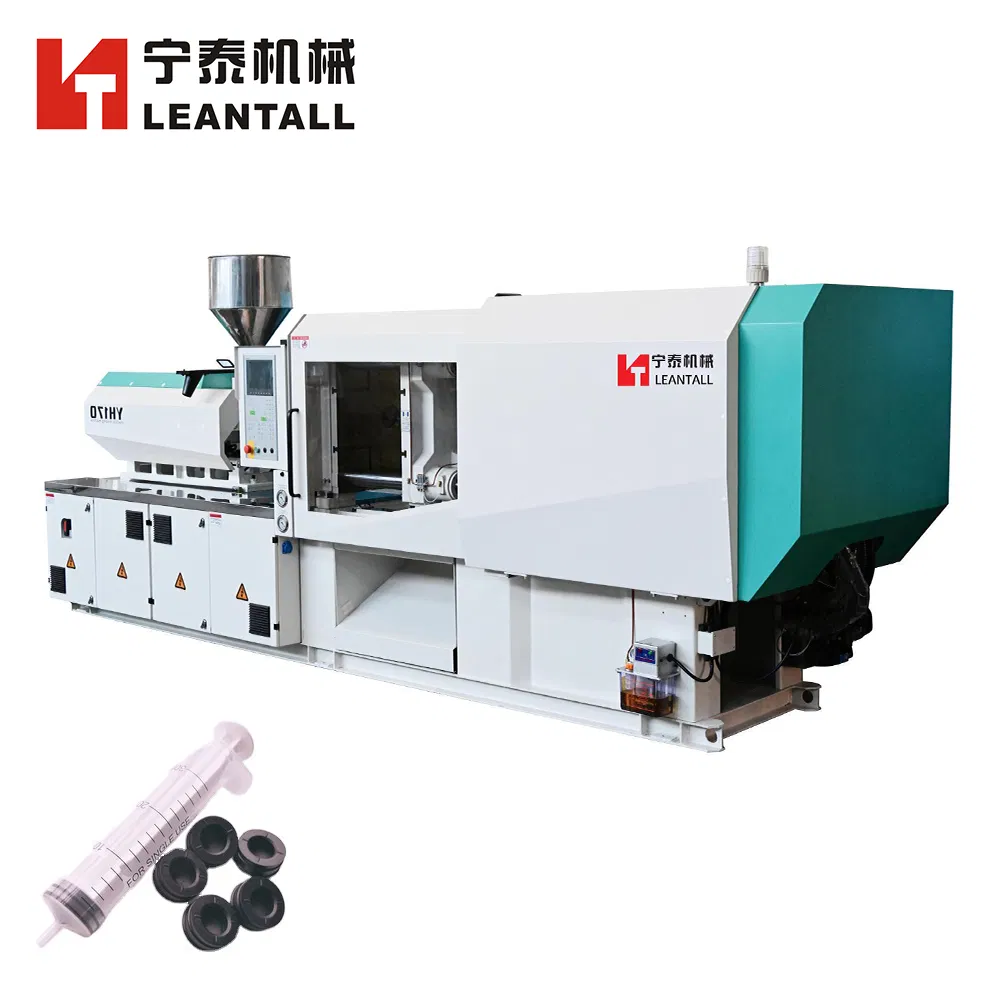

Machine Overview
● Technical Parameters
Part Name Unit NT 580 Specifications
Injection Unit SCREW DIAMETER mm 80 85 90
INJECTION STROKE mm 400 400 400
SHOT VOLUME cm³ 2010 2269 2544
INJECTION WEIGHT (PS) g 1829 2064 2315
INJECTION PRESSURE Mpa 174 154 137
Clamping Unit CLAMP FORCE Kn 5800
OPEN STROKE mm 850
TIE BAR SPACE mm 870 X 810
MOULD HEIGHT (MAX/MIN) mm 830 / 330
Others SERVO DRIVE POWER Kw 65
MACHINE DIMENSION m 8.6 * 2.3 * 2.6
MACHINE WEIGHT T 20
● Product Features & Logistics

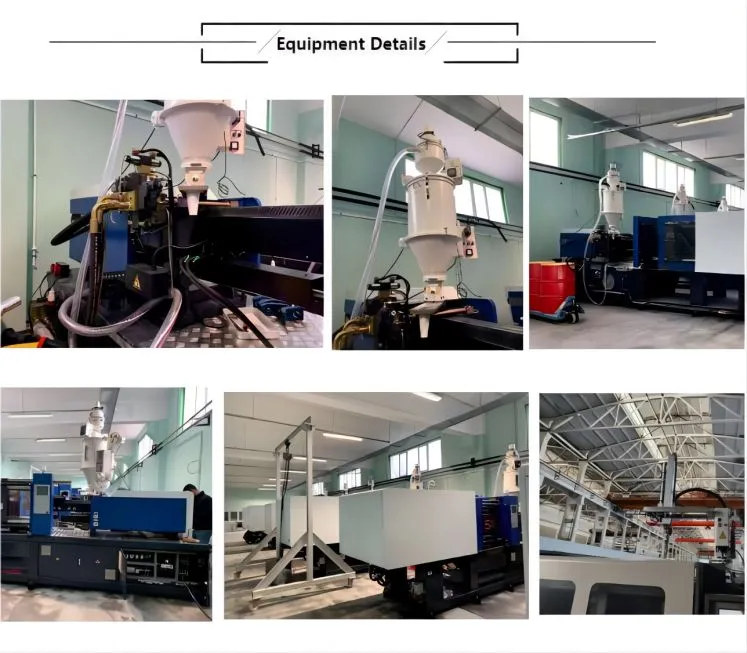

Feature 1

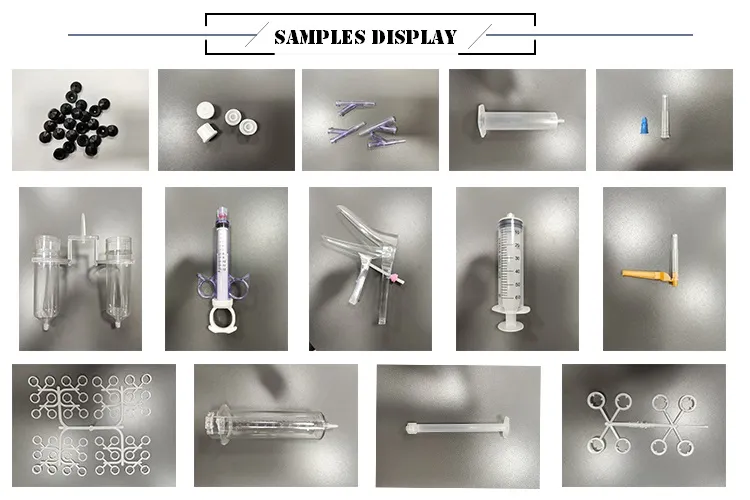

Feature 2

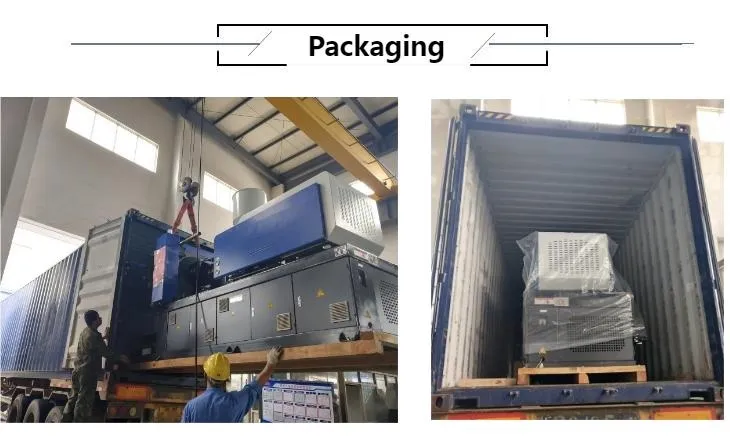

Packaging
● Our Advantages
Advantage 1
Advantage 2
Advantage 3
● Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer with decades of experience in the production of high-quality machinery.
What is your main product range?
We focus on the manufacture and development of plastic injection molding machines and auxiliary equipment such as cooling towers and chillers.
Do you provide on-site installation and training?
Yes, we arrange skilled engineers for field installation and comprehensive operator training at the buyer's facility.
What is the typical delivery time for the equipment?
Equipment is usually ready within approximately 50 days after mutual confirmation of order details and receipt of prepayment.
Do you supply molds and spare parts?
Yes, we provide competitive quality molds and spare parts customized to your specific requirements.
How is the equipment packaged for shipping?
Auxiliary equipment is packed in wooden cases, while injection molding machines are bare-packed. Full container shipment is highly recommended.
