After-sales Service: 1 Year
Warranty: 1 Year
Type: Pipe Extruder
Send Inquiry

Product Description

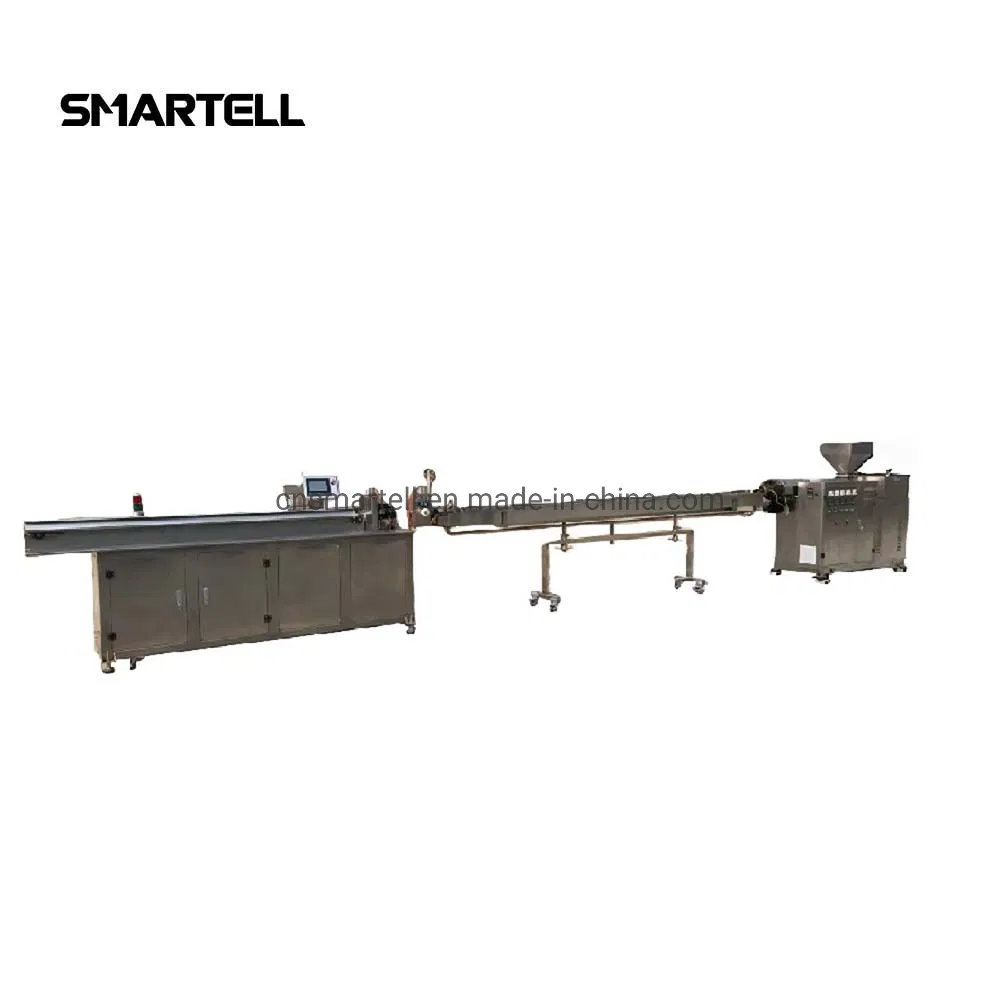

PVC Tube Extruding and Cutting Machine Line

PVC Tube Extruding and Cutting Machine Line is designed for thermoplastic processing of various plastics. Equipped with specialized heads, auxiliary equipment, and optimized screws, it efficiently processes materials such as PVC, polyethylene, and polypropylene into rods, tubes, belts, blown films, wires, and cables.

Our equipment utilizes advanced frequency converters to ensure stable performance, high efficiency, and low energy consumption with high torque output.

i
Basic Information
Model NO. SMT
Plastic Processed PVC
Product Type Extrusion Molding Machine
Feeding Mode One Feed
Assembly Structure Separate Type Extruder
Screw Single-Screw
Automation Automatic / Computerized
Material Stainless Steel
OEM/ODM Available
Machine Line Divider
T

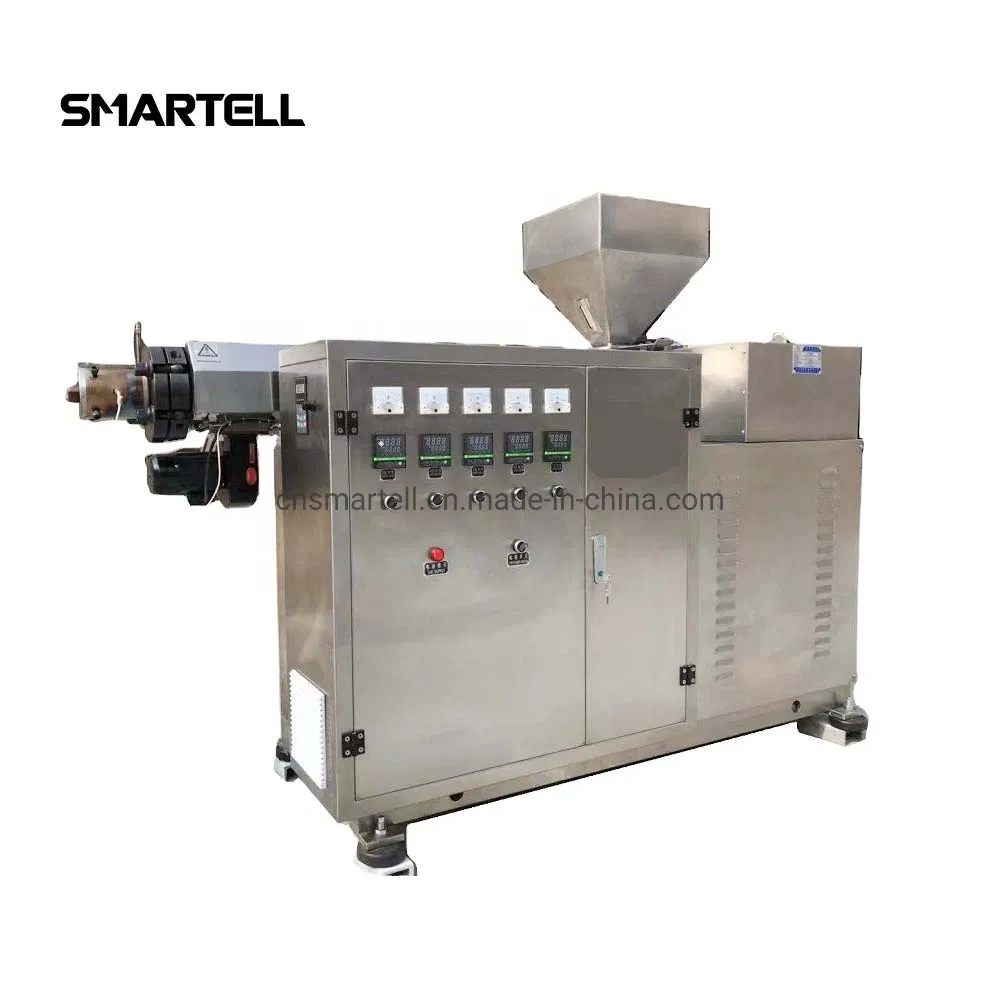

Technical Parameters
Main Specification
Screw Diameter Φ50 MM
Operative Length of the Screw 1125mm
Screw Length-Diameter Ratio 28:1
Screw Rotating Speed 10-90 r/min
Productive Capacity 15-35 kg/h
Motor Power 11 kw
Heating Power (excluding head) 7 kw
Specifications Divider
G
Product Gallery
Extruder Detail 1
Extruder Detail 2

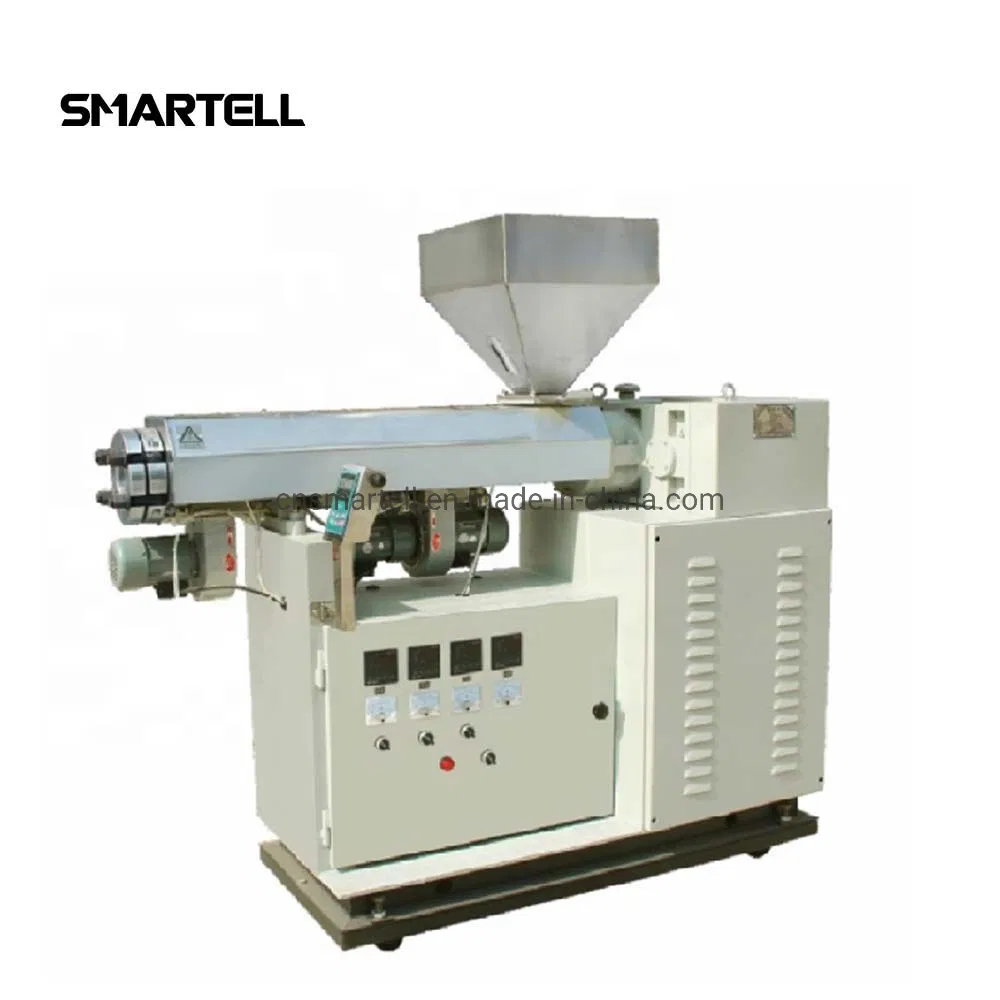

Extruder Detail 3
System Layout
Operation Unit
Cooling System
Control Panel
Final Product
P
Packaging & Delivery
Package Size 700.00cm * 350.00cm * 250.00cm
Gross Weight 3000.000kg
Transport Package Wooden Case
FAQ Section Header
?
Frequently Asked Questions
What materials can this extruder machine process?
The machine is designed for various thermoplastics, including PVC, Polyethylene (PE), and Polypropylene (PP), producing tubes, rods, and belts.
What is the production capacity of this line?
The productive capacity ranges between 15kg to 35kg per hour, depending on the material and specific product requirements.
Does the machine support automated operation?
Yes, the machine is fully automatic and computerized, utilizing advanced frequency converters for stable and precise control.
What are the technical specifications of the screw?
The machine features a single-screw design with a diameter of Φ50mm and a length-to-diameter ratio of 28:1.
What kind of packaging is used for transport?
The entire machine line is securely packed in professional wooden cases to ensure safety during long-distance transportation.
Is OEM/ODM customization available?
Yes, we provide OEM and ODM services to meet specific technical requirements and production needs of our clients.
