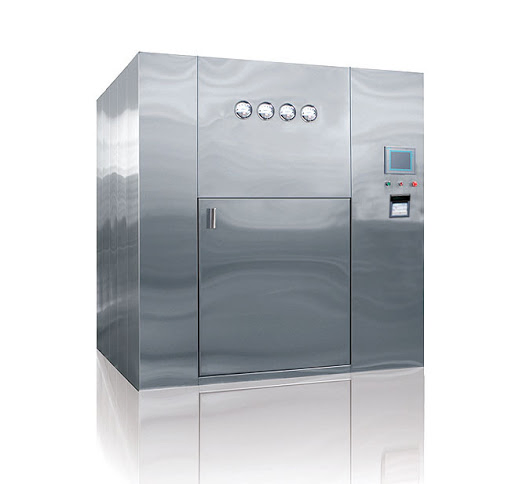

Marya Vhp Sterilization Equipment for Pharmaceutical Cleanroom Space Sterilization and HEPA Filter

Customization: Available
Theory: H2O2 Solution
Type: H2O2 Solution

Product Description

Basic Information
Certification
CE, FDA, EEC, ISO13485
Electric Tension
380V
LCD Display
With LCD Display
Alarm System
Ultra High Temperature Alarm
Data Recording
Sterilization Information Recording and Printing
Material
Stainless Steel
Application
Pharmaceutical, Clean Room, Lab, Hospital
UV Lamp
1PC/30W
Sealing Method
Rubber-Plastic
Power Supply
AC220V, Single Phase, 50Hz
Warranty
1 Year
Cycle Time
Less Than 120 Min
Product Description

VHP Space Sterilization Equipment

VHP sterilizer is a highly effective, non-toxic, and harmless biological decontamination equipment widely used in the pharmaceutical industry. It is primarily used for on-line sterilization (SIP) for isolators, freeze dryers, sterile liquid mixing tanks, sterile pass boxes, and small clean rooms.

Main Applications:

Designed for space sterilization by integrating vaporization of hydrogen peroxide. It kills spores by generating free hydroxyl radicals to attack cellular components (lipids, proteins, and DNA). This method replaces traditional ultraviolet disinfection to achieve total sterilization requirements at low temperatures. It is environmentally friendly, decomposing into water and oxygen without harmful residue.

Key Features:
  • Sterilizing effect reaches 6log, providing highly reliable biological decontamination.
  • Decomposition products are only water vapor and oxygen, ensuring no toxic residue.
  • Utilizes food-grade hydrogen peroxide solution, safe for the environment and human body.
  • Rapid cycle process with significantly low operating costs.
  • Excellent material compatibility for various cleanroom equipment.
Detailed Photos

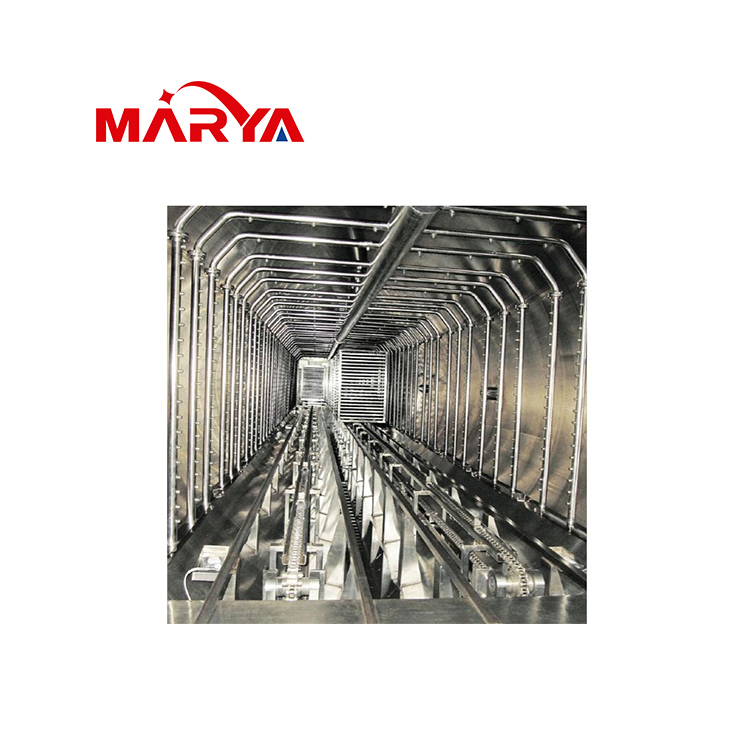

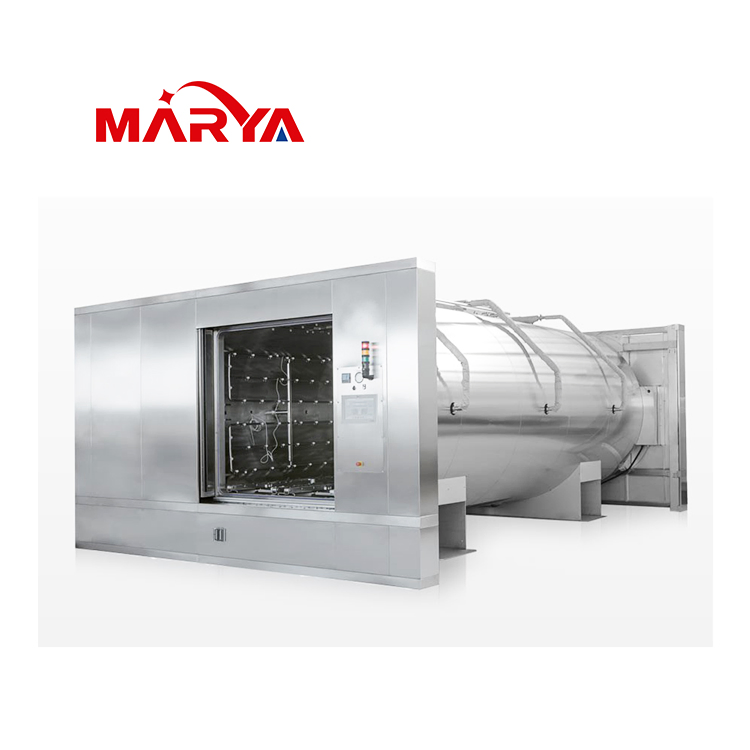

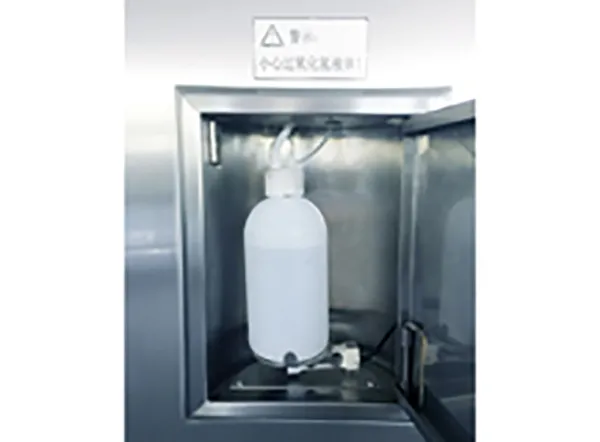

VHP Sterilization Equipment View 1

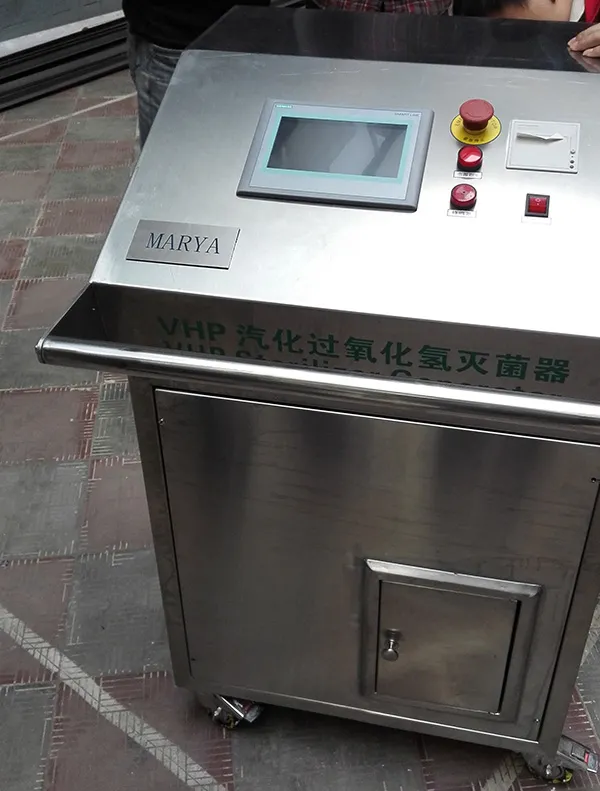

VHP Sterilization Equipment View 2

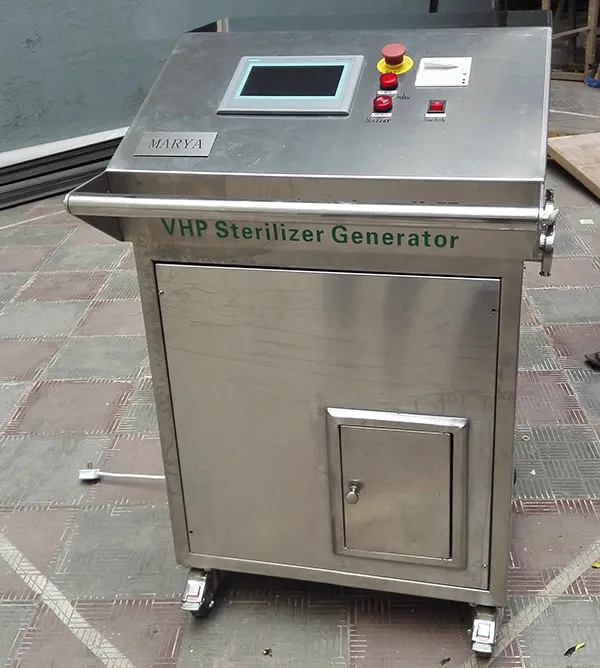

VHP Sterilization Equipment View 3

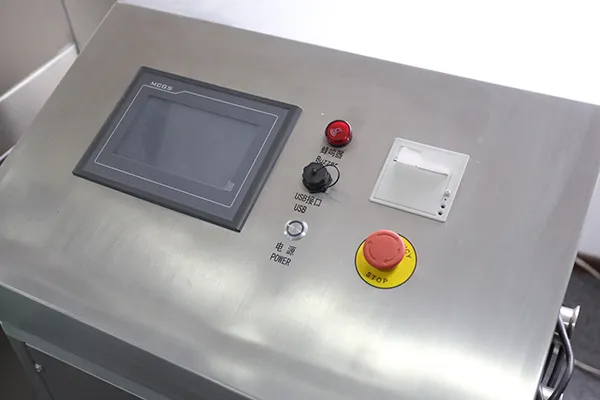

VHP Sterilization Equipment View 4

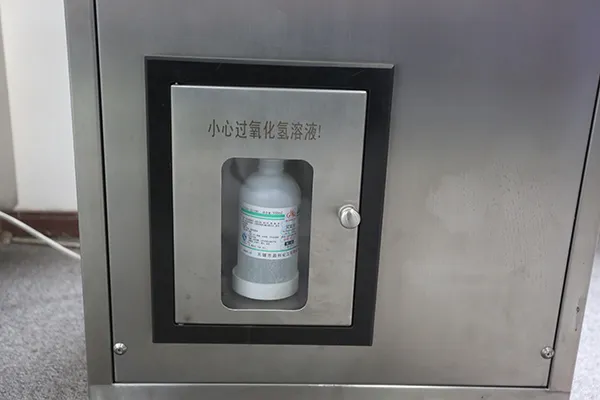

VHP Sterilization Equipment View 5

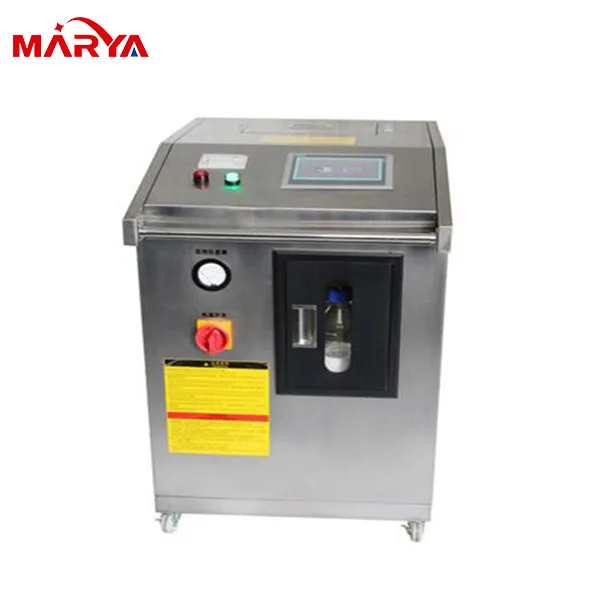

VHP Sterilization Equipment View 6
Sterilization Unit Close-up
Technical Parameters
  • Working Method: Continuous work
  • Bactericide: Food-grade hydrogen peroxide solution (concentration ≥30%)
  • Vaporization Temp: ≤ 40 ºC
  • Injection Rate: 0 ~ 30 g / min
  • Decontamination Ability: Killing ability of thermophilic fatty spores is 6log
  • Dimensions: 530x700x1300mm
  • Power: 1.2kw
  • Sterilization Volume: 100m³, 200m³, 300m³ (Optional)
Certifications & Production

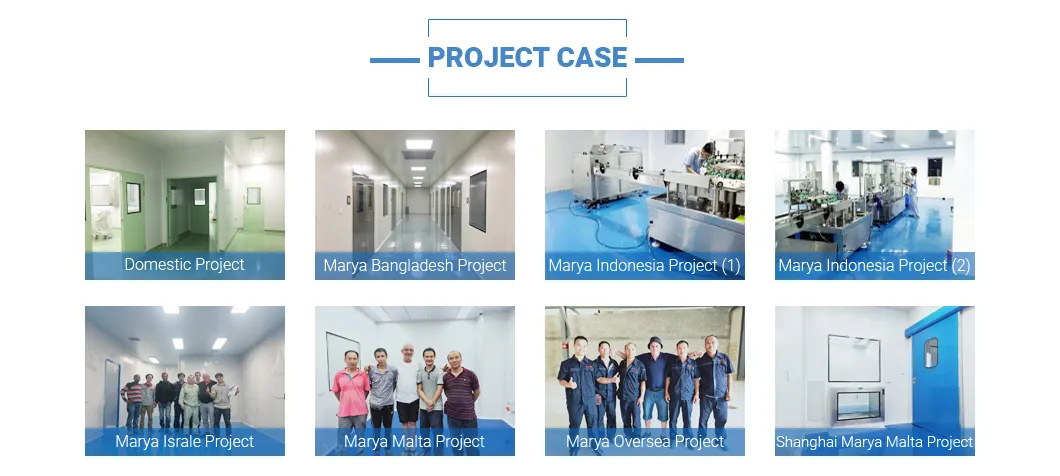

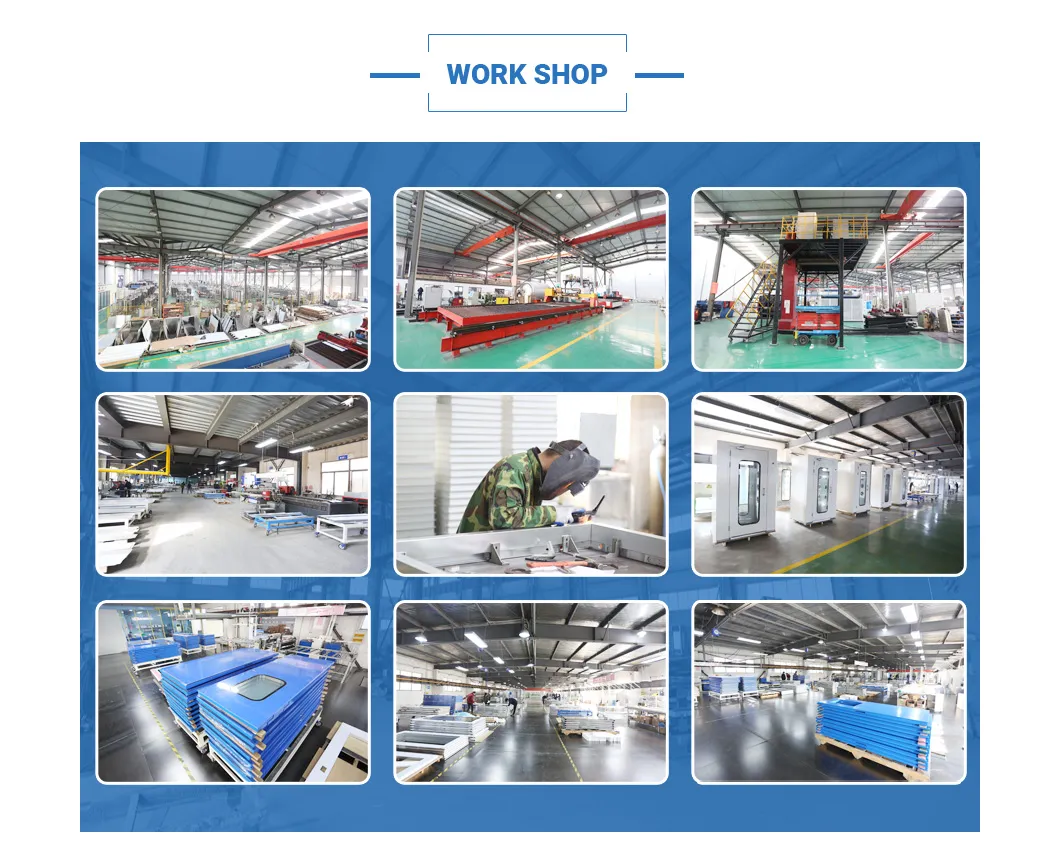

Quality Certifications Packaging and Shipping Production Capability Project Cases Factory Overview
Frequently Asked Questions
What is VHP sterilization?
VHP stands for Vaporized Hydrogen Peroxide. It is a low-temperature sterilization process that uses H2O2 vapor to eliminate microorganisms, including highly resistant spores, on exposed surfaces.
Is this equipment safe for the environment?
Yes, it is highly environmentally friendly. The hydrogen peroxide decomposes naturally into water vapor and oxygen, leaving no toxic residues or harmful byproducts.
What is the sterilization efficiency of the VHP unit?
The equipment achieves a 6-log reduction (99.9999% efficacy) in thermophilic fatty spores, which is the industry standard for high-level sterilization.
Can it be used for large cleanrooms?
We offer optional configurations for different volumes, including 100m³, 200m³, and 300m³ to suit various cleanroom and laboratory sizes.
How long is the typical sterilization cycle?
A standard room temperature sterilization cycle is typically completed in less than 120 minutes, depending on the volume and humidity of the space.
What materials are compatible with VHP?
Vaporized hydrogen peroxide has excellent material compatibility with most plastics, metals (especially stainless steel), and electronics found in pharmaceutical environments.
