Ldz-125p Vertical Automatic High Speed Blister Bottle Pharmaceutical/Food/Dessert/Paper Tissue/Powder/Packet Cartoning Machine Box Carton Packing Packaging

Certification:	ISO9001
Application:	Medical
Driven Type:	Electric

Send Inquiry

Product Description

Basic Information

Model NO.LDZ-125P

After-Sales ServiceEngineers Available Overseas

TypeCarton Packaging Machinery

Automatic GradeAutomatic

Speed80 Cartons/Min

Carton Dimension(45~180)*(20~80)*(20~50)mm

Air Consumption10~15L/Min

Vacuum Suction-0.6MPa

Power380V 50Hz 1.5kw

Transport PackageStandard Wooden Package

SpecificationISO GMP

HS Code8422400000

Production Capacity80 Cartons/Min

Product Description

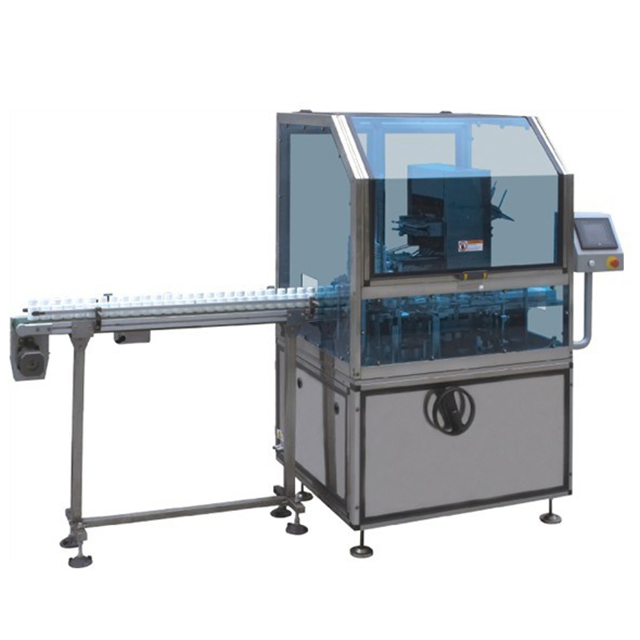

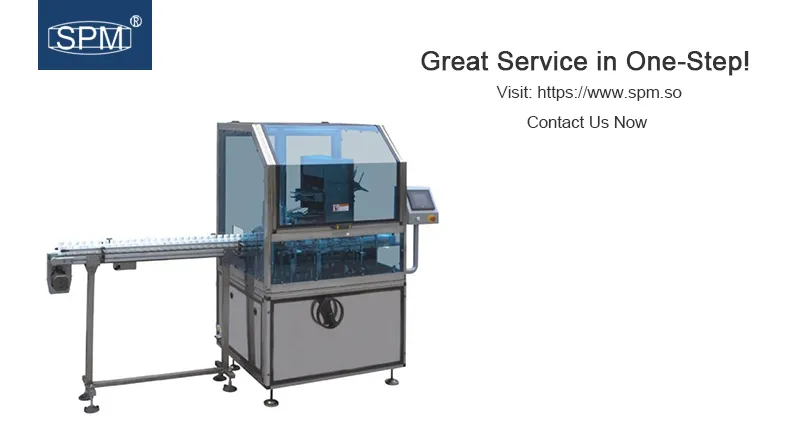

Ldz-125p Vertical Type Automatic Cartoning Machine

Automatic cartoning machine is used for putting medicine bottles/boards/unguents into the folded cartons and then closing the ends of the cartons. Some models of the cartoning machines have additional function of seal labeling and shrink wrapping. Infeed entrance usually can be divided into three: one for manuals, one for medicine bottles/boards/unguents and one for cartons.

The working process is generally divided into four steps:

Carton coming downwards: Sucker collects carton from the infeed entrance.
Erecting: Guide detent fixes and push pedal erects the carton to right angle.
Filling: Material is precisely inserted into the prepared carton.
Closing: Machine folds small flaps and inserts the tongue to fasten the cover.

Main Functions

PLC control with touch screen operation and frequency converter speed control.
Imported electric pneumatic components for high reliability.
Automatic folding manual function (1-4 fold regulation).
Automatic printing of batch numbers.
Multi-function recognition system with on-line monitoring.
Alarm functions for lack of material, books, or boxes.
No box - no glue function to prevent waste.
Overload protection with automatic stop function.
Modular structure for easy specification interchange.

Technical Parameters

Speed	80~110 cartons/min
Carton Dimension	(45~180)(20~80)(20~50)mm
Manual Dimension	(70~200)*(70~140)mm
Power	50Hz 380V 1.5KW
Air Consumption	10~15L/MIN
Vacuum Suction	-0.6Mpa (comes with vacuum generator)
Weight	Around 950Kg
Machine Dimension	250011001700mm
Carton Requirement	250~350g/sq.m
Manual Requirement	50~60g/sq.m

Frequently Asked Questions

1. What materials can the LDZ-125P cartoning machine handle? The machine is designed for medicine bottles, boards, unguents, and other similar items into folded cartons.

2. What is the maximum production speed of this machine? The LDZ-125P can achieve a high-speed output of 80 to 110 cartons per minute.

3. Does the machine support manual folding? Yes, it features an automatic folding manual function that can be arbitrarily regulated from 1 to 4 folds.

4. How does the system handle missing materials? It is equipped with a multi-function recognition and monitoring system that triggers an alarm if there is a lack of material, manuals, or boxes.

5. Can the machine accommodate different carton sizes? Yes, the machine has a modular structure where various specifications are interchangeable to fit different client requirements.

6. What safety features are included? The machine includes overload protection with an automatic stop function to ensure operator safety and prevent equipment damage.
