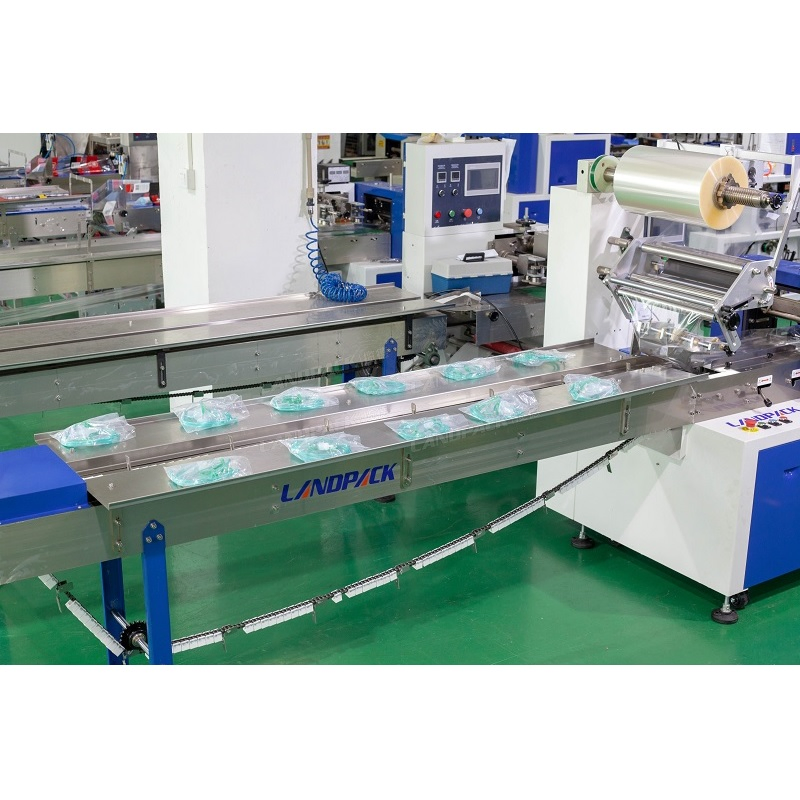

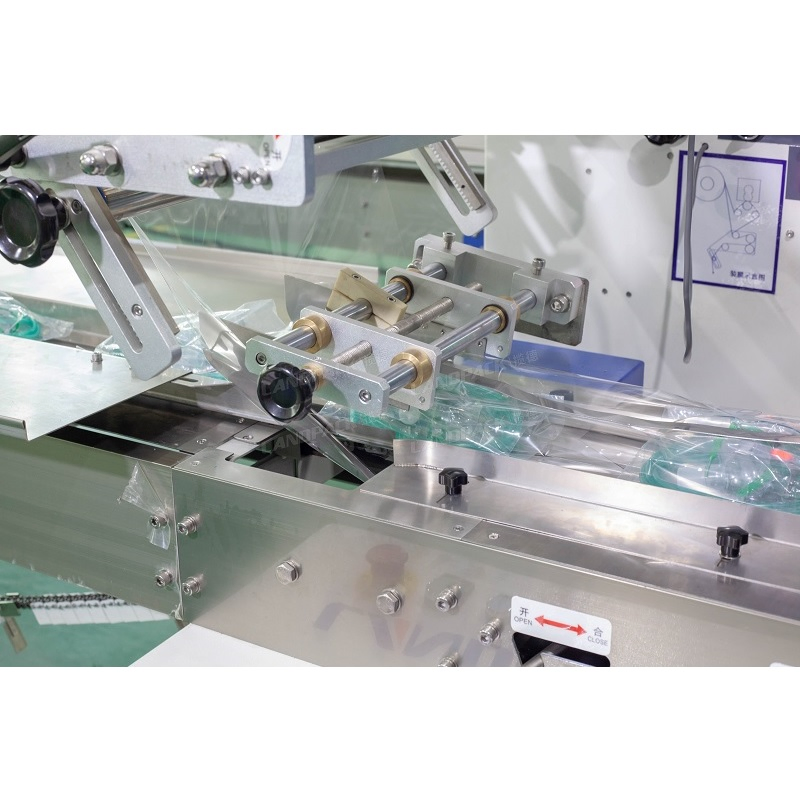

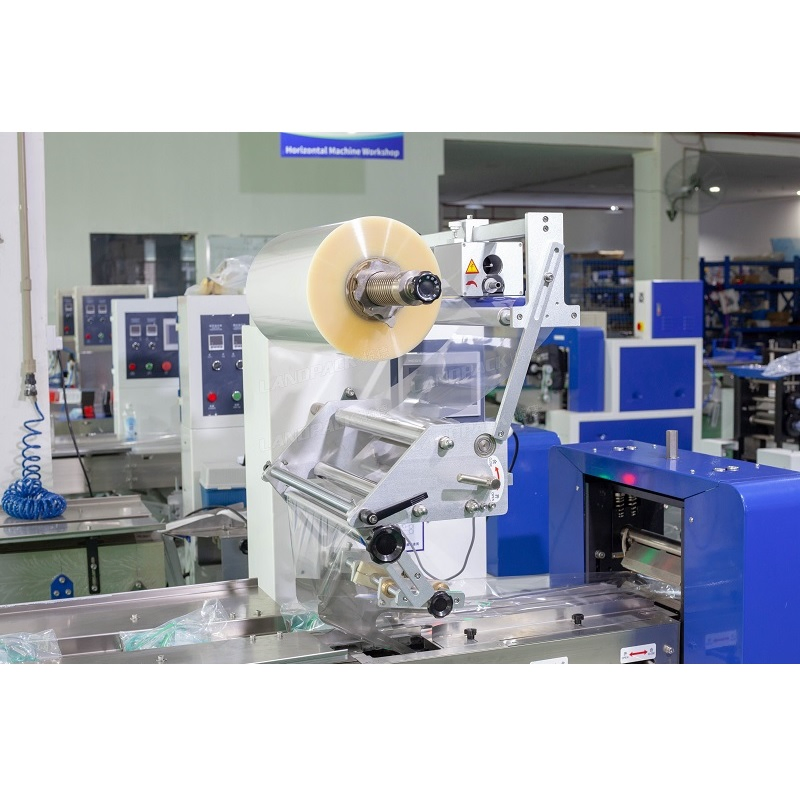

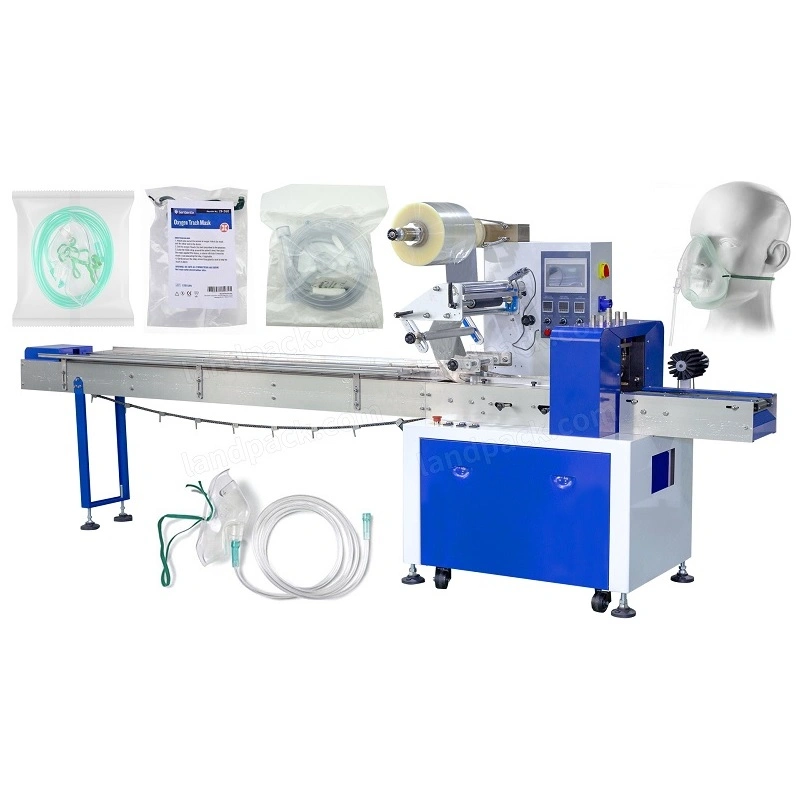

Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
1 / 5
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine
Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine

Landpack Lp-450b Sanitary Plastic Cutlery with Napkin Infusion Set Packing Machine

Customization: Available
After-sales Service: Yes
Warranty: 3 Years
Send Inquiry

Product Description

i

Basic Info.

Model NO.
LP-450B
Automatic Grade
Automatic
Application
Dairy Products, Vegetable, Fruit, Fish, Meat, Snack, Infusion Set
Type
Filling and Sealing Machine
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Quality
201/304 Stainless
Packing Speed
30-150 Bag/Min
Bag Type
Pillow Bag, Stand Pouch, 3/4 Side Seal
✓

Product Description

Sanitary Plastic Cutlery With Napkin Infusion Set Packing Machine

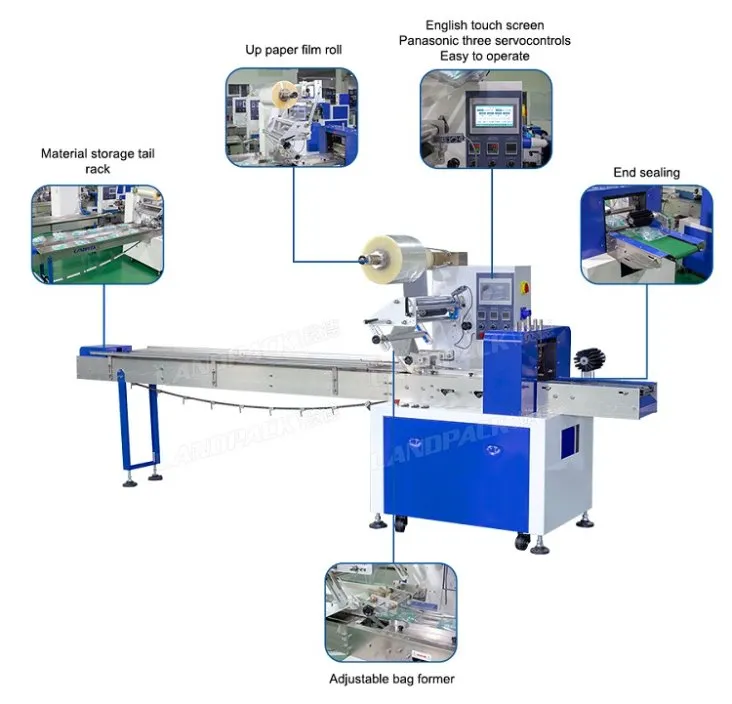

Packing Machine Main View

Key Features

Three Servo Control Automatically detect product length and cut, operator doesn't need to adjust unloading, saving time and films.
Human-machine Operation Convenient and quick parameter setting through digital interface.
Self Diagnosis Function Clear failure display for easy troubleshooting and maintenance.
High Sensitivity Tracking Optical electric color mark tracking and digital input cut position for accurate sealing and cutting.
PID Temperature Control Separate PID control for temperature, making it suitable for various packing materials.
Optimized Stopping Machine stops in selected position to prevent sticking to the knife and waste of film.
⚙

Product Parameters

Main technical parameters of LP-450B
Production capacity30-150 bags/min
Diameter of film rollMaximum 320mm
Packaging film widthMaximum 450mm
Outer bag sizeMax Length 450mm, Max Width 180mm
Product thickness1-10mm
Air pressure0.5-0.7Mpa
Machine noiseLess than 80db(A)
Rated Voltage / FrequencyAC220V / 50Hz
Transmission Power4.2Kw
Heating Power2.8 Kw
Machine Weight650Kg
Dimensions4030mm(L) * 820mm(W) * 1420mm(H)
?

Why Three Servo Motor?

Individual Control Horizontal seal, vertical seal, film transport, and material feeding are controlled individually by three servo motors.
No Material, No Bag Sensor-based system stops the machine immediately if no material is detected on the conveyor, preventing waste.
Anti-cutting Function Cutter suspends and rebounds immediately if it touches the material, ensuring safety and protecting the hardware.
★

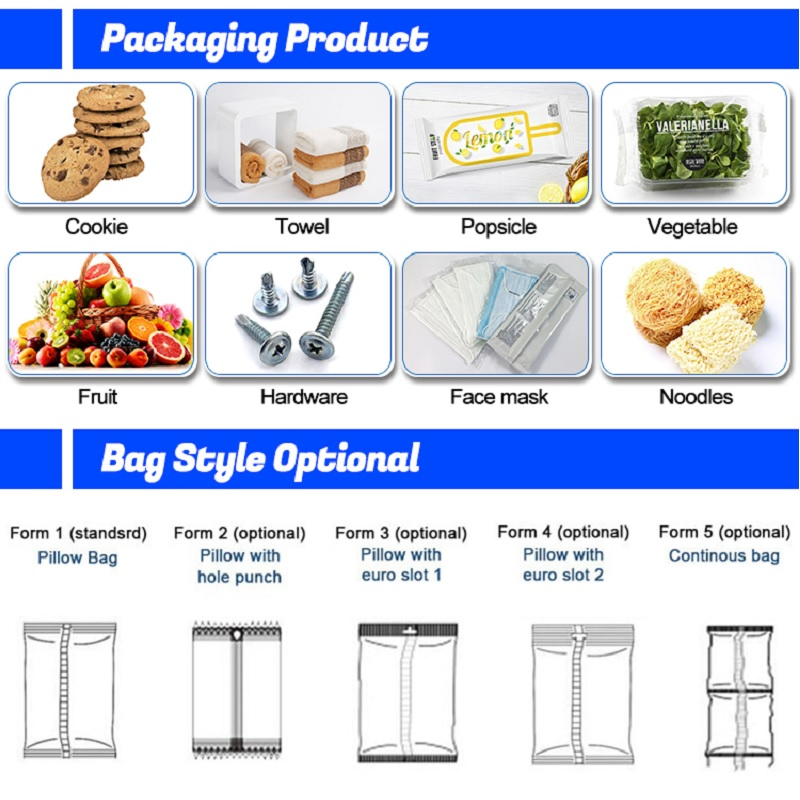

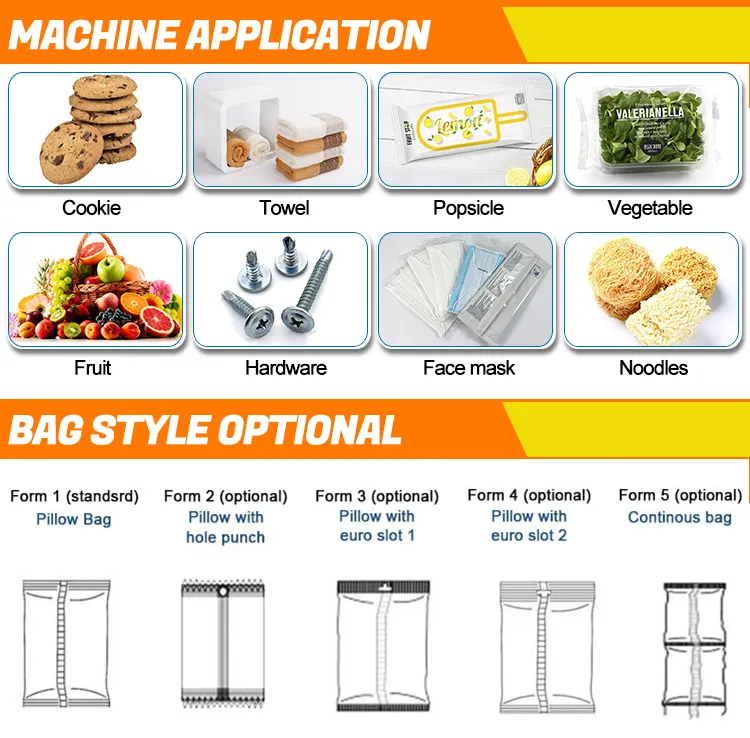

Application Range

Mainly used for packing various regular and solid products. Examples include:

Dental FlossCandles CookiesTowels PopsiclesVegetables FruitNoodles CakesBread CandyChocolate Face MasksHardware
Application 1
Application 2
Application 3

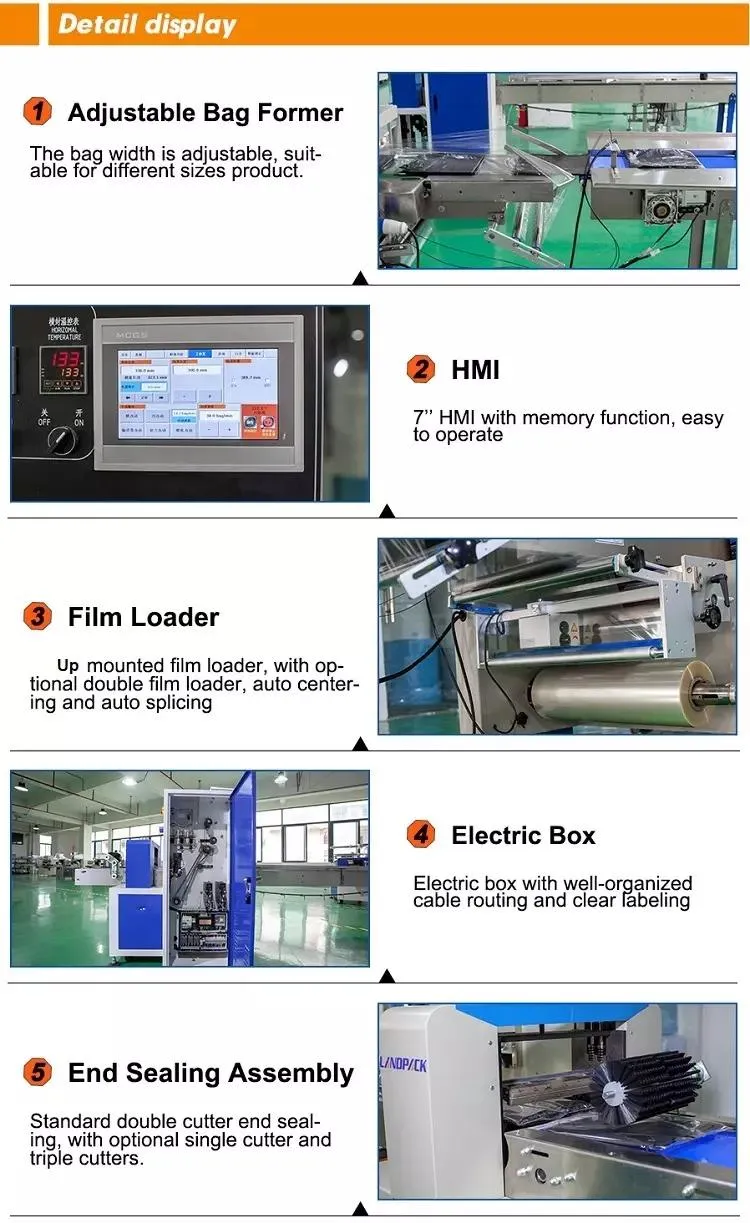

Application 4
Application 5
Application 6
Process 1
Process 2
Process 3
Process 4
FAQ

Frequently Asked Questions

How do I choose the most suitable packing machine for my products?
To provide an accurate quote, please provide your product name, a product picture, the bag dimensions (width and height), and your ideal bag shape. With over 100 types of machines available, this information helps us recommend the best fit for your needs.
Can I see how the machine operates with my specific product before purchasing?
Yes, you can send us samples of your product. We will use our existing machines to perform tests and provide you with high-quality videos and pictures. We can also arrange a live online video demonstration.
Can one machine handle multiple bag sizes?
Every machine has a specific range for bag length and width. If you provide your full requirements, we can calculate the compatibility and let you know if a single machine can handle all your sizes.
What are the main advantages of the three servo motor system?
The system provides individual control over sealing and film transport, includes a "no material, no bag" sensor to prevent film waste, and features an anti-cutting function that rebounds the cutter if it touches the material.
What kind of after-sales support do you provide?
We provide comprehensive manuals and installation videos. Our technicians offer 24-hour online support. The machine comes with a one-year warranty (excluding man-made damage), and we can send engineers to your site if required.
How is the quality of the production process managed?
We have a trained team that follows orders methodically, ensuring high-quality standards and on-time delivery. Every machine undergoes rigorous testing before shipment.
