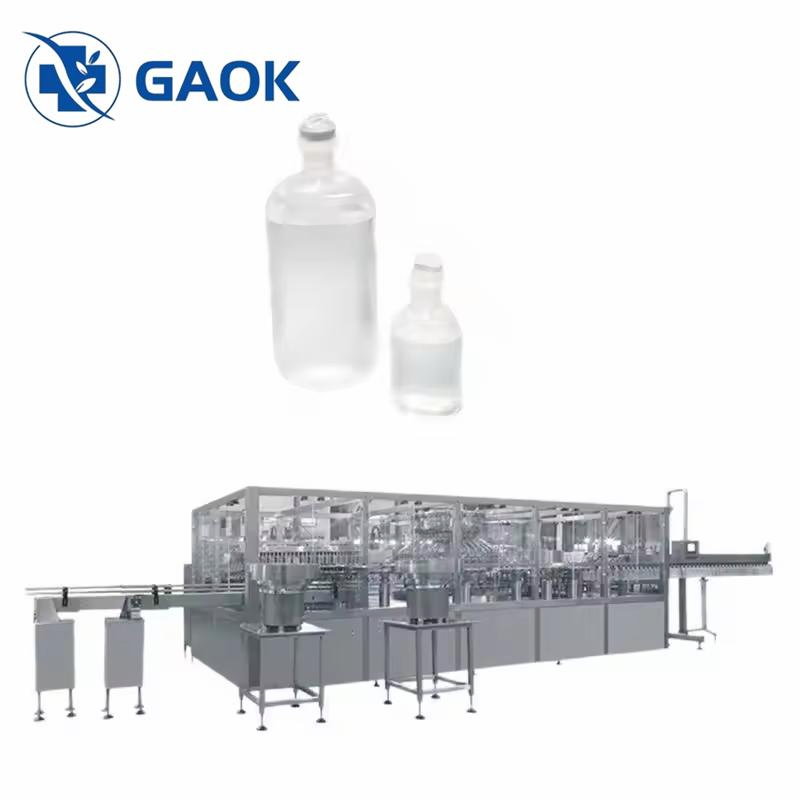

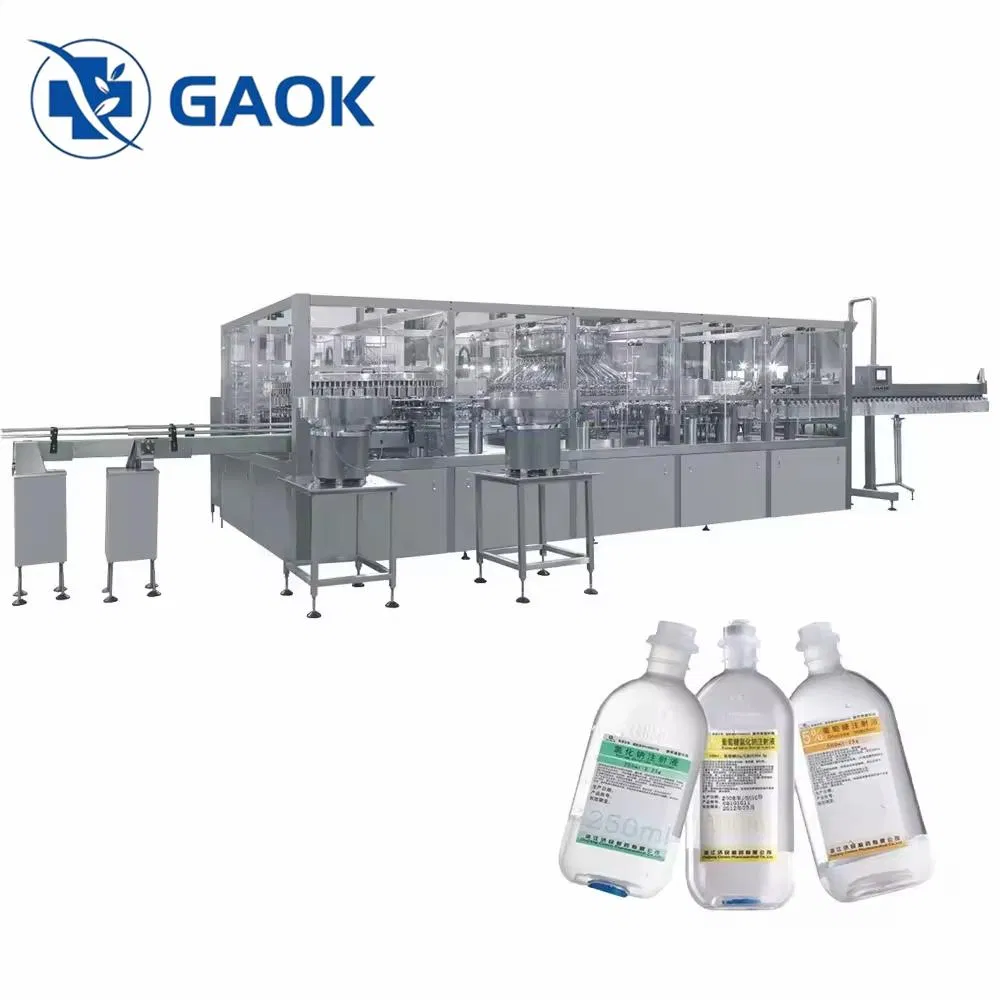

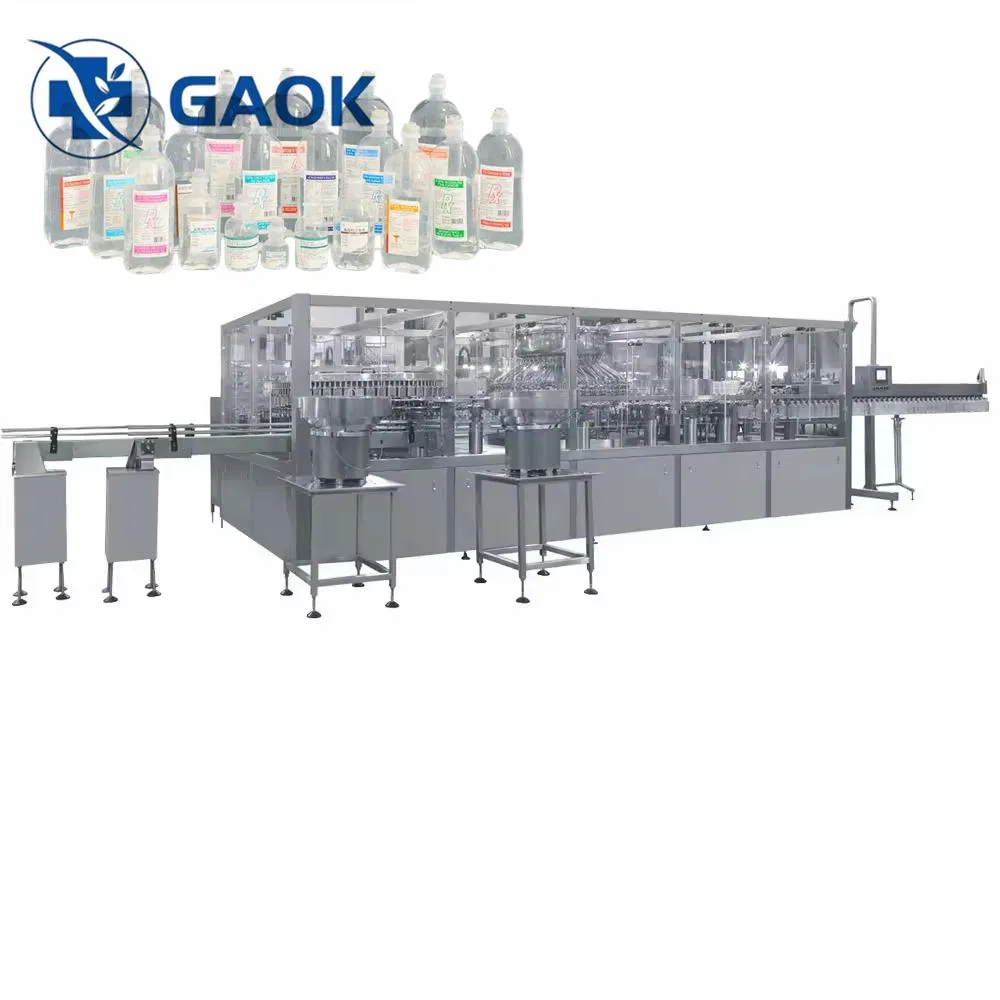

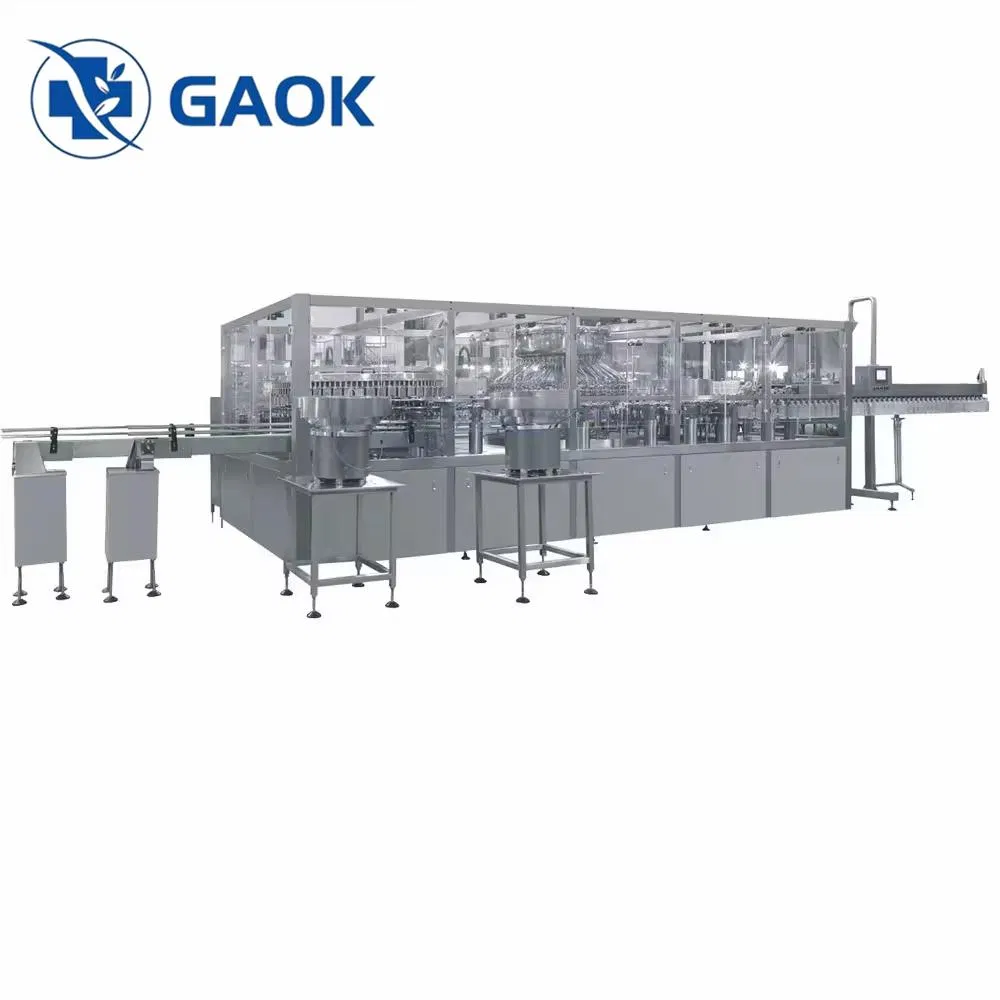

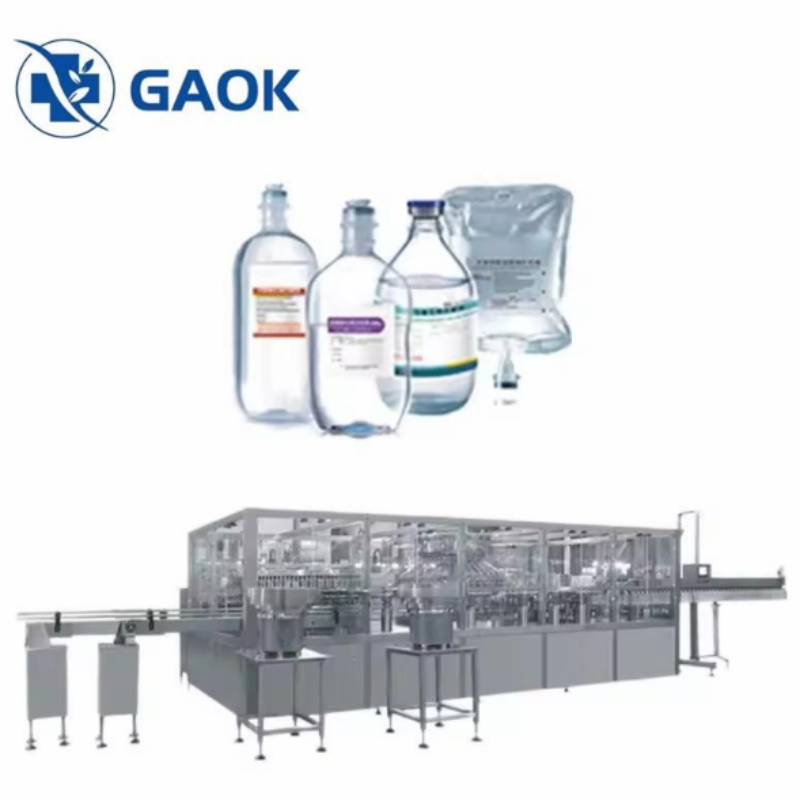

The plastic soft bottle I.V-solution washing, filling, and sealing production line is an advanced packaging system integrating three critical stations into a single rotary unit. Designed for high efficiency, it ensures the integrity and quality of medical solutions.
The line utilizes hot-melt welding for secure cap sealing. A sophisticated mechanical hand system is employed to transport bottles by the neck, preventing any scratches or damage to the bottle bottom, which significantly enhances production yield and product aesthetics.
Water-washed bottles are precisely transferred to the filling station, where specialized nozzles trace the containers for accurate filling. The system features a constant-pressure liquid balance tank and a robust piping system designed for seamless inflow and back-flow management.
Pneumatic controls leverage field-bus technology, with valves and electrical components integrated into the machine base for superior waterproofing and durability. This modular design allows for easy maintenance and disassembly.
| Product Name | Biotechnology plastic bottle iv fluid production plant |
| Max Capacity | 6000 bottles/hour (frequency conversion speed adjustment) |

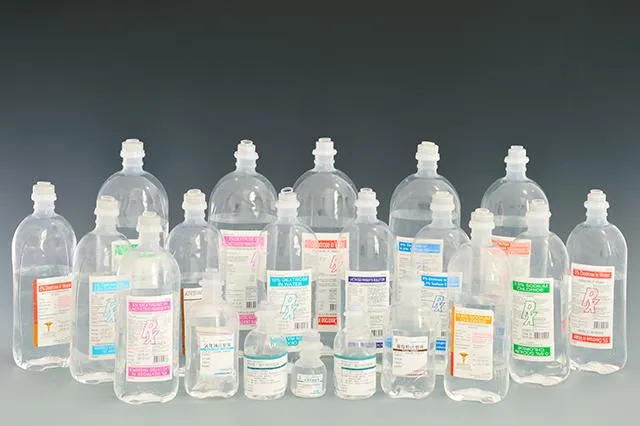

| Bottle Specs | 100-1000ml plastic infusion bottles (BOPP or vertical soft bag) |
| Air Washing Stations | 30 |
| Water Washing Stations | 30 |
| Filling Stations | 18 |
| Cap-Sealing Stations | 30 |
| Washing Efficiency | Qualified rate ≥99.8% |
| Metering Error | ≤±1% |
| Welding Quality | Deviation ≤0.4mm; Pass rate ≥99.9% |
| Total Power | Approx. 20Kw |
| Gas Consumption | 0.6Mpa, about 260 m³/h |
| Water Consumption | Purified water ≥0.2MPa, about 0.7 m³/h |
| Dimensions | 4500 × 2000 × 2200mm (L×W×H) |
Specializing in product design, development, and manufacturing, the focus remains on high-end pharmaceutical engineering. Providing comprehensive solutions for dairy, beverage, and chemical engineering, the equipment complies with stringent international standards for design and production. Services include turnkey engineering, process design, and plant layout consulting for global markets.
