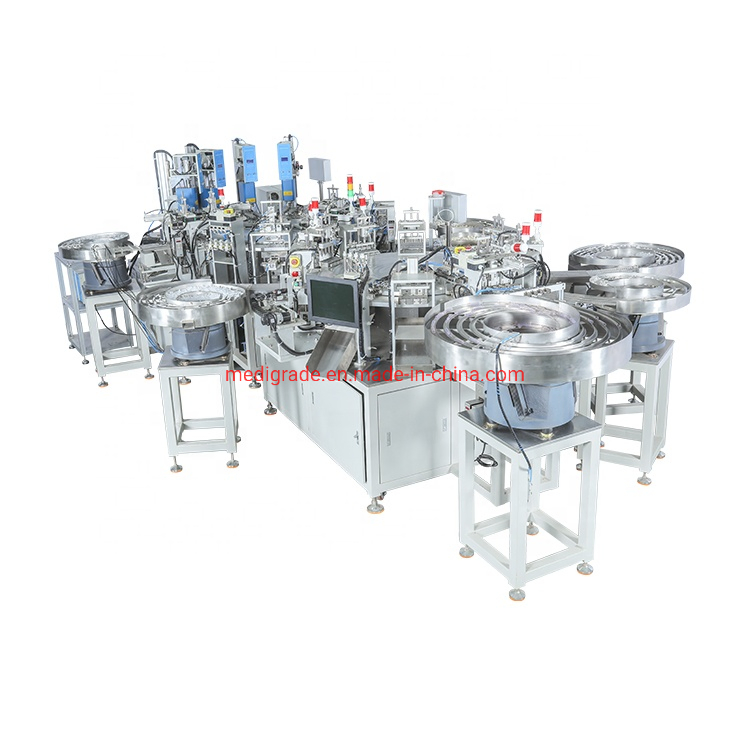

IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
1 / 5
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine
IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine

IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine

Customization: Available
Material: Stainless Steel
Type: Infusion Unit Assembly
Send Inquiry

Product Description

📋 Basic Information
Model NO.
MDZZ-02
Application
Medical
Flexibility
Hard
Technics
Bottle Blowing
Logo Printing
Medigrade
Recycled
Can Not Be
Transport Package
Marine Transportation
Specification
3600kg
⚙️ Product Description

IV Infusion Set and Medical Sets Catheter Tube Automation Assembling Line Machine

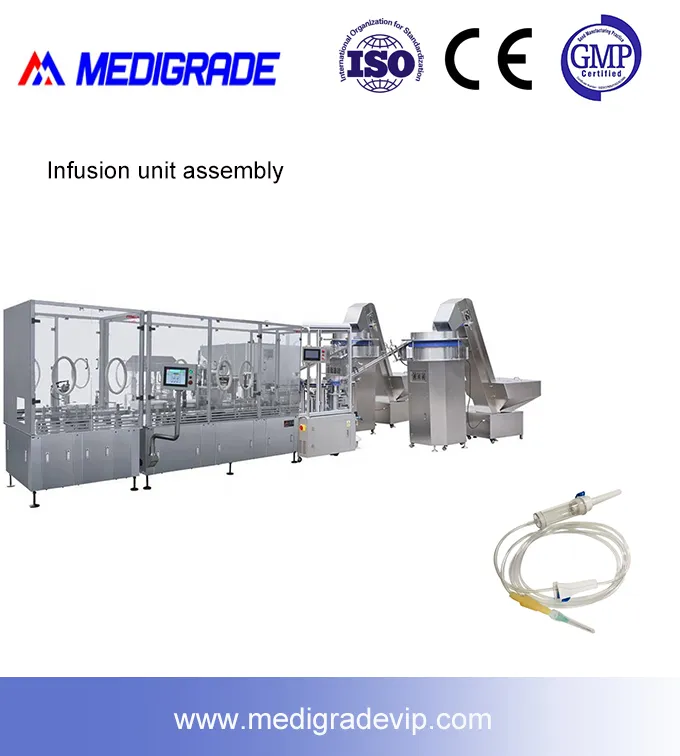

Assembling Line Machine 1

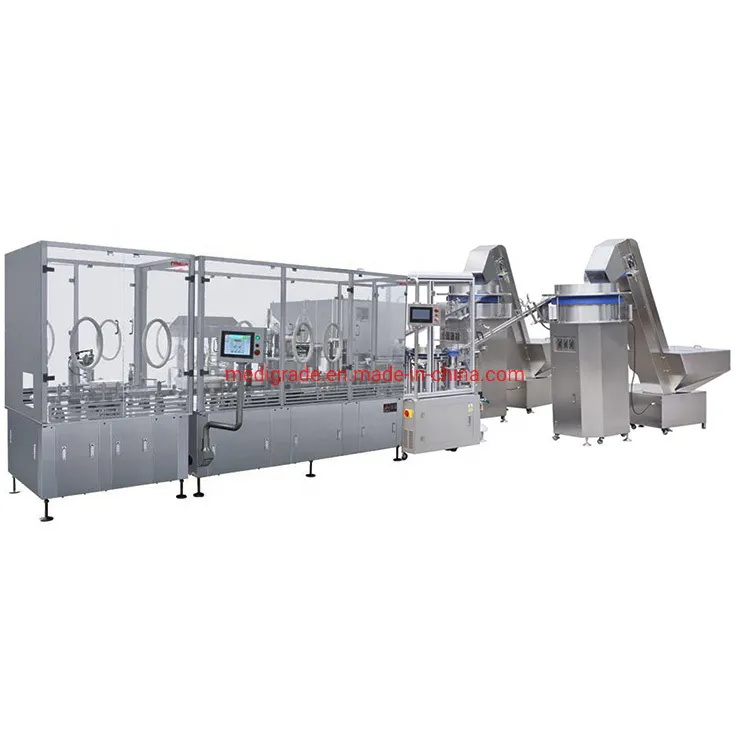

Assembling Line Machine 2

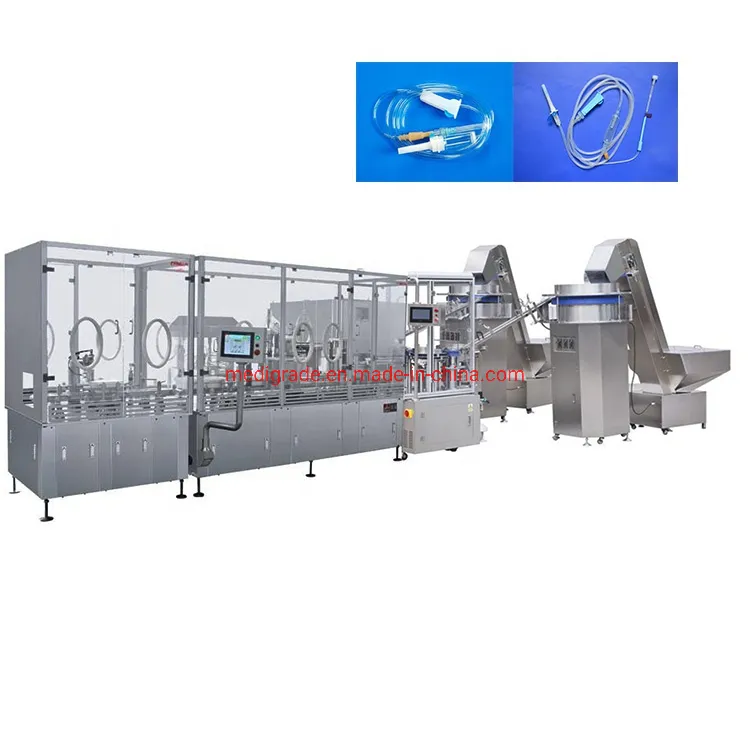

Assembling Line Machine 3
Assembling Line Machine 4
Assembling Line Machine 5

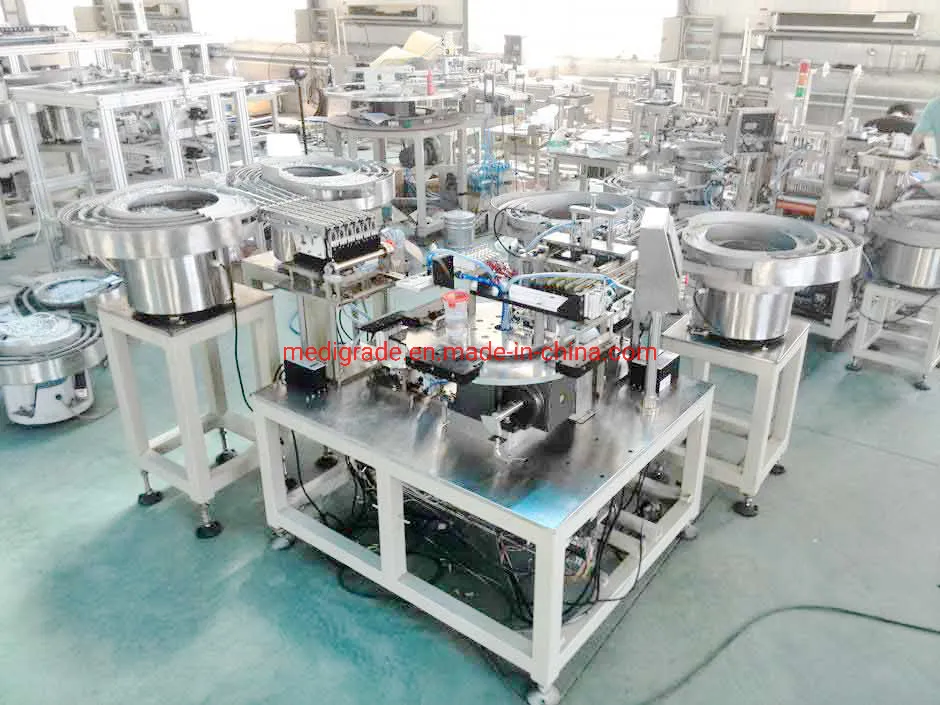

Assembling Line Machine 6

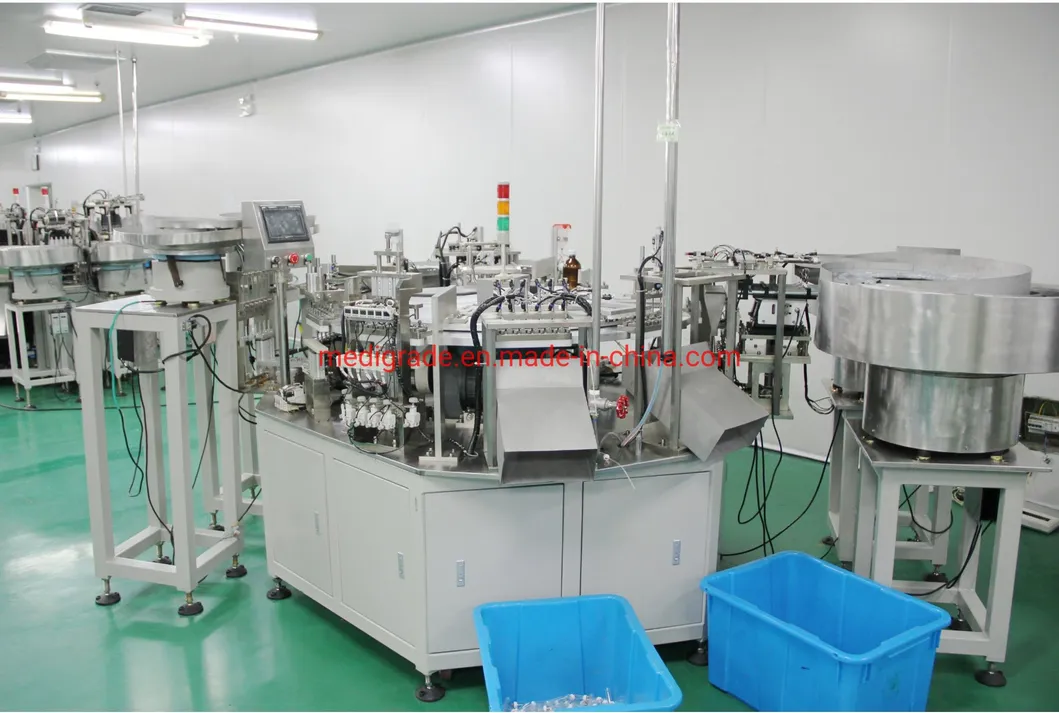

Assembling Line Machine 7

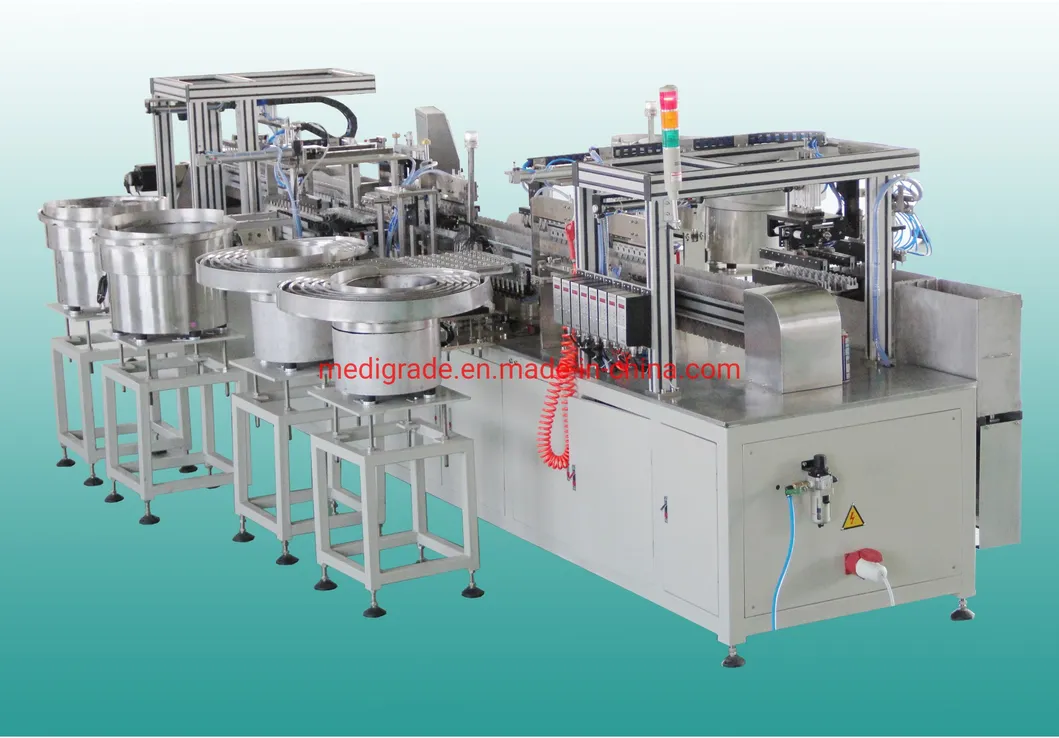

Assembling Line Machine 8

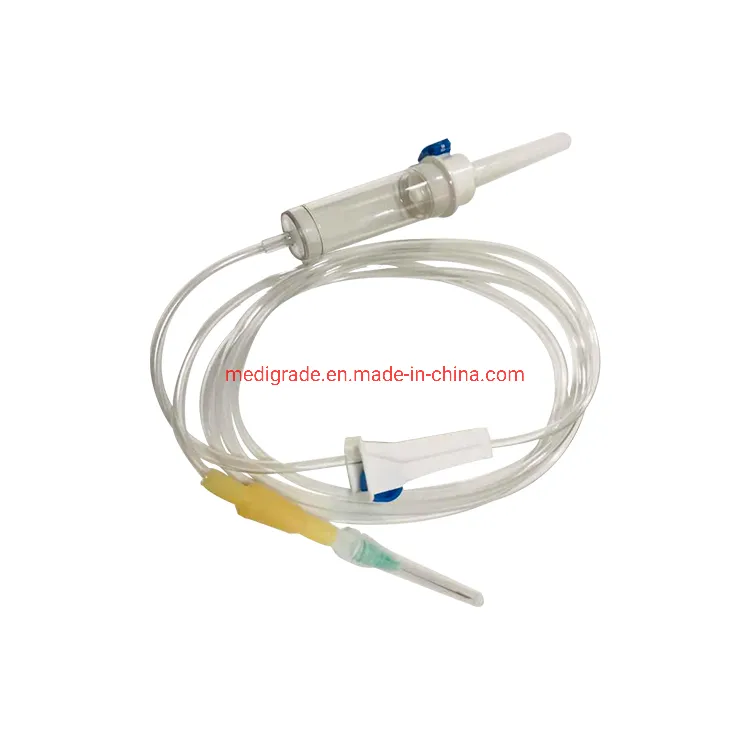

Assembling Line Machine 9
💡 Product Function

This equipment is suitable for the infusion sets assembly. It adopts PLC control system to achieve automatic feeding, automatic assembly, and automatic loading. It greatly improves production efficiency, reduces labor requirements, and lowers operational costs.

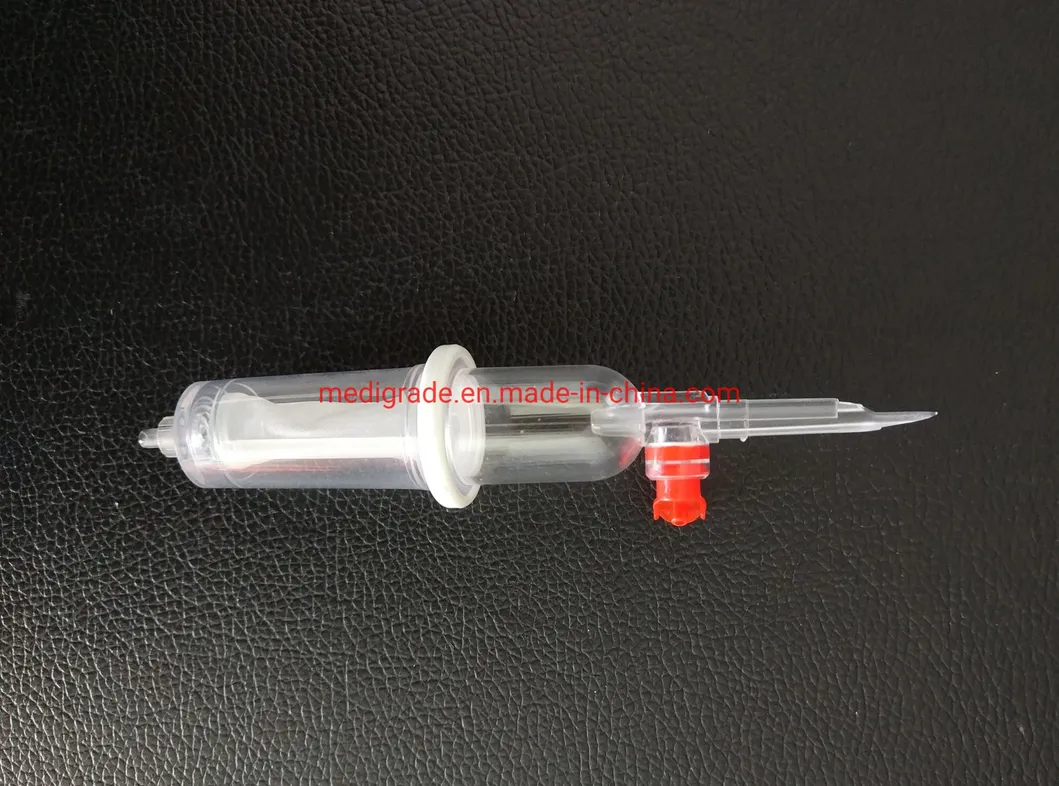

Infusion Set Assembly 10

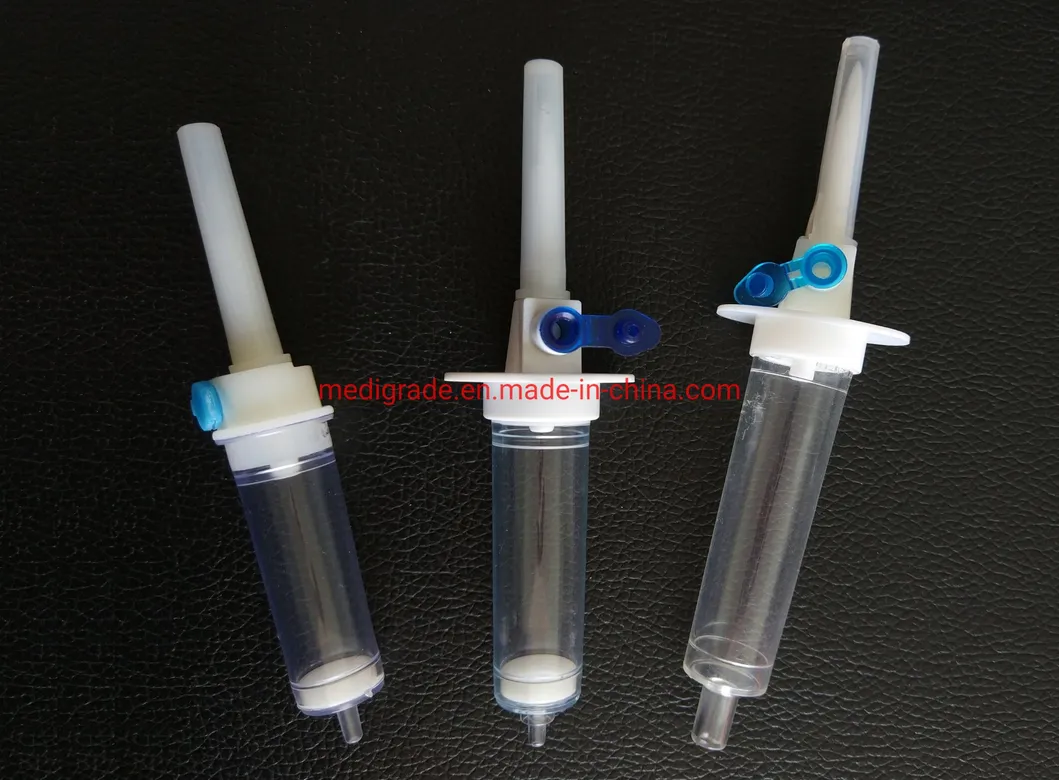

Infusion Set Assembly 11
📊 Technical Parameters
Parameter Details
FunctionAssembly
ApplicationInfusion set
TypeAutomatic machine
Production efficiency1100-3600 pcs/hour
Power supply220V 50/60Hz / 5.0KW
Sizes (L x W x H)2400mm x 1500mm x 1710mm (for reference only)
Air volume160L/min
Weight3600Kg
Air supply0.5-0.7Mpa
Feeding modeVibrating feeder
🏗️ Machine Structure
🔹 1. Electronic control: Touch screen and PLC control.
🔹 2. Gas components: Cylinder drive and optical fiber sensor.
🔹 3. Durable parts: Sliding structure made of high-speed steel for wear resistance and fixity.
🔹 4. Reliability: One year warranty provided.
🔹 5. Safety: Alarm indication for operational status.
⭐ Main Features
✅ Specifically designed for the medical assembly industry.
✅ Automatic detection: Starts when material is detected, stops when material is lacking.
✅ Automatic counting and set output capabilities.
✅ Intuitive touch screen interface for simple and safe operation.
✅ Abnormal shutdown protection with automatic alarming.

Customization: Machines can be designed and customized to meet the specific technical needs of different products.

❓ Frequently Asked Questions
Q1: What is the production capacity of this IV infusion set assembly line?
The machine offers a high efficiency range of 1100 to 3600 pieces per hour, depending on the specific product configuration.
Q2: How is the machine controlled for precision assembly?
It uses a high-performance PLC control system paired with an intuitive touch screen interface for stable and precise automation.
Q3: Does the machine include safety and detection features?
Yes, it features automatic material detection, automatic start/stop functions, and an alarm system for abnormal shutdowns.
Q4: What materials are used for the mechanical structure?
The sliding parts are constructed from high-speed steel to ensure stability, durability, and long-term wear resistance.
Q5: Can this assembly line be customized for different medical sets?
Absolutely. The equipment can be designed and customized to meet the specific technical requirements of various medical catheter and infusion products.
Q6: What are the power and air supply requirements?
The machine requires a 220V 50/60Hz power supply (5.0KW) and an air supply pressure of 0.5-0.7Mpa with a volume of 160L/min.
