This production line is specially developed for oxygen inhalation tubes, oxygen delivery tubes, nasal oxygen tubes, and other medical catheters with similar structures. It is suitable for the production of various types of single-hole, double-hole adult and single-hole, double-hole pediatric oxygen inhalation tubes, etc.
Main Machine Model: RLB-45/55/65
Productivity: 15-20KG/hour
Applicable Materials: Medical Grade PVC, PP, PE, EVA
EQUIPMENT COMPONENTS:

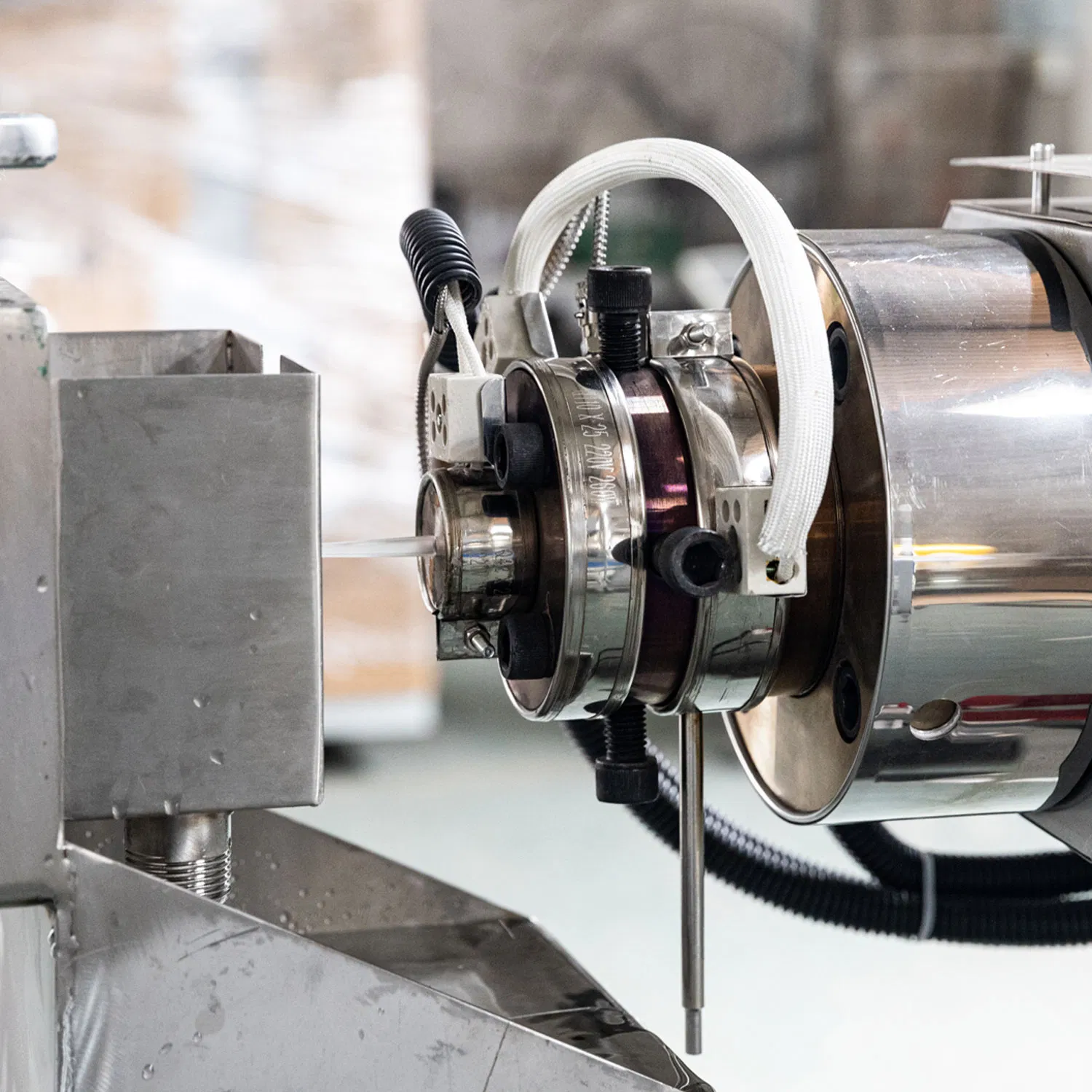

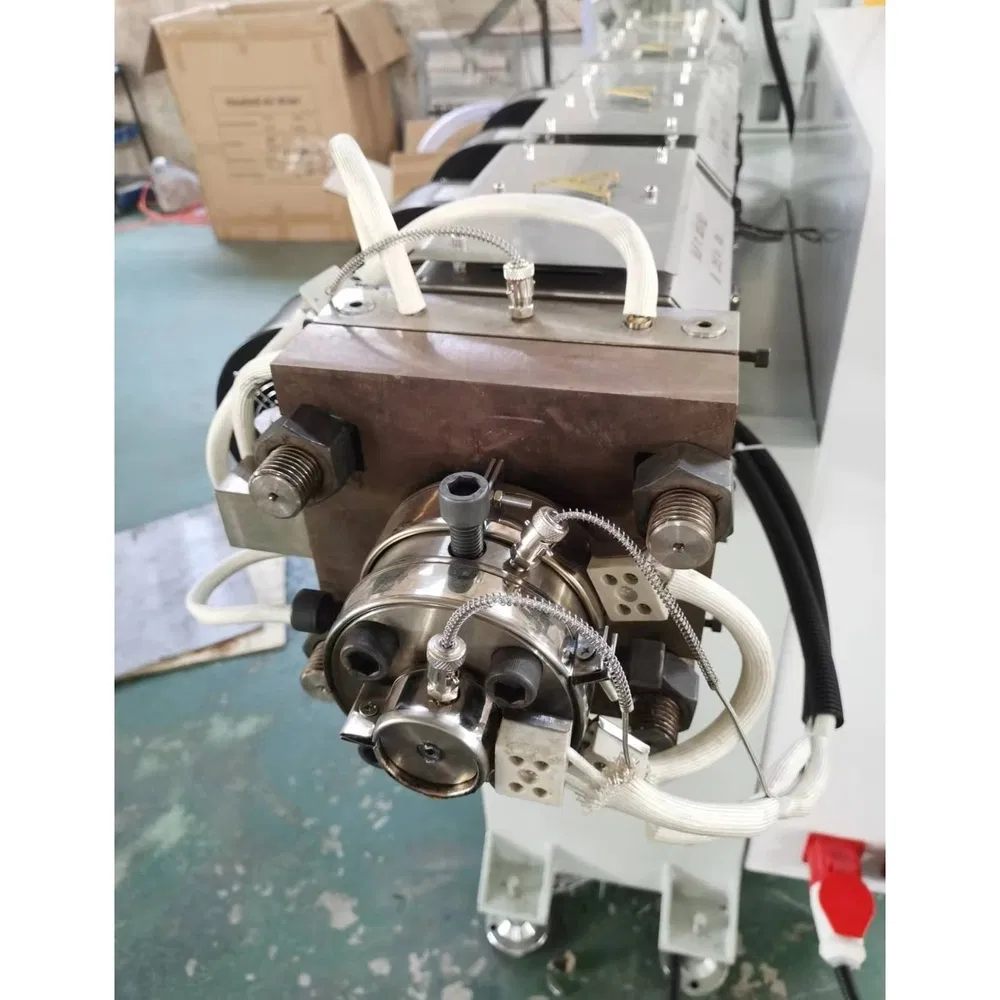

Extrusion φ55 main machine — High-precision die head mold — Vacuum shaping cooling water tank — Outer diameter gauge — Traction machine — Microcomputer cutting machine
| Model No | Screw Diameter (mm) | Screw L:D | Main Motor Power (KW) | Output (KGS/HR) |
|---|---|---|---|---|
| RLB-45 | 45 | 28:30 | 11 | 30-40 |
| RLB-55 | 55 | 28:30 | 15 | 35-45 |
| RLB-65 | 65 | 28:30 | 22 | 45-65 |

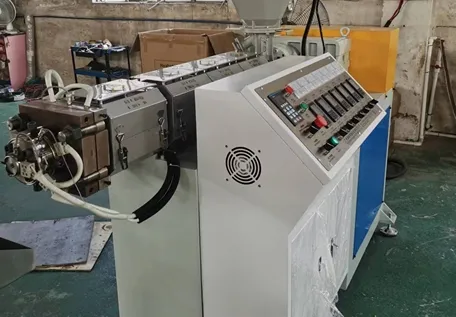

Advanced Screw Design: PVC screw designed by Germany technology, with bigger L/D and compression ratio, ensures high speed and stable extrusion, meanwhile provides excellent plasticity.
Control System: Features SIEMENS A/C frequency motor and ABB inverter for accurate output control. PID intelligent temperature controller maintains precision within ±1°C.

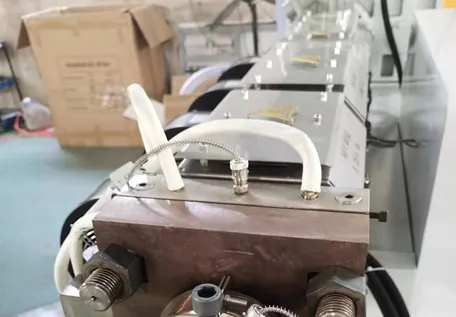

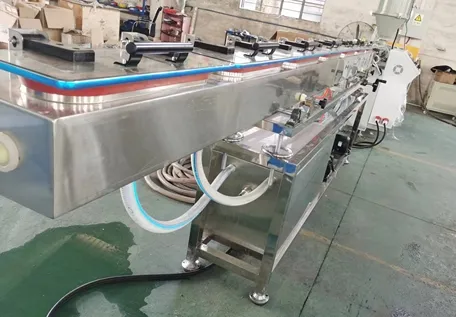

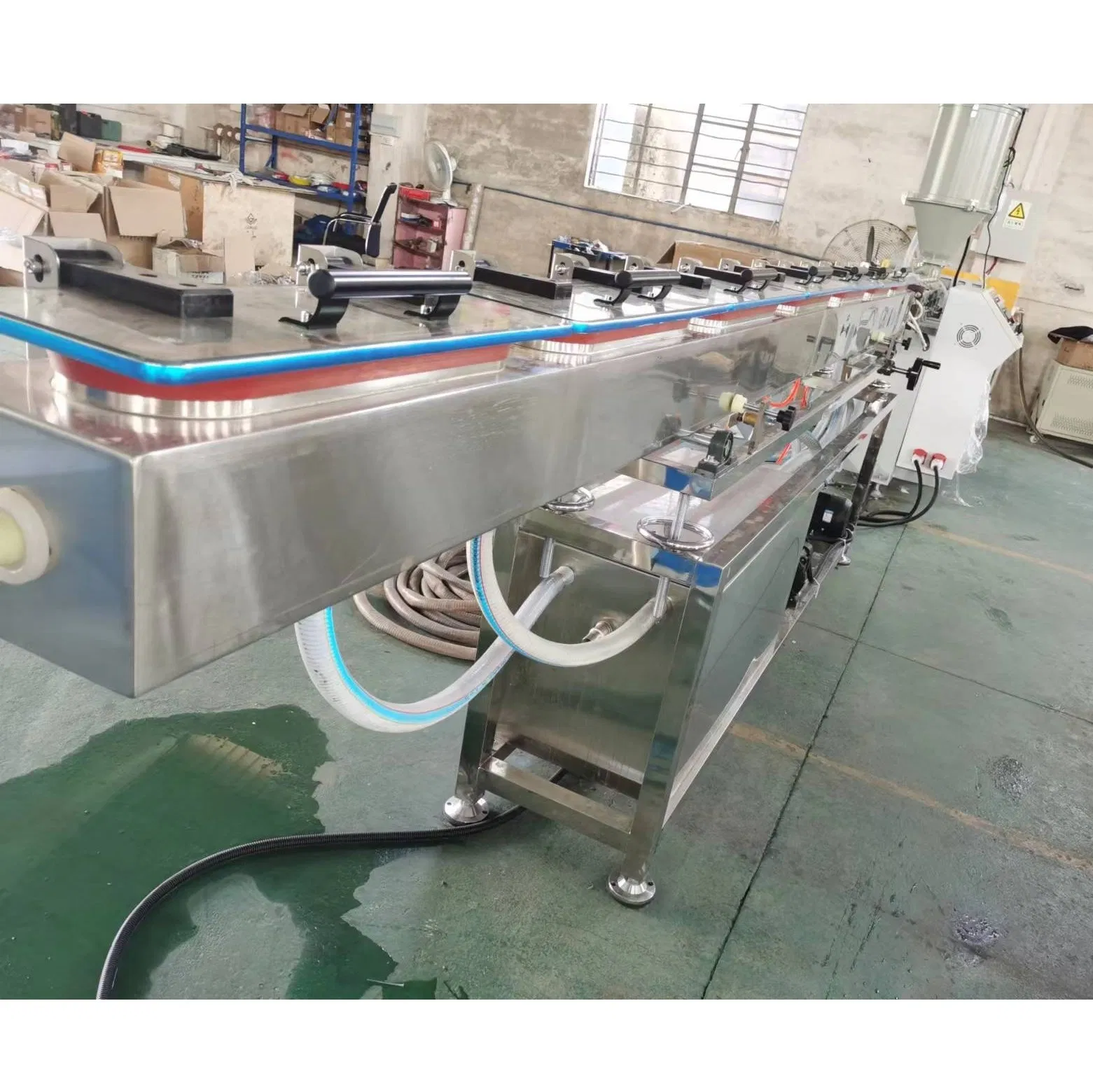

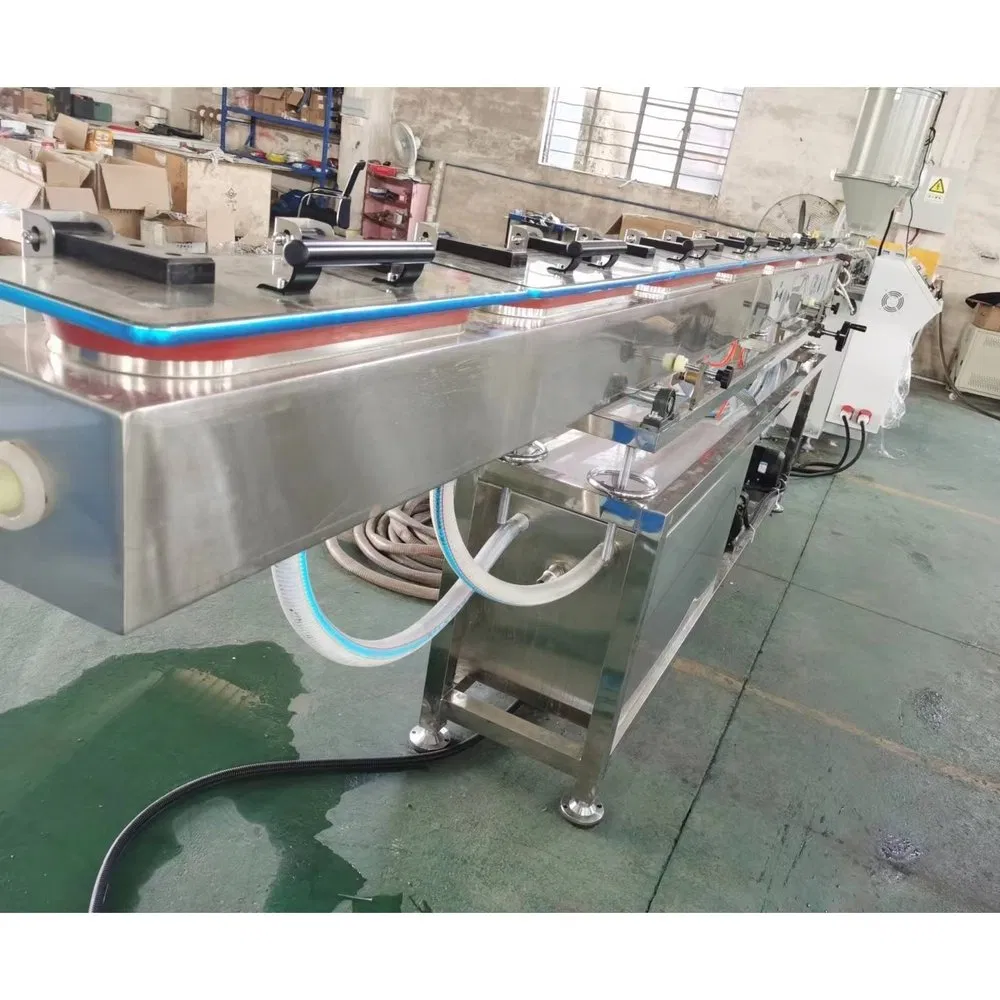

Stainless Steel Cooling Tank: Made from medical standard SUS316 material, tolerant to long-term oxide etch with 10ppm sodium hypochlorite water.
3D Movement: Tank frame with spiral elevating device allows 3D movement for trouble-free operation.
Laser Mike Measurement: Bi-direction high-speed diameter measurement system realizes online diameter, ovality, and positional monitoring with precision up to ±0.02MM.
Precision Puller: Adopt imported multilayer composite wearable strap with high-level precision roller driving.
High-Speed Cutter: Equipped with low inertia aluminum alloy rotating knife arm and TECO Servo system for high-speed, high-accuracy cutting.
PLC Control: Mitsubishi PLC and SIEMENS HMI allow for continuous, timing, and length counting cutting modes.
