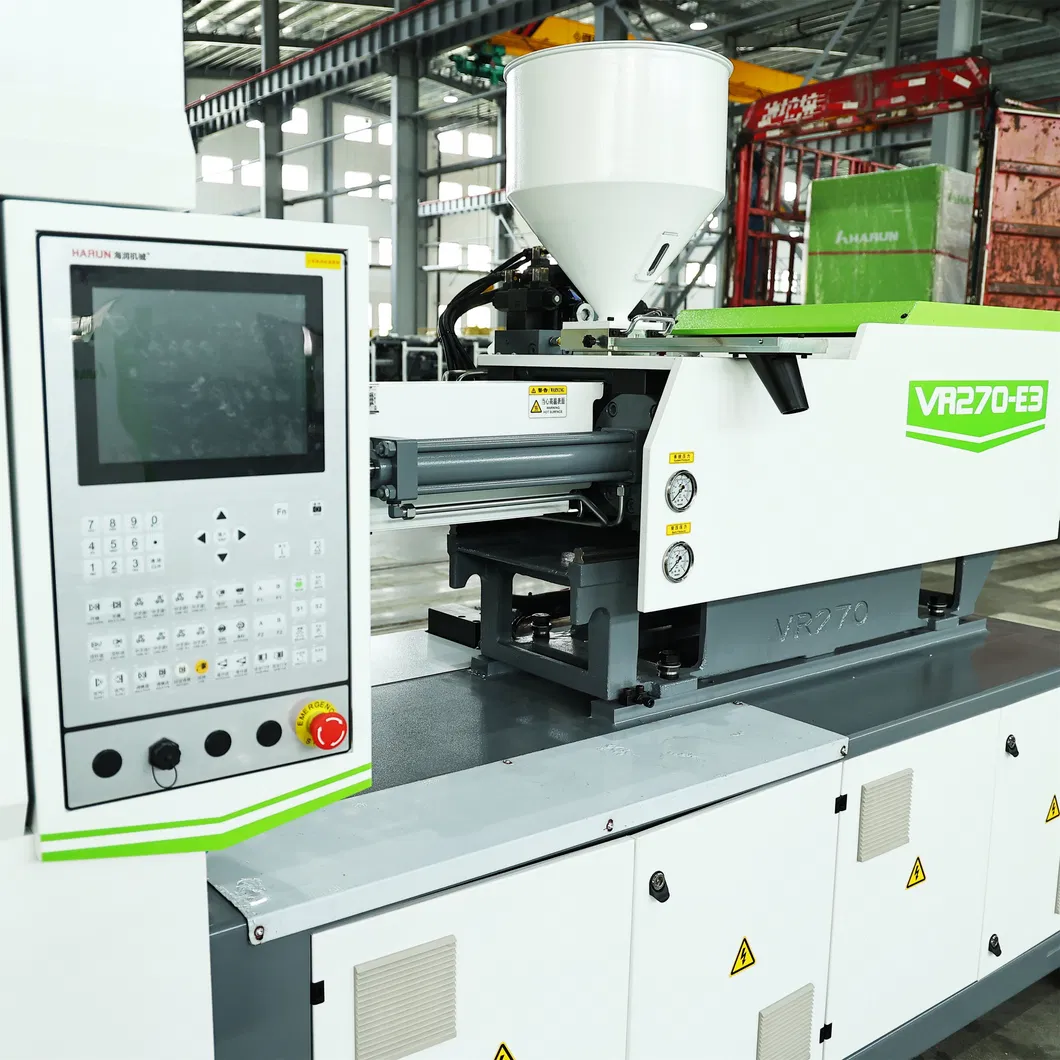

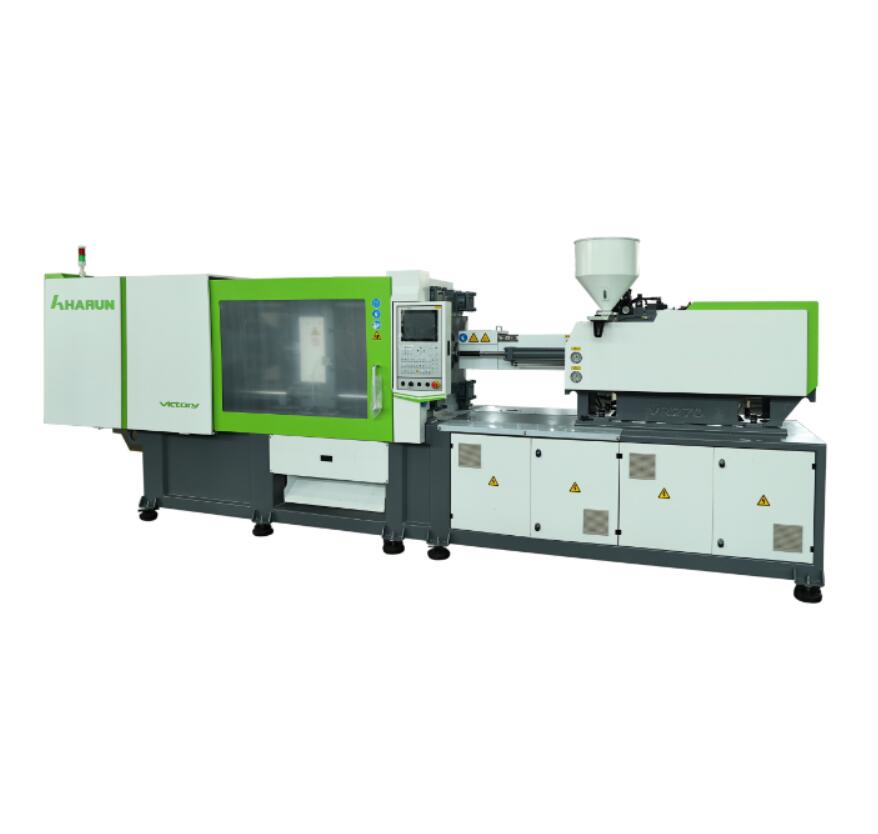

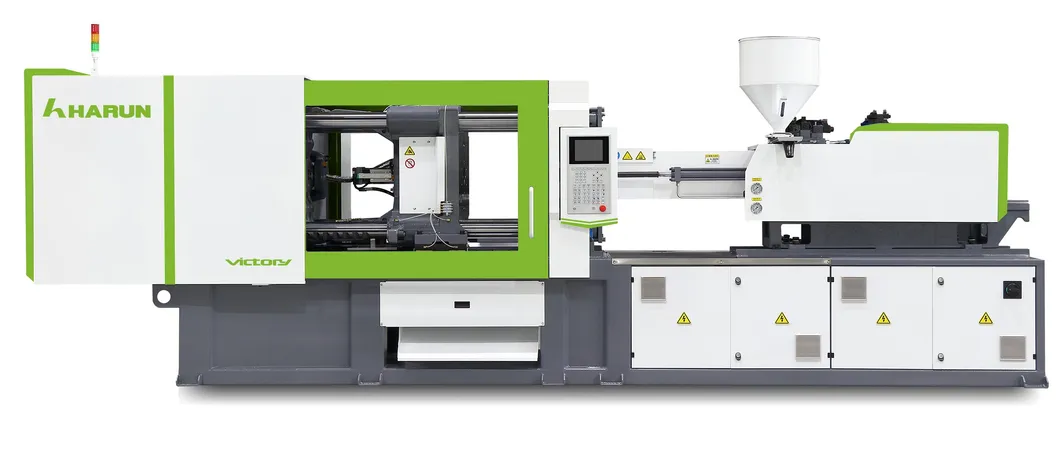

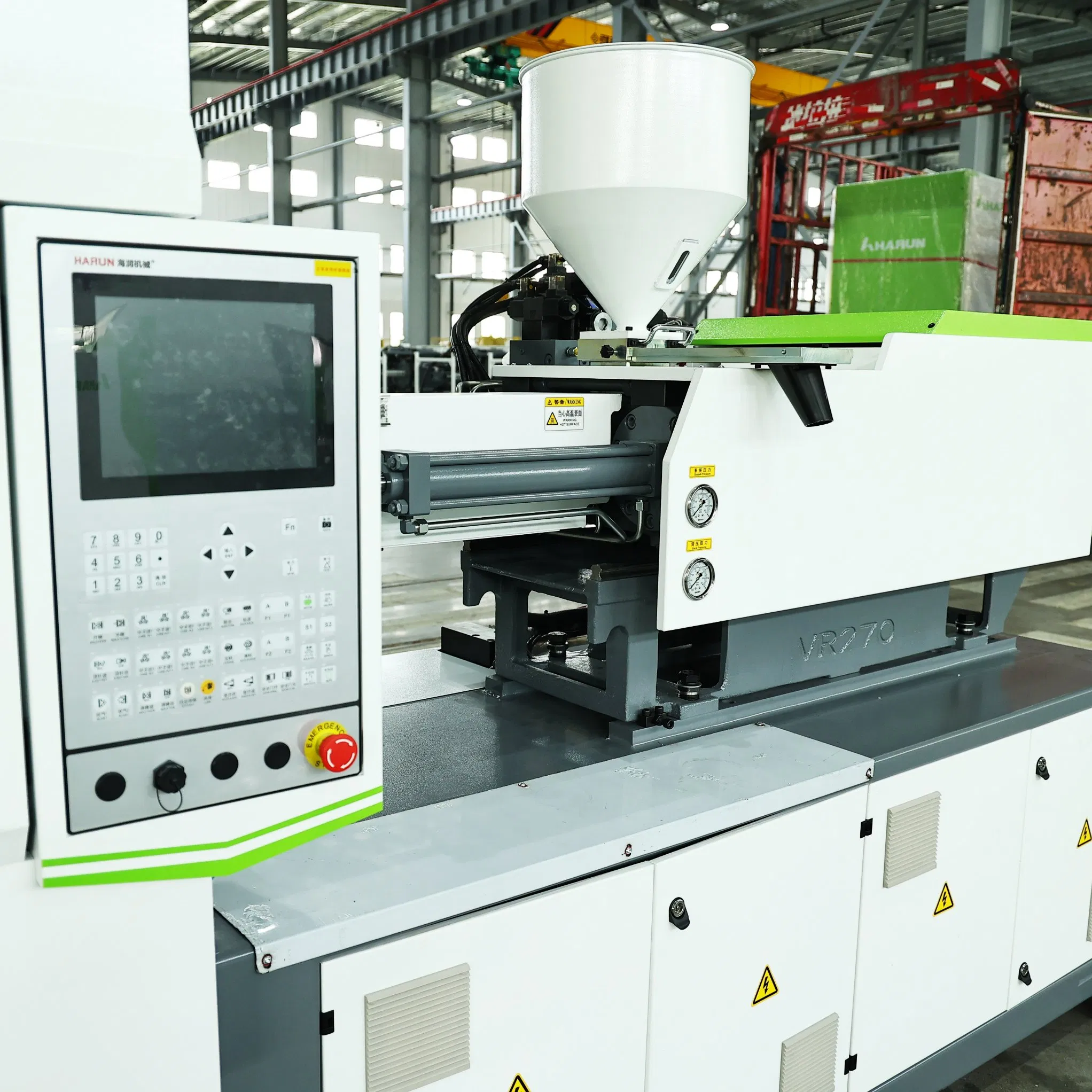

VR-E3 SERIES INJECTION MOLDING MACHINE
This machine delivers excellent performance in terms of efficiency, stability, applicability, and energy saving, offering a cost-effective solution for precision injection molding requirements.
Product Advantages:

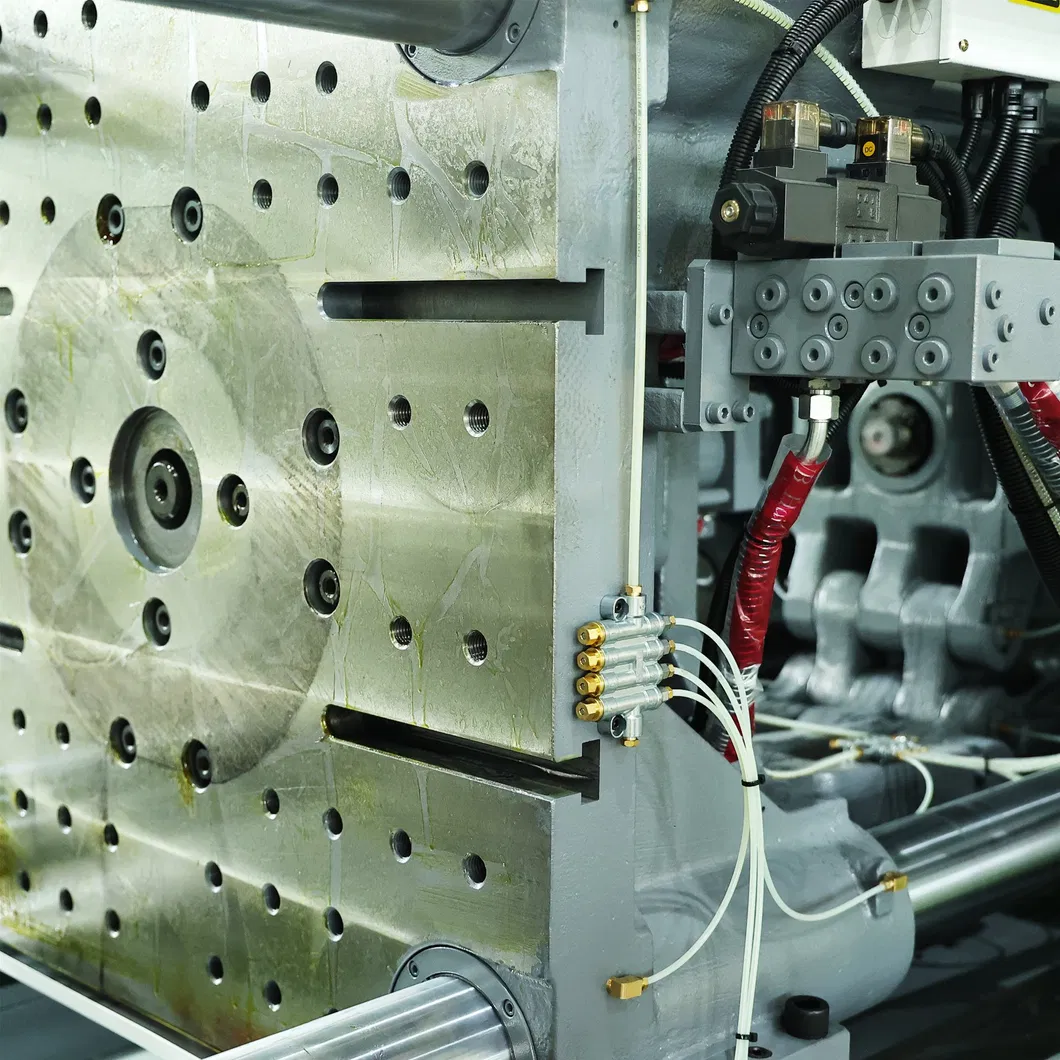

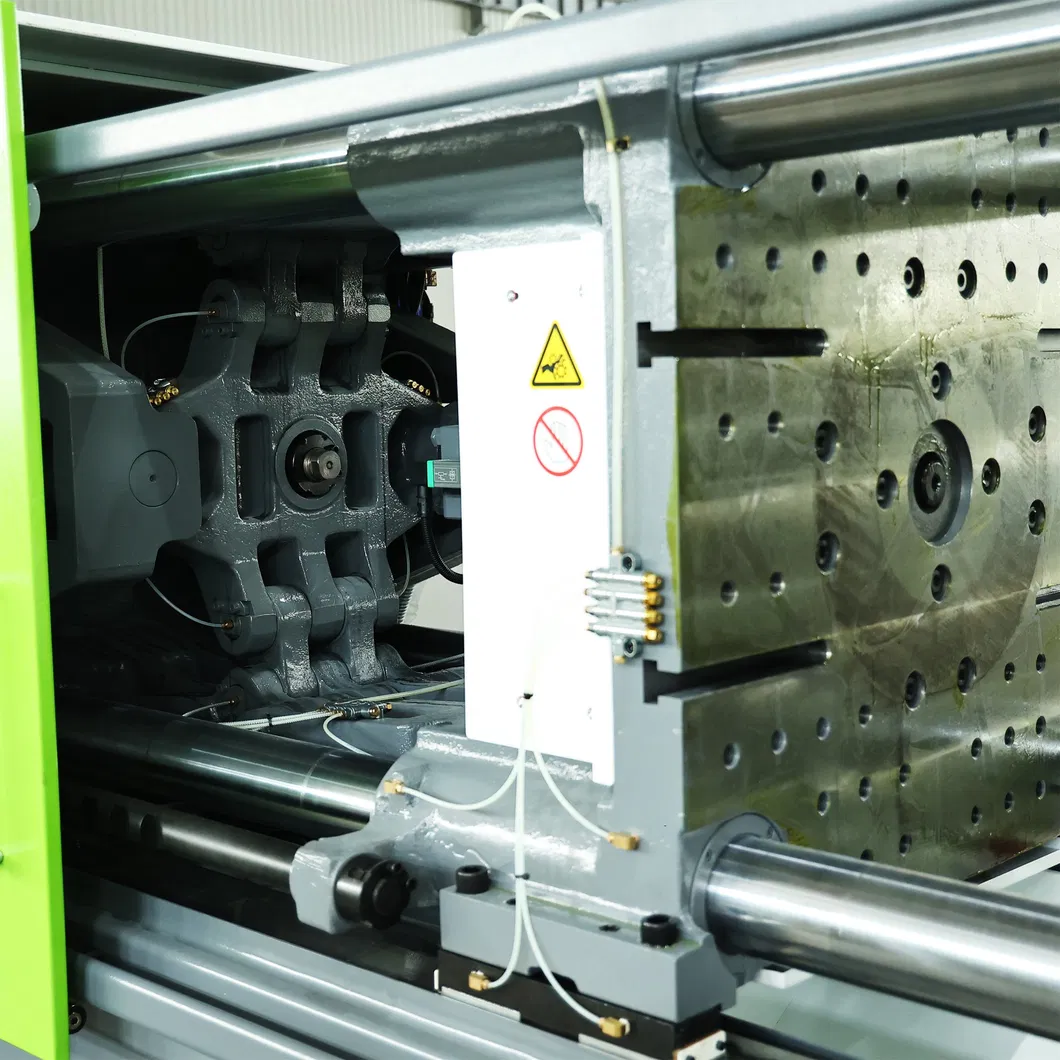

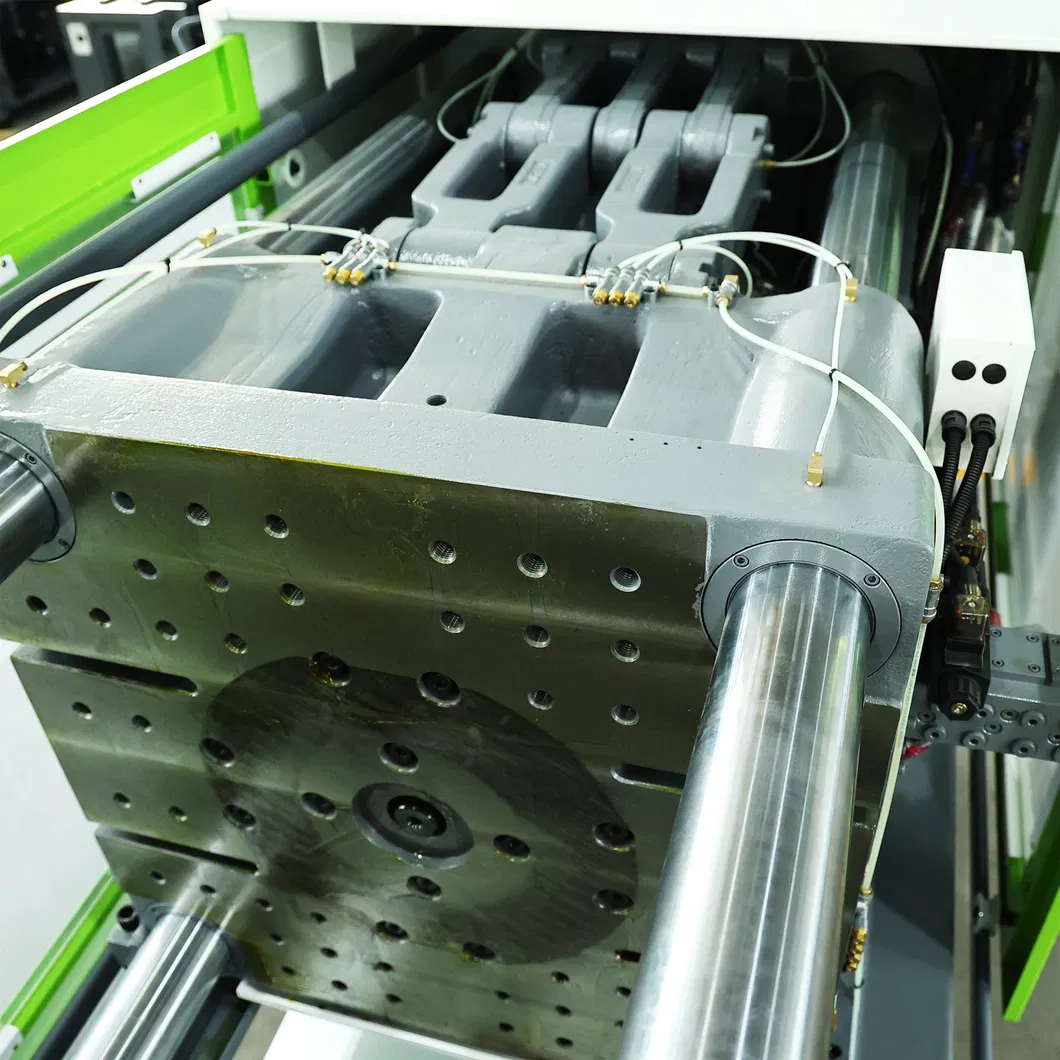

The locking mechanism features a central strong support two-plate structure with high rigidity, facilitating mold installation and removal while saving energy through improved forming accuracy.
| DESCRIPTION | UNIT | VR130-E3 | VR160-E3 | VR200-E3 | VR270-E3 |
|---|---|---|---|---|---|
| Clamping Force | KN | 1300 | 1600 | 2000 | 2700 |
| Screw Diameter | mm | 38/42/45 | 42/45/50 | 45/50/55 | 50/55/60 |
| Shot Weight (PS) | g | 219/268/307 | 287/329/406 | 366/452/546 | 497/601/715 |
| Injection Pressure | Mpa | 218/179/156 | 213/185/150 | 230/185/154 | 224/185/155 |
| Space Between Tie Bars | mm | 420x420 | 470x470 | 520x520 | 570x570 |
| Max. Mold Thickness | mm | 430 | 470 | 520 | 580 |
* Technical parameters are for reference only. Specifications are subject to change without notice.

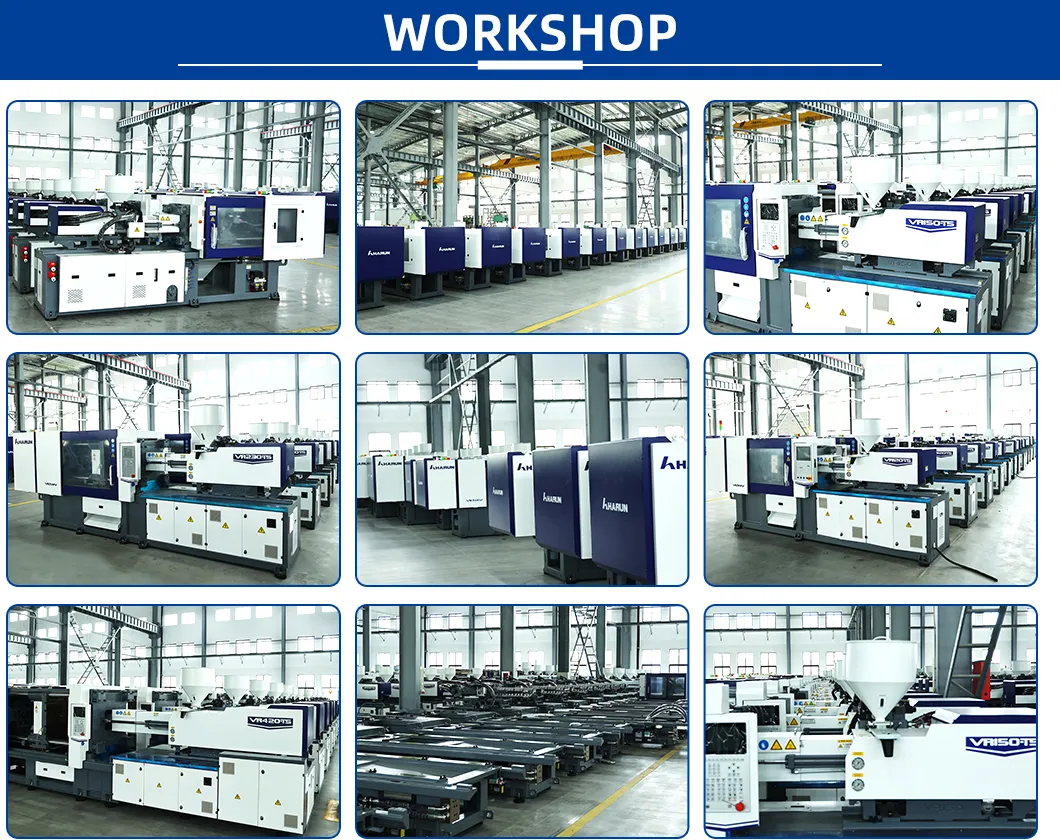

Our professional manufacturing base integrates research, development, and production. With a construction scale of 230,000 square meters, we produce machines with mold locking force ranging from 900kn to 20,000kn.
Our high-quality management and technical teams ensure safe and efficient machine manufacturing. We maintain perfect sales and service agencies in Asia, America, Africa, and Europe, providing localized and fast response services.
