Home > Infusion Set Machine > Infusion Set with Needle Assembly Line Making Machine

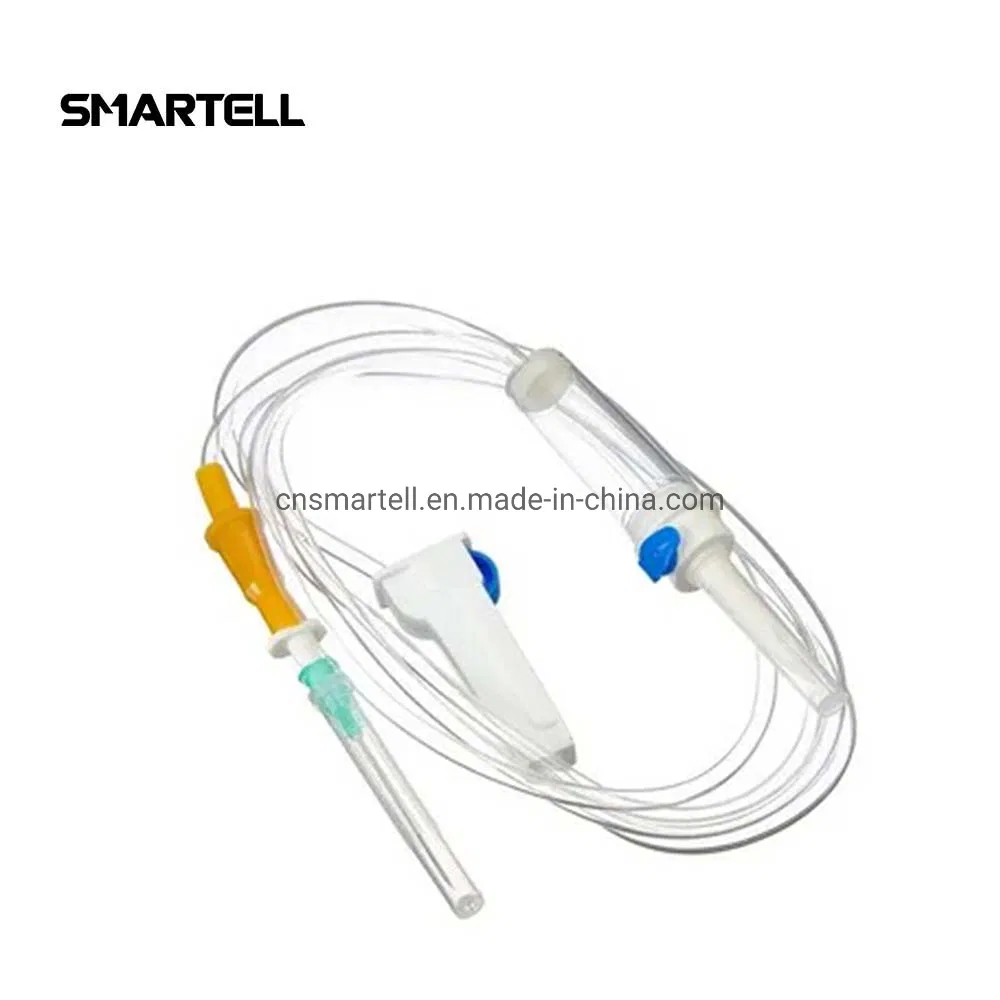

Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
1 / 5
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine
Infusion Set with Needle Assembly Line Making Machine

Infusion Set with Needle Assembly Line Making Machine

Production Scores: Multiple Varieties
Production Continuity: Continuous
Condition: New
Send Inquiry

Product Description

i

Basic Information

Model NO.
SMT
Automation
Automation
After-sales Service
Online Support, Spare Part Video Technical Support
Application
Disposable Infusion Set Factory
Key Words
Infusion Set Production Line Turnkey Solution
Material
Stainless Steel
Packing Method
Blister Packing/PE Bag Packing
Machine Layout
Available
Infusion Set Design
Customized
Function
Multifunctional
Warranty
1 Year
Transmission Type
Flexible
Production Line
Assembly
Certification
ISO
Origin
China
Production Capacity
10sets/Year
📦

Packaging & Delivery

Package Size
550.00cm * 300.00cm * 300.00cm
Gross Weight
3100.000kg
Transport Package
Wooden Case
⚙

Product Description

China Disposable Infusion IV Set Production Line

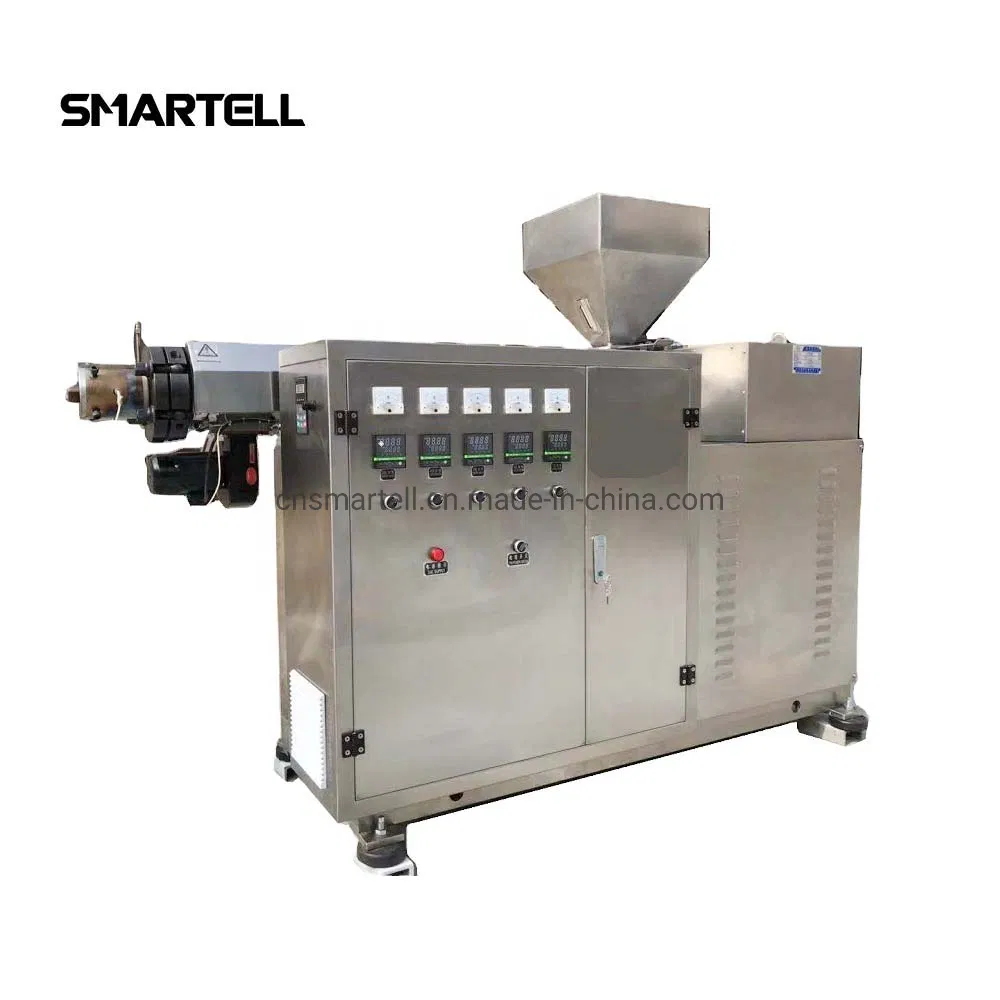

Injection set making machines, including spike needle assembly machine, latex tube assembly machine, filter paper assembly machine, PVC tube extruding and cutting machine, drip chamber assembly machine, flow regulatory assembly machine, and other spare parts as you require. We will help you design the exact machine for you after getting your detailed requirements. Like the IV set type, the packing method, and the production capacity. We can also help customers draw the workshop layout once we know the detail size of the factory.

Production Line Detail

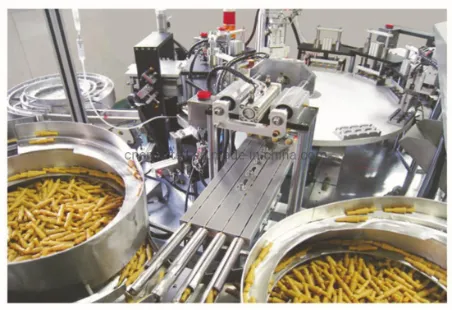

Latex Tube Assembly
  • This equipment automatically assembles and glues 3-part, 4-part latex tube.
  • Adopts Japanese OMRON PLC circuit control and Taiwan WEINVIEW touch screen operation.
  • Optical fiber photoelectric detection: automatic stop when there is no material.
  • All pneumatic components use Japanese SMC cylinders and Mindman valves.
  • Product contact parts are made of 304 stainless steel and aluminum alloy.

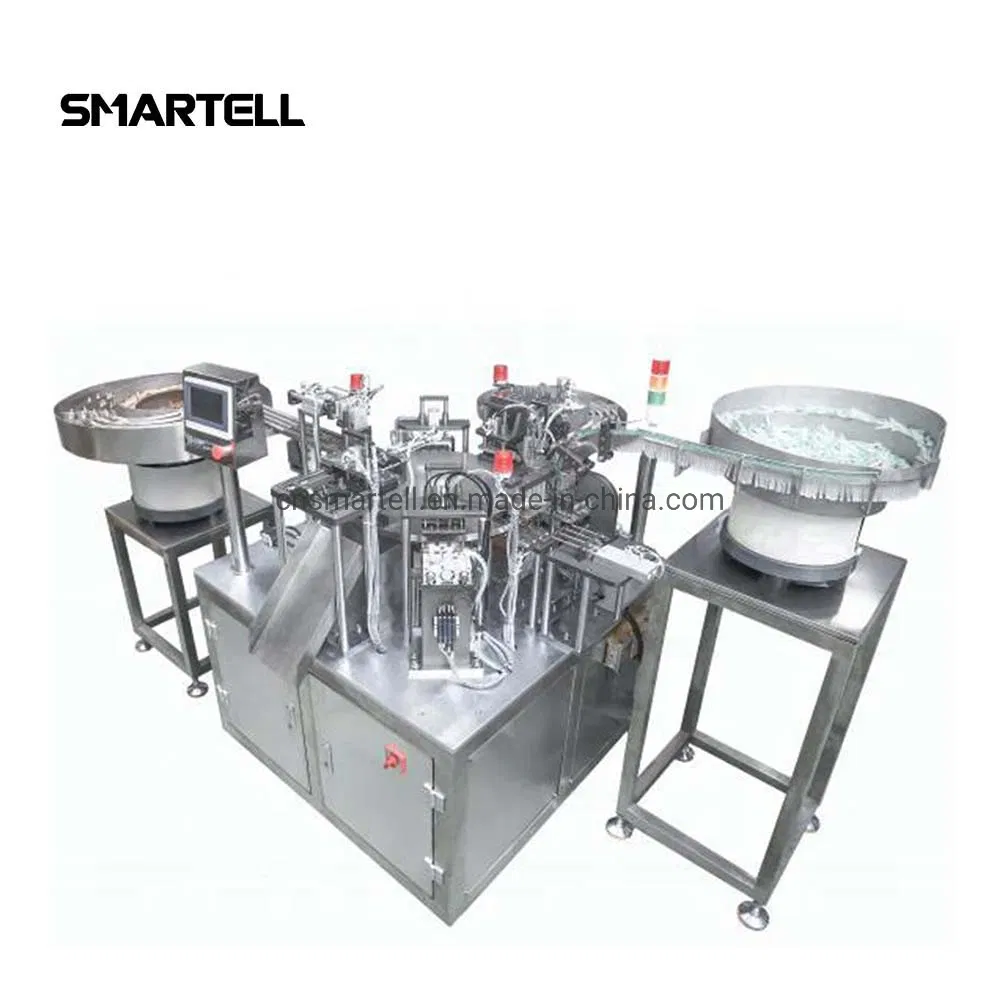

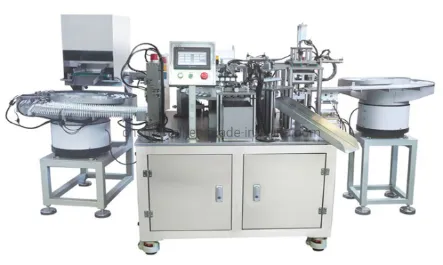

Spike Needle Assembly
  • Imported electrical and pneumatic components; CNC machining for mechanical parts.
  • Heated spike needle assembly with filter membrane and vacuum cleaning for dust removal.
  • Portable punching membrane process reduces membrane waste.
  • Auto stop and alarm for air inlet plug glue to avoid leakage.
  • Online detection separates qualified and unqualified products automatically.
📊

Technical Specifications

Output3500-5000 sets /h
Operation of worker1 operator
Dimension3500 x 3000 x 1700 mm
PowerAC220V/ 2.0-3.0kw
Air pressure0.4-0.6Mpa
★

Our Advantages

Advantage 1
Advantage 2
Advantage 3
Advantage 4
?

Frequently Asked Questions

Q1: What is the production capacity of the infusion set line? The equipment can produce between 3,500 and 5,000 sets per hour, depending on the specific configuration.
Q2: What materials are used for the machine parts in contact with products? All parts in contact with the product are made of 304 stainless steel and high-grade aluminum alloy to ensure medical-grade hygiene and safety.
Q3: What kind of control system does the machinery use? The system utilizes Japanese OMRON PLC circuit controls and Taiwan WEINVIEW touch screen interfaces for high precision and stability.
Q4: Does the production line include quality control features? Yes, the line features online detection of all assembled parts and automatically separates qualified products from unqualified ones.
Q5: What are the requirements for power and air pressure? The machine requires an AC220V power supply (2.0-3.0kw) and an operating air pressure between 0.4 and 0.6Mpa.
Q6: Can the machine layout be customized for my factory? Yes, customized machine layout designs are available to fit the specific dimensions and workflow of your facility.

Related Products

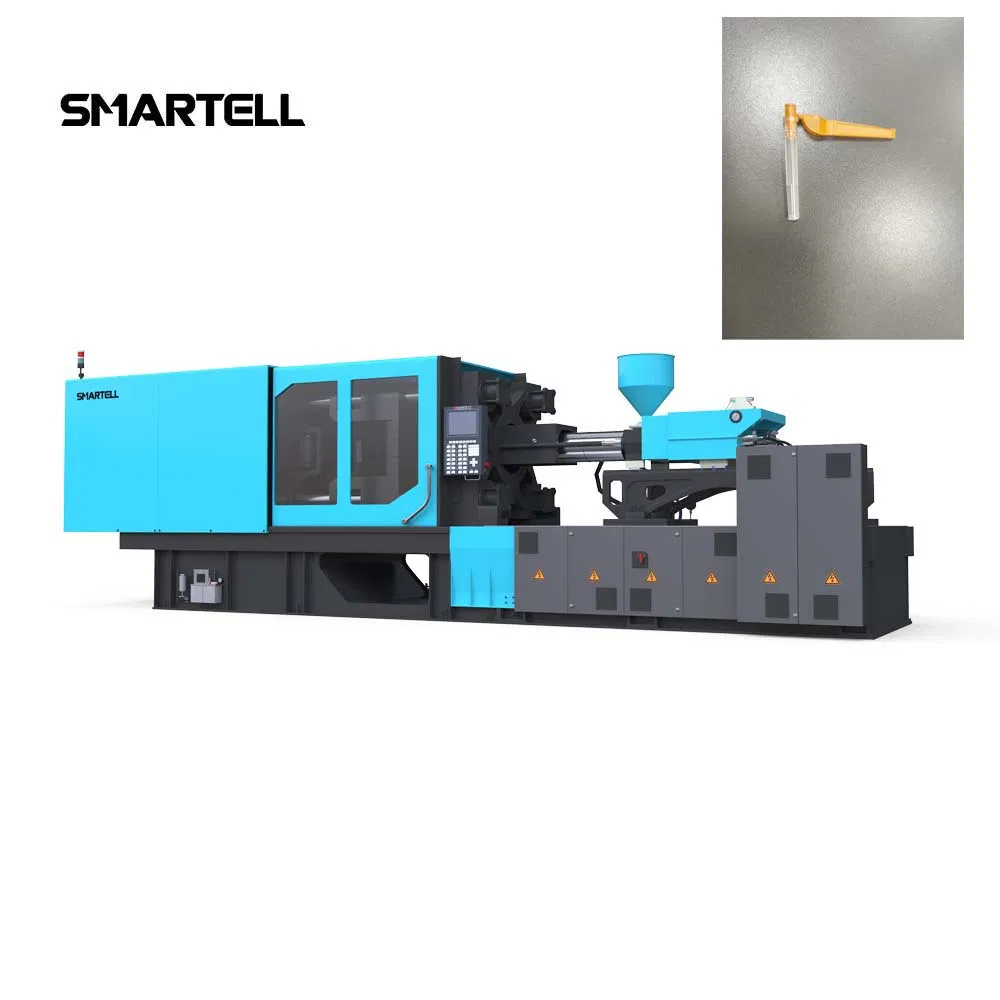

260t High-Speed Custom Injection Molding Machine for Plastic Infusion Set Parts Production
