Overview
Modes of Packaging: Standard Export Packing
Shipment Mark: According to Client's Request
Origin: China
Product Description

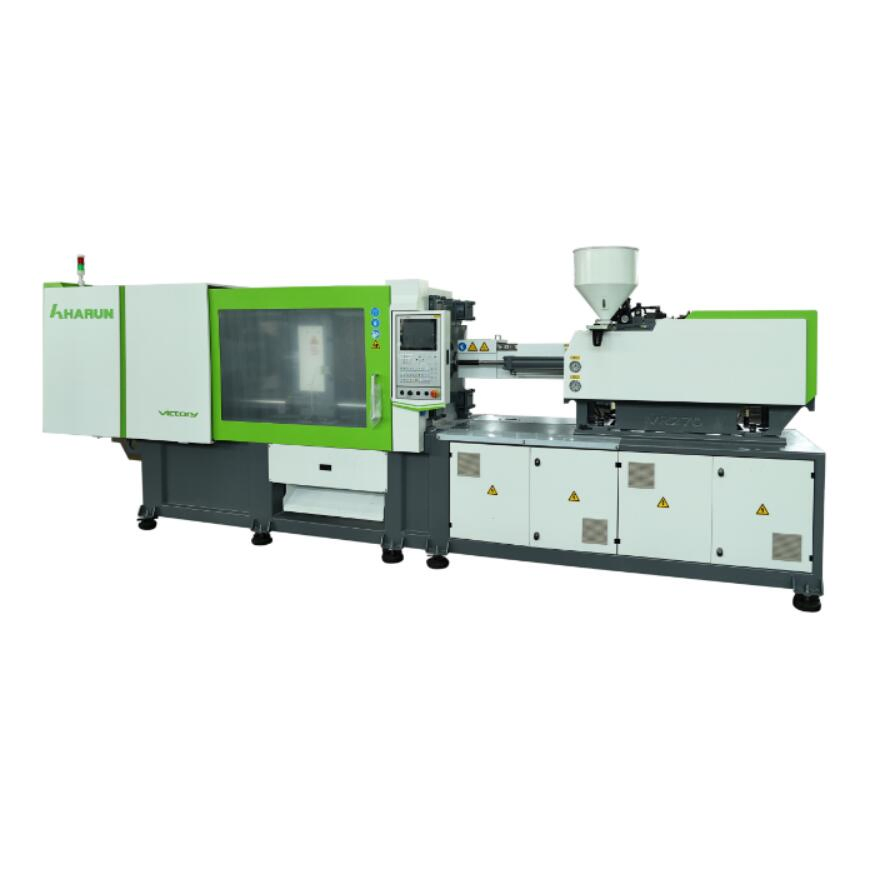

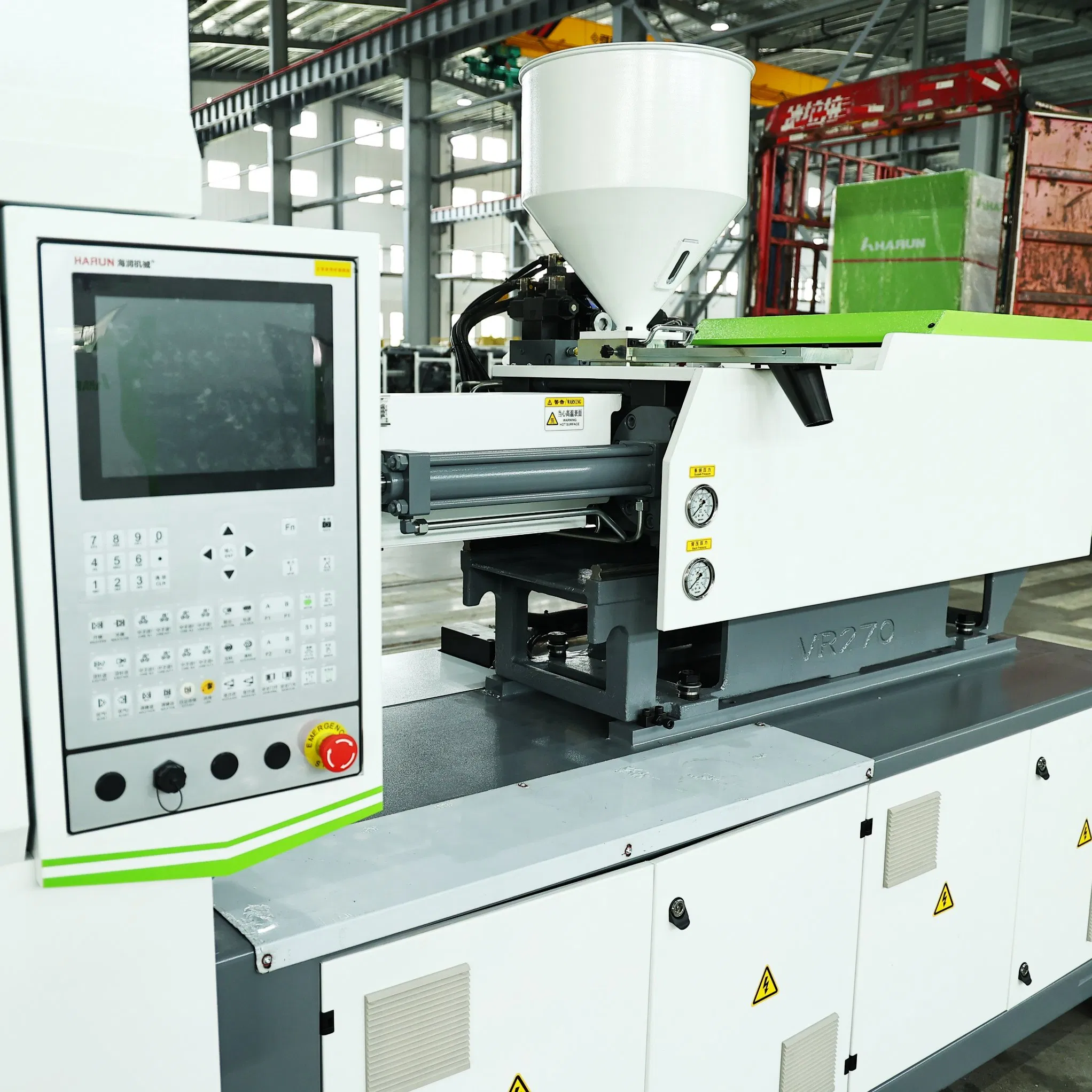

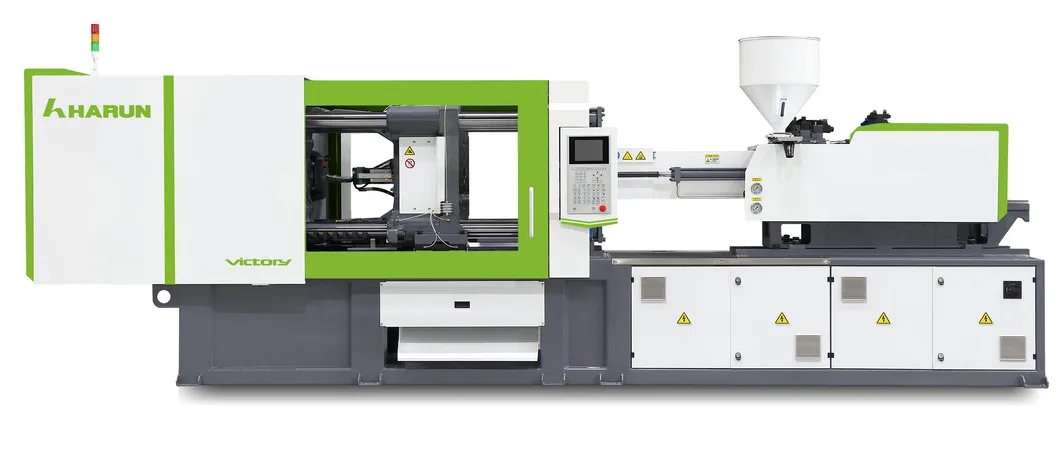

VR-E3 SERIES INJECTION MOLDING MACHINE
This machine has excellent performance in terms of efficiency, stability, applicability, and energy saving, making it a cost-effective injection molding machine that allows more customers to experience its advantages.
Product Advantages:
🚀
FURTHER EFFICIENCY IMPROVEMENT
- Injection speed increased by 15% -25%.
- Plasticizing ability improved by 5%-10%.
- Dry cycle increased by over 5%.
🛡️
FURTHER STABILITY
- Enhanced rigidity of locking mechanism.
- Even distribution of locking force.
- Low resistance movement with fast response.
⚙️
FURTHER APPLICABILITY
- Stronger power and precise segment control.
- Faster response speed for diverse specifications.
🌱
FURTHER ENERGY-SAVING
- Optimized oil circuit design to reduce pressure loss.
- Low friction oil seals and high precision rails.
- New generation servo system paired with gear pump.

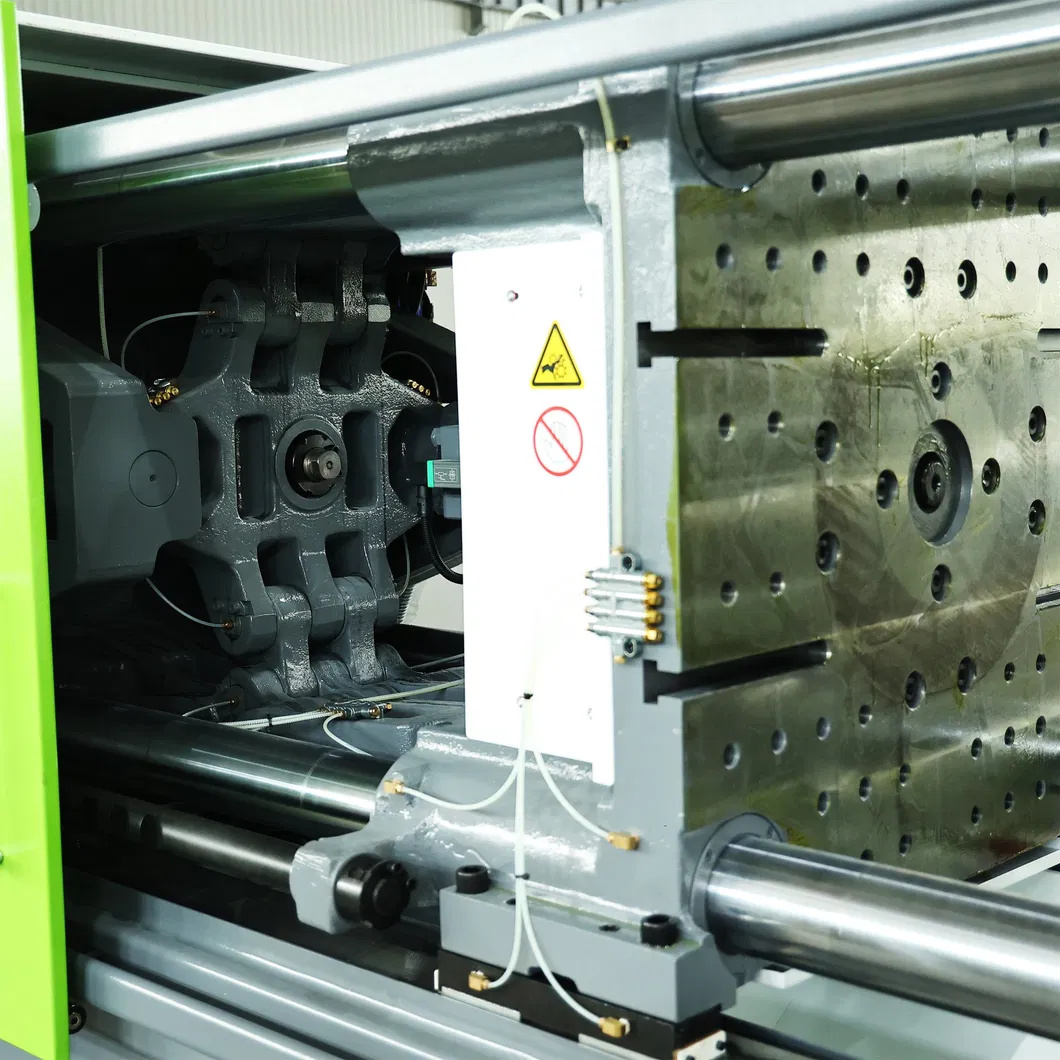

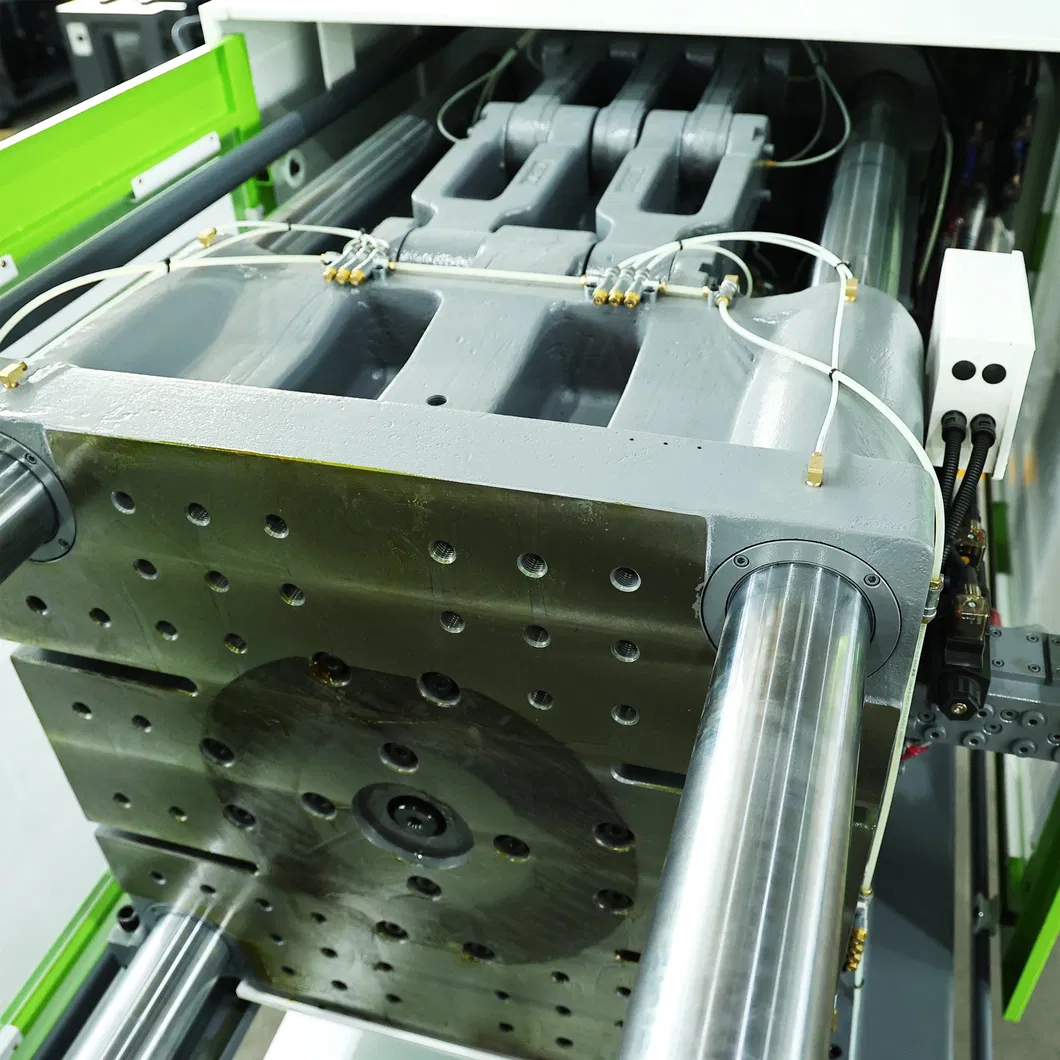

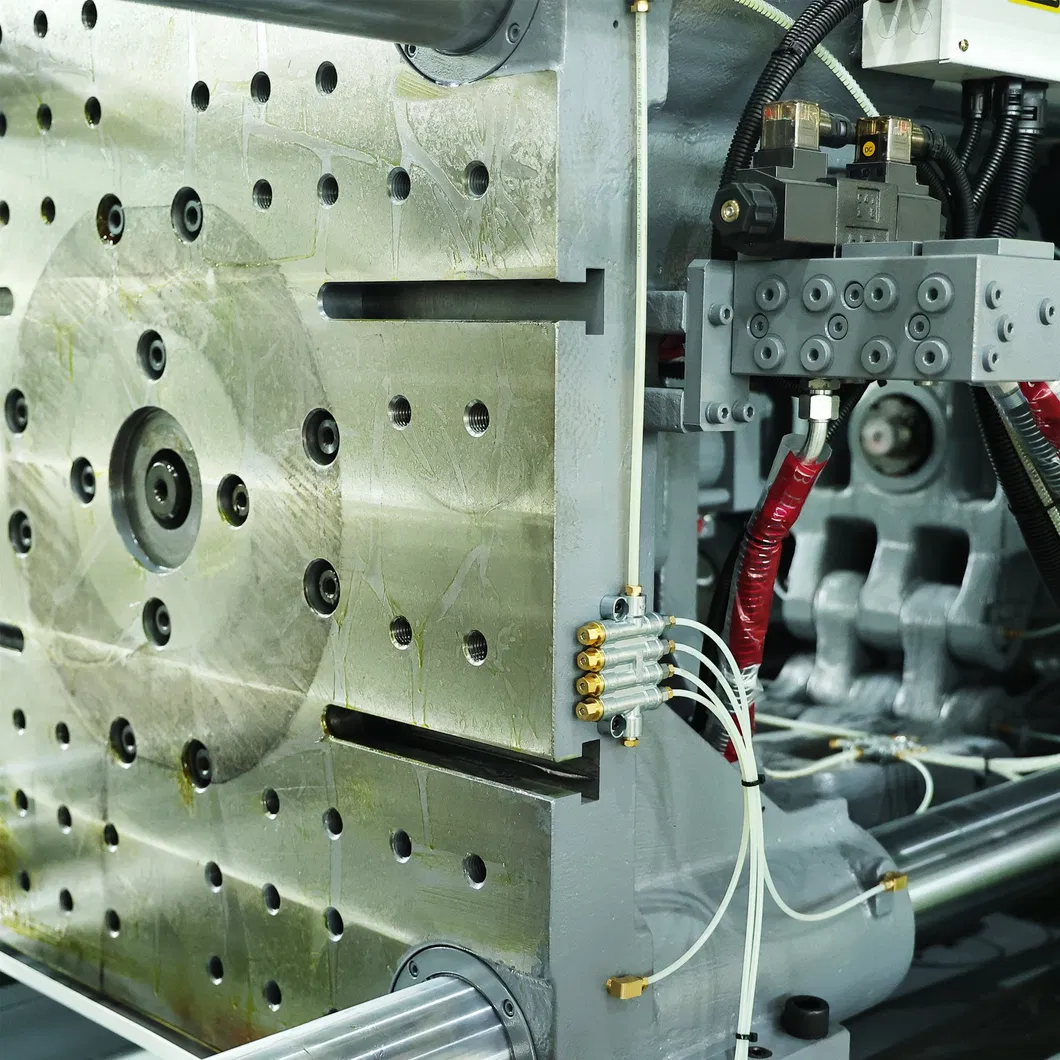

Clamping Unit
The locking mechanism is comprehensively optimized, with a central strong support two plate structure and a high rigidity locking head plate. T-shaped grooves and code mold holes facilitate easy installation.
- Center Strong Support Second Board: Reduces template deformation and achieves even locking force distribution.
- High Rigidity Tail Plate: Structural optimization for minimal shape change under high pressure.
- Unique Unloading Groove: Reduces stress concentration on guide pillars for zero-failure reliability.

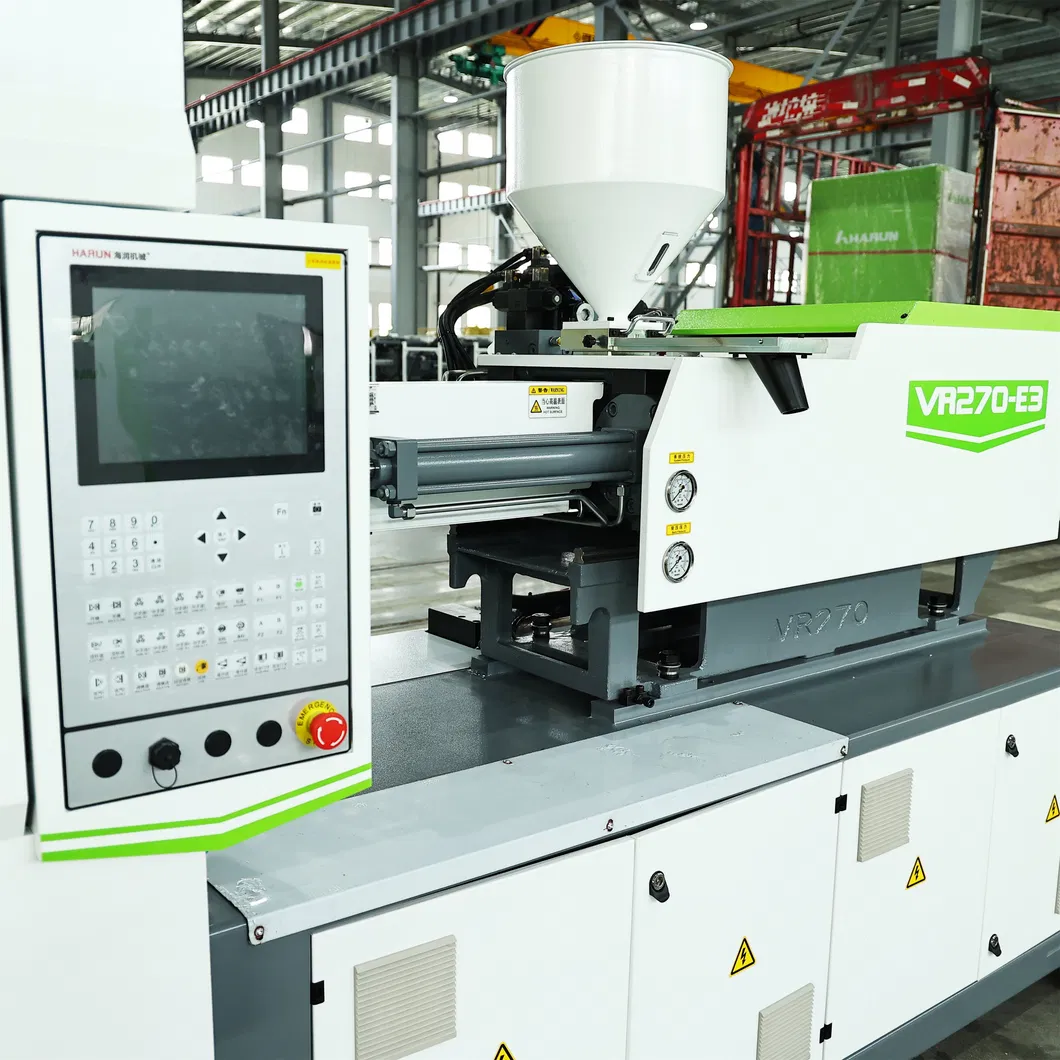

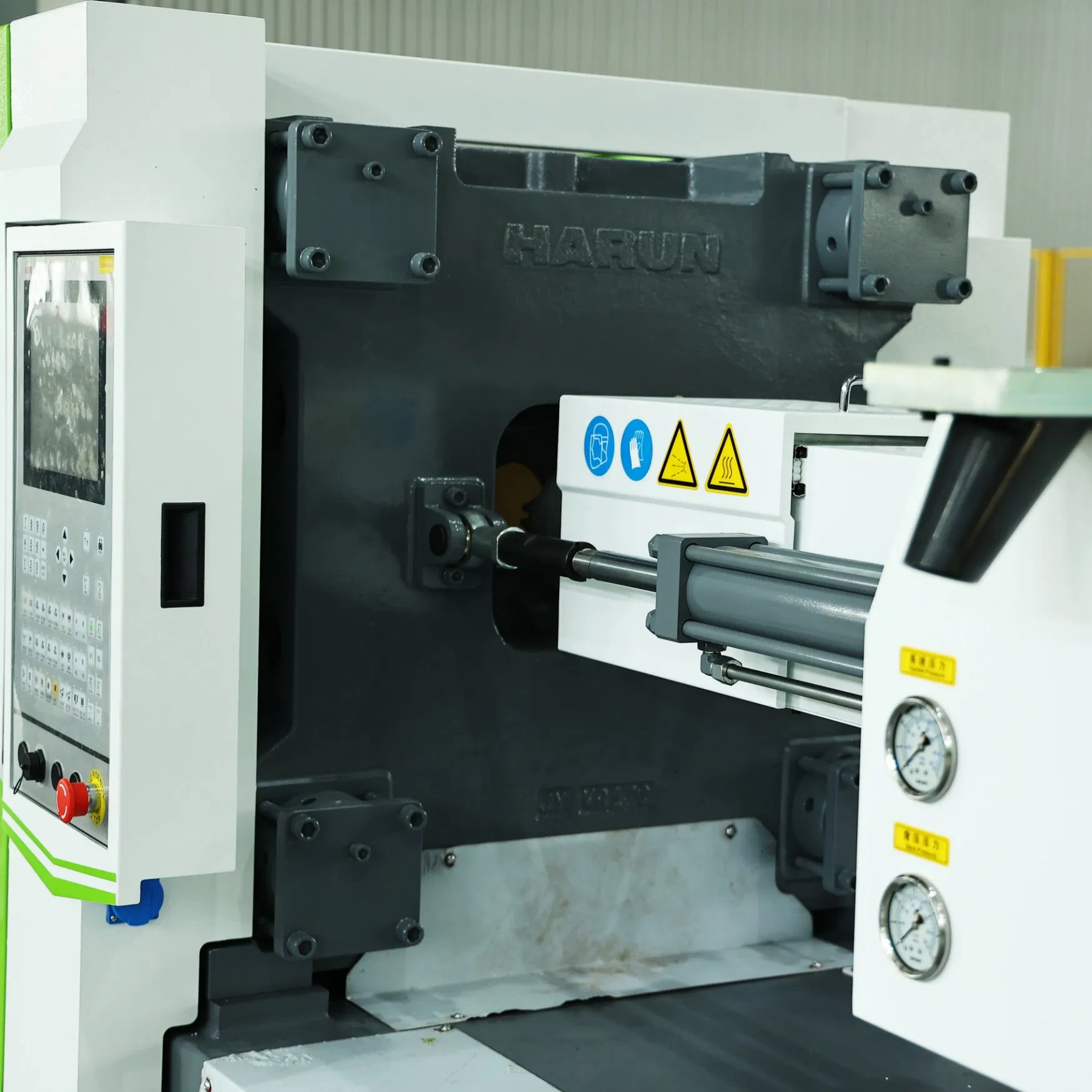

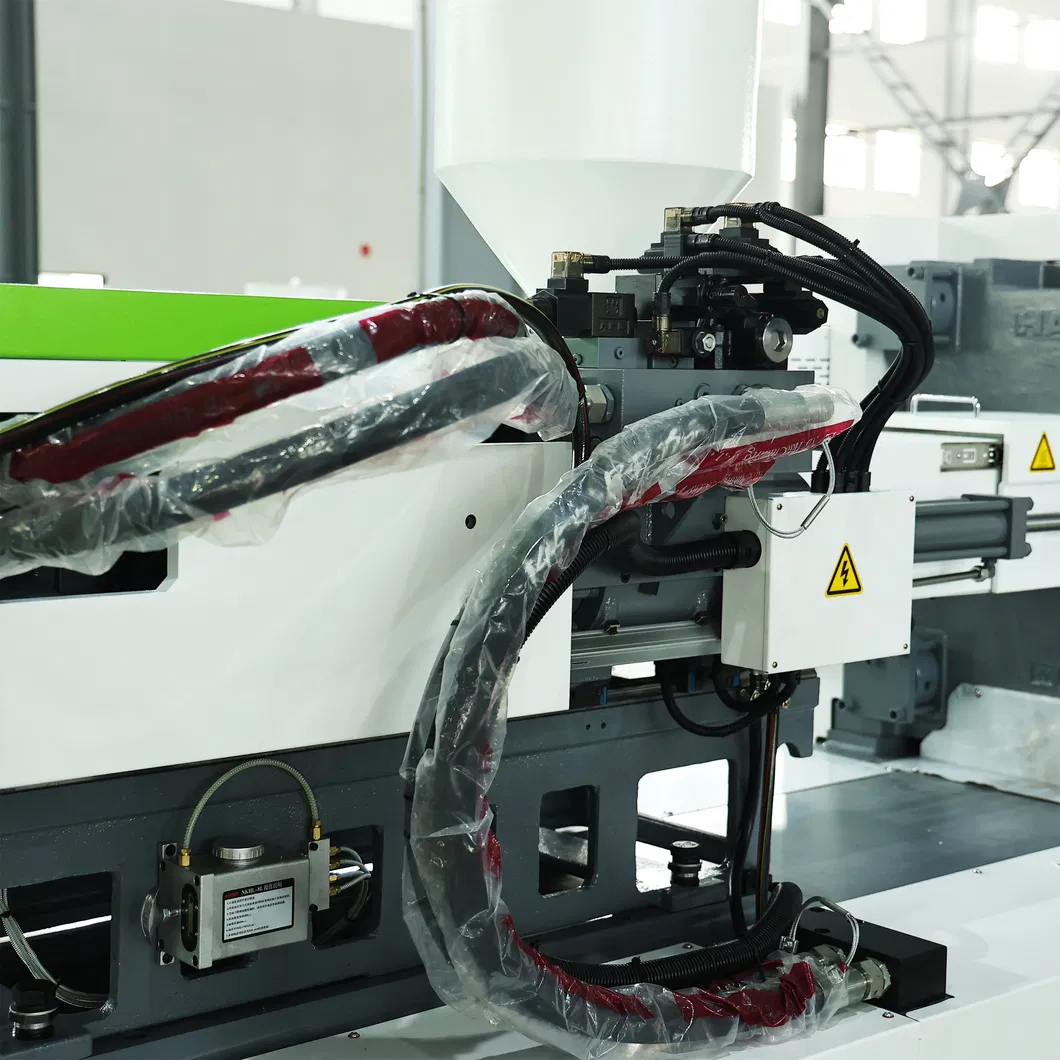

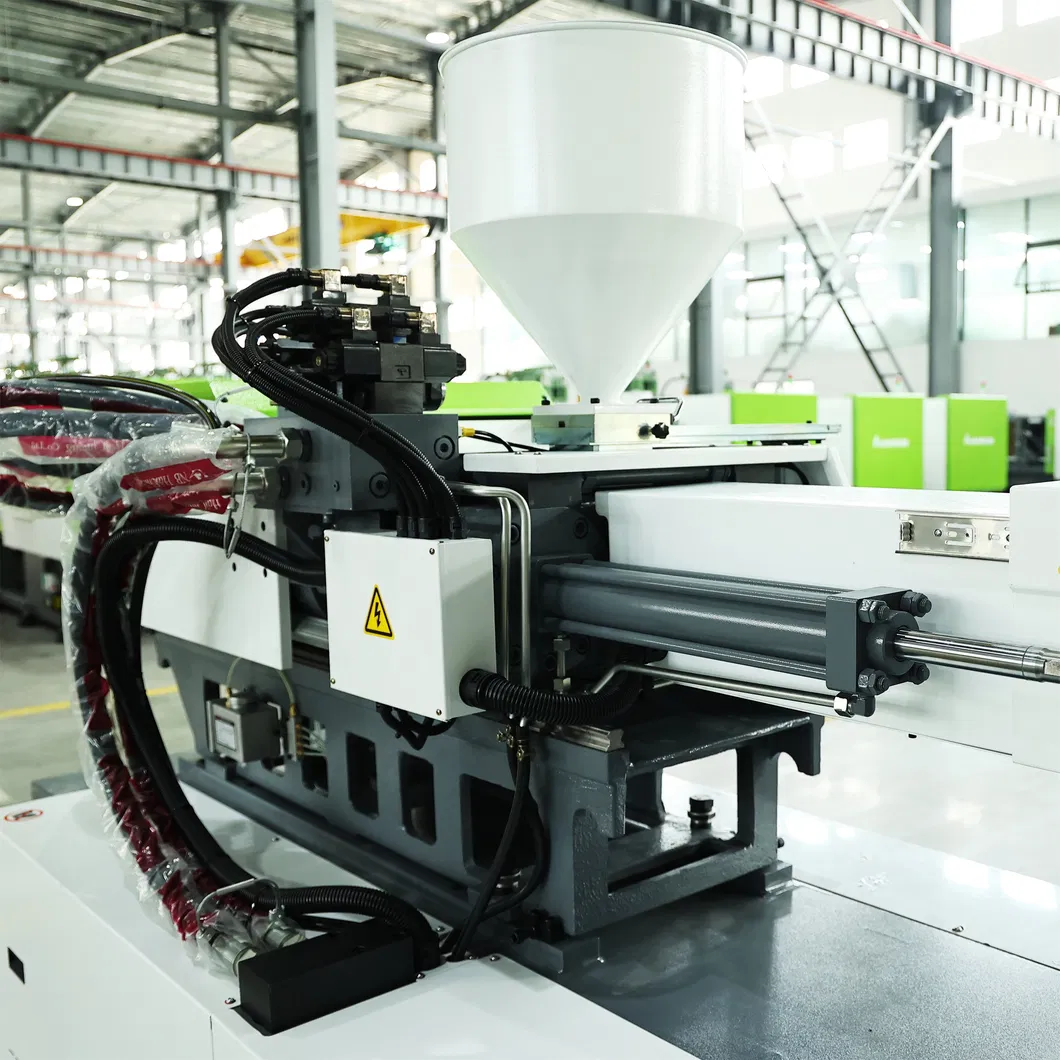

Injection Unit
- Line Rail Structure: Reduces movement friction and improves injection weight repeatability.
- Integrated Support Bracket: Improves the stability of the injection components.
- Low Shear Components: New generation plasticizing components for high mixing quality.

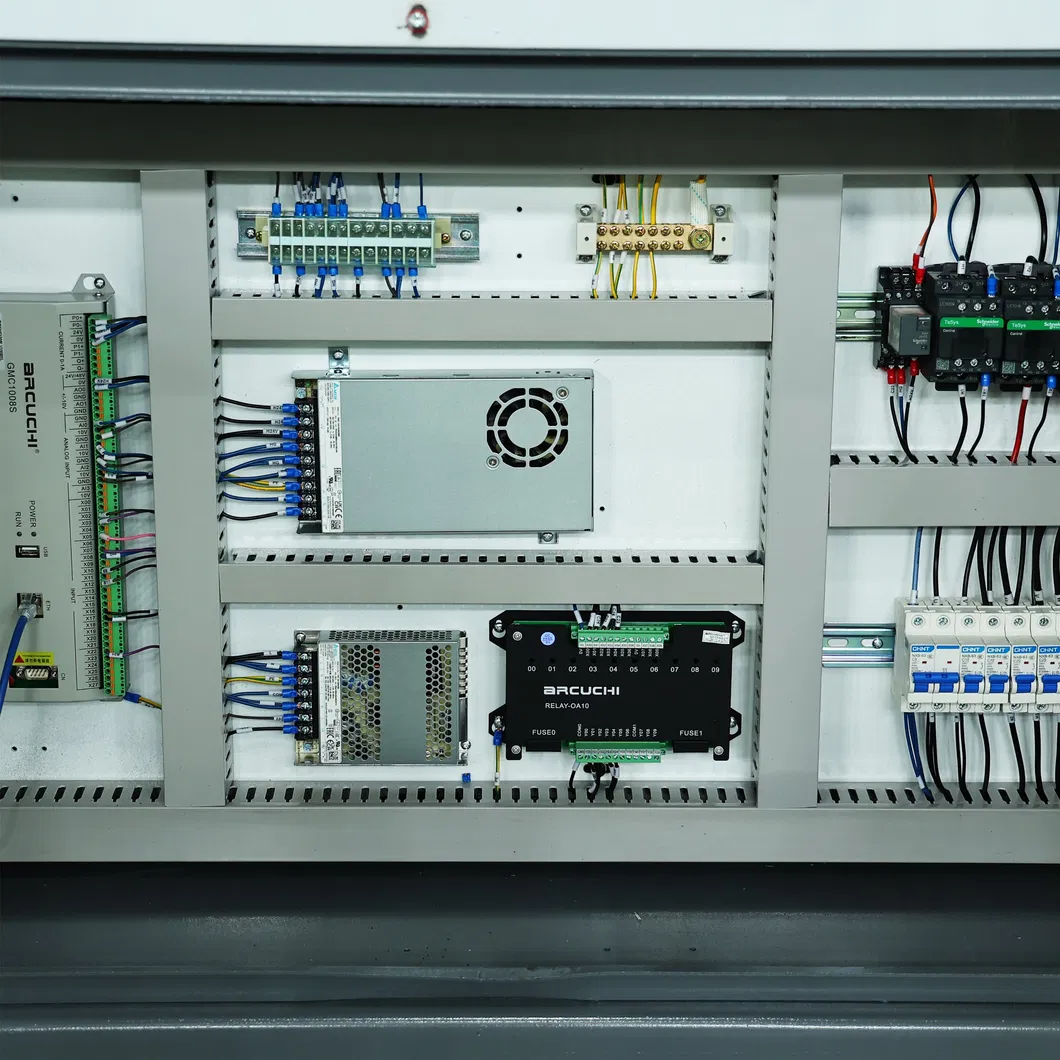

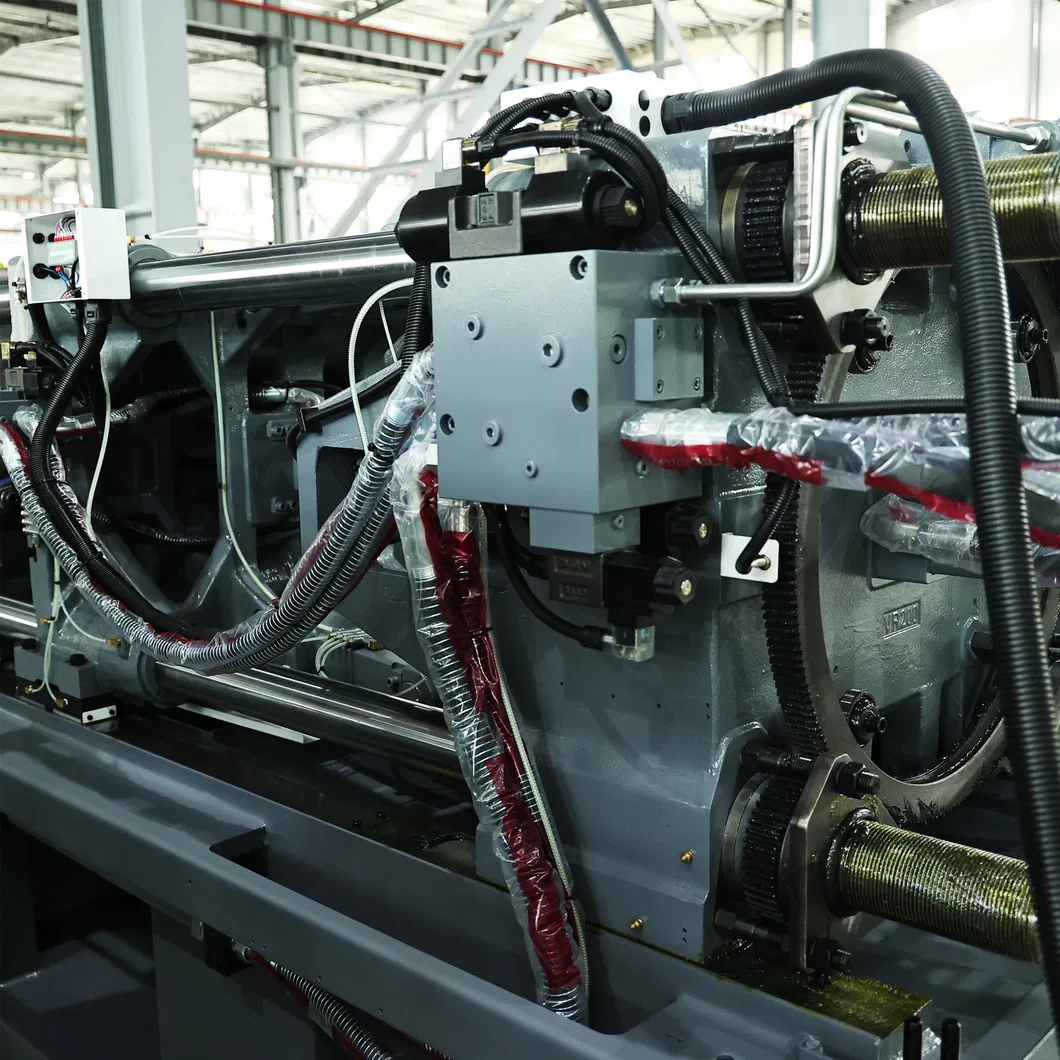

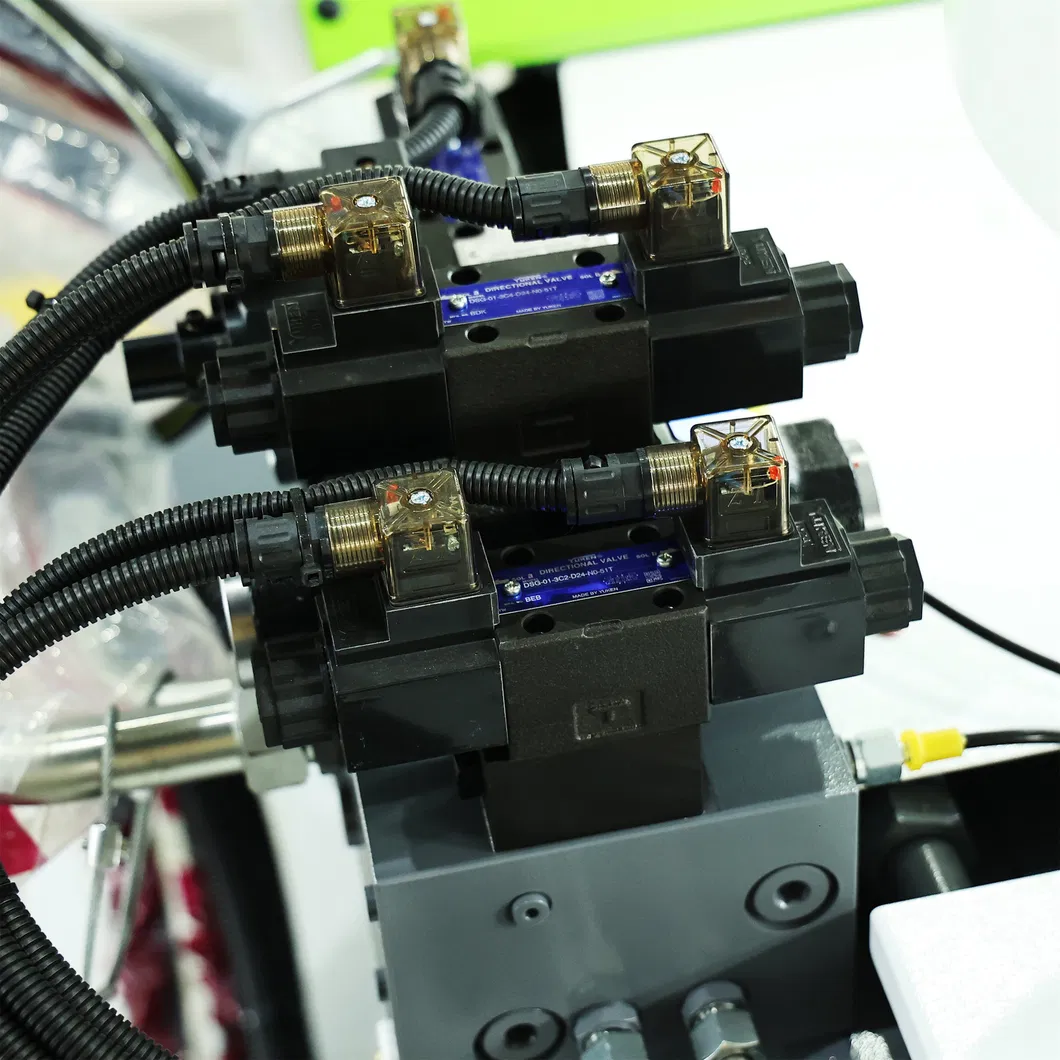

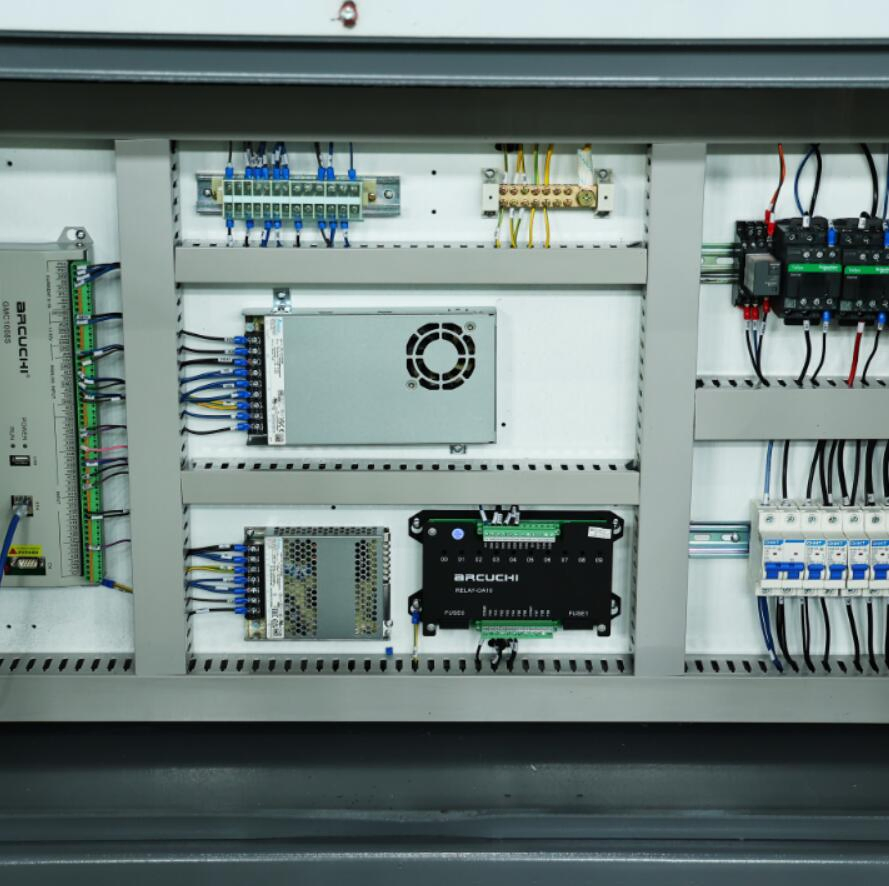

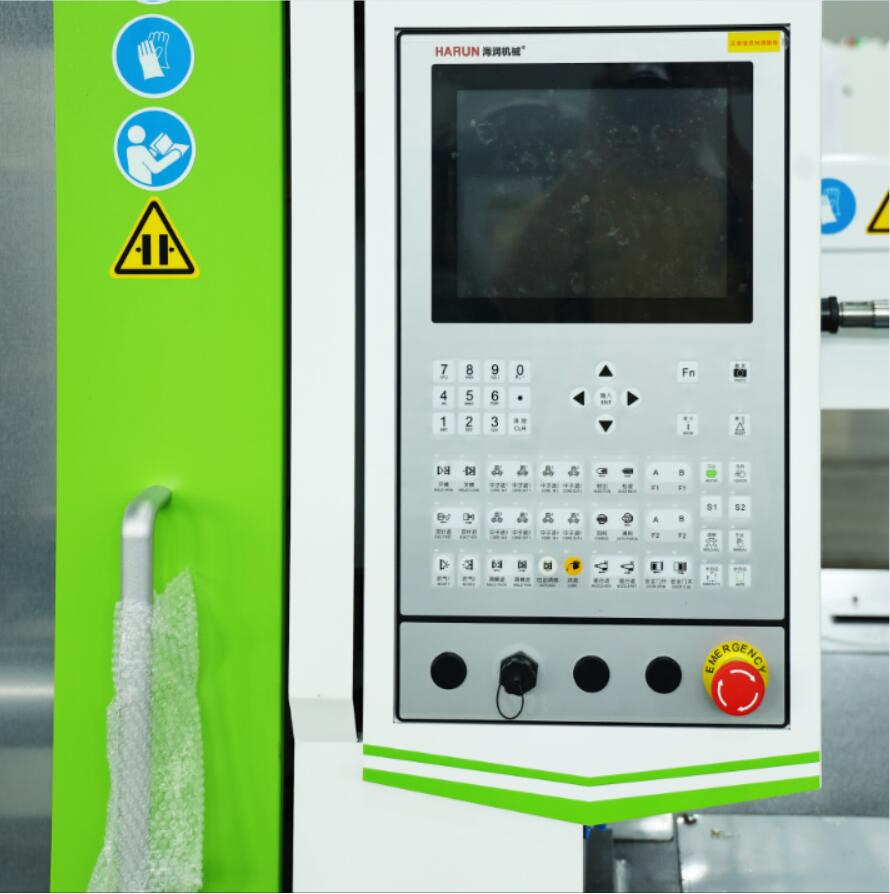

Hydraulic & Electric Unit
- Cortex-ASS 4-core CPU: Cycle increased to 0.2 Sms for high control accuracy.
- 1000 Sets Storage: Large capacity for mold parameter storage.
- Standard CNC Backpressure: Convenient adjustment of adhesive back pressure.
- Low Friction Oil Seals: Reduces frictional heat and energy loss.
Technical Parameters
| DESCRIPTION |
UNIT |
VR130-E3 |
VR160-E3 |
VR200-E3 |
VR270-E3 |
| Screw diameter | mm | 38/42/45 | 42/45/50 | 45/50/55 | 50/55/60 |
| Theoretical shot volume | cm³ | 238-334 | 312-442 | 398-594 | 540-778 |
| Shot weight(ps) | g | 219-307 | 287-406 | 366-546 | 497-715 |
| Clamping force | KN | 1300 | 1600 | 2000 | 2700 |
| Space between tie bars | mm | 420×420 | 470×470 | 520×520 | 570×570 |
| Machine Dimensions | m | 4.3×1.2×1.7 | 4.9×1.3×1.8 | 5.3×1.4×1.9 | 5.7×1.5×2 |
* Technical reference only. Specifications subject to change without notice.

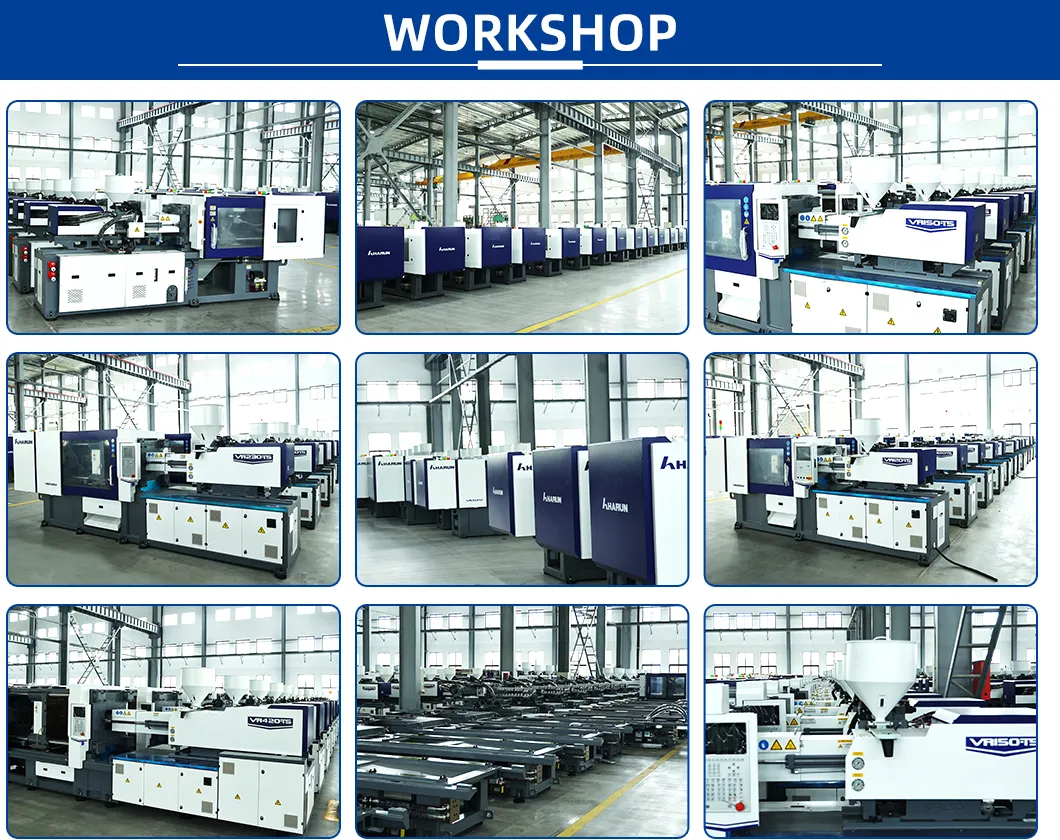

Production Capacity
Our company is a professional entity integrating research, development, production, and sales of plastic injection molding machines. With a total scale of 230,000 square meters, we operate two major production bases. Our leading products range from 900kn to 20,000kn locking force across various specifications.
Certifications & Global Service
With over 50 sales agencies and 20 international service outlets, we ensure fast and localized service across Asia, America, Africa, and Europe. Our technical innovation team holds core technologies for high-quality, efficient, and safe machinery.
Packaging & Shipping
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a specialized factory with 25 years of experience in producing high-quality plastic injection molding machines.
What is the standard delivery time?
For items in stock, delivery can be arranged within 7 days. For custom configurations, the lead time will be confirmed based on specific requirements.
What is your annual production capacity?
Our manufacturing facility has an annual output capacity of approximately 4,000 sets of injection molding machines.
What makes the VR-E3 series energy-saving?
The series utilizes a new generation servo system paired with high-efficiency gear pumps and optimized hydraulic oil circuits to minimize pressure loss.
Do you provide international after-sales service?
Yes, we have more than 20 international service outlets across major markets including Europe, Asia, and America to provide localized technical support.
Can the machine handle different types of plastic materials?
Absolutely. Our newly designed low-shear and high-mixing screws are optimized for a wide range of thermoplastic materials with high precision.
