| Model | TR-HMT-3.2 | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Automation | Automatic |
| Screw Type | Twin-Screw | Treatment | Steam Sterilization |
| Capacity | ≥ 3.2 T/D | Drive Power | 18.5 Kw X 2 |
| Sterilization Temp | ≥ 135°C | Sterilization Time | ≥ 45 Min |
| Working Pressure | ≥ 0.22 MPa | Material | 304 Stainless Steel |

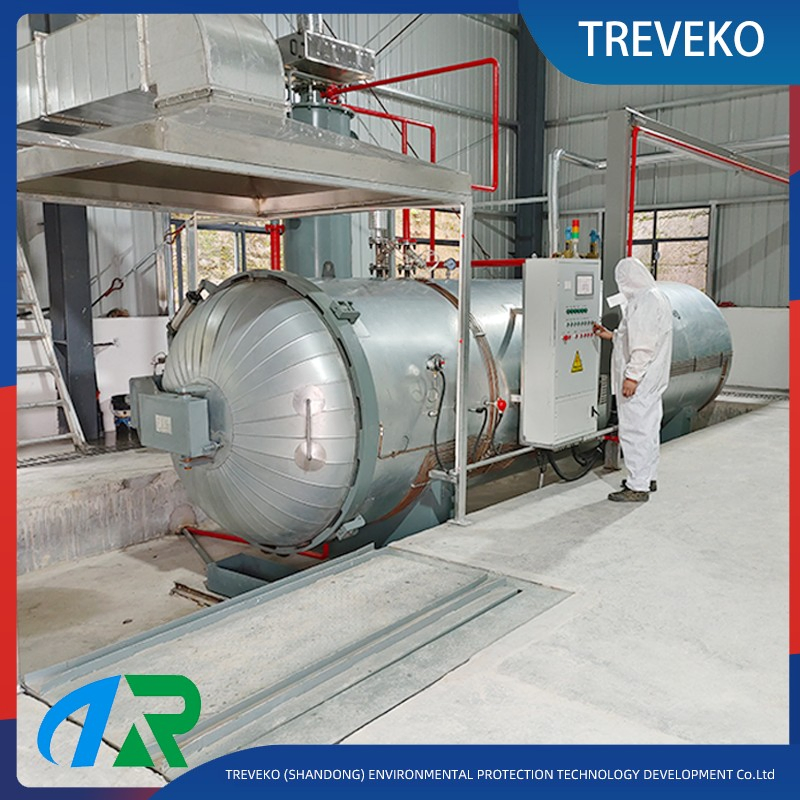

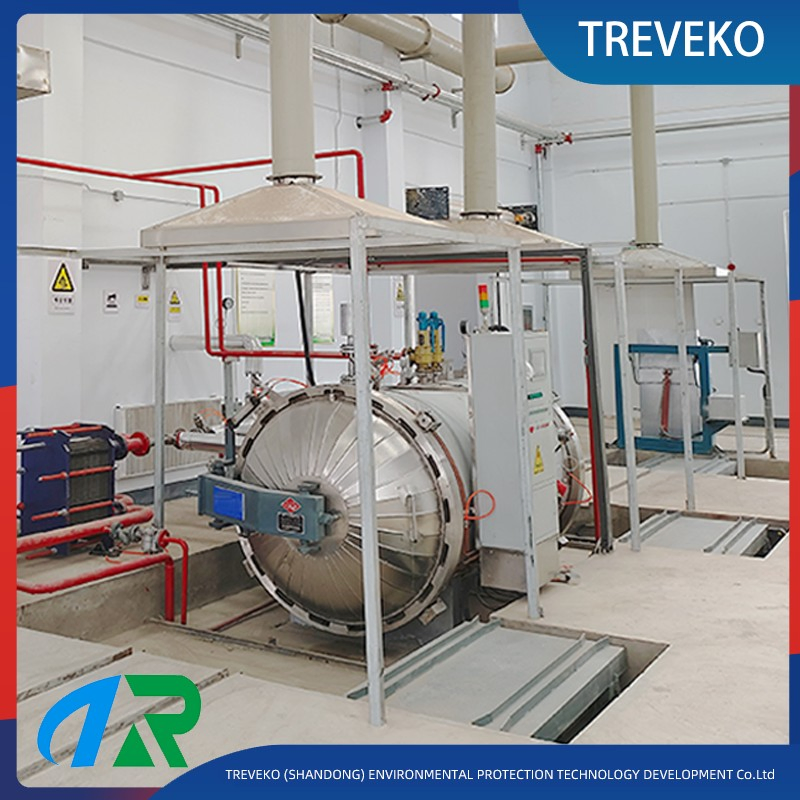

System Overview: This Medical Waste High-Temperature Steam Sterilization System is a complete emergency disposal solution with a design capacity of 3.2 tons per day.
High-Temperature Treatment: The vessel operates at ≥0.22 MPa and ≥135°C for ≥45 minutes, utilizing pre-vacuum and post-vacuum cycles for effective air removal and drying.
Shredding & Disposal: Sterilized waste is automatically conveyed to a dual-shaft shredder (2x18.5KW) for irreversible size reduction.

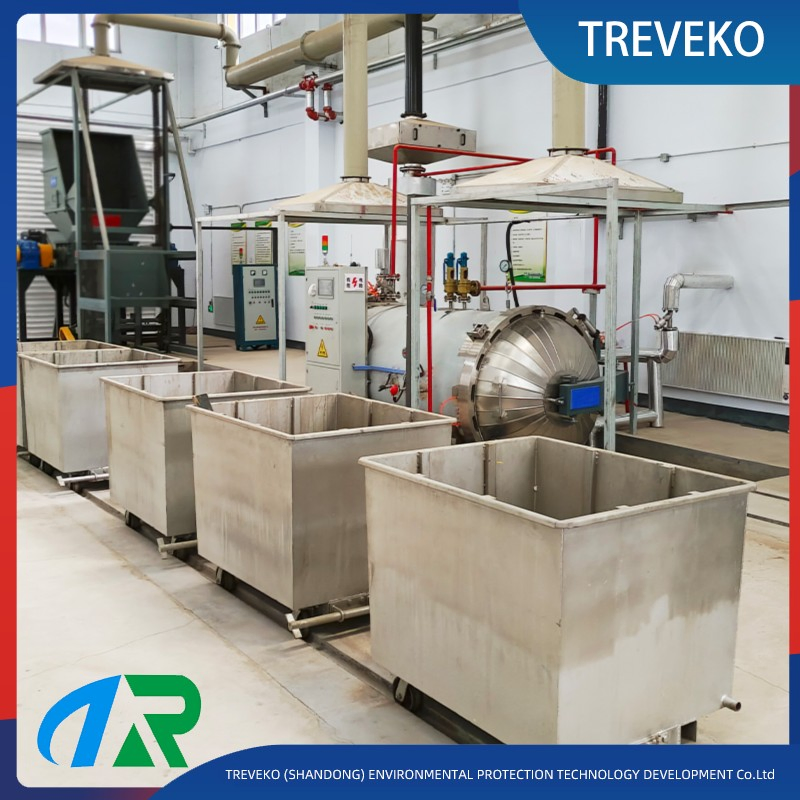

Feeding & Loading: Medical waste is loaded into dedicated stainless-steel sterilization carts.

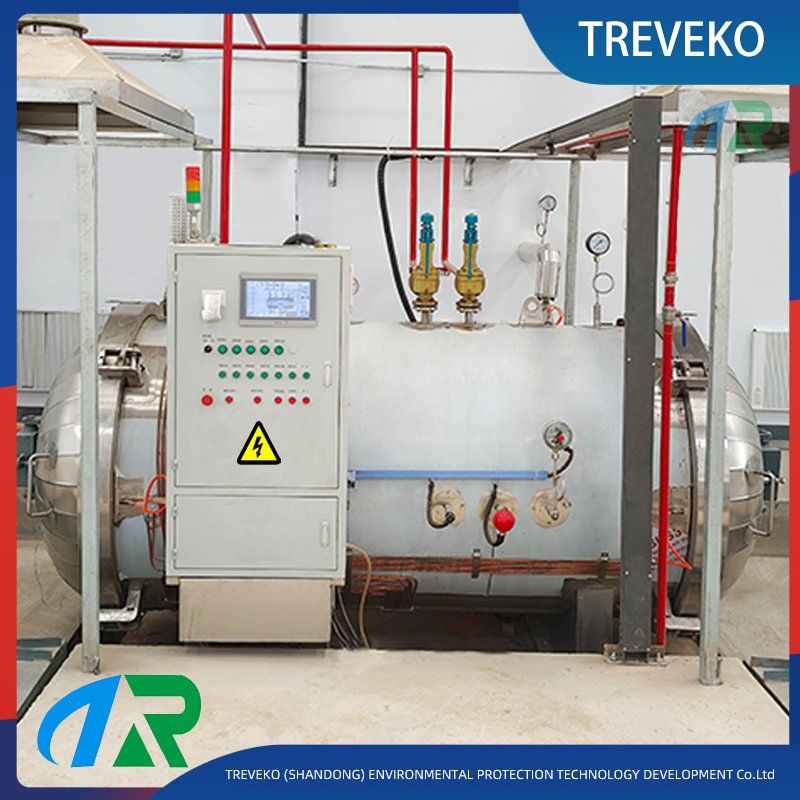

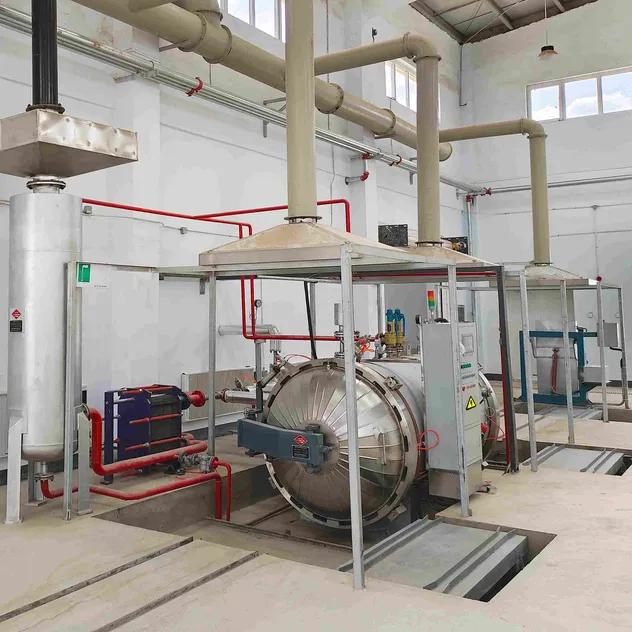

Sterilization Cycle: Carts enter the autoclave. Pre-vacuum phase followed by steam injection at ≥135°C (≥0.22 MPa) for ≥45 minutes.
Unloading: Automated rail systems transfer carts to the discharge point after cooling.
Shredding: Sterilized waste is destroyed by a dual-shaft shredder for volume reduction.
| Serial No. | Project | Parameter Details |
|---|---|---|
| 1 | Model | TR-MJG-3.2 |
| 2 | Processing Capacity | ≥3.2T/D |
| 3 | Main Material | Q345R steel, anti-corrosion, thickness ≥ 16mm |

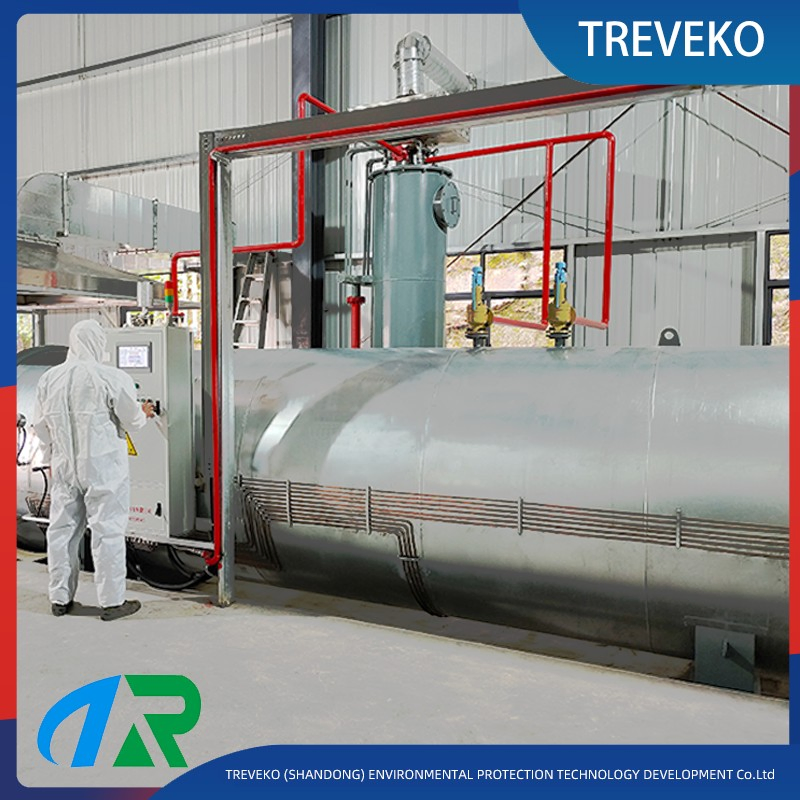

| 4 | Structure | Circular horizontal structure |
| 5 | Dimensions | Dia: ≥1700mm, Length: ≥4500mm |
| 6 | Door Type | Double Rotary Swing Doors |
| 7 | Control System | Automatic PLC (Manual Override) |
