Blister Packaging Tablet Packing Capsule Packing Automatic Industrial High Speed Efficient Flat Type Blister Machine

Customization:	Available
After-sales Service:	24-Hour Service
Warranty:	1 Year, 1 Year

📑 Basic Info.

Model NO.:DPP

Application Field:Food, Medical, Commodity, Machinery, Beverage, Chemical

Automatic Grade:Automatic

Usage:Outer Packaging

Machine Material:Titanium / Stainless Steel

Packaging Material:Plastic / Aluminum

🚀 Product Introduction

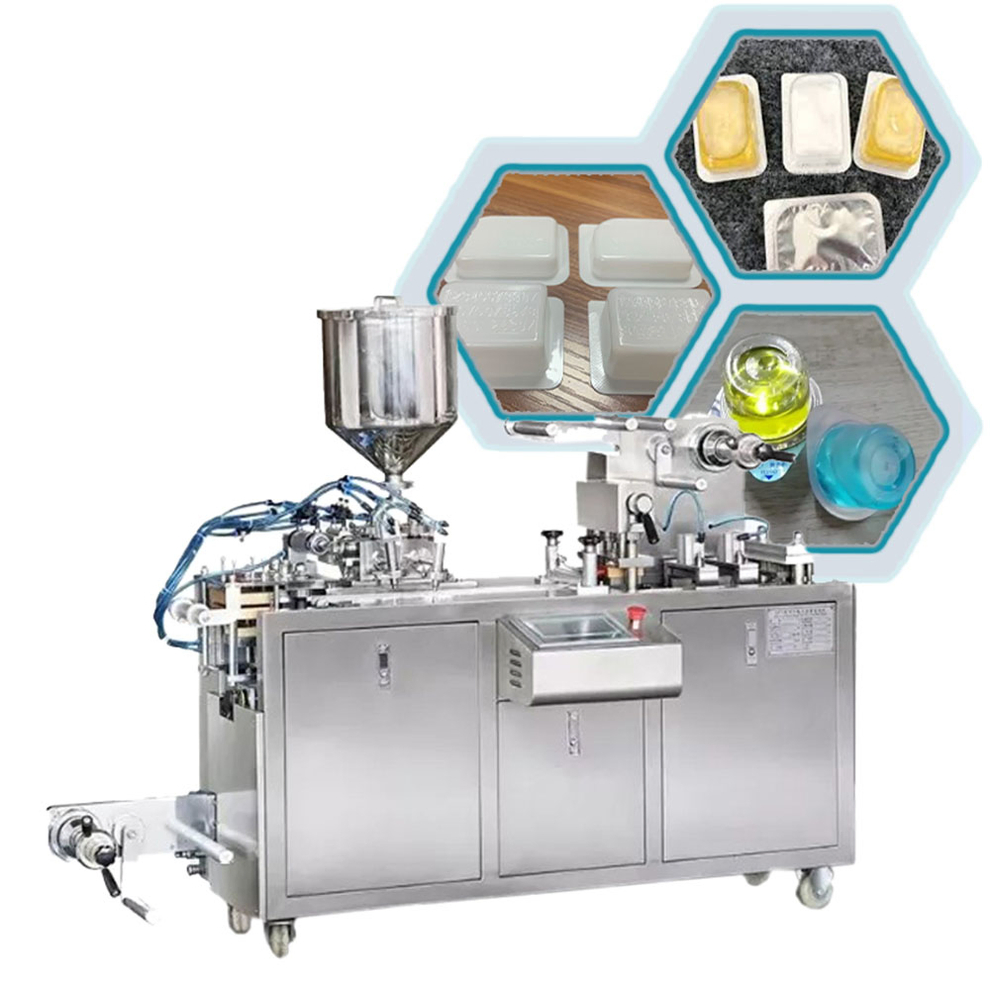

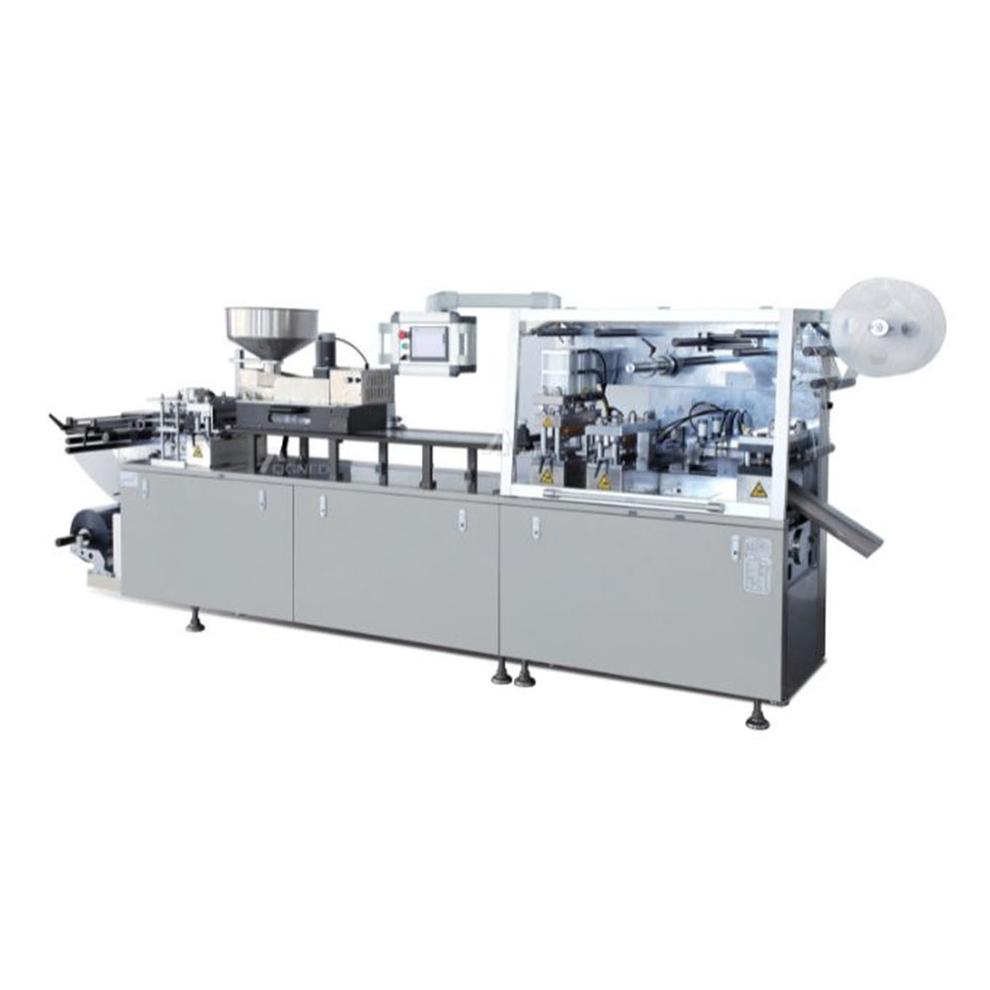

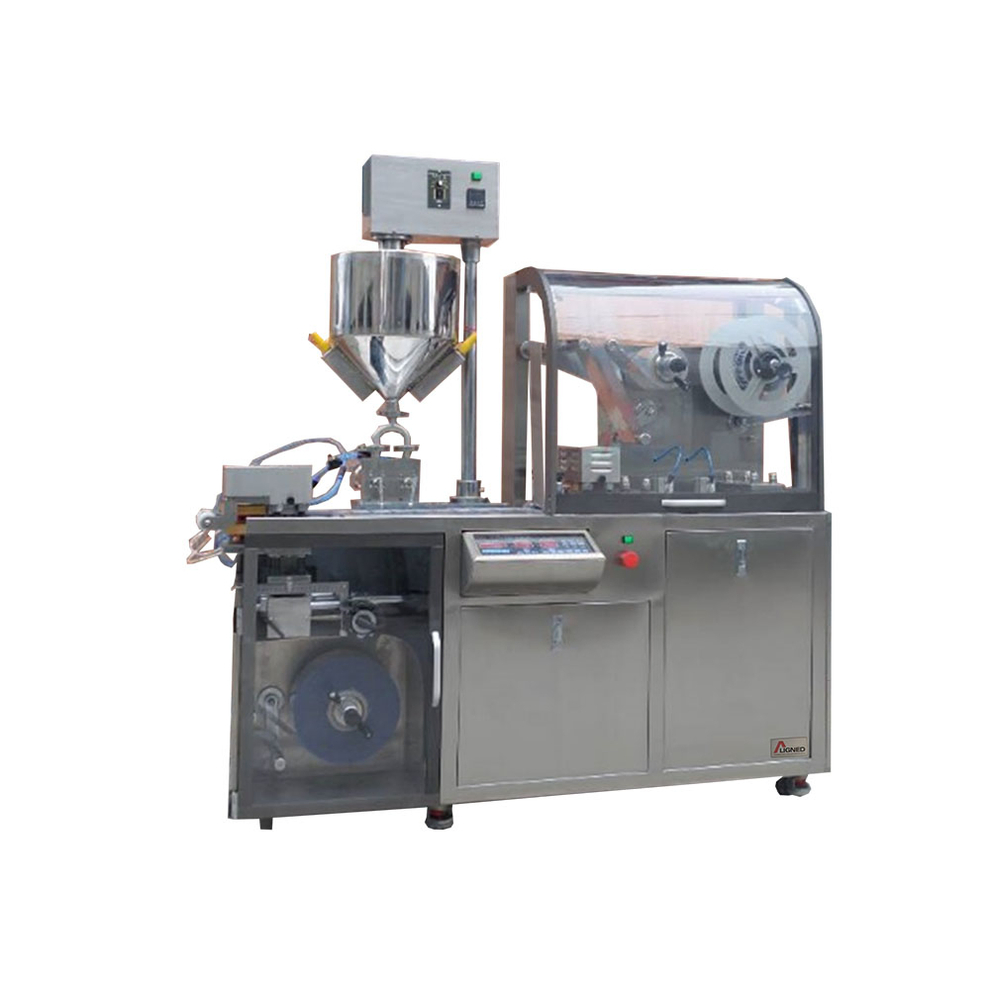

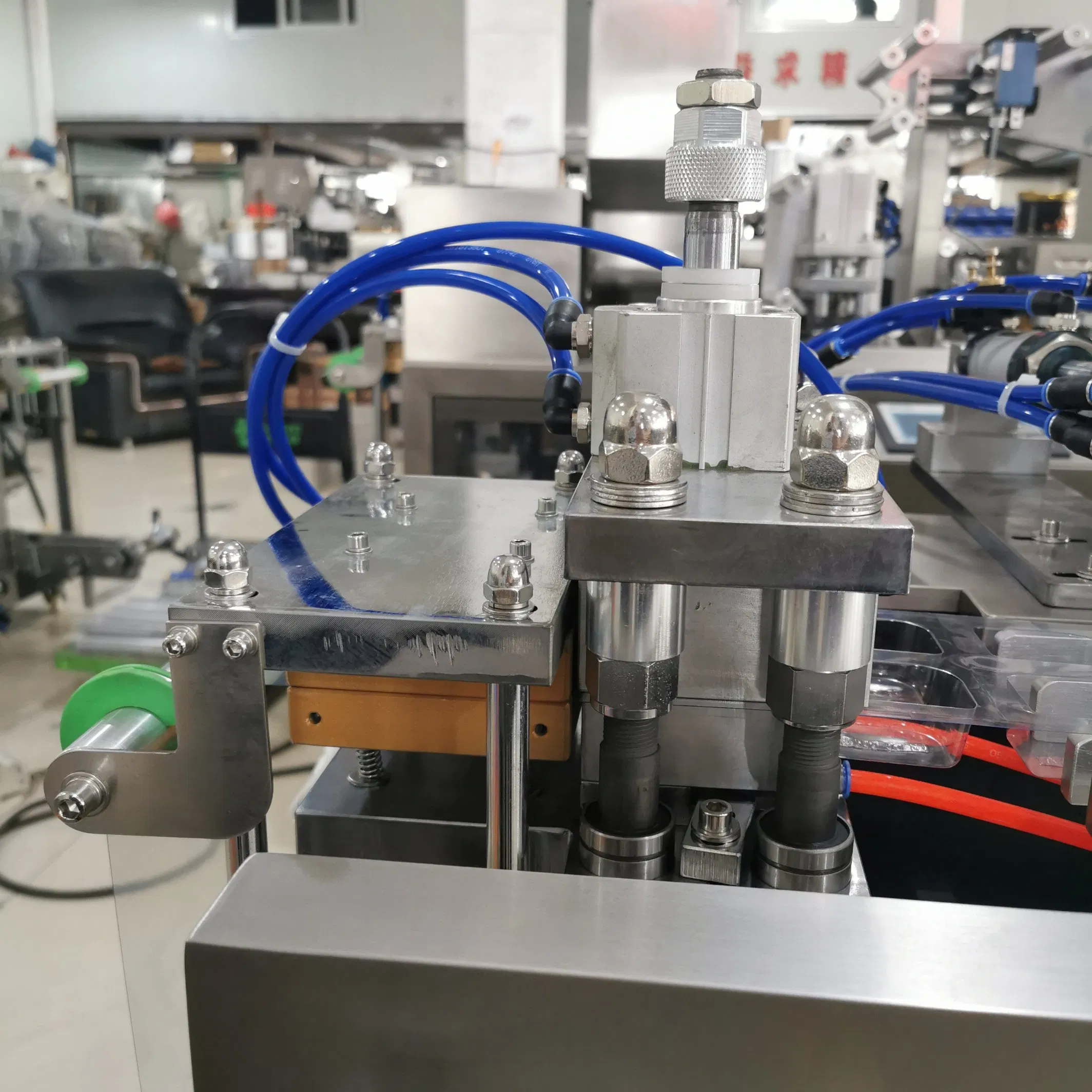

DPP-260 Automatic Blister packing Machine is our advanced equipment designed under updated improvement. It adopts integral technology applying frequency inverter for speed control and integrates mechanism, electricity, light, and air into one machine. Its design is in strict compliance with GMP standards. Featuring advanced functions, simple operation, and high output, this machine is ideal packing equipment for large and medium-size pharmaceutical enterprises, health food, and foodstuff plants.

Key Features:

⚙️

The equipment can be packaged and transported separately, making it convenient for long-distance handling. Assembly is fast using screw fixation upon entering the workshop.

⚙️

Equipped with a splicing station to ensure faster splicing speeds once packaging materials are depleted.

⚙️

Features tempered glass protective doors with automatic alarms. The equipment stops if doors are opened or not closed tightly, ensuring operator safety during debugging.

⚙️

Independent separation of the transmission area and the operation area to avoid cross-contamination and facilitate easy cleaning.

⚙️

Mesh-shaped heat-sealing molds apply equal force to both sides, improving sealing performance and ensuring uniform lamination.

📊 Technical Specifications

Parameters	Specification Details
Max. Punch Speed (AL/PL)	40-60 times/min
Max. Punch Speed (AL/AL)	20-40 times/min
Max. Production Capacity (AL/PL)	350 thous. /h
Max. Production Capacity (AL/AL)	150 thous. /h
Adjustable Range of Stroke	Standard ≤120mm
Max. Forming Area	245 x 112 mm
Max. Forming Depth	14 mm
PVC Specification	260 x 0.25(0.15-0.5) mm
PTP Specification	260 x 0.02 mm
Total Power	6.4 KW
Main Motor Power	2.2 KW
Overall Dimensions (L×W×H)	3940 x 720 x 1580 mm
Weight	1800 kg

🏢 Industrial Display

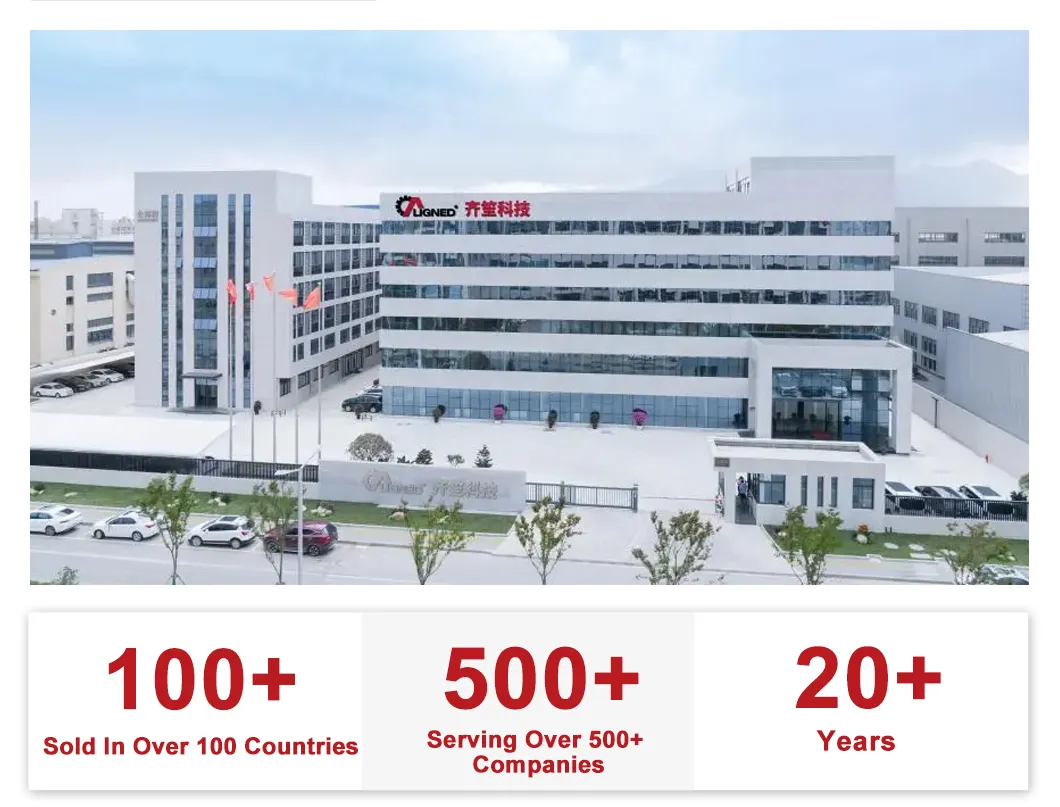

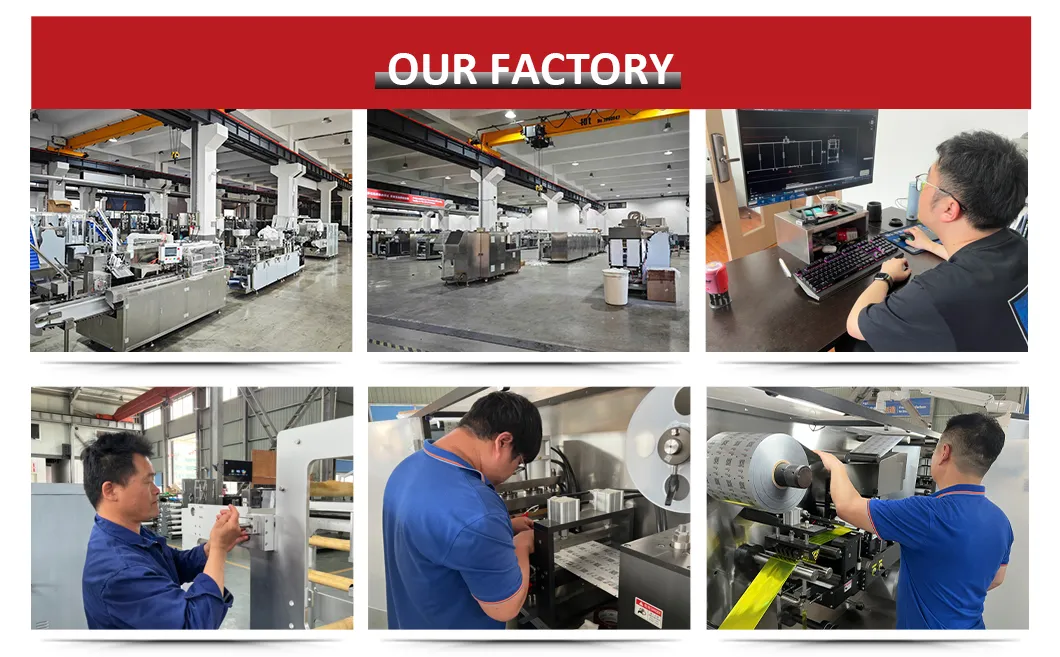

Specializing in the R&D, manufacture, marketing, and related services of pharmaceutical industry machinery and packaging machinery. Offering a comprehensive range of solid dosage equipment, oral dissolving film solutions, and liquid filling & packaging lines.

🌍 Logistics & Exhibition

❓ Frequently Asked Questions

1. Are you a factory or a trading company?

We are an industry and trade integrated company. We produce the machines in-house and handle our own exports to ensure quality control.

2. Have you ever sold machines to overseas markets?

Yes, we have successfully sold equipment to 156 countries and support more than 300 users and partners worldwide.

3. Do you supply OEM services?

Yes, we provide OEM services and can design machines that specifically match your production requirements.

4. Do you have experience with pharmaceutical factory design?

Absolutely. We have completed several Turnkey pharmaceutical factory projects across various international regions.

5. How does your after-sales service work?

We offer training courses for your technicians before shipping. We provide a 12-month warranty and can send engineers to your facility for equipment commissioning if needed.

6. What payment methods do you accept?

We typically accept Bank Transfers (T/T), Letters of Credit (L/C), and Western Union. Specific details can be discussed based on the order.
