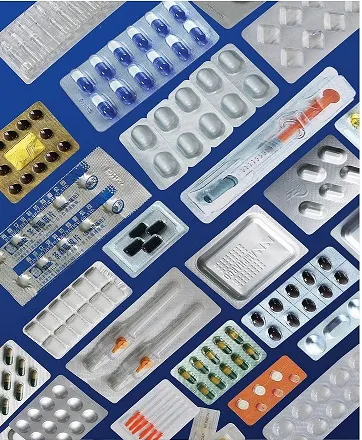

It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

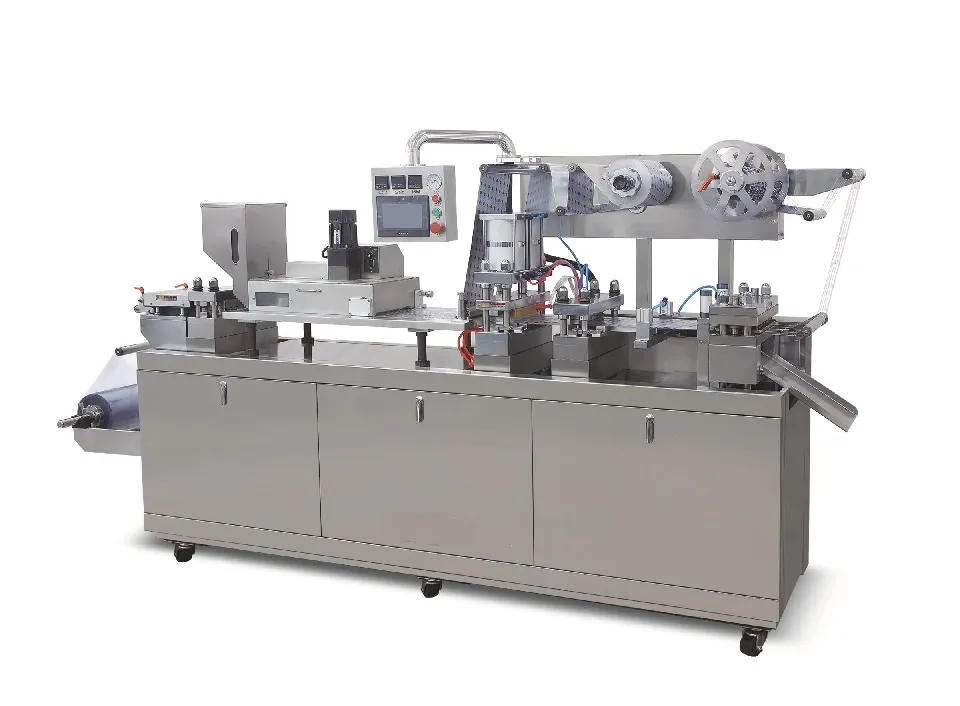

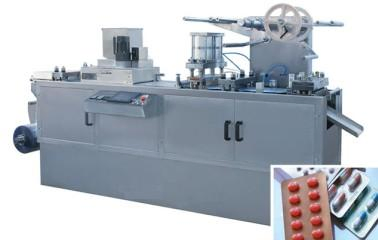

This product is a newly designed packaging machine. Its function has reached domestic leading level. It is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; It is ideal blister packaging equipment. The product passed the provincial science and technology appraisal.
Optional Modules: Opposite sealing device with cursor trace, Plexiglas Cover, and ink-jet printer.
| Cutting Frequency(Times/min) | 6-50 |
| Production Capacity (ten thous pics/h) | 3.5-23 |
| Max Forming Areas And Depth(mm) | 240×150×26 (standard 240×150×14) |
| Stroke(mm) | 40-160 (Can be lengthened to 180mm) |
| Standard Plate(mm) | 80×57 (Customizable) |
| Air Pressure(Mpa) | 0.4-0.6 |
| Air Supply | ≥ 0.3m³ /min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (KW) | 1.5 |
| PVC Hard Pieces(mm) | 0.15-0.5×250 |
| PTP Aluminum Foil(mm) | 0.02-0.035×250 |
| Dialysis Paper(mm) | 50 -100g ×250 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions(mm) | 3000×730×1600 (L×W×H) |
| Weight(kg) | 1600 |
