📋 Basic Info.
Certification
CE, Cotton Pad Making Machine
After-sales Service
Free Technical Support and Accessories
Specification
2800*1100*1800mm
Production Capacity
300sets/Month
📦 Packaging & Delivery
Package Size
300.00cm * 140.00cm * 210.00cm
Package Gross Weight
1000.000kg
Transport Package
Fumigation-Free Wooden Box Packaging
⚙️ Product Description

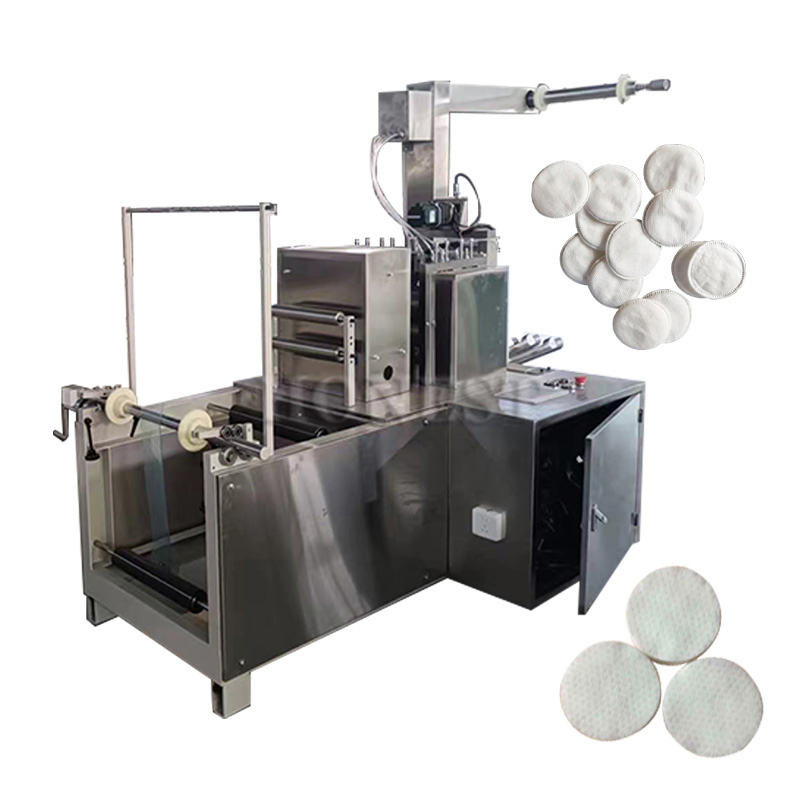

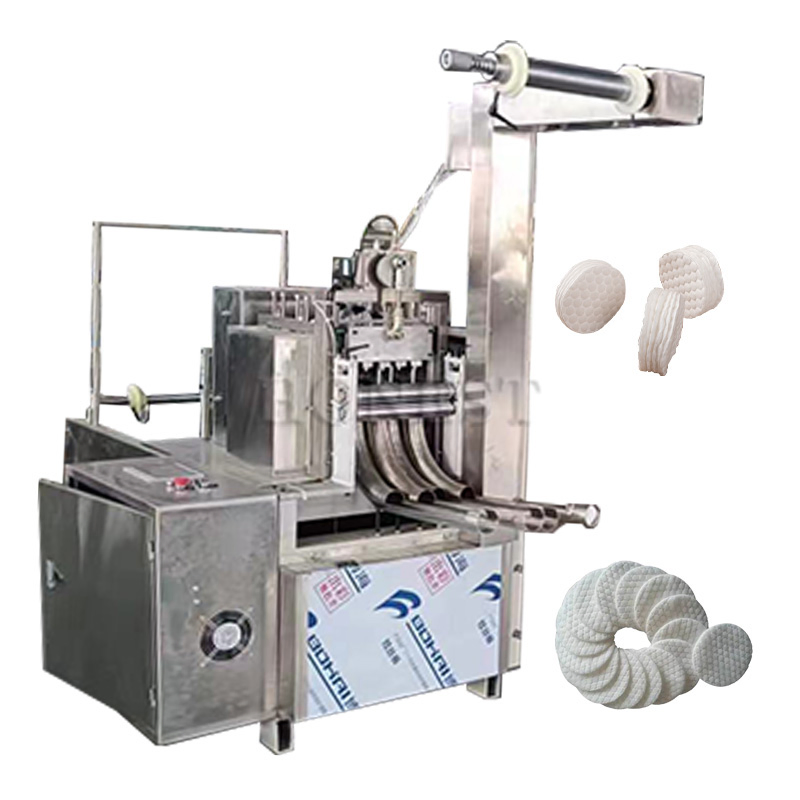

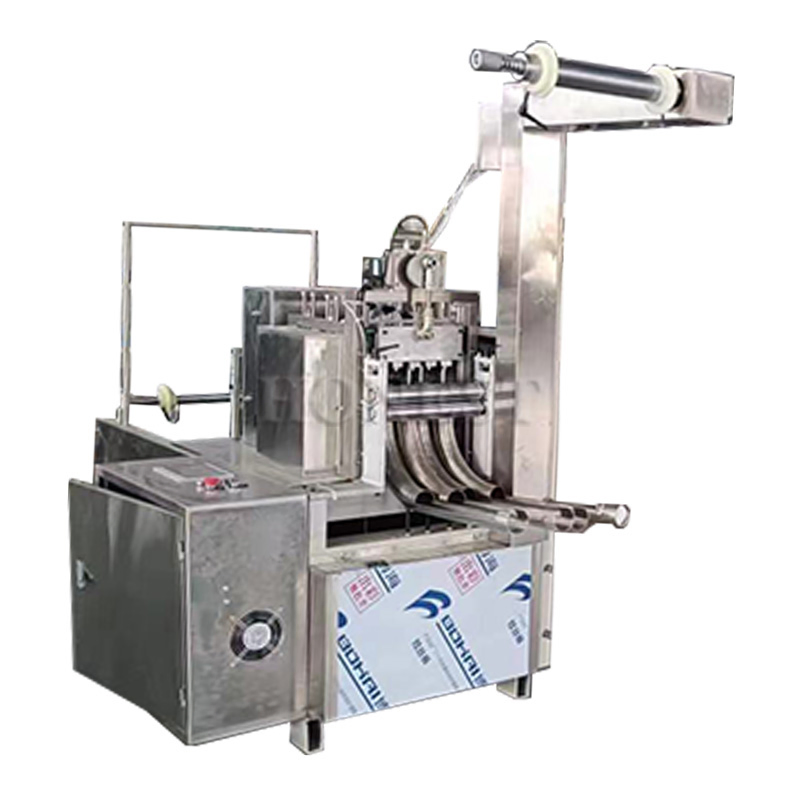

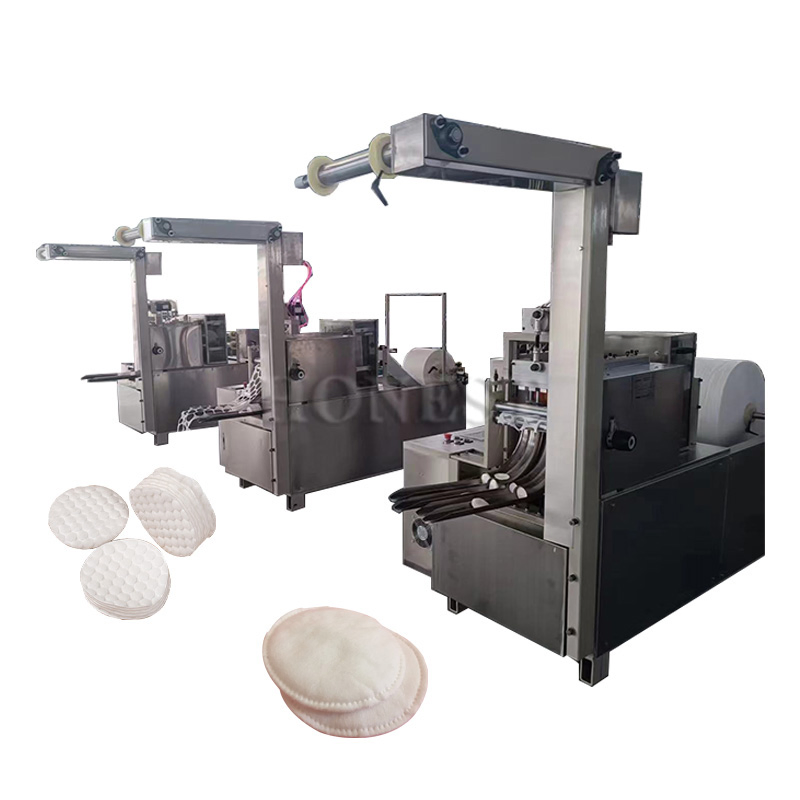

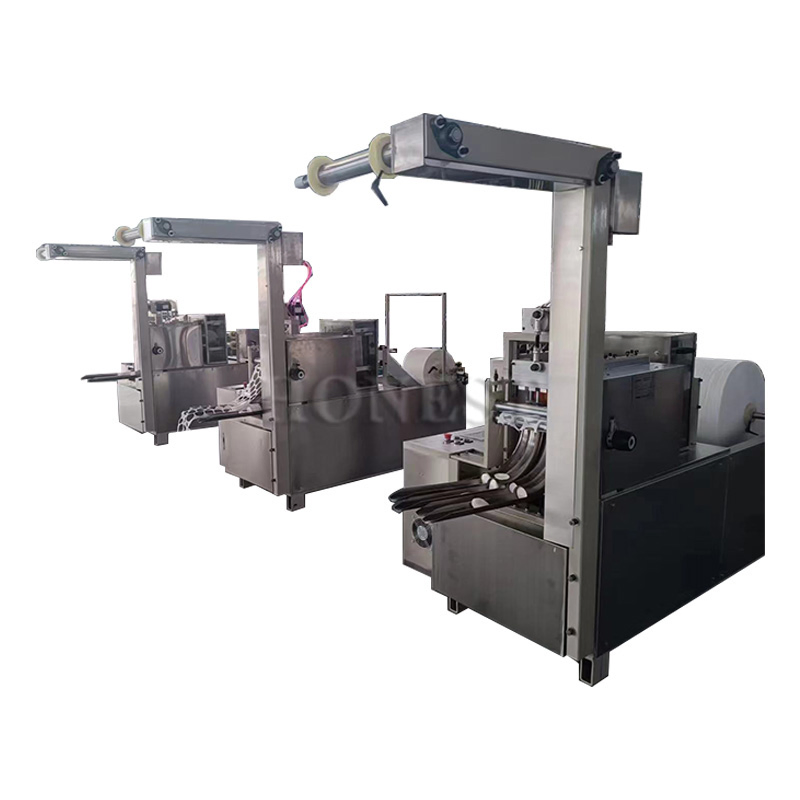

Factory Price Round Cotton Pad Machine
- Adopt consistent operation mode: from raw materials through automatic conveying, rolling cutting, automatic counting, stacking arrangement, and waste discharge.
- Equipped with mechanical press conveying device for stable and neat discharging. One out of four (diameter 57mm) circular special hob molding mold minimizes raw material loss.
- Constructed with international high-quality steel; hob mould made of imported special materials for accurate, burr-free cutting and durability.
- Includes automatic waste collection device and main bearings from imported brands.
- Pneumatic control automatic counting device integrated for precision management.
- Mechanical transmission with wear-resistant rubber roller and aluminum alloy cloth guide rollers.
- Frequency conversion control for safe and easy operation with standardized wiring.
📊 Product Parameters
| Model | HT-H500 |
| Cotton pad size | Dia 58MM, 60MM or customized |
| Cotton pad type | Side sealing / customized |
| Max. unwinding roll diameter | 1000MM |
| The machine frame material | 45# Steel |
| Operating system | Touchscreen |
| Speed | 500-600 pieces/minute |
| Voltage | 380v 50hz |
| Power | 5.5kw |
| Size | 2800*1100*1800mm |
| Weight | 750kg |
| Counting way | Misalignment counting |
| Discharge channel | One out of four |

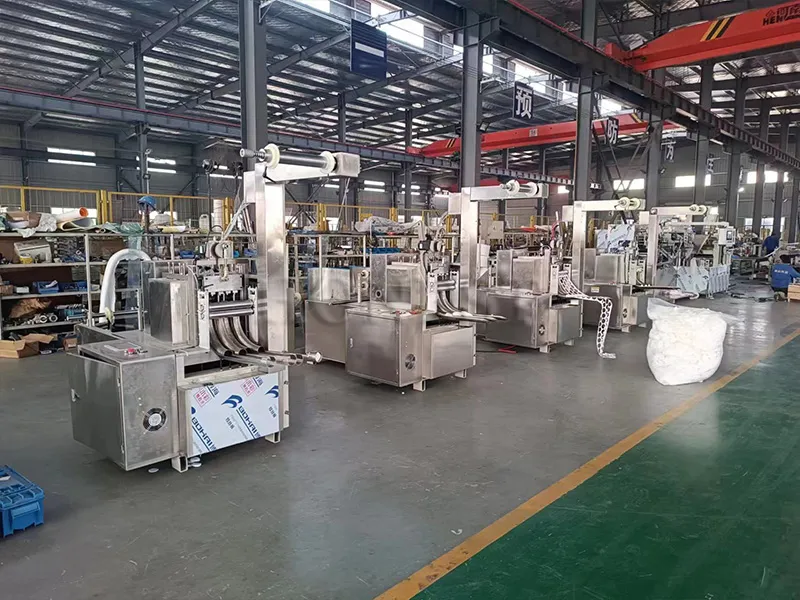

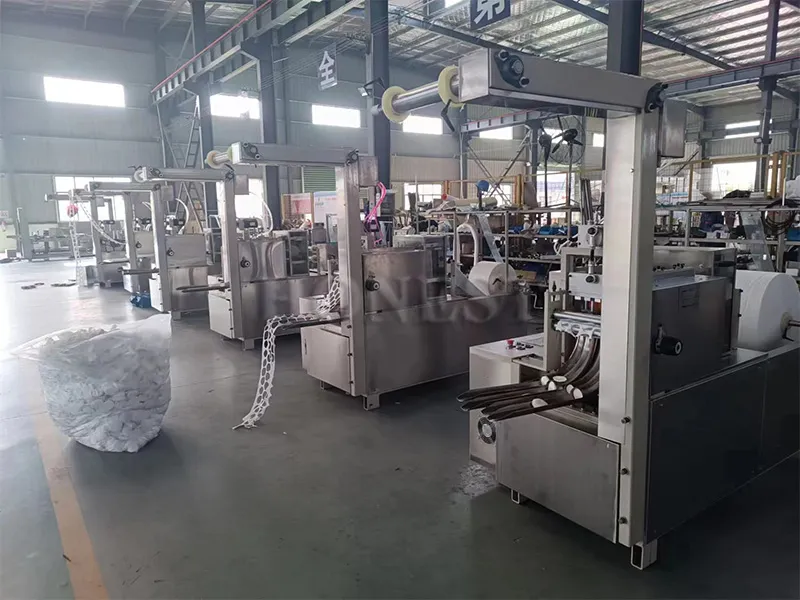

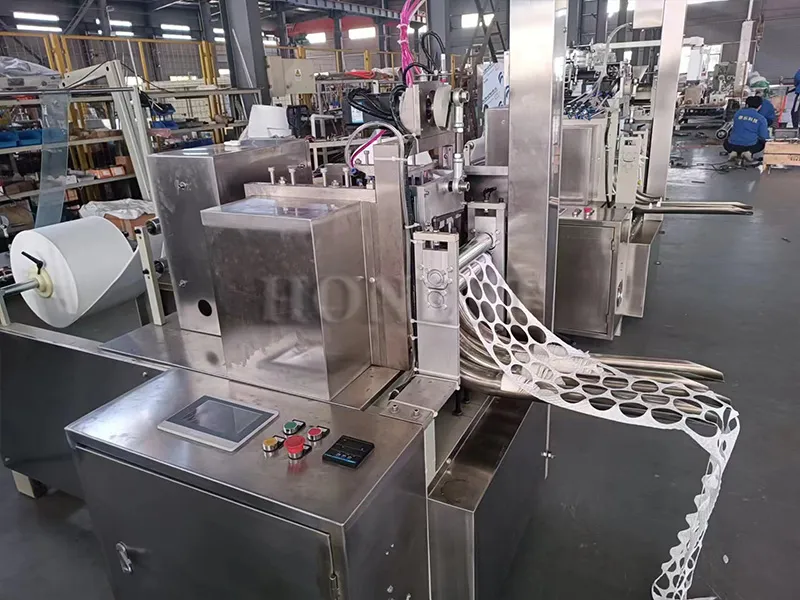

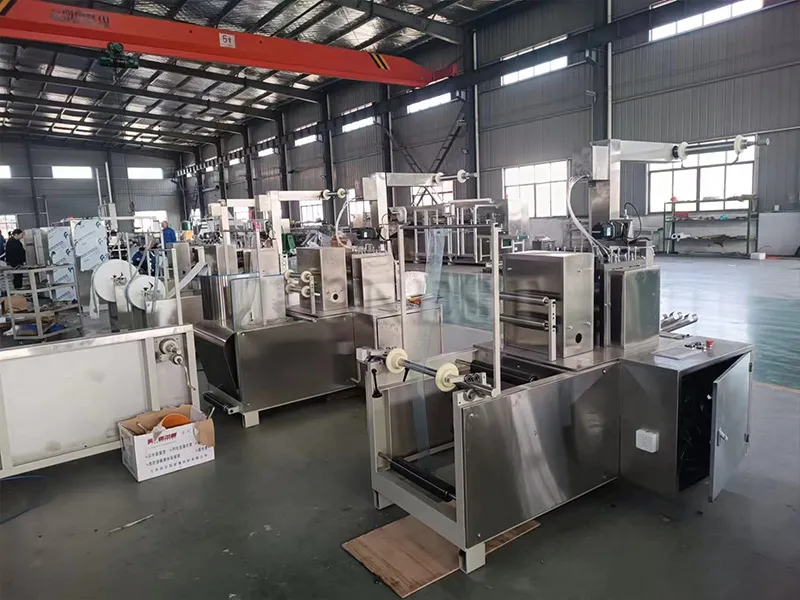

📸 Detailed Photos
*Appearance and size may vary slightly due to machine upgrades; please refer to the actual machine.

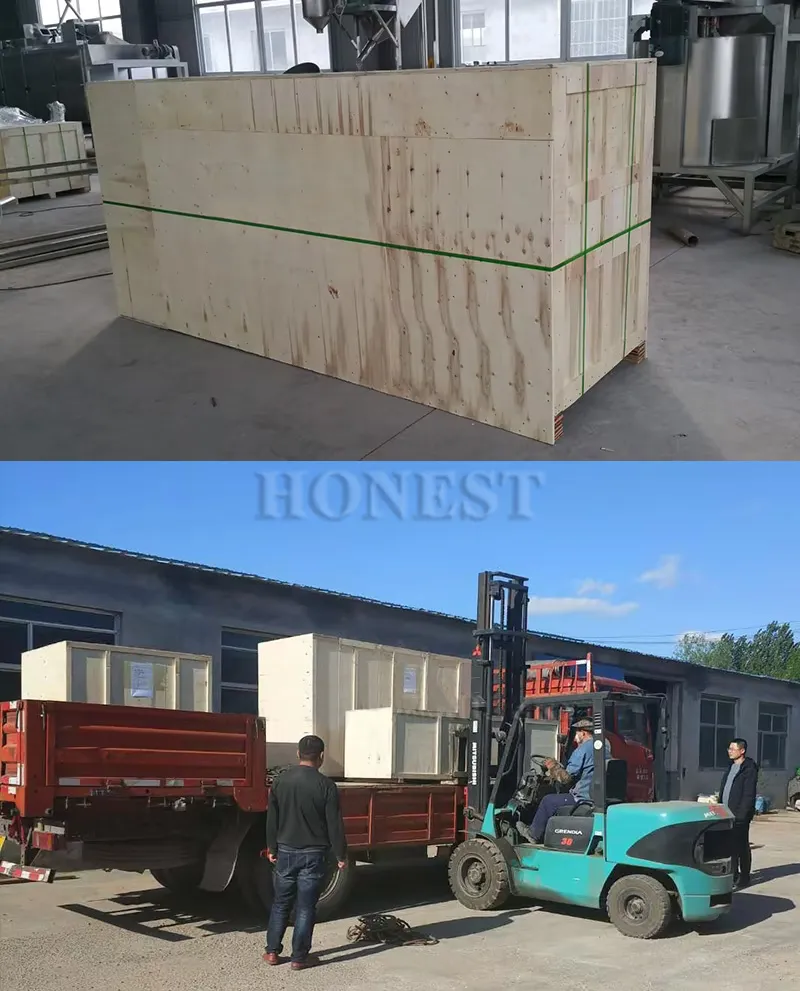

🚢 Packaging & Shipping
📜 Certifications
🤝 Our Customer
❓ Frequently Asked Questions
What is the production speed of the HT-H500 machine?
The machine is highly efficient, capable of producing 500 to 600 pieces of cotton pads per minute.
What sizes of cotton pads can be produced?
The standard sizes are 58mm and 60mm in diameter, but the machine can be customized to meet specific size requirements.
What kind of after-sales service is provided?
We offer free technical support and provide accessories to ensure the smooth operation of your equipment.
Does the machine include a counting system?
Yes, the equipment is equipped with a pneumatic control automatic counting device using misalignment counting for high accuracy.
How is the waste material handled?
The machine features an integrated automatic waste collection device, ensuring a clean working environment and efficient material usage.
What are the power and voltage requirements?
The machine operates on a 380v 50hz voltage with a power consumption of 5.5kw.
