| Model NO. | DZH-260S |
| Features | Batch Coding, Print Registration Control, Sterilization Capability, Tamper-Evident Packaging, Temperature Control, Vacuum Packaging |
| Machine Material | Alloy Steel, Carbon Steel, Stainless Steel, Titanium |
| Packaging Material | Aluminum, Glass, Paper, Polyethylene, PVC |
| Warranty | 1 Year |
| Main Motor Power | 2.2kw |
| Outline Dimension | 4550mm x 1600mm x 1700mm |
| Weight | About 4500kg |
| Production Capacity | 500 pieces/Year |

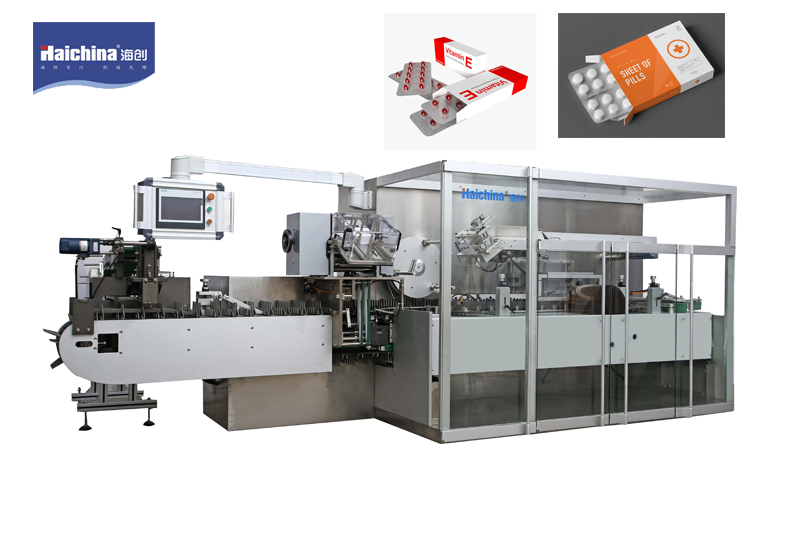

The DZH-260 High-Speed Automatic Cartoning Machine is an advanced packaging solution designed to meet the demands of modern production lines. Engineered for bottles, medicine blisters, tubes, soaps, cosmetics, vials, ampoules, lotions, lipsticks, and similar products, this cartoner delivers exceptional speed up to 260 boxes per minute with remarkable precision.

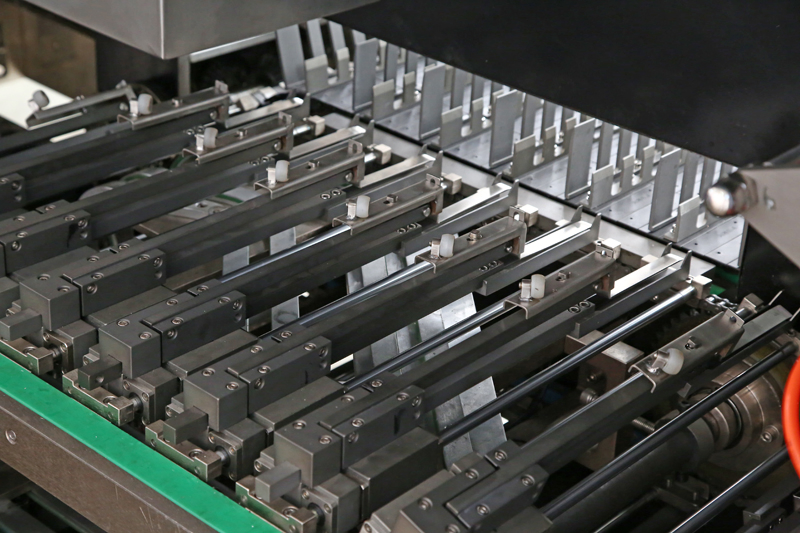

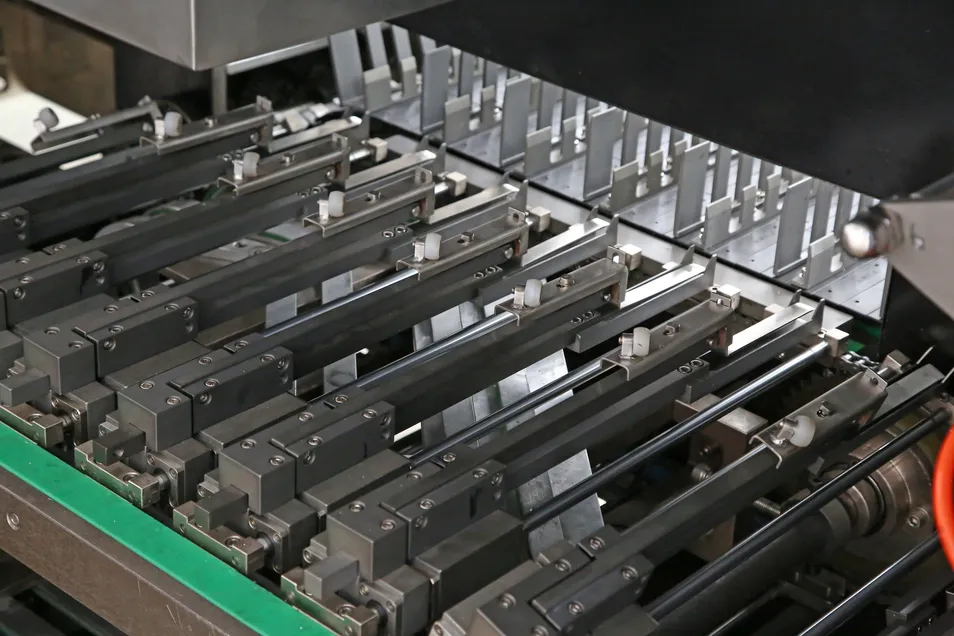

Featuring continuous transmission technology, synchronized pushing mechanism, and a rotary vacuum suction box device, this automatic box packing machine ensures smooth, low-noise operation while maintaining consistent quality output.
| Parameter | Technical Data |
|---|---|
| Production Capacity | 50-260 box/min |
| Box Quality Requirements | 300-350g/m2 (depends on size) |
| Box Range (LxWxH) | (70-180)mm x (35-84)mm x (15-70)mm |
| Leaflet Quality Requirements | 60-70g/m2 |
| Unfold Leaflet Size (LxW) | (100-260)mm x (90-160)mm |
| Folded Leaflet Size | (100-260)mm x (20-40)mm |
| Air Pressure | 0.5-0.7mpa |
| Air Consumption | 700-900L/min |
| Power Supply | 380V 50HZ |

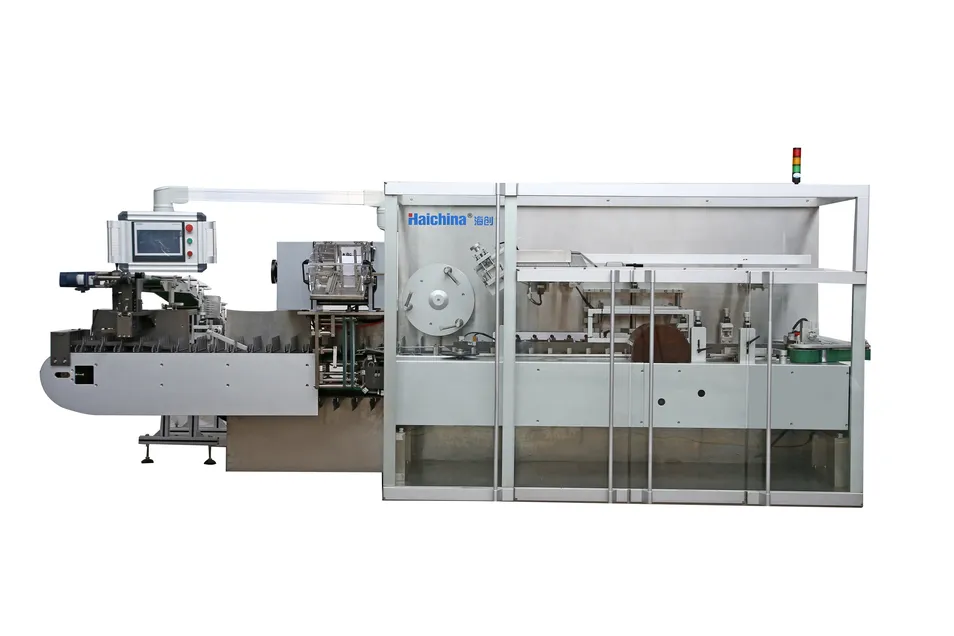

Capable of processing 30 to 260 boxes per minute with variable frequency speed control, allowing capacity adjustment based on carton specifications.

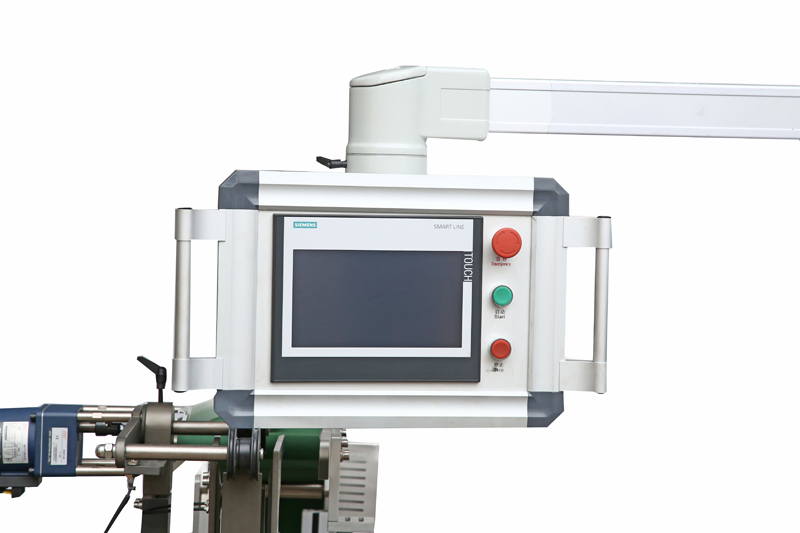

Equipped with advanced PLC monitoring and photoelectric detection for missing leaflets or bottles, triggering automatic alarms and rejection.
Comprehensive detection mechanisms ensure every package is complete, with automatic rejection of defective items and real-time counting.

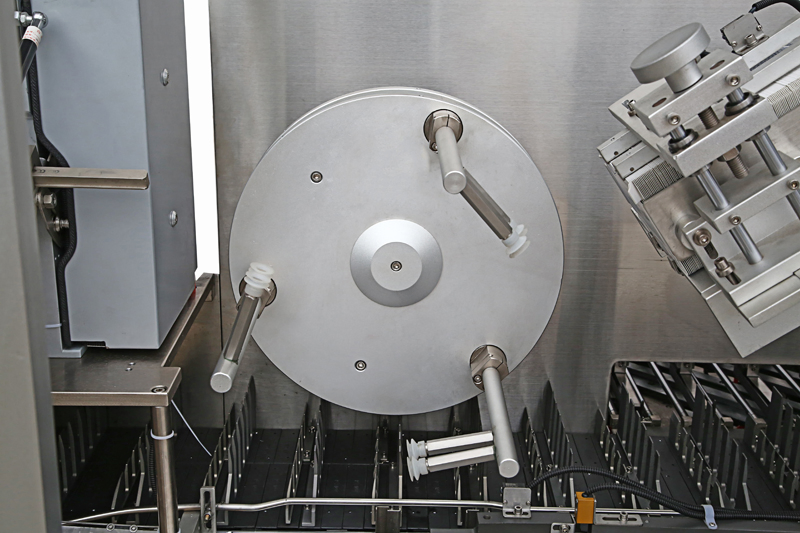

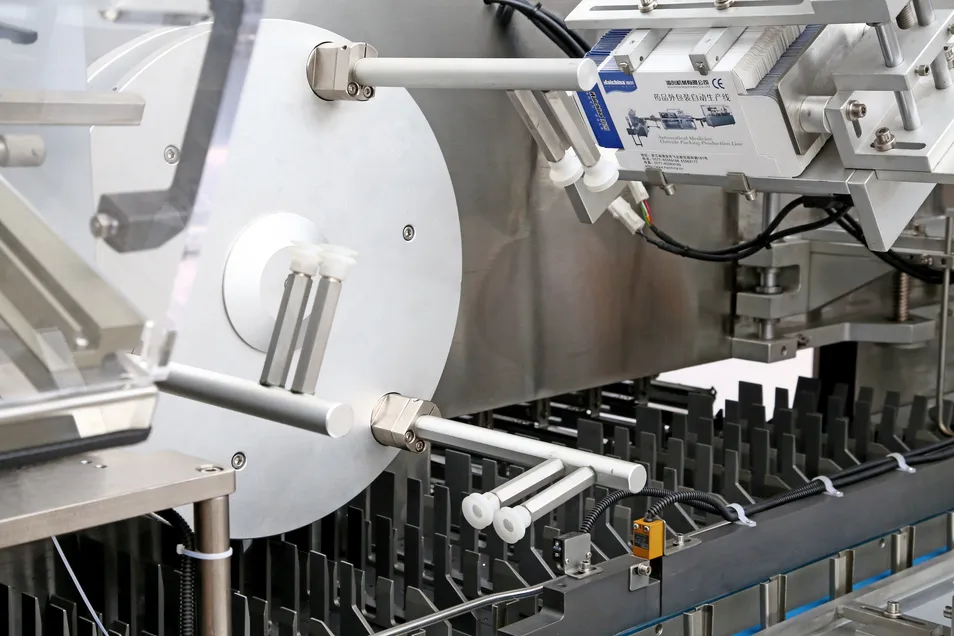

Innovative turntable vacuum suction mechanism delivers stable, accurate, and synchronized carton feeding for consistent operation.

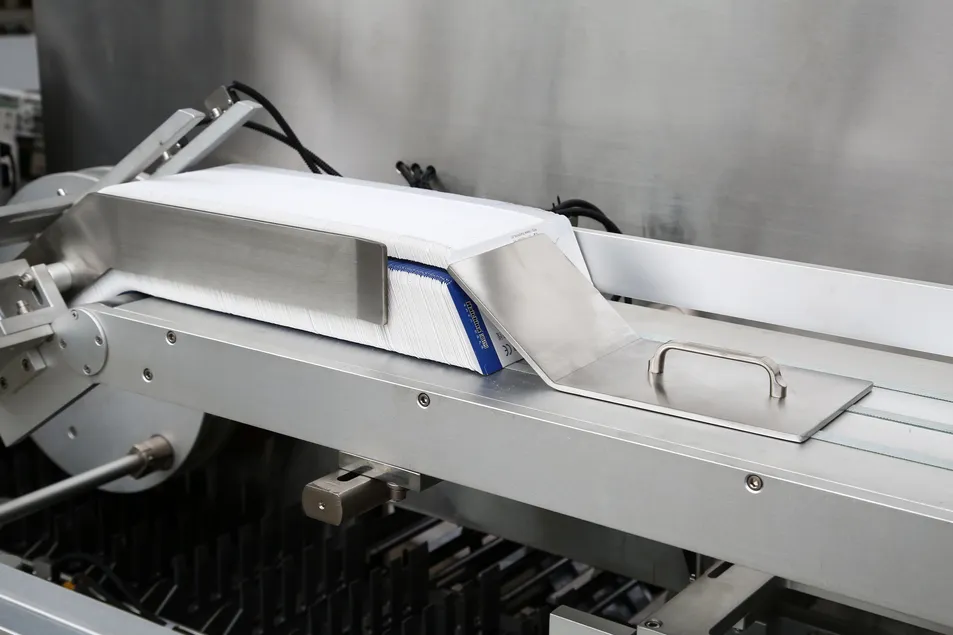

Independent mould and guiding device allows rapid product changeover by adjusting guide rails, minimizing downtime effectively.
