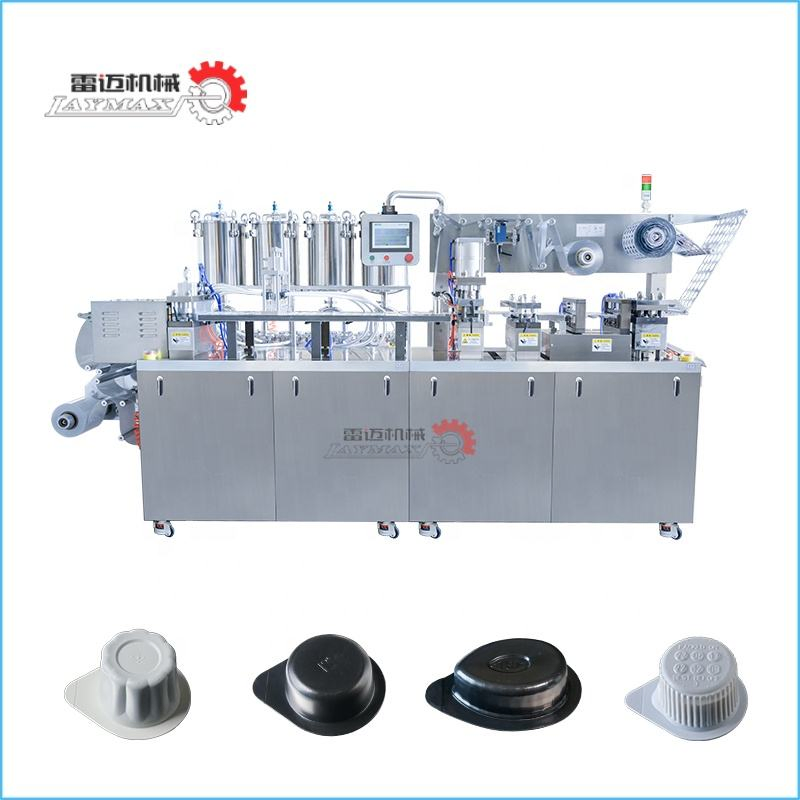

DPP High-Speed Fully Automatic Liquid Filling Blister Packing Packaging Machine for Butter Jam Honey Chilli Sauce Tea Milk Pure Water PVC Pet PS PE Aluminum

Customization:	Available
After-sales Service:	Lifetime After-Sales
Warranty:	Lifetime After-Sales

ℹ️

Basic Information

Model NO.

DPP 260

Application Field

Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical, Apparel, Textiles

Driven Type

Electric

Automatic Grade

Automatic

Structure

Multifunctional Adjustable Size

Packaging Type

Jam

Usage

Outer

Transport Package

Wooden

Specification

1850*600*1050mm

HS Code

8422309090

Production Capacity

5760 PCS/Hour

🚀

Application Object

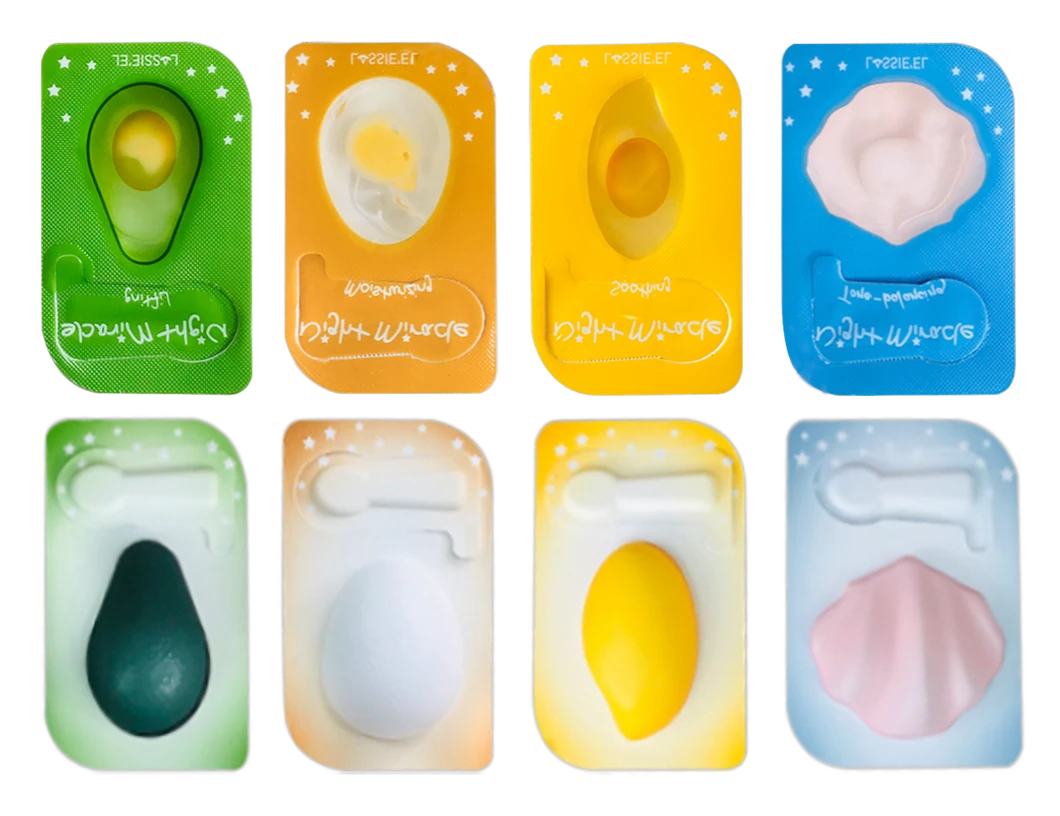

1. Cosmetics: moisturizing cream, mud masks, hair masks, two-color egg masks, freeze-dried masks, shampoo, lipstick, perfume, essence, gel, freeze-dried powder, etc.

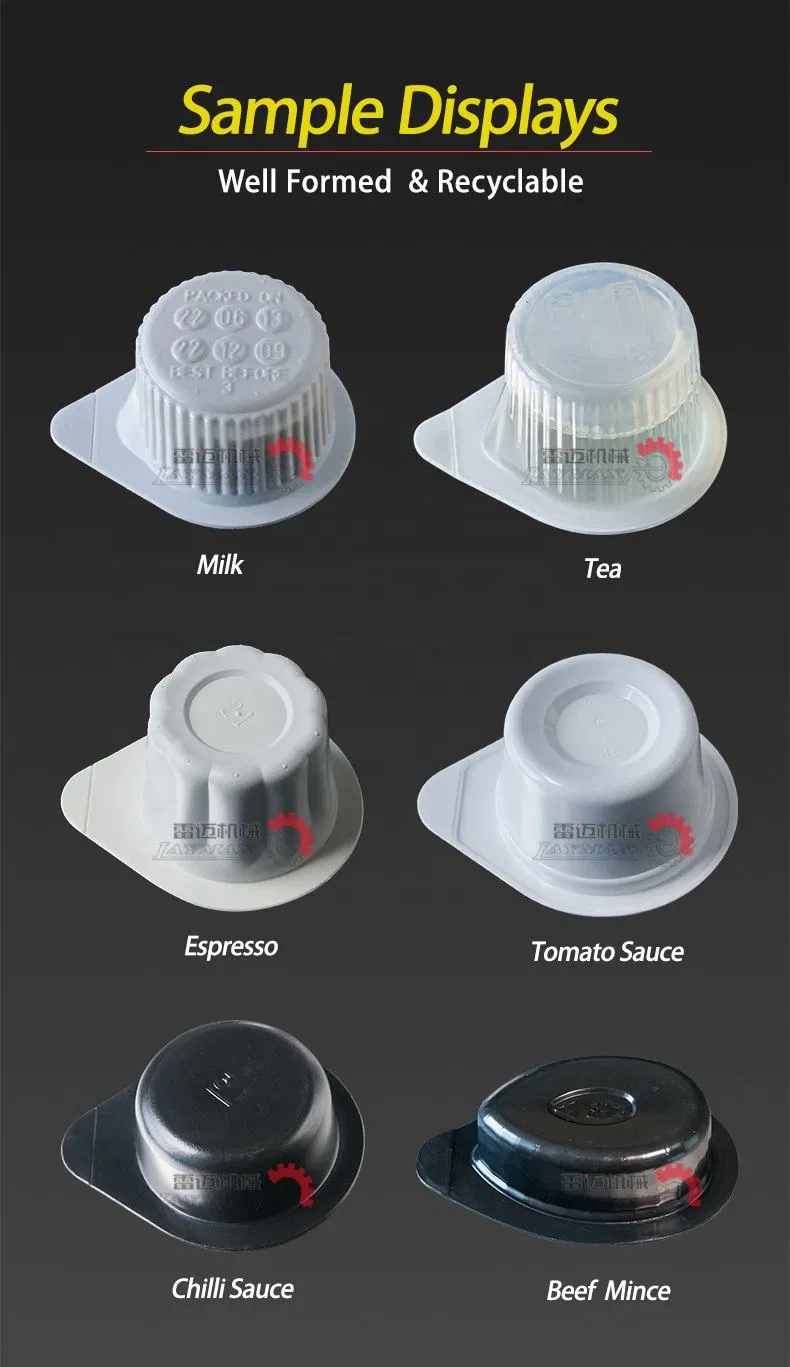

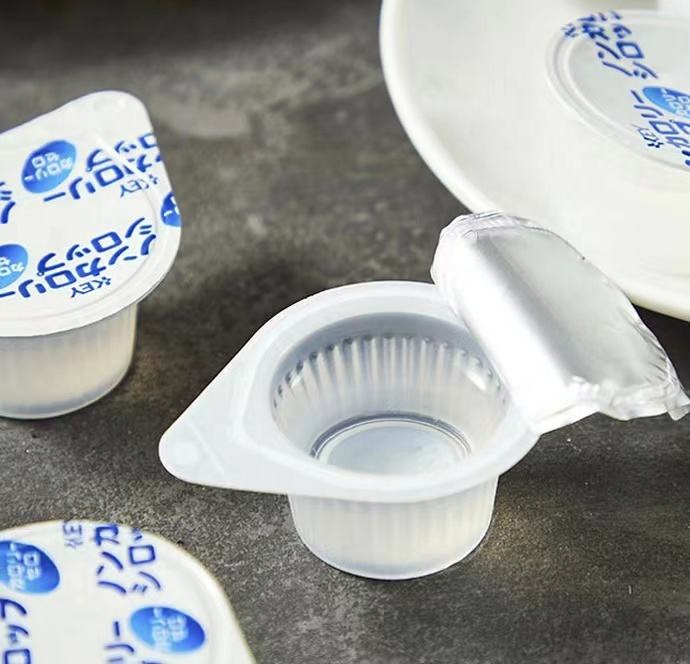

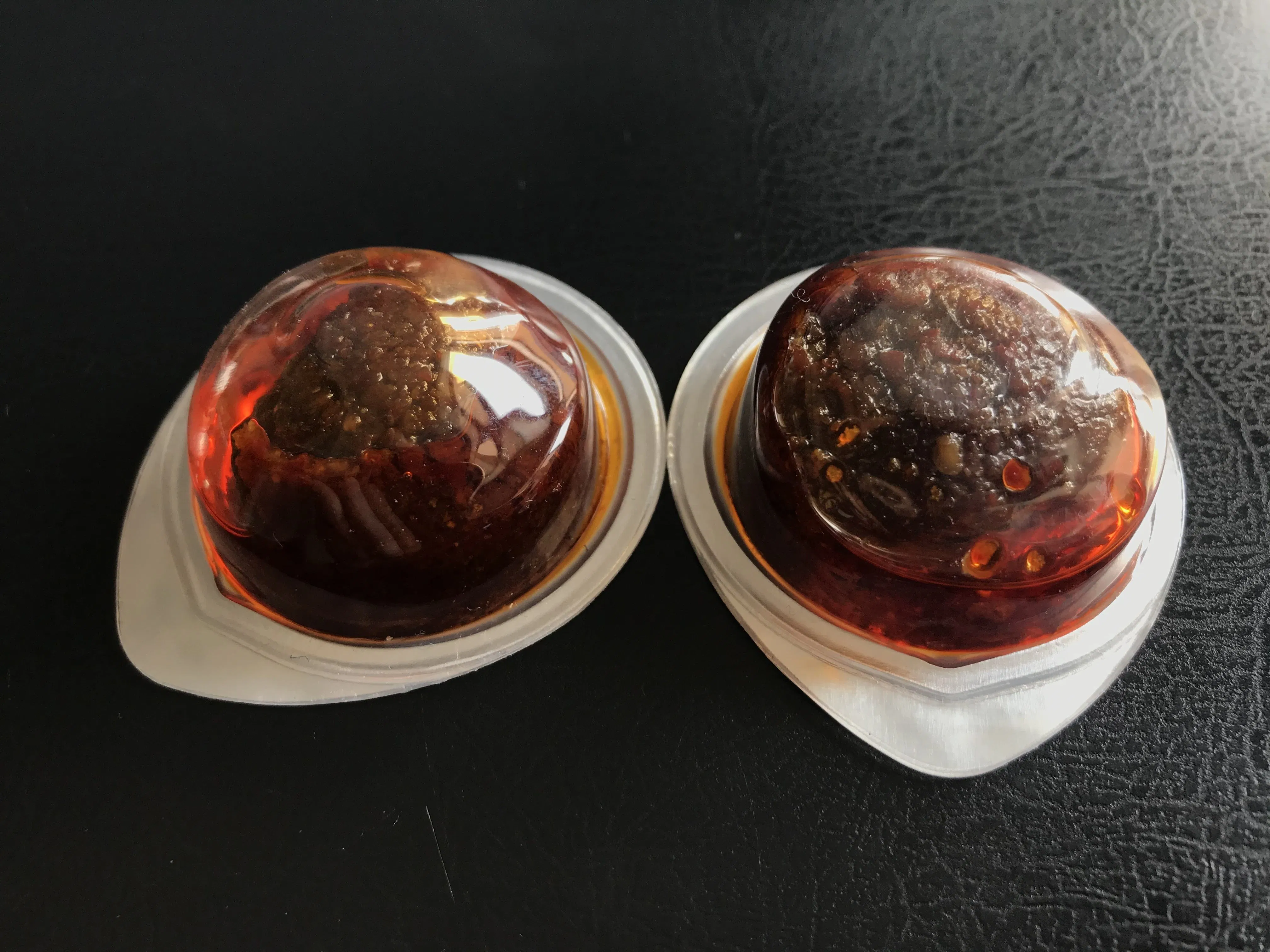

2. Food: chrysanthemum, flower tea, mouthwash, chili sauce, tea leaves, honey, ginger syrup, tomato sauce, etc.

Alignment Comparison

Type	Sample View
Non Alignment
Single Alignment

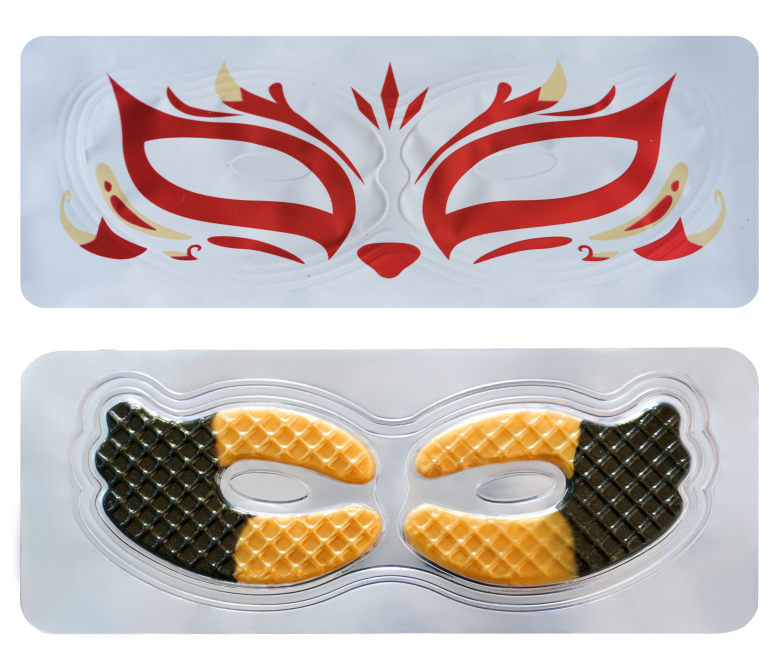

Double Alignment

Double Alignment makes the products more exquisite!

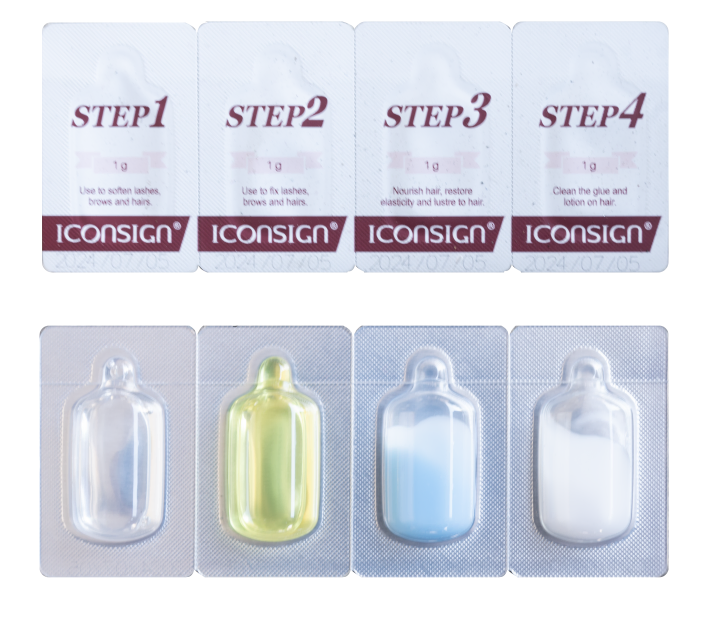

Single Alignment: Logo/Text centered on upper film.

Double Alignment: Logo/Text centered on both upper and bottom films.

⚙️

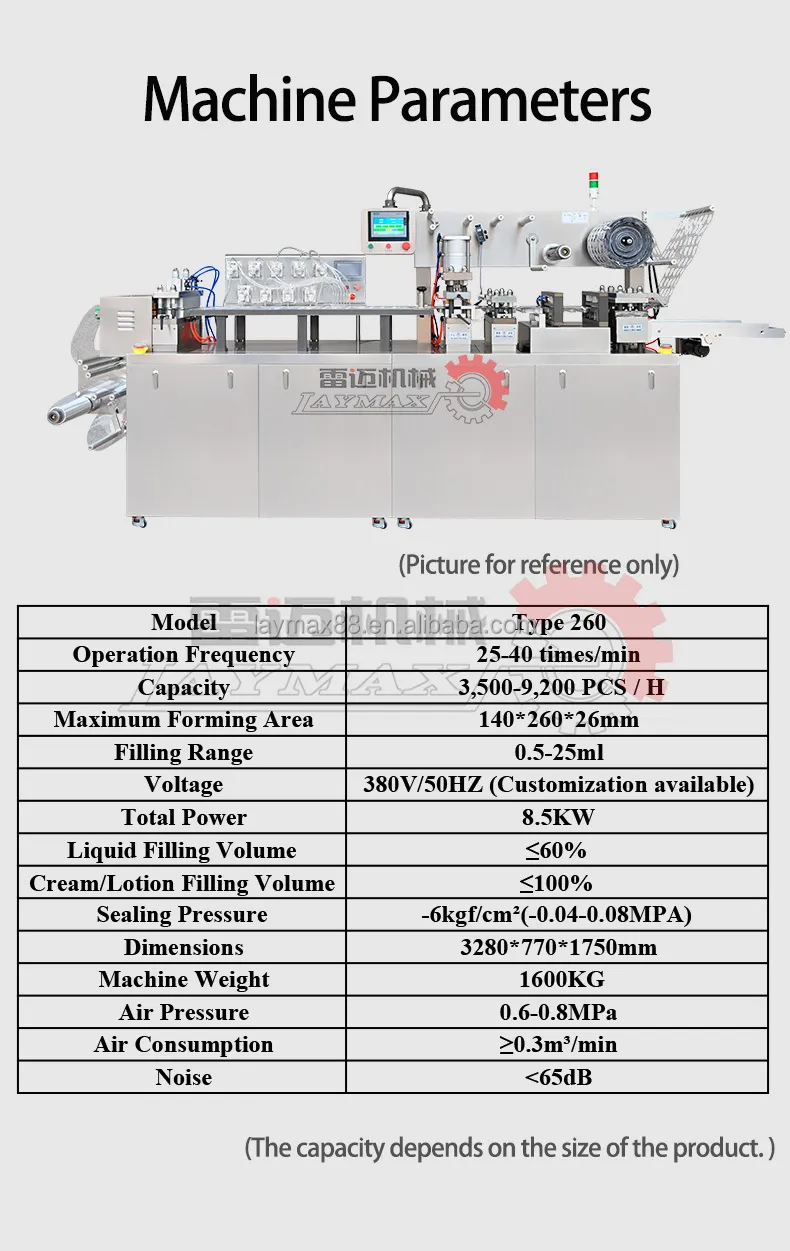

Machine Description

Model	Mold Size	Single Alignment	Double Alignment
Type 115	115*80	Yes	No
Type 125	125*80	Yes	No
Type 155	155*120	Yes	No
Type 260	260*140	Yes	Yes

Key Features

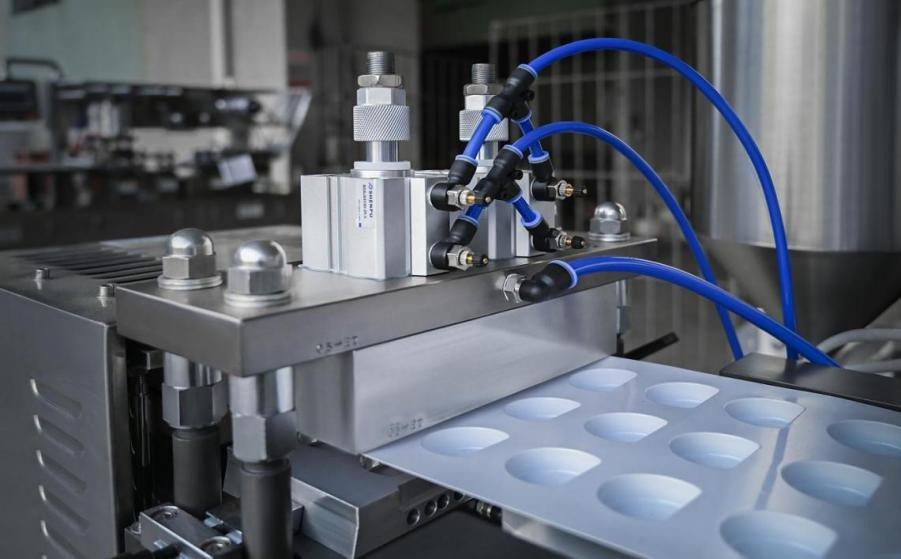

Secondary forming device: Added for deep blister shapes to ensure uniform thickness.

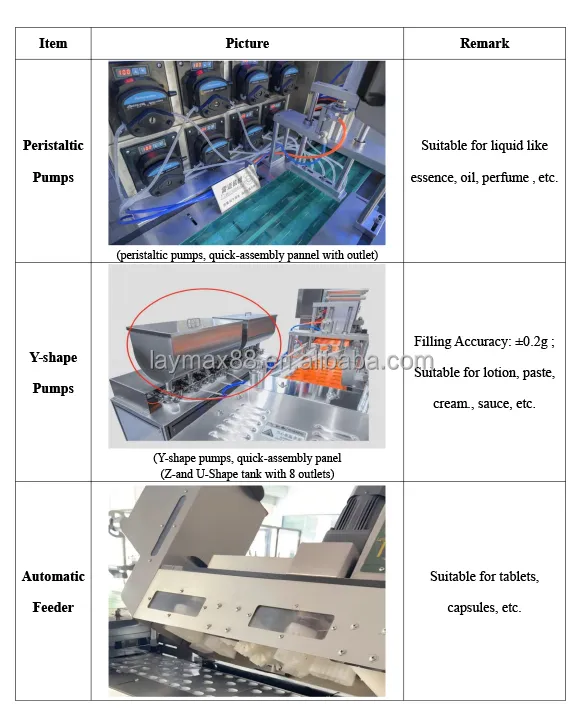

Multiple feeding options: Various material-driven feeding systems available.
Customizable Stations: Optional cursor tracking, servo traction, plexiglass cover, dot-dashed line station, cut-spoon station, punching hole station, etc.

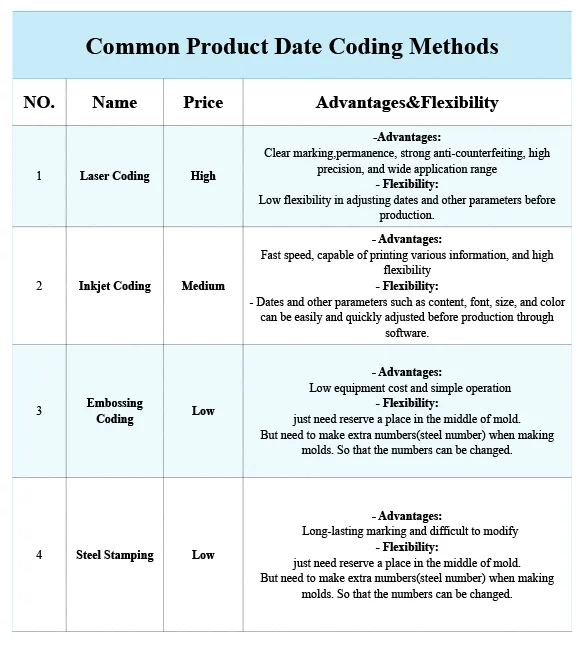

Advanced Coding: Multiple coding methods supported for batch information.

🔍

Machine Details & Process

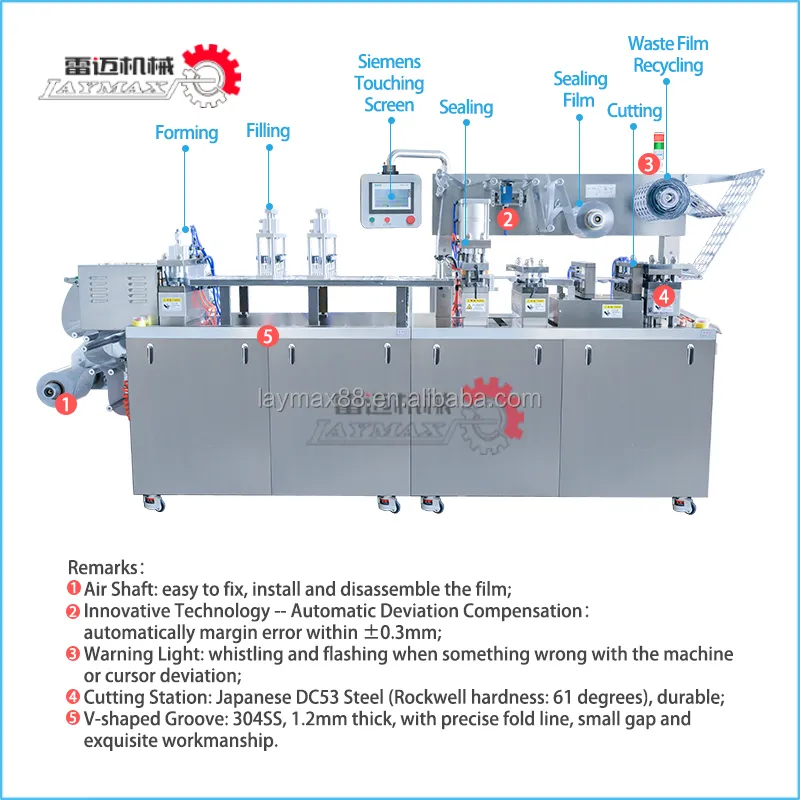

Working Process: Forming ➔ Filling ➔ Sealing ➔ Cutting

Debug-Friendly Design

Frequently Asked Questions

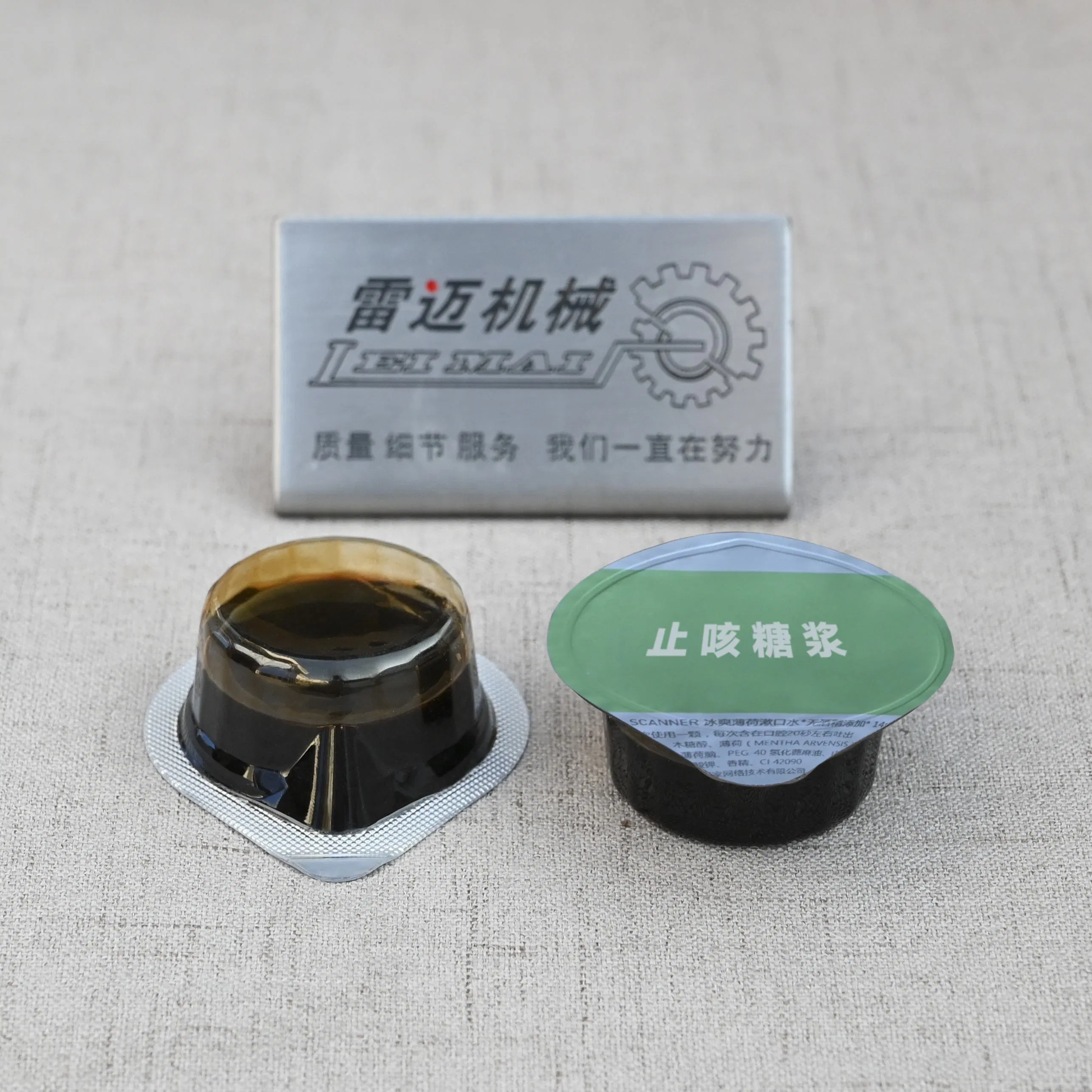

Q: What types of products can the DPP 260 pack? A: It is ideal for liquids and pastes such as honey, jam, butter, cosmetics (creams, masks), and chemical products like shampoo or gel.

Q: What is the difference between Single and Double Alignment? A: Single alignment centers the design on the top film only. Double alignment ensures both the top and bottom films are perfectly centered and aligned for a more premium look.

Q: Can the machine handle deep blister forming? A: Yes, it can be equipped with a secondary forming device to maintain uniform material thickness in deep cavities.

Q: What is the maximum production capacity of this machine? A: The DPP 260 has a production capacity of approximately 5,760 pieces per hour, depending on product size and material.

Q: Is the machine compatible with different materials like PVC or PET? A: Yes, it is designed to work with various materials including PVC, PET, PS, PE, and Aluminum.

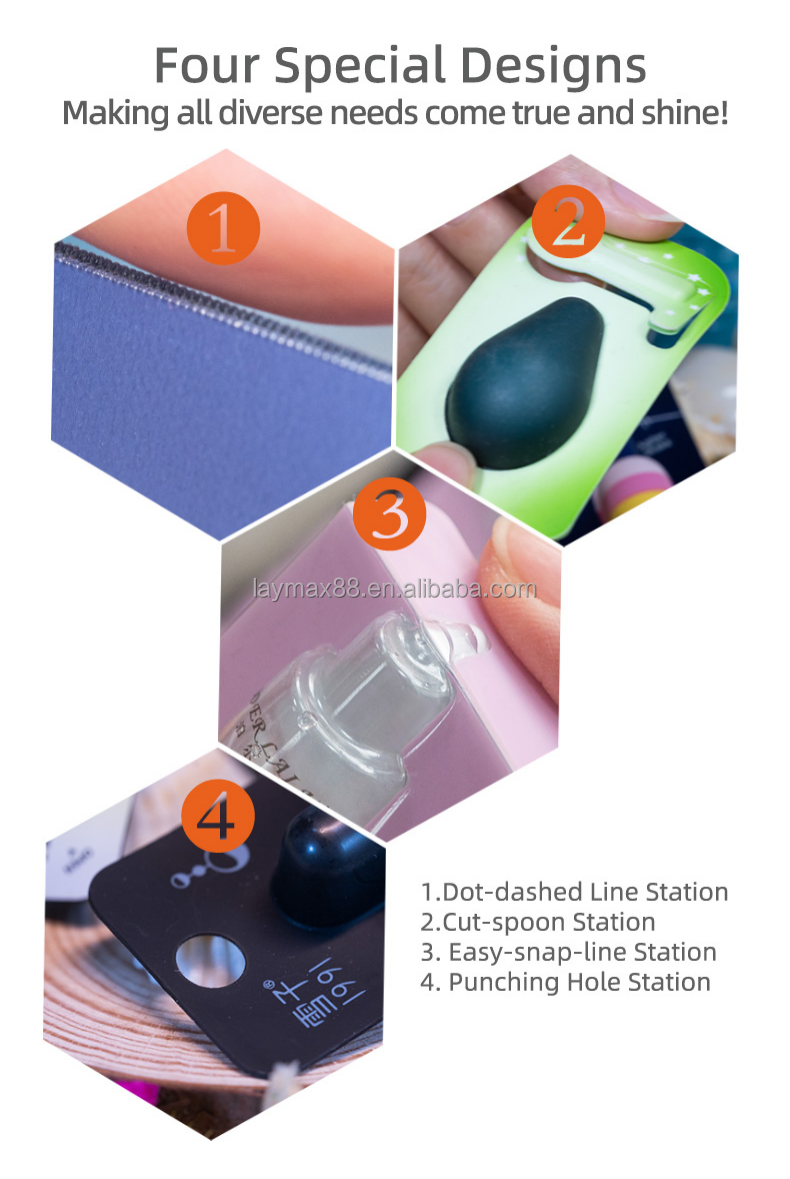

Q: Are there optional stations for specialized packaging needs? A: Yes, we offer optional stations for spoon-cutting, easy-snap lines, punching holes, and dot-dashed lines for easier opening.
