| Model NO. | DPP-260 | Application Field | Food, Medical, Chemical, Cosmetic |
| Driven Type | Electric | Automatic Grade | Automatic |
| Punch Frequency | 25-60 Times/Min | Capacity | 9600 Plates Per Hour |
| Max Forming Area | 150mm*250mm*30mm | Machine Weight | 1850kg |

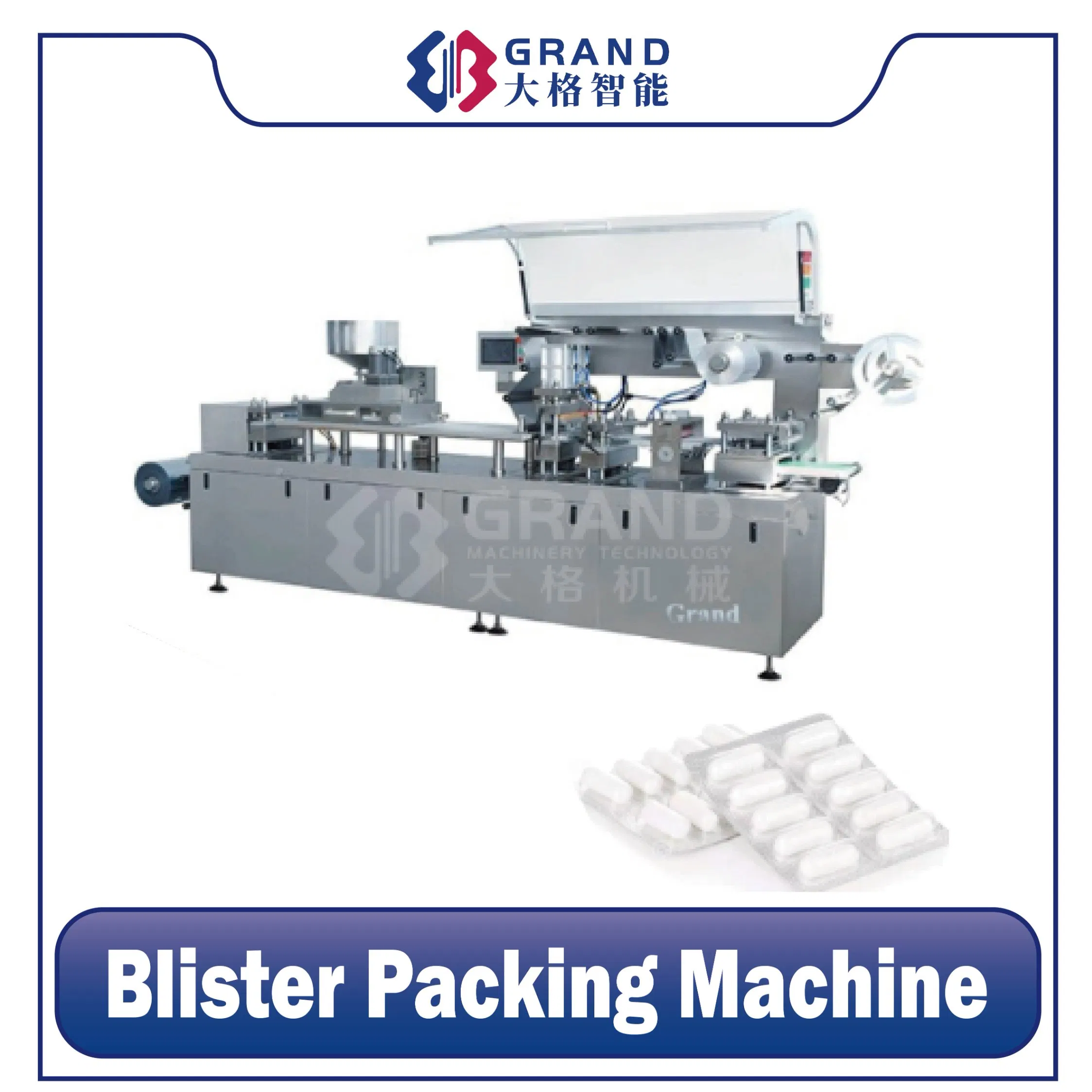

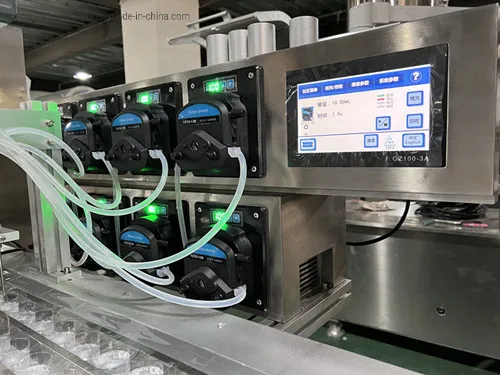

DPP-260 Blister Packing Machine: This machine is a new generation of products through painstakingly researched and development. Punch frequency can achieve 200 times, it is 4 times higher than a normal blister packaging machine. It combines the advantages of a flatbed and drum blister packaging machine, and with a specially dedicated tablet feeder.

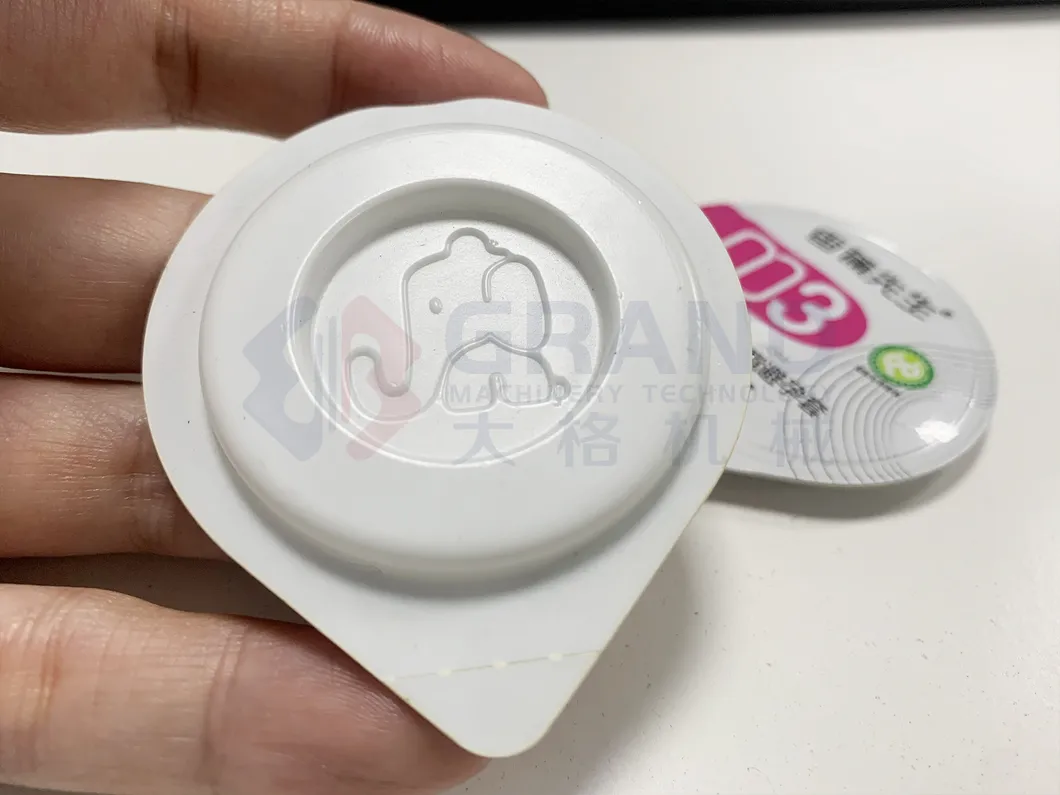

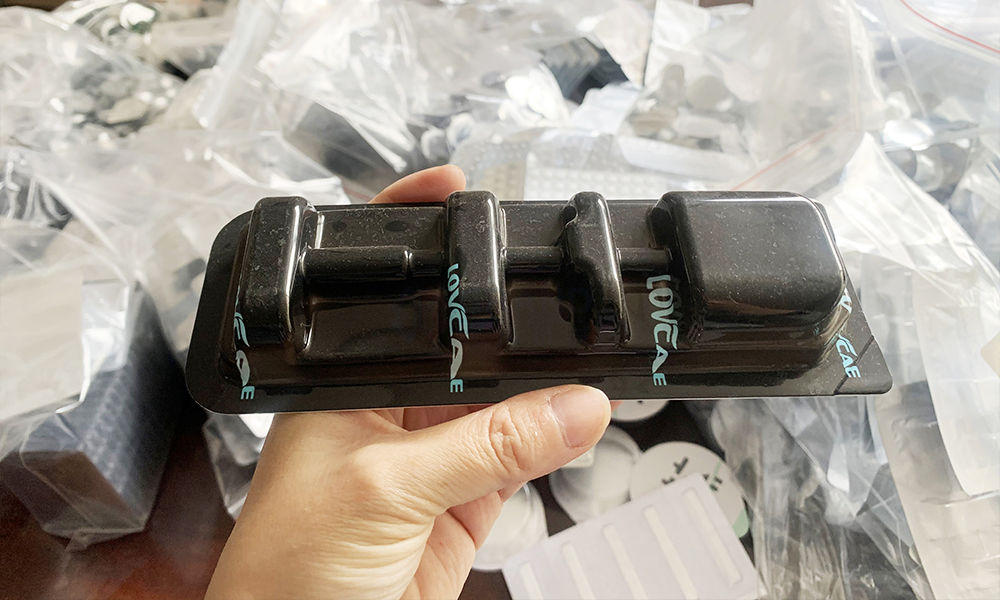

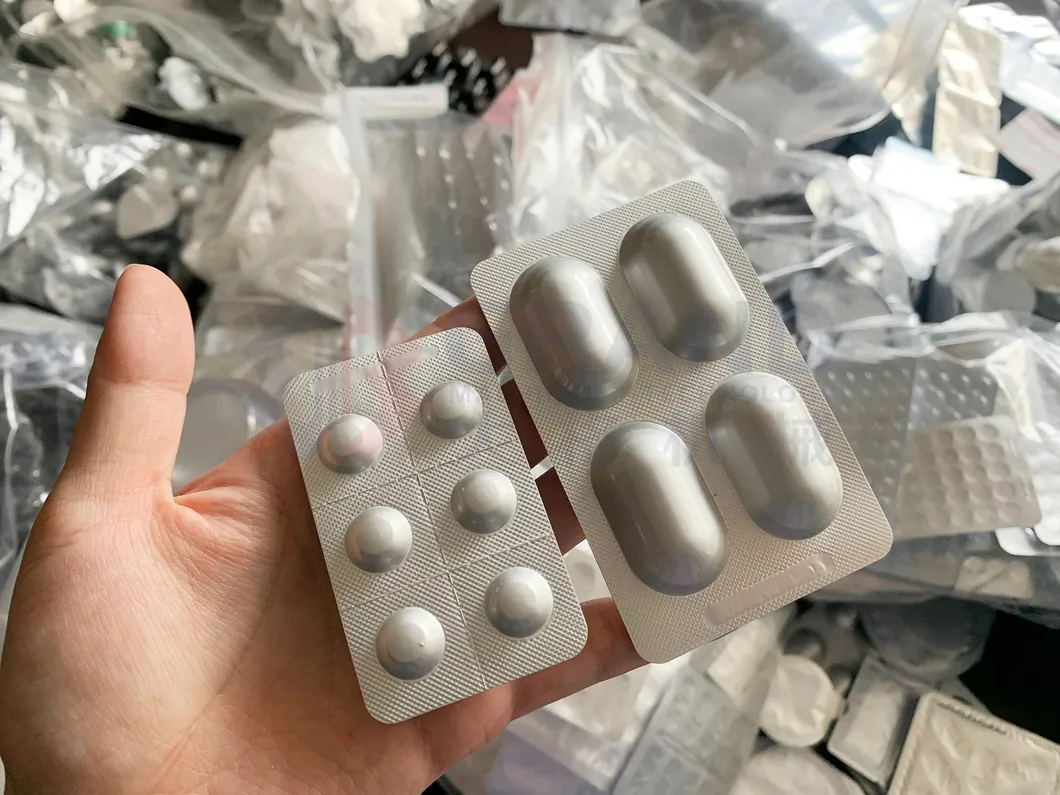

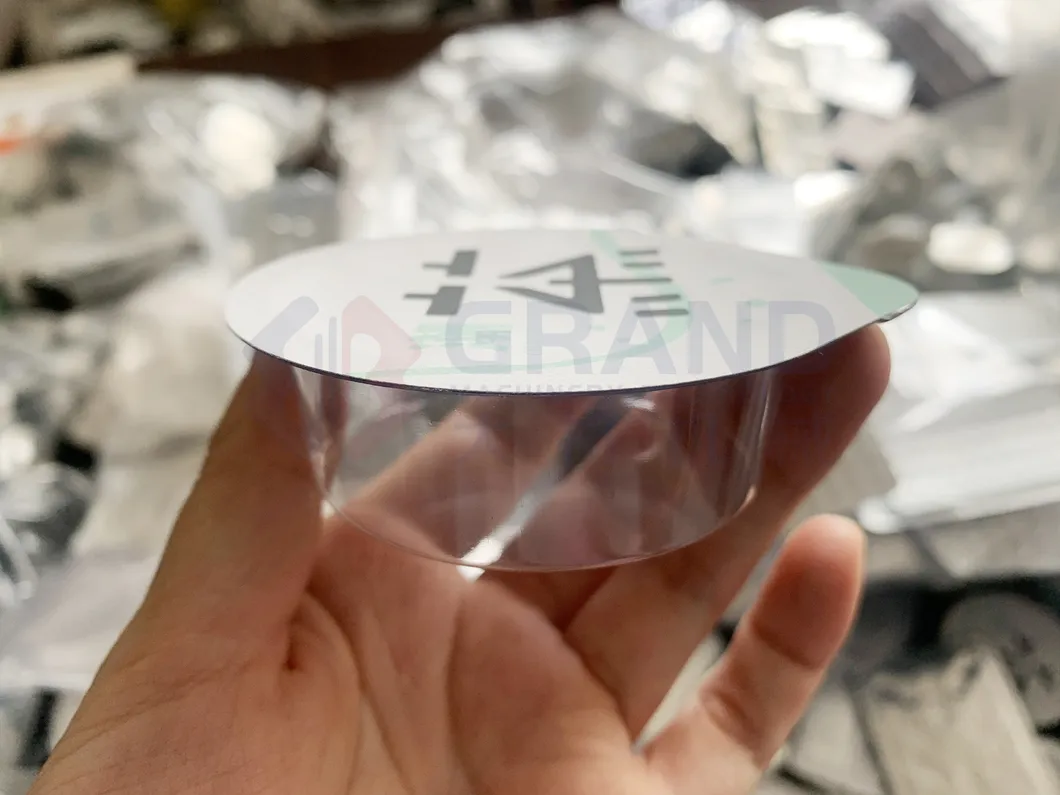

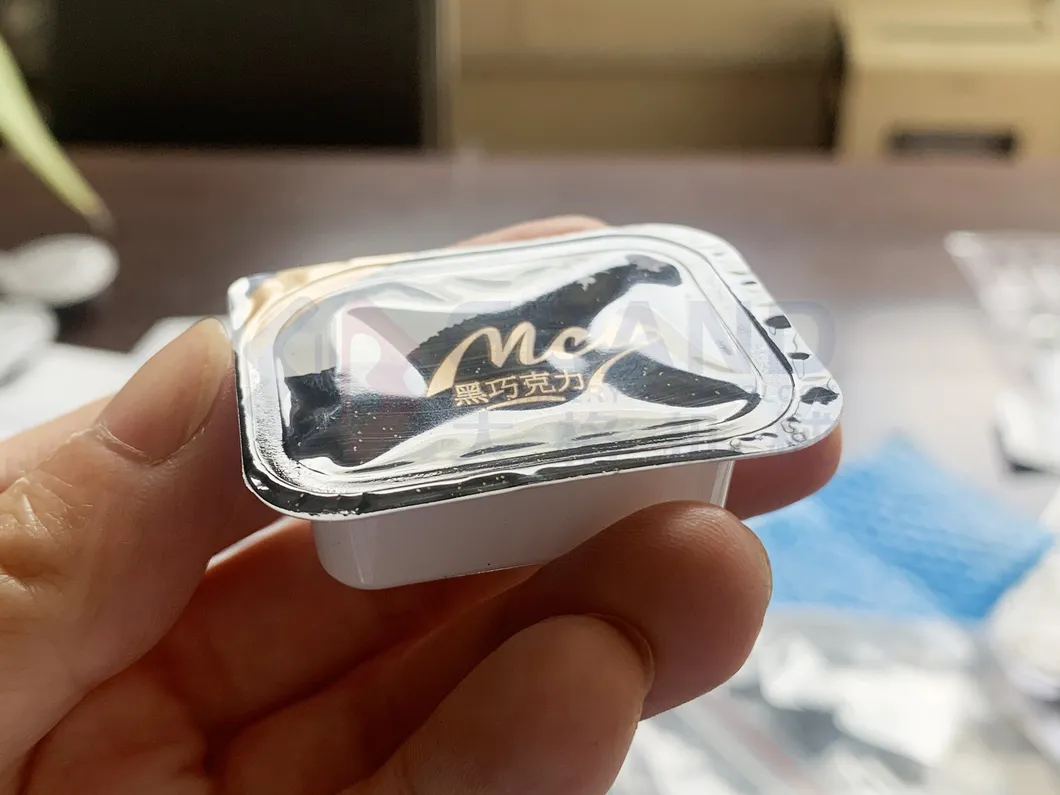

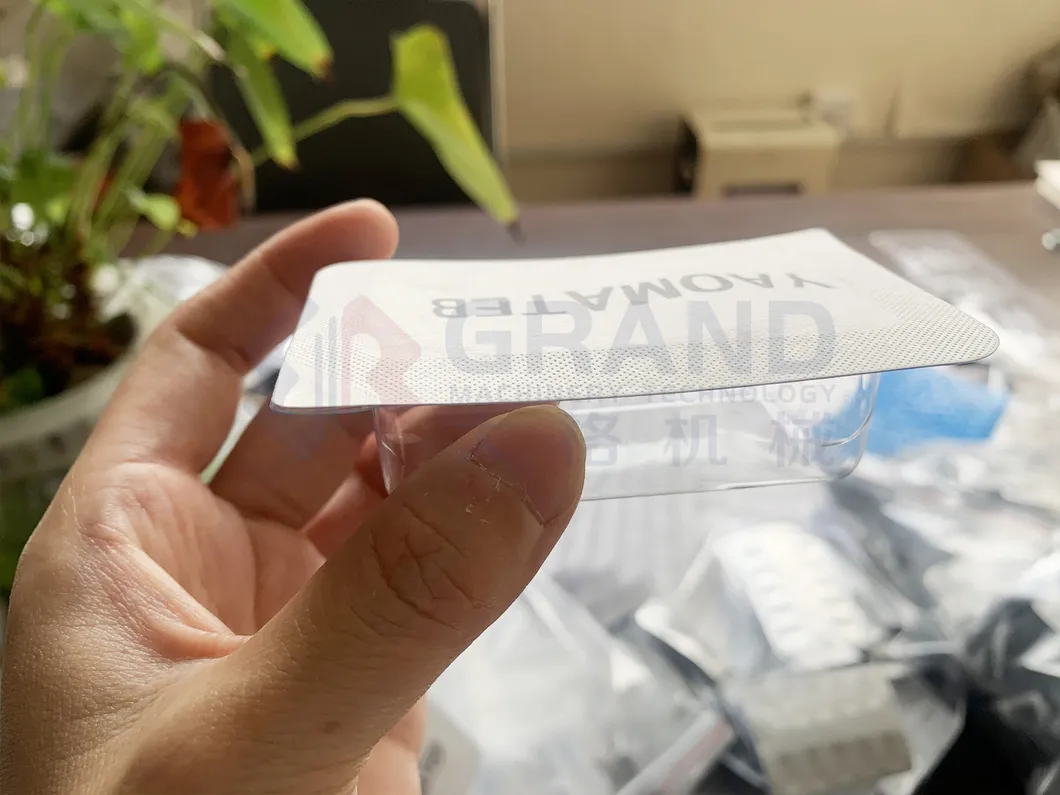

Ideal choice for small doses of PE/PET/Alu/Dialysis Paper film blister packaging for chocolate, olive oil, jam, mouthwash, yogurt, honey, capsules, tablets, and medical supplies.
| Specification | Details |
|---|---|
| Punch Frequency | 25-60 times/min |
| Capacity | 9600 plates per hour |
| Max. Forming Area | 150mm * 250mm * 30mm |
| Air Pressure | 0.4-0.6 Mpa |
| Main Motor Power | 1.5kw |
| Total Power | 380V 50Hz 5.7kw |
| PVC Material | 0.25-0.50 x 260mm |
| PTP Alu Foil | 0.02-0.035 x 260mm |
| Machine Dimension | 4460mm * 760mm * 1620mm |

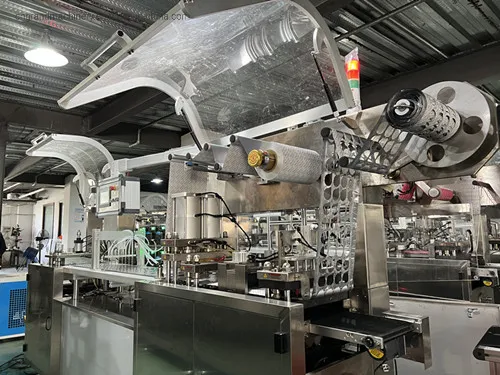

Servo Traction & Sensor

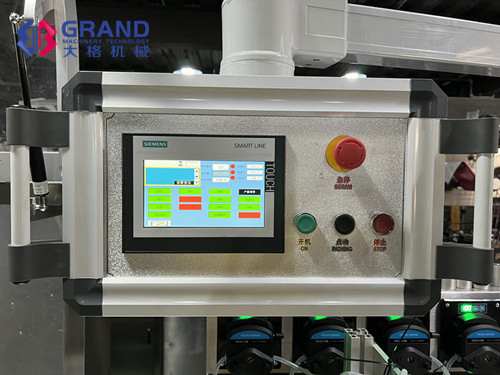

Siemens PLC Touch Screen
Service 1: Professional videos for installation, operation, and mold changing provided at no cost.
Service 2: Engineers available for on-site installation, commissioning, and technician training.
Service 3: 12-month machine guarantee with free spare parts provided for quality issues within 10 days.
Service 4: Ongoing technical support and a full set of wear & tear parts included with shipment.
