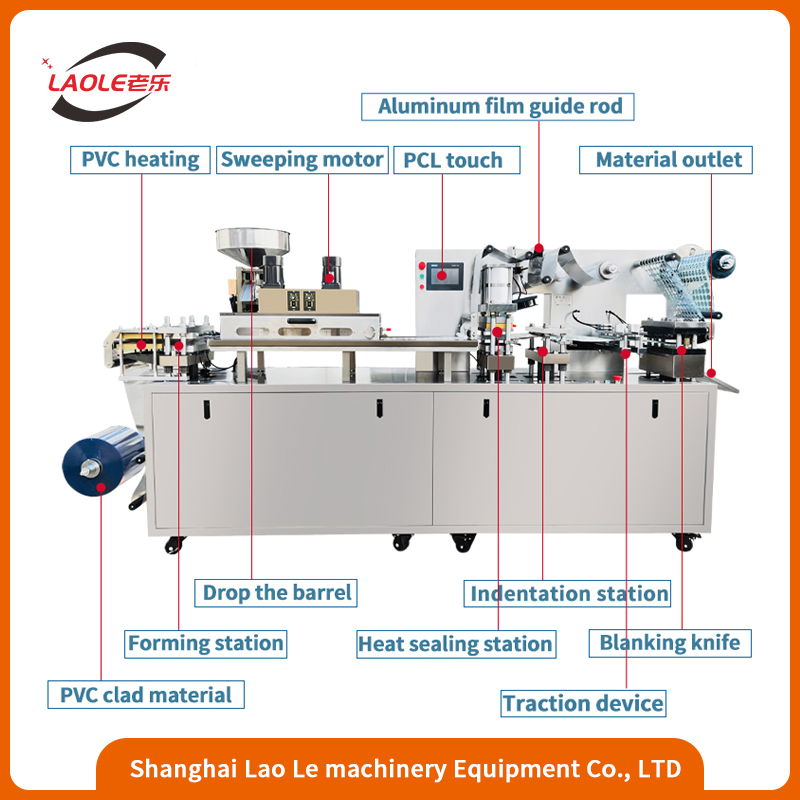

Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
1 / 5
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine
Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine

Dpp-260 Single Capsule Capsule Tablet Aluminum Foil Sealing Blister Packaging Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
Dpp-260
Automatic Grade
Automatic
Type
Forming Filling Sealing Machine
Forming Species
Blister Forming
Material Type
Capsules, Tablets
Packaging Material
Aluminum Aluminum, Aluminum Plastic
Productive Capacity
9600 Version/Hour
Punching Frequency
10-40 Times/Min
Machine Weight
1500kg
Specification

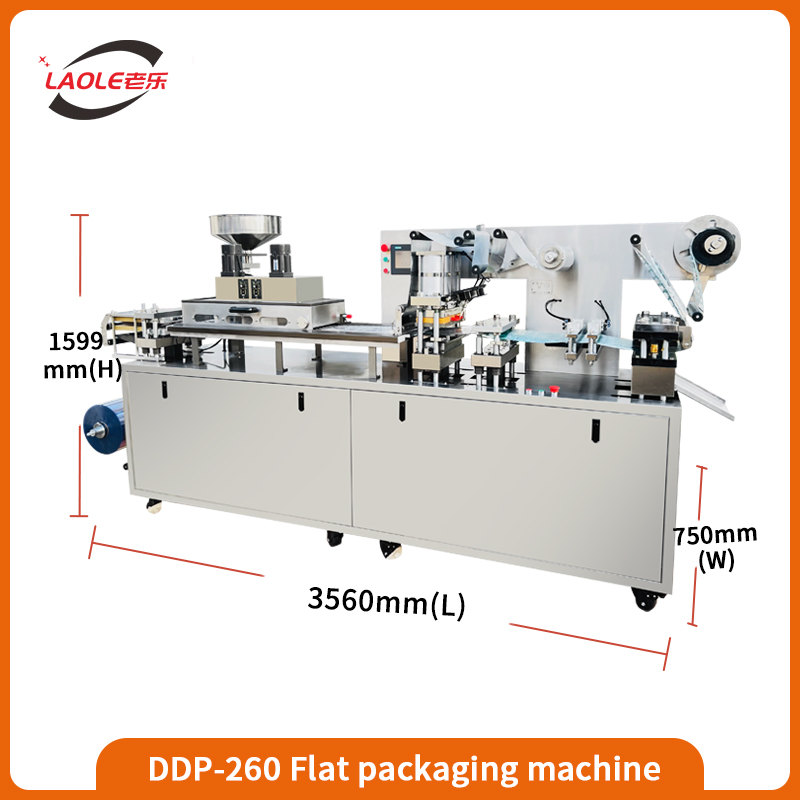

3560x750x1599mm
⚙️

Product Description - DPP-260 Blister Packaging Machine

  • The new high-power transmission mechanism is adopted, and the main transmission shaft is driven by the row chain, which eliminates the error and noise of other gear transmissions.
  • The electrical appliance adopts imported control system, which can be configured according to requirements, including missing material leakage filling and particle detection devices.
  • The whole machine adopts segmented combination: PVC forming, feeding, heat sealing, tropical aluminum cold forming, and punching sections can be separate.
  • Adopt photoelectric control system, PVC, PTP, duralumin packaging automatic feeding, and waste edge automatic punching for multi-station synchronization stability.
  • Equipped with photoelectric detection and correction device, imported stepper motor traction, and graphic text printing for optimized packaging grade.

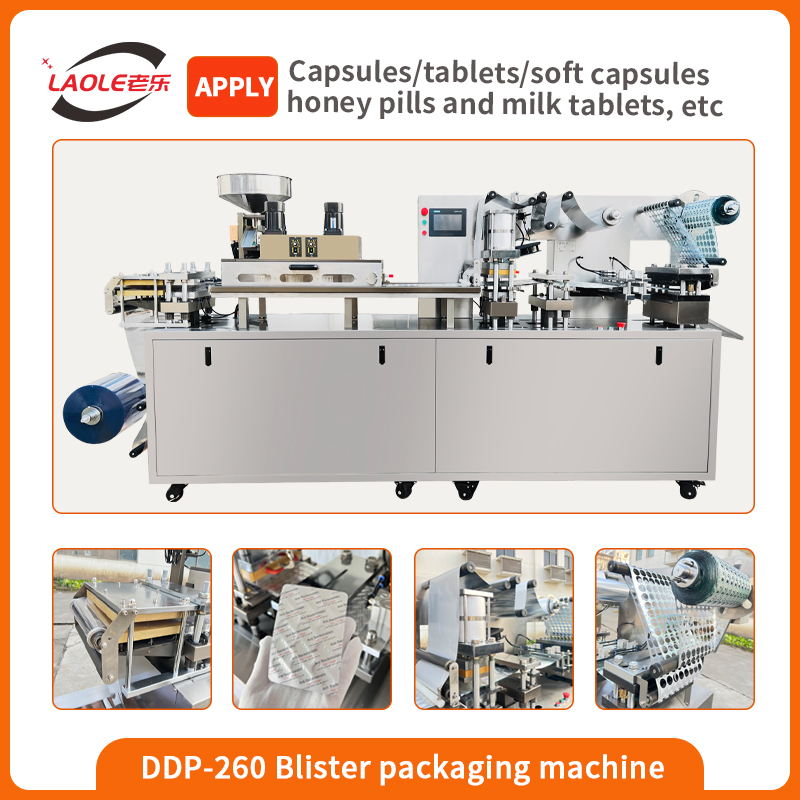

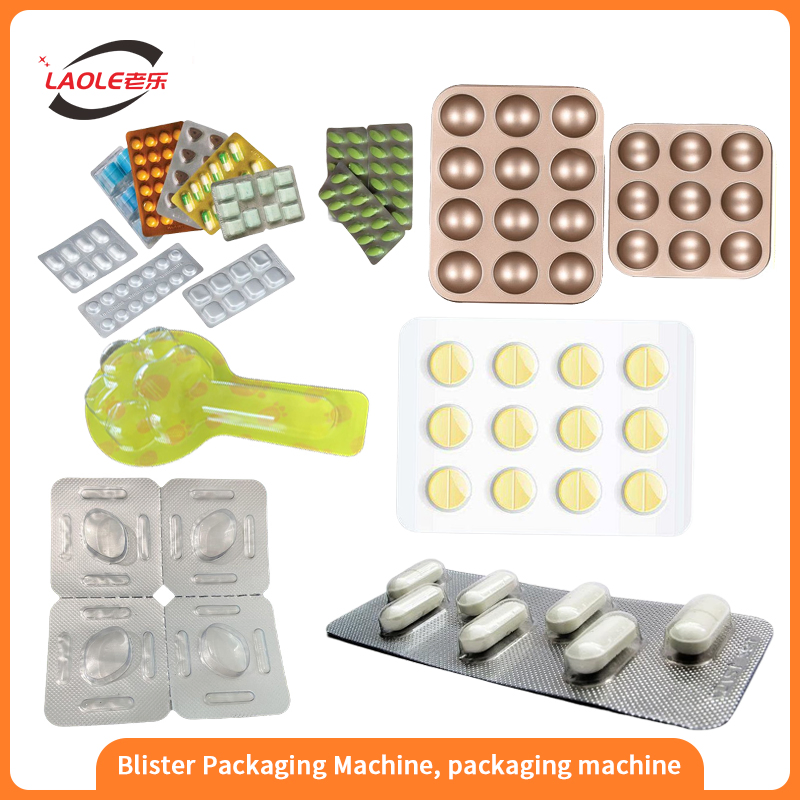

  • Suitable for: capsules, vegetarian tablets, icing, rubber pills, injections, medical devices, light food, and electronic components.
🌟

Recommended Solutions

Capsule Blister Machine

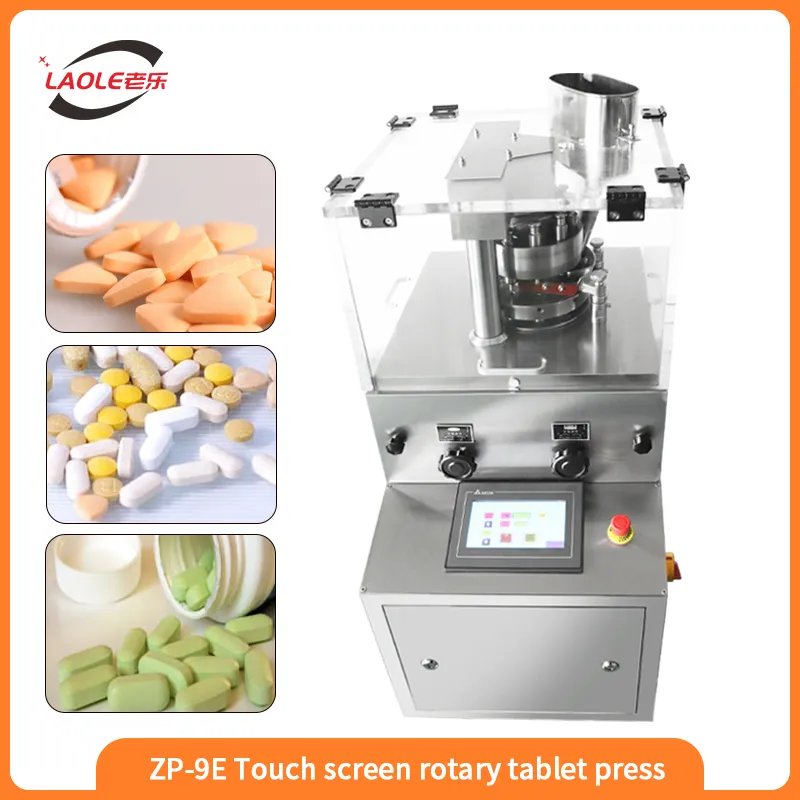

Rotary Tablet Press

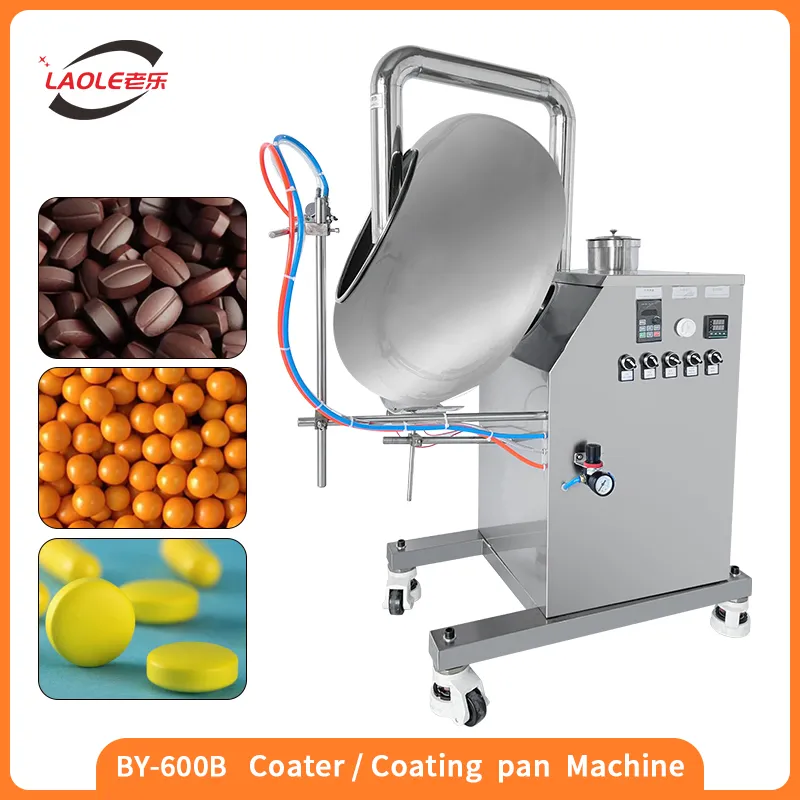

Coating Machine

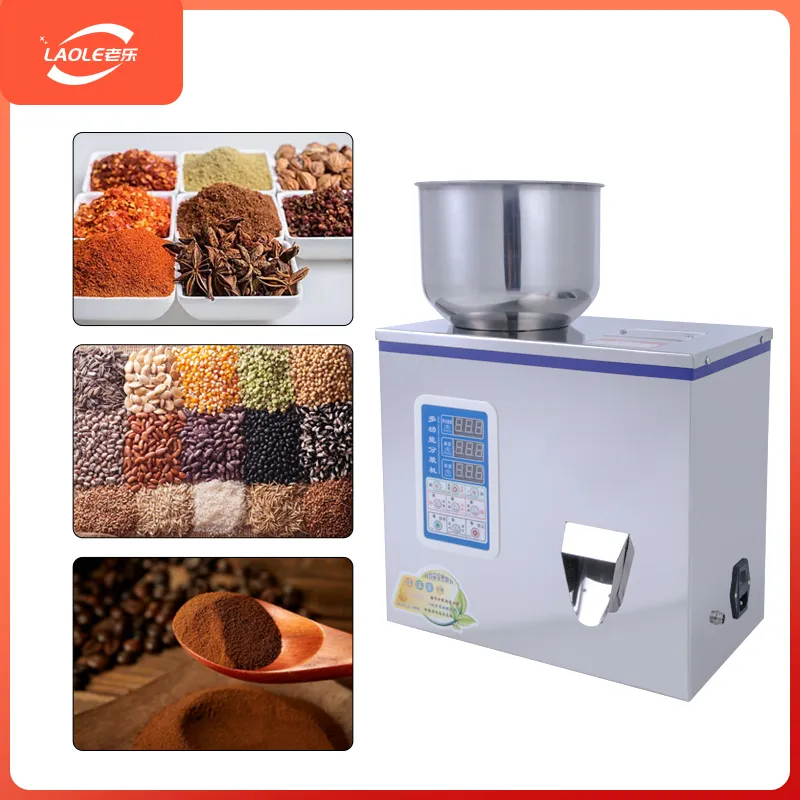

Flexible Packaging

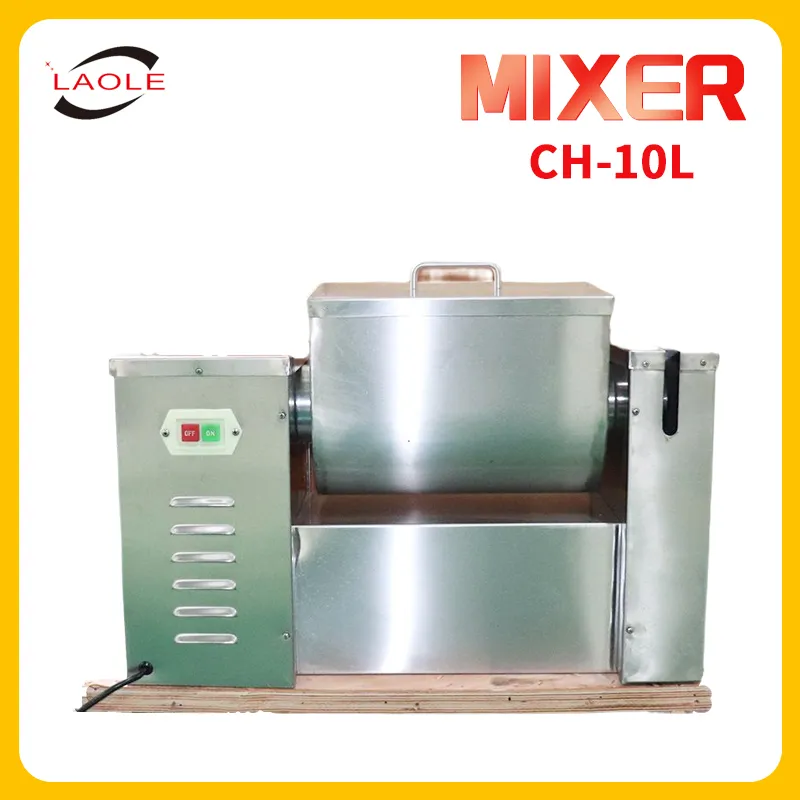

Mixer

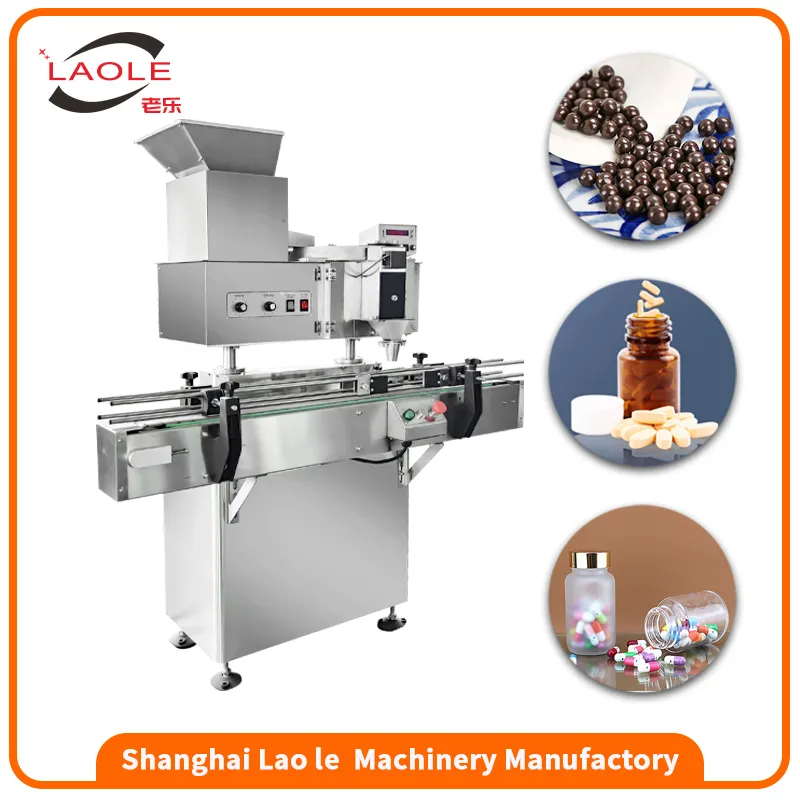

Bottling Line
📊

Technical Parameters

Model DPP-260
Punch frequency10-40 times/min
Production capacity9600 plates/hour
Max. Forming area & Depth285x120x26mm
Standard stroke range20-125mm
Air pressure0.6-0.8mpa
Total power supply220V 50Hz 8Kw
Main motor3.7Kw
PVC hard film0.15-0.5x280mm
Mould coolingTap water or recycling water
Weight1500kg
Noise index<70dBA
🔍

Product Highlights

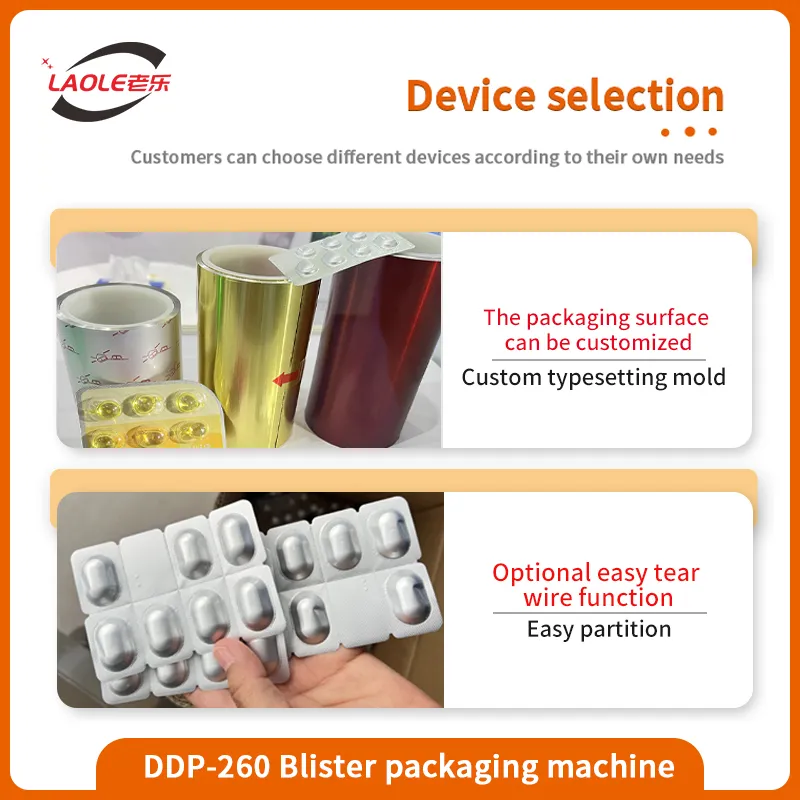

Internal Mechanism

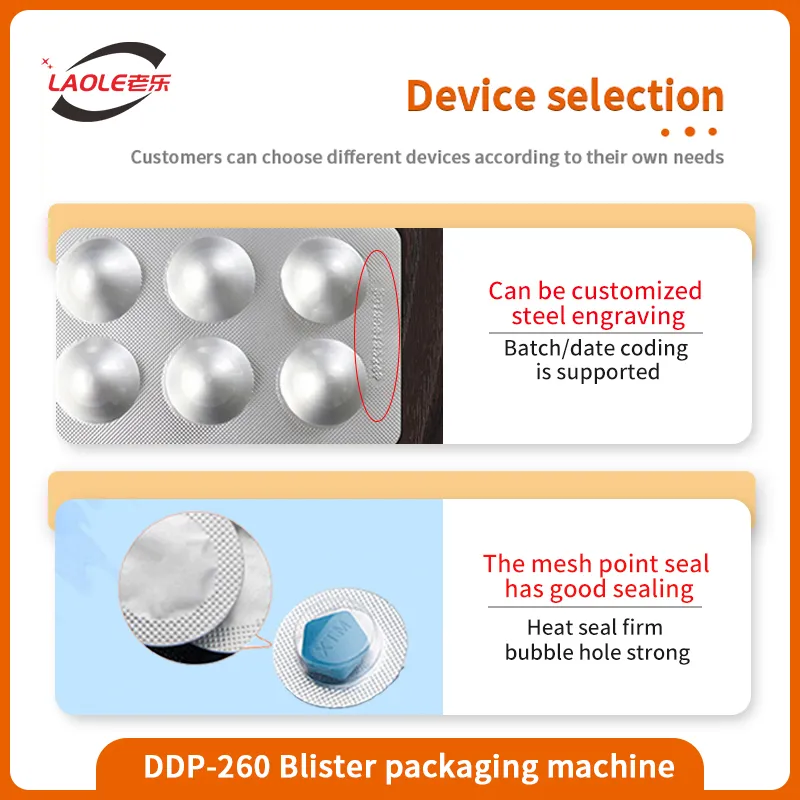

Control Panel

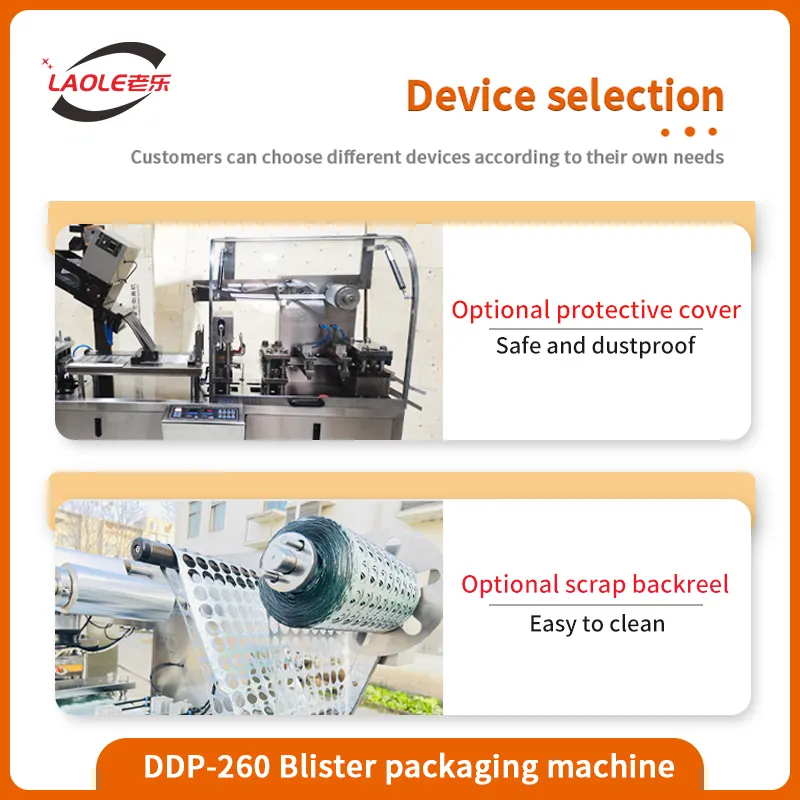

Feeding System

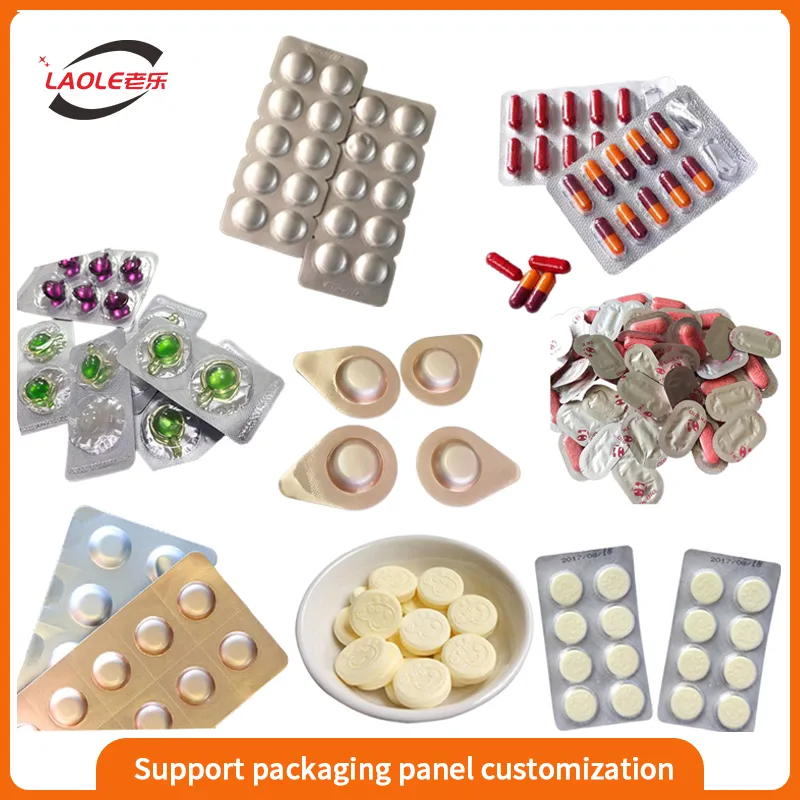

Output Section
📸

Detailed View

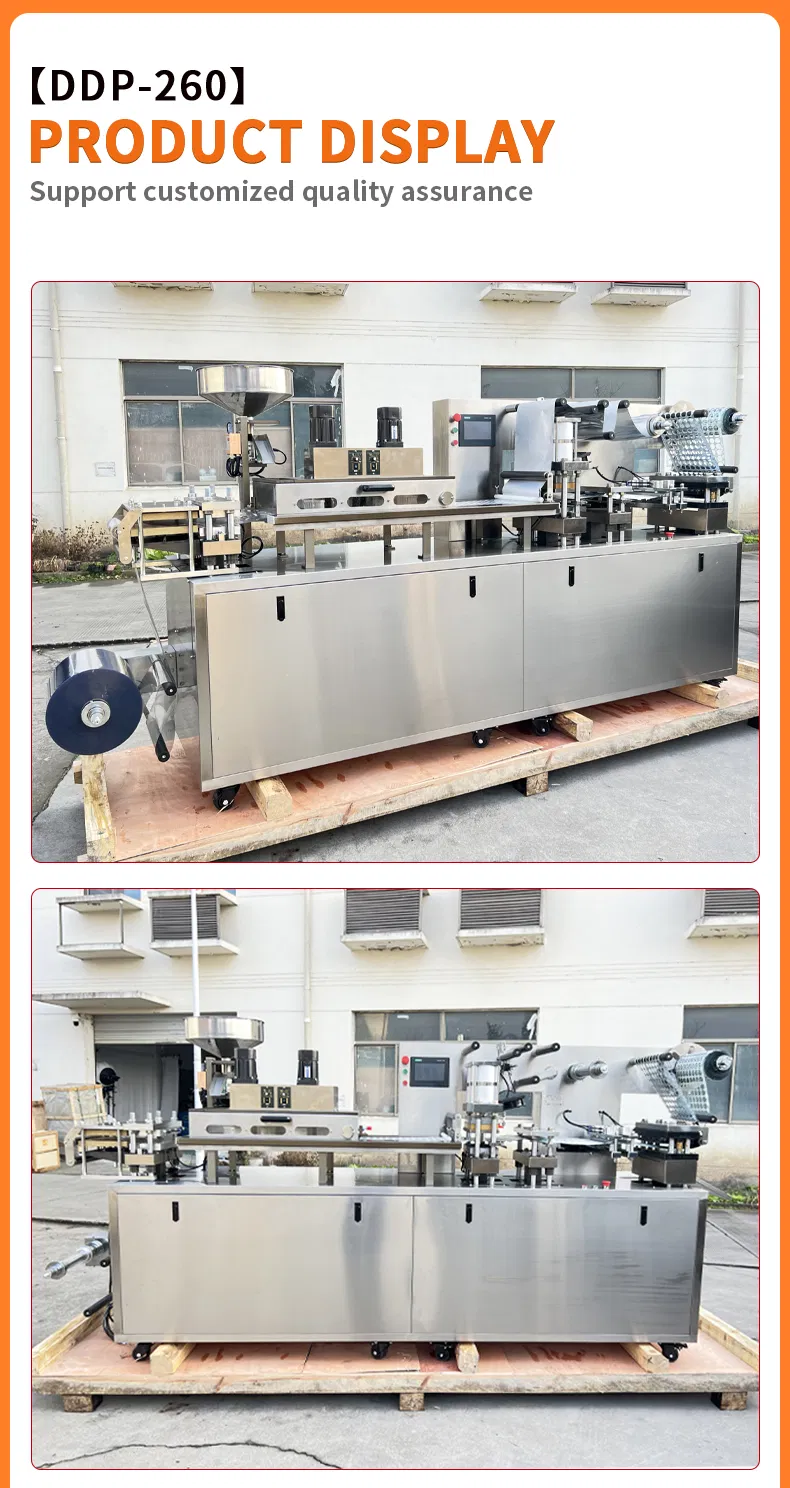

Detailed Component 1

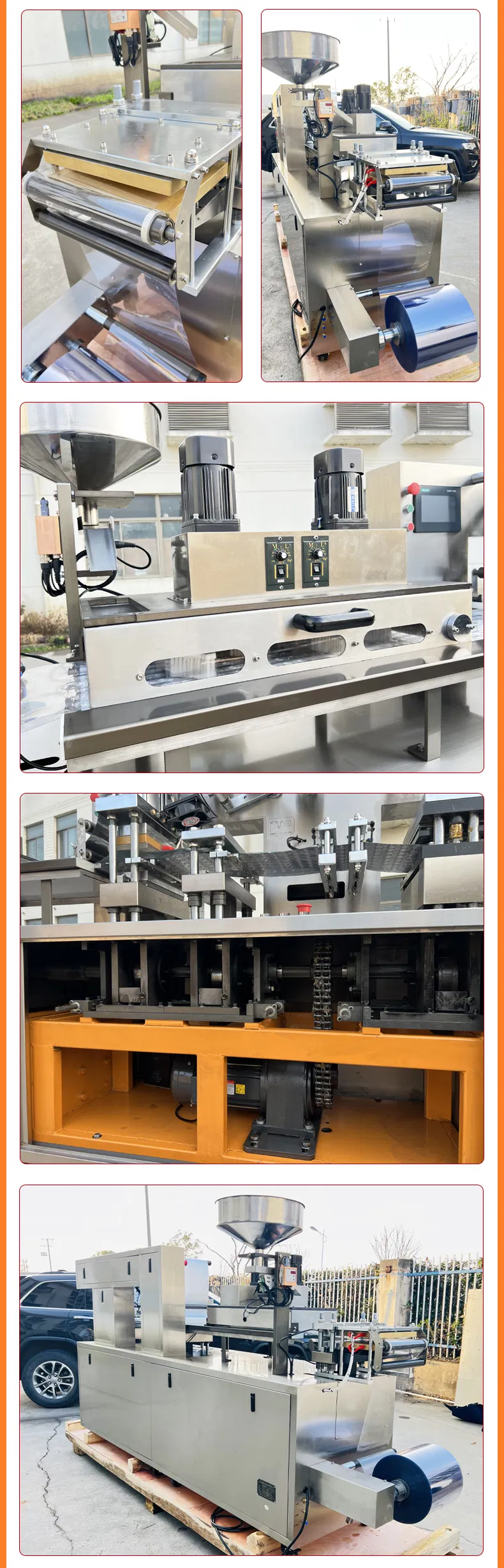

Detailed Component 2

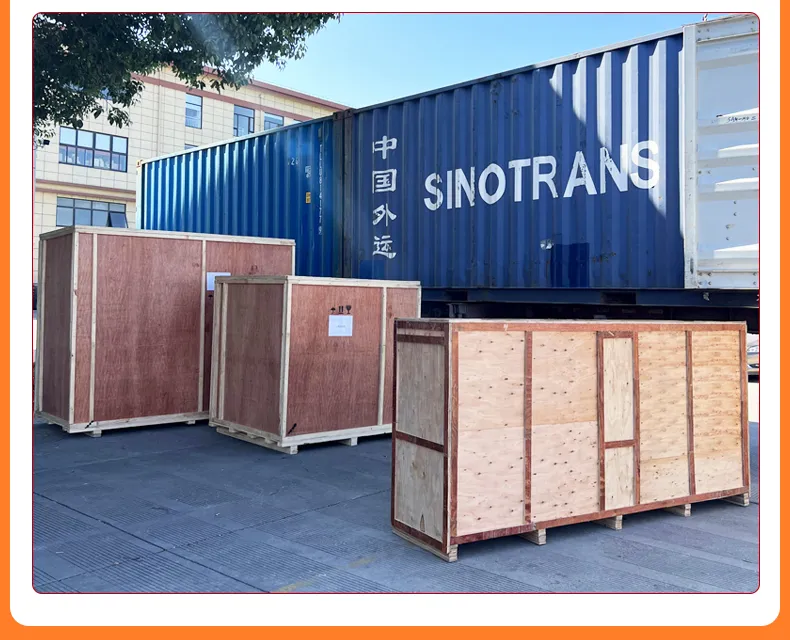

Detailed Component 3
🛠️

Production Process

Production Step 1
Production Step 2
🏢

Expertise and Solutions

Professional range of industrial machinery:
  • Customized dies for single punch, rotary, and flower basket tablet presses.
  • Flat packaging machines for capsules, tablets, pills, liquids, and pastes.
  • Small bag flexible packaging for granules, powder, and liquid pastes.
  • Complete packaging production lines: counting, sealing, capping, and labeling.
  • Supporting equipment: V-type mixers, wet/dry granulators, coating machines, and pulverizers.
❓

Frequently Asked Questions

Q1: Are you a factory or a trading company?
A: We are a professional factory and manufacturer.
Q2: How do you guarantee product quality?
A: Quality is our core principle. As a direct manufacturer, we maintain high standards throughout the production process to ensure the best performance.
Q3: What if we cannot operate the machine upon receipt?
A: Every machine is sent with an operation manual and video demonstrations to provide clear instructions.
Q4: How can I obtain spare parts for the machines?
A: Non-artificial damaged spares are provided during the warranty period, and we ensure availability of parts for maintenance.
Q5: What are the accepted payment terms?
A: We usually accept T/T payment and credit insurance orders.
Q6: Is customization available for the products?
A: Yes, we can customize products based on your specific design ideas or requirements.
