| Model NO. | DPP-150H |
| Features | Blister Packing |
| Machine Material | Stainless Steel |
| Packaging Material | Aluminum, Plastic, PVC |
| Warranty | 1 Year |
| Automaticity | Fully Automatic |
| Configuration | PLC + Touch Screen |
| Usage | Packaging of Tablets, Capsules and Candy |
| Working Process | Forming, Feeding, Sealing, Cutting |
| Advantage | Integrated, Installation Free |
| Certification | CE, GMP, ISO |
| Condition | New |
| Voltage | 110V/220V/380V |
| HS Code | 8422303090 |
| Production Capacity | 100 Set / Year |
| Package Size | 250.00cm * 85.00cm * 180.00cm |
| Package Gross Weight | 800.000kg |
| Transport Package | Wooden Case |

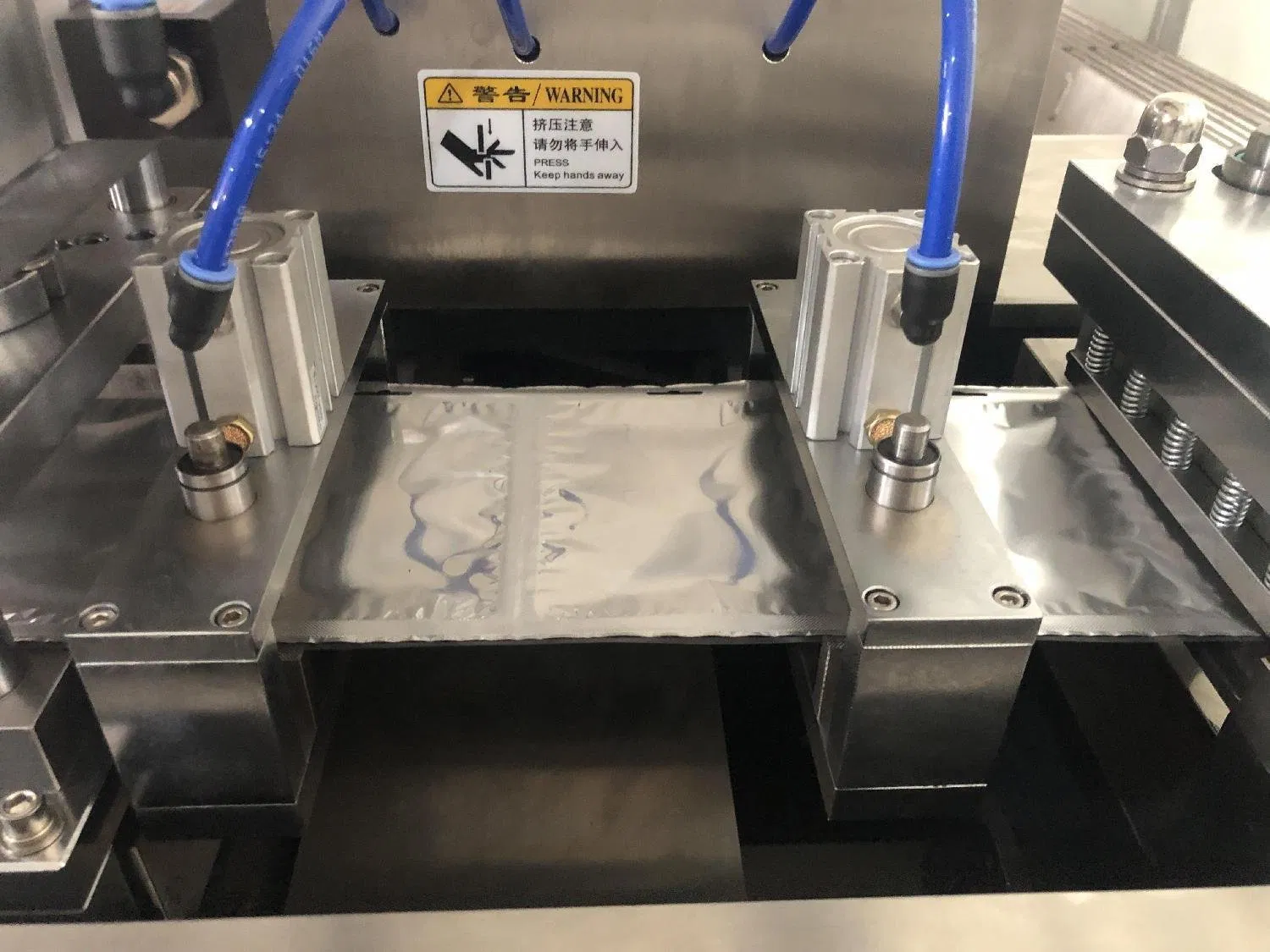

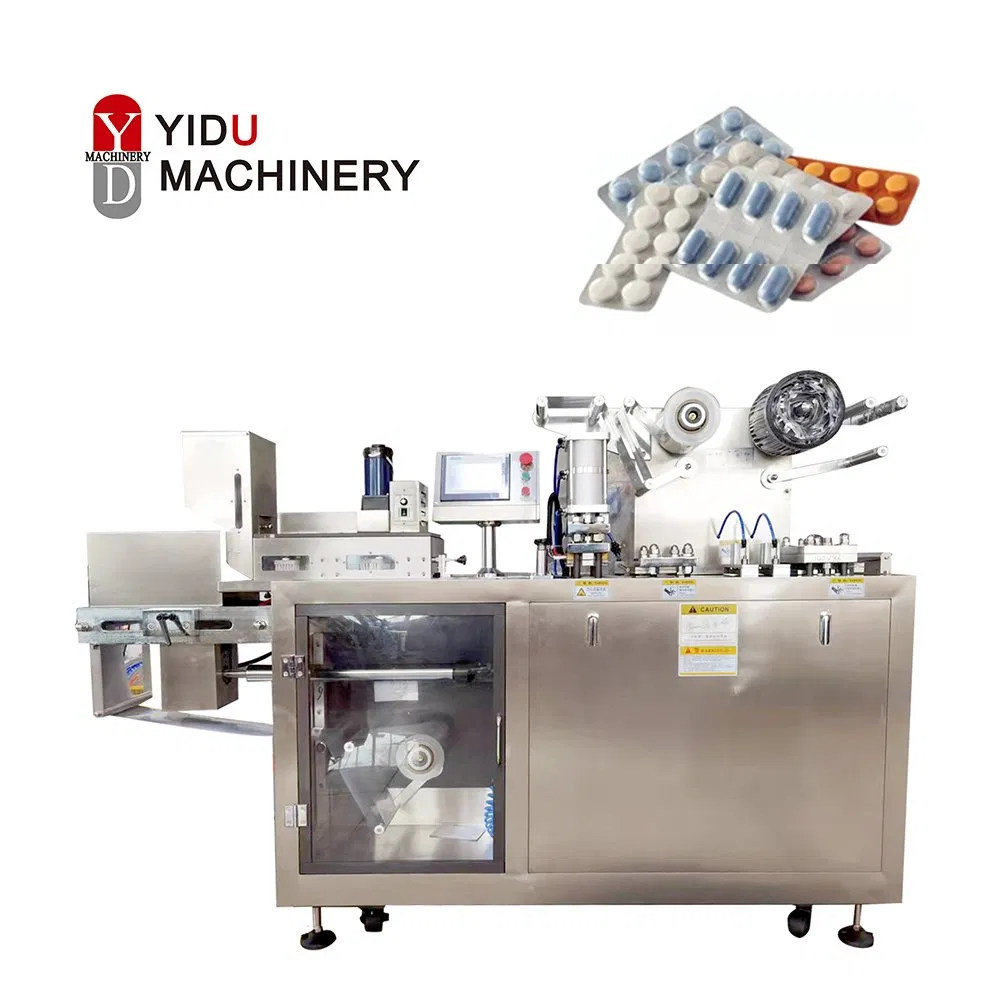

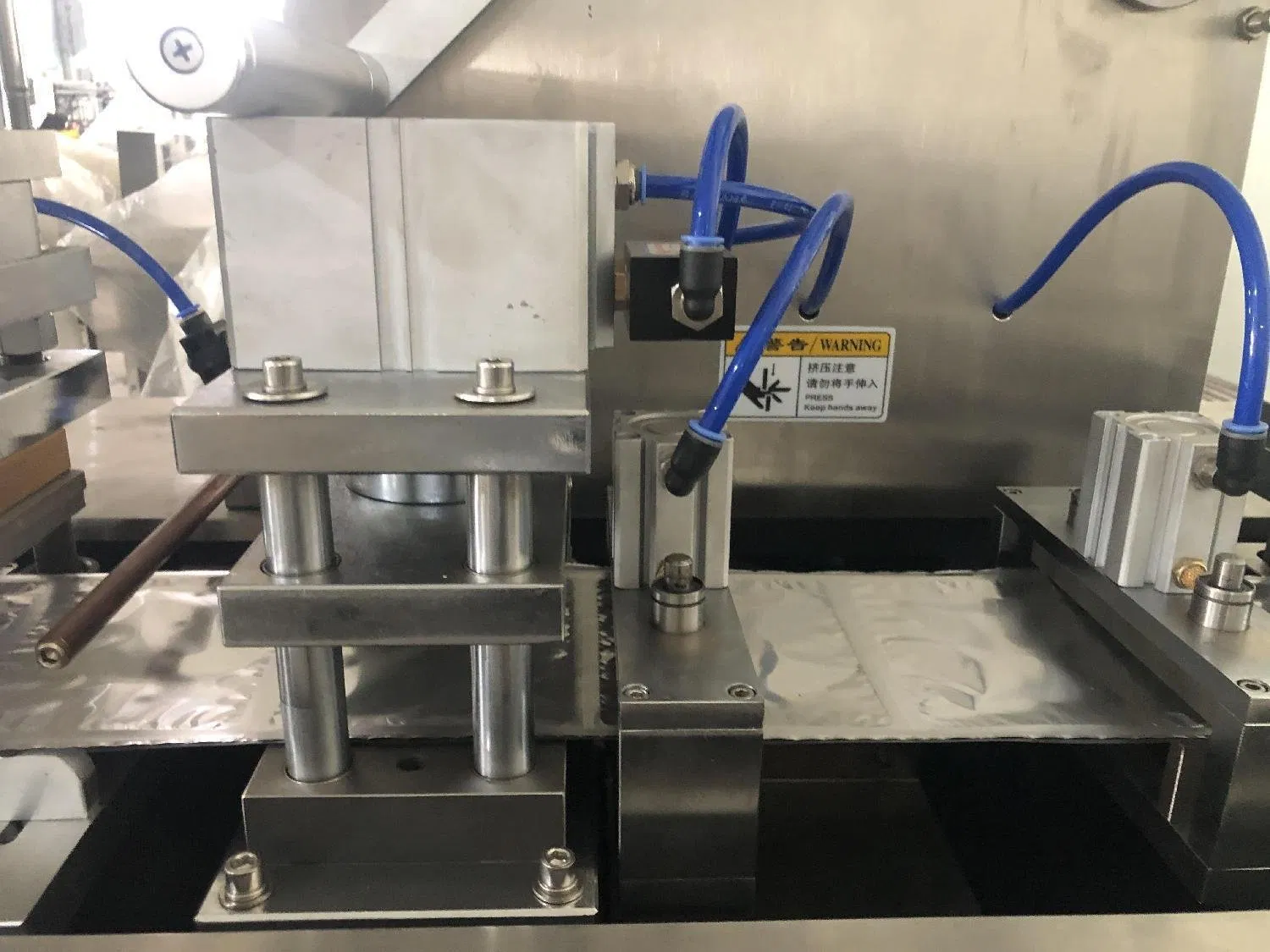

DPP-150H is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards.
| Model | DPP-150H |
|---|---|
| Punch frequency | 20-40pcs/min |
| Capacity | 3000-7000 plates/hour |

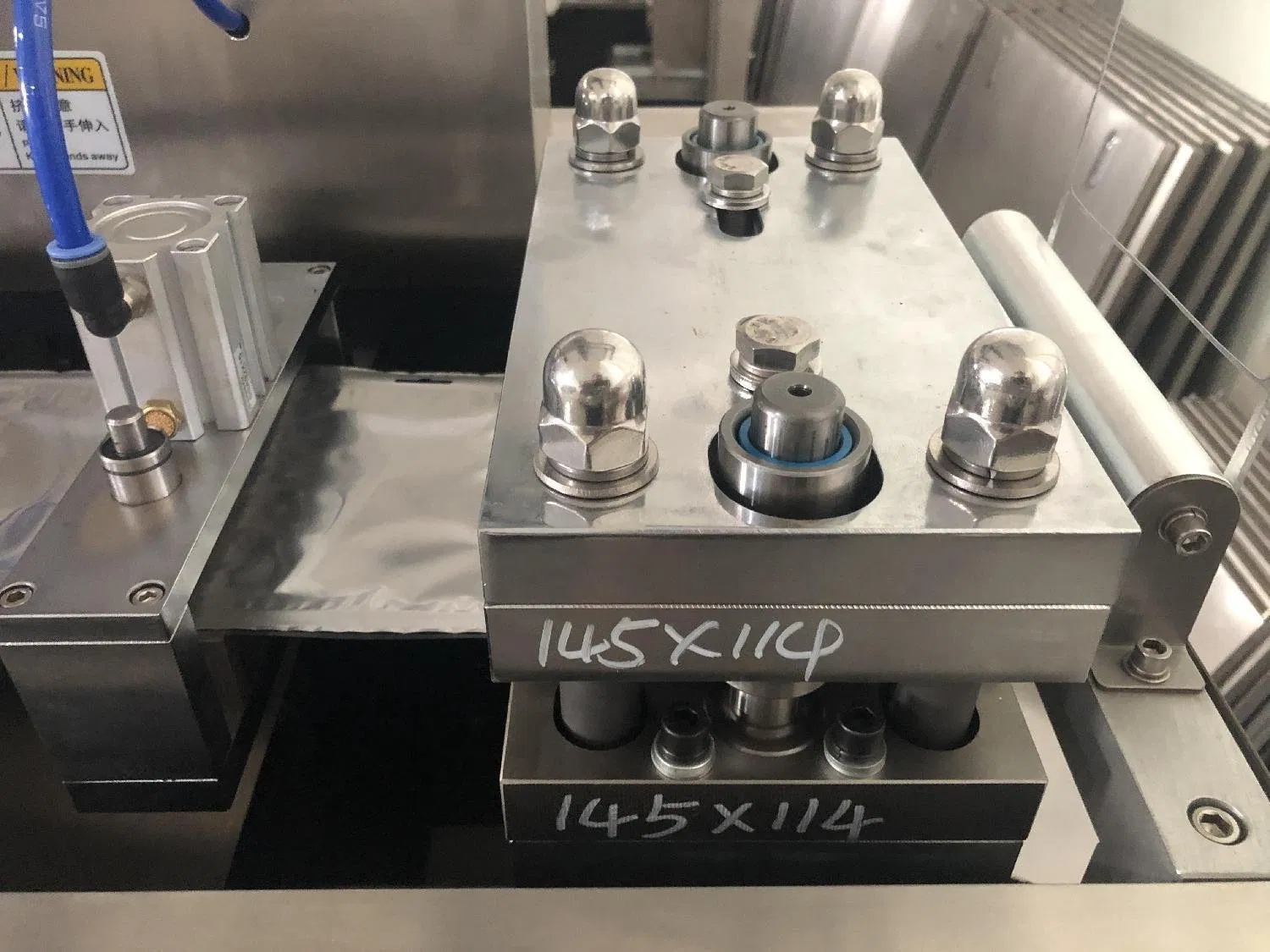

| Max Formed area and depth | 140x110x20mm |
| Standard travel range | 30-110mm (adjustable) |
| Air pressure | 0.6-0.8Mpa |
| Motor power | 0.75kw |
| Total power | 380V/220V 50Hz 3.5kw |
| Mould cooling | Tap water or recycle water |
| Overall dimension (L x W x H) | 2300x750x1650mm |
| Weight | 800kg |
| Noise indicators | ≤75dBA |
Inner Packing: Machines are wrapped with plastic film for protection.
Outer Packaging: Standard wooden case packaging for exporting.
Loading: Loading goods by forklift.
Port: Ningbo China / Shanghai China.

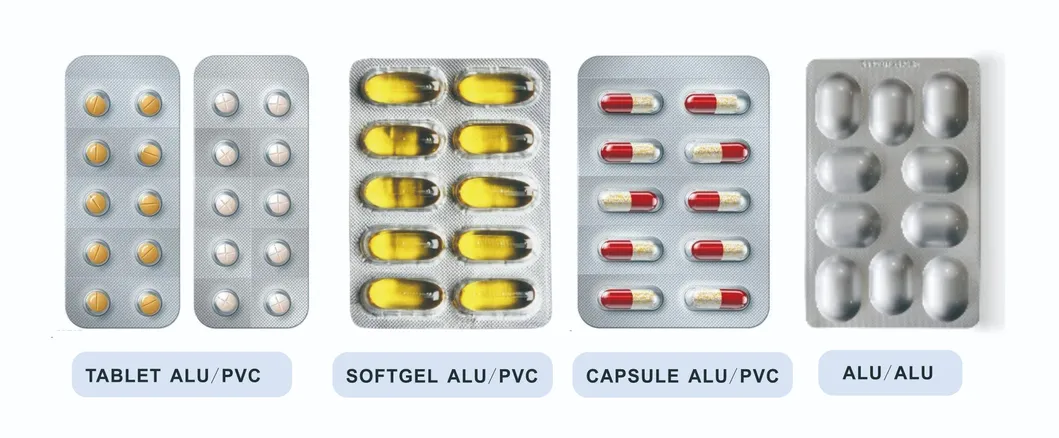

A1: It is suitable for various pharmaceutical and food products, including capsules, tablets, sugar-coated tablets, honey pills, injections, ampoules, and candy.
A2: The machine primarily uses Aluminum, PVC, PTP, and other plastic materials for forming and sealing.

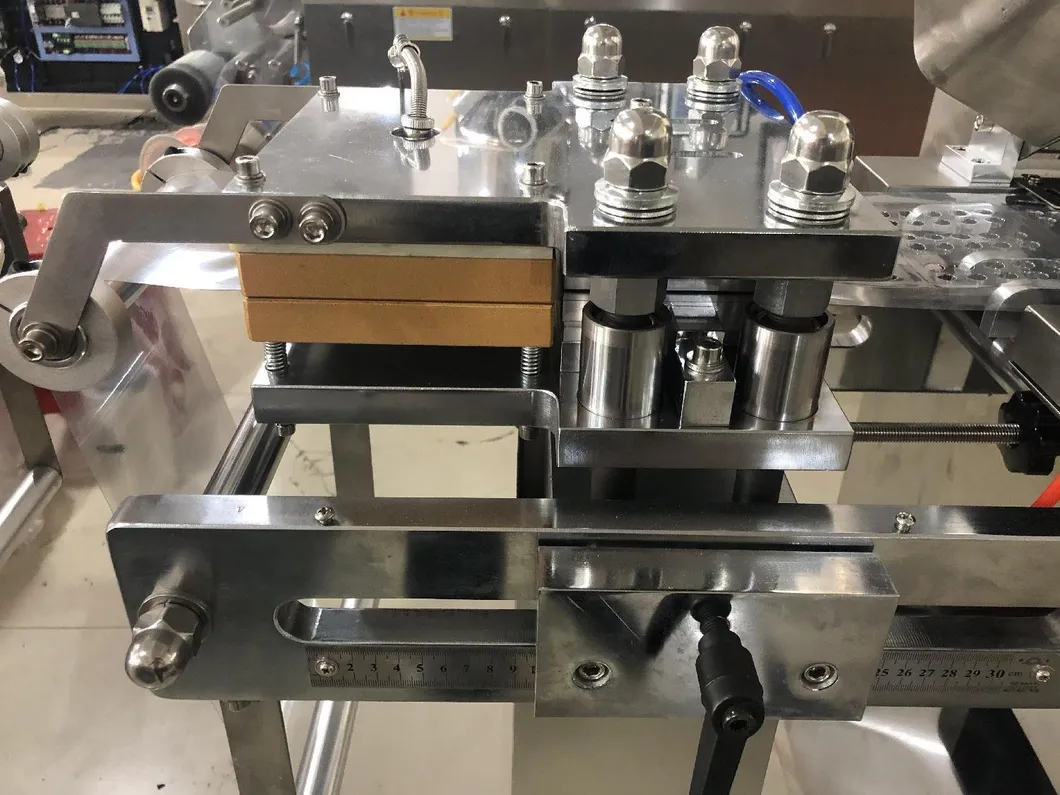

A3: Yes, it features mechanical hand traction with a double rod pendulum device, which allows for a wide stroke travel range, making it adaptable to various packaging sizes.
A4: Yes, the machine is made of stainless steel and conforms to CE, GMP, and ISO production standards for safety and hygiene.

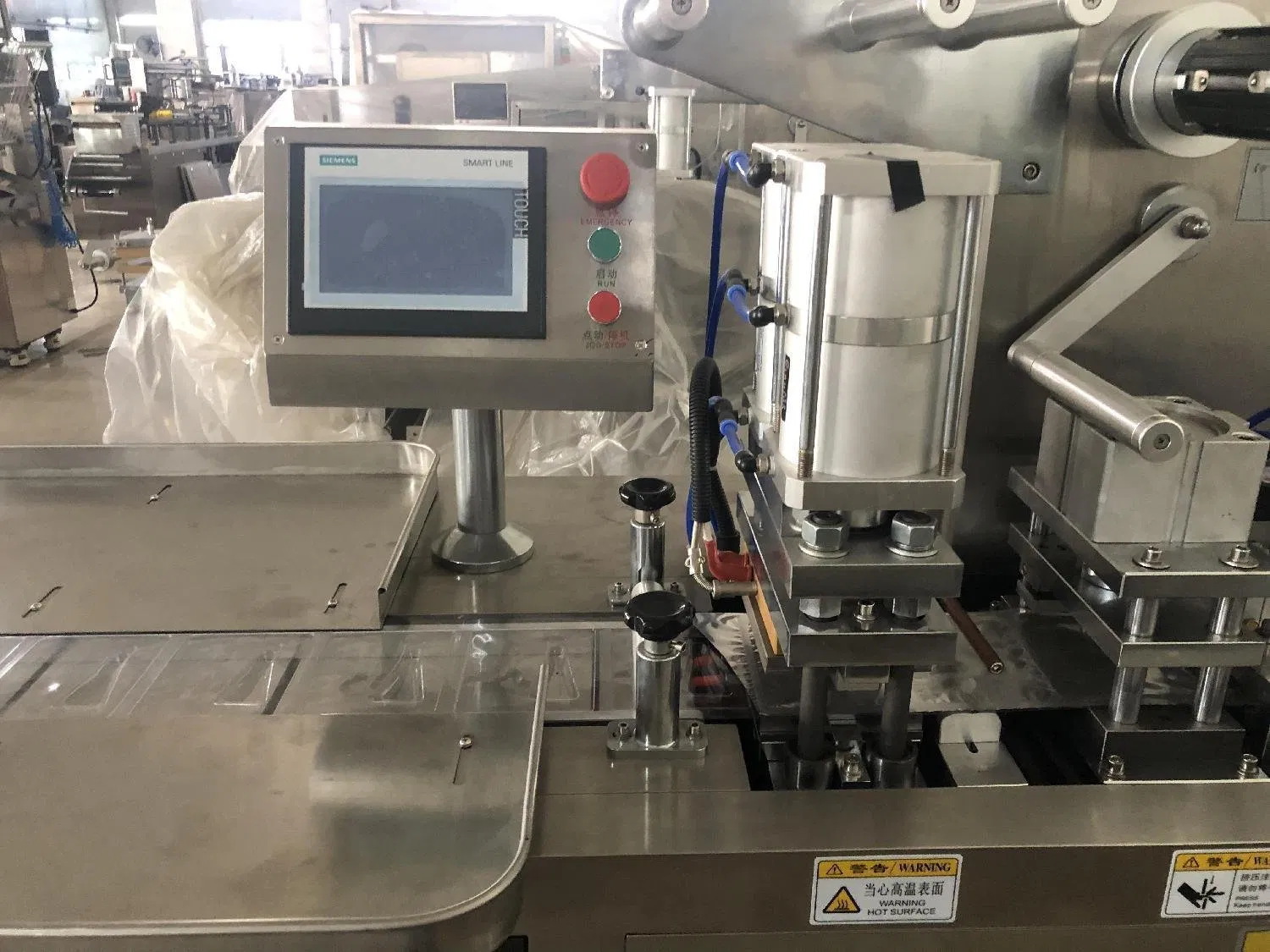

A5: The speed is controlled by a step-less transducer and managed via a PLC control panel or an optional human-machine interface (HMI).
A6: The machine supports multiple voltages (110V/220V/380V) at 50Hz, with a total power consumption of approximately 3.5kw.
