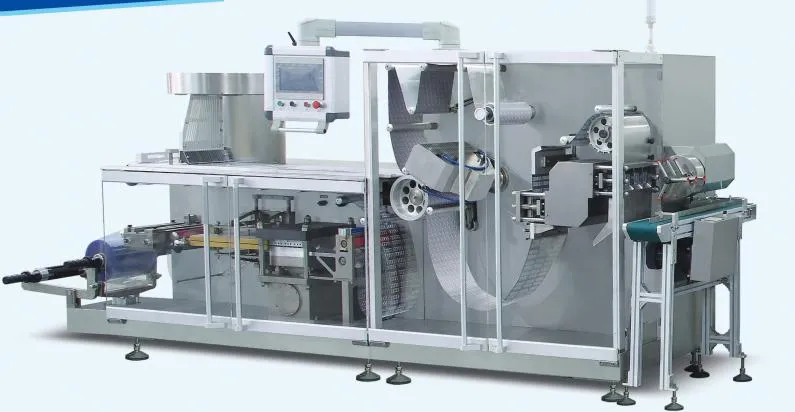

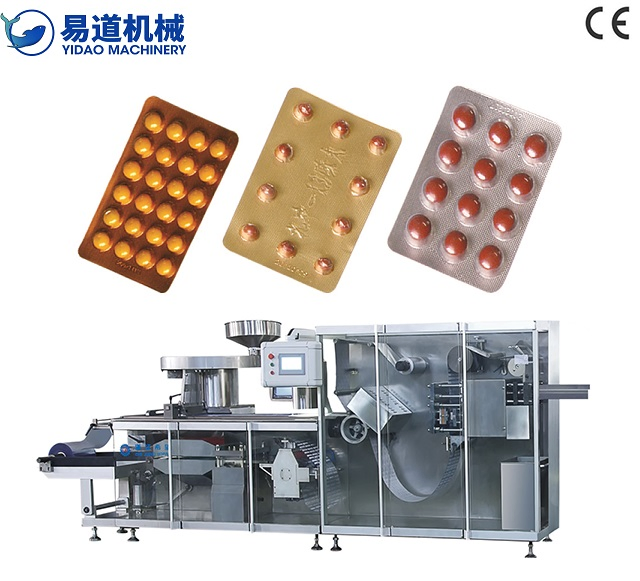

DPH-260 High speed Alu-PVC Al-Al Tablet Capsule Automatic Blister Packaging Machine
1. Introduction: The DPH-260 is a new generation high-tech product developed by combining advanced mechanical processing technology. It features servo drive, precise control, low noise, and high production speeds. It ensures full compliance with GMP requirements for pharmaceutical packaging.
2. Performance characteristics:
3. Process Description: The design provides a simple, efficient structure that is easy to operate and maintain for high-speed blister packaging needs.
| Parameter | Specification |
|---|---|
| Punch Frequency | Max. 150 cutting/min |
| Max Forming Area | Max. 260x250mm |
| Forming Depth | Max. 12mm |
| Packing Material | PVC reel: 0.15-0.5×260 mm; PTP Alu foil: 0.02-0.035×260 mm |
| Total Power | About 18KW |
| Voltage | 380V 50HZ |
| Compressed Air | >0.2m³/min (0.4-0.6MPA) |
| Overall Dimension | 3600x1250x1800 mm (L×W×H) |
| Weight | About 3000Kg |
| No. | Name | Manufacturer |
|---|---|---|
| 1 | Breaker | China Chint |
| 4 | Contactor | China Chint |
| 5 | Servo Motor | Omron |
| 6 | Servo Motor Driver | Omron |
| 8 | PLC | Omron |
| 13 | Transducer | Omron |
| 14 | Touch Screen | Weinview |
| 22 | Photoelectric Switch | Omron |
| 26 | Warning Light | Schneider |

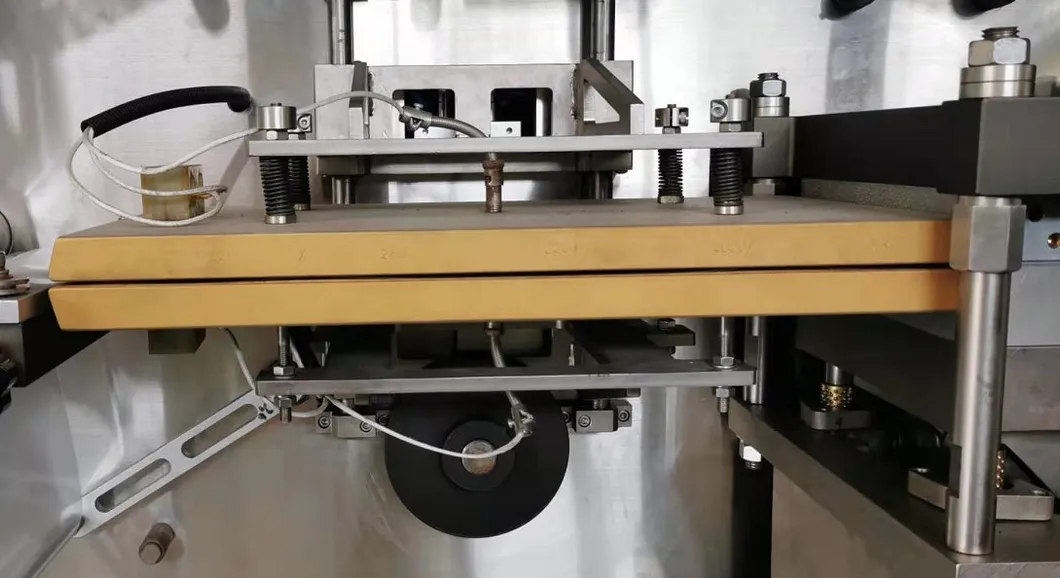

Heating Station

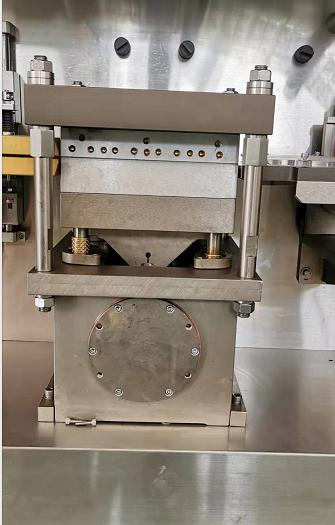

Forming Station

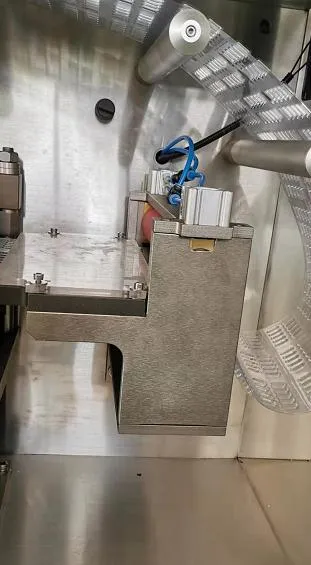

Forming Traction Station

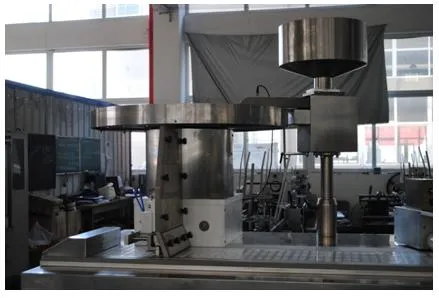

Vibrating Feeding Device

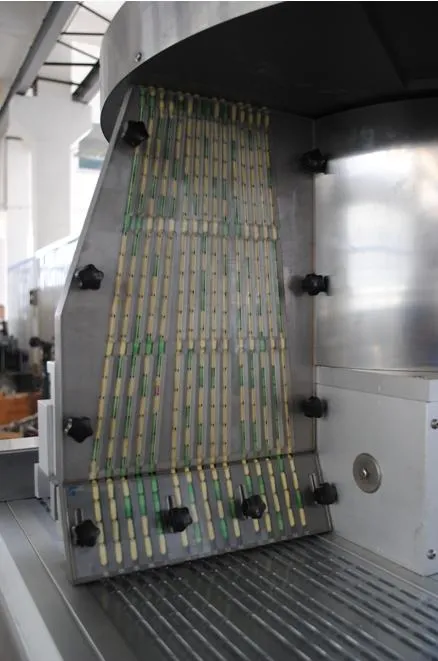

Feeding Unit Detail
Camera Inspection System

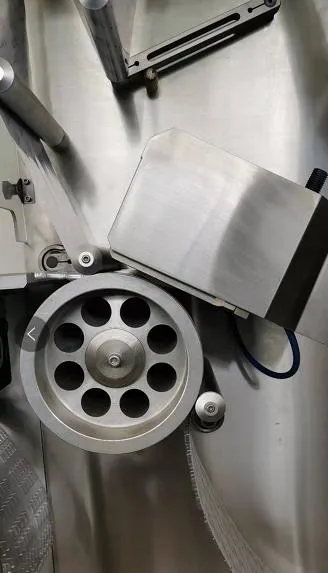

Heating Sealing Station

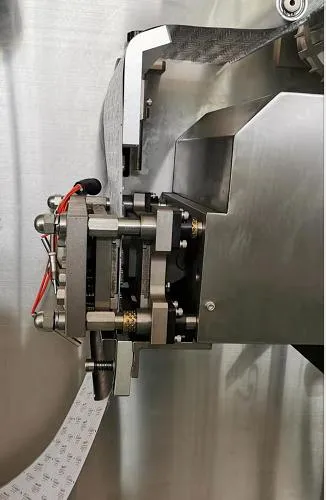

Batch Number Station

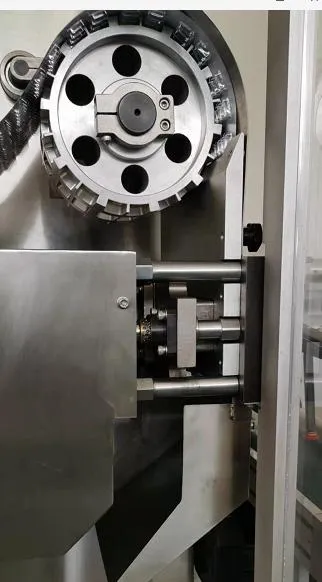

Cutting Station

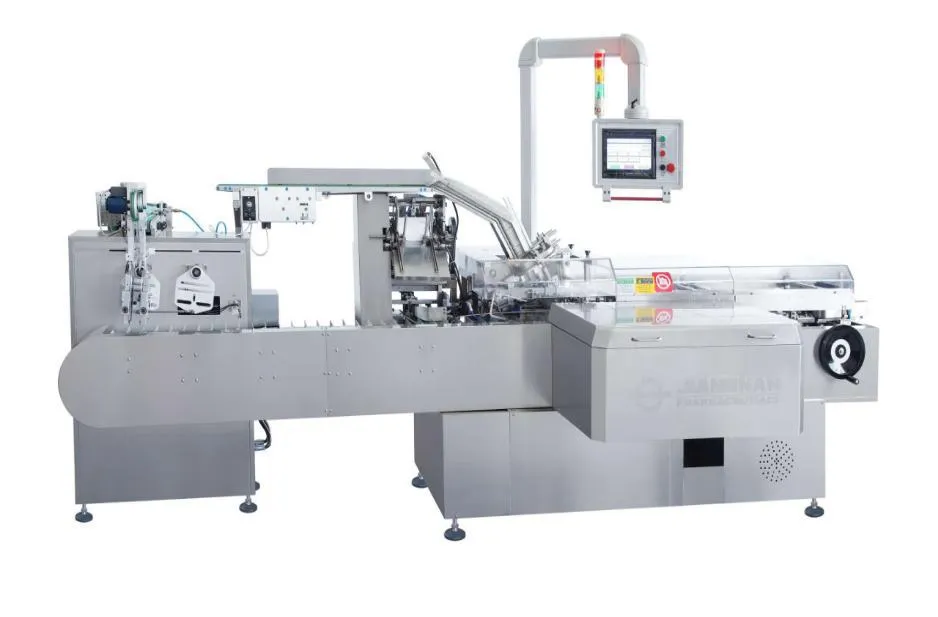

Connect blister with Cartoner device & cartoning machine
