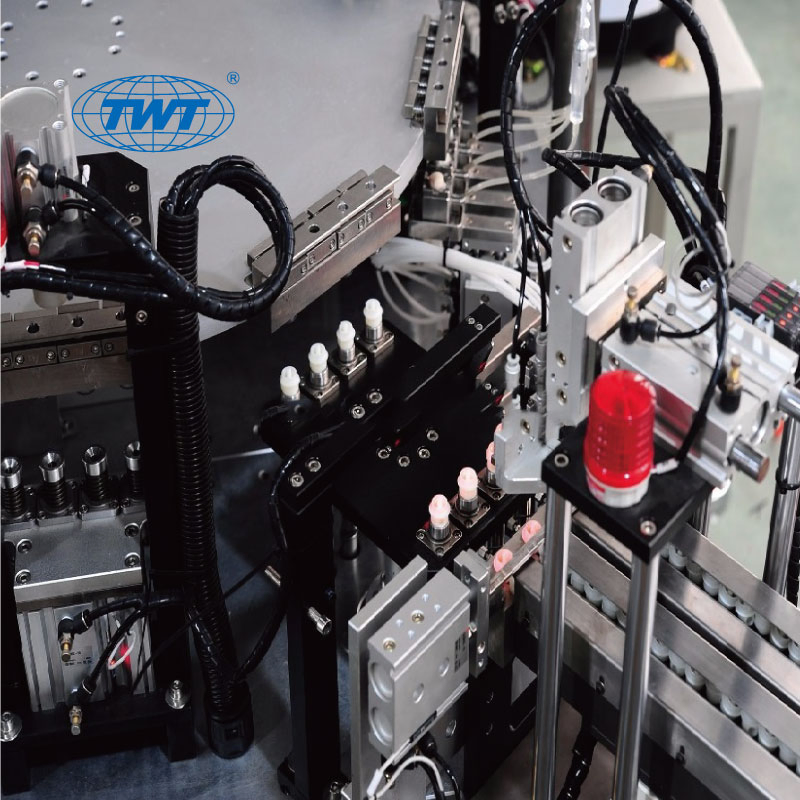

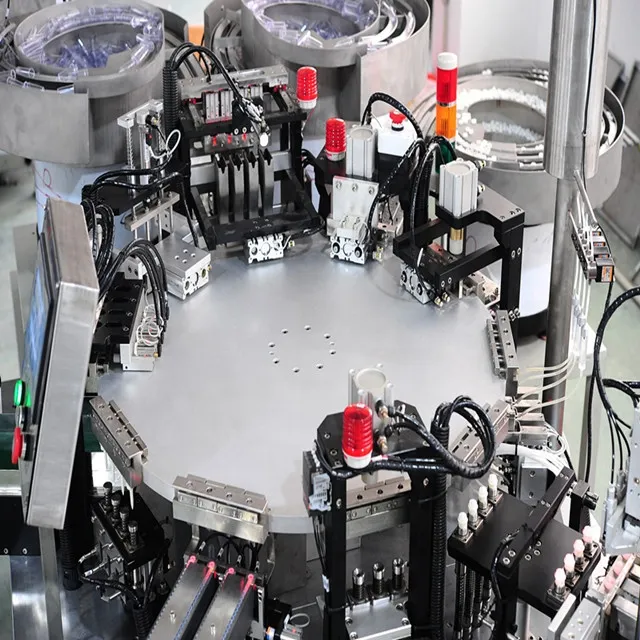

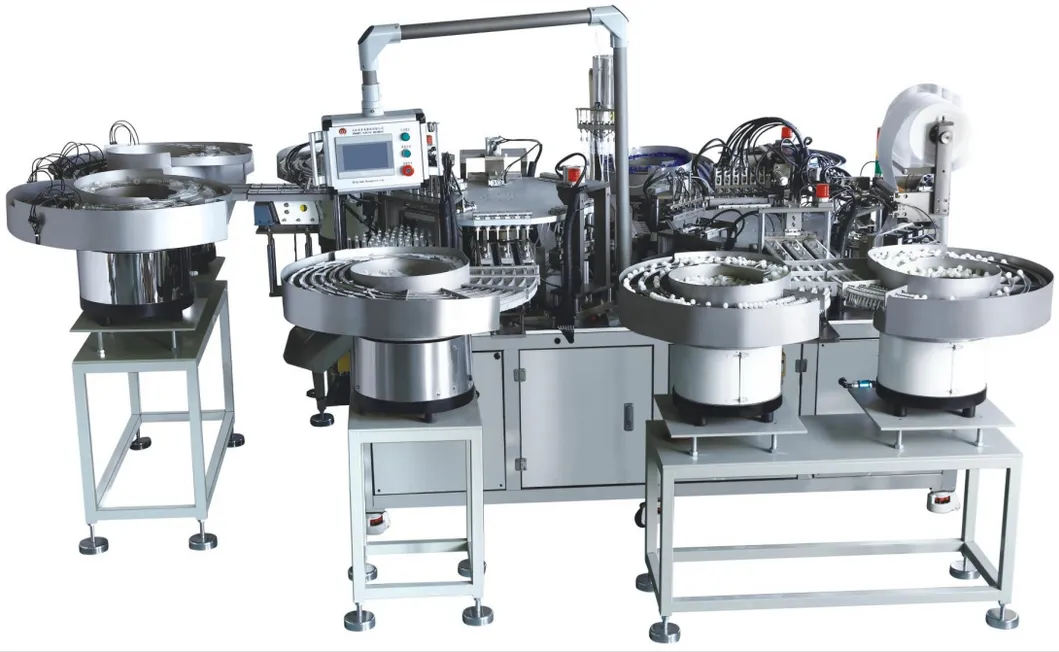

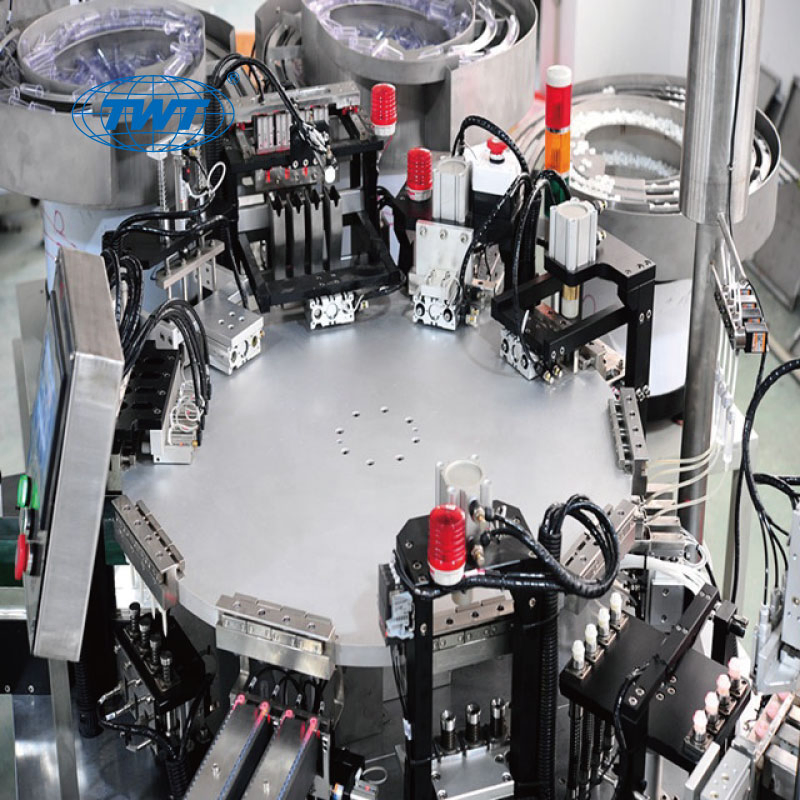

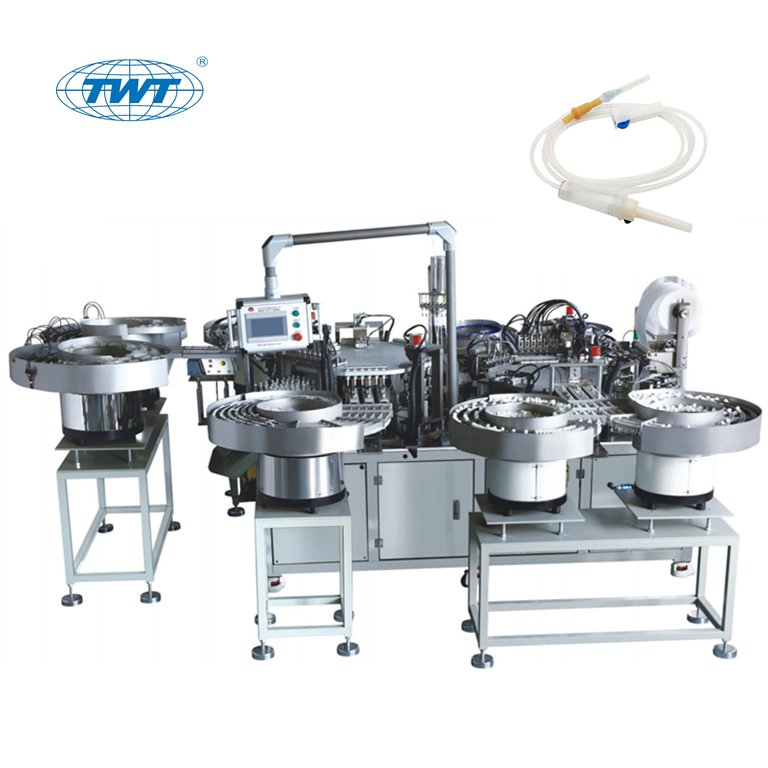

Efficient assembly speed: Fully automatic equipment designed to reduce pollution and minimize labor requirements. The entire assembly process is automatically completed through an advanced operating panel with touch screen functionality.
This system features automatic counting of finished products, offering easy operation with high efficiency. It operates stably with minimal noise, meeting the rigorous demands of modern manufacturing plants.
| No. | Station Description |
|---|---|
| 1 | Feed via vibrating drip chamber, manipulator grasp then put the positioning fixture |
| 2 | Feed via vibrating filter, punch rush into drip chamber |
| 3 | Punch the filter and drip chamber again and check if the filter is in place |
| 4 | Glue the drip chamber |
| 5 | Feed via vibrating spike, manipulator grasp then put the positioning fixture and assemble with drip chamber |
| 6 | Rotary positioning of air-vent on the spike |
| 7 | Punch the air-vent, manipulator grasp then assemble with spike |
| 8 | Examine the airvent inside the spike for defects (partial, broken, leaky, or double membranes) |
| 9 | Feed via vibrating air-vent cap, manipulator grasp and glue then assemble with spike |
| 10 | Punch the air-vent cap again (optional flanging function for blue air-vent cap) |
| 11 | Manipulator grasp spike then assemble with drip chamber |
| 12 | Punch the spike and drip chamber again |
| 13 | Feed via vibrating cover then assemble with spike |
| 14 | Finished product discharged / Unqualified product discharged |
