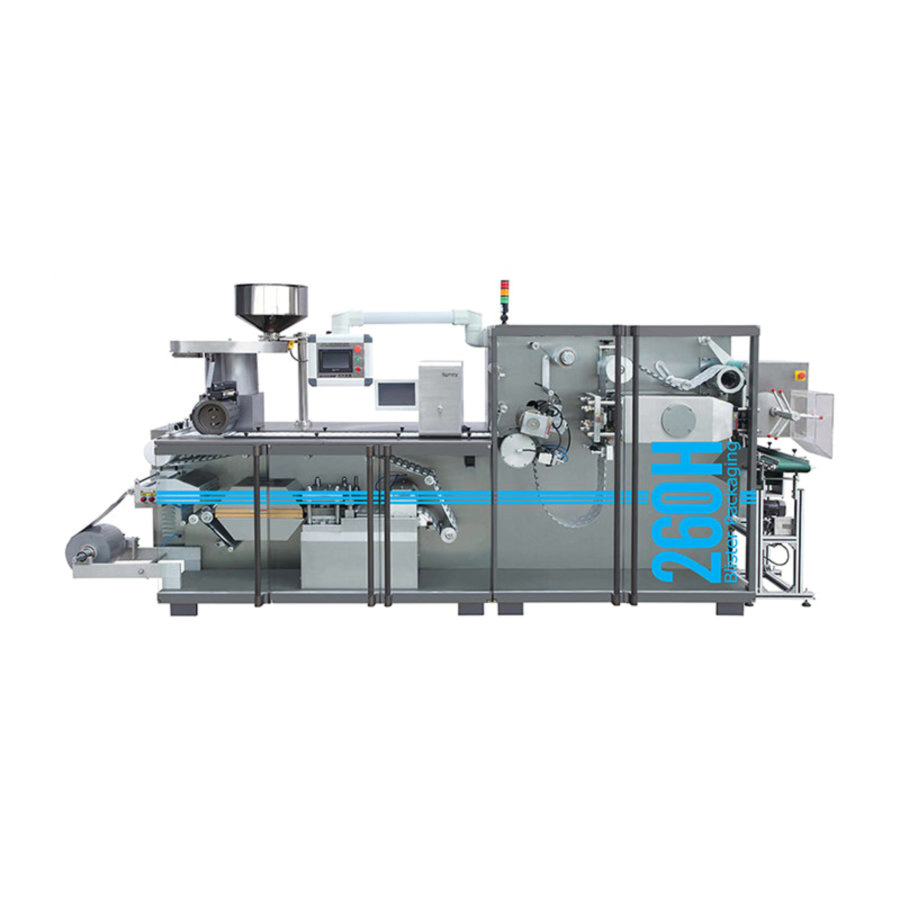

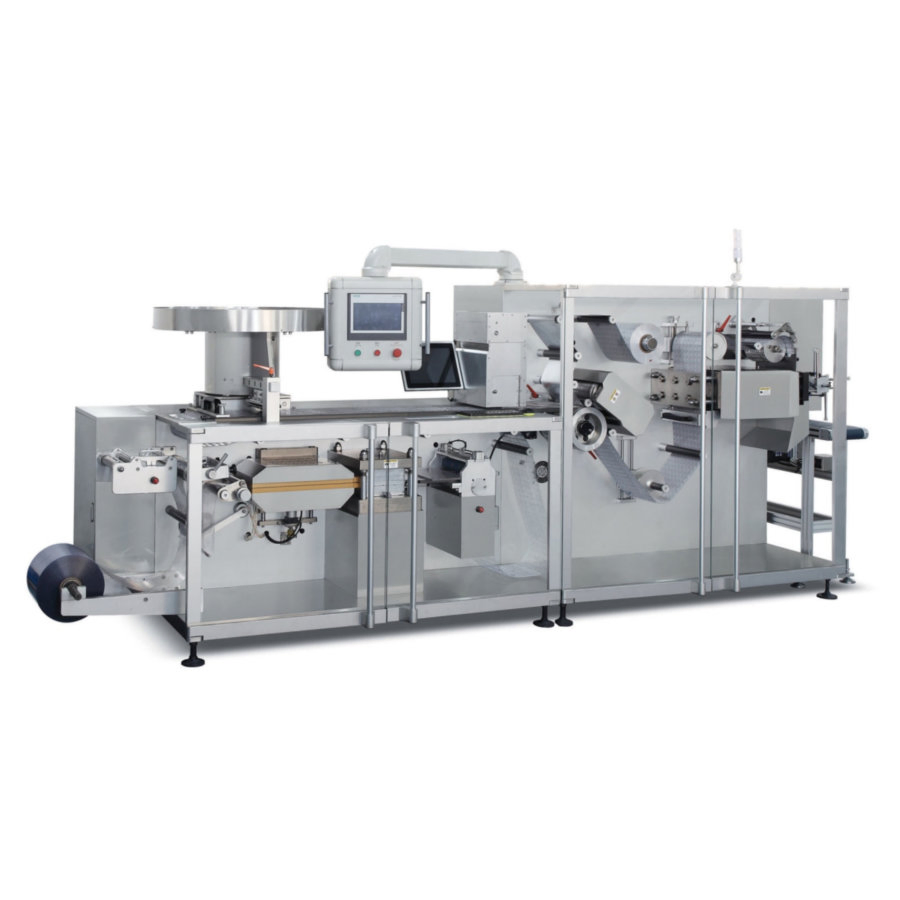

The DPH-260H Automatic Roller-Plate Blister Packaging Machine is an advanced pharmaceutical packaging solution that combines flat-plate forming with high-efficiency roller sealing technology.
Engineered for precision and speed, this industrial blister packer delivers up to 40-200 blister plates per minute, making it ideal for high-volume production environments.
Featuring a user-friendly PLC touch screen control system, servo-driven traction, and tool-free mold changeover, this machine ensures exceptional packaging quality while minimizing material waste by approximately 10%. Whether you're packaging tablets, capsules, soft gels, or medical devices, the DPH-260H offers unmatched reliability and operational flexibility.
| Cutting Frequency | 40~200 times/minute |
| Max. Forming Area | 260x270mm |
| Max. Forming Depth | 12mm |
| Travel Adjusting | 120~280mm |
| Size Of Standard Plate | 80x57mm |
| PVC and PTP Specification | PVC: 260x0.15~0.30mm | PTP: 260x0.02~0.03mm |
| Power Supply | 380V 50HZ, main motor: 1.1KW, heating: 10.8KW |
| Air Capacity | ≥0.5m3/min |
| Overall Size | 4350x1070x2200mm |
| Weight | 3100kg |
Achieves a cutting frequency of 40-200 blister plates per minute with adjustable speed settings.

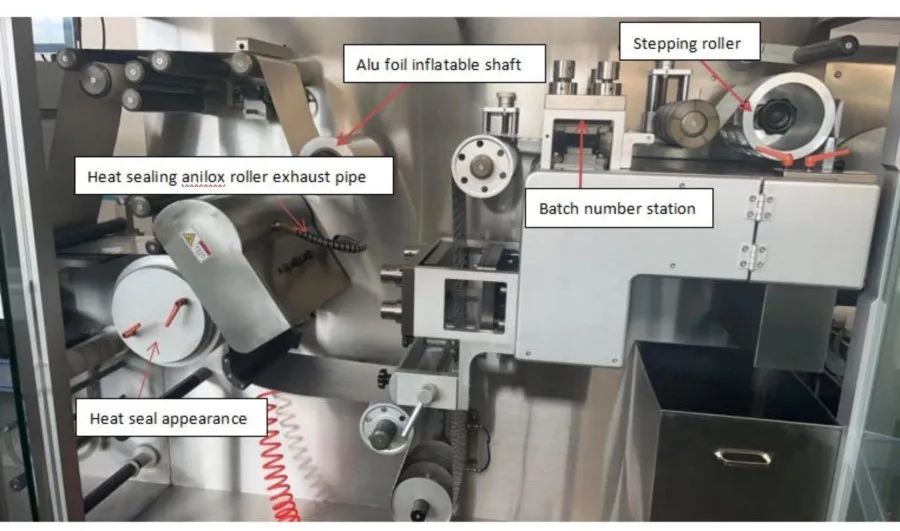

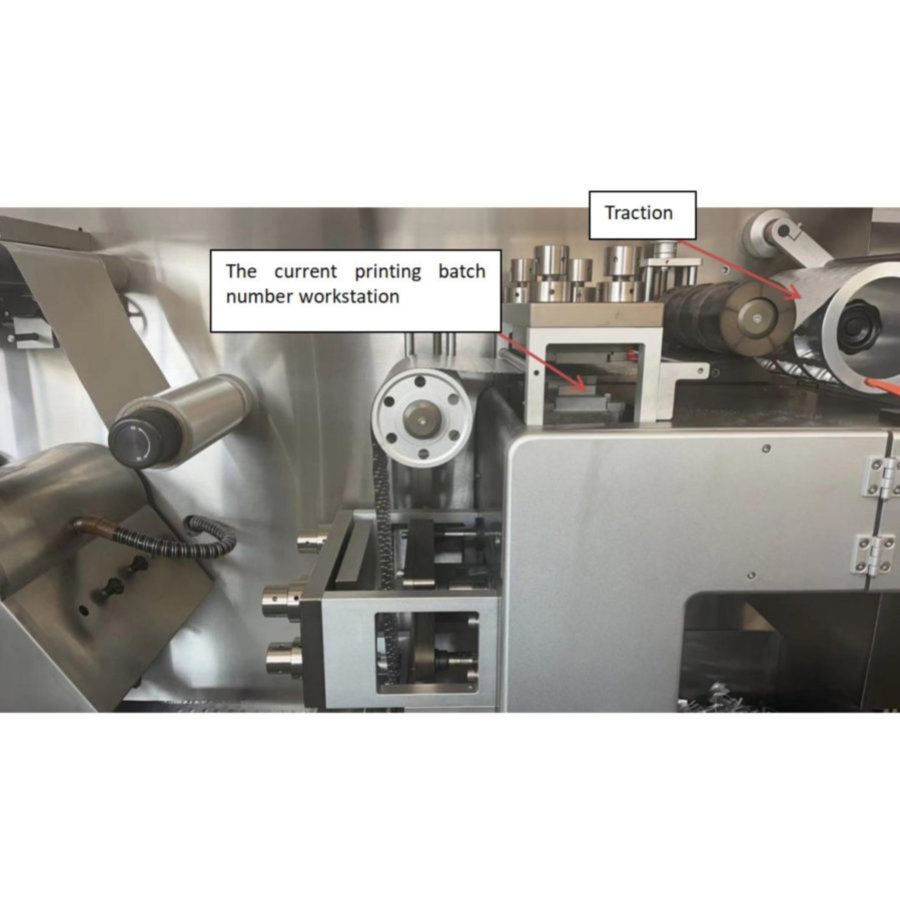

Includes heat seal anilox roller, batch number station, and stepping roller for intermittent precise conveying.

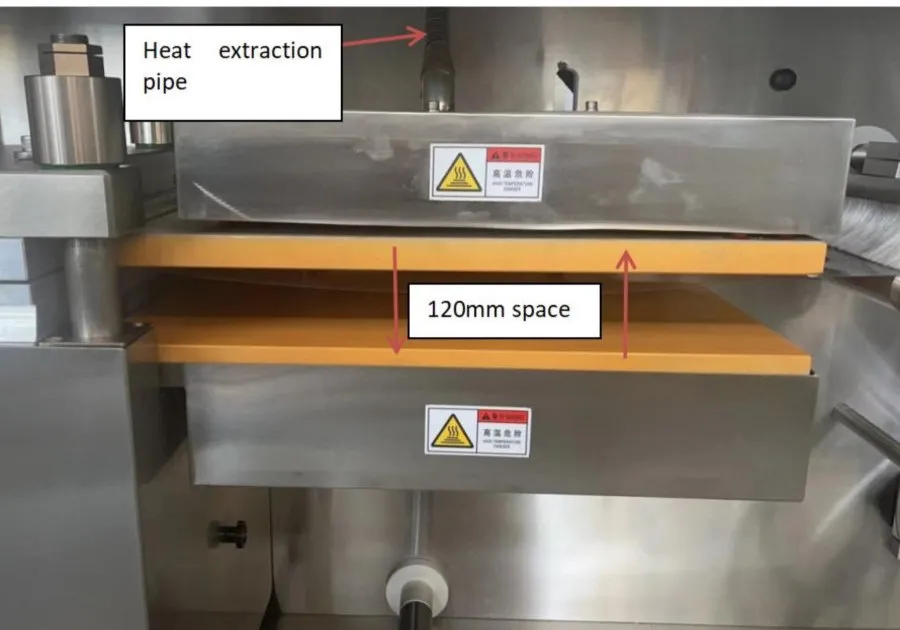

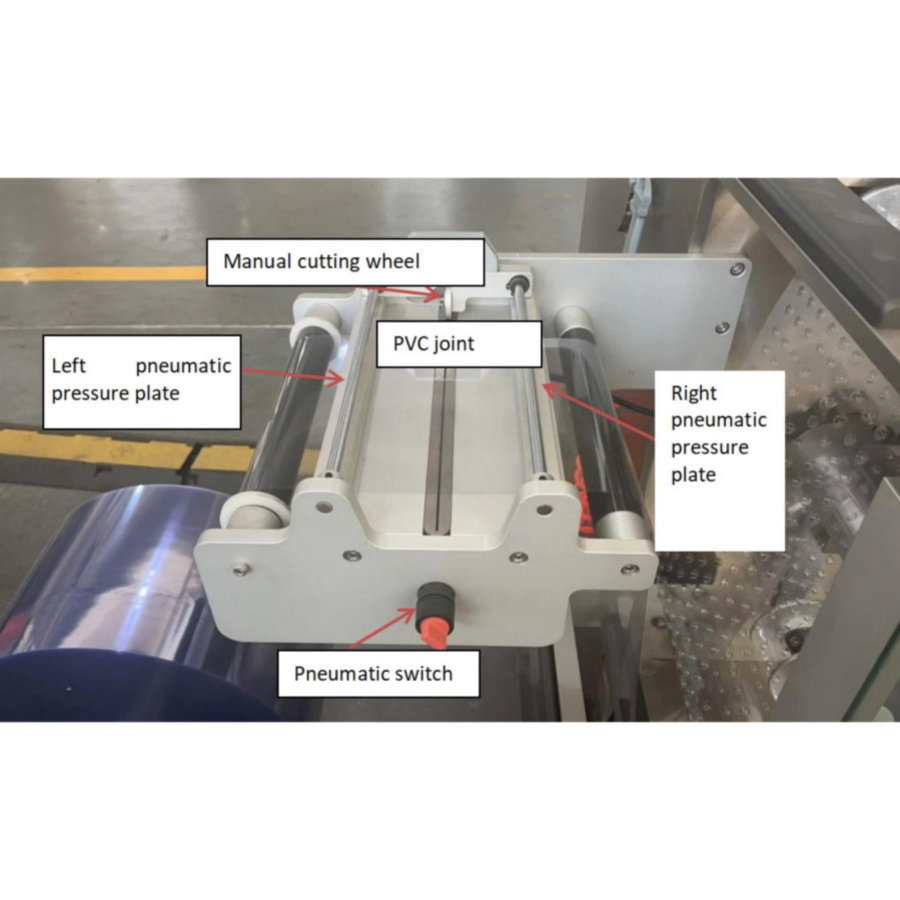

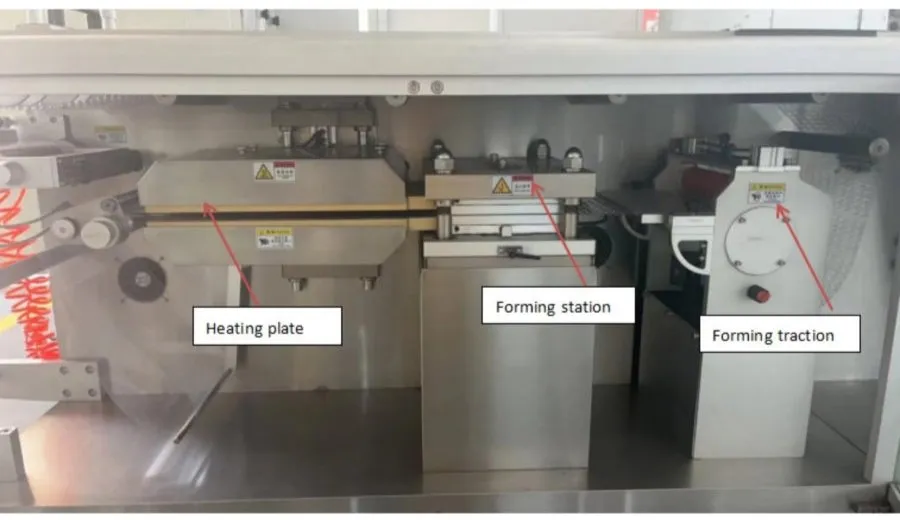

120mm shutdown clearance for easy PVC passage. Heating plate features integrated heat extraction.
Orientation chute design for ALU-PVC molds allows for hassle-free mold and guide rail replacement.
Cross-cutting technology eliminates wasted packaging material, reducing operational costs by approximately 10%.
