Engine: High-torque, low-emission diesel engine (Tier III compliant)
Hydraulic System: Precision-controlled pumps and valves for smooth operation
Undercarriage: Reinforced steel tracks with adjustable tension
Control System: Intelligent monitoring panel with fault diagnostics

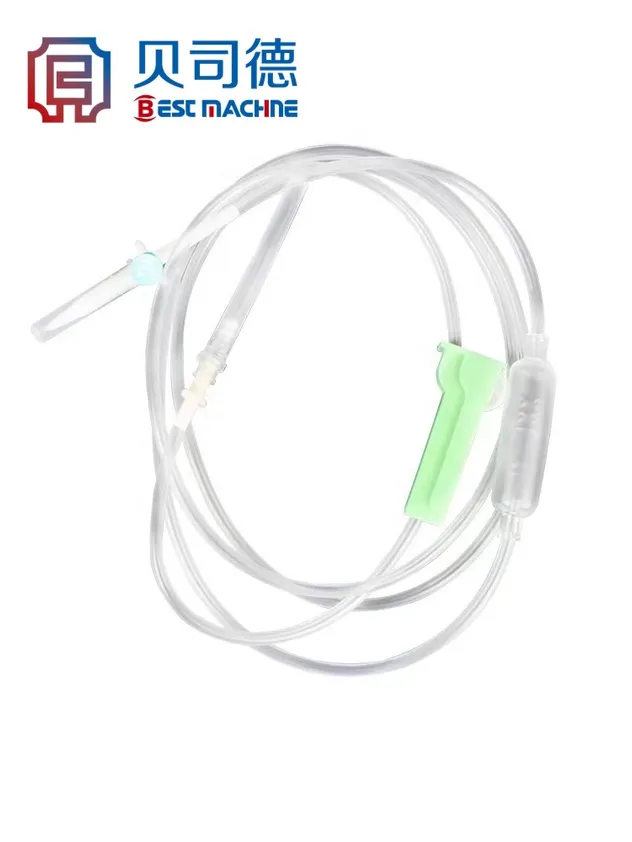

Right Elevation
Left Elevation

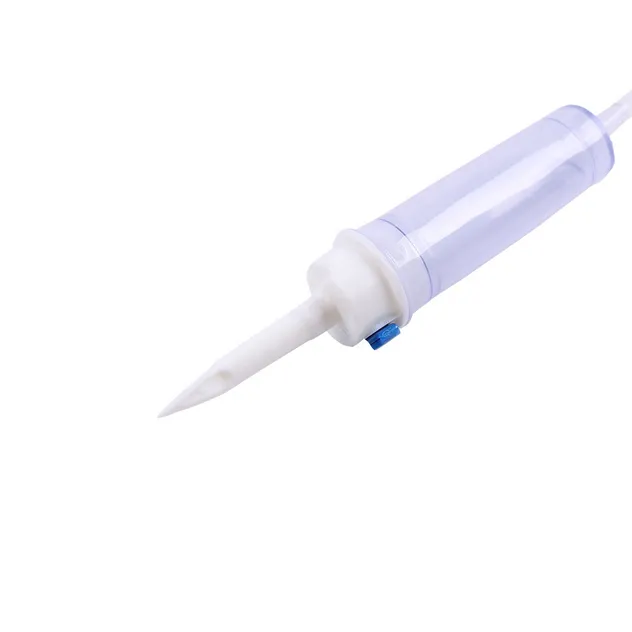

Front Elevation

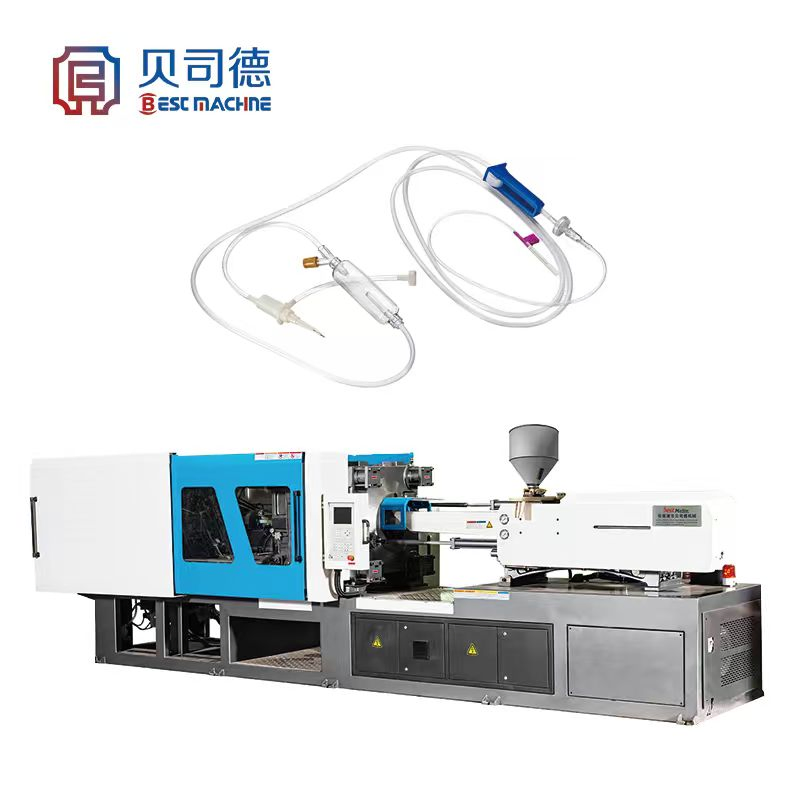

| Model Item | BST-2050A | ||
|---|---|---|---|
| INJECTION UNIT | A | B | |
| Screw Diameter | mm | 45 | 48 |
| Shot Size (Theoretical) | cm3 | 460 | 525 |
| Shot Weight | g | 415 | 472 |
| Injection Pressure | MPa | 188 | 165 |
| Screw Speed | r.p.m | 0-180 | |
| CLAMPING UNIT | |||
| Clamp Tonnage | KN | 2050 | |
| Toggle Stroke | mm | 445 | |
| Mould Thickness | mm | 190-470 | |
| Space Between Tie-bars | mm | 490X464 | |
| OTHERS | |||
| Pump Motor Power | KW | 17 | |
| Machine Dimension | m | 5.4X1.6X1.75 | |
| Machine Weight | T | 6 | |

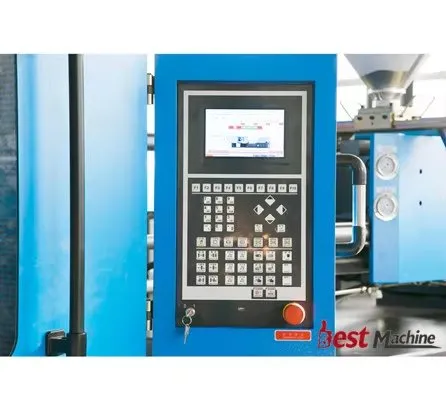

Controlled by advanced microcomputer systems with multi-language support (Chinese, English, Russian, Spanish, French, Arabic). Features automatic alarm and fault diagnosis.

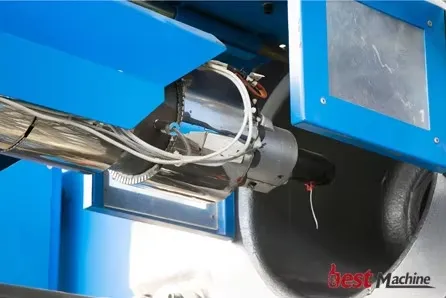

High injection speed and strong plasticizing ability. Adopts cold screw protecting device to ensure the screw only operates at correct temperatures.

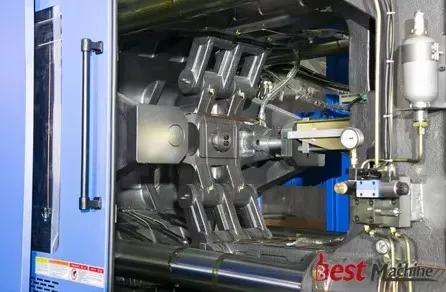

Safety Door: Electrical and mechanical double safety device ensures the mould will not clamp when open.

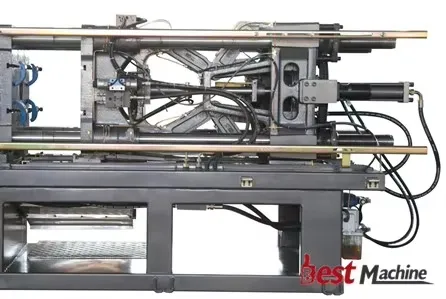

Clamping Mechanism: 5-point double-elbow mechanism for high and stable speeds with chrome-plated pull rods.
Specializing in the research, development, and manufacturing of professional plastic machinery and moulds. With over a decade of experience, we focus on innovative plastic packaging technology and competitive design. Our machinery is exported globally to markets including Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, and more.
