Automatic Disposable Round Shape Cotton Face Pads Making Machine

Customization:	Available
Warranty:	One Year
Automatic Grade:	Automatic

Send Inquiry

Product Description

ℹ

Basic Information

Certification

SGS, TUV

Customized

Available

Condition

New

After-sales Service

One Year

Transport Package

Wooden Box

Specification

2570x1200x1850mm

Origin

China

Production Capacity

500 sets Per Month

⚙

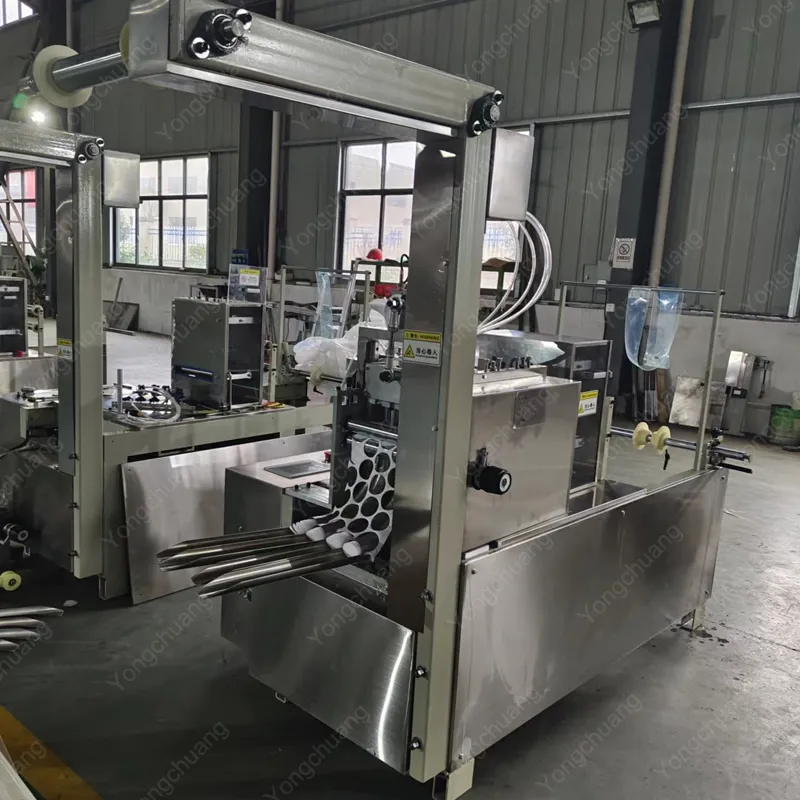

Machine Introduction

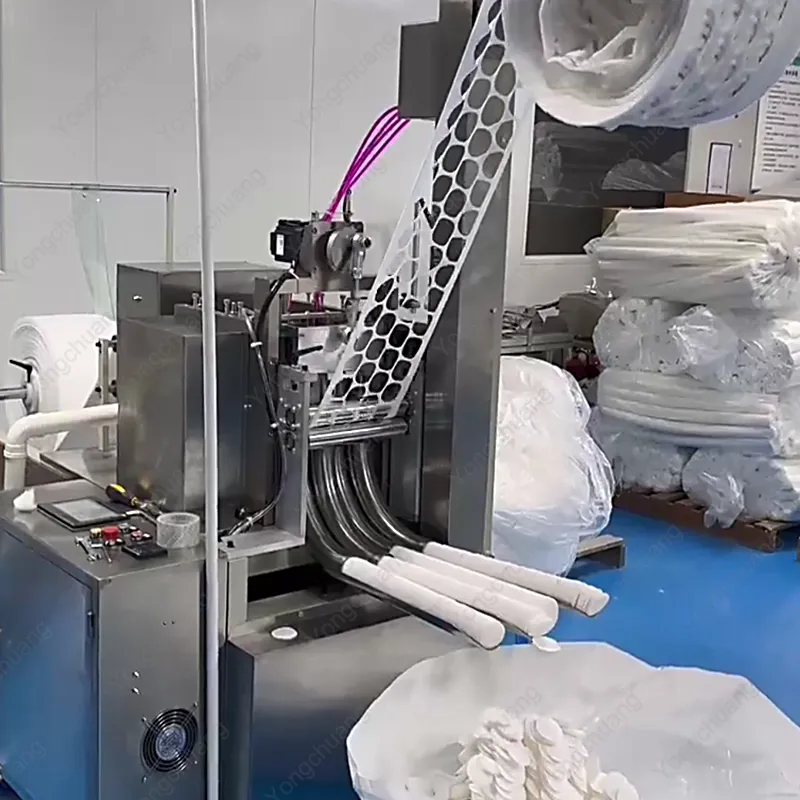

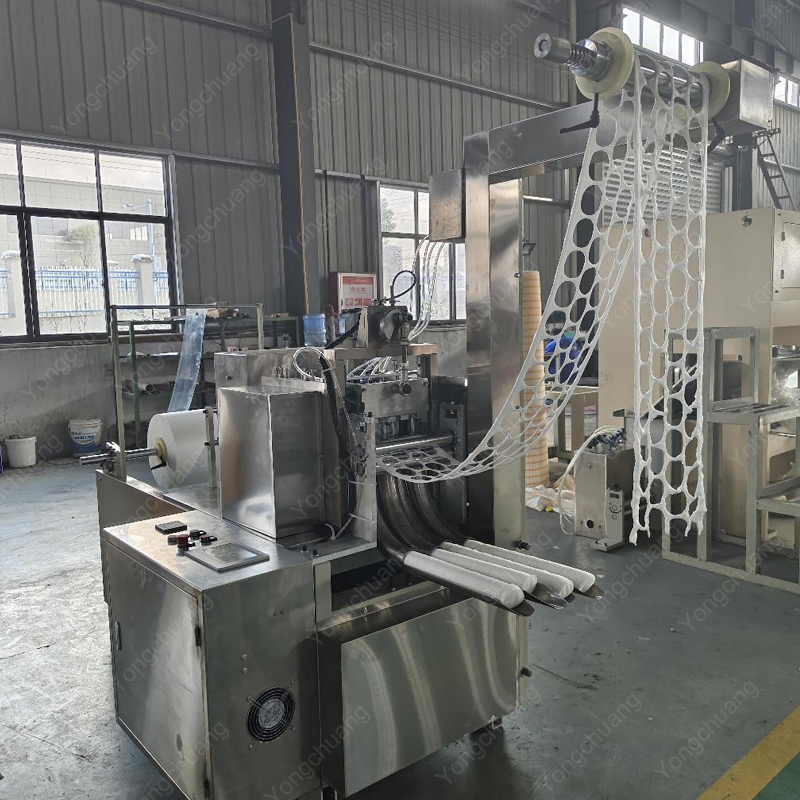

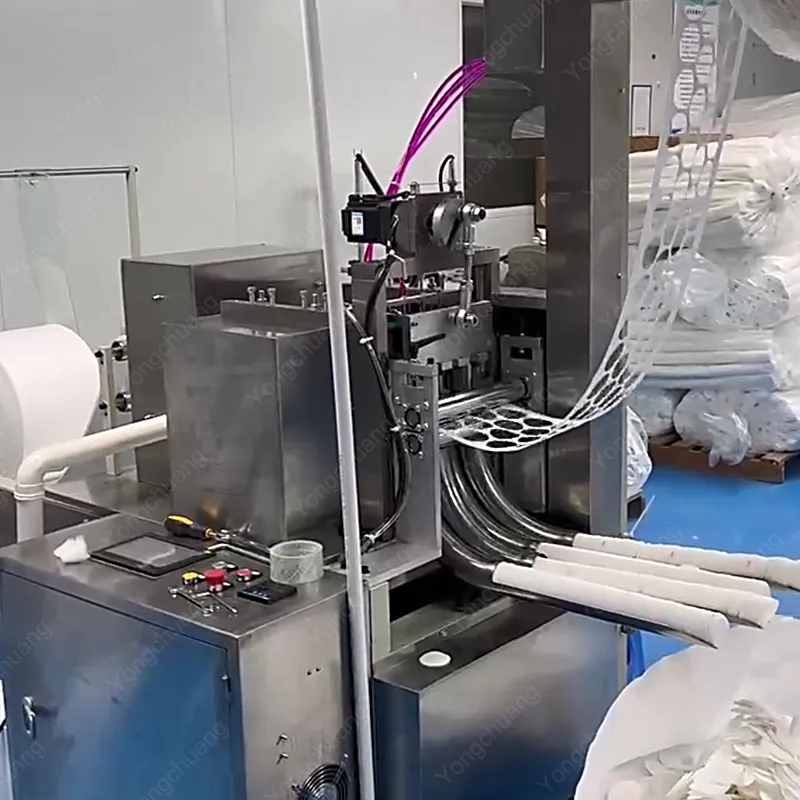

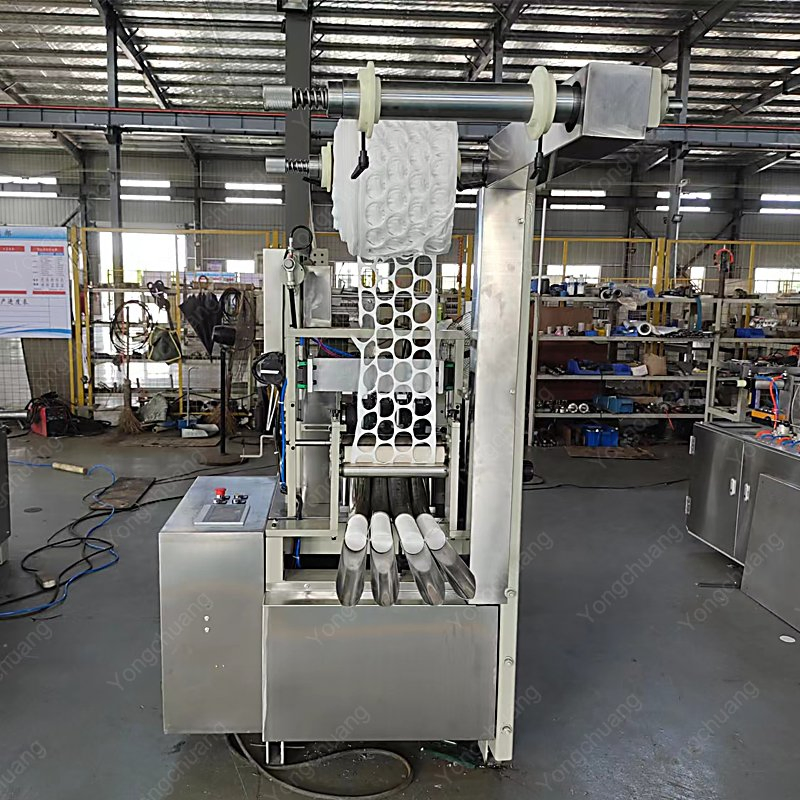

Adopting a consistent operation method, the raw materials are automatically conveyed, embossing rolled and cut, automatically counted, arranged and the waste is discharged fully automatically.

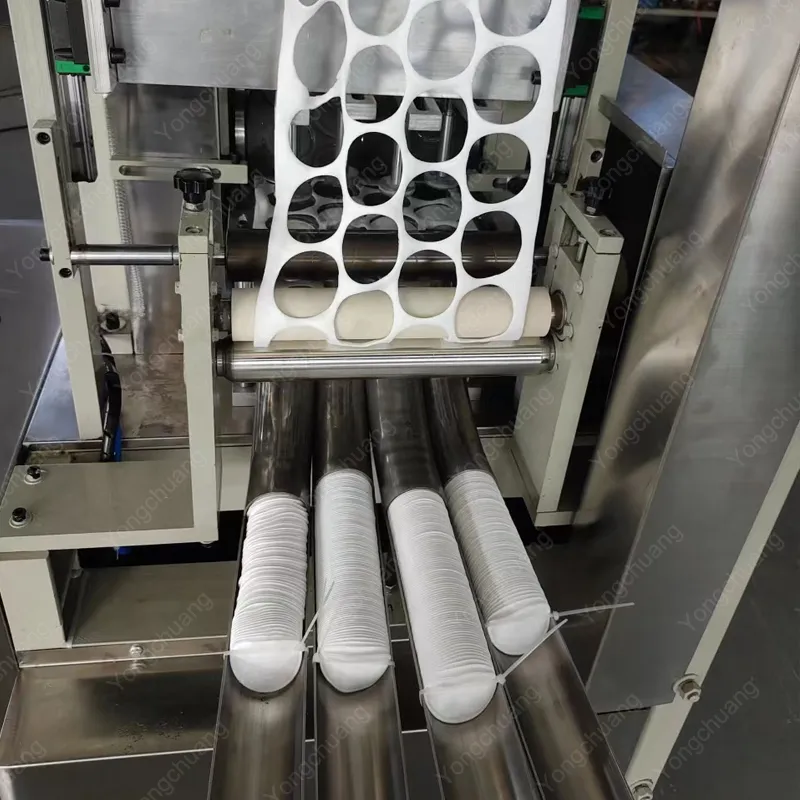

The equipment adopts a mechanical pressing and conveying device, the conveying and discharging are stable and tidy, and the one-out four (diameter 57mm) round special hob forming mold is composed, which minimizes the loss of raw materials, reduces product costs, and relatively improves product efficiency.

The equipment is made of international high-quality steel, and the hob molds are made of imported high-quality special materials, which are durable, accurate in cutting, free of burrs, and high in product precision.

The equipment is equipped with a pressing and conveying control device, and is equipped with an automatic waste material receiving device. The main bearings are imported brands.

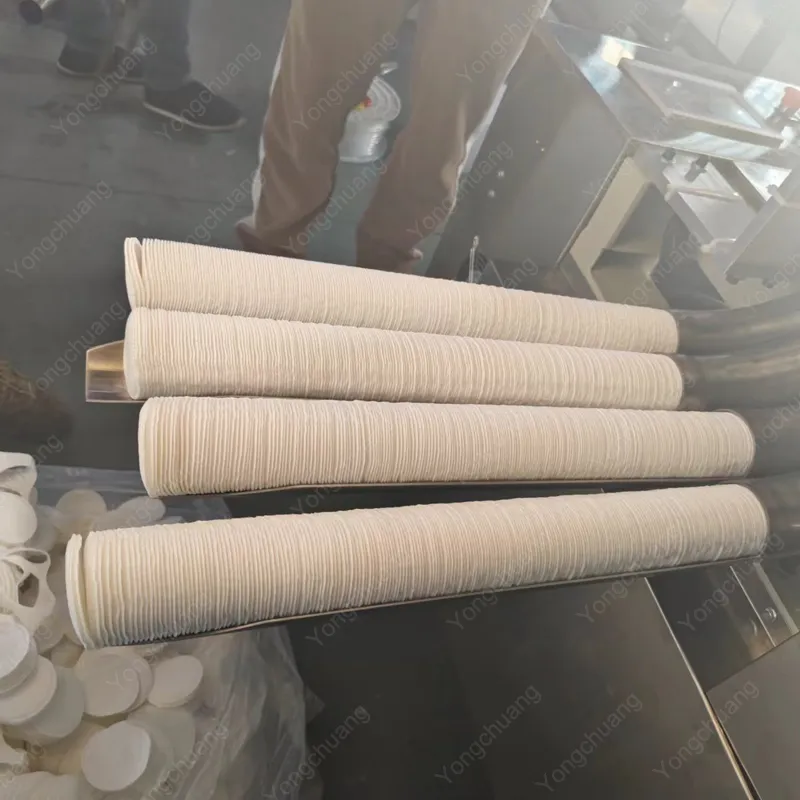

The equipment is equipped with an automatic counting device, and the width of the coil material depends on the product and the size of the equipment mold.

The equipment adopts mechanical transmission, and is equipped with special wear-resistant rubber rollers for transportation. Others are conveyed by aluminum alloy cloth guide rollers.

The equipment adopts frequency conversion control for speed regulation, and the wiring specification is reasonable, safe and easy to operate.

📊

Technical Parameters

Parameter Item	Specifications
Model	SC-H250
Counting way	Spraying counting
Width of material	250mm
Discharge channel	One out of four
Effective door width	250MM
Operating system	Touchscreen
Punching diameter	57MM/58MM or customized
Max. unwinding roll diameter	1000MM
Frame material	45# Steel
Embossing roller	Steel to steel/steel to wool 1 set of corrosion rod
Production Speed	600-800 pieces/minute
Voltage	380V/50Hz
Power	5.5kw
Machine Size	2570mm × 1200mm × 1850mm
Weight	Net weight: 700kg
