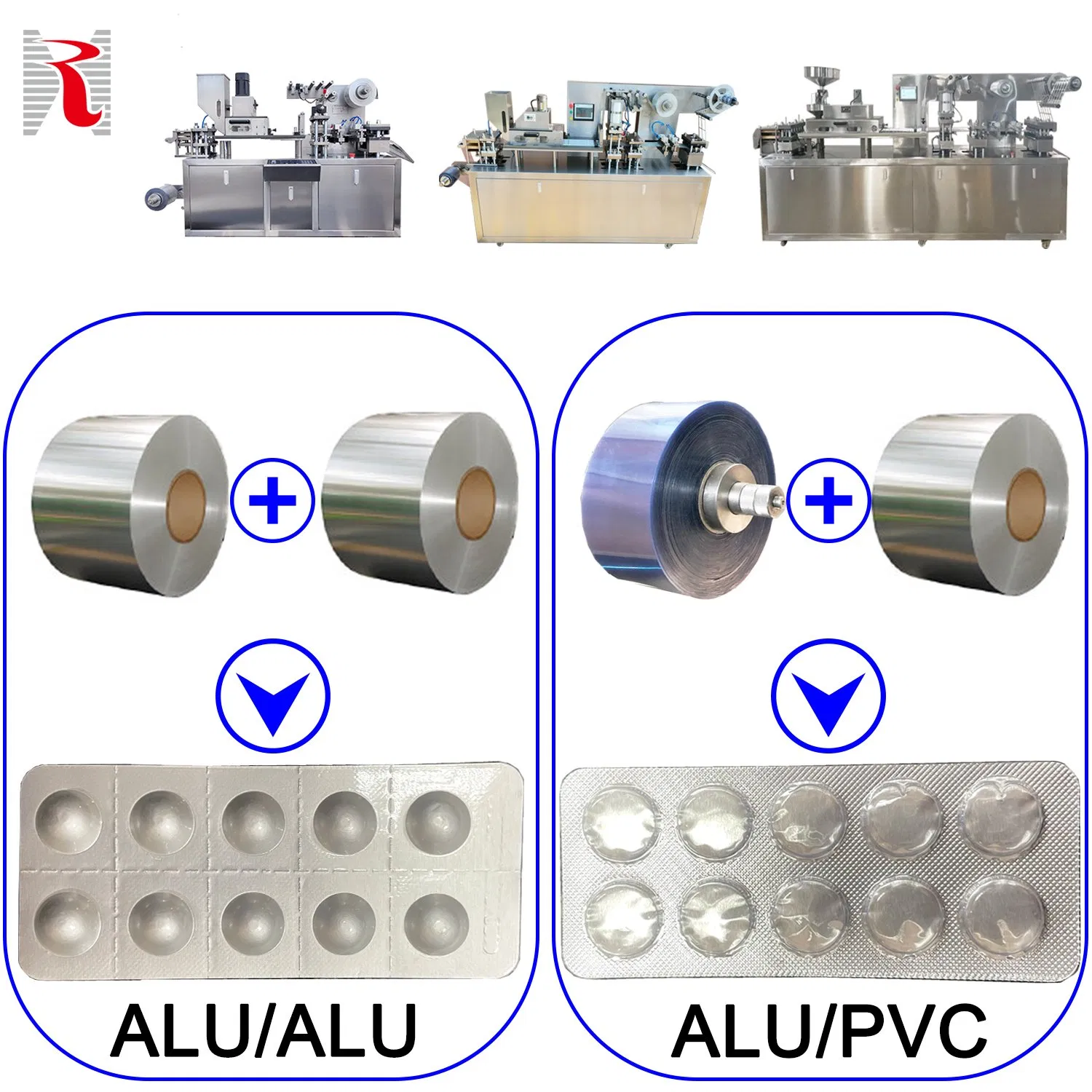

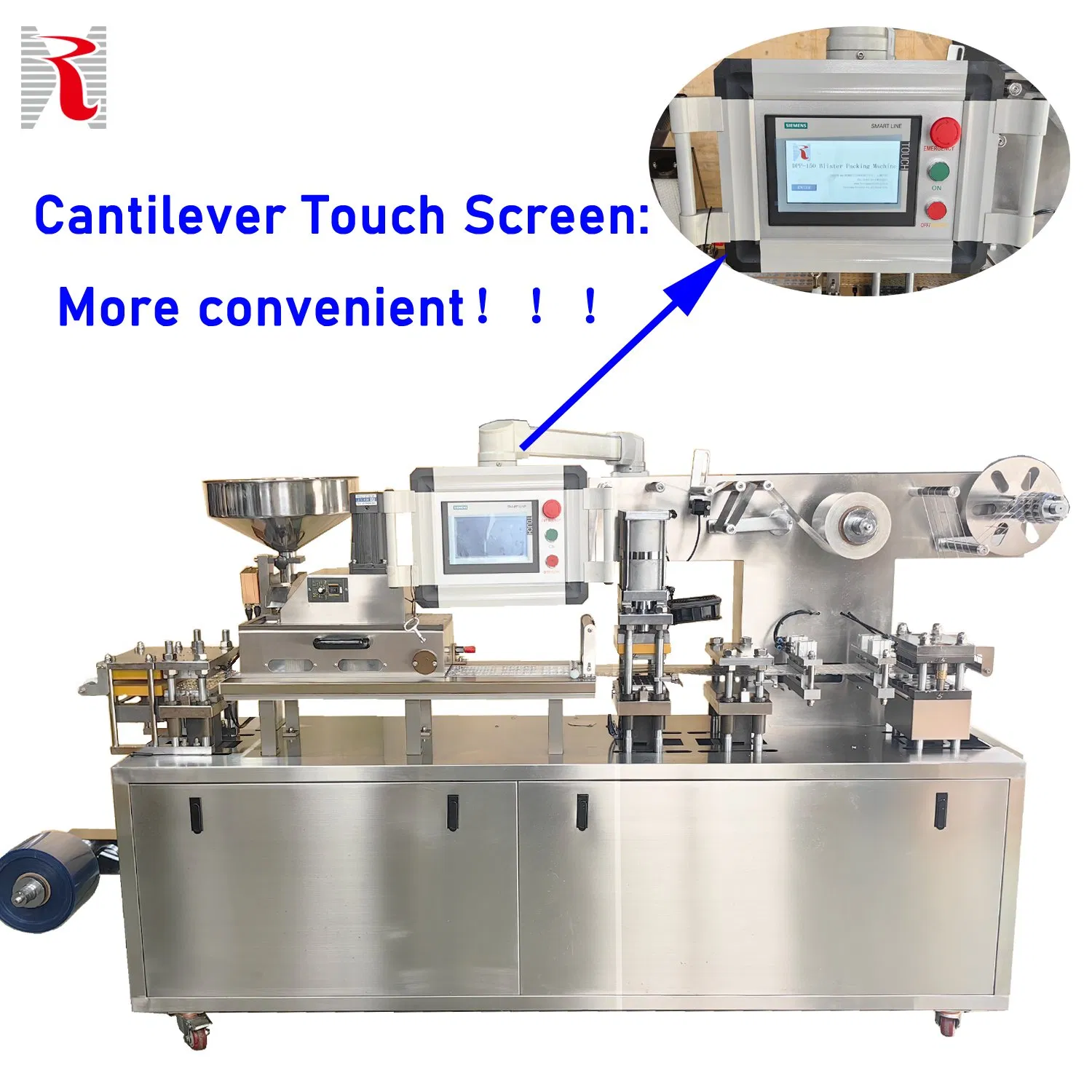

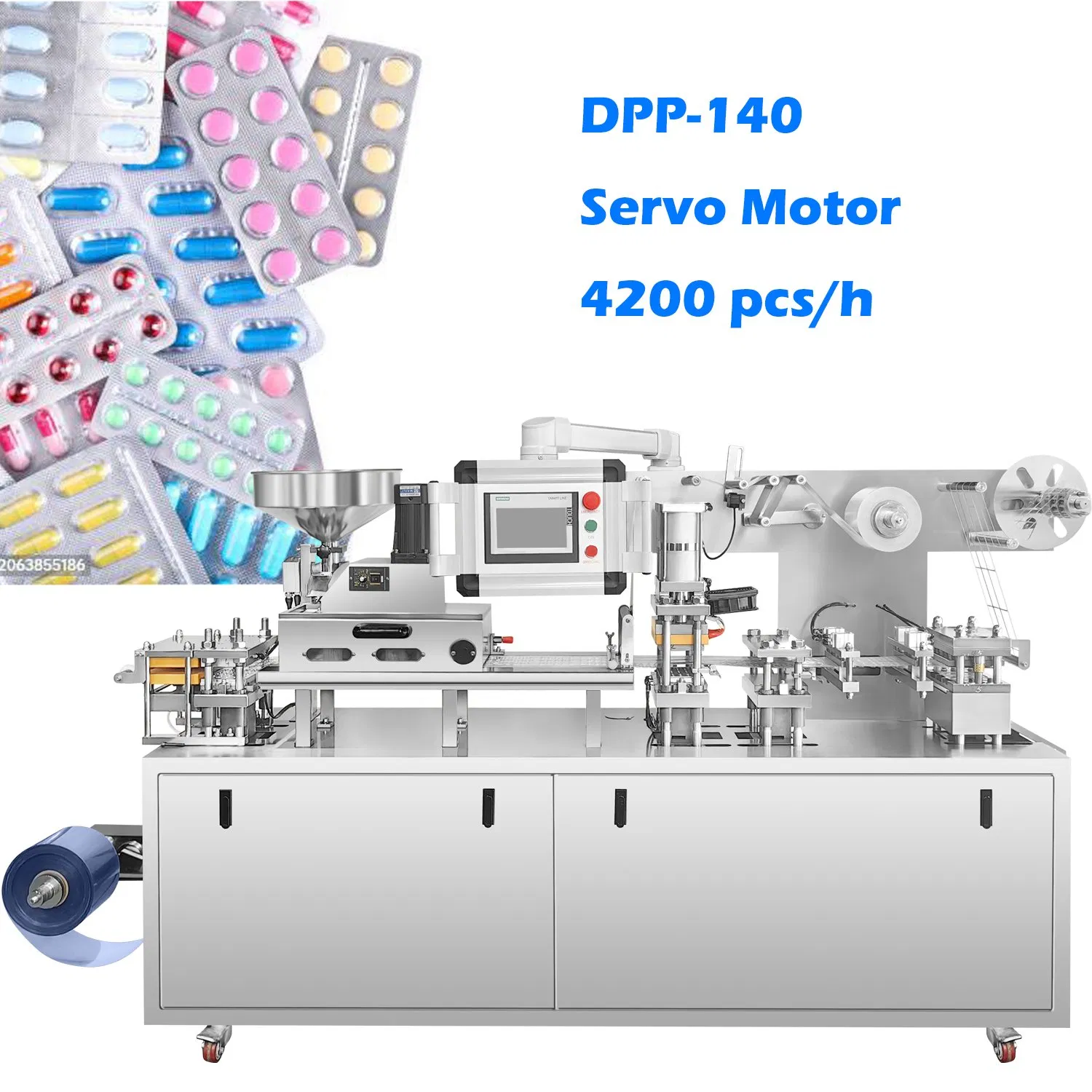

Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
1 / 5
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine
Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine

Automatic Pharmaceutical Pill Packaging Machine Tablet Capsule Blister Packing Machine

Customization: Available
After-sales Service: Provide
Warranty: One Yaer
Send Inquiry

Product Description

📋

Basic Info

Model NO.
DPP-140
Application Field
Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical
Driven Type
Electric
Automatic Grade
Automatic
Structure
Multifunctional Adjustable Size
Packaging Material
Wood
Packaging Type
Cartons
Usage
Outer, Inner
Type
General
Capacity
4200PCS/H
Max. Forming Area, Depth
130*100*26mm
Air Supply
0.4-0.6MPa
Total Power
380V/220V 50Hz 3.8kw
Main Motor Power
1.5kw
PVC Sheet
Thickness(0.15-0.5)*Width150mm
Ptp
Thickness (0.02-0.035)*150mm
Weight
820/890kg
Cooling Mould
Running Water, Circulation Water
Transport Package
Export Standard Wooden Case
Specification
2315*630*1405mm
HS Code
8422400090
Production Capacity
5000 Sets/Year
📦

Packaging & Delivery

Package Size
275.00cm * 70.00cm * 165.00cm
Package Gross Weight
1080.000kg
🚀

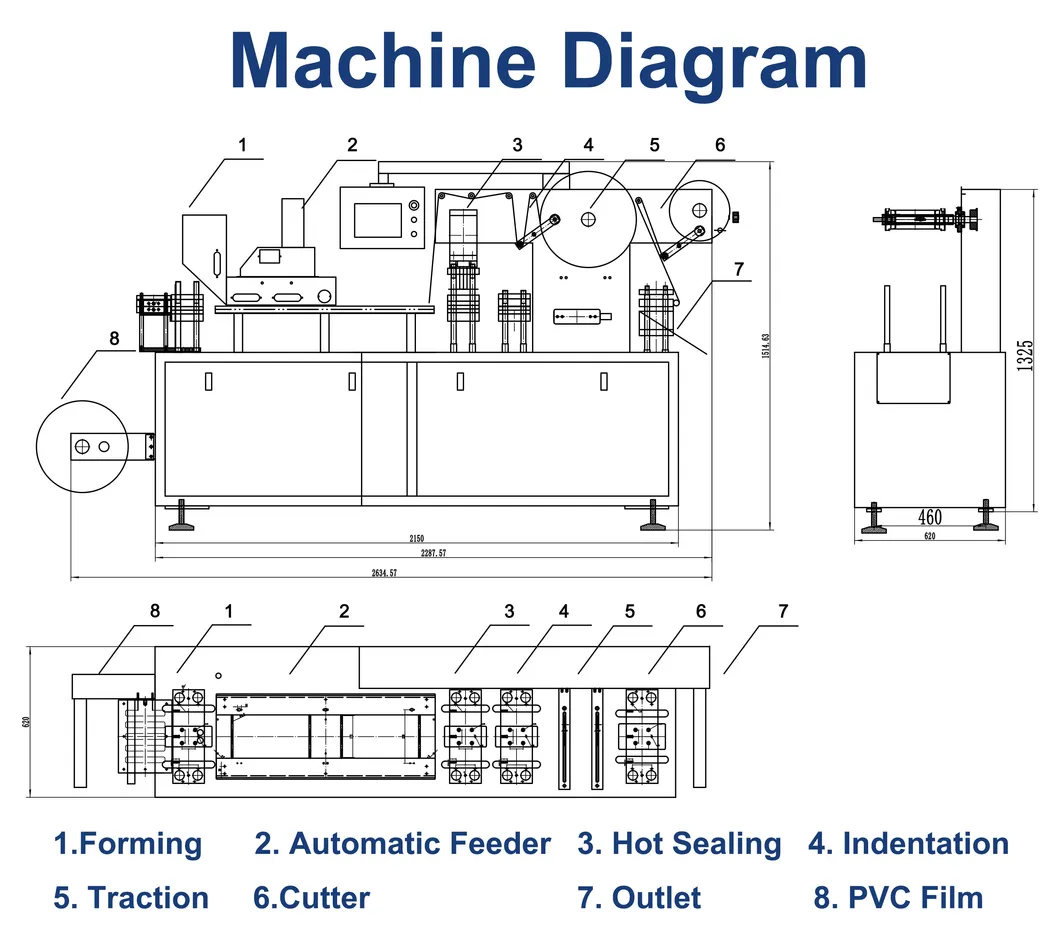

Introduction and Features

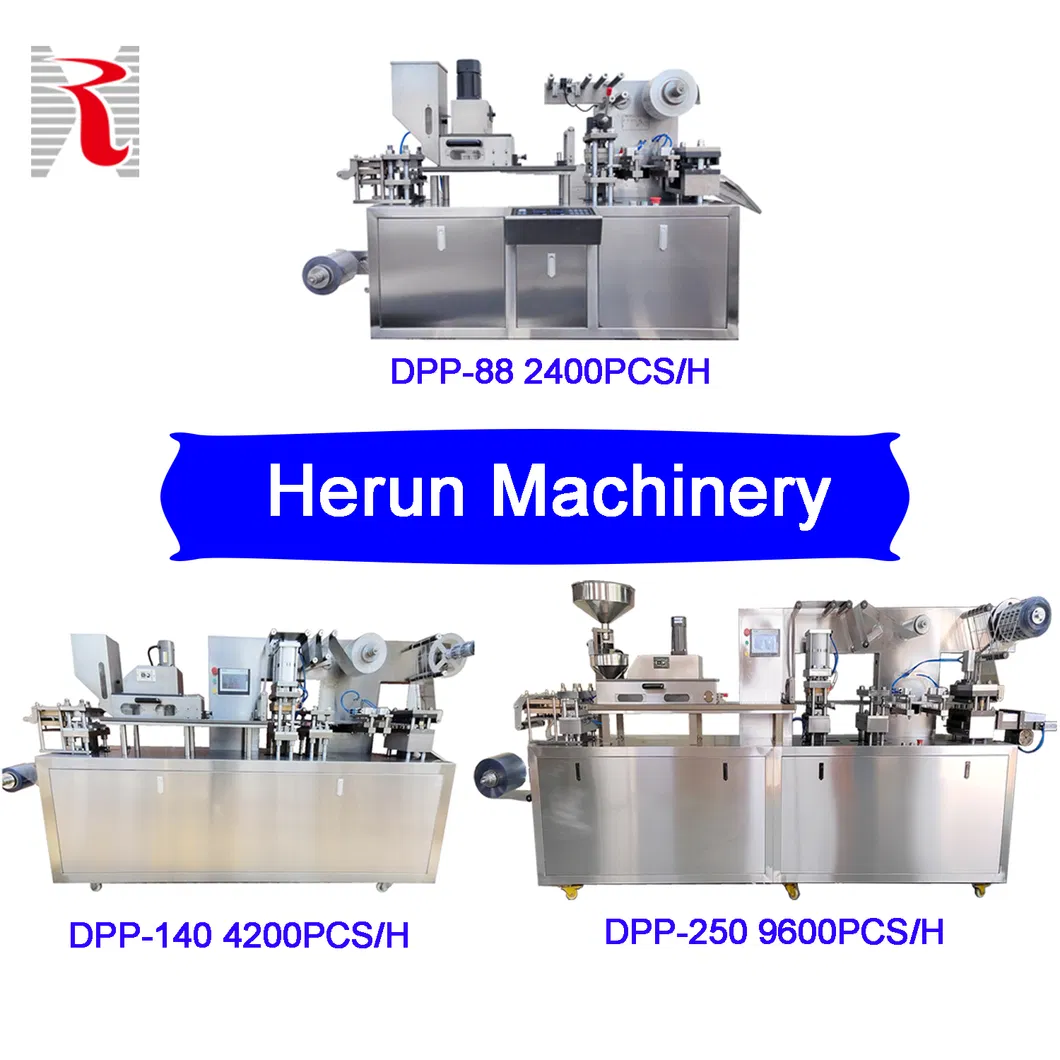

Pill Packaging Machine
Blister Packing Machine
⚙️

Main Technical Parameters

Model DPP-88 DPP-140 DPP-250
Punching frequency10-33 Cycles/min.10-35 Cycles/min.10-40 Cycles/min.
Production capacity2400pcs/hour4200pcs/hour2400-9600pcs/hour
Max. forming area, depth105*70*25mm130*100*26mm240*140*26mm
Standard travel range30-80mm50-120mm40-140mm
Standard blister size80*57mm80*57mm80*57mm
Air supply0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa
Total power380V/220V 50Hz 2.8Kw380V/220V 50Hz 3.8Kw380V/220V 50Hz 8.5Kw
Main motor power0.75Kw1.5Kw2.2Kw
PVC sheetThickness(0.15-0.5)*110mmThickness(0.15-0.5)*150mmThickness(0.15-0.5)*250mm
PTPThickness (0.02-0.035)*110mmThickness (0.02-0.035)*150mmThickness (0.02-0.035)*150mm
Cooling mouldRunning waterRunning waterRunning water
Overall dimension1840*590*1100mm2315*630*1405mm3250*710*1700mm
Weight450/520Kg820/890Kg1400kg
🔍

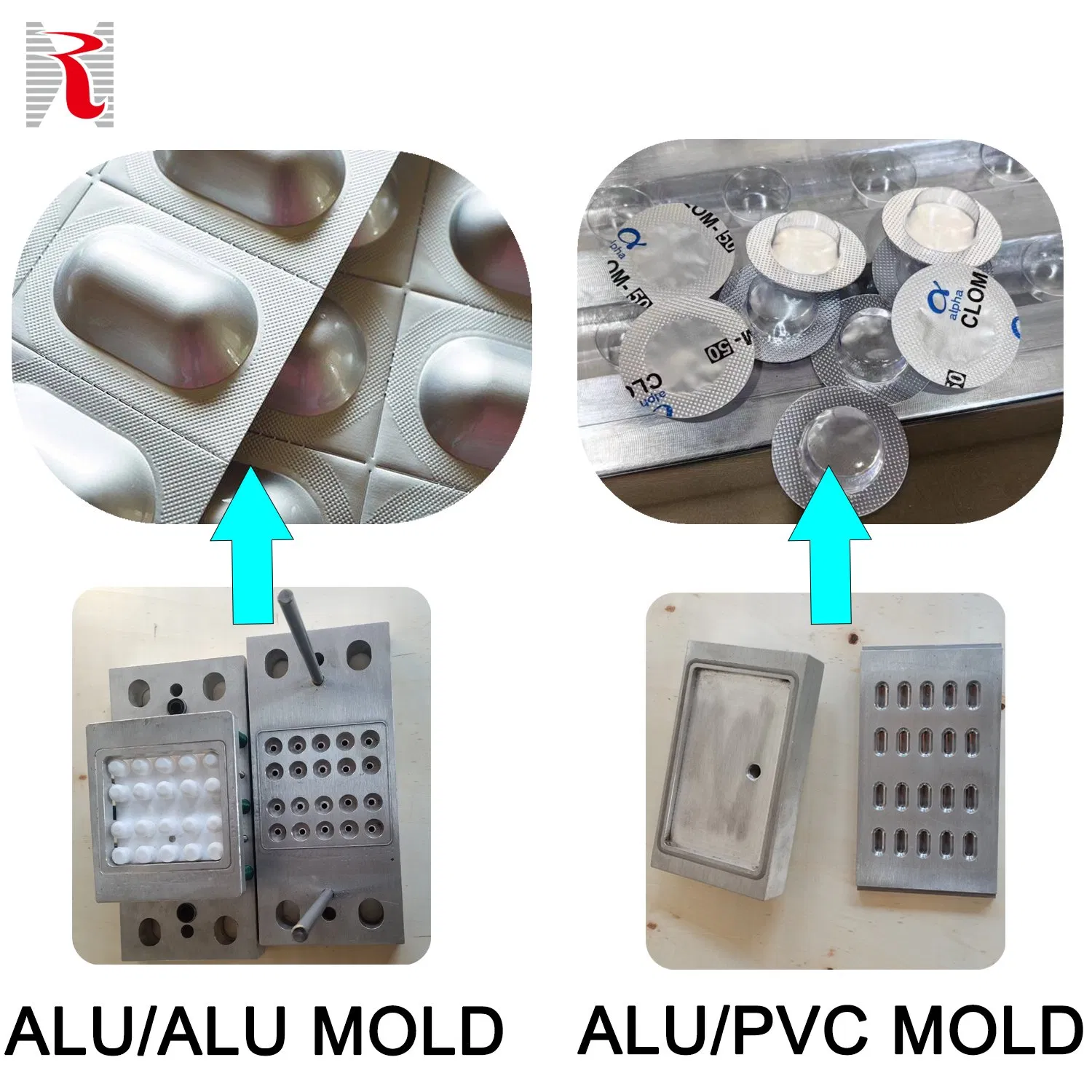

Product Details

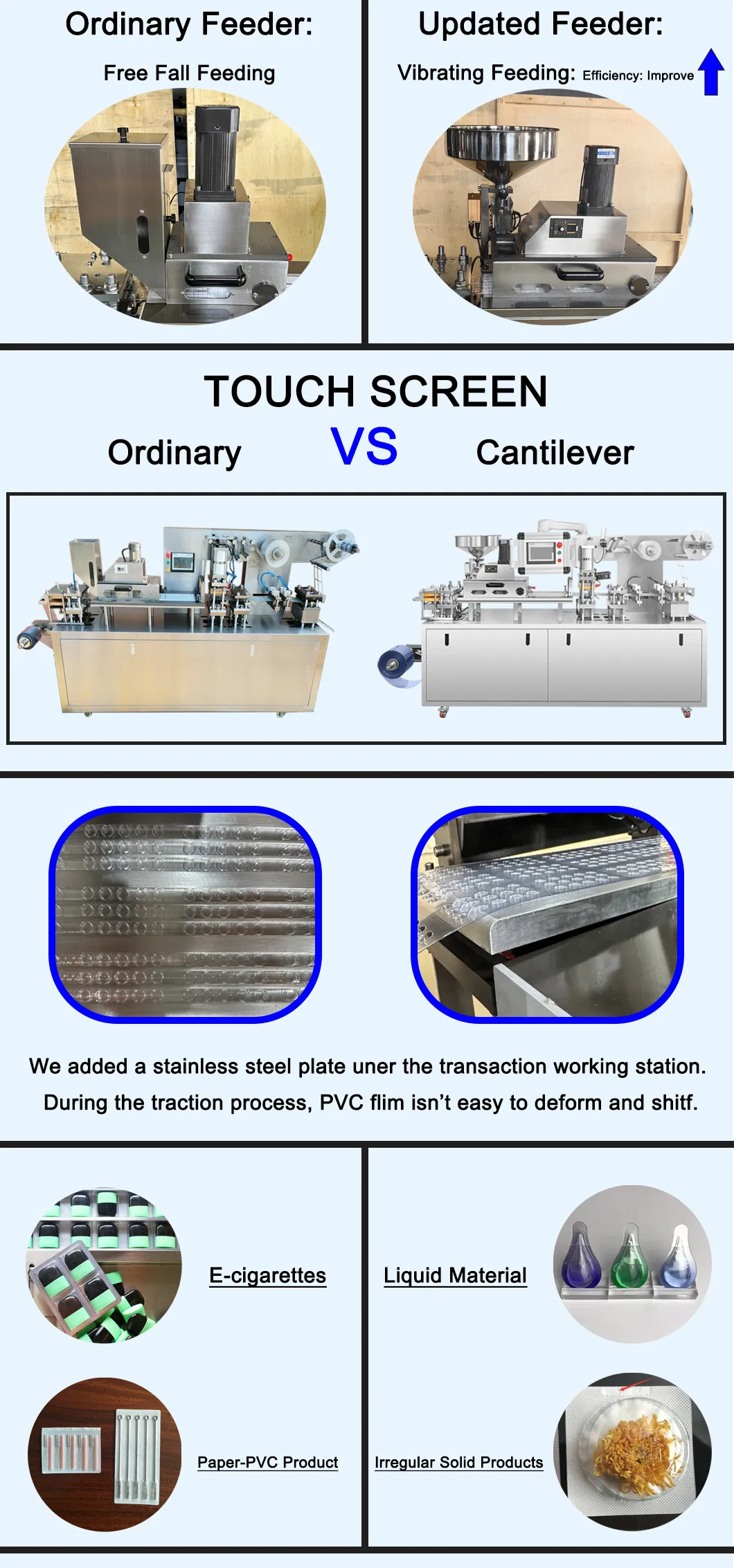

Product Details View
🔥

Hot Sale Products

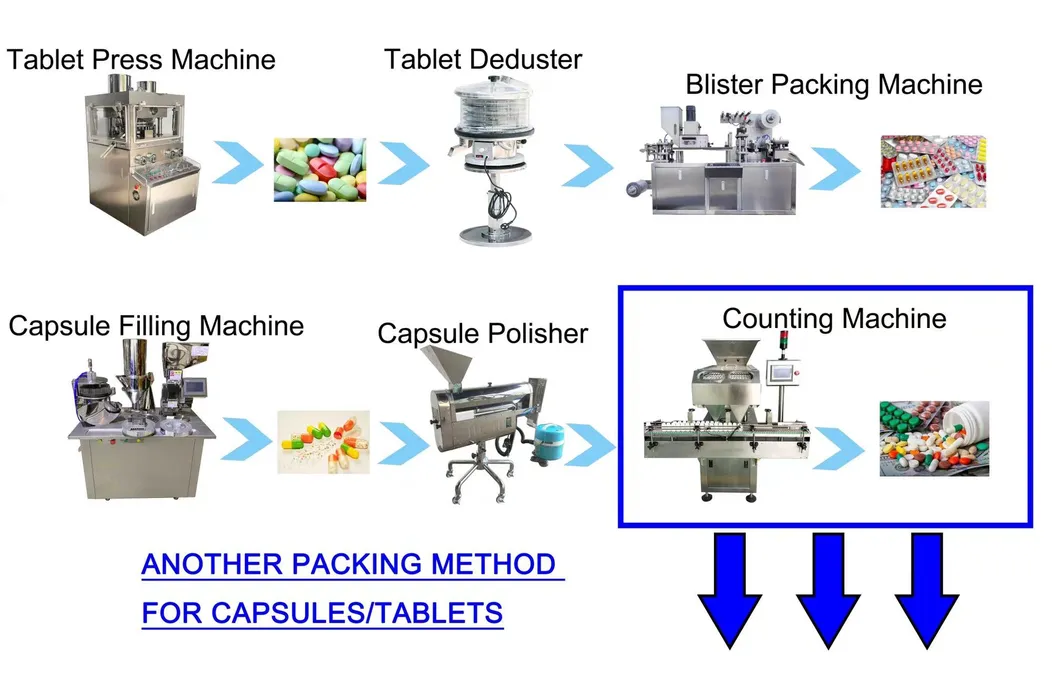

Hot Sale Lineup

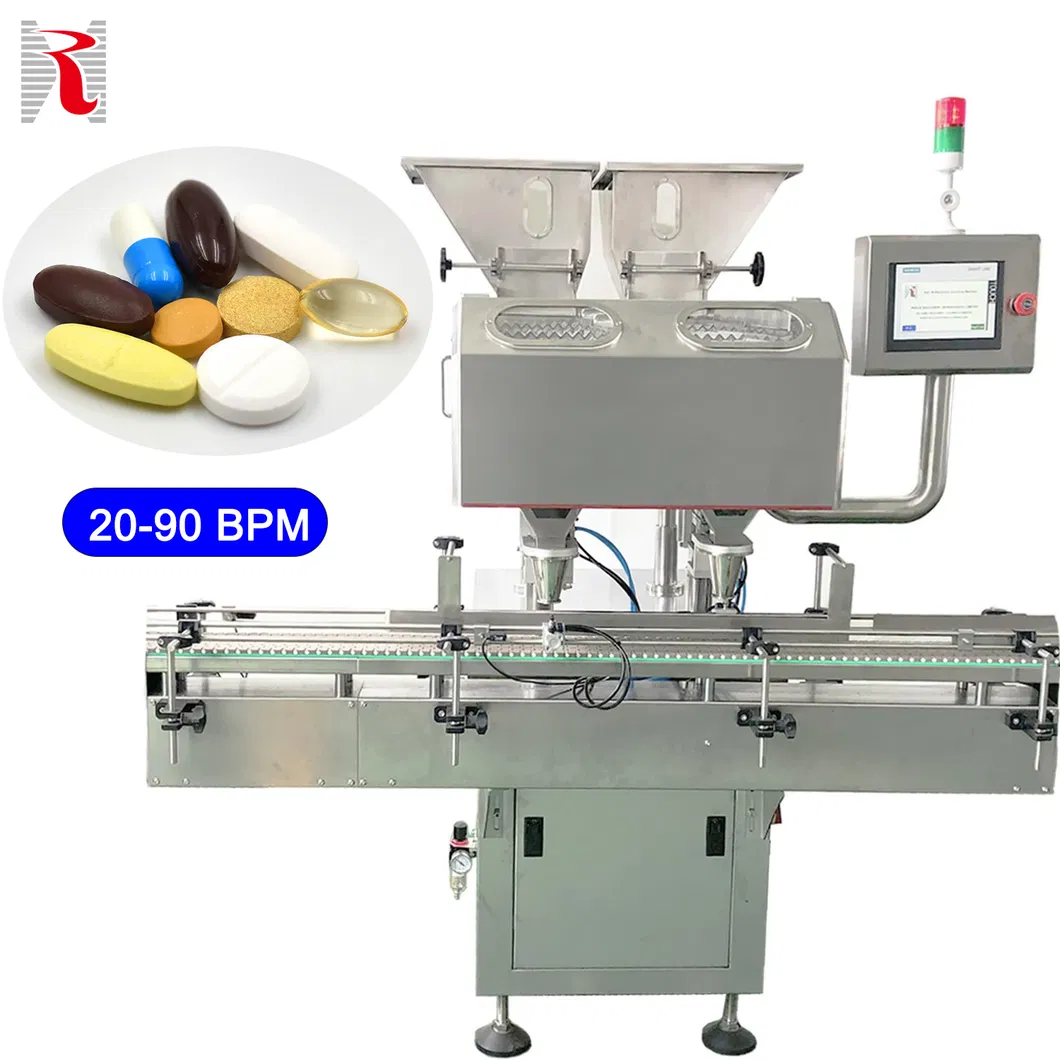

Counting Machine

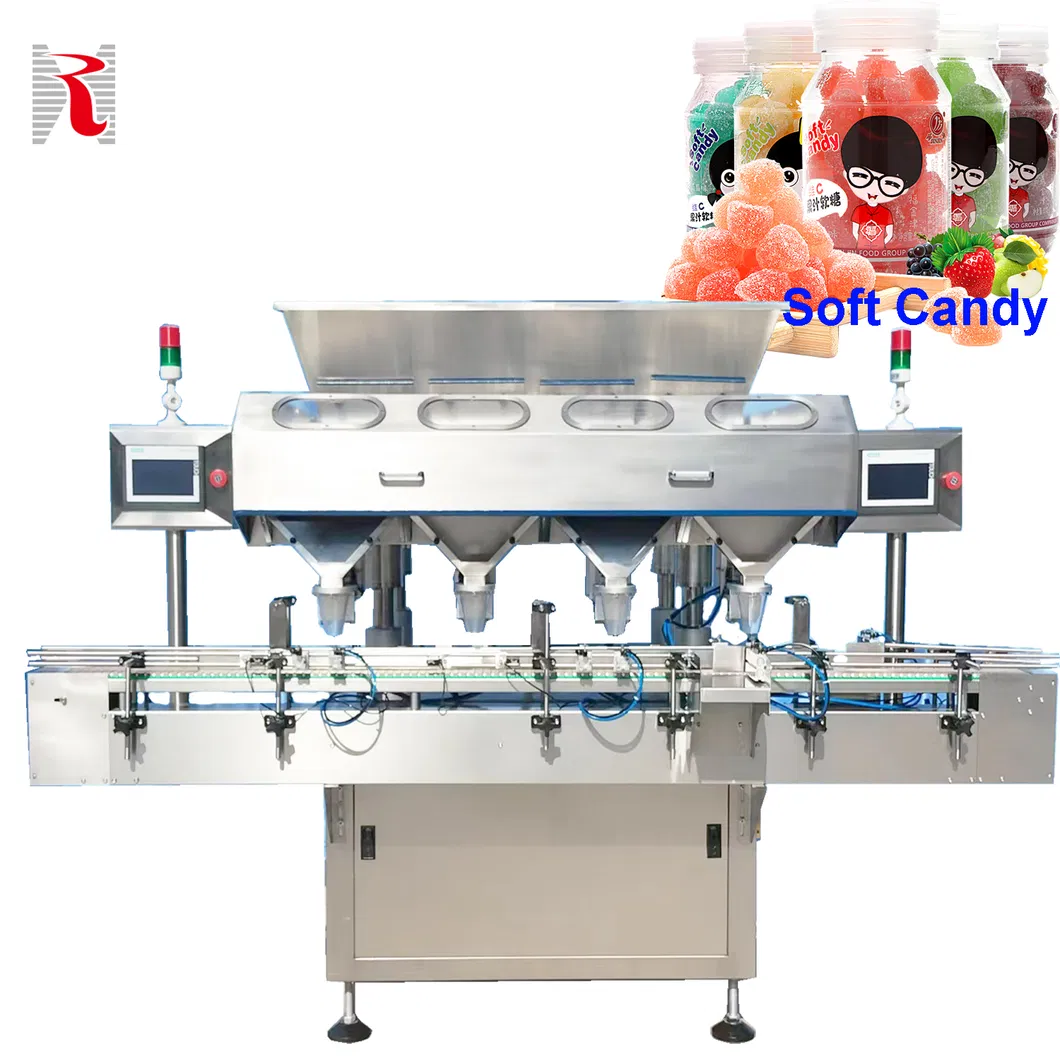

Packing Machine

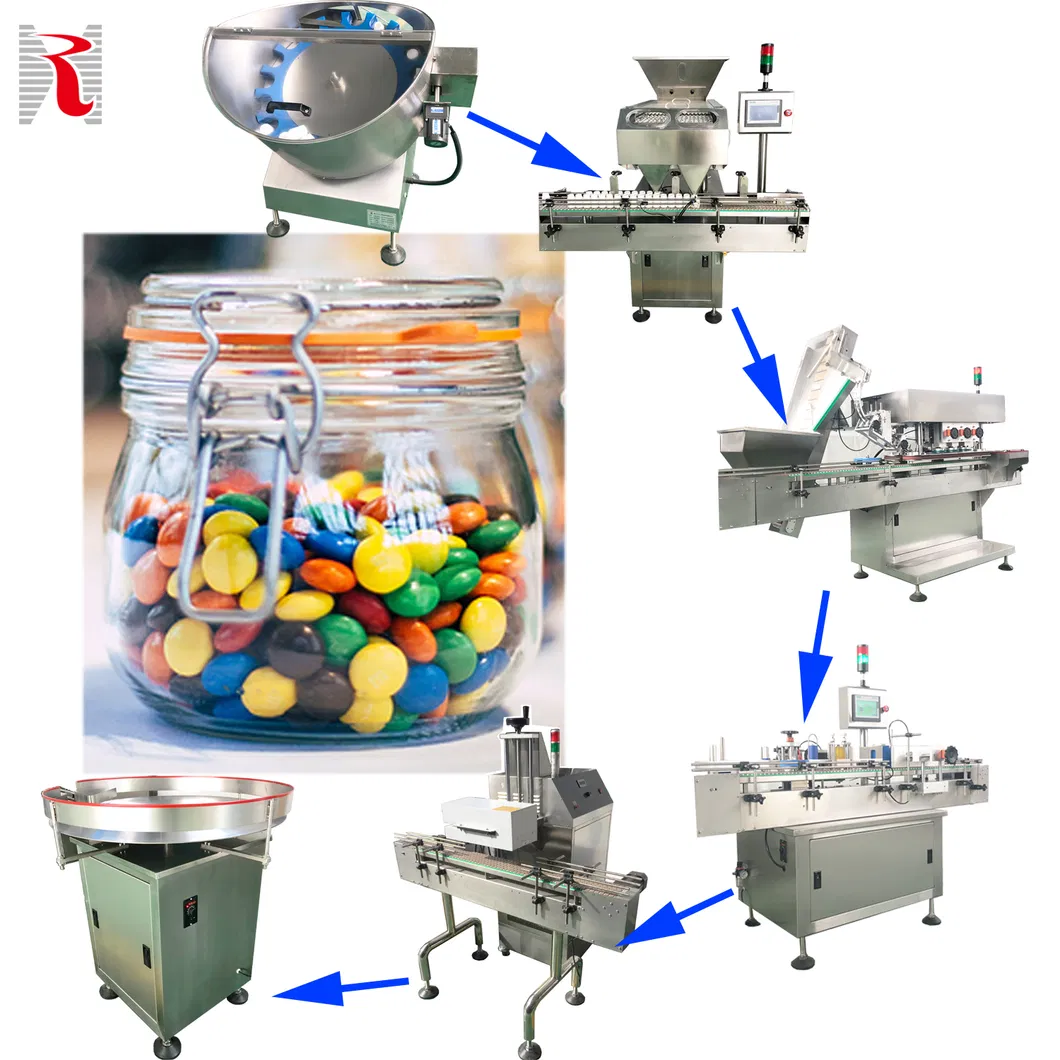

Packing Line
🚢

Packing and Shipping

Wooden Case Packing
Shipping Preparation
⭐

Why Choose Us?

Why Choose Us infographic
❓

Frequently Asked Questions

Where is your factory located and how can I visit?
Our factory is located in a major industrial hub. We warmly welcome you to visit our production base if you have a travel plan; we can arrange a guided tour of our facilities.
How can I be sure the machine is suitable for my specific product?
You can send us material samples for testing. We will record a video and take clear photos of the testing process for your reference. Online video consultations are also available.
Is there any protection for the first transaction?
We operate with all necessary business licenses and certificates. For additional peace of mind, secure trade services can be used to protect your payment throughout the entire transaction process.
What is the warranty period and after-sales support?
We provide a 12-month warranty from the date the machine arrives at your facility. Our professional technical team is available to provide after-sales service to ensure perfect operation.
How do I get a technical quote or contact you?
Please leave a detailed message with your requirements and click the "send" button. Our team will respond promptly with the technical specifications and pricing you need.
Do you provide international installation services?
Yes, we have an experienced team of technicians who can serve customers abroad to ensure the machine is set up and operating correctly in your production line.
