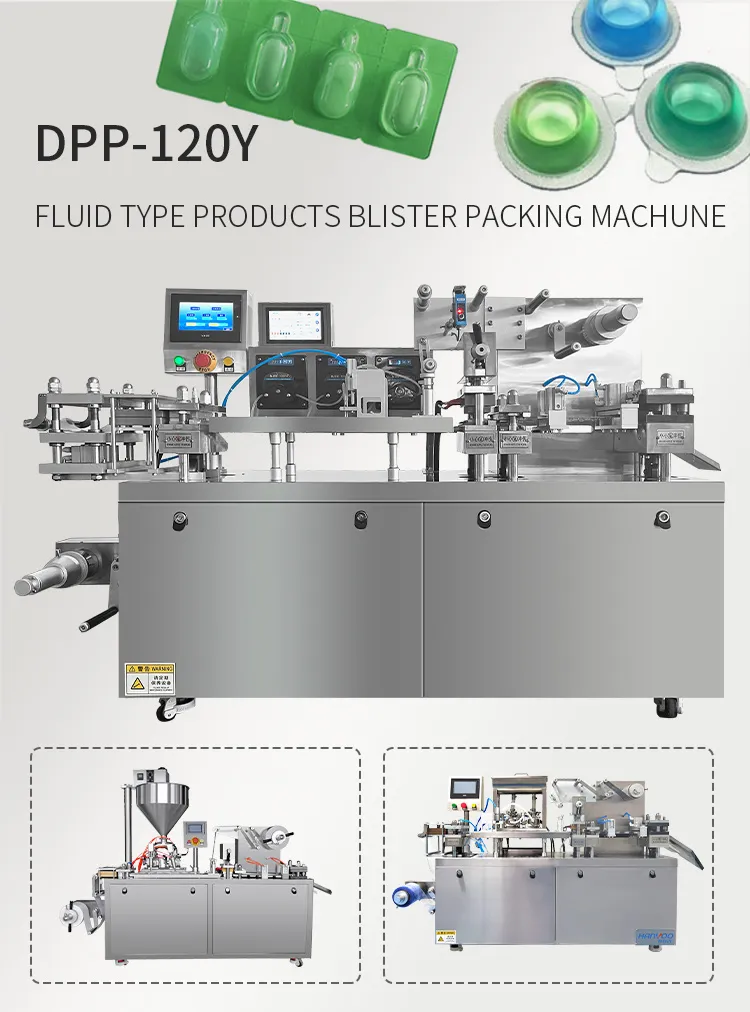

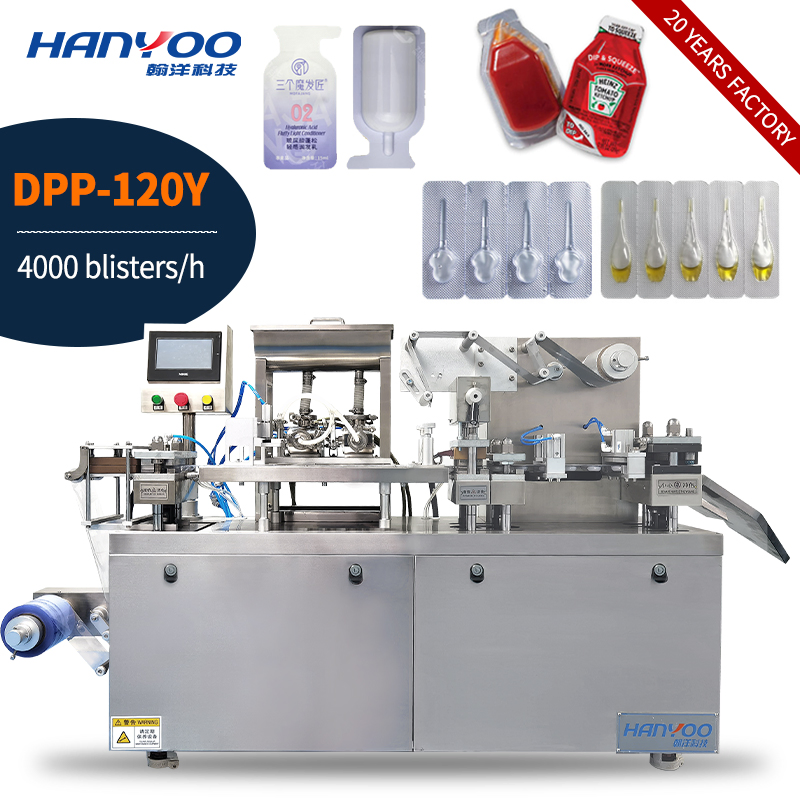

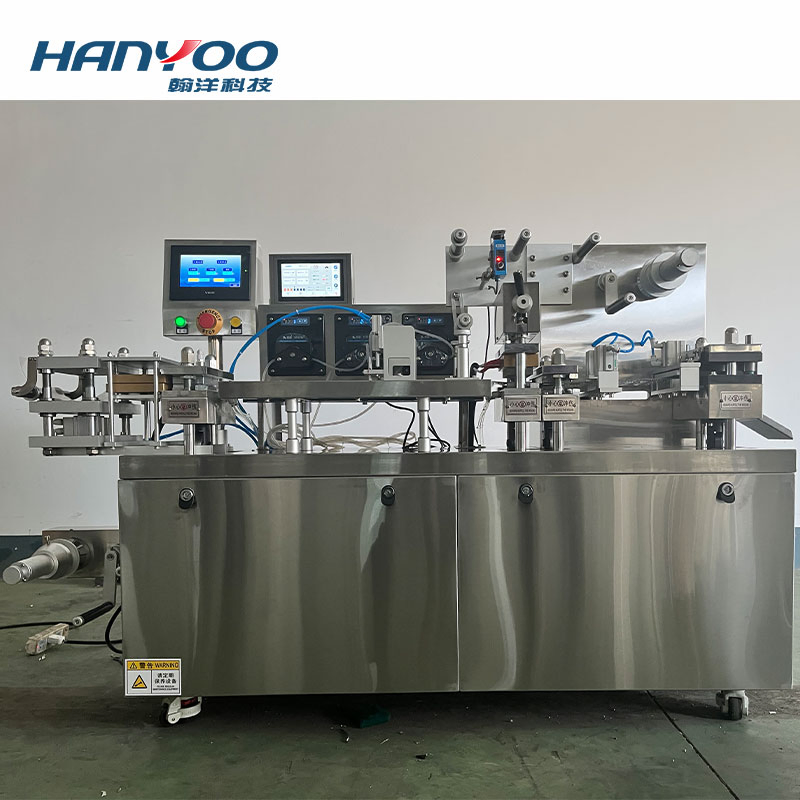

This machine is suitable for liquid products, such as honey, jam, butter, milk, perfume, red worm, olive oil and other blister packaging. The machine adopts programming system control, touch screen panel operation, stepless frequency conversion speed regulation, pneumatic joint control, easy to operate, and economical.

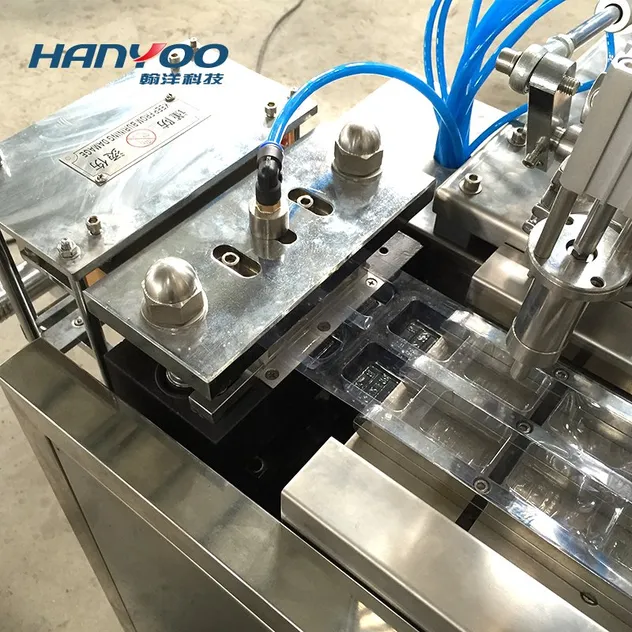

Forming Station: Heats and molds plastic sheets (PVC, PET, PP) into cavities.

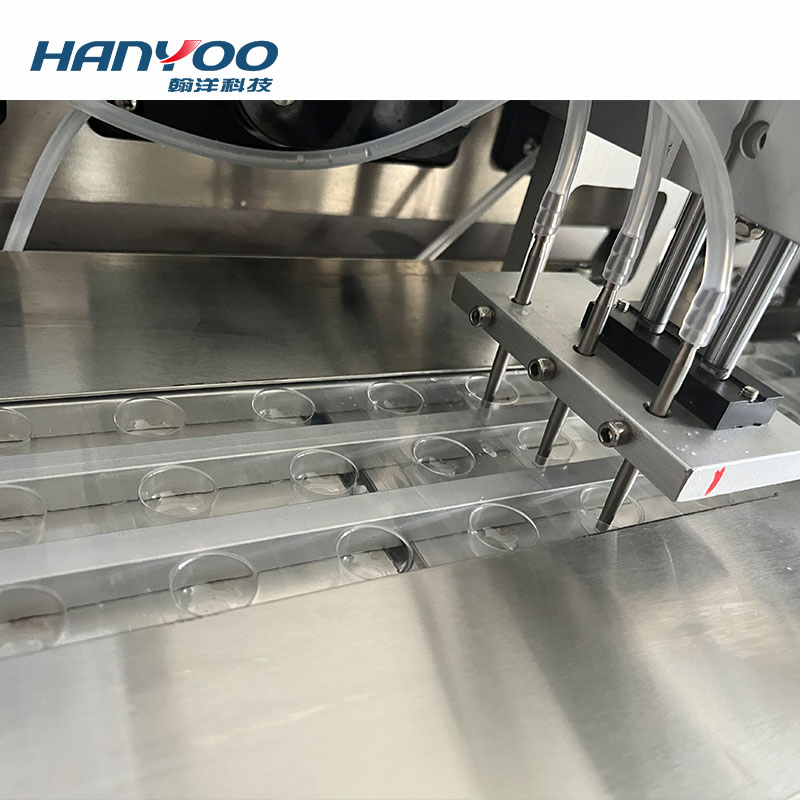

Loading Station: Manual or automatic product placement.
Sealing Station: Applies heat and pressure for bonding lidding material.
Punching Station: Individual blister pack cutting.
| MODEL | DPP-120Y | DPP-170Y | DPP-270Y |
| Output Capacity | 2000-4000 blister/h | 3000-6000 blister/h | 2000-10000 blister/h |
| Driving Length | 40-90mm | 30-110mm | 30-130mm |
| Max. Blister Size | 120×90×20 mm | 170×100×25 mm | 260×120×30 mm |
| Air Consumption | ≥0.36 m³/min | ≥0.4 m³/min | ≥0.5 m³/min |
| Voltage | 220V | Customized | 220/380V |
| Power | 4.5 KW | 6.5 KW | 8.5 KW |

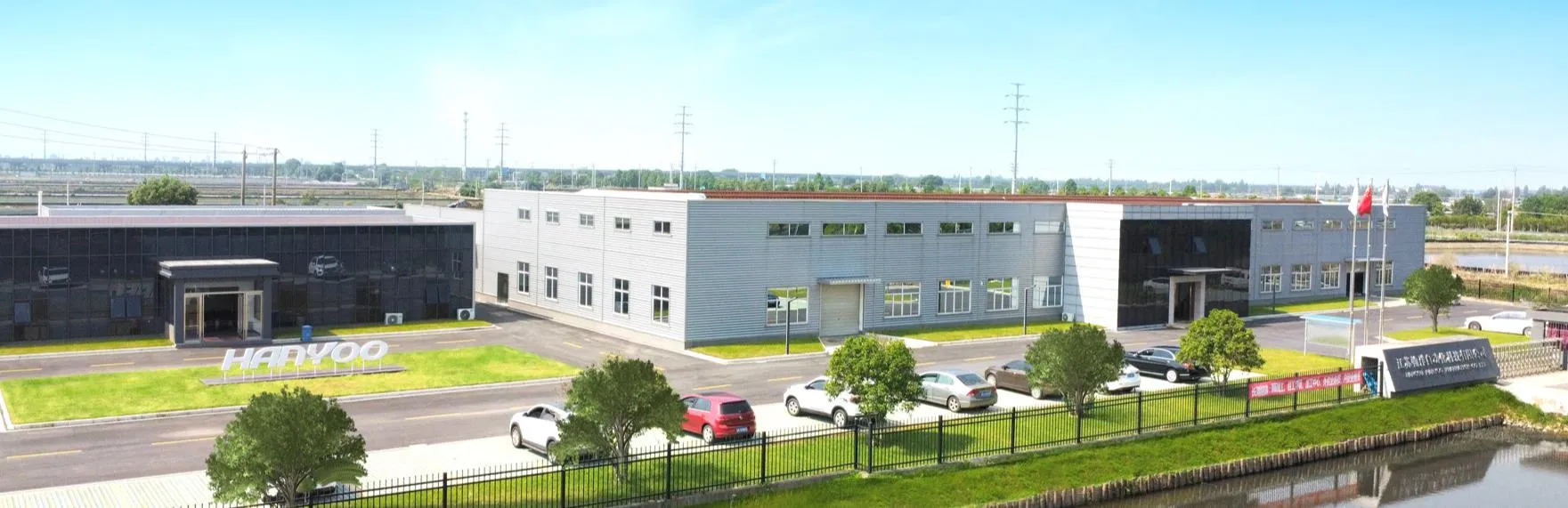

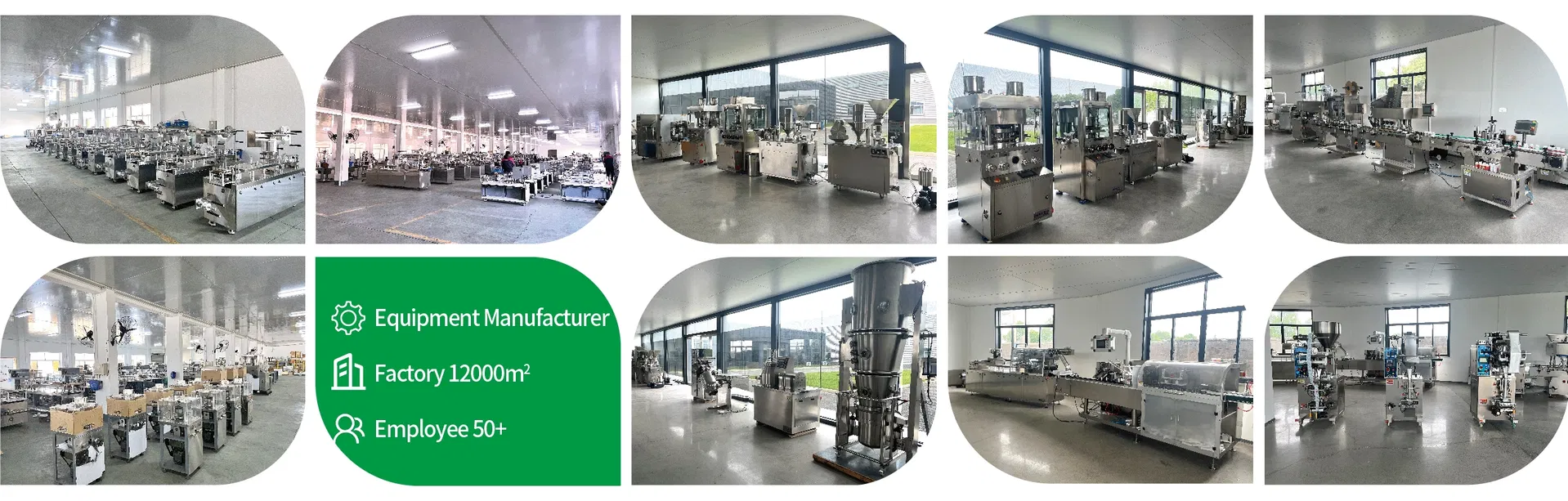

We are a high-technology enterprise specialized in providing professional packaging solutions for pharmaceutical, medical instruments, cosmetics, and electronics industries. With over 20 years of experience in pharmaceutical machinery, we help build intelligent factories globally. Our facility occupies more than 12,000 square meters and houses a leading R&D team and high-precision processing equipment.
