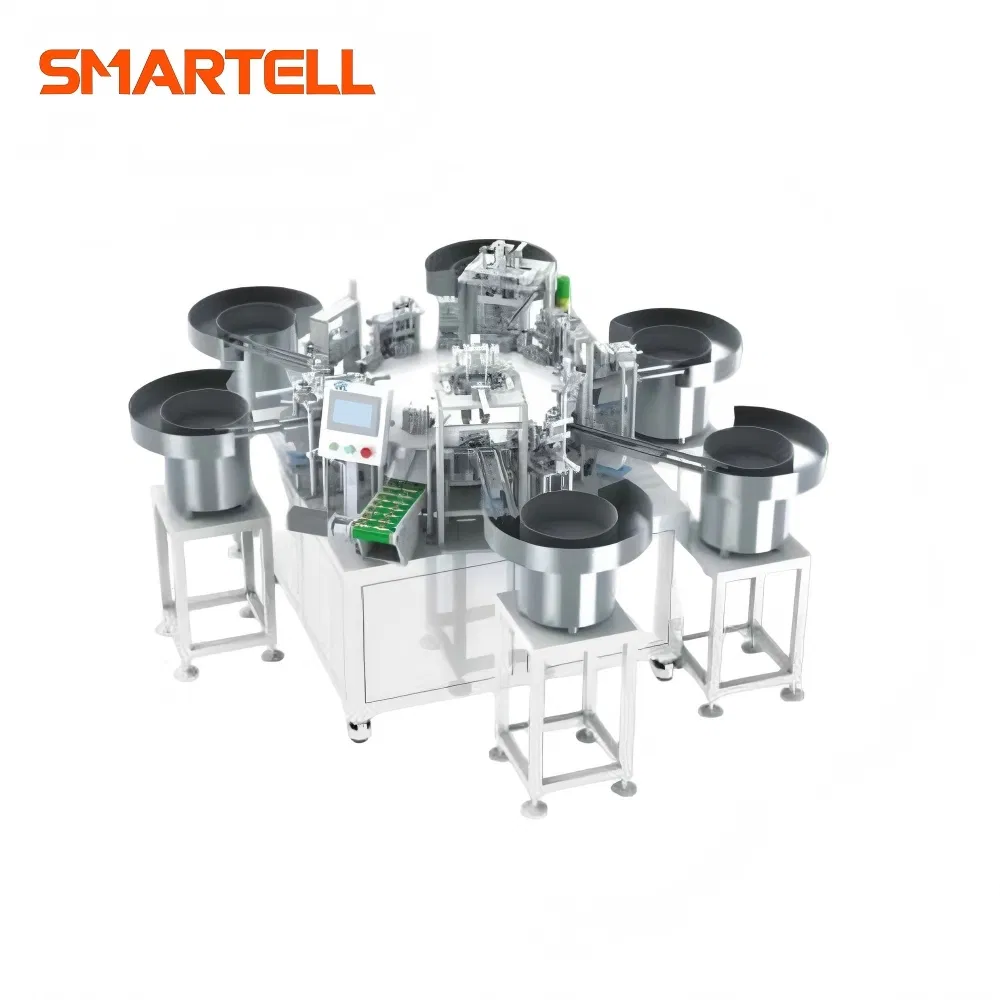

Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
1 / 5
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine
Fully Automatic Infusion Sets Blood Tube Assembly Machine

Fully Automatic Infusion Sets Blood Tube Assembly Machine

Production Scores: Multiple Varieties
Production Continuity: Continuous
Condition: New
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
SMT-3404
Automation
Full Automation
Product Name
Automatic Latex Connector Assembly Machine
Material
304 Stainless Steel
Power
AC220V/1.8kw
Production Speed
70-80PCS/Min
Machine Size
1.5X1.5X1.5m
Warranty
1 Year
Certification
ISO
Package
Wooden Case
HS Code
8479899990
Machine Weight
650kg
⚙️

Product Description

Automatic Latex Connector Assembly Machine
01
This equipment automatically assembles and glues 3-part and 4-part latex tubes.
02
Adopts Japanese OMRON PLC circuit control and Taiwan WEINVIEW touch screen operation.
03
Equipped with optical fiber photoelectric detection: automatic stop when material is missing, and automatic start when material is present.
04
Pneumatic components utilize Japanese SMC cylinders and Mindman valves for high reliability.
05
Contact parts are made of 304 stainless steel and aluminum alloy; other parts are anti-corrosion treated.
📊

Technical Parameters

Specification Single Assembly Double Assembly
Assembling Speed 4500-5000 pcs/h 4500-5000 pcs/h
Input Power A.C 220V 50Hz A.C 220V 50Hz
Machine Size 150*150*150 cm 200*200*160 cm
Power Consumption 1.8 kw 1.8 kw
Air Pressure 0.5-0.65 Mpa 0.5-0.65 Mpa
Weight 650Kg 650Kg
📸

Product Gallery

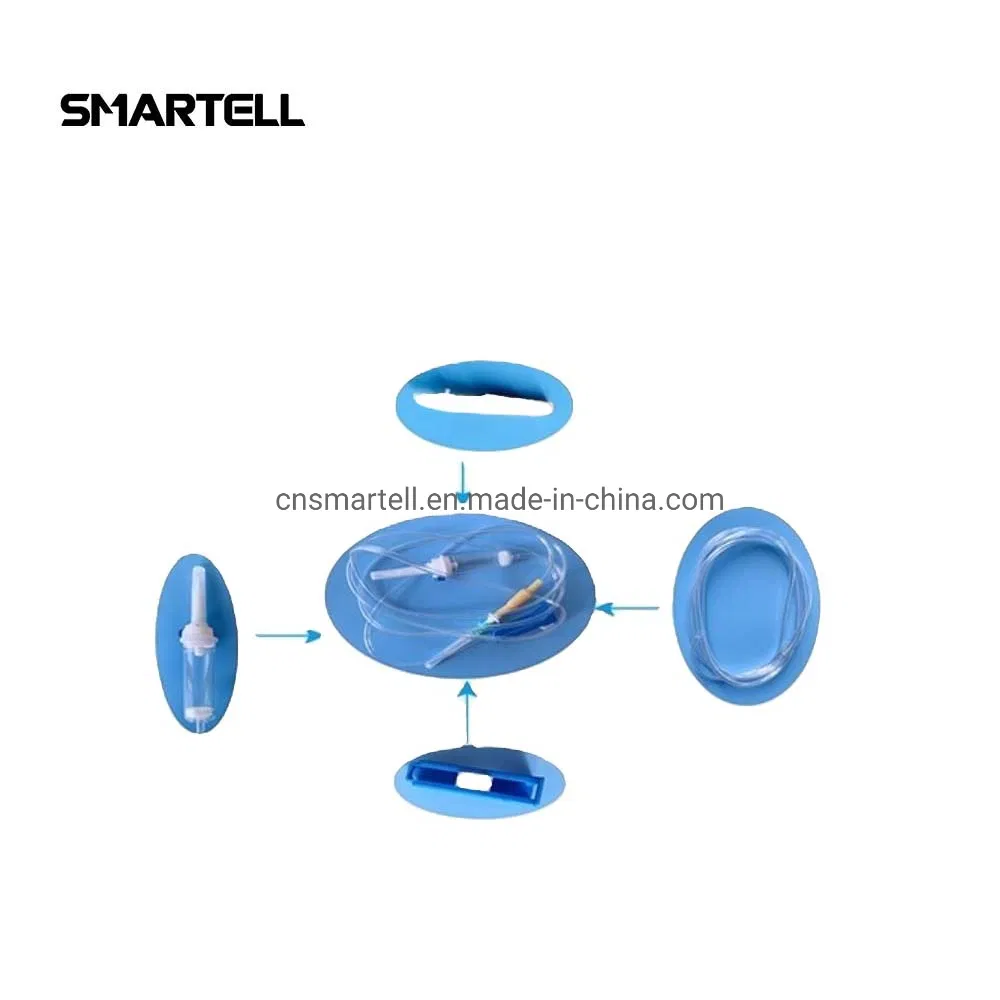

Machine Detail 1

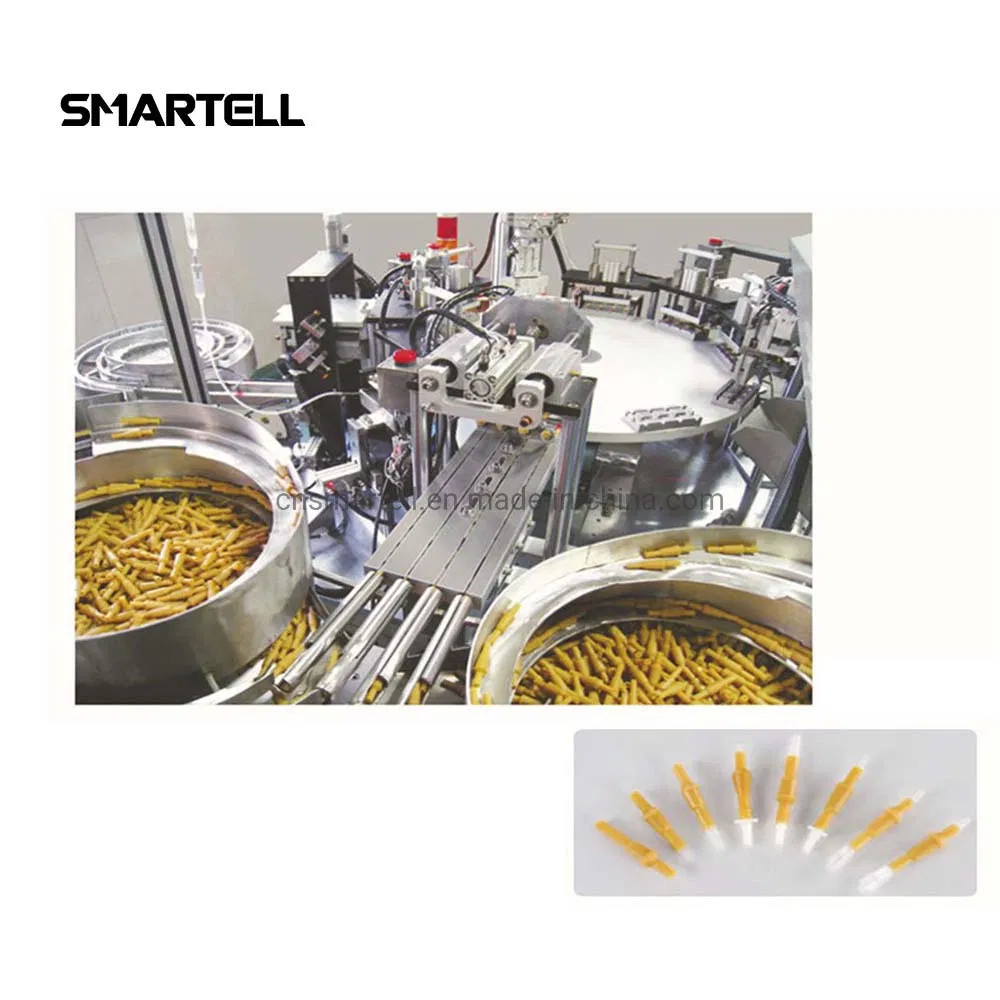

Machine Detail 2
Machine Overview
Operation Side
🛠️

Service & Support

Pre-sales Service

  • Inquiry and consulting support
  • Factory inspection visits

After-sales Service

  • Machine installation & operation training
  • Engineers available for overseas service
  • 1-year free warranty for quality issues
  • Lifetime maintenance and spare parts supply
❓

Frequently Asked Questions

1. What is the production capacity of this assembly machine?
The machine features a high production speed of 70-80 pieces per minute, or approximately 4500-5000 pieces per hour.
2. What control systems are used to ensure precision?
It utilizes a Japanese OMRON PLC for circuit control and a Taiwan WEINVIEW touch screen for intuitive operation and monitoring.
3. Are the machine parts resistant to corrosion?
Yes, all parts in contact with the product are made of 304 stainless steel and aluminum alloy, while other components receive anti-corrosion treatments.
4. Does the machine support automatic error detection?
Yes, the system includes optical fiber photoelectric detection that automatically stops the machine if material is missing and resumes when material is supplied.
5. What kind of after-sales technical support do you offer?
We provide installation and operational training, and our engineers are available to provide machinery service overseas. We also offer a 1-year warranty and lifetime spare parts support.
6. How is the machine packaged for international shipping?
The machine is securely packed in a robust wooden case to ensure safety during transport and delivery.
