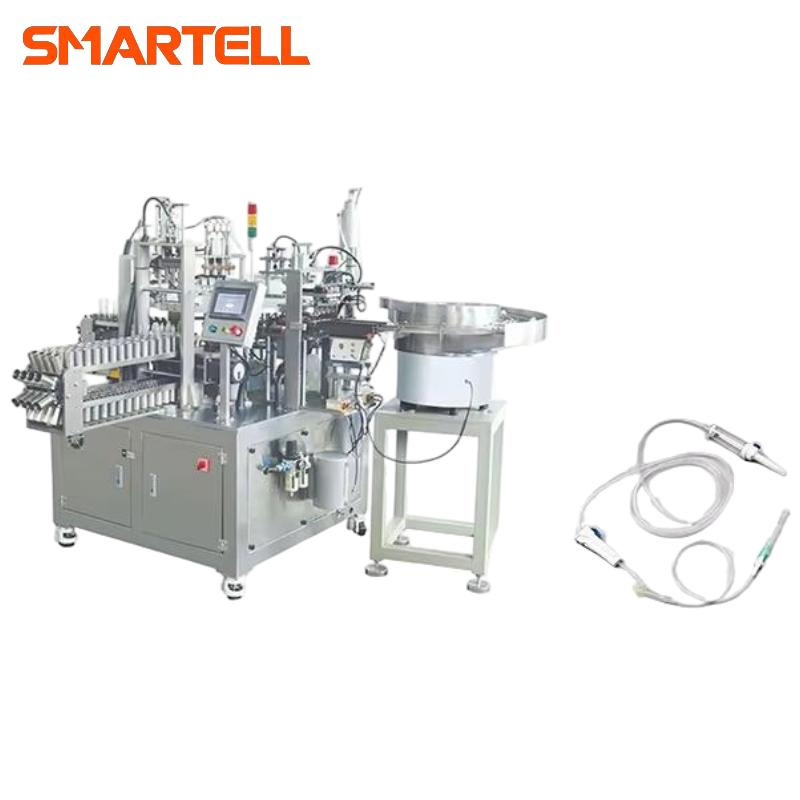

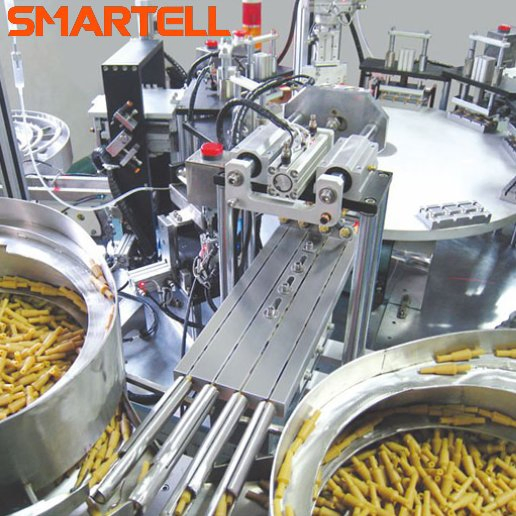

Infusion IV Set Drip Chamber Assembly Machine

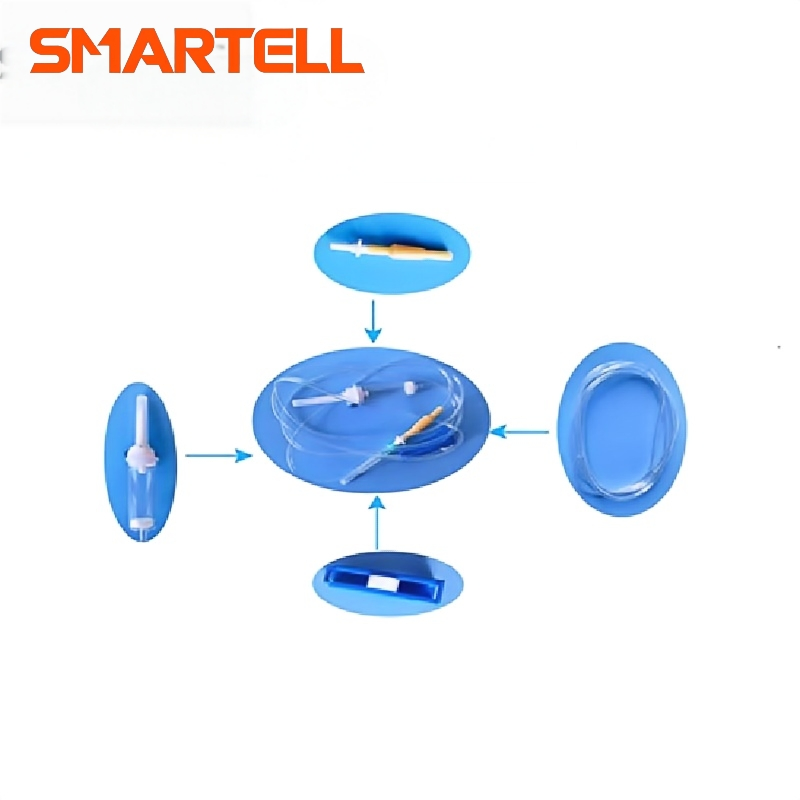

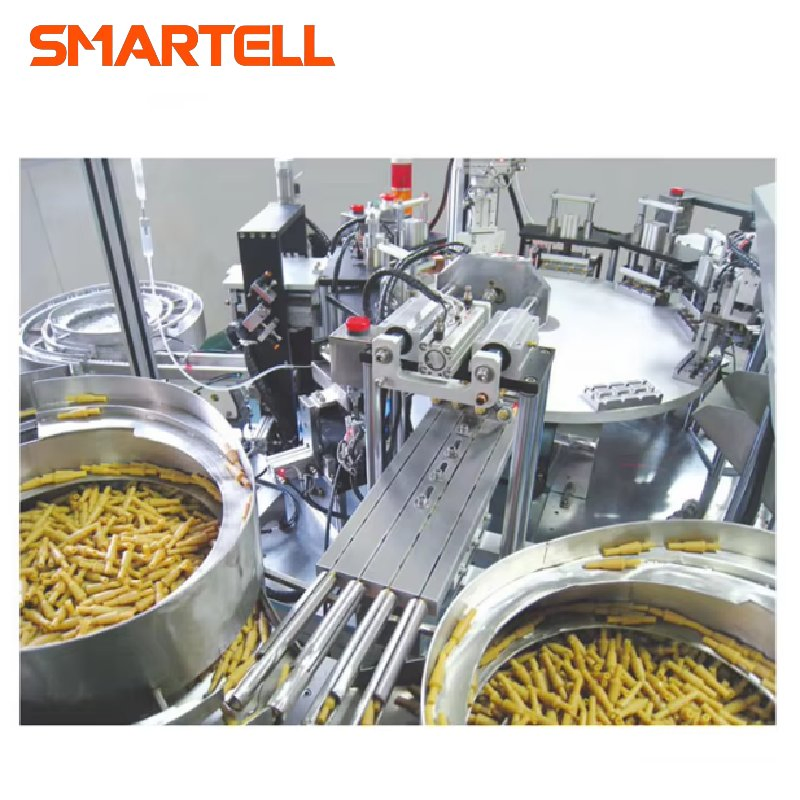

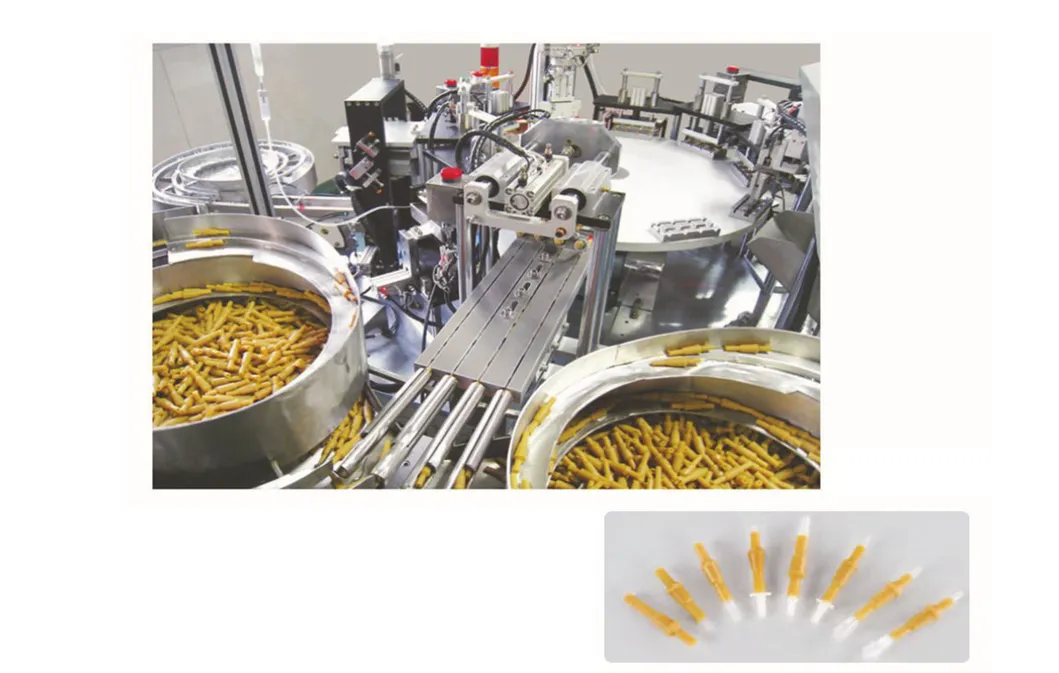

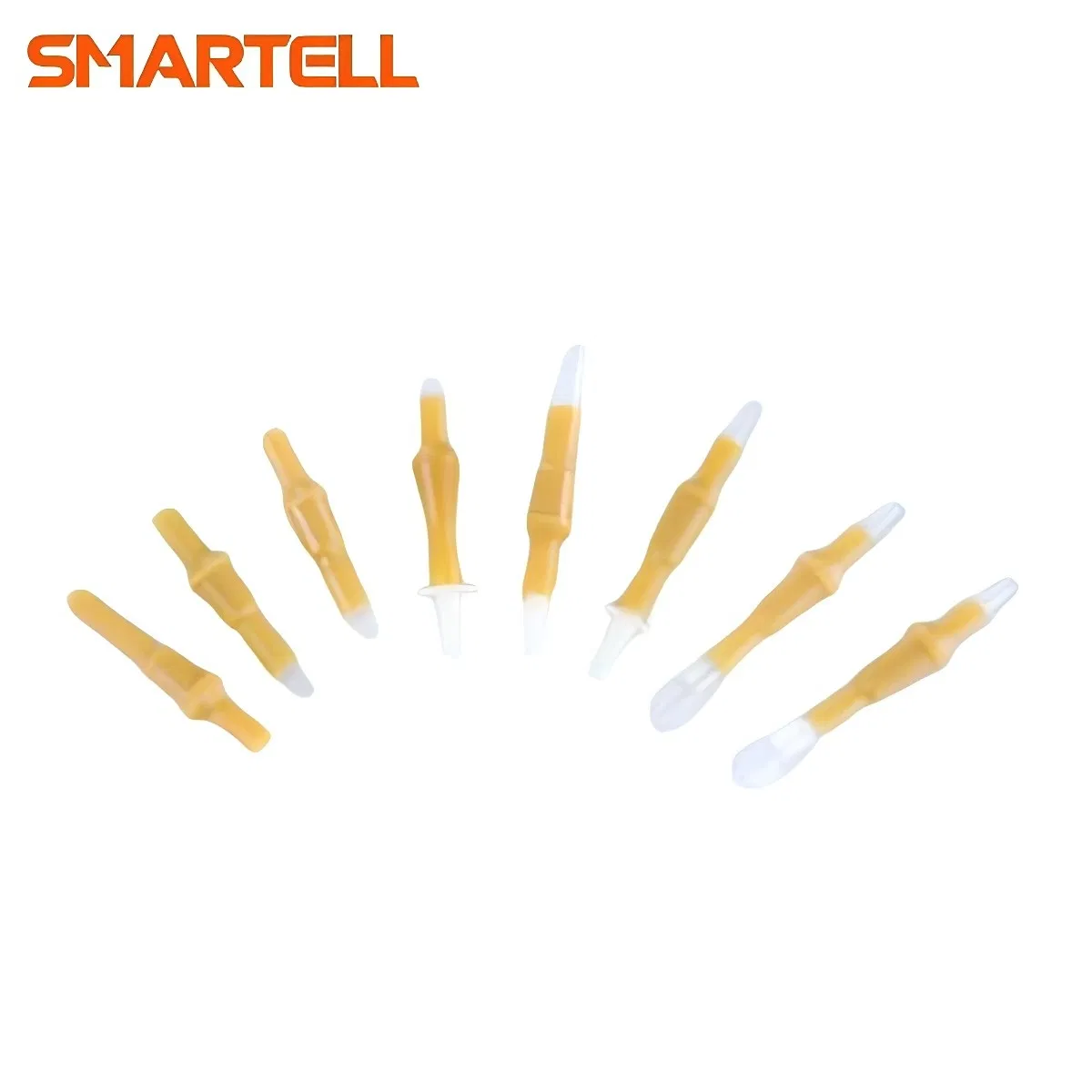

This automated machine is specifically designed to assemble the latex tube with hanging edges, white connectors, and needles. It utilizes a vibrating bowl for material selection and ensures high-precision assembly.
Uses alcohol as an assembly lubricant for the latex tube and connector.
Integrated photoelectric switch for real-time assembly verification.
Automatic separation of unqualified products to ensure 100% quality.
Key Features & Components
Control System: Japanese OMRON PLC circuit control and Taiwan WEINVIEW touch screen operation.
Detection: Advanced optical fiber photoelectric detection; machine stops automatically when material is missing.
Pneumatics: Equipped with Japanese SMC cylinders and Mindman valves for stable operation.
Build Quality: Contact parts are made of 304 stainless steel and aluminum alloy with anti-corrosion treatment.
Frequently Asked Questions
What is the production capacity of this machine?
The machine features a high production rate of 4500 to 5000 pieces per hour, depending on the material and setup.
How does the machine ensure the quality of the assembled parts?
It uses an optical fiber photoelectric detection system. It checks if the connector and needle are correctly assembled and automatically separates any unqualified products.
What materials are used in the construction of the machine?
All parts in contact with the infusion sets are made of high-quality 304 stainless steel and aluminum alloy, with other parts treated for anti-corrosion.
What brands of components are used in the control system?
The machine is equipped with premium components, including Japanese OMRON PLCs, SMC pneumatic cylinders, and Taiwan WEINVIEW touch screens.
Is the machine easy to operate?
Yes, it features a user-friendly touch screen interface (WEINVIEW) and fully automatic PLC control, including an auto-stop function when material is lacking.
What are the power and air requirements?
The machine requires a voltage of 210-230V (50Hz), has a power consumption of 2KW, and needs an air pressure of 0.4-0.5MPa.
