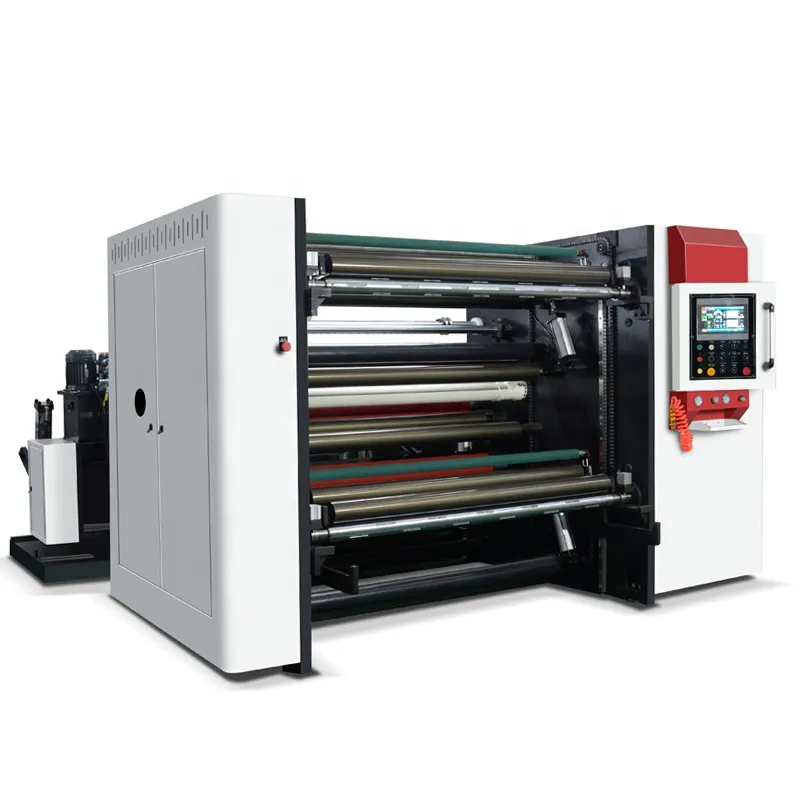

German PLC Control Automatic Brown Kraft Paper Jumbo Roll Slitting and Rewinding Machine For Food Packaging Containers
The SLA series paper roll slitter rewinder machine is an ideal equipment to cut kraft paper, cardboard paper, coated silicon paper, and mg paper for the food packaging industry. With over 10 years of development, this model achieves stable performance and meets requirements for paper cups, paper bags, and food wrappers. It can slit jumbo rolls into narrow rolls (minimum 30mm) for paper cup bottoms and paper bag handles. The rewinder diameter reaches up to 1200mm, improving productivity by reducing roll change frequency.
| Model Name | SLA Series |
| Mother Roll Width (Max) | 1300-2000mm |
| Mother Roll Diameter (Max) | 1400mm (1600mm optional) |
| Mother Roll Weight Capacity | 1400kg (2000kg optional) |
| Rewinding Rolls Diameter (Max) | 1000mm |
| Rewinding Rolls Width (Min) | 30mm |
| Paper Core Size | 3 inch (customize available) |
| Thickness Range | 20-400gsm |
| Cutting Precision | ±0.2mm |
| Speed | 350m/minute |

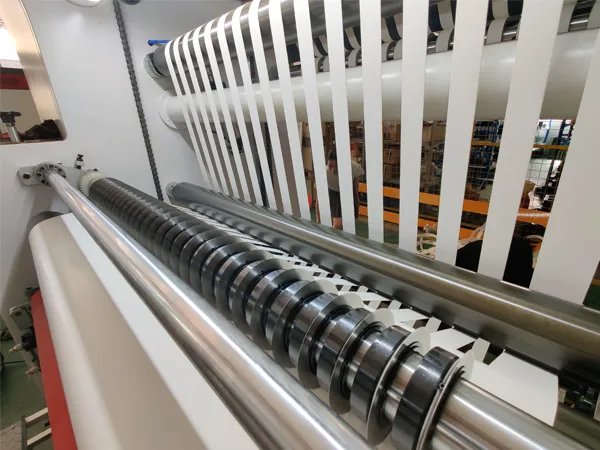

Slitting Knife System: Uses SKD-11 high-speed steel round knives. The mechanical system allows for easy loading and unloading. A semi-automatic positioning system is available to save time during width changes.

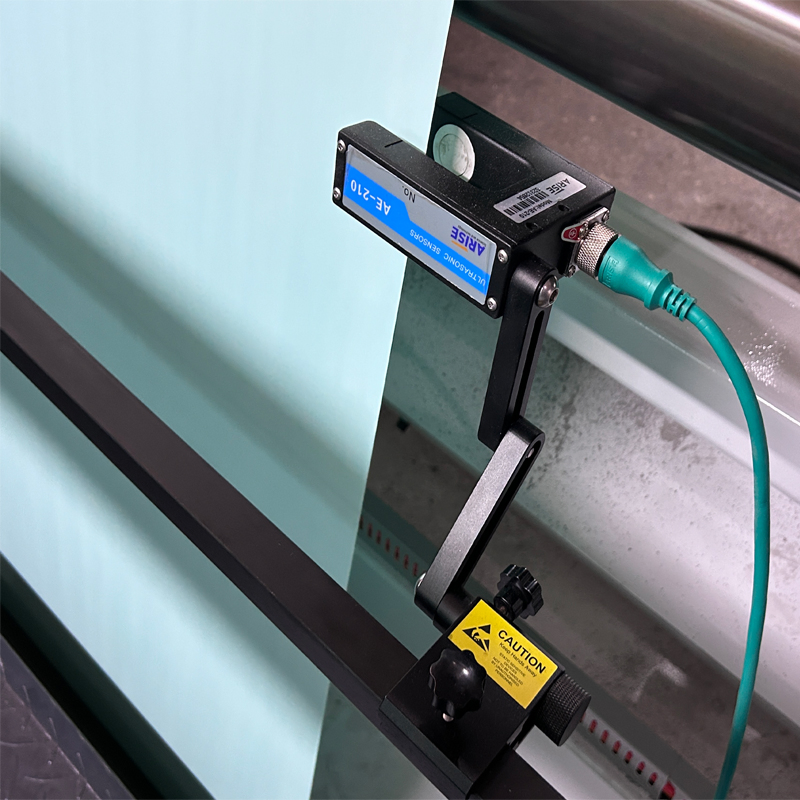

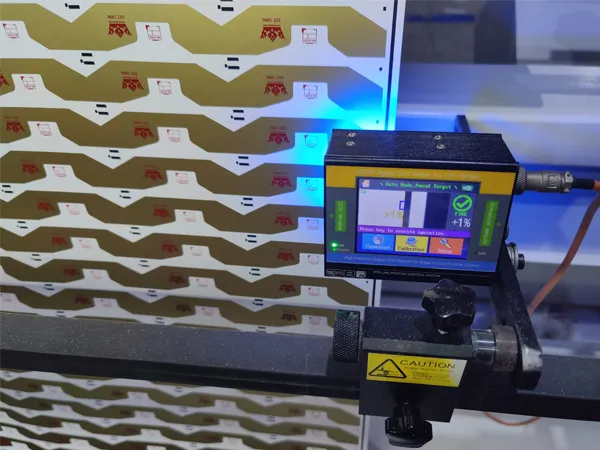

Web Guider System: Also known as the edge position control system. Includes sensors, a control panel, and a driver motor to automatically correct paper roll edge position, reducing waste.

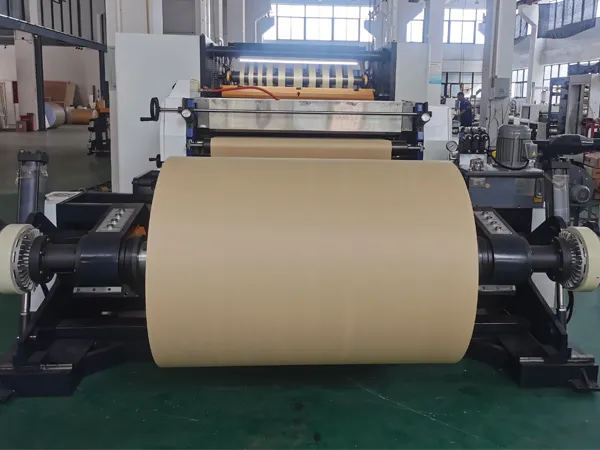

Unwinder Stand: Offers two types: hydraulic shaft-less unwinder for picking up rolls directly from the ground, or pneumatic expanding shaft unwinder.

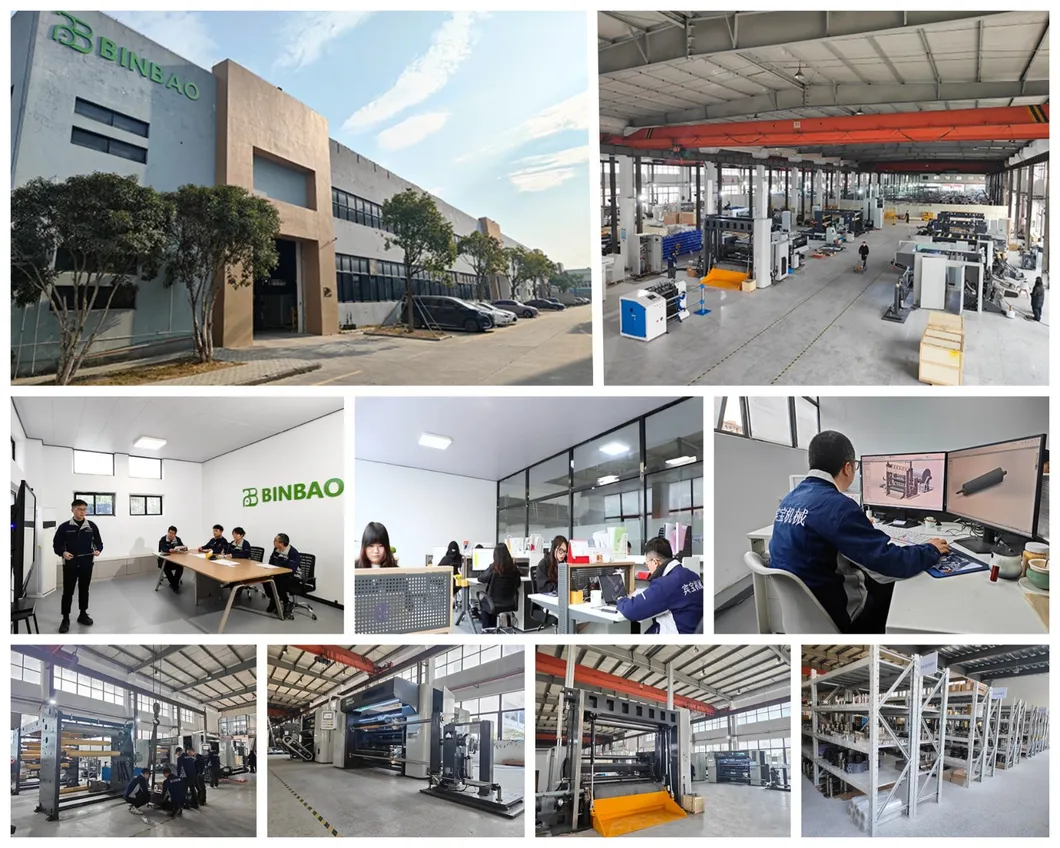

We are a leading manufacturer of paper and film jumbo roll to narrow roll slitting rewinding machines. Our team consists of experts with over 10 years of experience in the packaging and printing machinery industry. We focus on continuous innovation and performance improvement, with a production capacity of 400 units per year serving global users.
