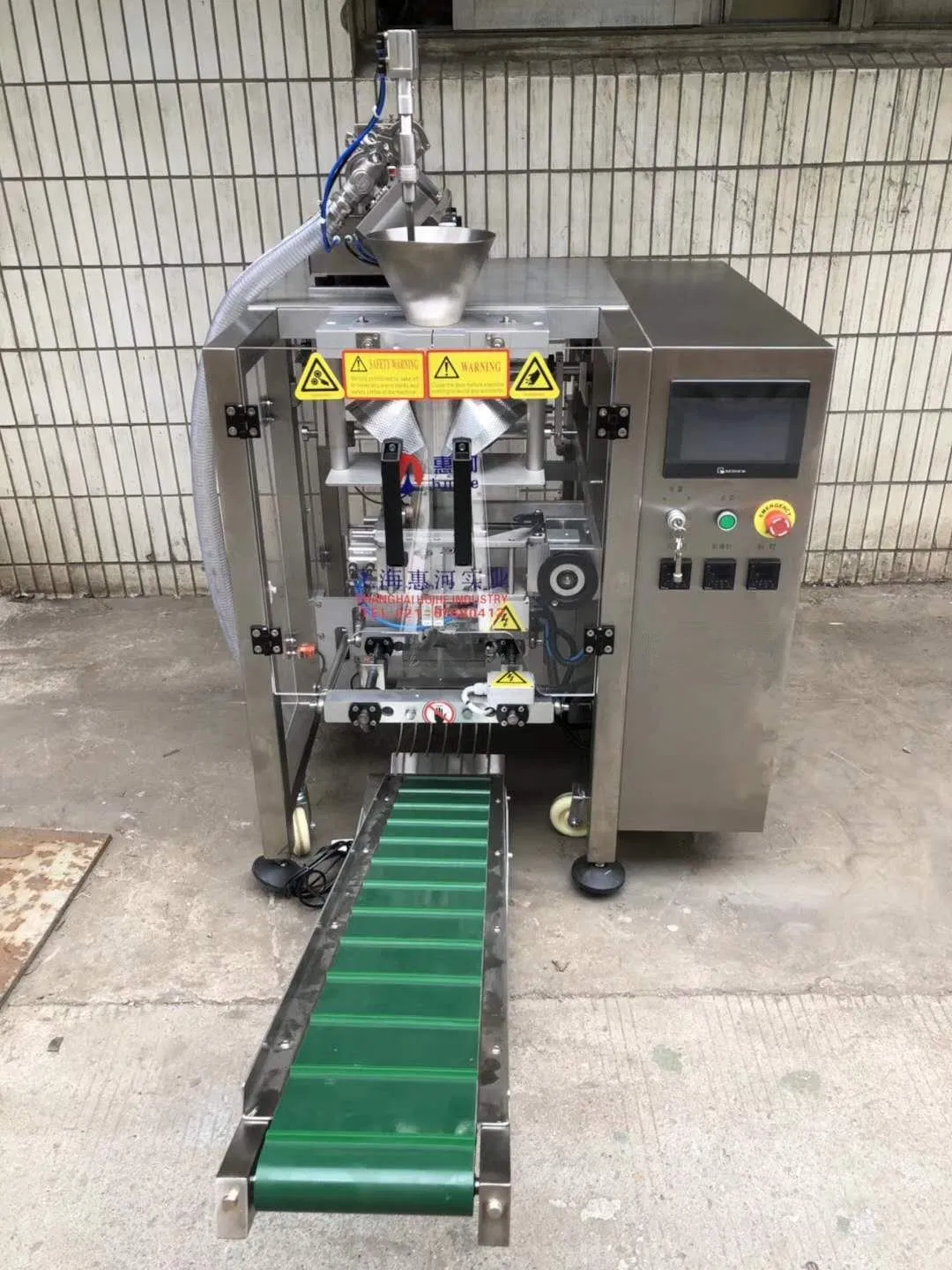

Vertical Medical Alcohol Swab Packing Machine

1 / 5

Vertical Medical Alcohol Swab Packing Machine

Customization:	Available
Warranty:	1 Year
Automatic Grade:	Automatic

Send Inquiry

Product Description

Basic Specifications

Model NO.320, 420, 520

TypeForming Filling Sealing Machine

Driven TypeElectric

Material TypeSolid

PackagingBags / Film

Speed15-60 Bags/Min

Bag TypePillow, Standing-Bevel, Pouch

Lead Time3-4 Weeks

★

Product Description

Vertical Bagging Machine (Granule, Powder, Liquid Bulk)

This machine integrates with automatic weighing systems, measuring cups, manual feeding conveyors, and auger fillers. It provides versatile packing solutions widely used for scattered granular, massive, strip-type, and powder products such as pasta, snacks, seeds, bread, fruit, seasonings, and flour.

Key Features

High efficiency and controllable speed with high returns on investment.
Famous brand PLC control system with a large, user-friendly touch screen.
Servo motor film drawing system and pneumatic controlled horizontal sealing.
Comprehensive process: feeding, measuring, filling, sealing, date printing, and gas filling.

⚙

Technical Parameters

Item	YL-320	YLM-420	YLM-520
Applicable film width	100-320mm	140-420mm	180-520mm
Bag width	60-150mm	60-190mm	80-240mm
Bag length	50-200mm	50-230mm	100-300mm
Packing speed	20-50bpm	15-60bpm	15-60bpm
Power supply	220V 50Hz, 3KW	220V 50Hz, 3.5KW	220V 50Hz, 3.5KW
Machine weight	350kg	450kg	550kg
Dimension (mm)	1300960990	134010601150	155011601480

Gallery

Factory & Production Show

Office Area

Assembly Area

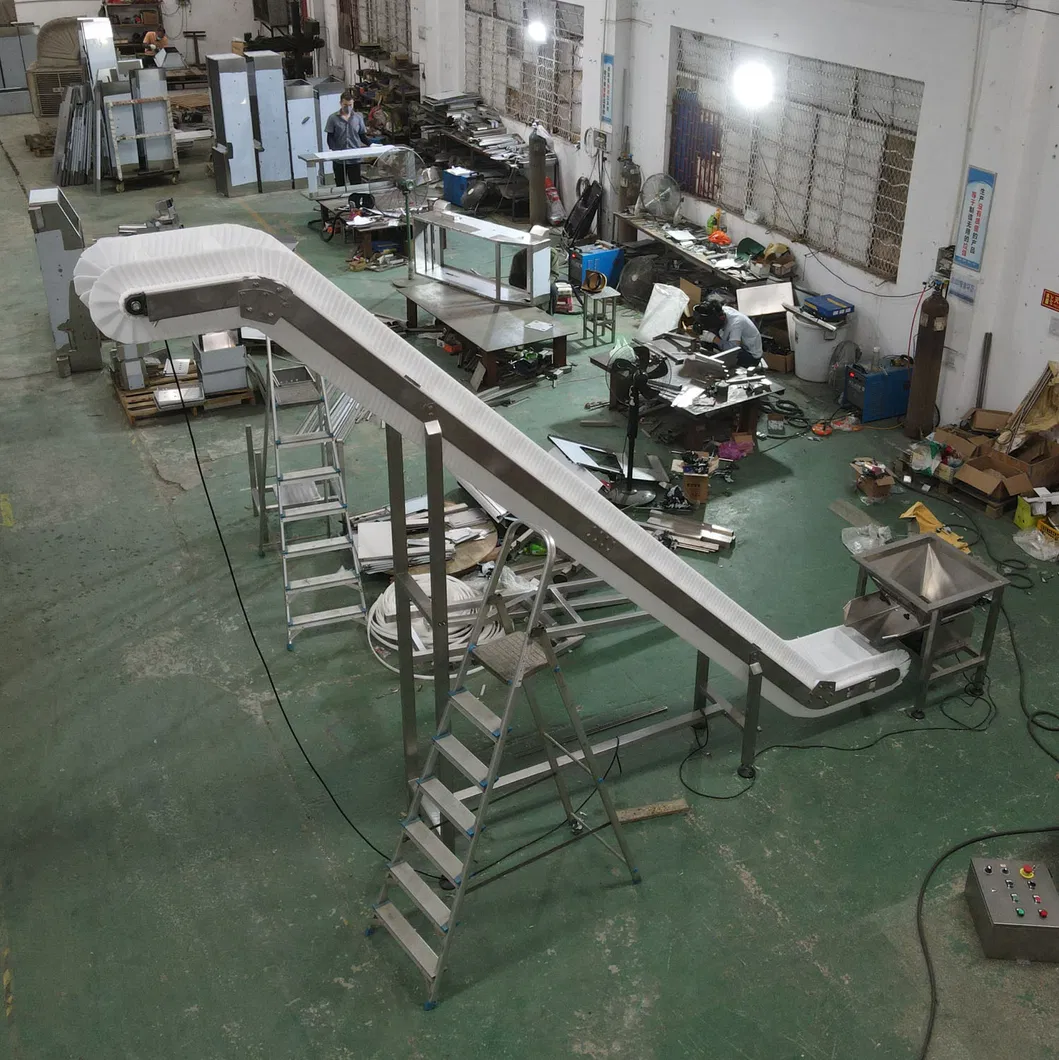

Material Processing Area

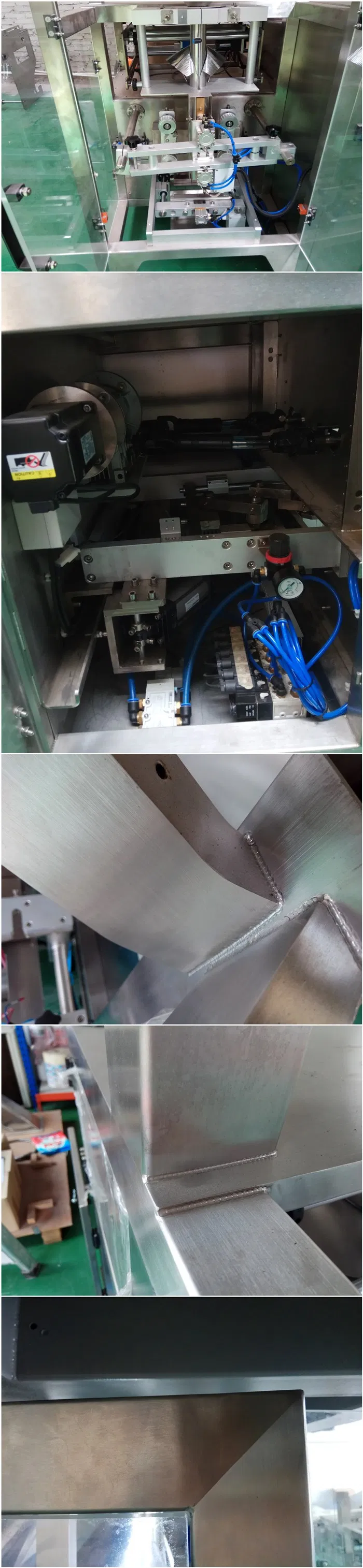

Packing Area

Our Services

Pre-sales

• 2h inquiry feedback
• 24h technical proposal
• Selection assistance
• Free design & drawing

In-sales

• 4x production feedback
• Full supervision
• Free installation & debugging
• Operator training

After-sales

• Follow-up services
• Online technical help
• Overseas testing available
• Cost-price maintenance

Frequently Asked Questions

What are the available trade and payment terms?

We accept EXWORK, FOB, CIF, and CFR. Payment terms are typically 30% T/T deposit and 70% balance before delivery.

How long is the delivery time?

The standard lead time is 25-35 days, depending on the specific order quantity and customization requirements.

What kind of packaging is used for shipping?

The machines are wrapped in bubble film internally and packed in Export Standard Plywood Cases externally for maximum protection.

What is the warranty period for the machinery?

We provide a one-year warranty for free replacement of wearing parts. Beyond the warranty, parts are provided at cost price.

Which shipping methods are supported?

We can arrange shipment by sea, air, railway, or truck according to the specific requirements of the customer.

Can the machine handle different bag types?

Yes, it supports various bag types including Pillow-Type bags, Standing-Bevel bags, and Pouch bags depending on the configuration.
