Warranty: 1 Year
Automation: Automatic
Raw Material: ABS
Send Inquiry

Product Description

Basic Information
Model NO.PDVF-Mo
Shaping ModeDie Molding
Driven TypeElectric
ComputerizedComputerized
After-sales Service1 Year
ColorBlue
Customs Code8477409000
Output200PCS/Year
Transport PackageSimple Packaging or Wooden Crates
SpecificationForming area: 7700mm*1600mm
Production Capacity200PCS/Year
Product Description

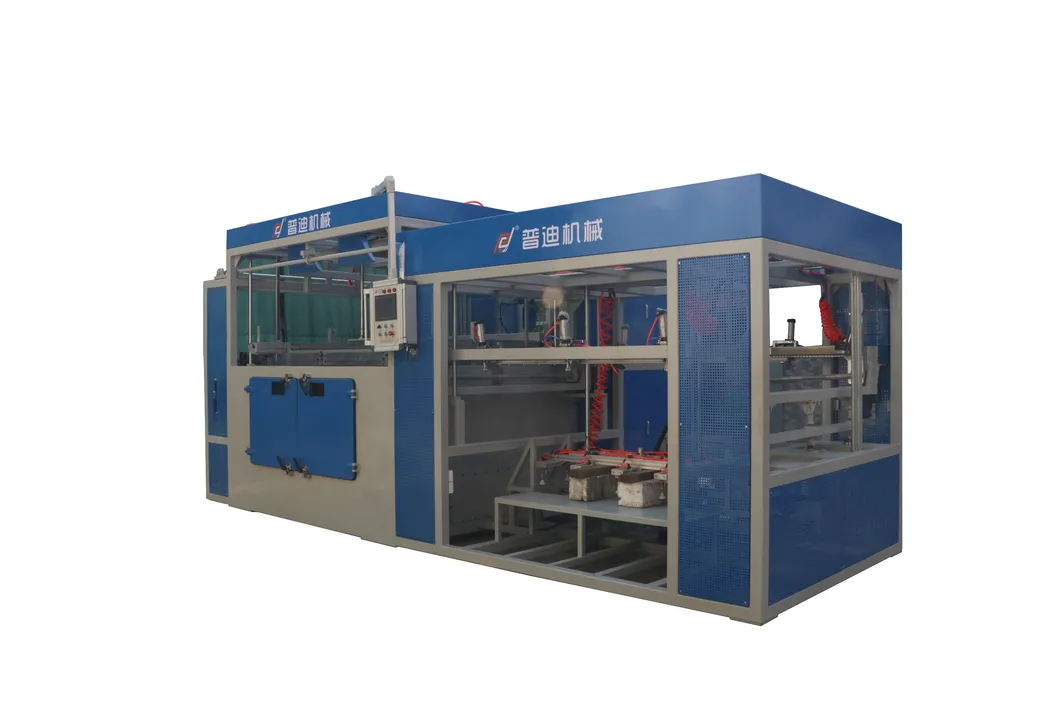

⚙ Automatic Loading and Unloading Thick Sheet Vacuum Forming Machine
NO. ITEM Technical parameters
1Maximum wellhead sizelength:1600mm, width:1300mm
2Molding depth500mm
3Applicable material thickness1-10mm
4Main power supplythree-phase, five-wire 380V±15V, 50Hz
5Heating powerUpper furnace: 41kw; Lower furnace: 41kw
6Total power100kw (Normal use between 50-70%)
7Mold Forming MethodConcave-convex molding (one-shot-molding)
8Furnace powerVariable Frequency Motor Drive
9Mold table powerServo motors (both upper and lower)
10Cooling formPowerful fans
11Heating unitsFast medium wave infrared heaters with analog voltage regulation
12Vacuum stateMatching size secondary vacuum
13Pressure frames and wellhead structuresArbitrary adjustment within specified size
14Plate conveyingHandheld
15Product demolding pickupPneumatic blowback demolding
16Other FunctionsBlowing bubbles, anti-sagging, large and small vacuums
17Adaptation to processing materialsPP, PC, PE, PVC, ABS, PS and other thermoplastic sheets
18Machine external dimensionsLength: 2800mm, Width: 4000mm, Height: 3400mm

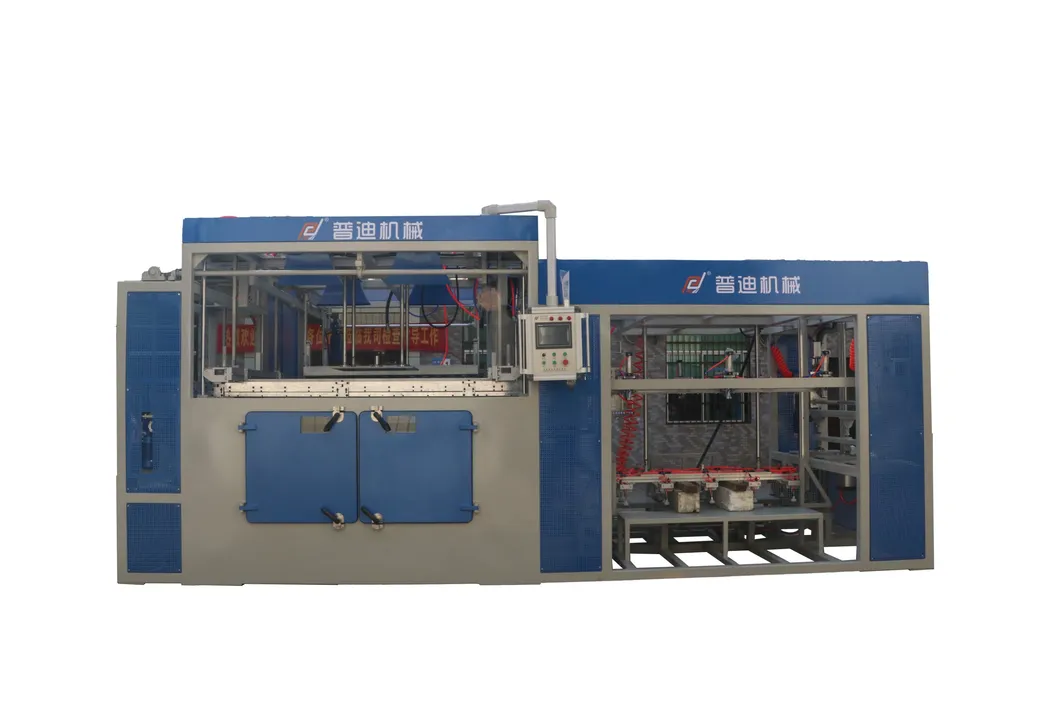

Vacuum Forming Machine
Thermoforming Machine

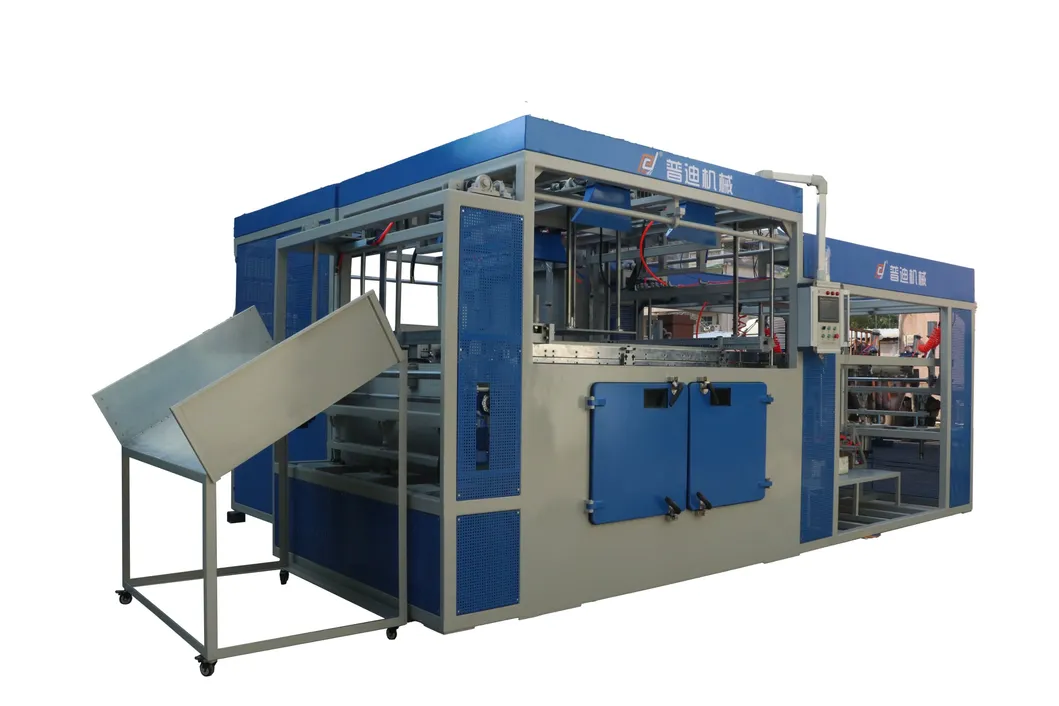

Plastic Forming Machine
Applications

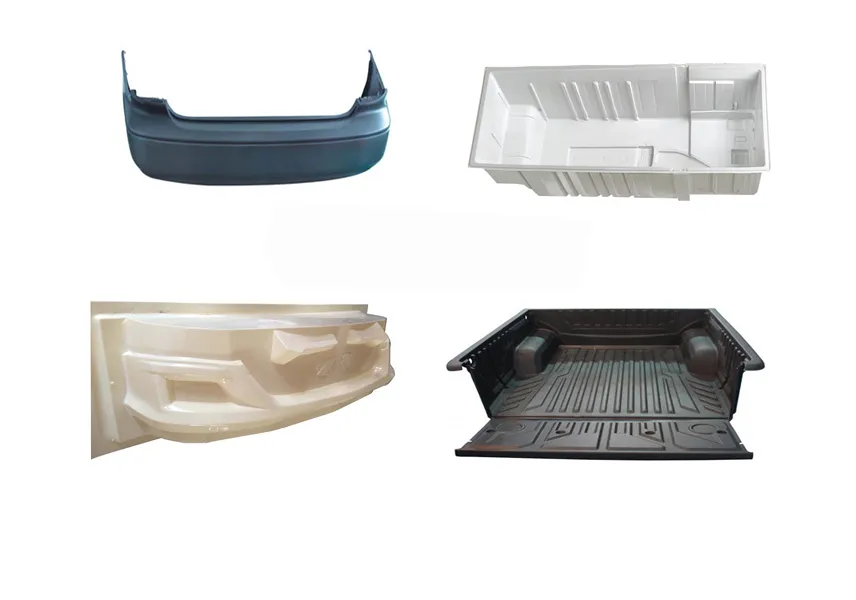

Product Samples
Detailed Machine Drawings

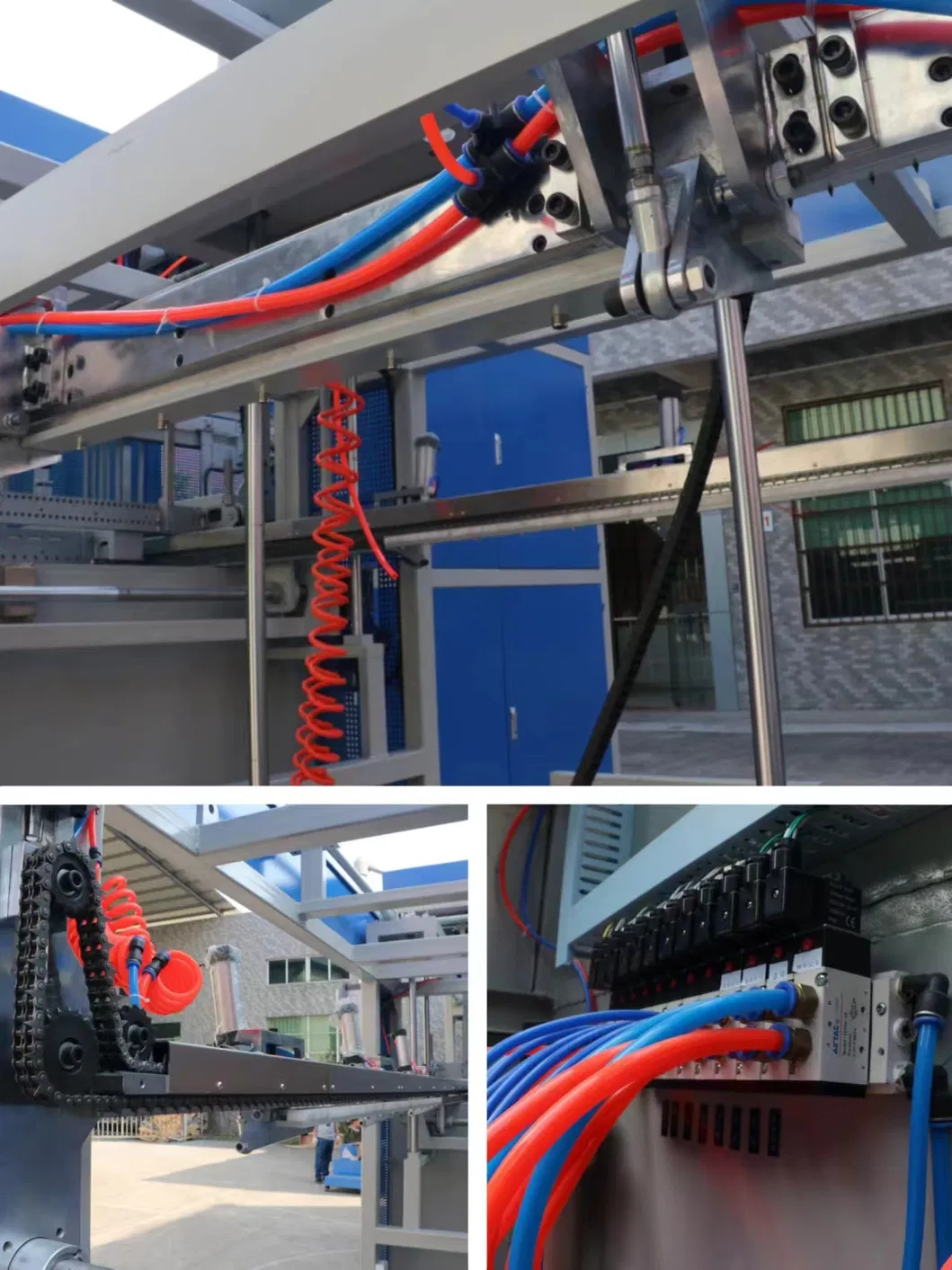

Machine Detail 1

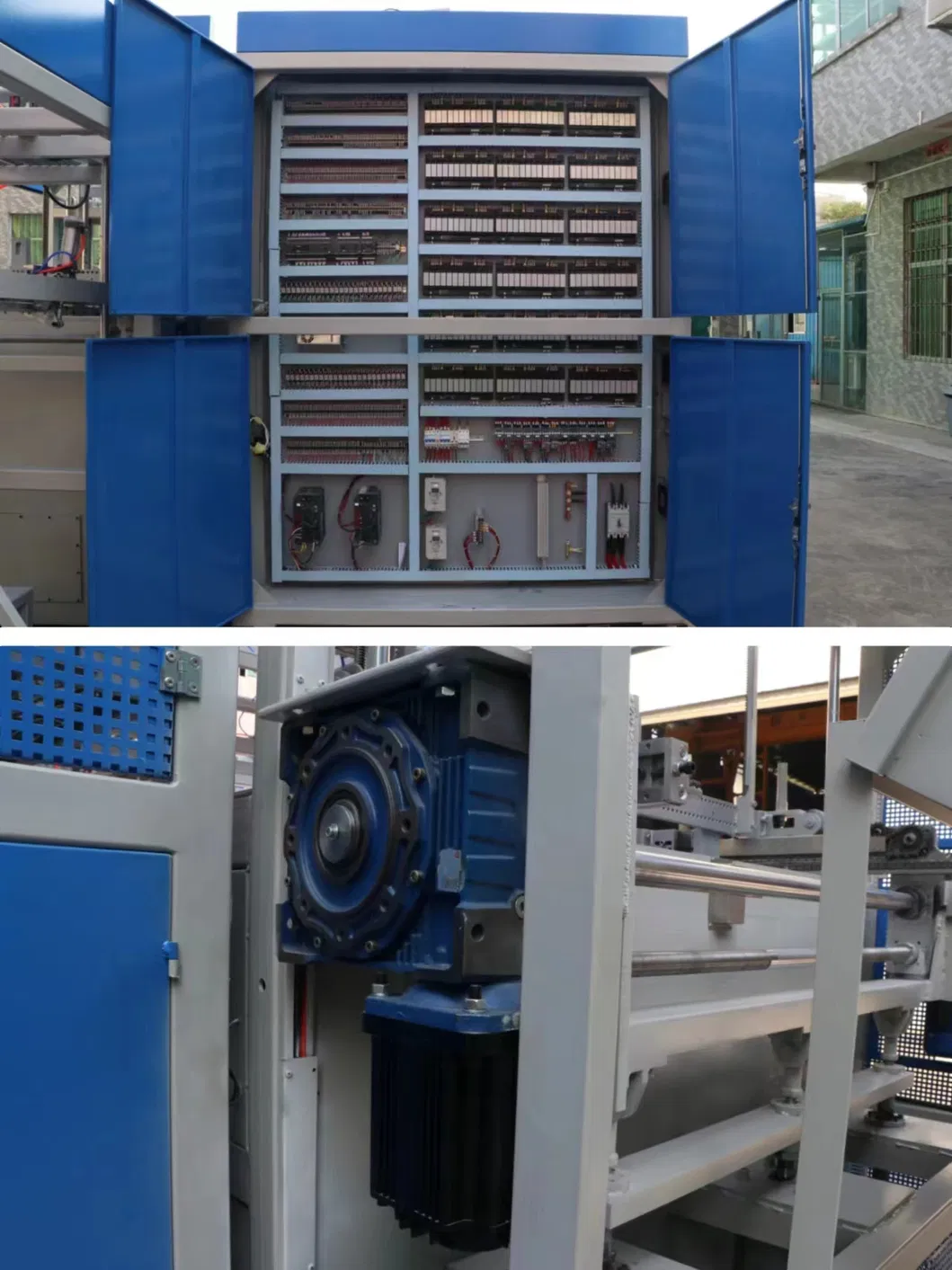

Machine Detail 2
Our Expertise & Advantages
  • Professional Technical Team: 20 years of R&D and production experience in vacuum moulding technology.
  • Non-standard Customised Service: One-stop service providing complete vacuum forming solutions.
  • Quality Assurance: All mechanical parts are produced independently by CNC machining centres.
  • Worry-free Service: Integrated installation, commissioning, and training.
Service Standards
Pre-sales Service
  • Provide reasonable programs and investment ratios for equipment.
  • Supply specifications for water, electricity, and gas requirements.
  • Workshop planning and layout assistance.
  • Resource sharing for mold and material manufacturers.
The Sale of Services
  • Mold planning proposals to improve production efficiency.
  • Responsible for installation, commissioning, and staff training.
  • Production suggestions for newcomers to the plastic industry.
After-sales Service
  • One-year warranty for the entire equipment with free part exchange (excluding man-made damage).
  • Lifetime maintenance with cost-based pricing after the warranty period.
  • Periodic follow-up visits to ensure optimal machine performance.
Frequently Asked Questions (FAQ)
Q1: What types of materials can this vacuum forming machine process? A: The machine is designed to process various thermoplastic sheets, including PP, PC, PE, PVC, ABS, and PS.
Q2: What is the maximum thickness of the material that can be used? A: The machine supports an applicable material thickness ranging from 1mm up to 10mm.
Q3: How deep can the machine mold the products? A: This model features a maximum molding depth of 500mm.
Q4: What kind of heating technology is utilized? A: It uses fast medium wave infrared heaters with analog voltage regulation for precise temperature control.
Q5: What is the warranty and maintenance policy? A: We provide a one-year warranty for the whole equipment and offer lifetime maintenance services.
Q6: Can the machine be customized for specific sizes? A: Yes, we provide non-standard customized services to meet specific production requirements and dimensions.
