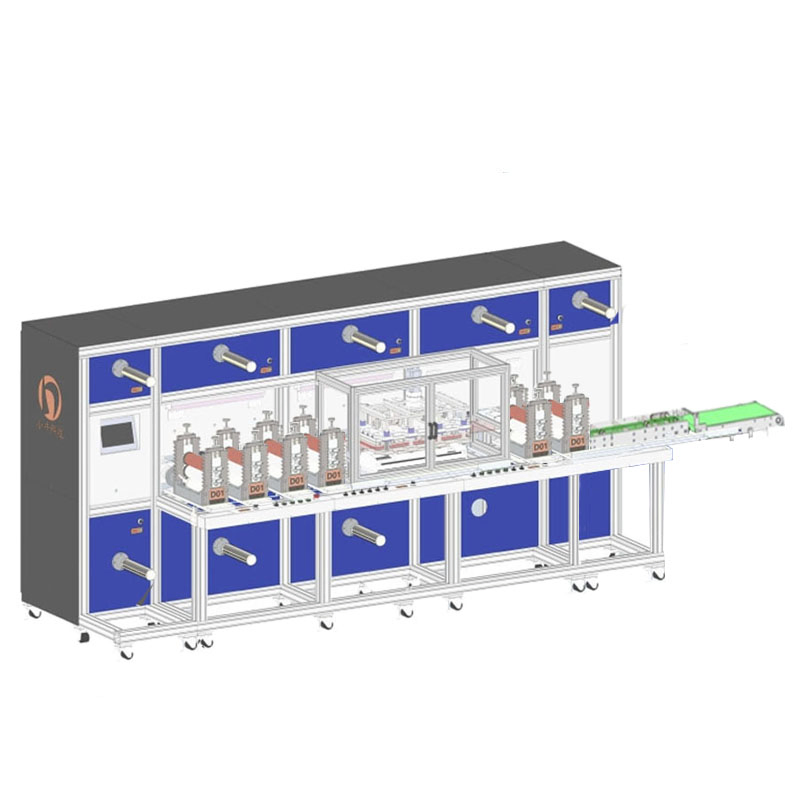

User-Friendly Medical Catheter Fixing Machine for Disposable Dressings

1 / 5

User-Friendly Medical Catheter Fixing Machine for Disposable Dressings

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Product Overview

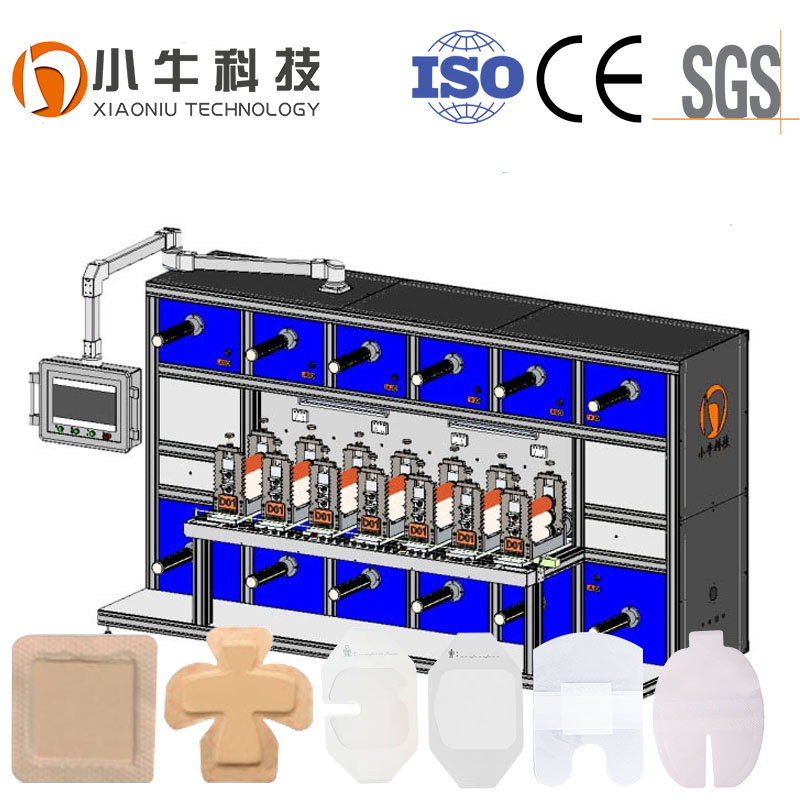

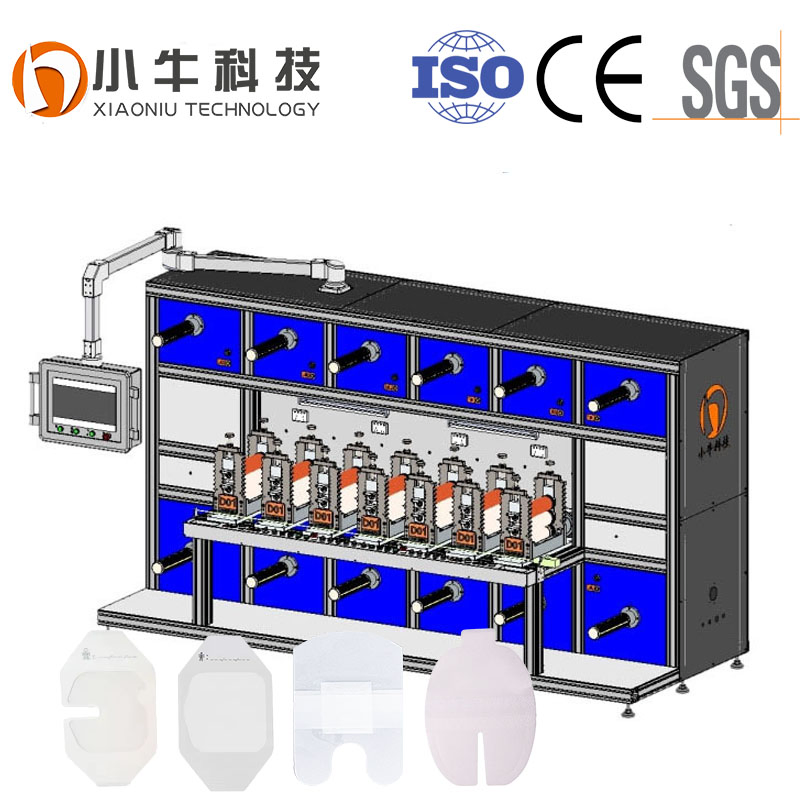

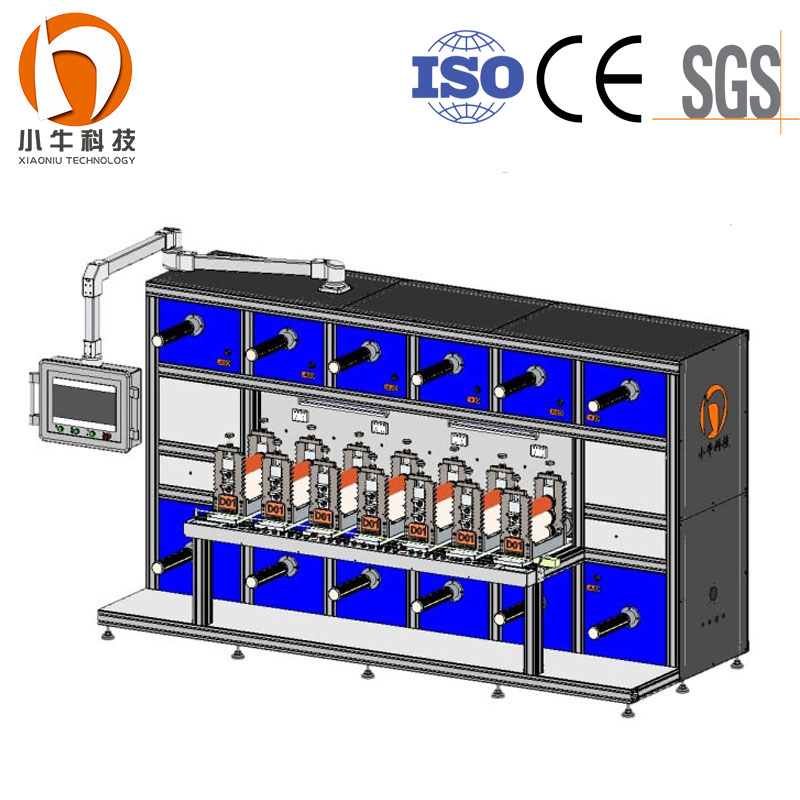

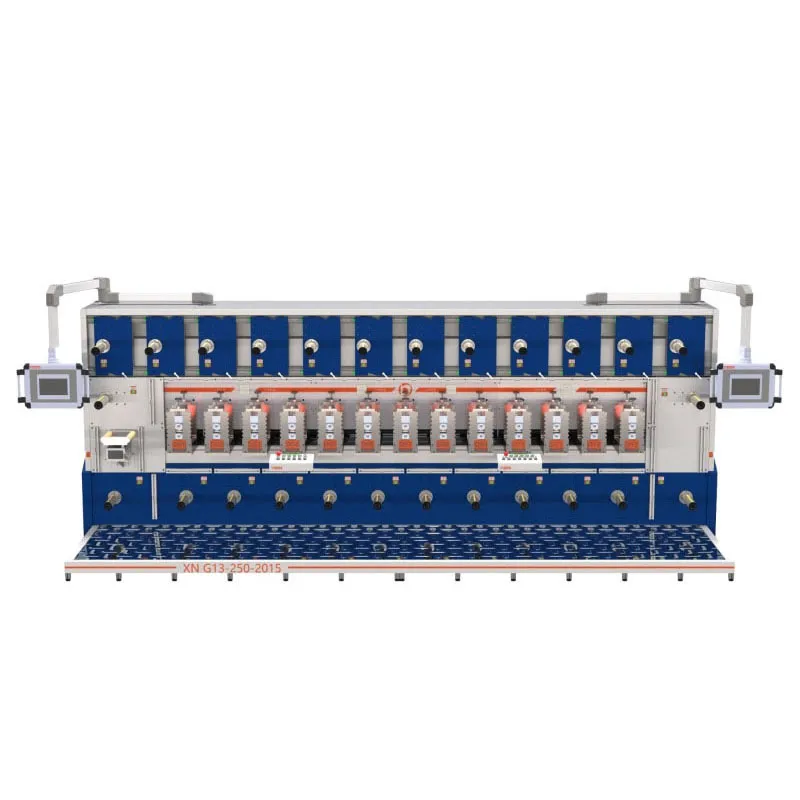

Disposable Medical IV Catheter Fixation Dressing Machine

This 13-station rotary die-cutting machine features servo motor-driven stations and feed shafts, allowing each to function independently or as part of a cohesive unit. It supports pressing, die-cutting, and transfer needs, while offering synchronous, asynchronous, speed ratio, and constant tension functions. Experience true automation and intelligence with this universal machine.

Core Functions

Synchronous & Asynchronous Processing
Automatic Target Tracking
Dual System Operation
Material Breaking Alarm
Constant Tension Control
System Failure Monitoring

Technical Specifications

Model	XN13
Species	Rotary Die-Cutting Machine
Power	32.5kw
Voltage	AC380V (Customized)
Control System	OMRON PLC Servo Control
Cutting Precision	±0.1mm

Feeding Width	250mm / 350mm (Customized)
Max. Diameter	400mm
Working Speed	5-60m/min
Application	Medical Dressings, Electronics, EMI Shielding
Machine Weight	5000kg
Automatic Grade	Full-Automatic

Key Advantages

▶

High Efficiency: Continuous roll cutting at 5-60m/min.
Extreme Precision: ±0.1mm accuracy for consistent quality.
Multi-Station Integration: Handles multiple processes in one pass.
Flexible Adaptability: Suitable for various flexible substrates.
Intelligent Control: Full-auto tension and deviation management.
Smart Memory: Features asynchronous processing and job memory.

Applications & Finished Products

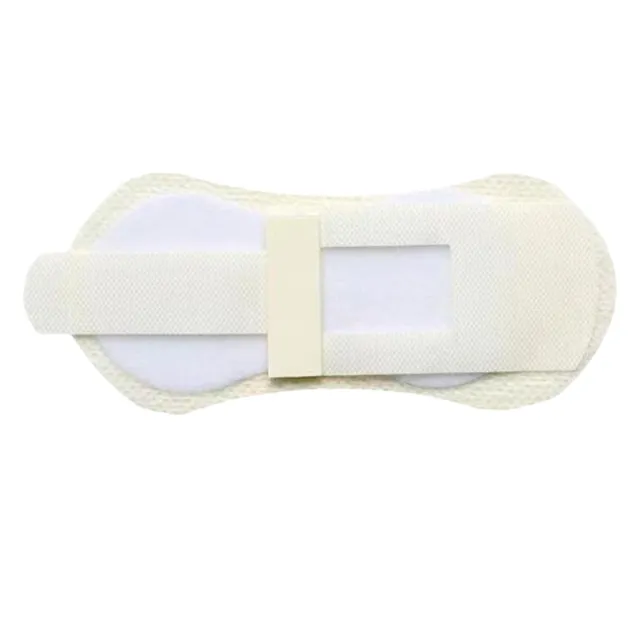

Catheter Fixation Dressings

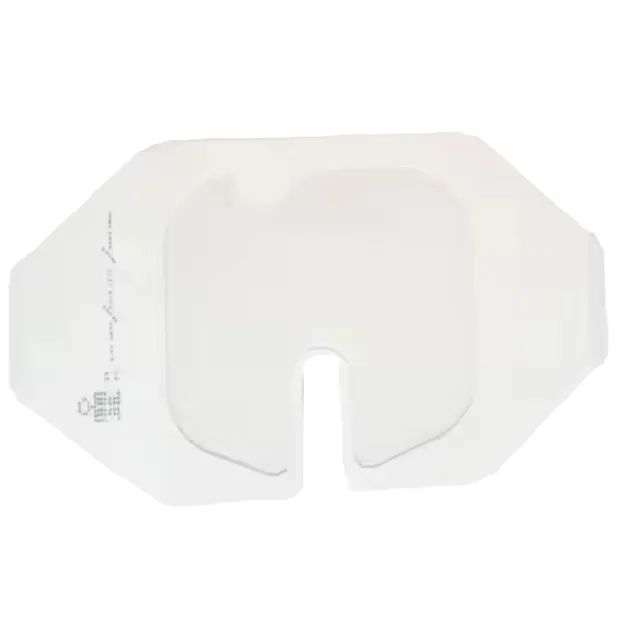

I.V. Dressings

Acne Patches

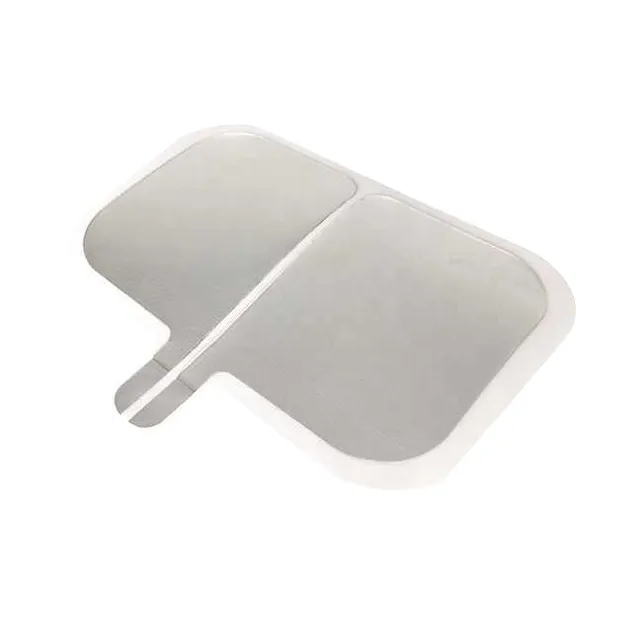

ESU Pads

Infusion Dressings

Hydrocolloid Dressings

Quality Components

High-Precision Main Parts

Advanced Electronics

Multi-Station Configuration

Packaging & Delivery

Package Size: 549.00cm * 170.00cm * 260.00cm

Gross Weight: 5600.00kg

Packing: Professional Wooden Case Packing for safe international transport.

Service & Support

Standard Warranty: 1 year of comprehensive coverage.
Global Support: 24/7 technical assistance and prompt spare parts supply.
Professional Training: On-site or remote operation and maintenance training.
Expert Engineers: Dispatched for debugging and staff training at your location.

Frequently Asked Questions

What materials can this machine process?

The machine is designed for high-precision cutting of flexible substrates including medical dressings, foam, transparent films, stickers, and EMI shielding materials.

How many stations can be included in the machine?

The standard model shown is a 13-station machine, but modular designs allow us to add or remove stations to fit your specific production needs.

What is the cutting precision and speed?

The machine offers a die-cutting precision of ±0.1mm and an adjustable production efficiency between 5-60 meters per minute.

Can one machine produce multiple types of products?

Yes. By adding stations or changing die cutters, the machine can be shared for multiple products. Machines with over 8 stations feature a double-system design for dual output.

Do you provide technical training and installation?

Absolutely. We provide engineers for on-site debugging and training, as well as 24/7 remote technical support and a one-year warranty.

Is customization available for specific production lines?

Yes, our R&D team customizes machines based on your product type and technical requirements, offering comprehensive solutions including raw material supplier recommendations.
