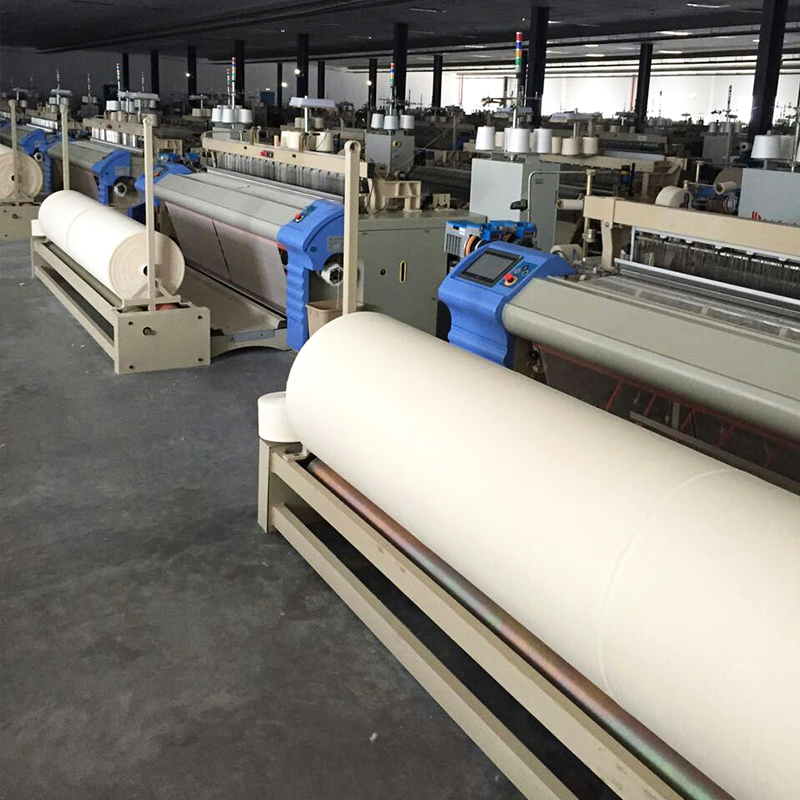

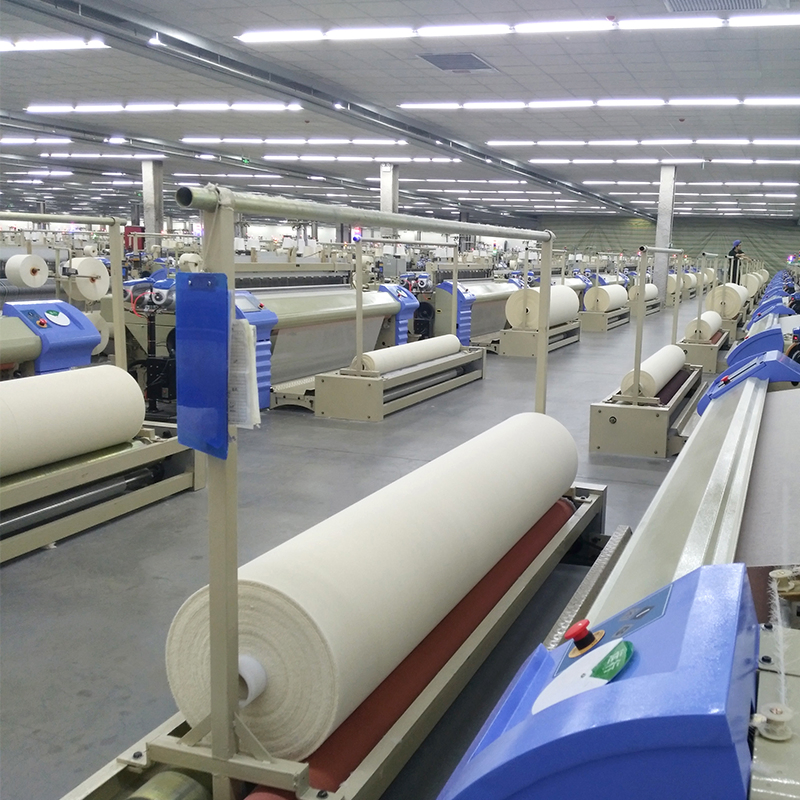

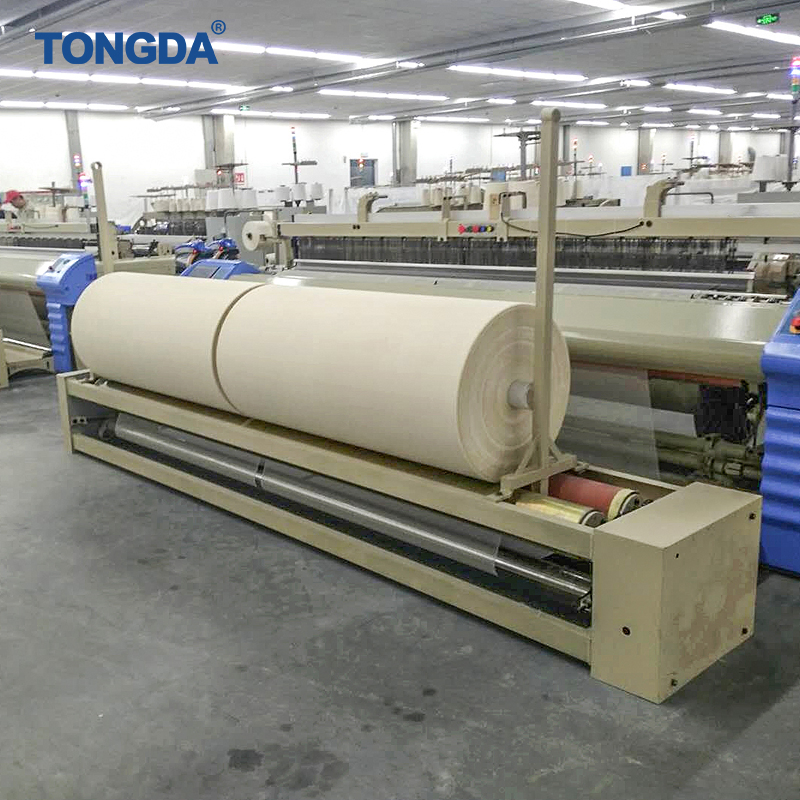

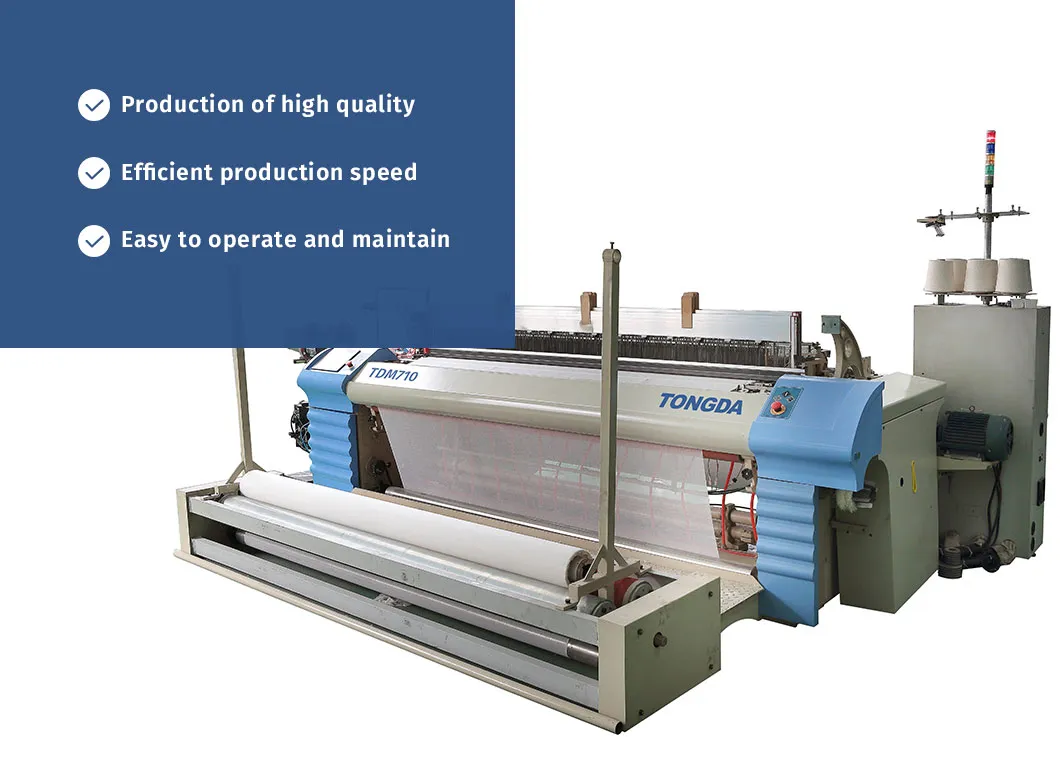

The TDM-710 medical gauze loom is specifically designed for the manufacturing of all gauze fabrics and baby care products, ensuring high efficiency and hygiene standards.

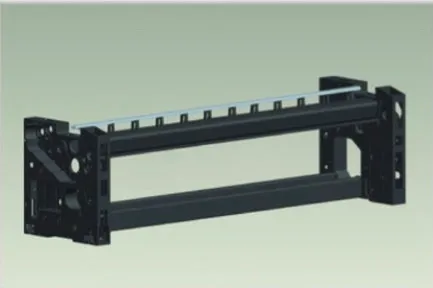

This machine adopts box-type side frames, beam, and middle brackets, forming a high-strength framework. This design ensures that looms remain stable even during high-speed running.

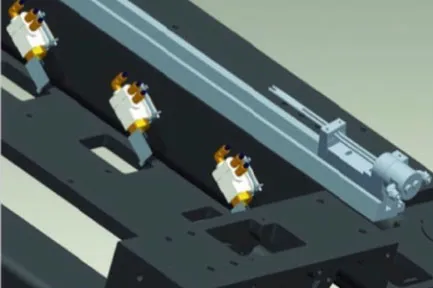

Equipped with profiled reeds and a combination of main and sub-nozzles for a smooth channel. The new energy-saving system shortens the air path, increases jet sensitivity, and significantly reduces air consumption.
The optimally-designed 4-link rod beating-up mechanism features a short stroke and low vibration, allowing for strong beating-up during high-speed operation. It also includes a double weft feeler using digital signal processing for enhanced accuracy.

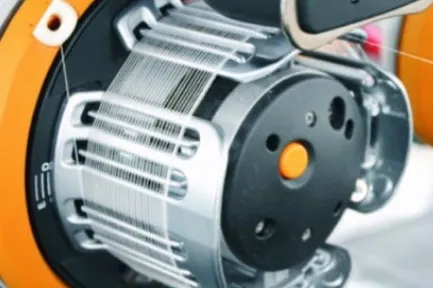

Features an automatic dividing pick storer to prevent yarn intertwining. The large LCD screen supports parameter setting, automatic monitoring, self-diagnosis, and features a USB interface for data management.
| Parameter | Specifications |
|---|---|
| Reed space | 170, 190, 210, 230, 280, 340 (cm) |
| Weft option | Single-nozzle, double-nozzle |
| Power | 1.8kw, 2.2kw, 2.8kw, 3.7kw |
| Applicable speed | 400-600 rpm |
| Weft insertion | Main/Auxiliary nozzle combined; electromagnetic valve control |
| Shedding | Crank shedding |
| Let-off | Mechanical or electronic (Flange dia. 600mm/800mm) |
| Selvedge | Rough or plain edge via planetary gear |
| Take-up form | Mechanical or electronic (Max winding 1200mm) |
| Auto stop | 2 photoelectric feelers; contact lever type warp protector |
