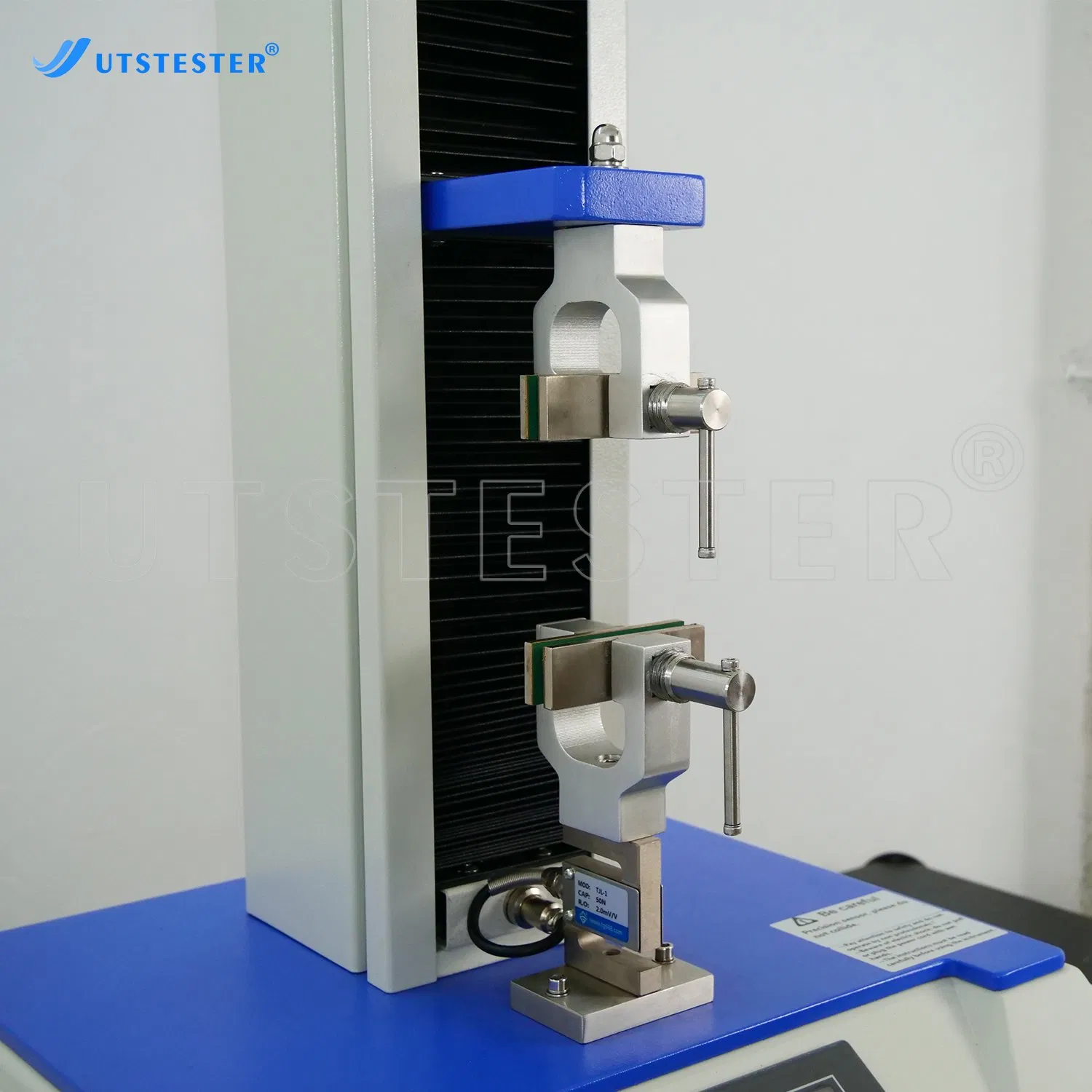

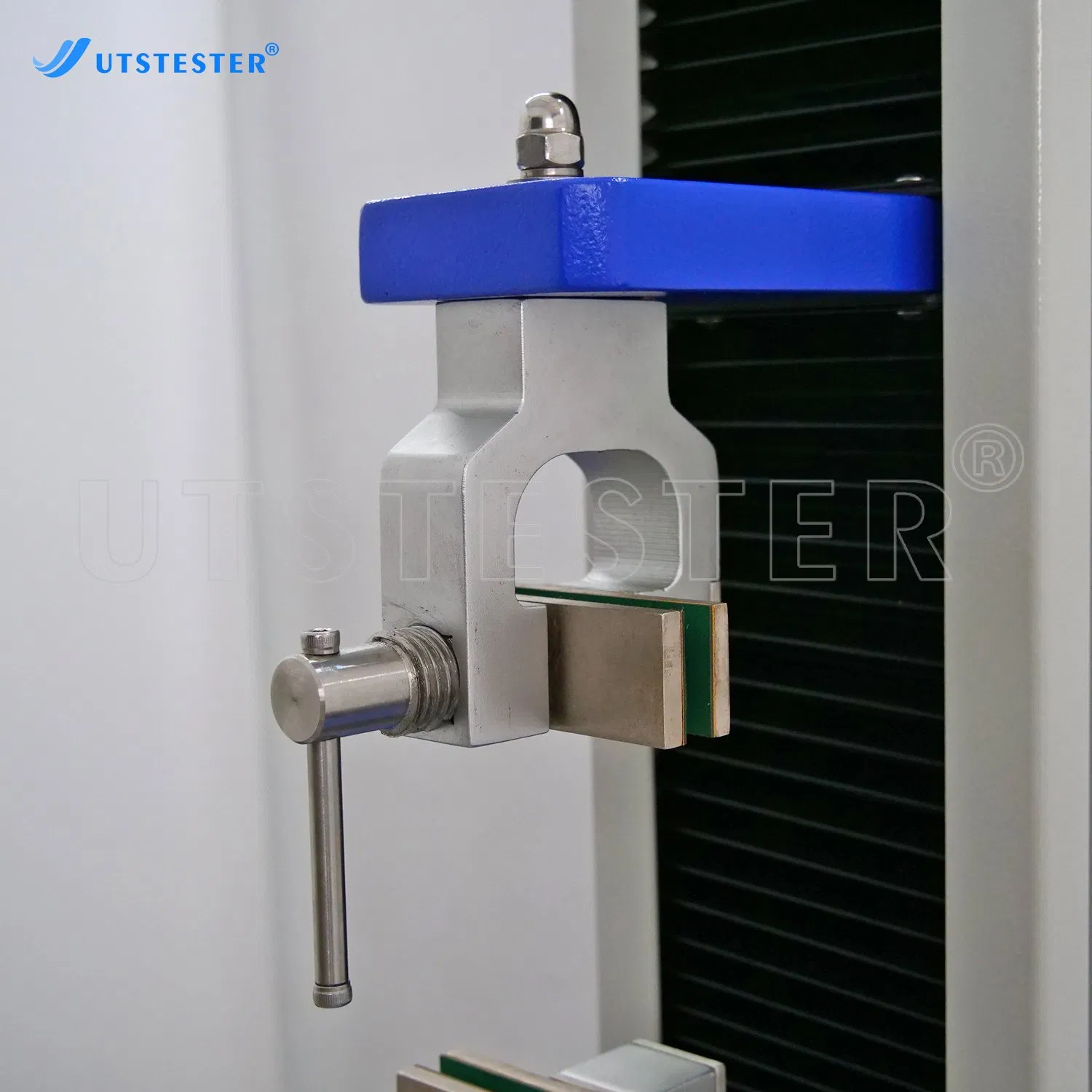

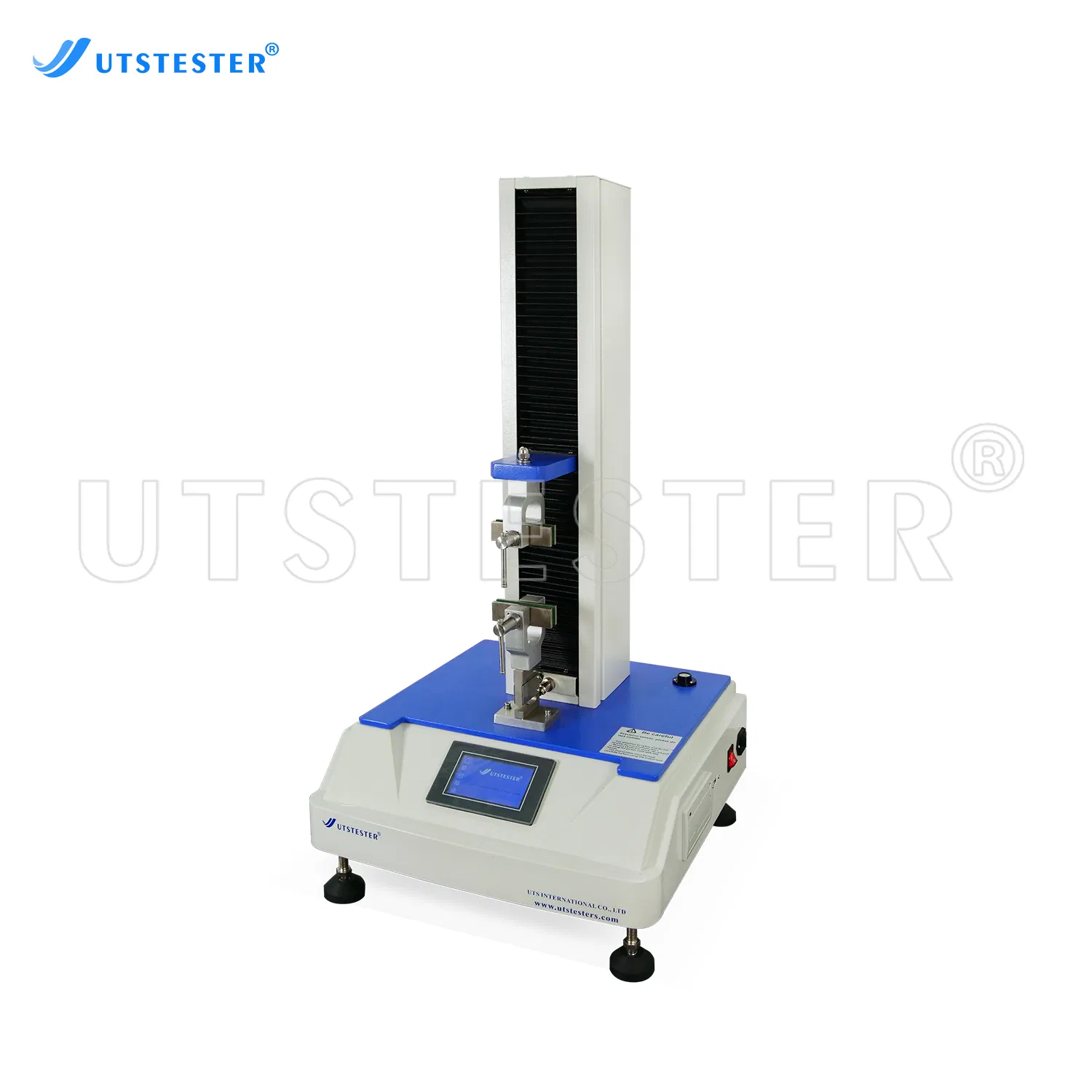

Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
1 / 5
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine
Textile Lab Equipment Medical Tape Peeling Strength Testing Machine

Textile Lab Equipment Medical Tape Peeling Strength Testing Machine

Customization: Available
Warranty: 12 Months
Usage: Universal Textile Testing, Textile Fabric Testing
Send Inquiry

Product Description

◈ Basic Info.
Model NO.MB14B
Automatic GradeSemi-Automatic
TypeTape Peeling Strength Tester
CertificationCE
ConditionNew
After-sales Service12 Months
StandardYy/T 0148, ASTM F88
Weight50kg
CertificateCE, ISO 17025
Test MethodBackside Adhesive Peeling, Tensile
Specification450x450x1050mm
OriginChina
◈ Packaging & Delivery
Package Size55.00cm * 55.00cm * 115.00cm
Package Gross Weight70.000kg
Transport PackageStandard Export Wooden Case
◈ Product Description

For the determination of the adhesion strength between the adhesive backing of sanitary napkins and pads and cotton fabrics.

Standard: YY/T 0148, ASTM F88
◈ Key Features
✔ Touch screen control, man-machine dialogue mode, convenient operation.
✔ Backside adhesive peeling, stretching two methods can be selected.
✔ Built-in thermal printer, easy to print the test results quickly on the spot.
✔ Professional computer analysis software can achieve two-way operation with the computer, report statistics, curve graph visual analysis.
✔ High precision sensor, good linearity, strong stability, stepping motor drive, ball screw drive.
◈ Product Parameters
ModelMB14B
Force range0 ~ 50000mN (peeling) Resolution: 1mN
0 ~ 50N (stretching) Resolution: 0.01N
Testing speed1~400±10mm/min
Fixture width80 ± 1mm; pneumatic and manual (optional)
Peeling length21 ~ 60mm (peeling stroke: 42 ~ 120mm) can be set
Weighing weight62×80mm / 500g
Pressure plate65×120mm
Power supplyAC220V±10V 50Hz 100W
Dimension450×450×1050mm
◈ Product Display

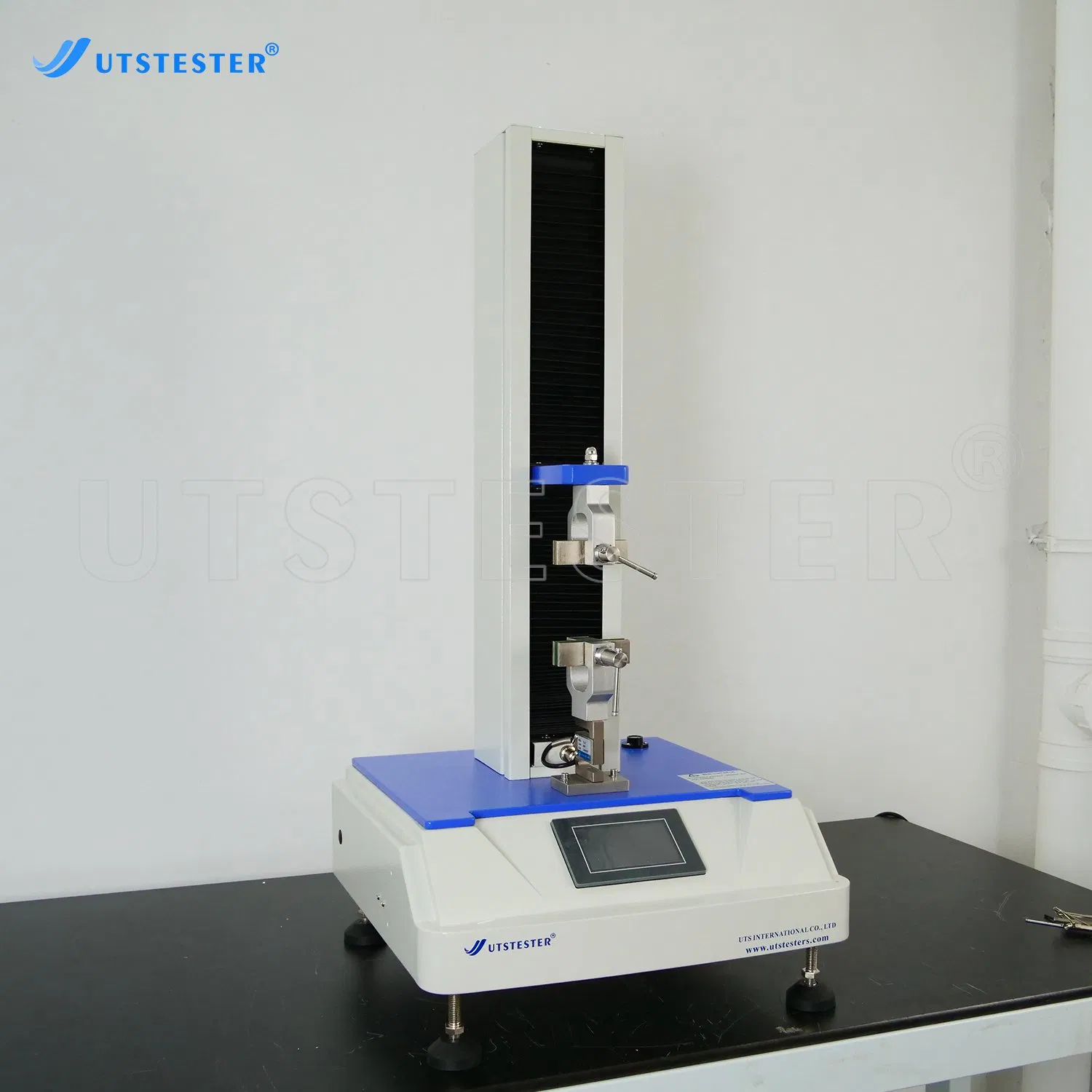

Peeling Strength Testing Machine
◈ Information Overview
Product Info
◈ Exhibition & Customers
Exhibition
Exhibition 2
Our Customers
◈ Our Advantages
Advantage 1
Advantage 2
◈ Frequently Asked Questions
Q: How is your service?
All test devices will be calibrated and debugged before delivery to guaranty the quality. Our professional after-sales team will help you solve any problem within 24 hours/7 days by emails or videos. English operation manuals and videos are provided.
Q: What's your warranty period?
12 months. In case of product problems, we provide needed spare parts for free during the warranty (excluding consumables and man-made damages).
Q: What's the payment term?
Usually TT and L/C are available. For other methods, please contact us for negotiation.
Q: What's your lead time?
We have a professional production line. Usually, delivery is within 5-25 days based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
Yes, we provide two options: An ISO 17025 certificate provided by a third-party inspection company (with charges) or a standard calibration certificate (without charges).
Q: Can you send a report of fumigation?
Our packing is made of composite board, not log, so it does not require fumigation treatment.
