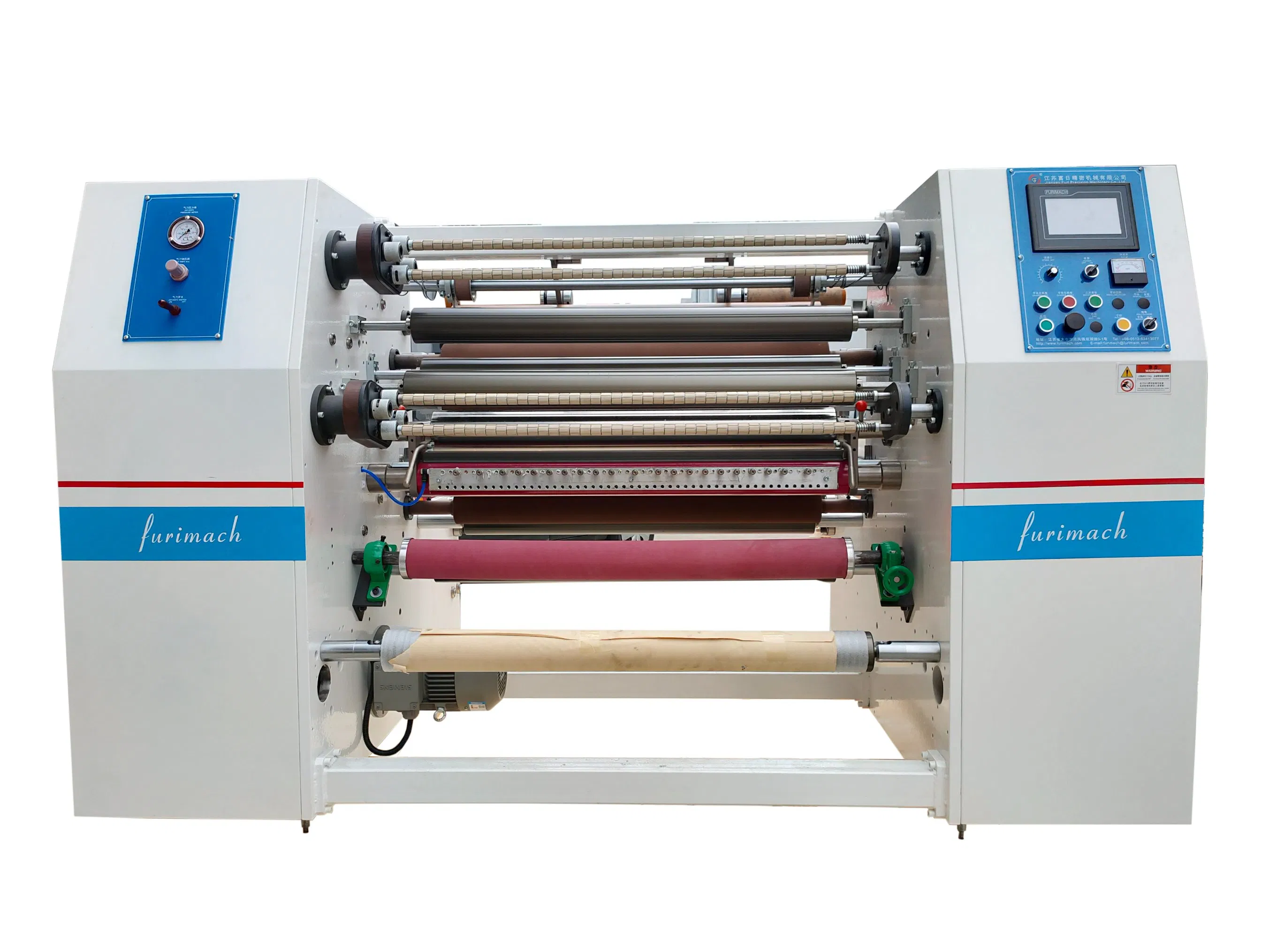

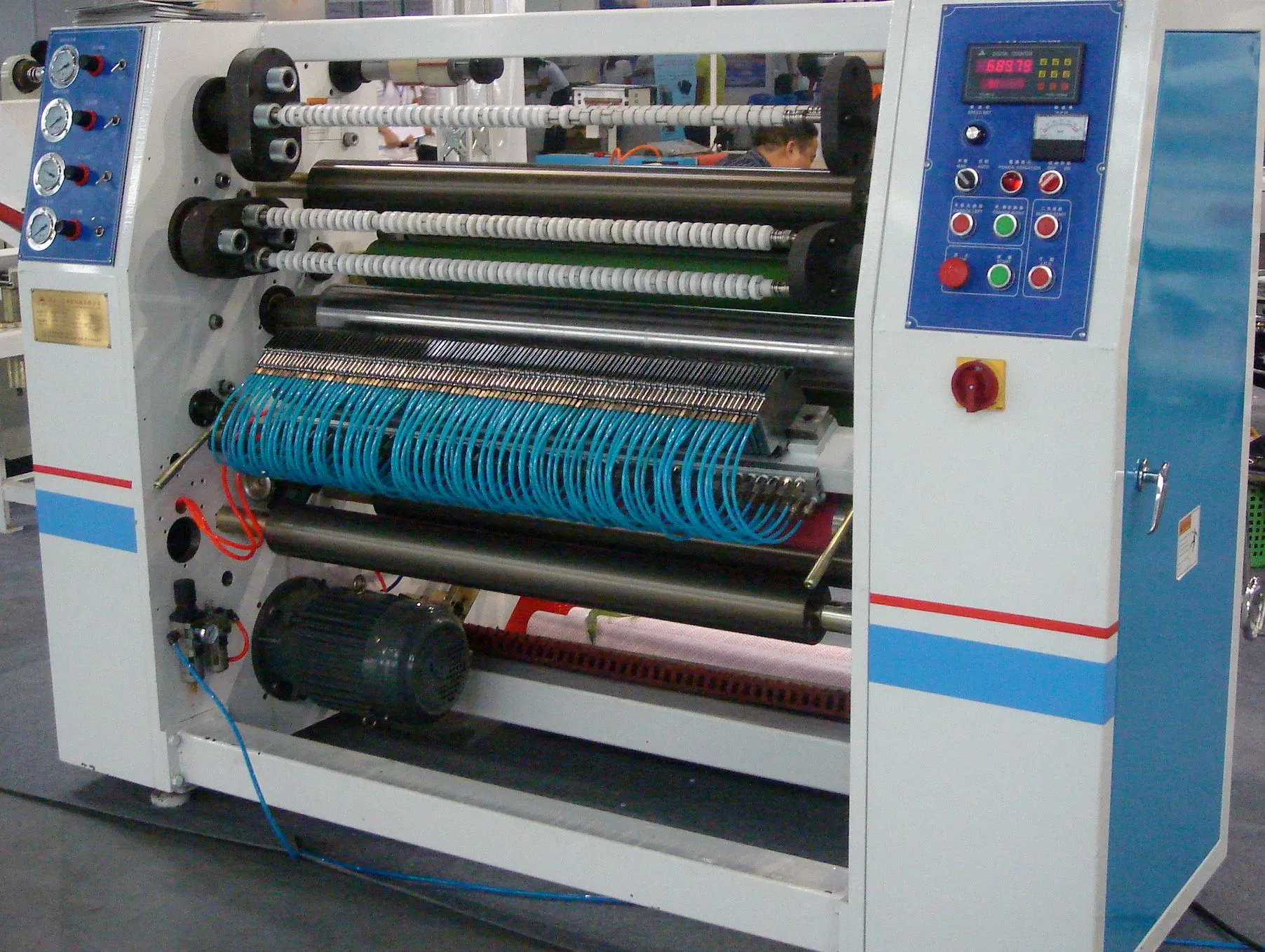

Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
1 / 5
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter
Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter

Tape Slitting Machine Fr-215s Stationery / Medical Tape Slitter

Customization: Available
After-sales Service: After-Sales Service Supported
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
FR-215S
Application
Machinery & Hardware
Type
High-Speed Slitting Machine
Work Method
Razor Blade and/or Air Blade
Effective Width
1000mm
Speed
180m/Min
Rewind Shaft
4-Shaft Exchange
PLC
Mitsubishi
Production Capacity
60 Sets/Year
Suitable Substrates
Film & Masking Tape
⚙️ Product Specifications
Specification Item Content Quantity
Basic Specs
Effective Width
Max. Unwind O.D.
Slitting Width
Max. Rewind O.D.
Machine Speed
Power		 1000mm
800mm
Min. 12.5mm
Four-shaft exchange 1" core: 80mm
180M/MIN
380V 50HZ/60HZ 3PHASE		 -
Unwind Unit
Unwind Shaft
Unwind Brake
Unwind Tension		 3" Air shaft
Powder brake
PLC control		 1 Set
Rewind Unit
Main Motor
Rewind Shaft
Edge Trimming
Auto Turret Exchange		 AC motor 5HP + Inverter
1" air shaft
Spool trim winder
AC motor 1/2HP		 1 Set
4 Pcs
1 Set
1 Set
Control System
PLC
Touch Panel		 Japan Mitsubishi
7" MCGS		 1 Set
1 Set
Slitting Tools
Air Blade
Air Blade Holder Set		 Standard Air Blade
Precision Holder		 80 Sets
1 Set
🛡️ Safety Rules
✔ Please read the operation manual before operating the machine.
✔ Operators should not wear long hair or gloves; fasten cuffs securely.
✔ Do not clean the machine while it is in operation.
✔ Do not touch the slitting blade or rewinding shafts when running.
✔ Power off and switch off the main supply before any maintenance or fixing.
✔ Only professional technicians should disassemble the machine.
🔧 Maintenance Instructions
1. Keep machine clean and control box well-ventilated.
2. Drain oil water from air pressure valves daily.
3. Check three-point lubrication oil and injectors daily.
4. Clean air shaft dust and surface oil three times per week.
5. Adjust air pressure between 4~6kg/cm2 (70-90 lb/in2).
6. Check all screws and driving parts for looseness every month.
📷 Product Visuals

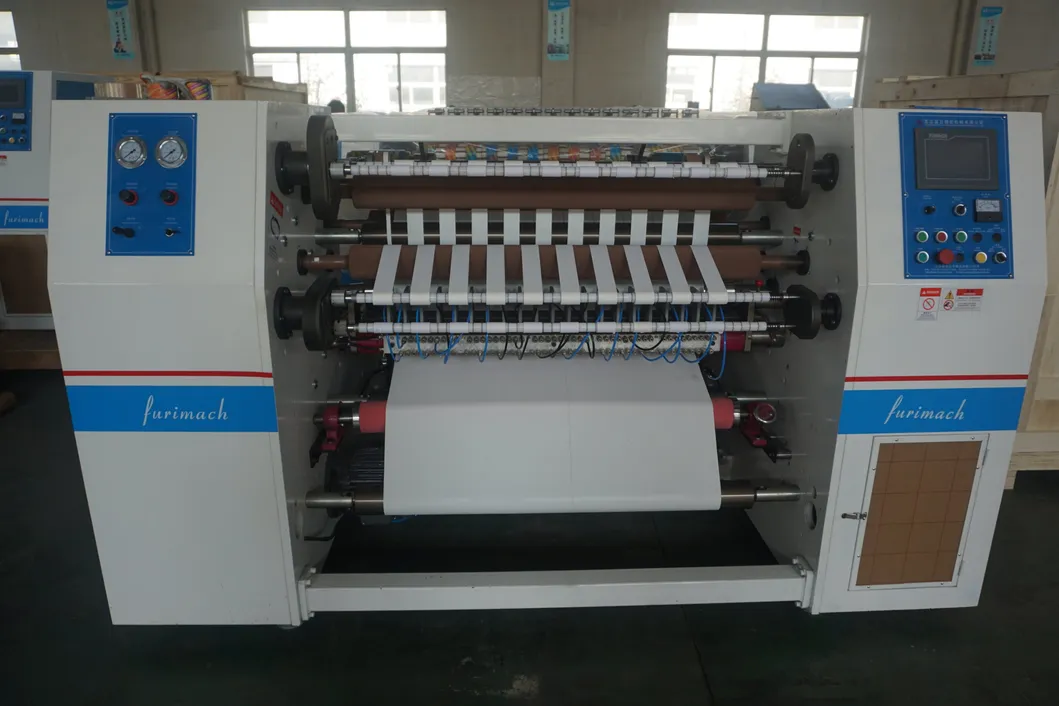

Tape Slitting Machine Details

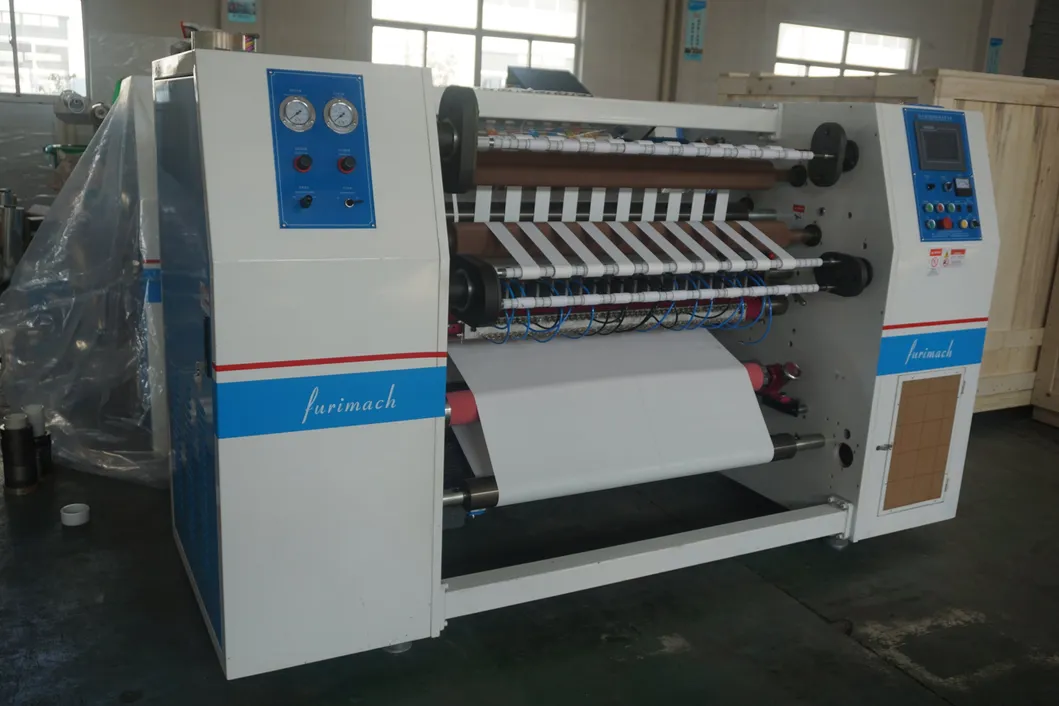

Medical Tape Slitter Operation

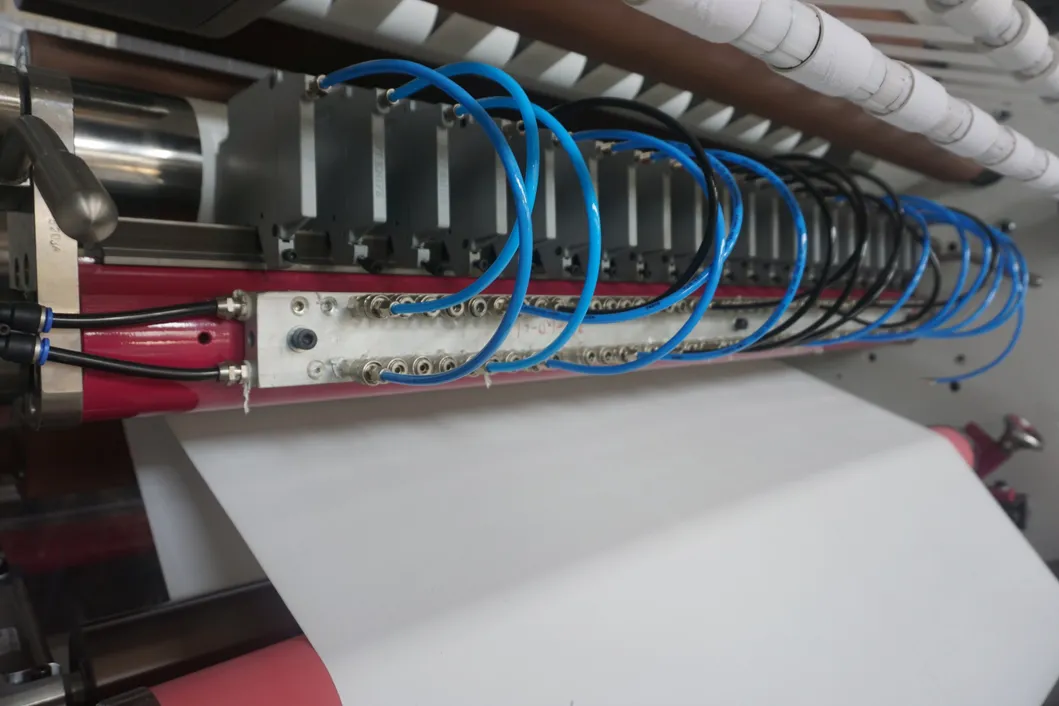

High-Speed Slitting Process

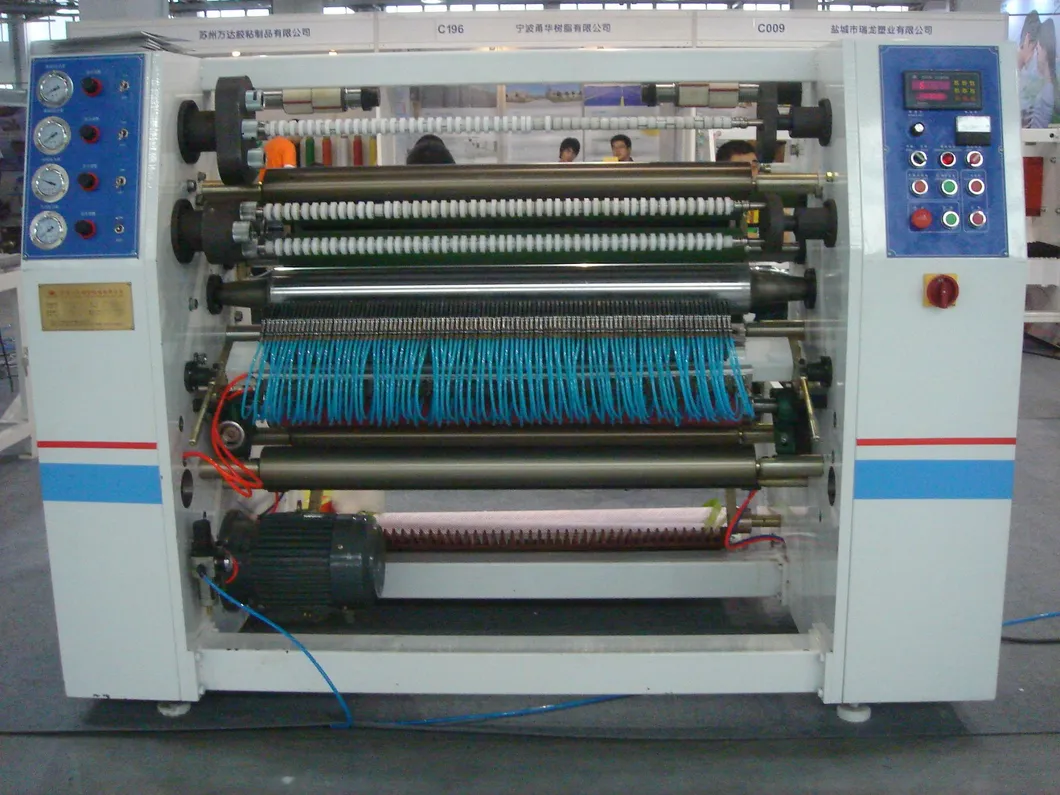

Tape Slitting Machine Components
Slitter Rewinder Unit
Tape Slitting Machine Controls
❓ Frequently Asked Questions
🔹 What is the maximum slitting speed of the FR-215S?
The machine operates at a high-speed production rate of up to 180 meters per minute.
🔹 Which materials are suitable for this machine?
It is specifically designed for medical tape, masking tape, and various film substrates.
🔹 What type of control system does it use?
The machine is equipped with a high-performance Japan Mitsubishi PLC and a 7-inch MCGS touch panel for precise operation.
🔹 How does the rewind system work?
It features a 4-shaft exchange system with auto-turret functionality, allowing for continuous and efficient rewinding.
🔹 What are the air pressure requirements?
The recommended air pressure for optimal performance is between 4 and 6 kg/cm2.
🔹 Does the machine support different slitting widths?
Yes, it supports a minimum slitting width of 12.5mm and is adjustable based on your production needs.

Related Products

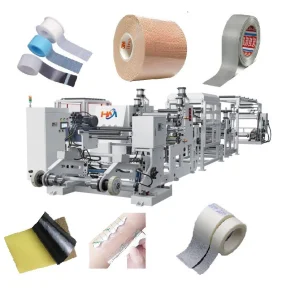

Medical Tape Breathable Fabric Coating Laminating Machinepressure Sensitive Adhesive Tape Lamination Machine

Medical Tape Breathable Fabric Coating Laminating Machinepressure Sensitive Adhesive Tape Lamination Machine

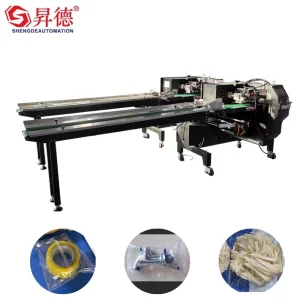

Wholesale Pillow Type Horizontal Flow Bag Wrapping Sachet Packing Machine for Tape Soap Candy Medical Tea Food Chocolate Pouch Packaging

Wholesale Pillow Type Horizontal Flow Bag Wrapping Sachet Packing Machine for Tape Soap Candy Medical Tea Food Chocolate Pouch Packaging

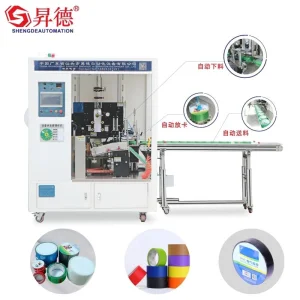

Automatic Tape Labeling Sealing Shrink Wrapping Packaging Machine for BOPP Duct Floor Warning Grid Medical Cloth Foam Masking Kraft Tape

Automatic Tape Labeling Sealing Shrink Wrapping Packaging Machine for BOPP Duct Floor Warning Grid Medical Cloth Foam Masking Kraft Tape
Automatic Tape Labeling Sealing Shrink Wrapping Packaging Machine for BOPP Duct Floor Warning Grid Medical Cloth Foam Masking Kraft Tape

Automatic Tape Labeling Sealing Shrink Wrapping Packaging Machine for BOPP Duct Floor Warning Grid Medical Cloth Foam Masking Kraft Tape

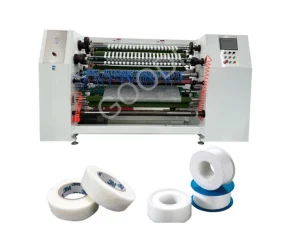

Medical Adhesive Tape Jumbo Roll Slitter Rewinder Silk Plaster Making Machine

Medical Adhesive Tape Jumbo Roll Slitter Rewinder Silk Plaster Making Machine

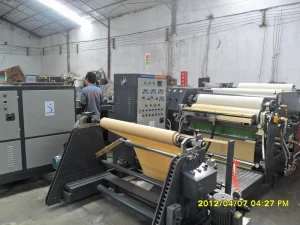

Elastic Adhesive Medical Dressings Medical Tape Medical Plaster Coating Machine

Elastic Adhesive Medical Dressings Medical Tape Medical Plaster Coating Machine

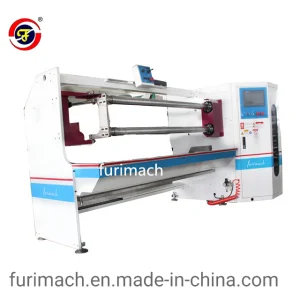

Double-Shaft Log Roll Cutting Machine for PVC, Medical Tape

Double-Shaft Log Roll Cutting Machine for PVC, Medical Tape

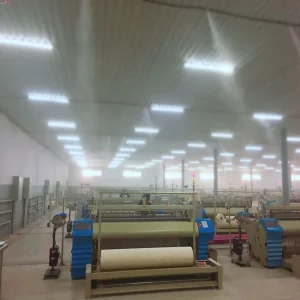

Jinlihua Jlh425 Model Textile Knitting Machinery Price Medical Gauze Elastic Tape Making Machine Narrow Fabric Weaving Machine

Jinlihua Jlh425 Model Textile Knitting Machinery Price Medical Gauze Elastic Tape Making Machine Narrow Fabric Weaving Machine

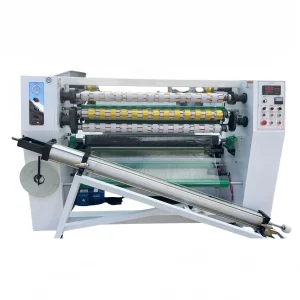

Adhesive Cellotape BOPP Medical Plaster Tape Making Slitter Rewind Printing and Label Trademark Slitting Rewinding Machine
