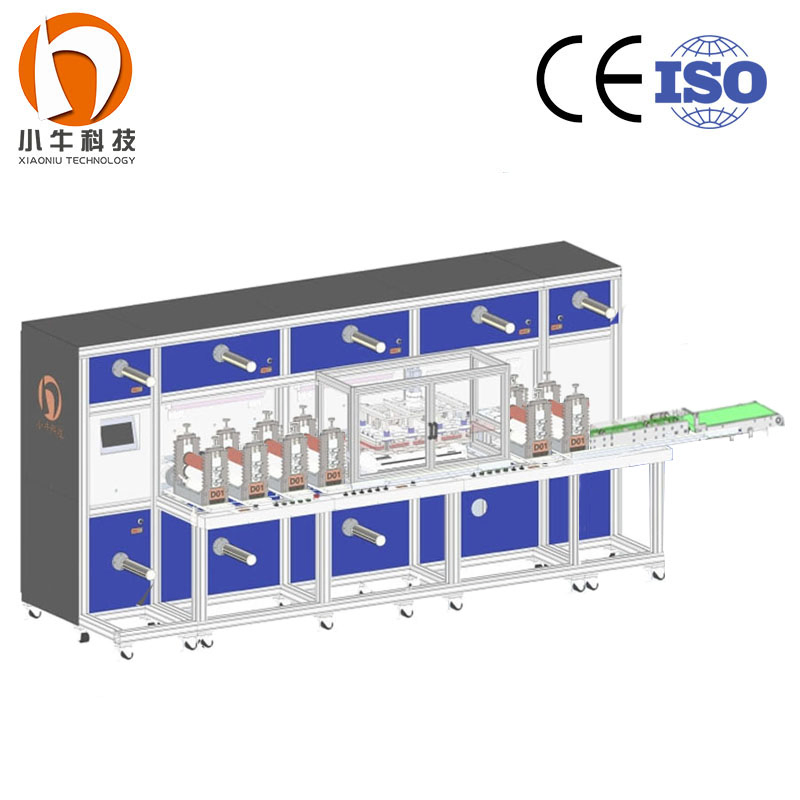

This equipment is a 3-station rotary die-cutting machine and packing machine. Each station and feed shaft are driven by a servo motor, operating as independent individuals or as a synchronized whole. It is designed for high-precision pressing, die cutting, and transfer needs, featuring automatic intelligence with constant tension and asynchronous processing capabilities.
Model NO.XN3
Control SystemFully Automatic
MaterialAluminum Alloy, Stainless Steel
Power25kw
Cutting Precision±0.1mm
Core ComponentsPLC, Servo Motor, Gearbox
Applications & Functions
Widely used in medical consumables, 3C electronics, automotive electronics, and packaging industries.
Synchronous & Asynchronous Processing
Automatic Target Tracking
Material Breaking Alarm
Constant Tension Control
System Failure Monitoring
Dual System Design
Key Advantages
High Efficiency: Continuous roll cutting at 5-60m/min.
Extreme Precision: Stable processing with ±0.1mm accuracy.
Intelligent Control: PLC servo control with power-off memory.

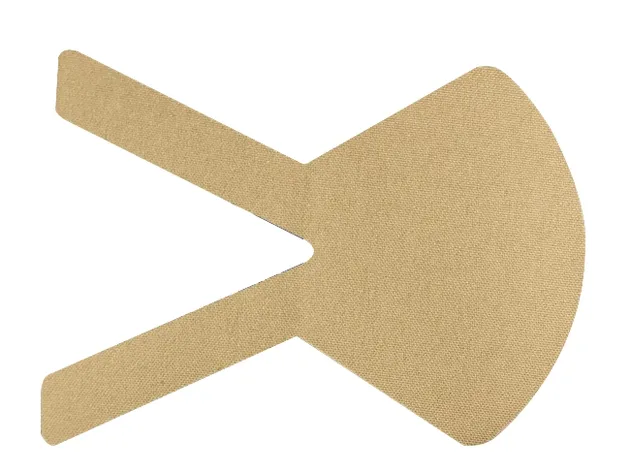

Finished Product Samples
Technical Specifications
Power (KW)
25kw
Working Voltage (V)
AC380 (Customizable)
Feeding Width (mm)
250mm / 350mm / Customized
Max. Diameter (mm)
400mm
Die Cutting Precision (mm)
±0.1
Max Speed
60m/min
Delivery & Service
Standard Warranty: 1 year free warranty.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
Packaging: Secure wooden case packing for export.
Frequently Asked Questions
What types of products can this machine produce?
It is ideal for medical dressings (foam, sterile, hydrocolloid), electrode pads, and various 3C electronics die-cutting components.
What is the production speed and precision?
The machine operates at a speed of 5-60m/min with a high precision of ±0.1mm.
Can the machine be customized for specific sizes?
Yes, we offer customized feeding widths (250mm, 350mm, or others) and modular designs to add or remove stations based on your needs.
Does the machine support multiple materials simultaneously?
Yes, the multi-station design and dual-system capability allow for integrated multi-process compounding of various flexible substrates.
What kind of after-sales support do you provide?
We provide a 1-year warranty, lifelong paid maintenance, 24/7 remote technical support, and on-site engineer dispatch for training and debugging.
Is the control system easy to operate?
The machine uses a high-end PLC servo control system (Omron) with a user-friendly interface, intelligent tension control, and power-off memory functions.
