Medical Tape Dressing Muscle Patch Zinc Oxide Tape Silk Tape Infusion Patch Water Corrugated Sports Bandage Hot Melt Pressure Sensitive Adhesive Coating Machine

Customization:	Available
After-sales Service:	Online Guidance, Engineer Can Be Dispatched Abroad
Warranty:	One Year

Send Inquiry

Product Description

Product Overview

Model NO.RL-XF

TypeSlot Die Coater

Driven TypeElectric

Automatic GradeSemi-Automatic

Packaging MaterialPlastic

Packaging TypeFilm Package

ApplicationElectronics, PE, Shoes, Fabric, Labels

HS Code8479899990

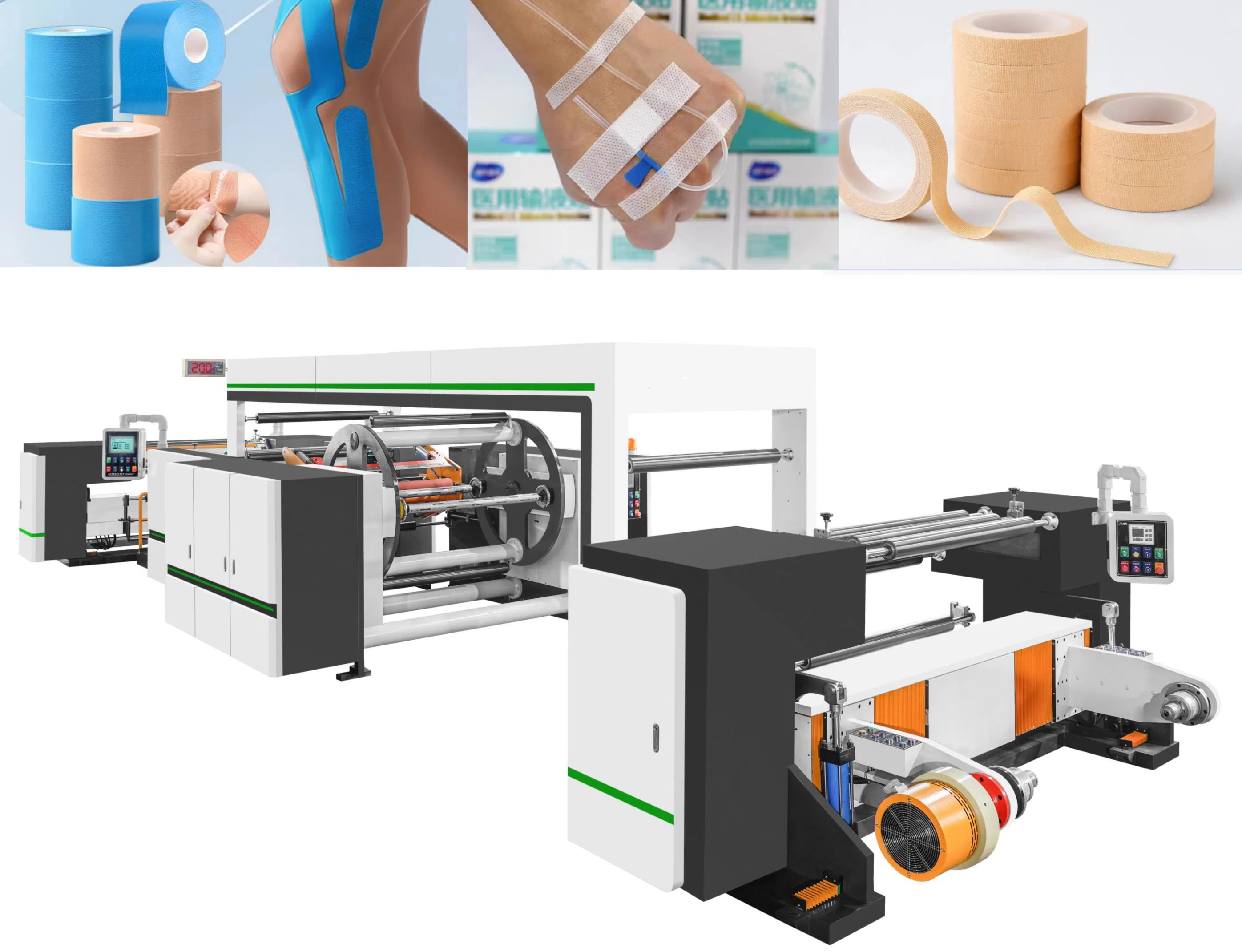

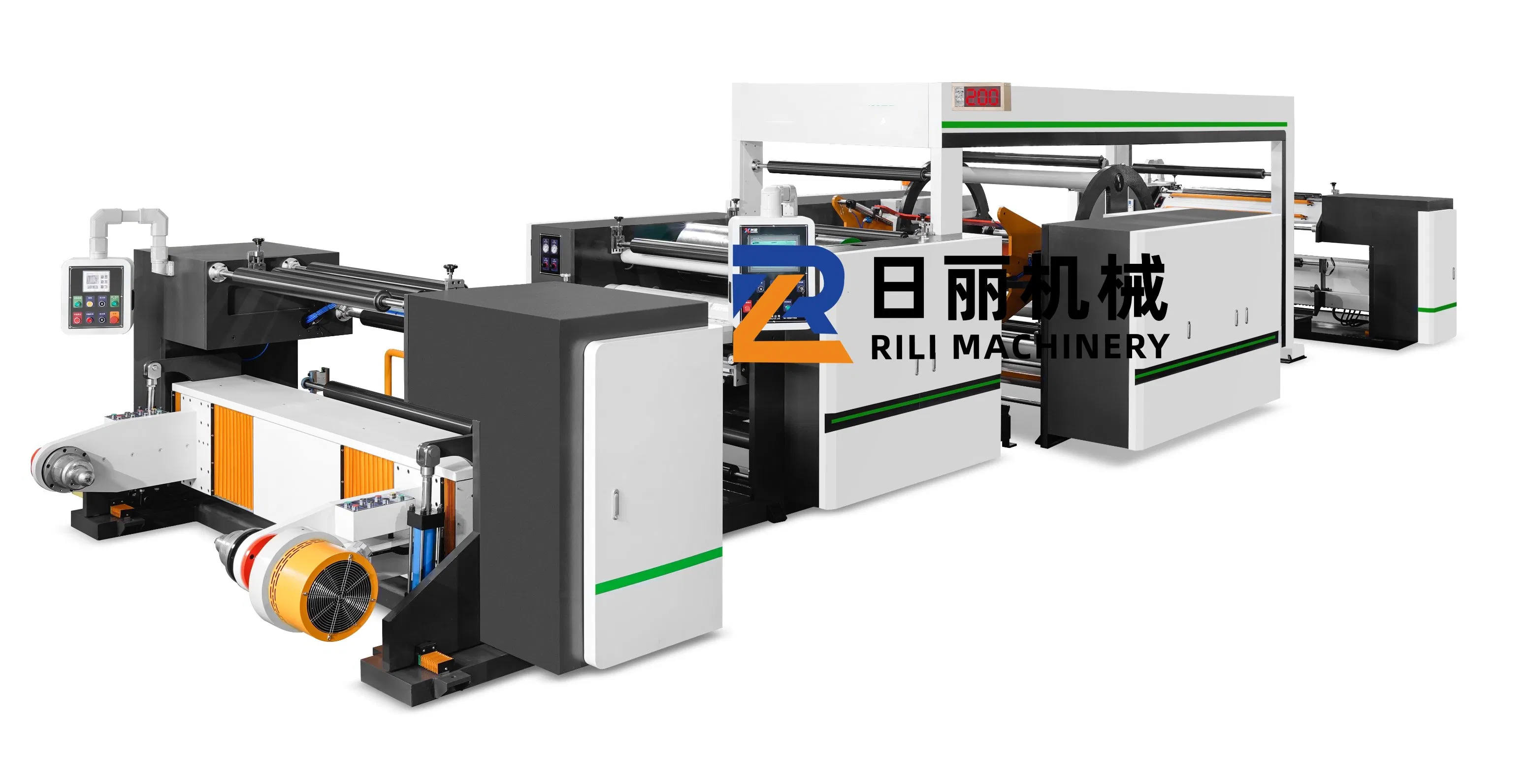

Medical Tape & Bandage Hot Melt Pressure Sensitive Adhesive Coating Machine

Main Features

High-precision hot melt adhesive slot die coating machine with non-stopping double-station rewinding unit.
Slot die coating with high-precision imported carbon steel die for superior wear resistance and smoothness.
Integrated PLC touch screen control system for accurate management of each production link.
Non-stopping rewinding capability to maximize production efficiency.
Fully automatic constant tension control system ensuring material flatness.
600 kg Hot Melt Adhesive Melting Machine for high-speed adhesive supply.
Hydraulic loading and unloading of materials to reduce labor intensity.
High Precision control with errors less than ± 1 gram.
Integrated edge control and laminating functions.

Technical Advantages

Advanced Hardware

Equipped with processing components from top international suppliers to ensure manufacturing accuracy.

Independent Production

All core parts are manufactured independently to maintain high quality standards.

Customized Solutions

Machines can be customized with specific angles and designs according to different applications.

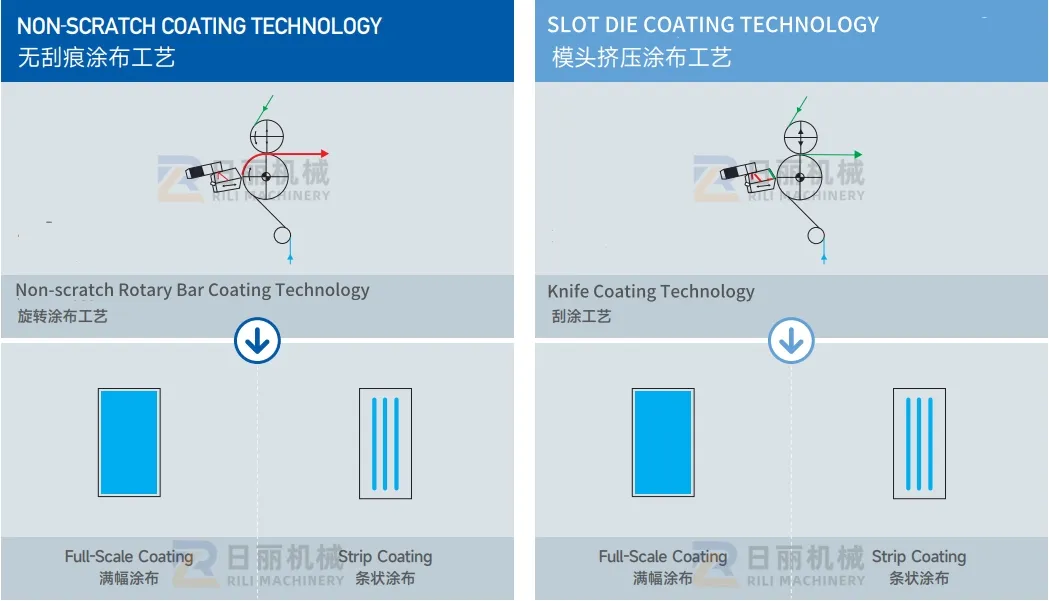

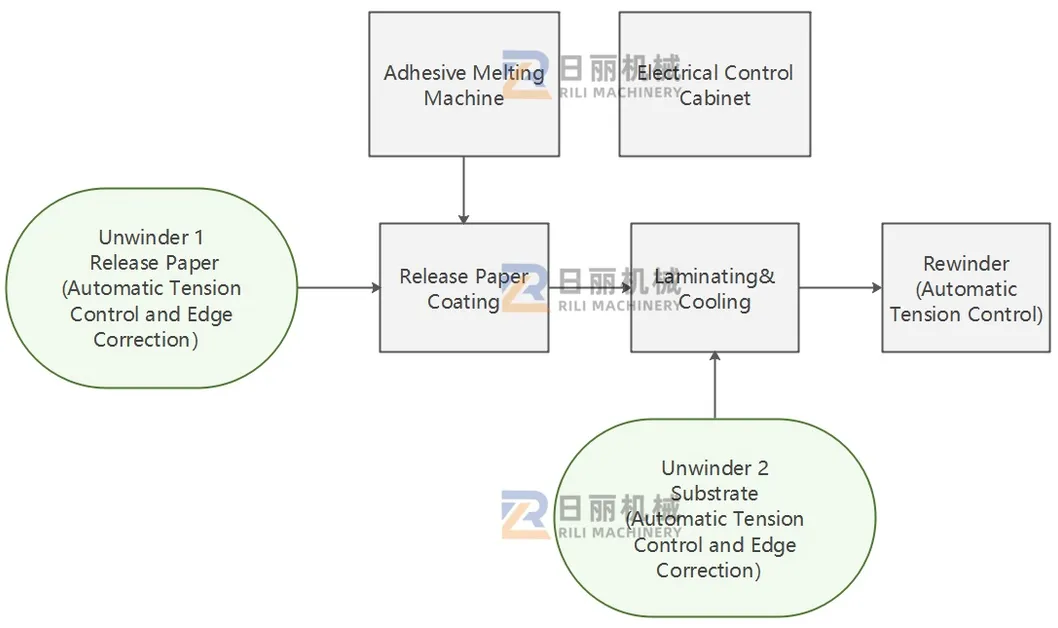

Process Description

Main Technical Parameters

Model	RL-XF
Coating Method	Slot die coating
Coating Width	400-2000mm (customizable)
Coating Amount	10-100g/m²
Coating Speed	50-200m/min (customizable)
Max. Unwinding Diameter	Ø1300mm
Max. Rewinding Diameter	Ø1100mm
Coating Precision	30g/m² ≤ ± 1.5g

Machine Details

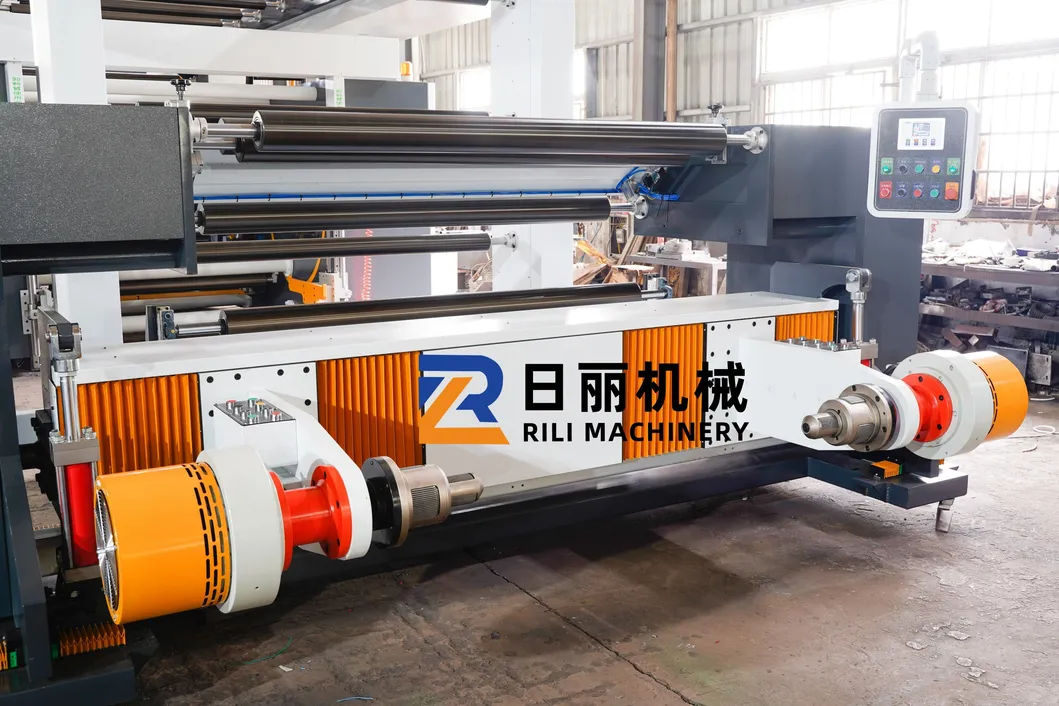

Single-Station Shaftless Unwinding

50mm steel plate support structure
Hydraulic type loading and unloading
22kw Servo motor control
Ultrasonic servo center correction (EPC)

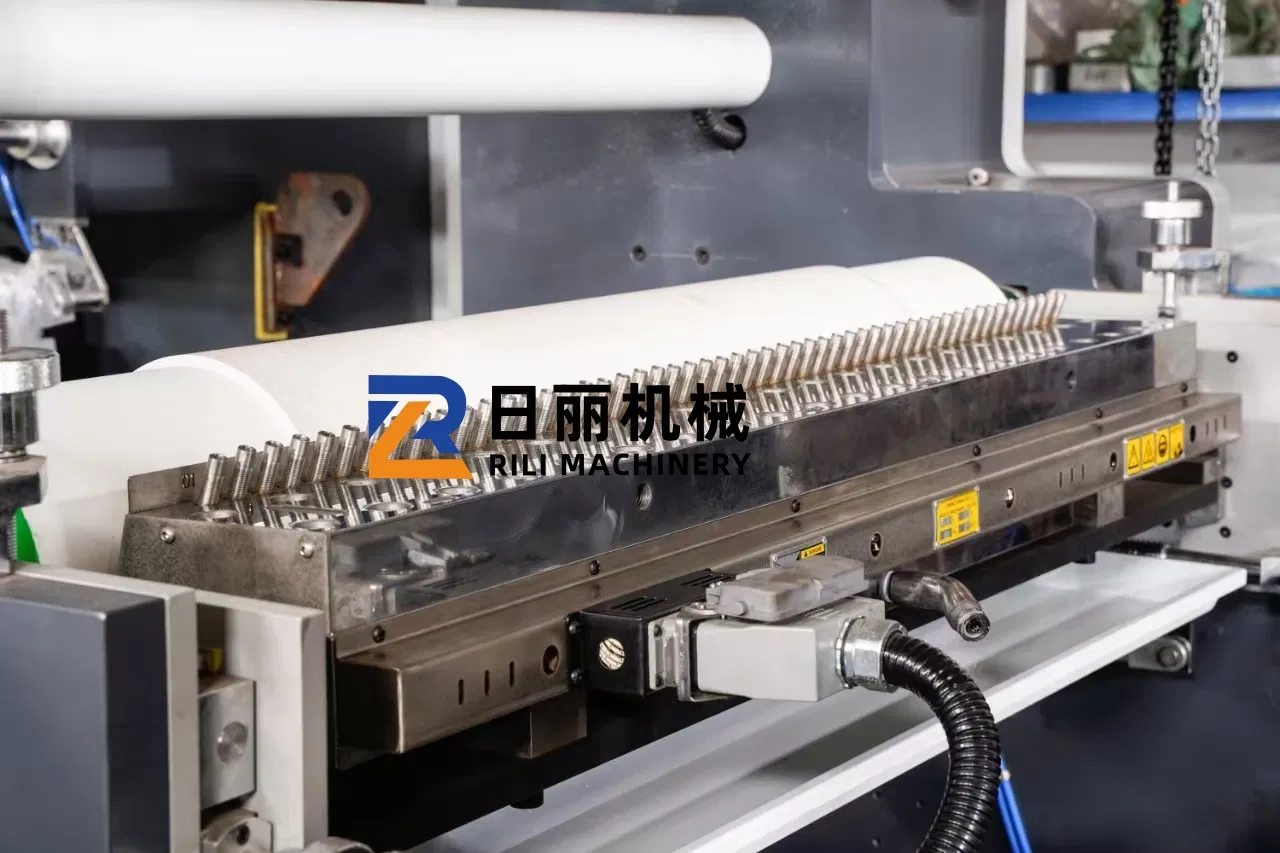

Slot-die Coating Head

Wear-resistant high-temperature die steel
Imported alloy steel lips
Reasonable internal flow channel design
Multi-angle adjustment (Front, back, up, down)

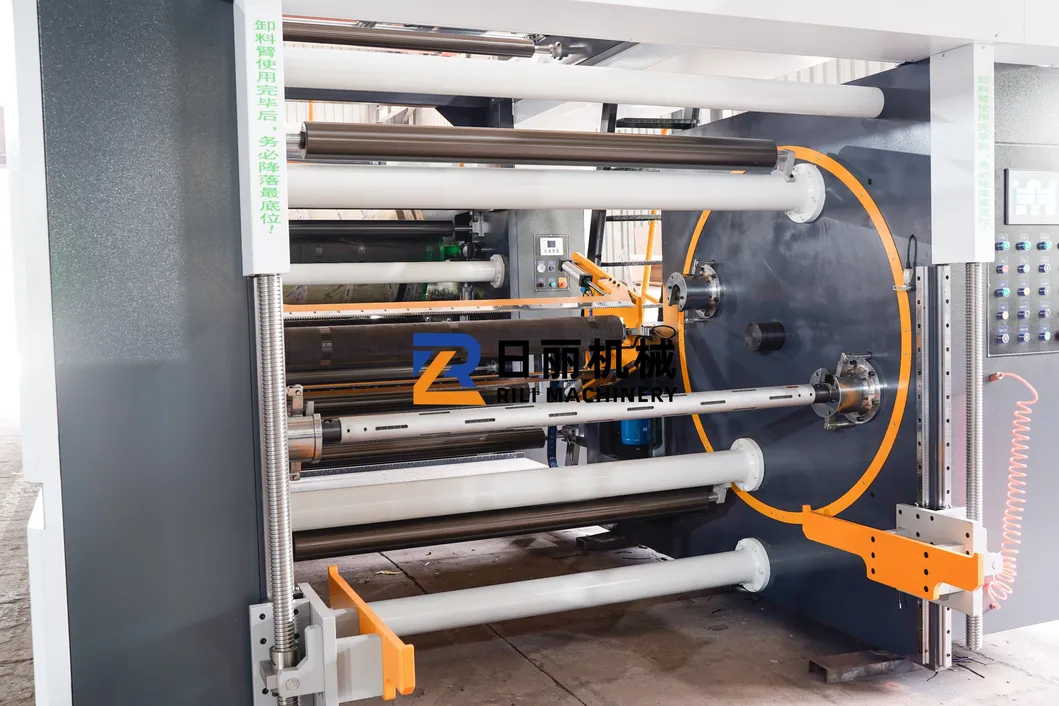

Non-Stopping Rewinding Unit

Double-station center winding
Automatic pre-start and splicing position locating
Constant tension closed-loop control
Forward/Reverse splicing capability

Industry Applications

Printing: Paper and plastic film coating.

Packaging: Labels, stickers, and moisture-resistant cardboard.

Medical: Tapes, band-aids, and wound dressings.

Electronics: Lithium batteries and solar panels.

Textile: Waterproofing and antibacterial functional fabrics.

Automotive: Interior finishes and soundproofing materials.

Product Samples For Reference

Medical Tapes Application

After-sales Service

We provide comprehensive after-sales support including door-to-door installation services by technical engineers where conditions allow. For other regions, we offer high-quality remote technical assistance to ensure smooth operation and customer satisfaction with our equipment.

Frequently Asked Questions

What materials can be processed with this machine?

It is compatible with a wide range of materials, including films, fabrics, foams, papers, and specialized medical substrates.

How does the coating process work?

Solid hot melt adhesive is melted and applied to the material surface using precision methods such as slot-die coating for uniform distribution.

What is the coating precision of the slot-die system?

The system offers high precision control, typically maintaining a coating error of less than ± 1.5g for a 30g/m² application.

Can the machine be customized for specific widths?

Yes, the coating width is customizable from 400mm up to 2000mm to meet different production requirements.

Does the machine support continuous production?

Yes, it features a double-station non-stopping unwinding and rewinding unit, allowing for material splicing without stopping the machine.

How can I obtain a technical quote for my project?

Please provide details regarding your substrate, adhesive type, required coating width, and production speed for a customized configuration and quote.
