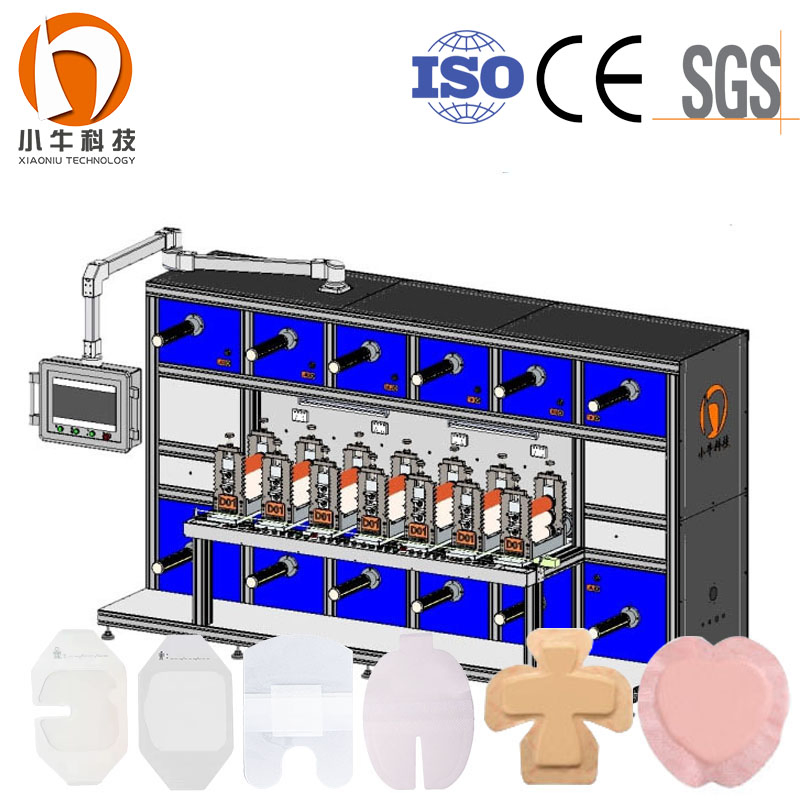

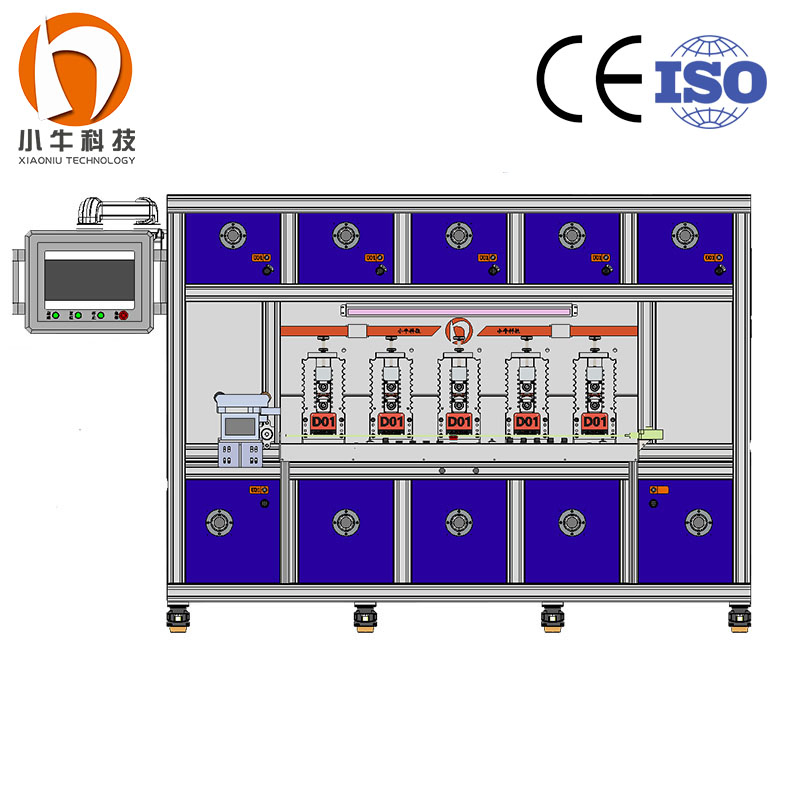

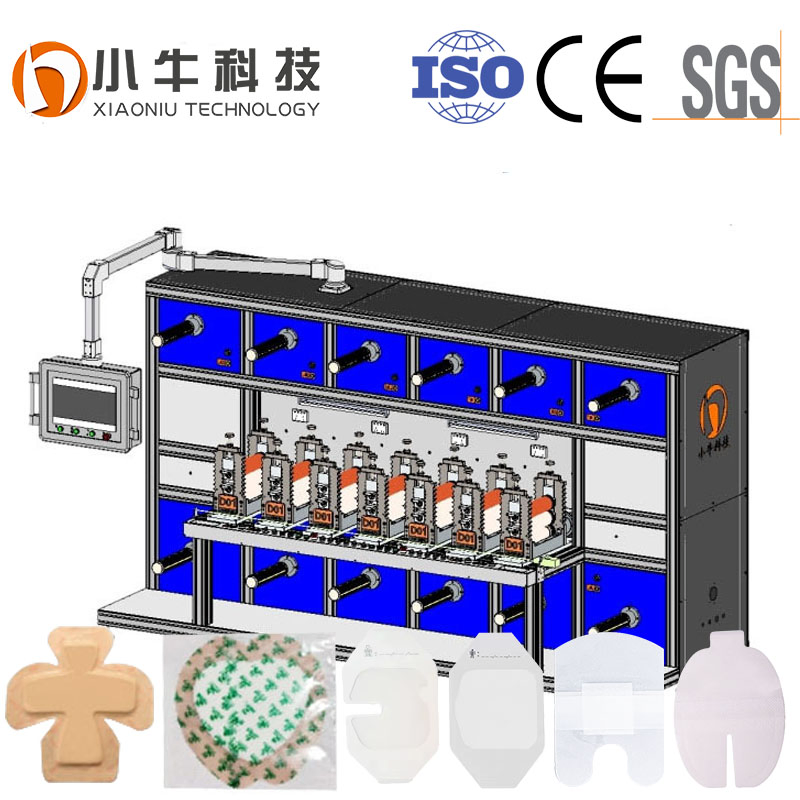

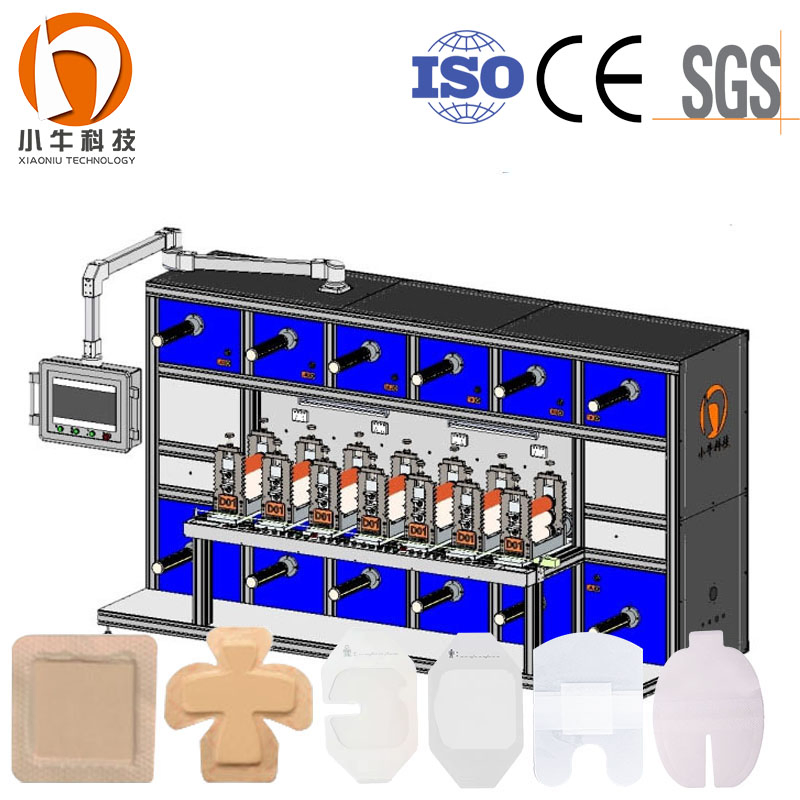

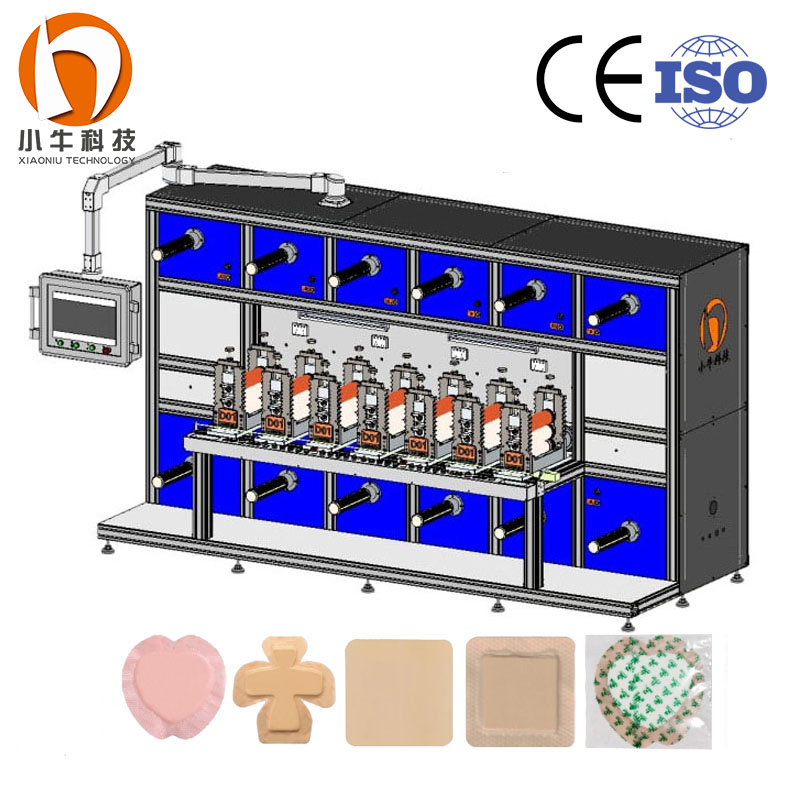

Specialized Medical Catheter Fixing Machine for Disposable Dressing Production

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

■ Basic Information

Model NO.	XN13
Species	Rotary Die-Cutting Machine
Imprinting Type	Rotary
Placing Form of Template	Horizontal
Die Cutting Tool	Metal Mold
Computerized	Computerized
Automatic Grade	Automatic
Application	Stickers Products, Dust-proof Material, EMI Shielding Materials, Medical Dressing Products
Power	32.5kw
Voltage	Customized
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Gear
Feed Width	250mm, 350mm or Customized
Cutting Precision	±0.1mm

■ Product Description

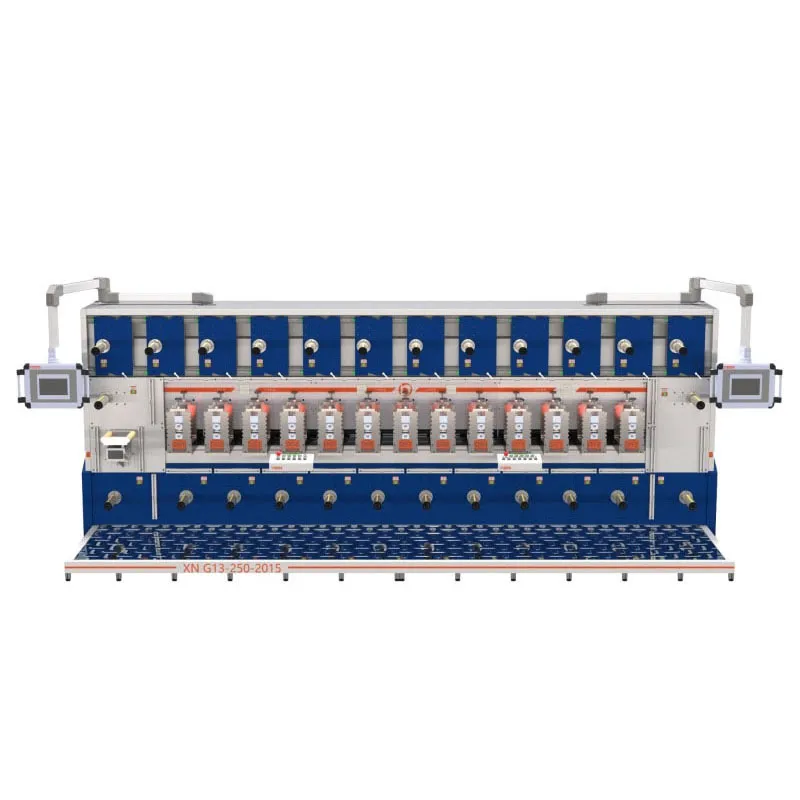

This 13-station rotary die-cutting machine, driven by servo motors, offers independent control for each station or feed shaft, allowing seamless integration for varied production needs like pressing, die cutting, and transfer. It supports synchronous, asynchronous, speed ratio, and constant tension functions, making it a truly automatic, highly intelligent universal machine.

Specialized Medical Catheter Fixing Machine

■ Key Advantages

✔

Continuous Efficiency: Roll cutting at 5-60m/min.

✔

High Precision: Stable processing with ±0.1mm accuracy.

✔

Integrated Design: Multi-station configuration for compounding.

✔

Versatile: Adaptable for all flexible substrates.

✔

Intelligent Control: Full-auto operation with smart memory.

✔

Advanced Functions: Supports asynchronous target tracking.

■ Operation Showcase

■ Product Applications

Catheter Fixation Dressings

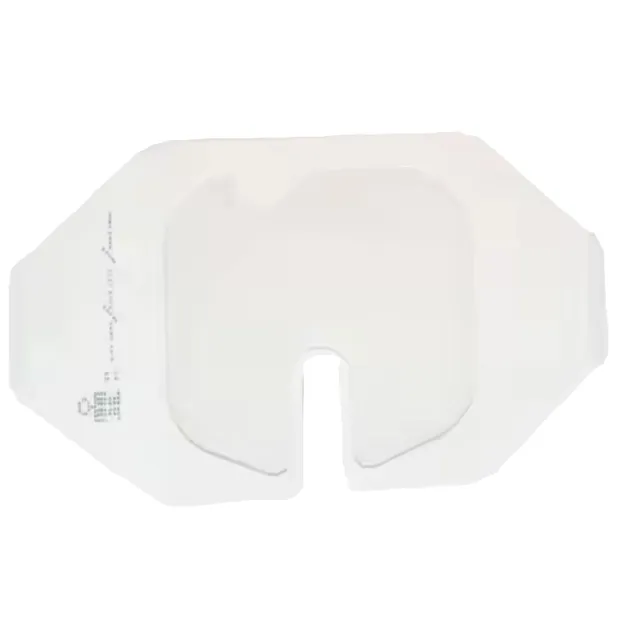

I.V. Dressing

Acne Patches

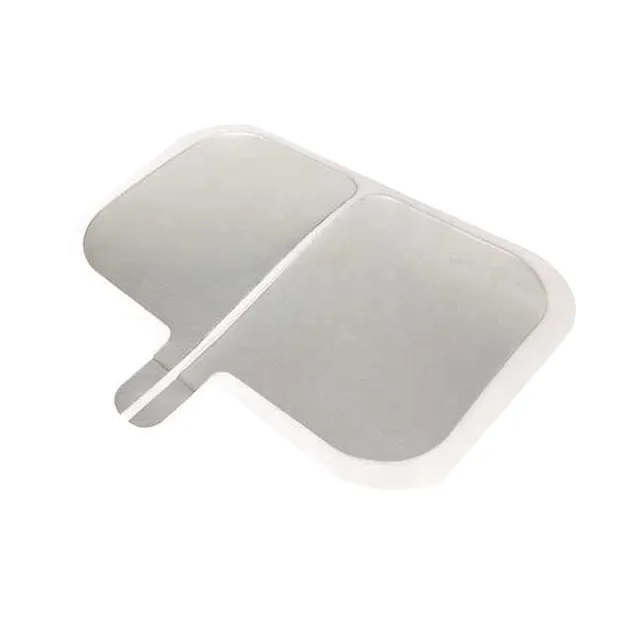

ESU Pads

Infusion Dressing

Hydrocolloid Dressing

■ Technical Specifications

Parameter	Details
Power (KW)	32.5kw
Working Voltage (V)	AC380
Feeding Width (mm)	250mm or 350mm
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1
Max Speed	60m/min

■ Packaging & Delivery

Package Size: 549.00cm * 170.00cm * 260.00cm

Package Gross Weight: 5600.000kg

Packing Material: Professional Wooden Packing

■ Frequently Asked Questions

1. What materials can this rotary die-cutting machine process?

The machine is designed for all flexible substrates, including medical consumables, 3C electronic materials, stickers, and EMI shielding materials.

2. What is the cutting precision of the equipment?

The machine offers high-precision processing with a tolerance of ±0.1mm, ensuring stable quality for medical and electronic products.

3. Can I customize the machine for specific production needs?

Yes, we provide custom configurations. You can adjust station numbers, feeding widths (250mm/350mm), and integrate specific modules like automatic target tracking.

4. What is the production efficiency of this machine?

The machine supports continuous roll cutting with a speed range of 5-60m/min, significantly increasing productivity compared to traditional methods.

5. What kind of after-sales support is available?

We offer a standard 1-year warranty, 24/7 technical help, and on-site or remote training for operation and maintenance. Engineers are available for debugging.

6. How does the intelligent control system work?

The machine utilizes a PLC servo control system (Omron) for independent control of each station, supporting synchronous and asynchronous processing with smart memory functions.
