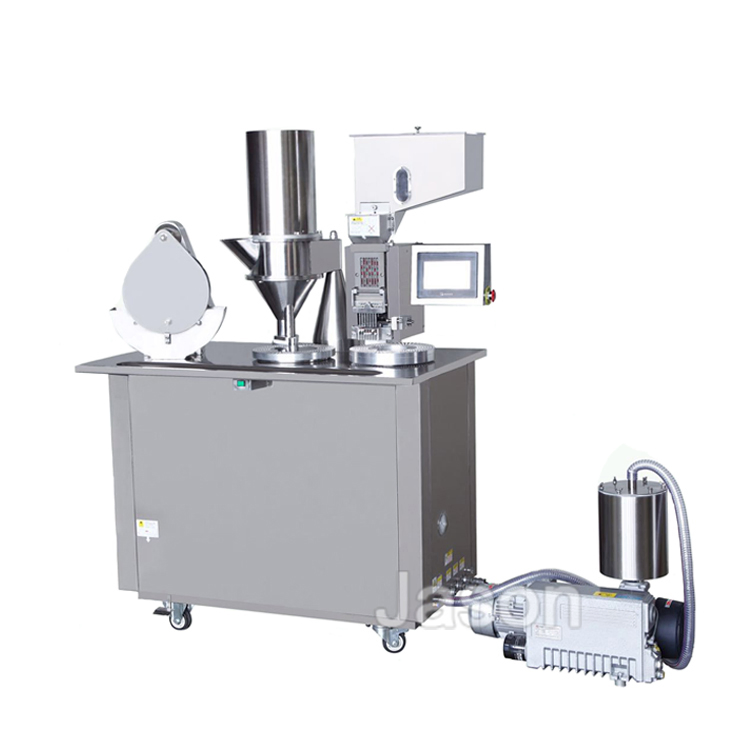

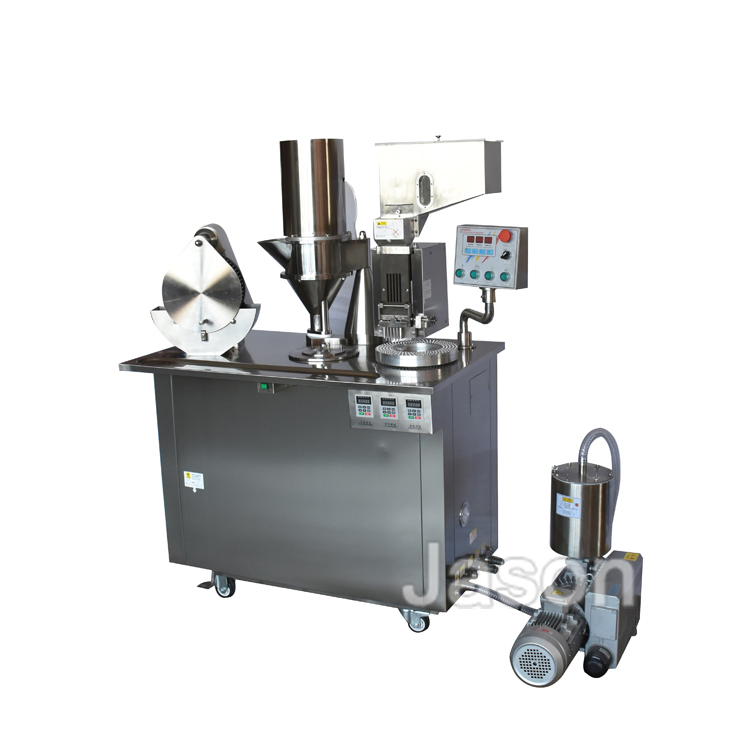

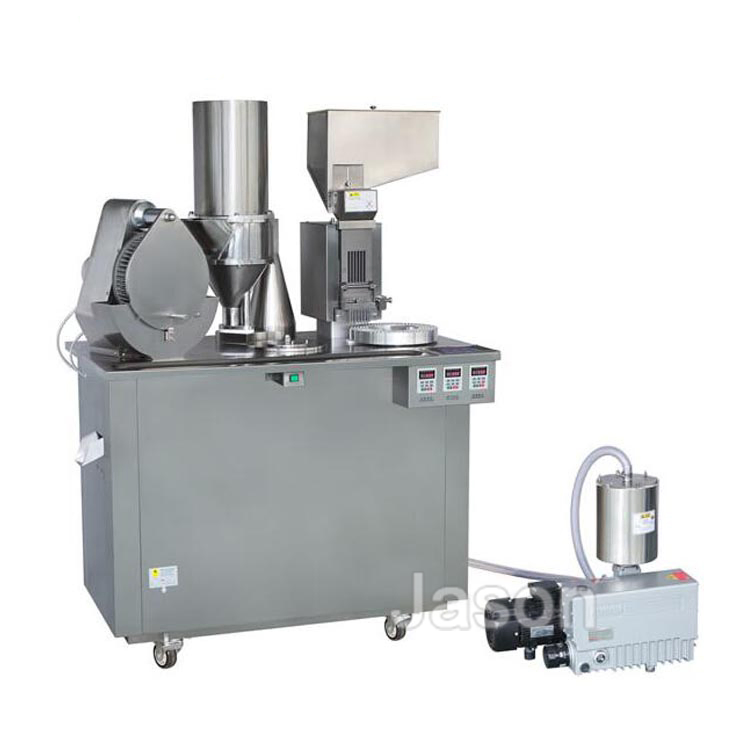

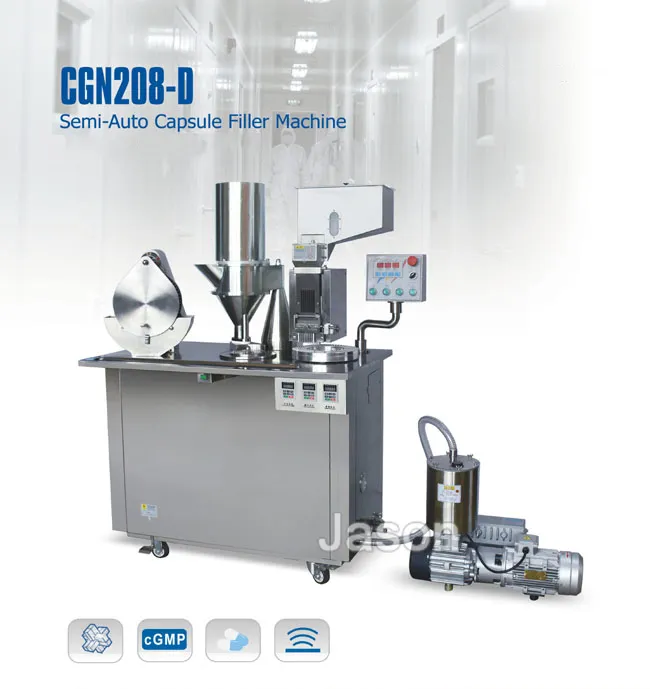

CGN208-D type capsule filling machine is a new efficient equipment based on the DTJ-C model. Following extensive research and development, it offers an easier, more intuitive operation and higher loading efficiency in capsule dropping, U-turning, and vacuum separation.

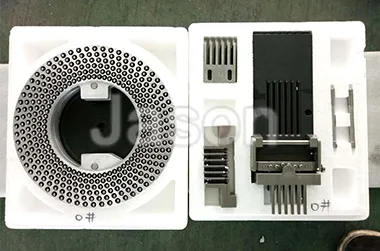

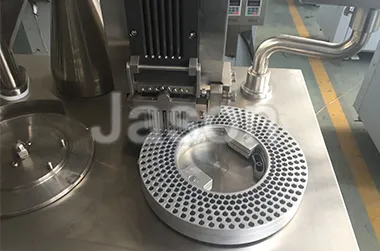

The new orientating system adopts a columns pill positioning design, which drastically reduces mould replacement time from 30 minutes to just 5-8 minutes.

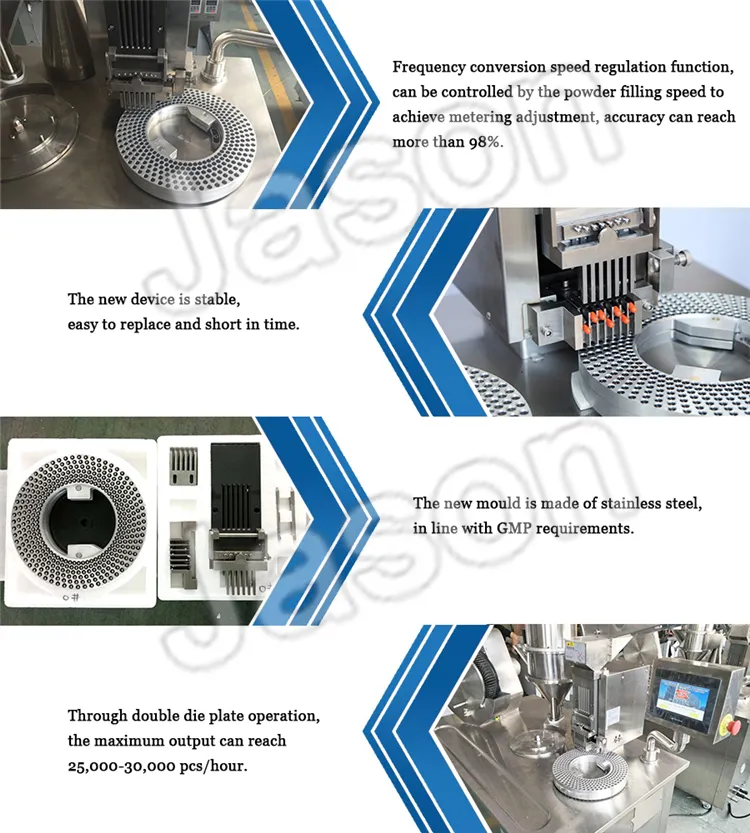

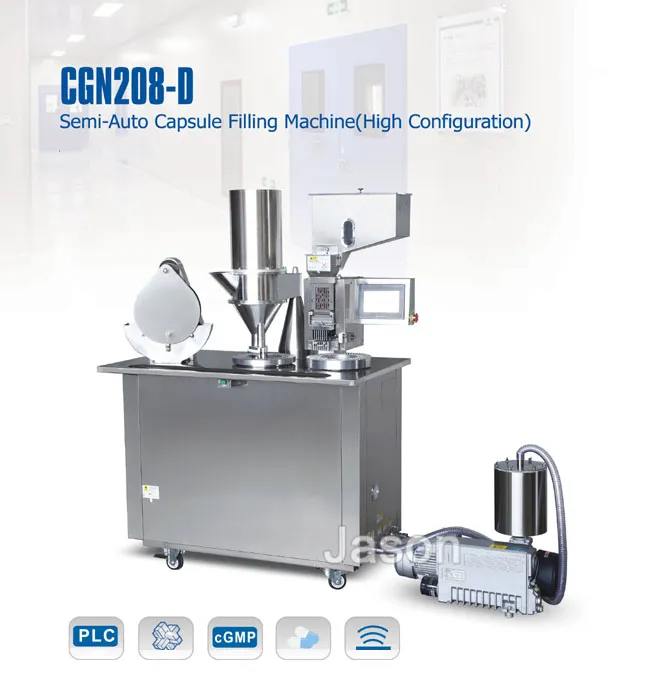

This high-configuration machine features combined electricity and pneumatic control, PLC and touch screen interface, automatic electronic counting, and a frequency conversion speed regulating device.
By replacing manual filling, it significantly reduces labor intensity, making it the ideal equipment for capsule production in pharmaceutical companies, research institutions, and hospital preparation rooms.
| Mould changing time | 5-8 mins |
| Working capacity | 25,000 - 30,000 (pcs/hour) |

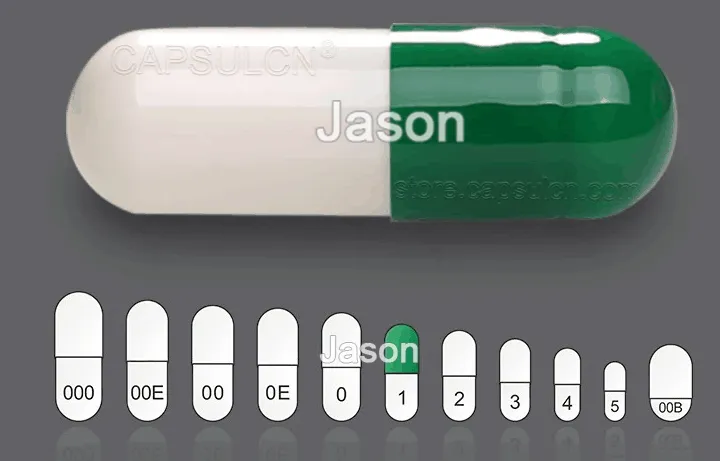

| Suitable capsule size | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4# |
| Power supply | 380V 50Hz 3PH 4.0kw |
| Compressed air | 0.03m³/min 0.7Mpa |
| Vacuum pump | 40m³/h |
| Overall dimension (LxWxH) | 1.14 × 0.7 × 1.63 m |
| Machine weight | 380kg |
