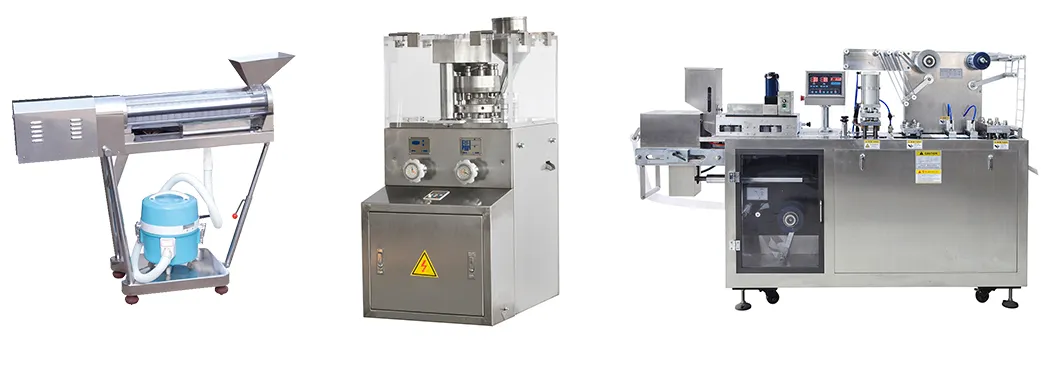

1. Capsule Polishing Machine / 2. Tablet Press / 3. Blister Packing Machine

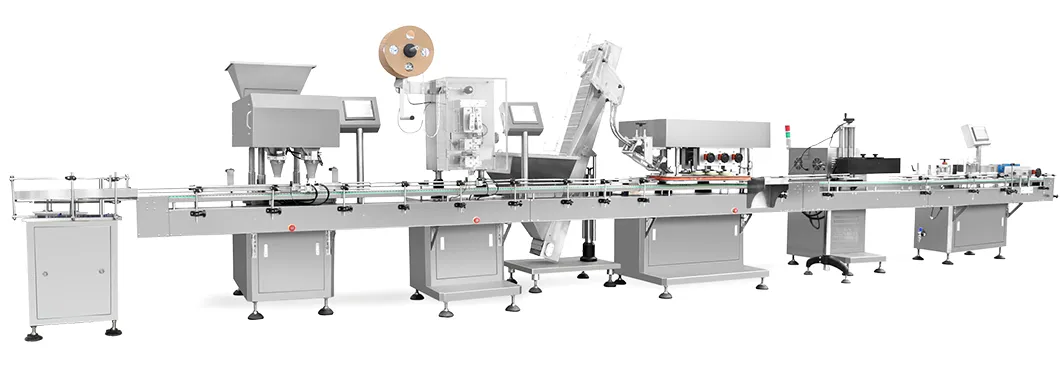

4. Capsule & Tablet & Pill & Gummy Counting Machine

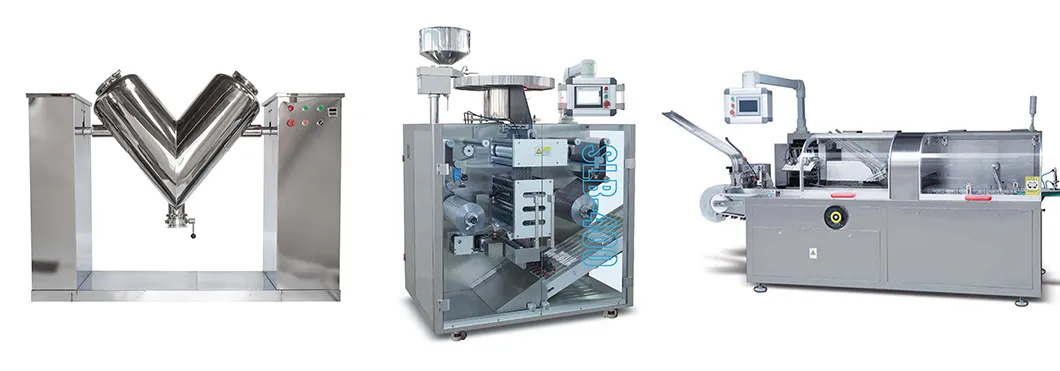

5. Powder Mixer / 6. Strip Packing / 7. Box Packing Machine

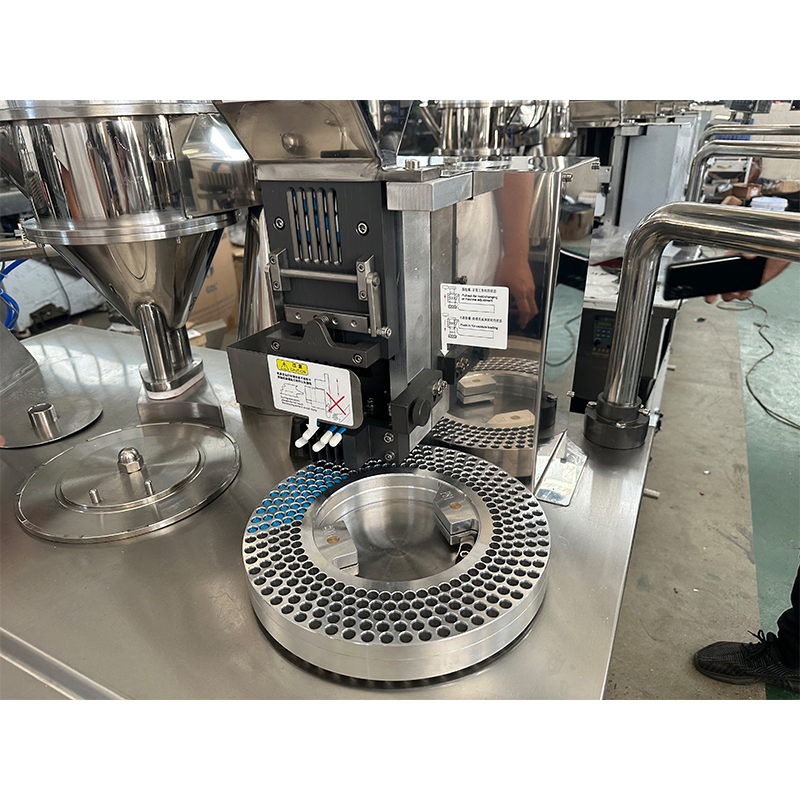

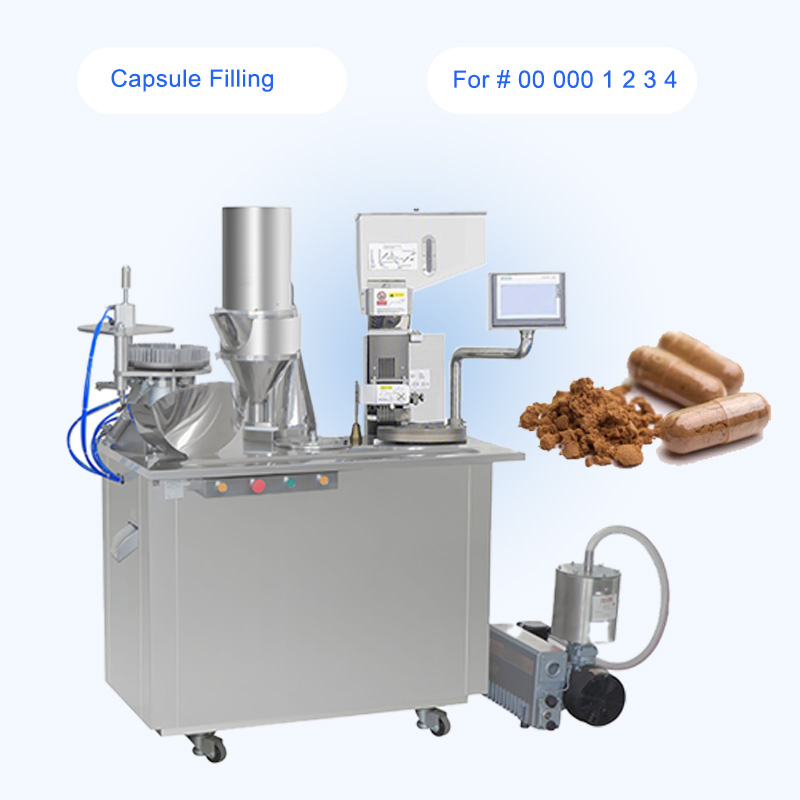

The JTJ-A Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

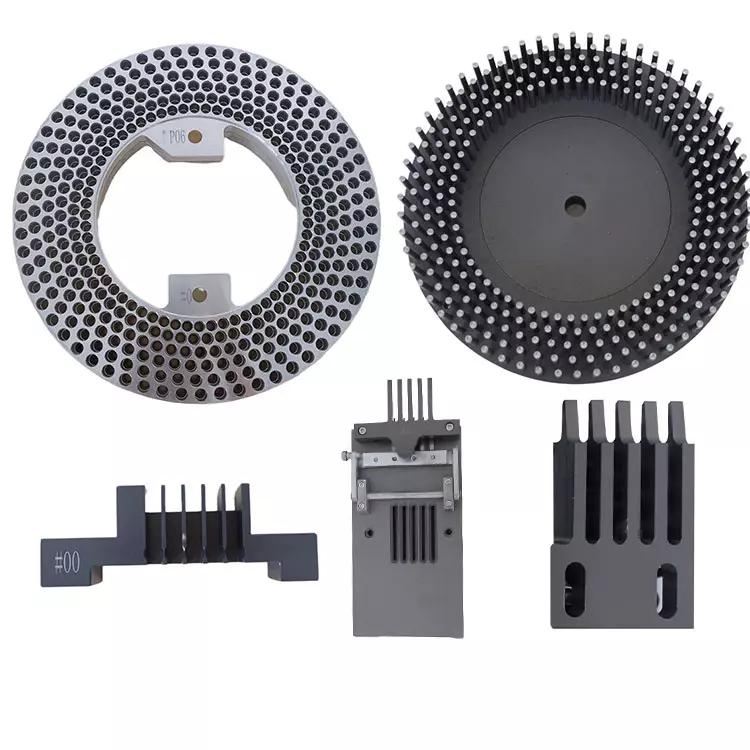

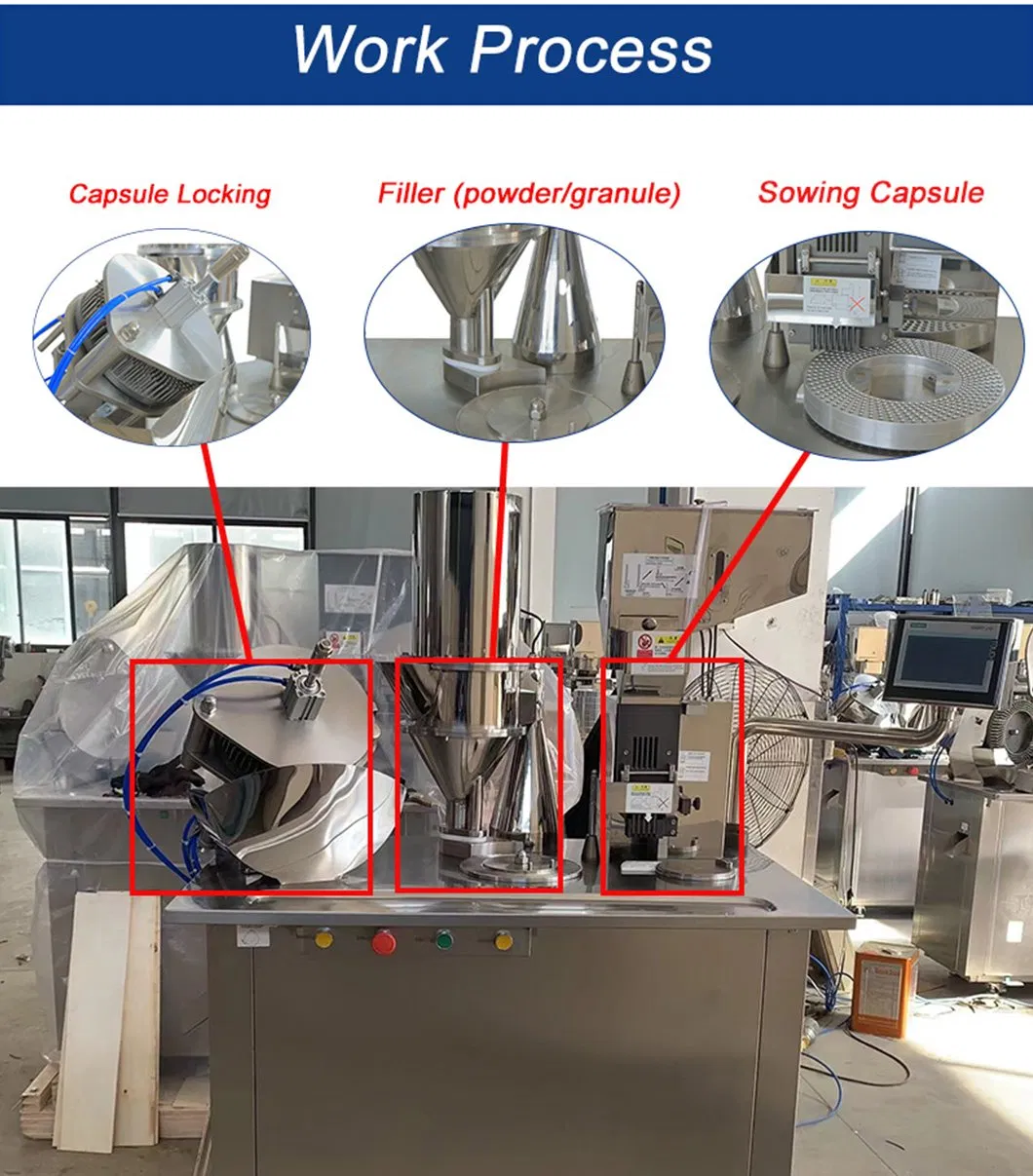

The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump. China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 98%.
| Parameter | Details |
|---|---|
| Model | JTJ-A |
| Productivity | 1-25,000 capsules/h |

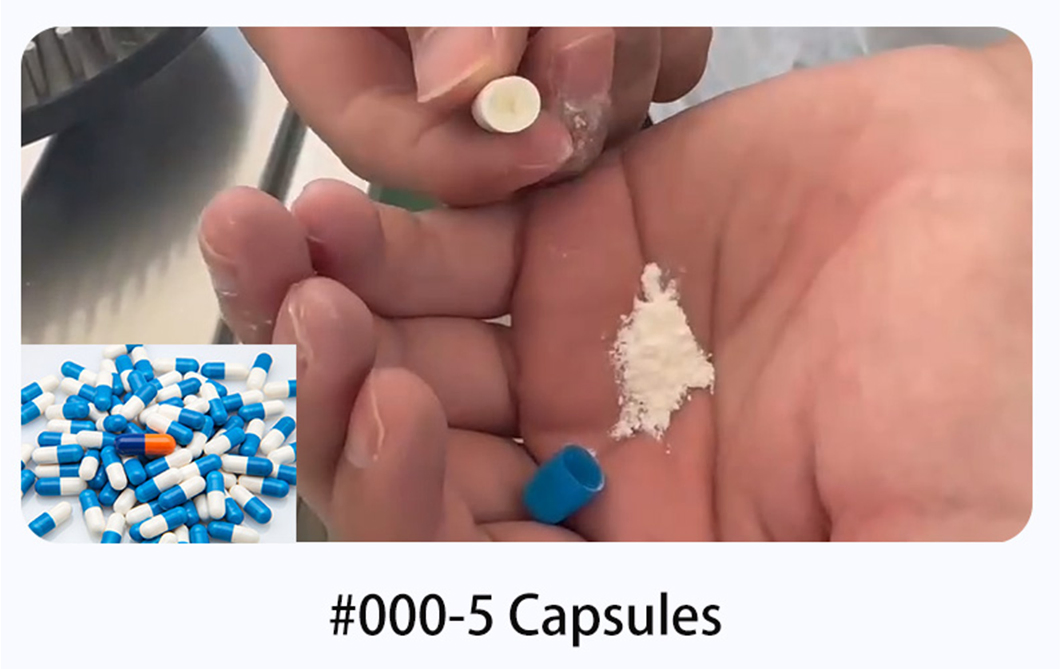

| Applicable capsules | 0#, 1#, 2#, 3# machine-made standard capsules |
| Filled medicine type | Not adhesive or wet powders and small granules |
| Total power | 2.12Kw |
| Air pressure | 0.03m3/min, 0.7MPa |
| Vacuum pump | evacuating rate: 40m3/h |
| External dimensions (mm) | 1500x680x1600 (L*W*H) |
| Packing Size(mm) | 1640X720X1700 (L*W*H) |
| Weight | 330Kg |
