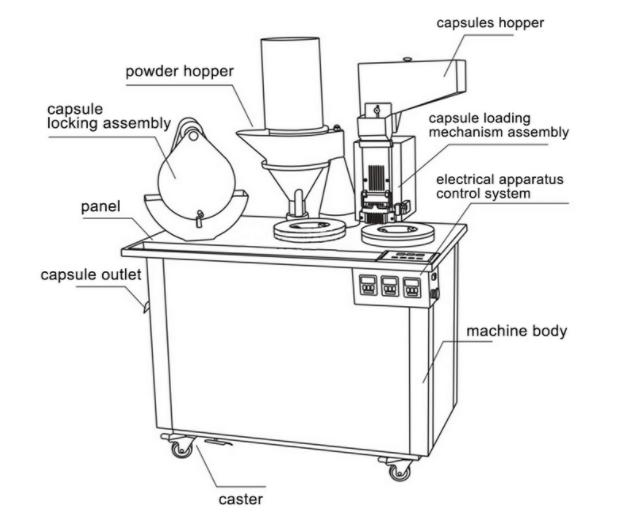

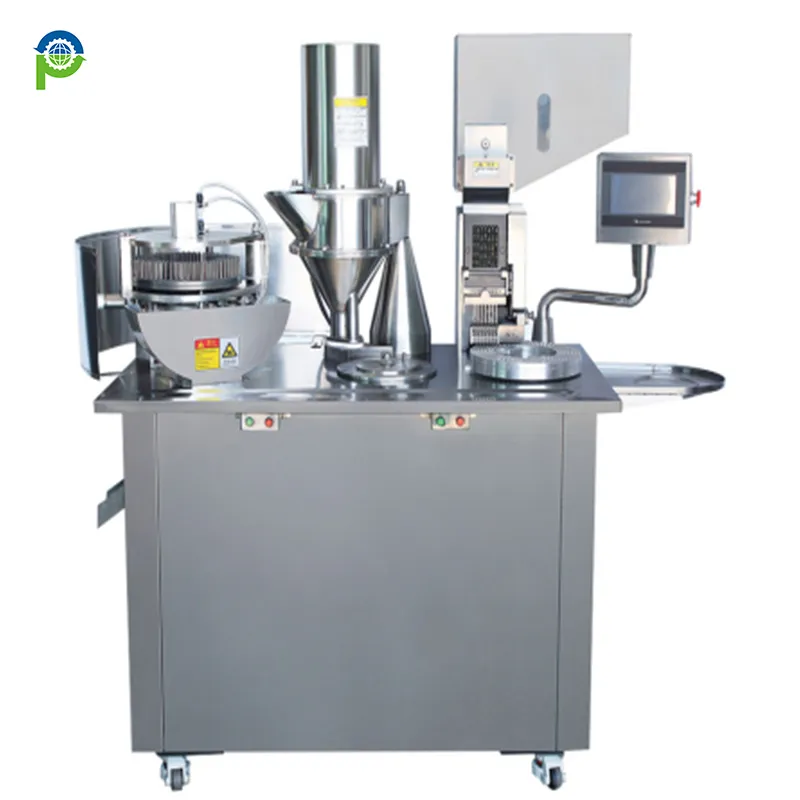

The DTJ-T Capsule-Filling Machine is a advanced pharmaceutical equipment featuring a novel structure and professional appearance. Controlled by both electrical and pneumatic systems, it integrates an automatic electronic counter and computer-controlled speed adjustment.

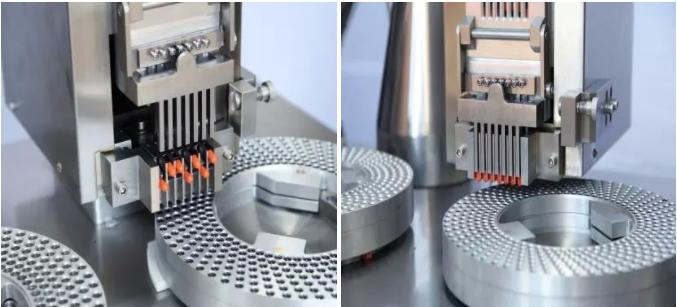

This machine automates the positioning, separation, and locking of capsules, significantly reducing labor intensity and increasing productivity compared to manual filling. It ensures accurate filling dosages and meets strict pharmaceutical sanitary standards.
| Parameter Item | Technical Specifications |
|---|---|
| Capsule Size | No. 000#-3# |
| Capacity (capsules/h) | 10000-22500 (Skill-dependent) |
| Power Supply | 380V/220V 1/3Phase 4.0kw |

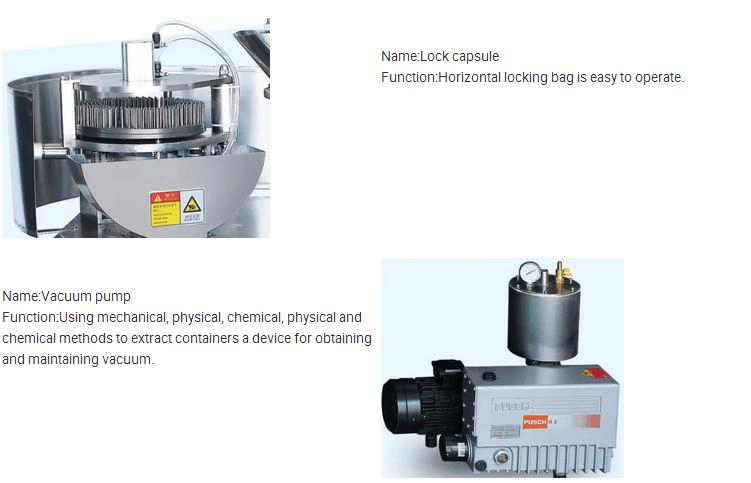

| Vacuum Pump | 40m³/h |
| Air Compressor Capacity | 0.03m³/min 0.7Mpa (Prepared by customer) |
| Overall Dimensions (mm) | 1140×700×1630 |
| Net Weight (Kg) | 430 |
| Gross Weight (Kg) | 500 |
