| Capsule size | No. 000#-3# |
| Capacity (capsules/h) | 10,000 - 22,500 (Depending on operator skill) |
| Power supply | 380V/220V 1/3 Phase 4.0kw |
| Vacuum pump | 40m³/h |
| Air Compressor Capacity | 0.03m³/min 0.7Mpa (Prepared by customer) |

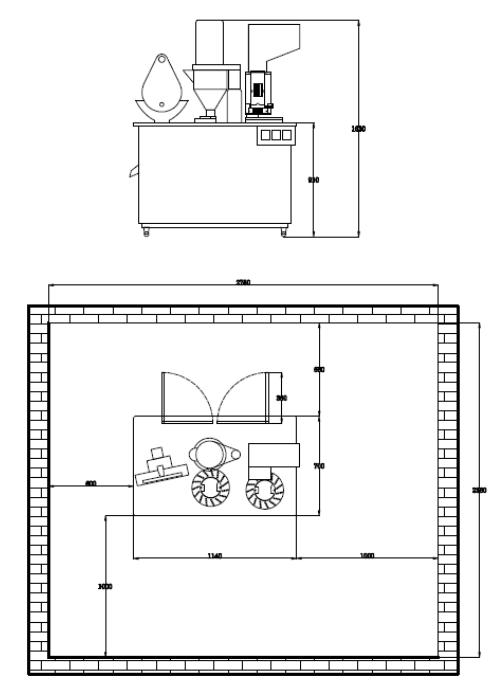

| Overall dimensions (mm) | 1140×700×1630 |
| Packing dimension (mm) | 1650×800×1750 |
| Net weight (Kg) | 430 |
| Gross weight (Kg) | 500 |

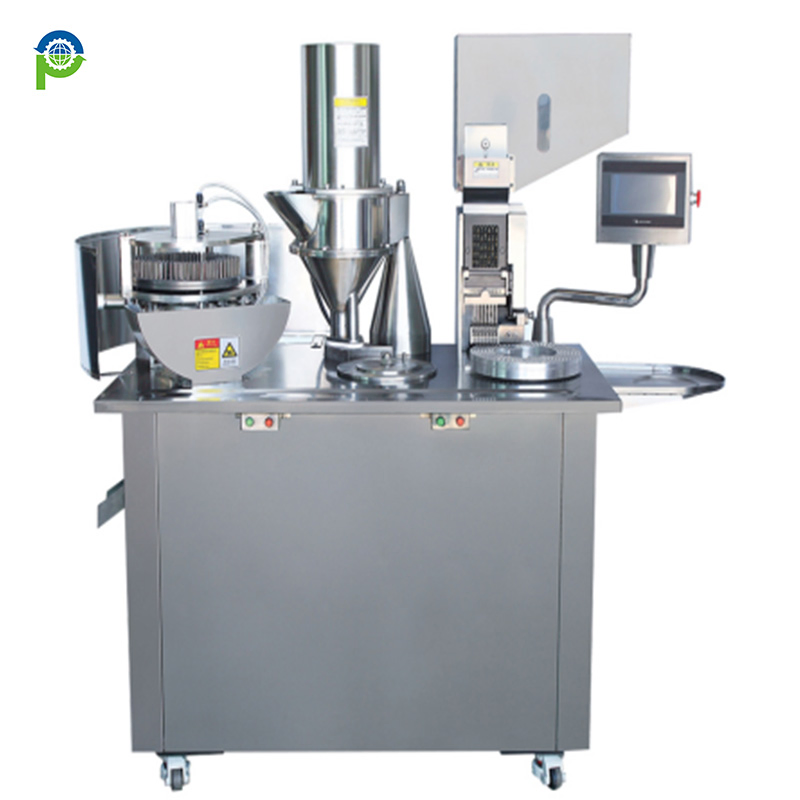

The DTJ-T Capsule-Filling Machine is a new type of medicine filling machine with a novel structure and attractive appearance. Operating under both electrical and pneumatic control and equipped with an automatic electronic counter and computer-controlled speed-adjusting device, the machine can efficiently accomplish the positioning, separation, and locking of capsules.
Designed to replace manual capsule-filling, it significantly reduces labor intensity and raises productivity. Its filling amounts are highly accurate and meet the strict sanitary standards for pharmaceutical production.

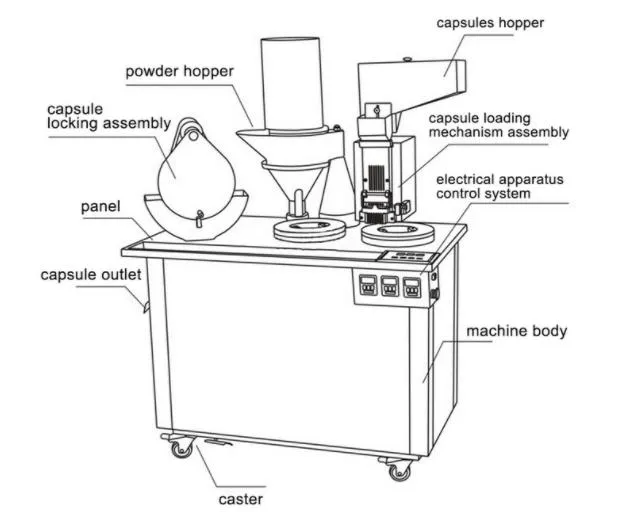

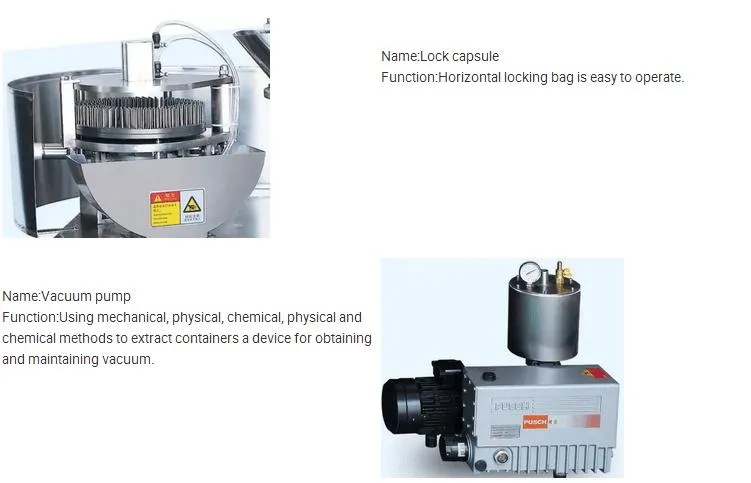

The machine consists of several key mechanisms: capsule-feeding, U-turning and separating, material filling, locking device, electronic speed varying system, and electrical/pneumatic control protection. It also includes essential accessories such as a vacuum pump and air pump.
This machine is compatible with both domestic and imported capsules, achieving a finished product qualification rate of above 98%.
