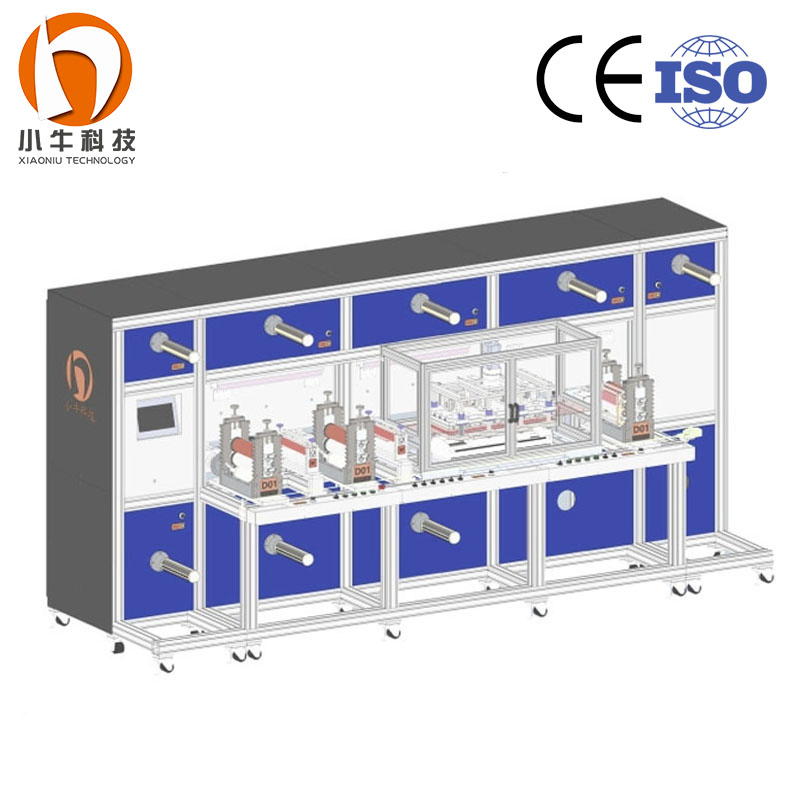

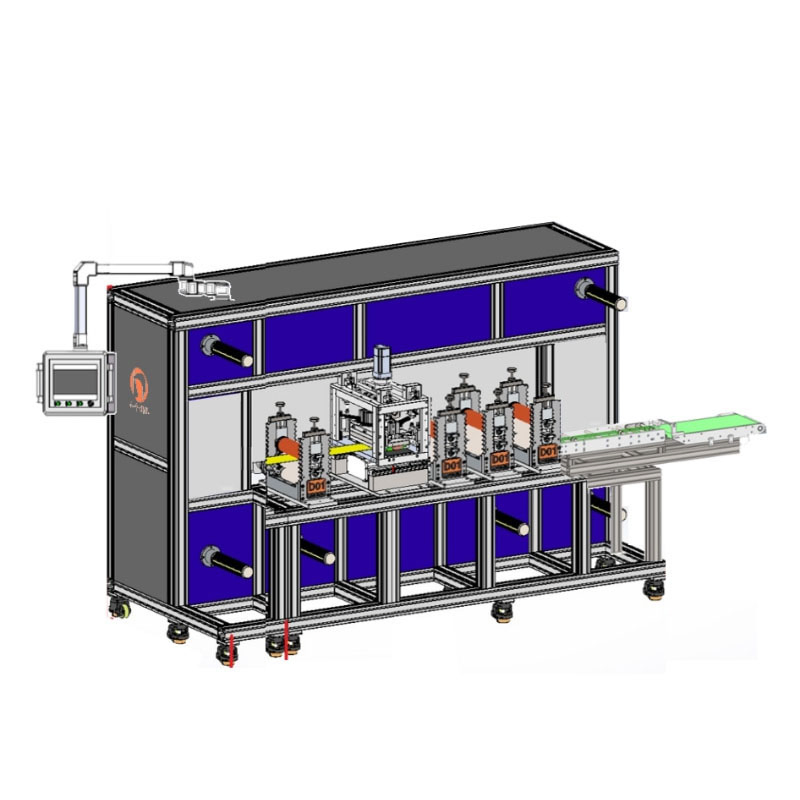

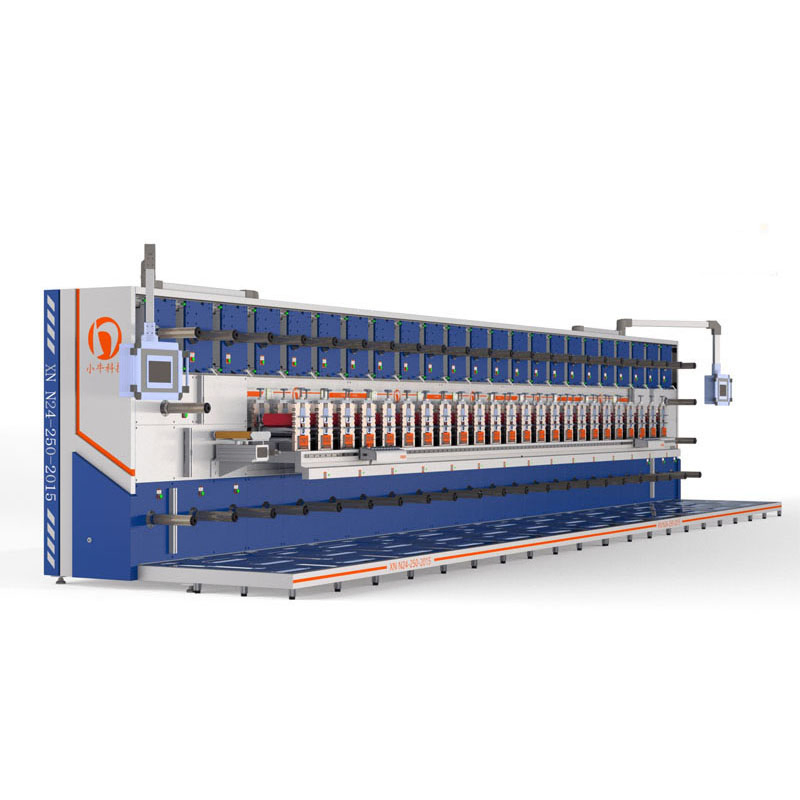

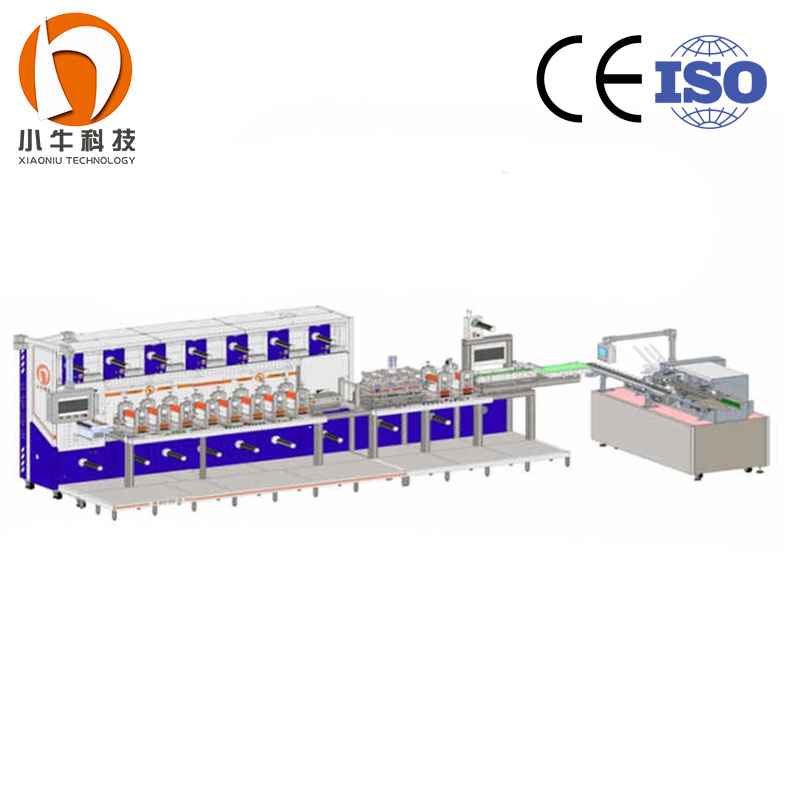

Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
1 / 5
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components
Robust Wound Care Dressings Making Machine with Essential Core Components

Robust Wound Care Dressings Making Machine with Essential Core Components

Customization: Available
Application: Medical Dressing Products
Certification: CE, ISO
Send Inquiry

Product Description

Product Overview

CE ISO Certified Medical Sterile Dressing Silicon Wound Dressing IV Manufacturing Machinery. This 7-station rotary die-cutting machine, driven by servo motors, operates independently yet integrates seamlessly for diverse pressing, die cutting, and transfer tasks. It supports synchronous, asynchronous, speed ratio, and constant tension functions, offering automatic, highly intelligent operations.

Model NO.
XN7
Control System
Fully Automatic
Material
Aluminum Alloy, Stainless Steel
Power
17.5kw
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Gear
Cutting Precision
±0.1mm
Drive Motor
Servo
PLC
Omron

Machine Advantages

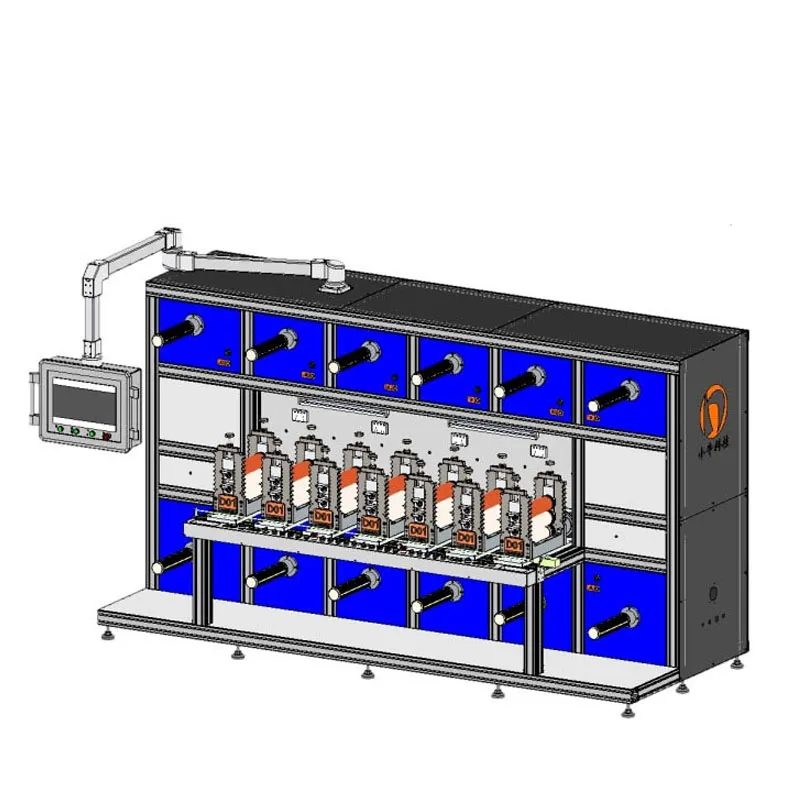

Rotary die-cutting machine
  • ✓
    High Efficiency: Continuous roll cutting at 5-60m/min.
  • ✓
    High Precision: ±0.1mm stable & consistent processing.
  • ✓
    Multi-station: Integrated multi-process compounding design.
  • ✓
    Wide Adaptability: Suitable for all flexible substrates.
  • ✓
    Full-auto Operation: Intelligent tension & deviation control.

Key Functions

◈
Synchronous & Asynchronous
◈
Automatic Target Tracking
◈
System Failure Monitoring
◈
Material Breaking Alarm
◈
Constant Tension Control
◈
Dual System Operation

Finished Product Applications

I.V. dressing
I.V. Dressing
foam dressing
Foam Dressing
acne patches
Acne Patches

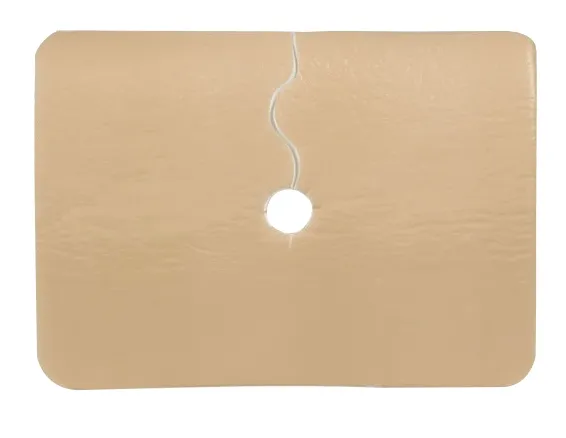

tracheostomy dressings
Tracheostomy Dressings
infusion dressings
Infusion Dressings
hydrocolloid dressings
Hydrocolloid Dressings

Technical Specifications

Power (KW)17.5kw
Working Voltage (V)AC380
Feeding Width (mm)250mm or 350mm
Max. Diameter (mm)400mm
Die Cutting Precision (mm)±0.1
Production Speed60m/min

Components & Delivery

Main parts
Main Parts
Electronics
Electronics
Stations
Processing Stations
Delivery 1
Delivery 2
Delivery 3

Service & Support

  • ●
    Standard Warranty: 1 year complete coverage.
  • ●
    Global Support: 24/7 technical support and spare parts supply.
  • ●
    Training: On-site or remote operation and maintenance training.
  • ●
    Engineering: Engineers available for training and debugging.
Service banner

Frequently Asked Questions

1. What materials can this rotary die-cutting machine process?
The machine is designed for all flexible substrates, including medical-grade films, non-woven fabrics, foam, hydrocolloids, and 3C electronic materials.
2. What is the cutting precision and speed?
The XN7 model offers a high precision of ±0.1mm with a production speed of 5-60 meters per minute, depending on the material and complexity.
3. Can the machine produce multiple products simultaneously?
Yes, machines with 8 or more stations can be equipped with a dual-system to produce two different products at the same time, maximizing productivity.
4. Is the equipment customizable for specific medical dressings?
Absolutely. The modular design allows for adding or removing stations and changing die cutters to accommodate various products like I.V. dressings, foam dressings, or acne patches.
5. What control system does the machine use?
We use the OMRON PLC servo control system, ensuring stable, intelligent, and highly automated operations with power-off memory.
6. What kind of training and after-sales support do you provide?
We provide a one-year warranty, lifetime maintenance, and 24/7 global technical support. We also dispatch engineers for on-site training and debugging.
