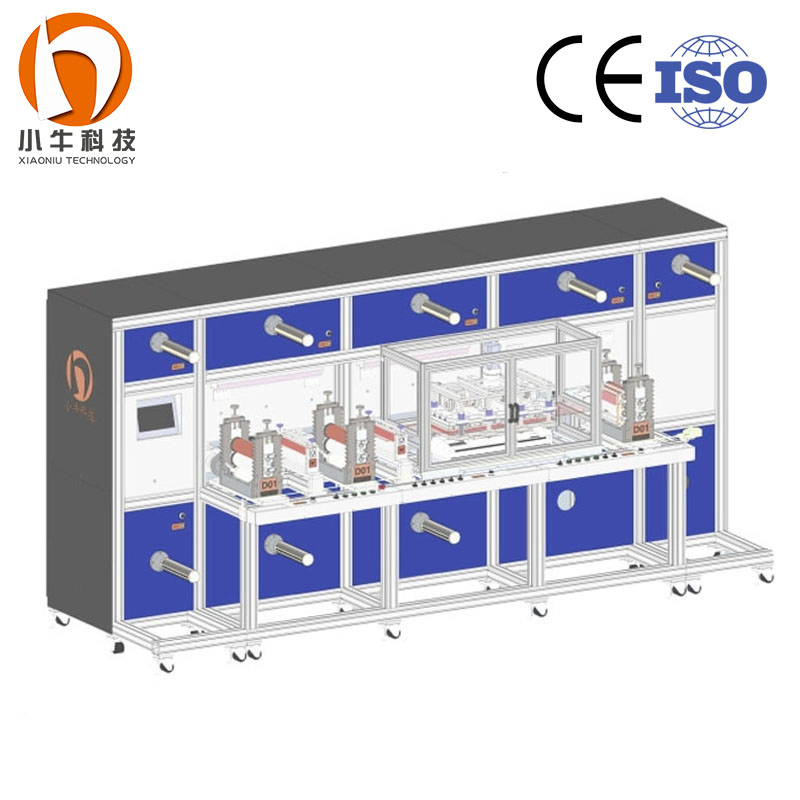

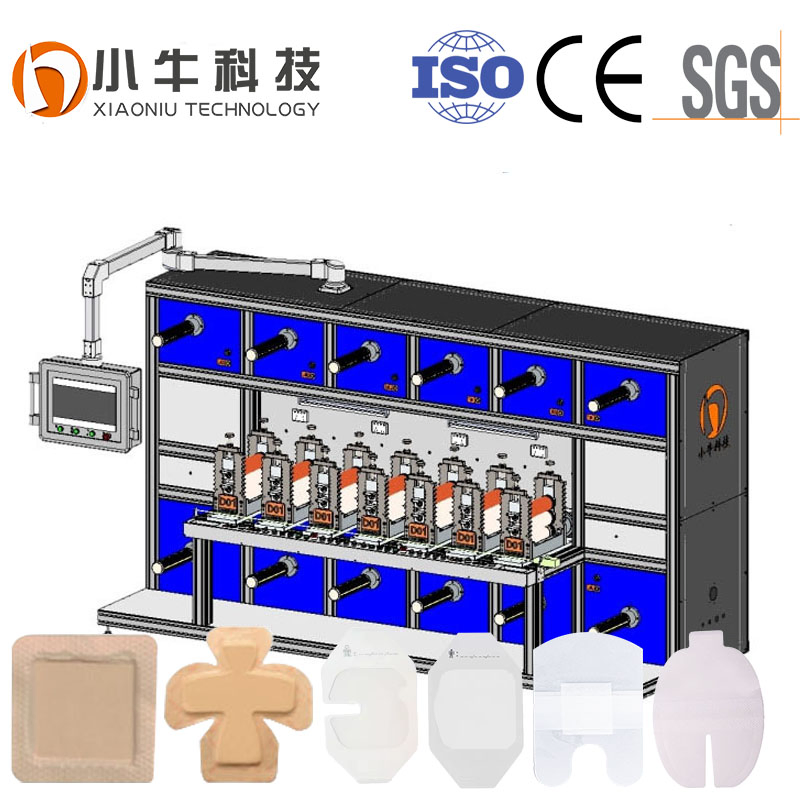

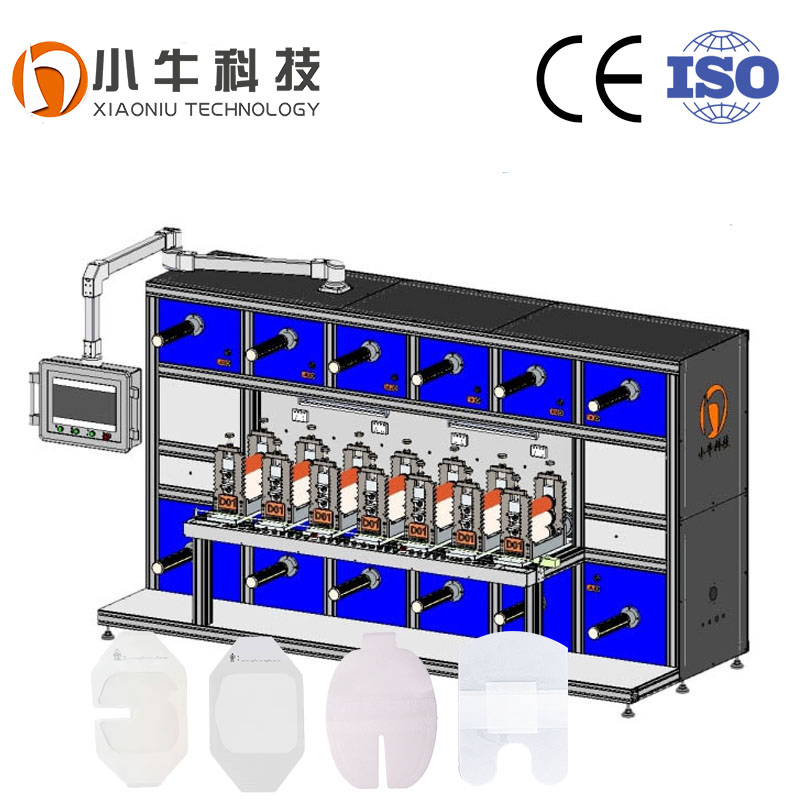

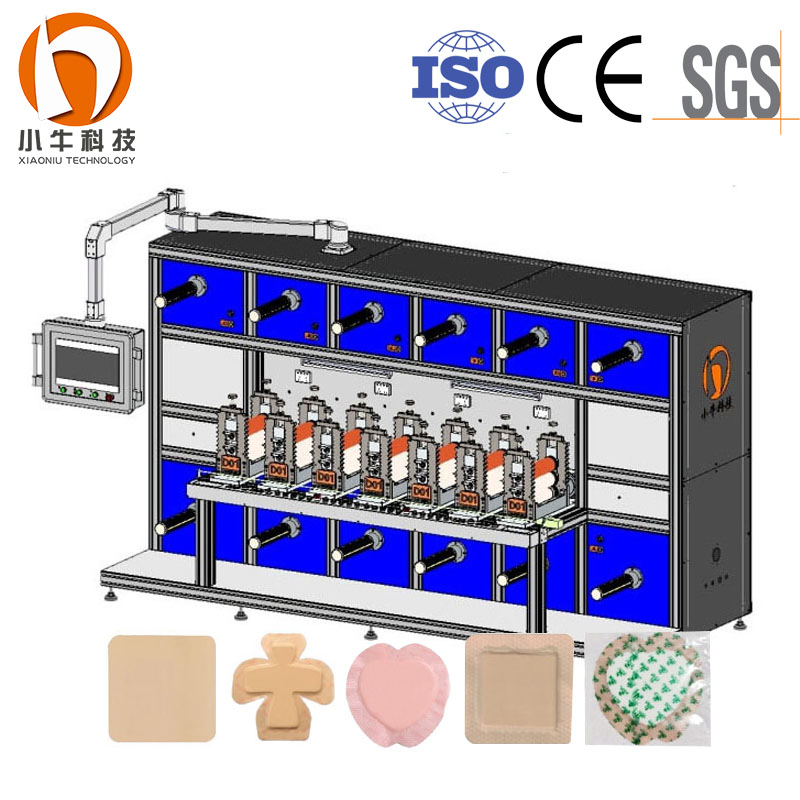

Robust IV Dressing Manufacturing Machine for High-Quality Medical Supplies

1 / 5

Robust IV Dressing Manufacturing Machine for High-Quality Medical Supplies

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Machine Information

Model NO.

XN13

Species

Rotary Die-Cutting Machine

Application

Medical Dressing, Stickers, EMI Shielding

Power

32.5kw

Automatic Grade

Automatic

Cutting Precision

±0.1mm

Drive Motor

Servo

Production Capacity

200 PCS/Year

Product Description

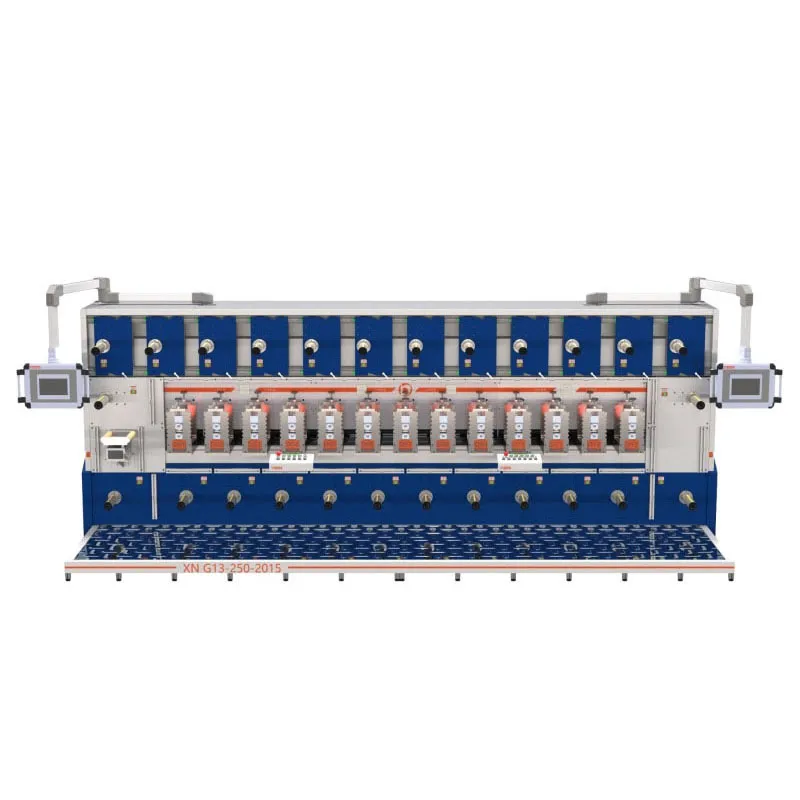

Disposable Medical IV Catheter Fixation Dressing Manufacturing Machine

This 13-station rotary die-cutting machine is servo motor driven, making each station and feed shaft independent yet part of a cohesive system. It meets diverse production needs like pressing, die-cutting, and transfer, with functions like synchronous, asynchronous, speed ratio, and constant tension. This is a highly intelligent automatic universal machine.

High-Precision Equipment

Core Advantages

🚀

Continuous Efficiency
Roll cutting at 5-60m/min efficiency.

🎯

High Precision
±0.1mm precision, stable and consistent output.

⚙️

Multi-Station
13-station design with integrated compounding.

🧠

Smart Control
Full-auto intelligent tension and OMRON PLC system.

Operation Video

PLAY VIDEO

Main Machine Functions

✅ Synchronous Processing
✅ Asynchronous Tracking
✅ Automatic Target Tracking
✅ Dual System Design
✅ Material Breaking Alarm
✅ Constant Tension Control

Product Applications

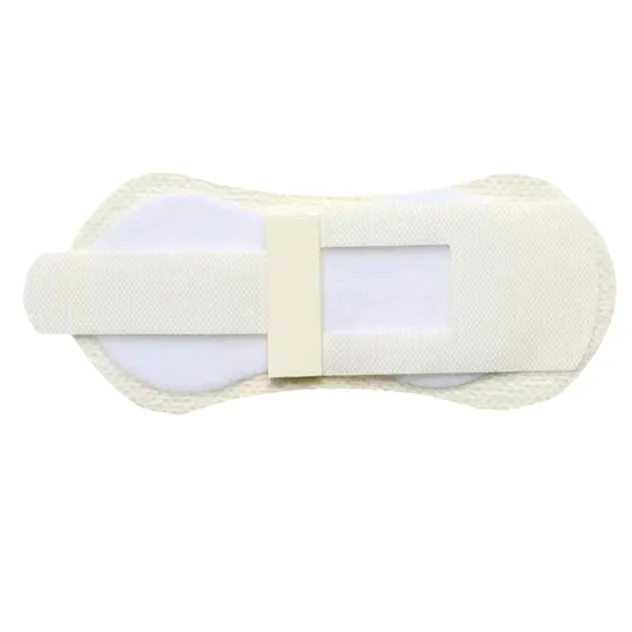

Catheter Fixation Dressings

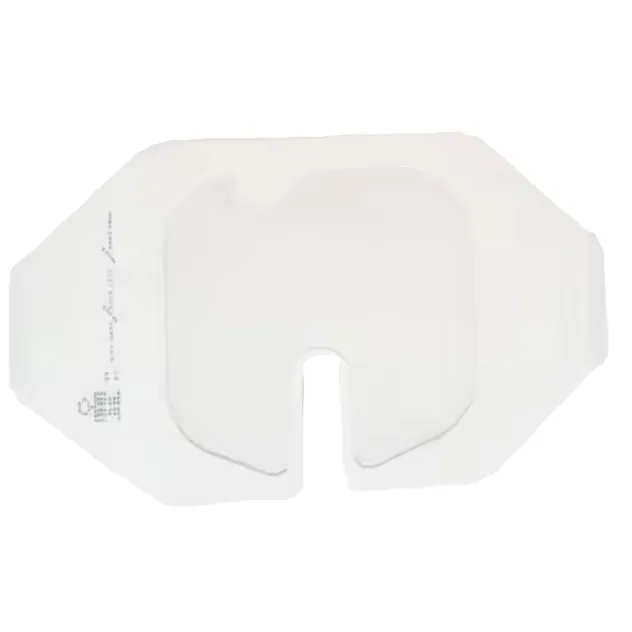

I.V. Dressing

Acne Patches

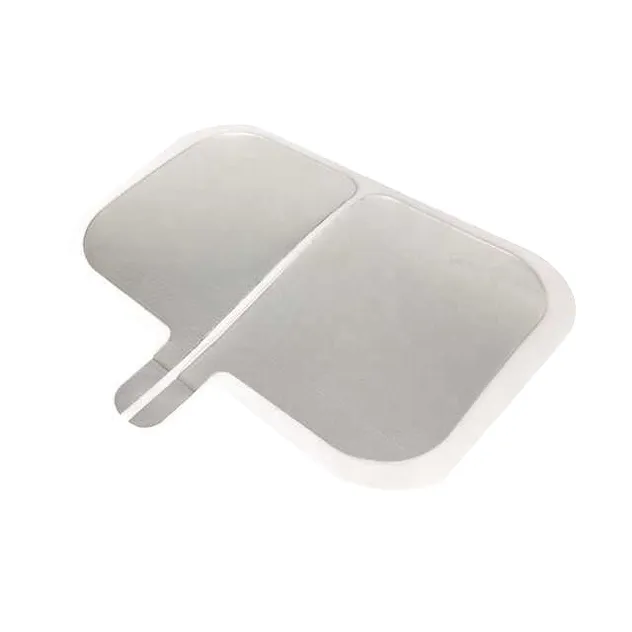

ESU Pads

Infusion Dressing

Hydrocolloid Dressing

Technical Specifications

Power (KW)	32.5kw
Working Voltage (V)	AC380
Feeding Width (mm)	250mm or 350mm
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1
Max Speed	60m/min

Equipment Delivery & Components

Core Machine Parts

Electronic Systems

Multi-Station Layout

Frequently Asked Questions

1. What materials can this machine process?

This rotary die-cutting machine is adaptable for all flexible substrates, including medical dressings, stickers, dust-proof materials, and EMI shielding materials.

2. How precise is the die-cutting process?

The machine utilizes an OMRON PLC servo control system, achieving a cutting precision of ±0.1mm for consistent and stable production.

3. Can one machine produce multiple types of products?

Yes. By adding stations or changing cutters, you can share the machine for multiple products. The modular design enables flexible combinations for new requirements.

4. What is the production efficiency?

The machine supports continuous roll cutting with an efficiency speed of 5-60 meters per minute, depending on the material and complexity.

5. What after-sales support do you provide?

We provide a standard 1-year warranty, 24/7 global technical assistance, and can dispatch engineers for on-site training and debugging.

6. Is customization available for specific needs?

Yes, our R&D team can customize machine configurations, station counts, and feeding widths (250mm, 350mm, or others) to meet your specific production needs.
