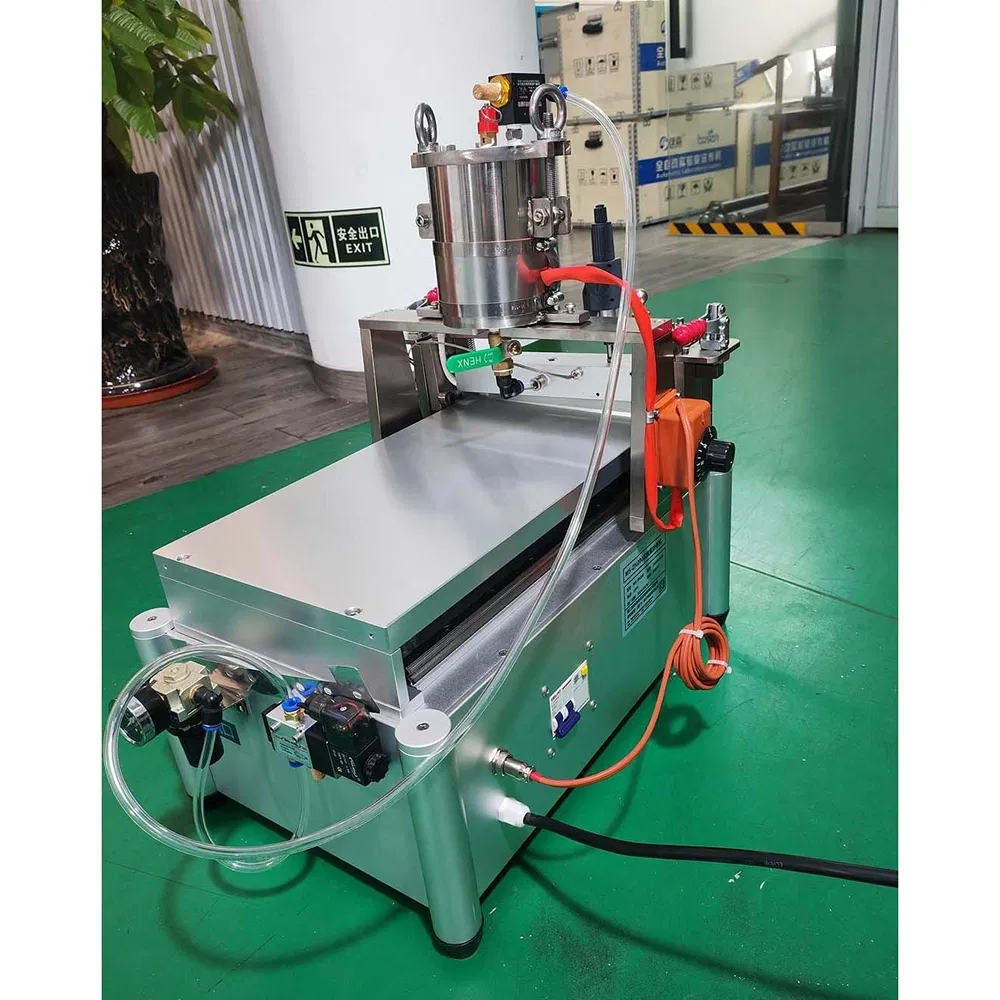

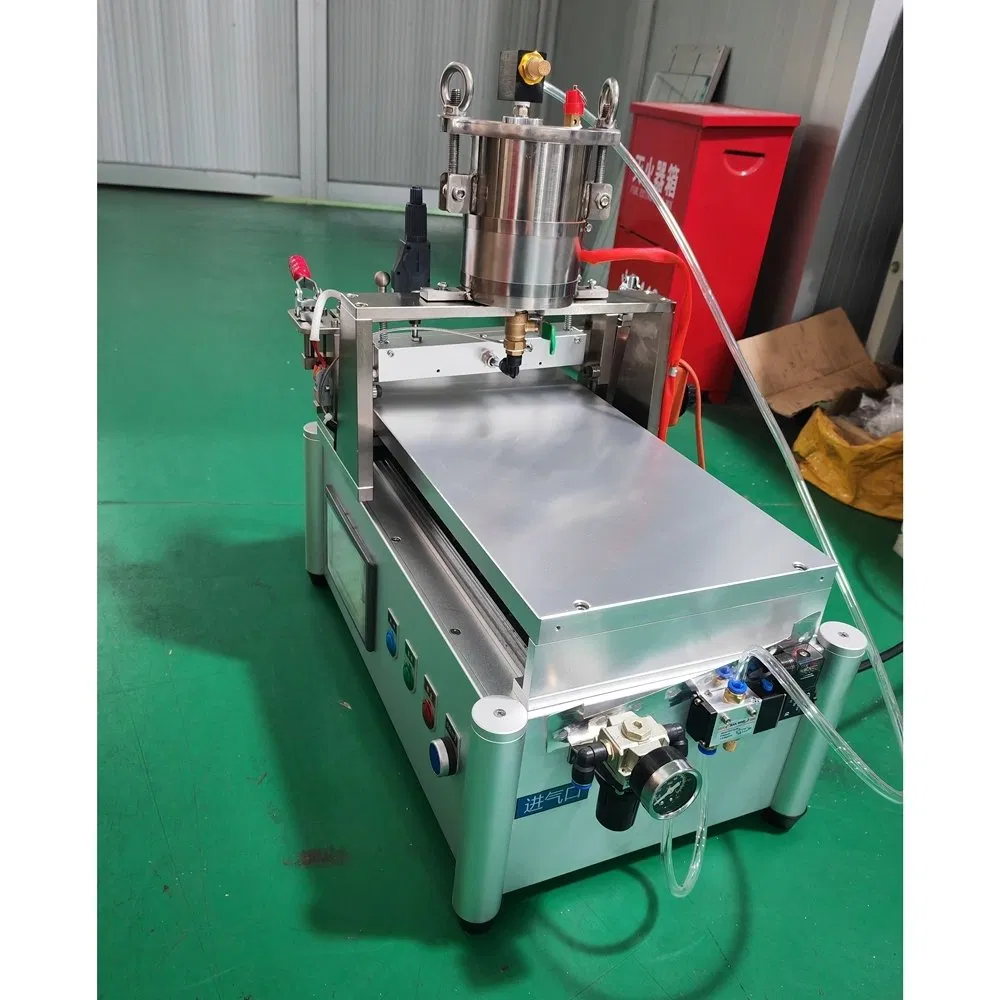

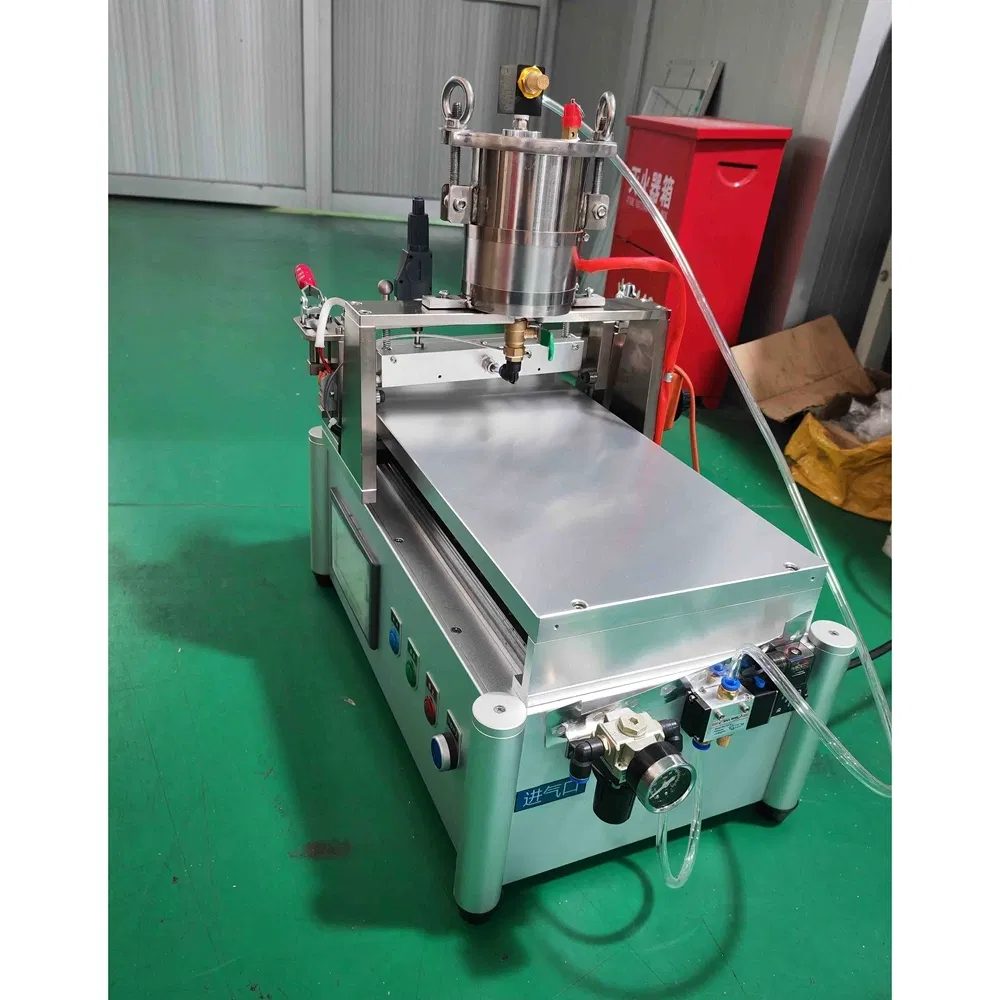

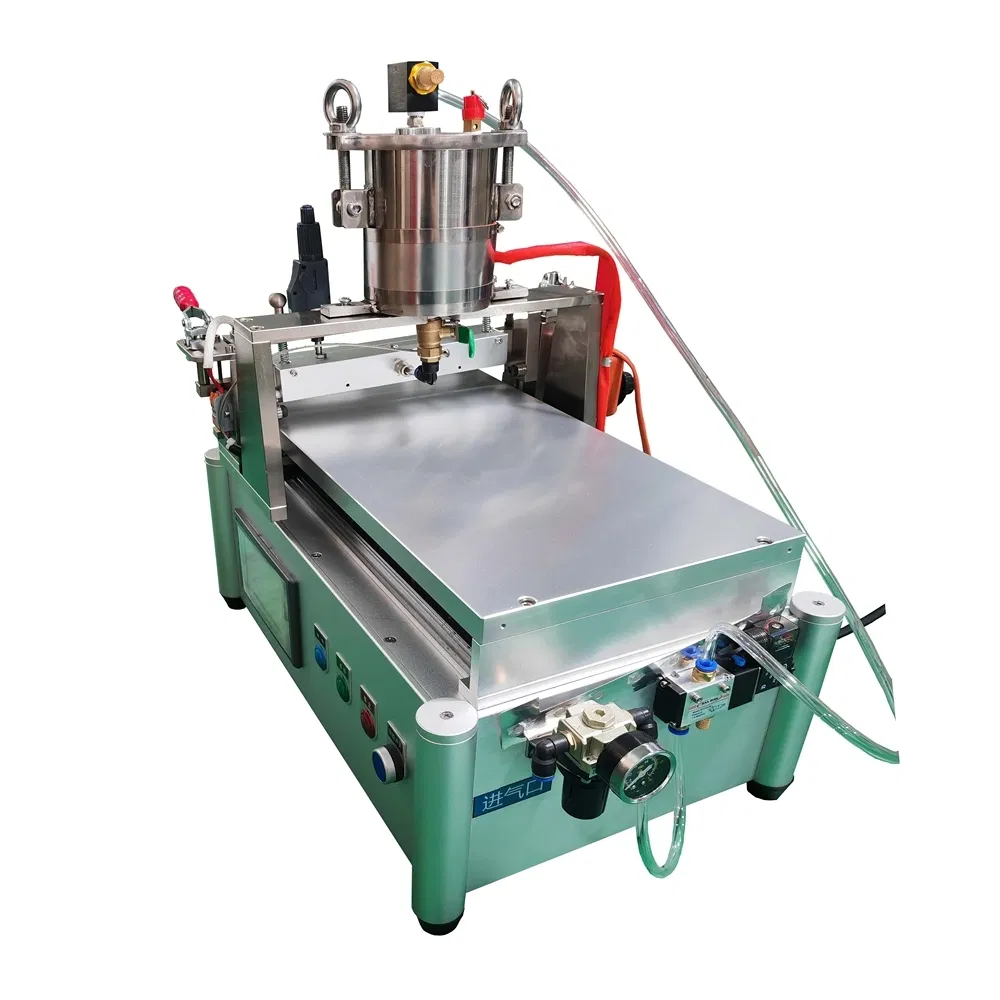

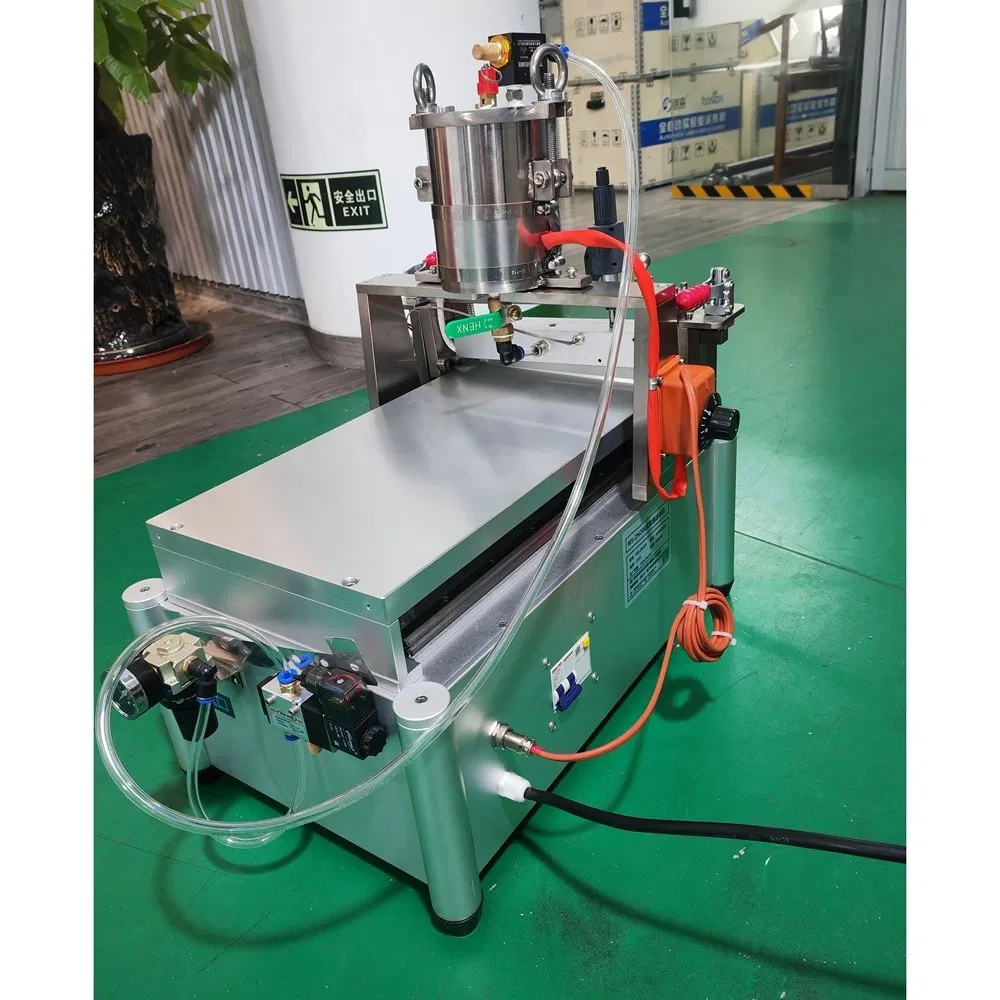

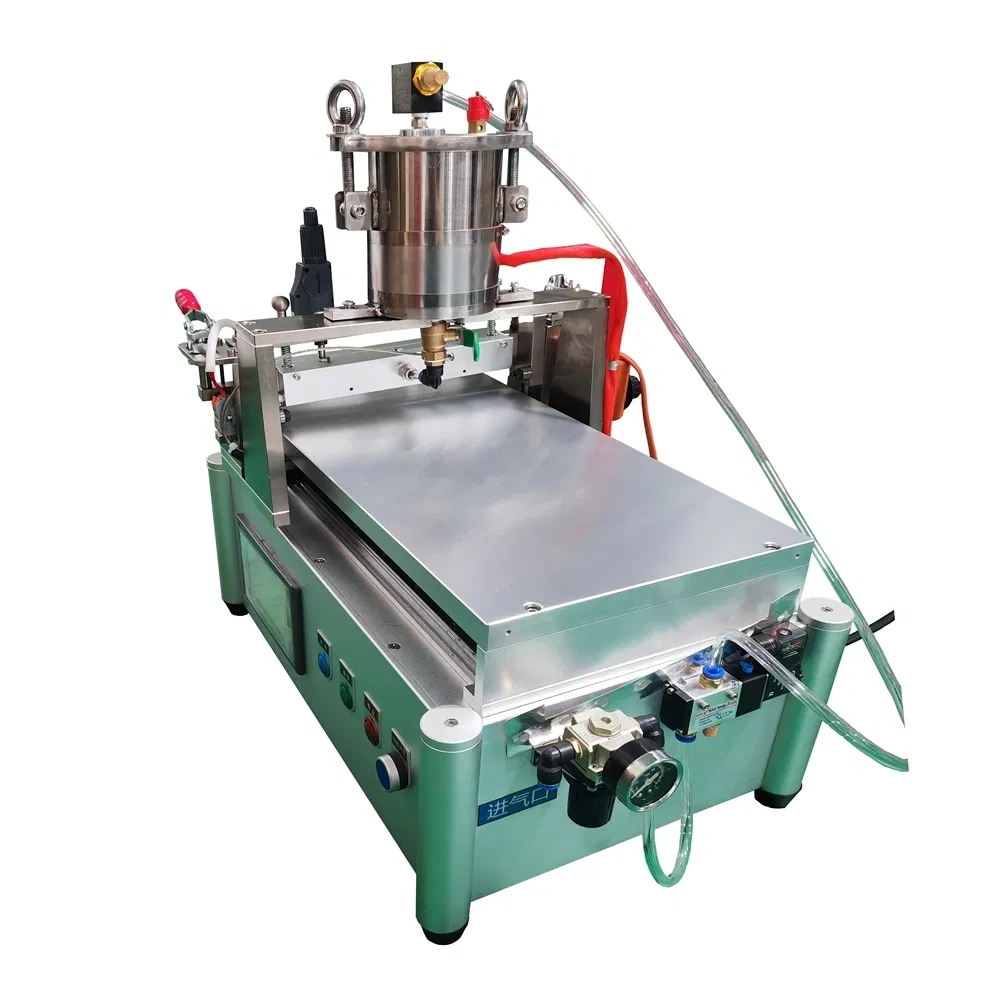

HOT MELT ADHESIVE COATING MACHINE
A hot melt adhesive coating machine is a device used to apply hot melt adhesive on the surface of various materials. Hot melt adhesive is a thermoplastic adhesive that melts into liquid at high temperature and quickly solidifies into a solid bonding layer after cooling.

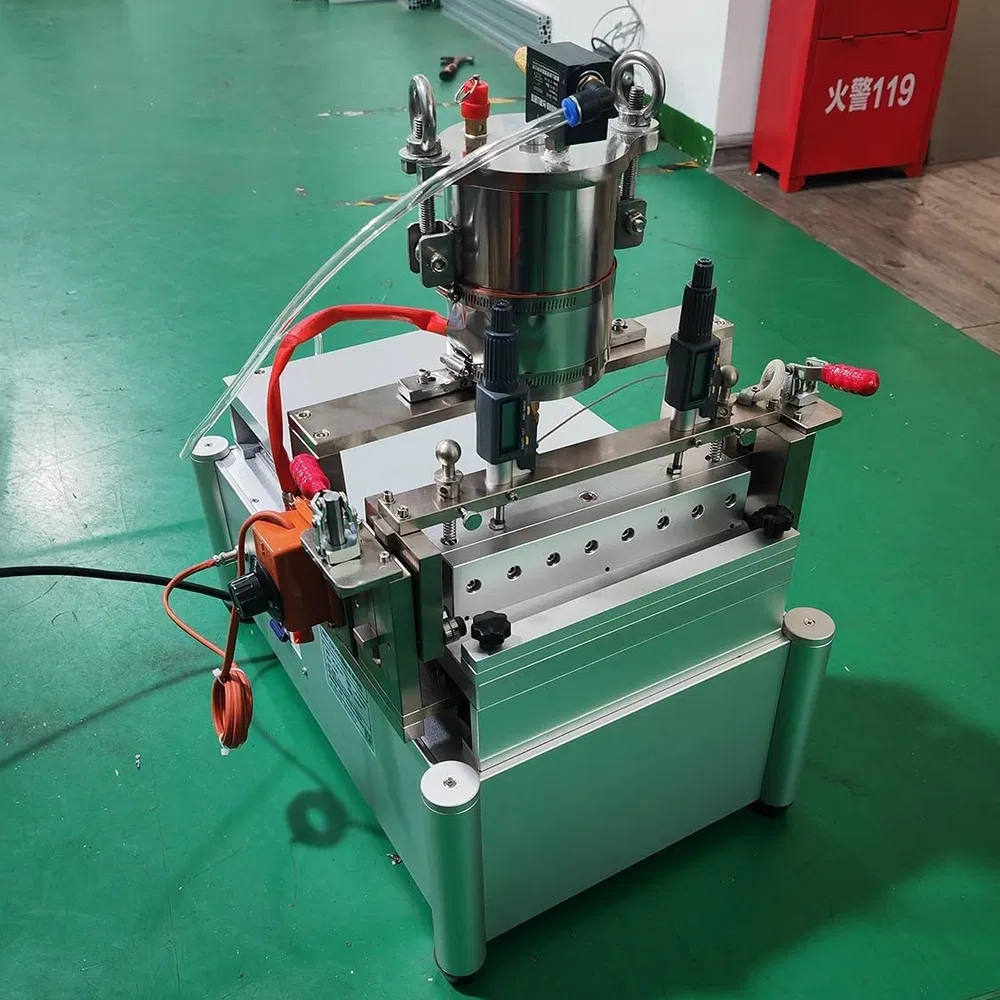

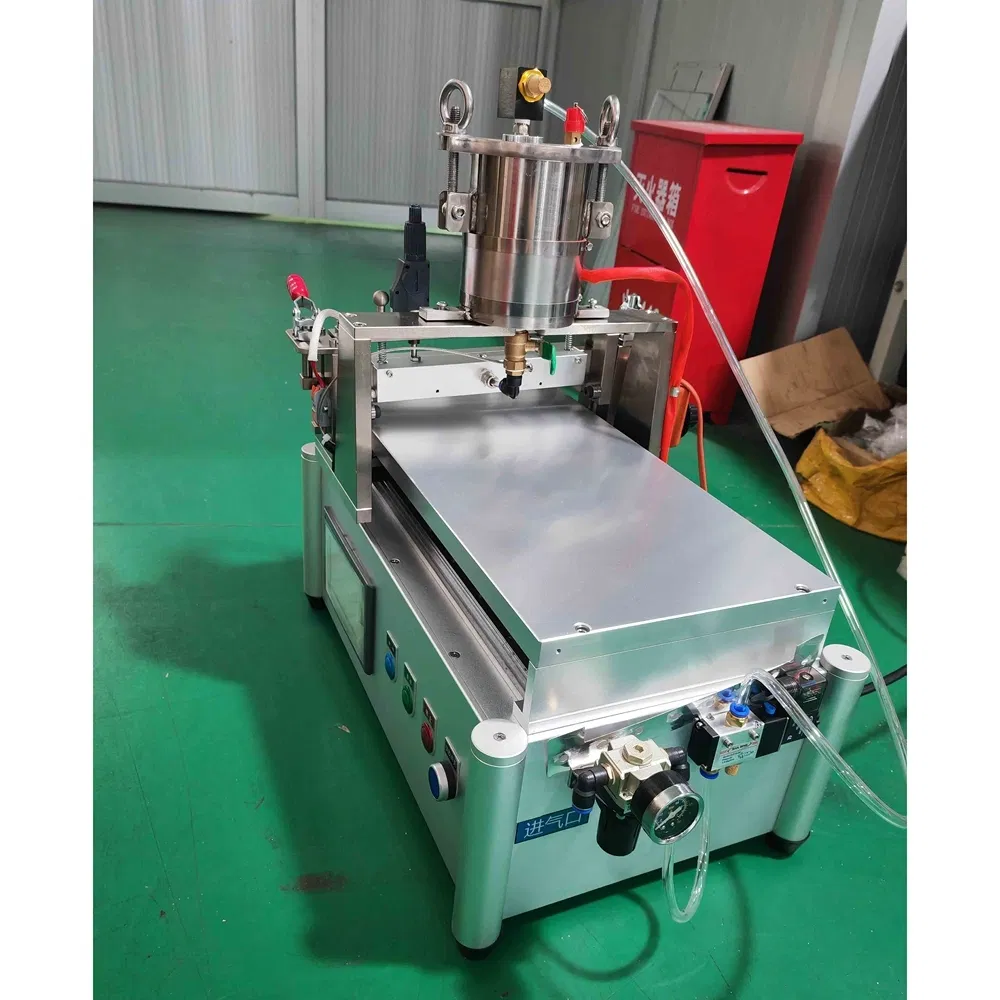

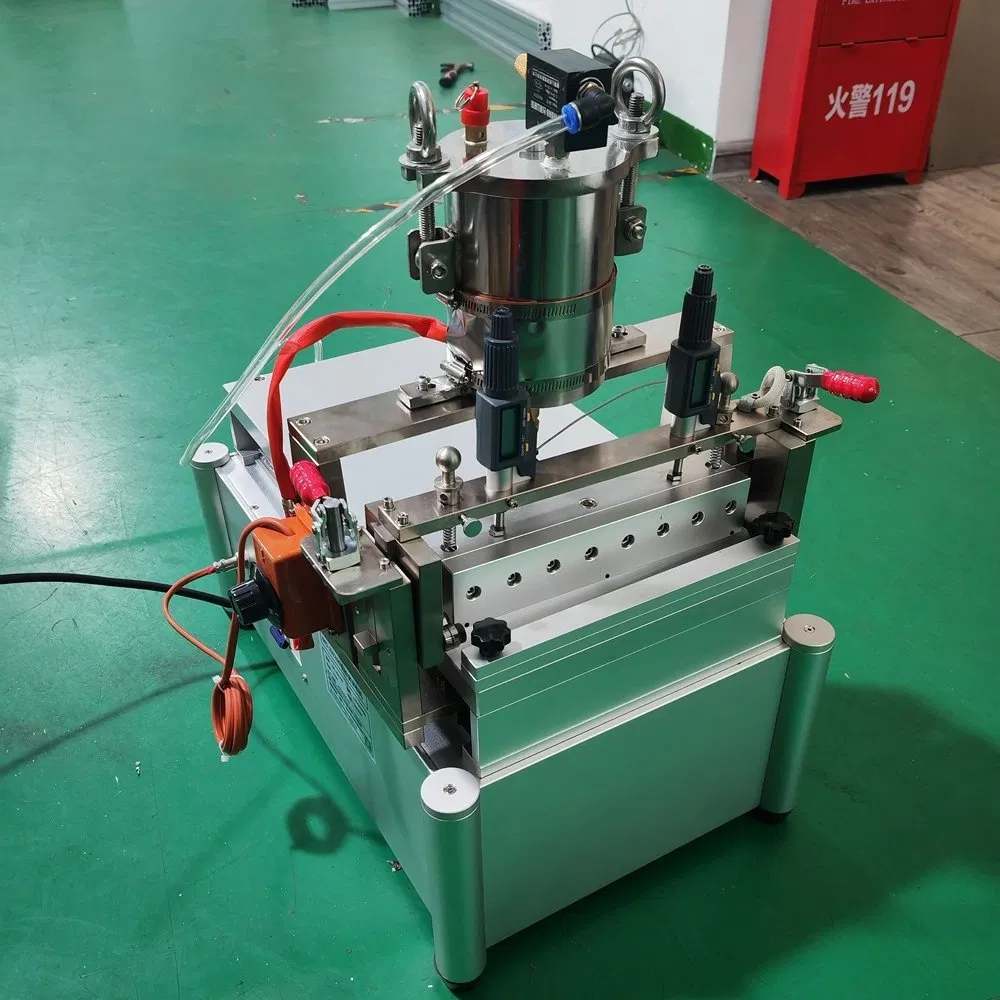

Standard components include a melt glue tank for high-temperature heating, a specialized coating head (rollers, scrapers, or nozzles), and a precision control system to ensure uniform application and bonding quality.
| Feature | Specification |
|---|---|
| Coating Width | 300 mm (Effective) |
| Coating Method | Hot Melt Adhesive Doctor Blade |
| Adhesive Supply | Pneumatic |
| Melt Cylinder Capacity | 1 Liter |
| Coating Thickness | 0.01-1 mm (Accuracy ±5 micrometers) |
| Coating Length | 300mm |
| Heating Temperature | Ambient Temperature - 180ºC |
| Bottom Plate Heating | Heated Bottom Plate |
| Traction Motor | Stepper Motor (With Reducer) |

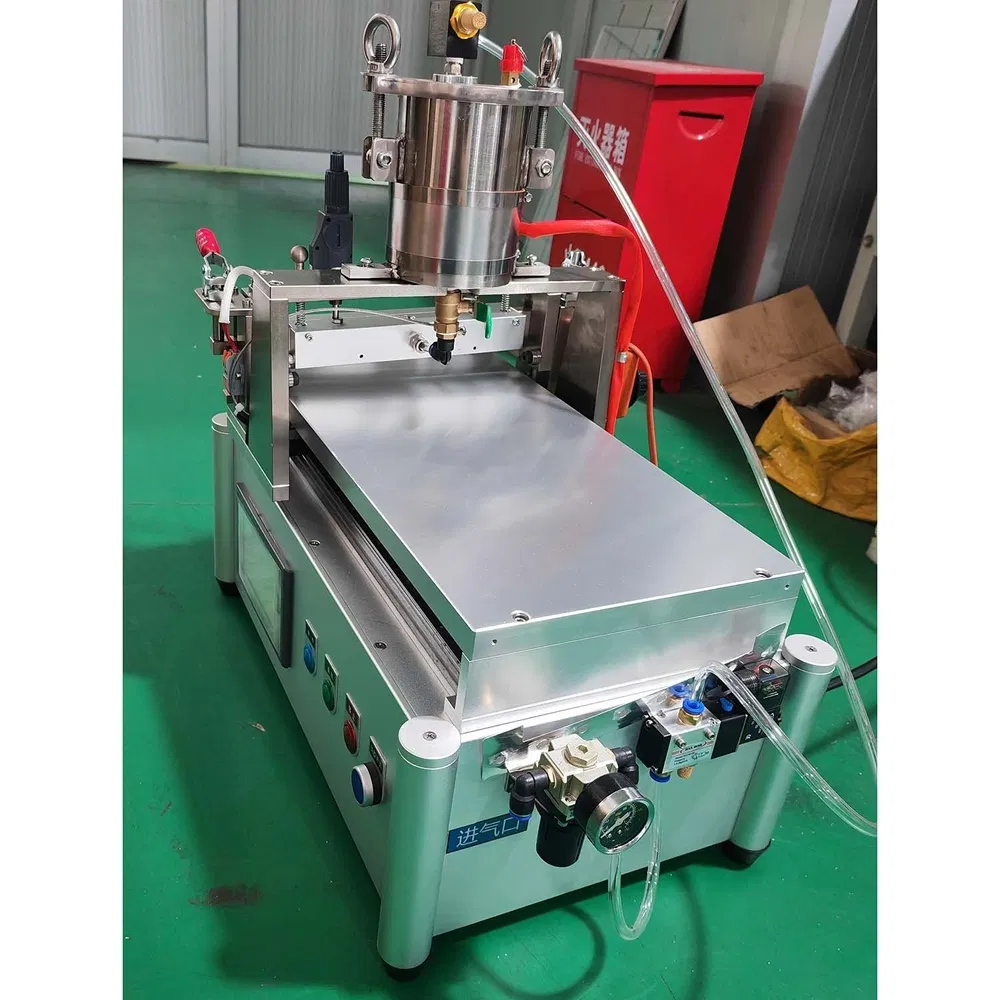

| Tension Control | Single Sheet with Tension Roller |
| Machine Speed | 0.5-3 meters/minute |
| Power Consumption | 6000W / 220V |
FEATURES-1: Versatile Coating
Suitable for full-width and strip coating, using advanced coating heads for accurate adhesive amounts. Capable of double-sided coating and composite functions.
FEATURES-2: Microcomputer Control
Utilizes microcomputer control technology to synchronize glue spraying rates and production speeds automatically.
FEATURES-3: Advanced Sol System
Adopts an advanced sol coating system or online glue making system. High-precision double-layer gear pumps provide synchronous control for high-accuracy coating.
