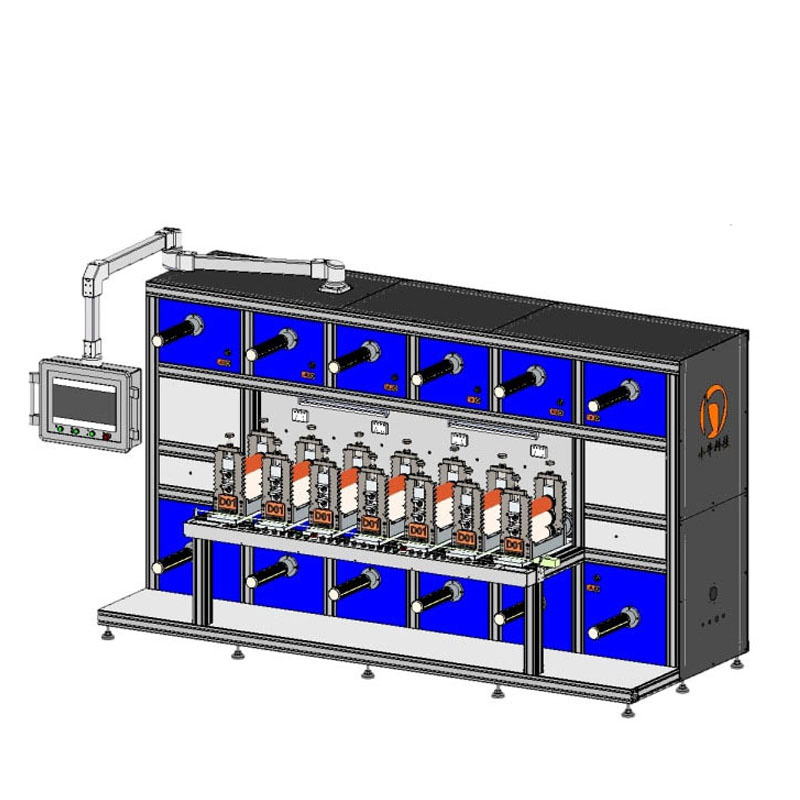

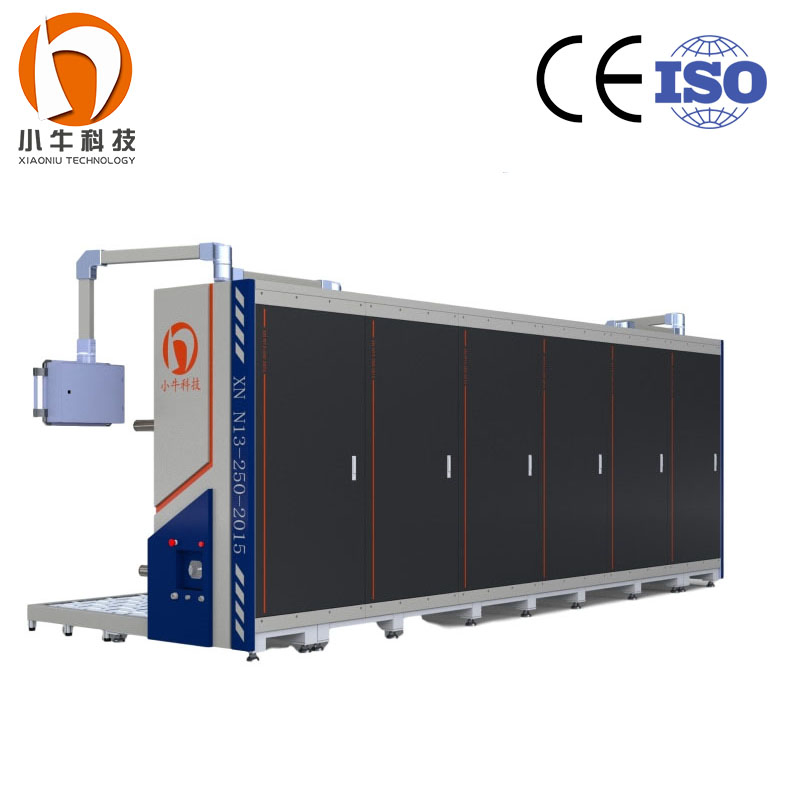

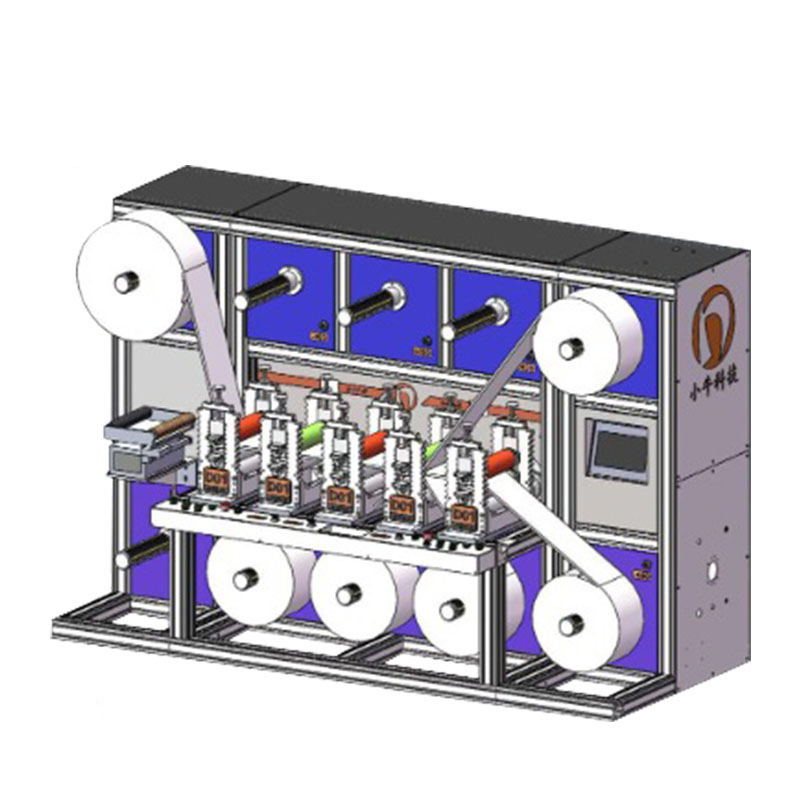

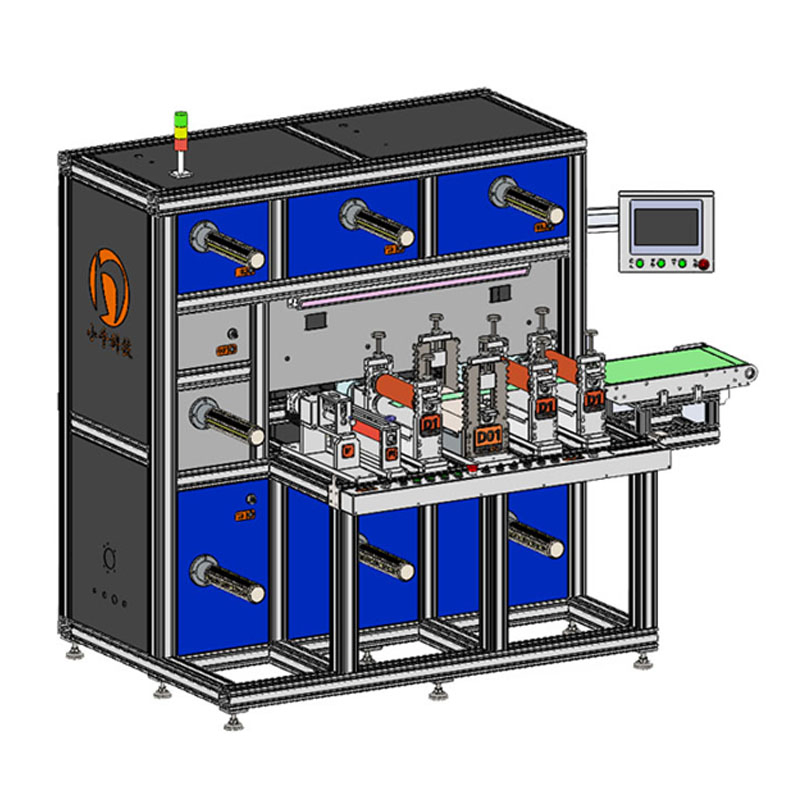

Medical Sterile Dressing Rotary Die-Cutting System
This 7-station rotary die-cutting machine, driven by independent servo motors, functions as a high-precision cohesive unit. It is designed to meet complex production requirements including pressing, die-cutting, and multi-layer transferring. The system integrates advanced functions such as synchronous/asynchronous operation, precise speed ratios, and constant tension control, ensuring intelligent automation for medical grade manufacturing.
High Efficiency: Continuous roll cutting at speeds of 5-60m/min.
2
Extreme Precision: Stable processing with ±0.1mm accuracy.
3
Multi-Station Design: Integrated multi-process compounding and material handling.
4
Full Automation: Intelligent tension control and deviation correction.
Precision Rotary Die-Cutting Equipment
Operational Demonstration
Diverse Product Applications
The equipment is widely used for high-precision mass production in medical consumables, 3C electronics, and new energy sectors.

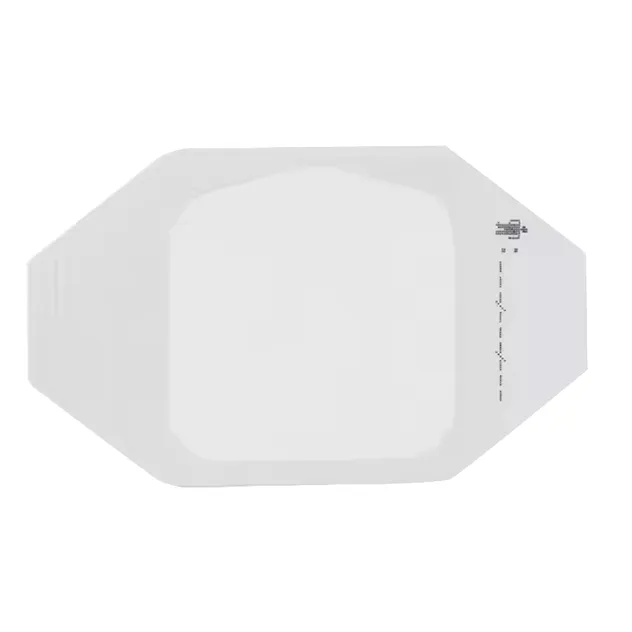

I.V. Dressing
Foam Dressing
Acne Patches

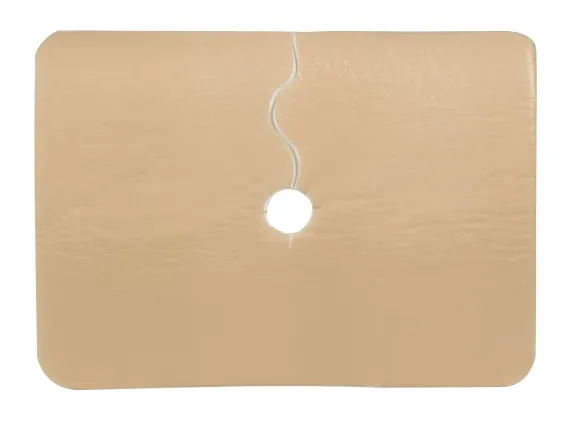

Tracheostomy Dressings
Infusion Dressings
Hydrocolloid Dressings
Technical Specifications
Power (KW)
17.5kw
Working Voltage (V)
AC380 (Customizable)
Feeding Width (mm)
250mm / 350mm (Customizable)
Max. Diameter (roll)
400mm
Cutting Precision
±0.1mm
Production Speed
Up to 60m/min
Package Size
351.00cm * 170.00cm * 240.00cm
Gross Weight
2900kg
Equipment Components & Delivery
Mechanical Core Components
Precision Electronics
Configurable Stations
Frequently Asked Questions
What materials can this machine process?
The system is highly adaptable to all flexible substrates, including medical-grade adhesives, foams, non-woven fabrics, and specialized electronic films.
How precise is the cutting performance?
The machine achieves a cutting precision of ±0.1mm, ensuring consistent quality for sensitive medical dressings and micro-electronic components.
What is the production efficiency?
Depending on the material and configuration, the machine operates at a high-efficiency rate of 5 to 60 meters per minute.
Does the machine support multiple product types?
Yes, the modular design allows for adding stations or changing die-cutters. Machines with 8+ stations can even produce two different products concurrently using dual systems.
What kind of after-sales support is provided?
We offer a standard 1-year warranty, 24/7 technical assistance, and overseas support for training, debugging, and maintenance.
Can the machine be customized for specific needs?
Absolutely. Our R&D team specializes in tailoring station configurations, feeding widths, and integration options (like printing or packaging) to meet your specific production goals.
